FHA-4-15-10

Aluminum Fixed Gantry Crane with Phenolic Locking Casters 15 Ft. x 10 Ft. 4000 Lb. Capacity Silver

The fixed height Aluminum Gantry cranes are ideal for the manufacturing and maintenance facilities. The aluminum construction is easily manageable and can be simply assembled for immediate use. The unit has a fixed height for working in a permanent or semi-permanent environment. The casters allow the user to move the crane from workstation to workstation and smoothly roll over rough surfaces, while not marring. Do not move units while loaded.
Contact Vestil
Key Features
  • Robust construction for long term use
  • Each unit includes four casters for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • Great for long term consistent height projects
Product Image

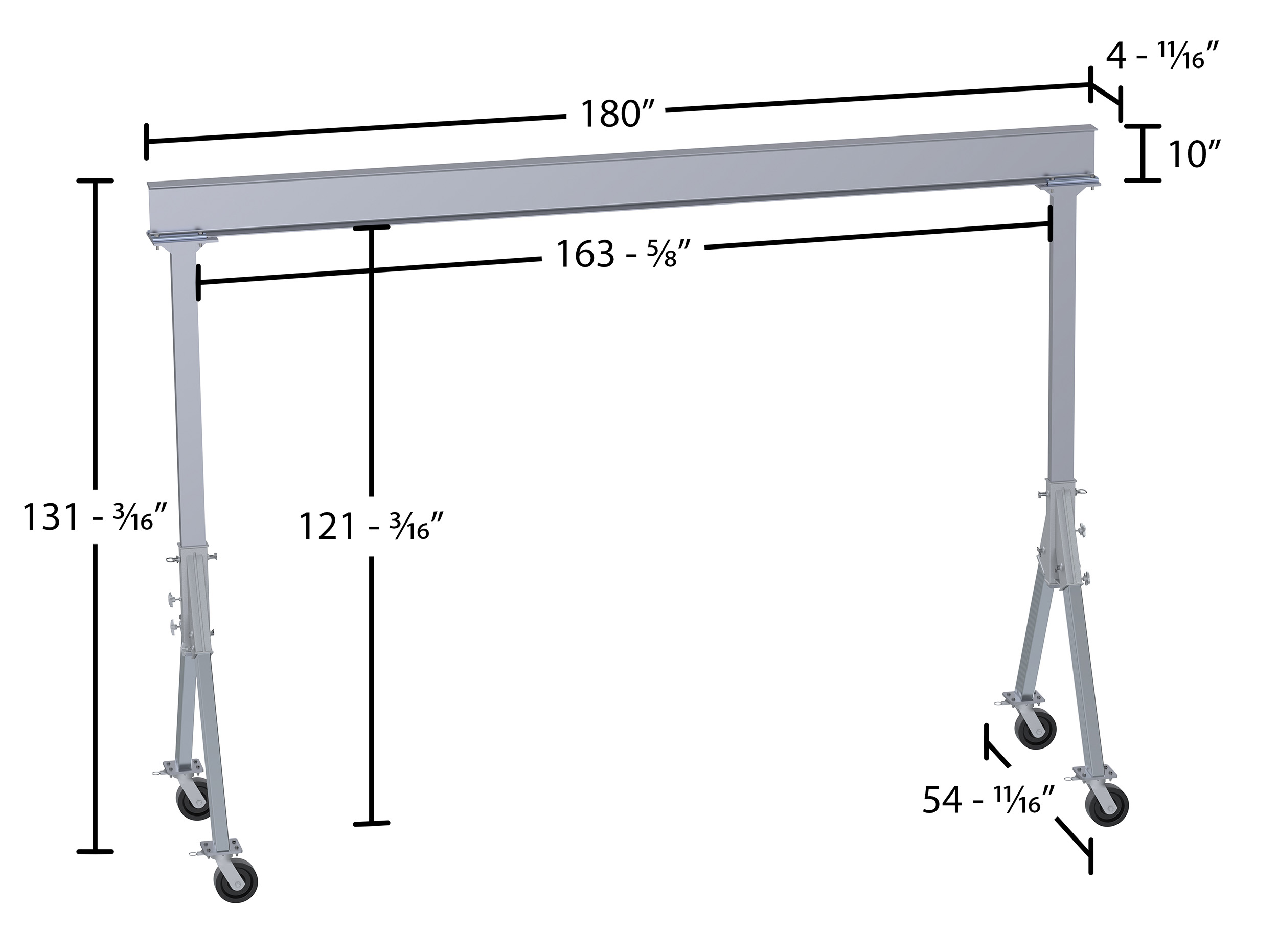

Visual Reference

FHA-4-15-10
FHA-4-15-10
FHA-4-15-10
FHA-4-15-10
FHA-4-15-10
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 411 lbs
Assembled Size 53.9375"W x 180"L x 130"H
Total Ship Weight 442 lbs
Package 1 Size 29"W x 180"D x 18"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 4,000
Overall I-Beam Length (in.) 180
Overall I-Beam Height (in.) 10
I-Beam Flange Width (in.) 4-11/16
Under I-Beam to Ground (in.) 120
Base Width (in.) 53-15/16
Caster Quantity/Diameter/Width (in.) (4) 8 x 2
Caster Type Swivel (4) Position Locking Casters
Caster Material Phenolic
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FHA-4-15-10

FHA-4-15-10

Aluminum Fixed Gantry Crane with Phenolic Locking Casters 15 Ft. x 10 Ft. 4000 Lb. Capacity Silver

The fixed height Aluminum Gantry cranes are ideal for the manufacturing and maintenance facilities. The aluminum construction is easily manageable and can be simply assembled for immediate use. The unit has a fixed height for working in a permanent or semi-permanent environment. The casters allow the user to move the crane from workstation to workstation and smoothly roll over rough surfaces, while not marring. Do not move units while loaded.

  • Robust construction for long term use
  • Each unit includes four casters for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • Great for long term consistent height projects

Core Data

Assembled Weight: 411 Assembled Size: 53.9375"W x 180"L x 130"H Color: Silver
Total Ship Weight: 442 Package 1 Size: 29"W x 180"D x 18"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 4,000
Overall I-Beam Length (in.): 180
Overall I-Beam Height (in.): 10
I-Beam Flange Width (in.): 4-11/16
Under I-Beam to Ground (in.): 120
Base Width (in.): 53-15/16
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Caster Type: Swivel (4) Position Locking Casters
Caster Material: Phenolic
