DCBB-B-KIT

Steel Dock Chain Barrier Bollard Conversion Hardware Kit Yellow

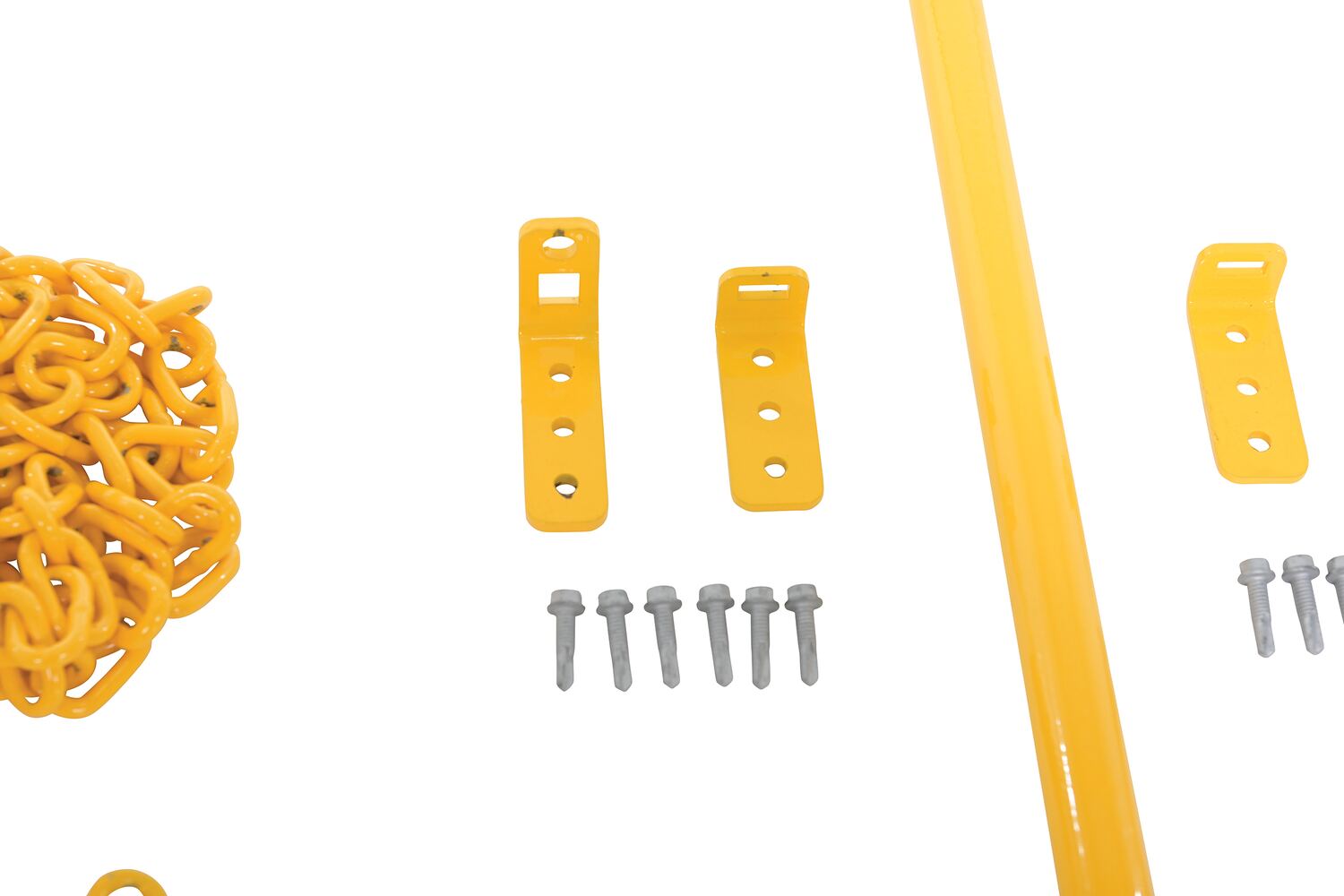

The bollard conversion kit is a great addition to the bollard barrier system. The kit is ideally used to convert existing bollards into barrier systems. The kit includes four (4) bollard mounting brackets, (12) twelve self tapping screws, (1) post welded bracket, and (4) four quick links. This kit is not compatible with 2 inch diameter bollards or 24 inch tall bollards.
Contact Vestil QuickShip
Key Features

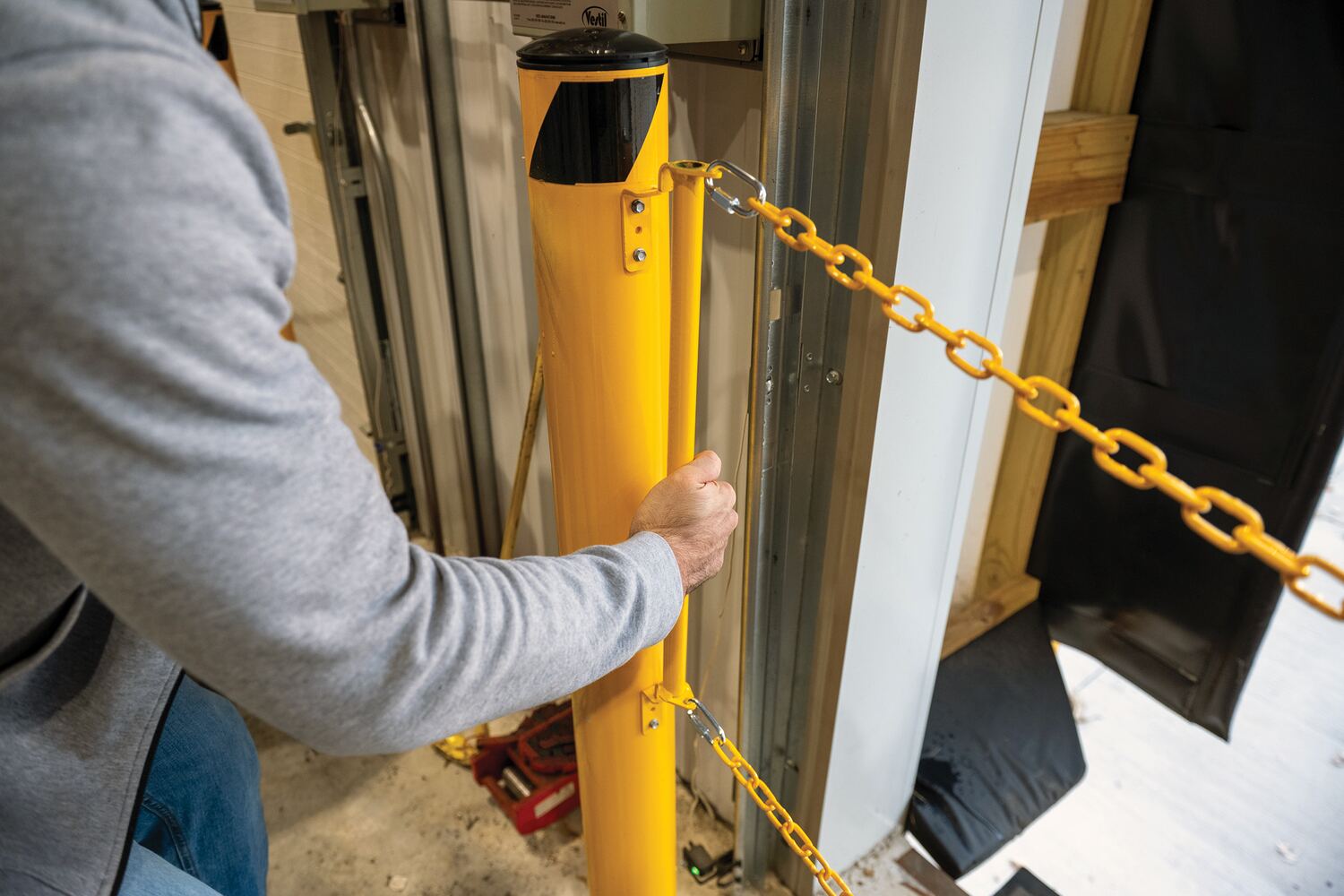

  • Provides solution for attaching chain to existing bollards
  • Simple installation enables immediate use
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal safety
Product Image

Visual Reference

DCBB-B-KIT
DCBB-B-KIT
DCBB-B-KIT
DCBB-B-KIT
DCBB-B-KIT
DCBB-B-KIT
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 2 lbs
Assembled Size 2"W x 2"L x 20.0625"H
Total Ship Weight 3 lbs
Package 1 Size 4"W x 22"D x 4"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Mounting Bracket Quantity 4
Self Tapping Screw Quantity 16
Chain Post Handle Quantity 1
Quick Links (qty.) 4
Impact Resistance only rated for personnel barrier of 250 lbs. load
Mounting Bracket Height (in.) 2-11/16
Mounting Bracket Length (in.) 2-13/16
Mounting Bracket Width (in.) 7/8
Chain Post Handle Length (in.) 20-1/16
Chain Post Handle Width (in.) 7/8
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   90 Days Warranty
Extended Product Details
