DCBB-42-5.5

Steel Dock Chain Barrier Bollard 5.5 In. Diameter Yellow

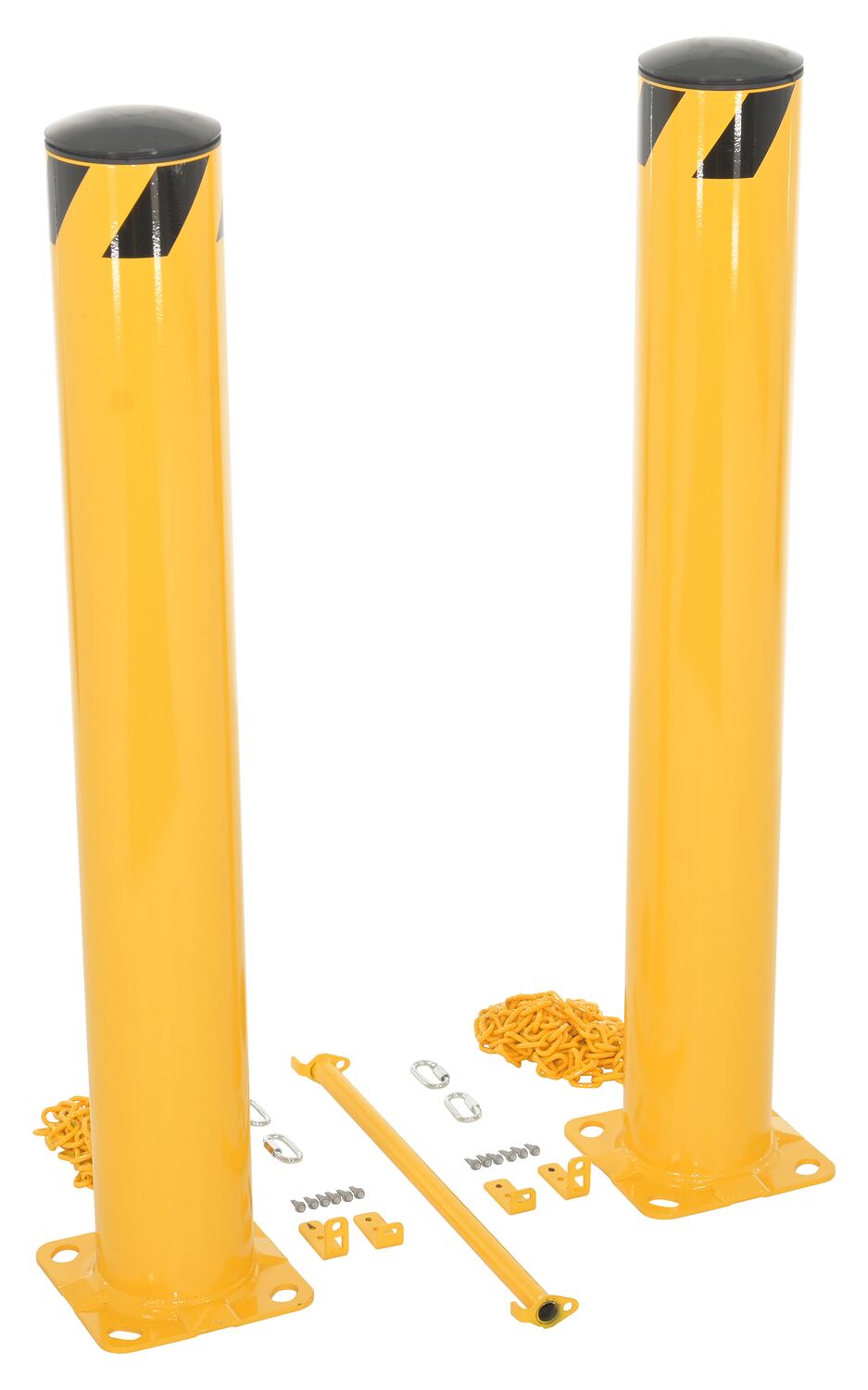

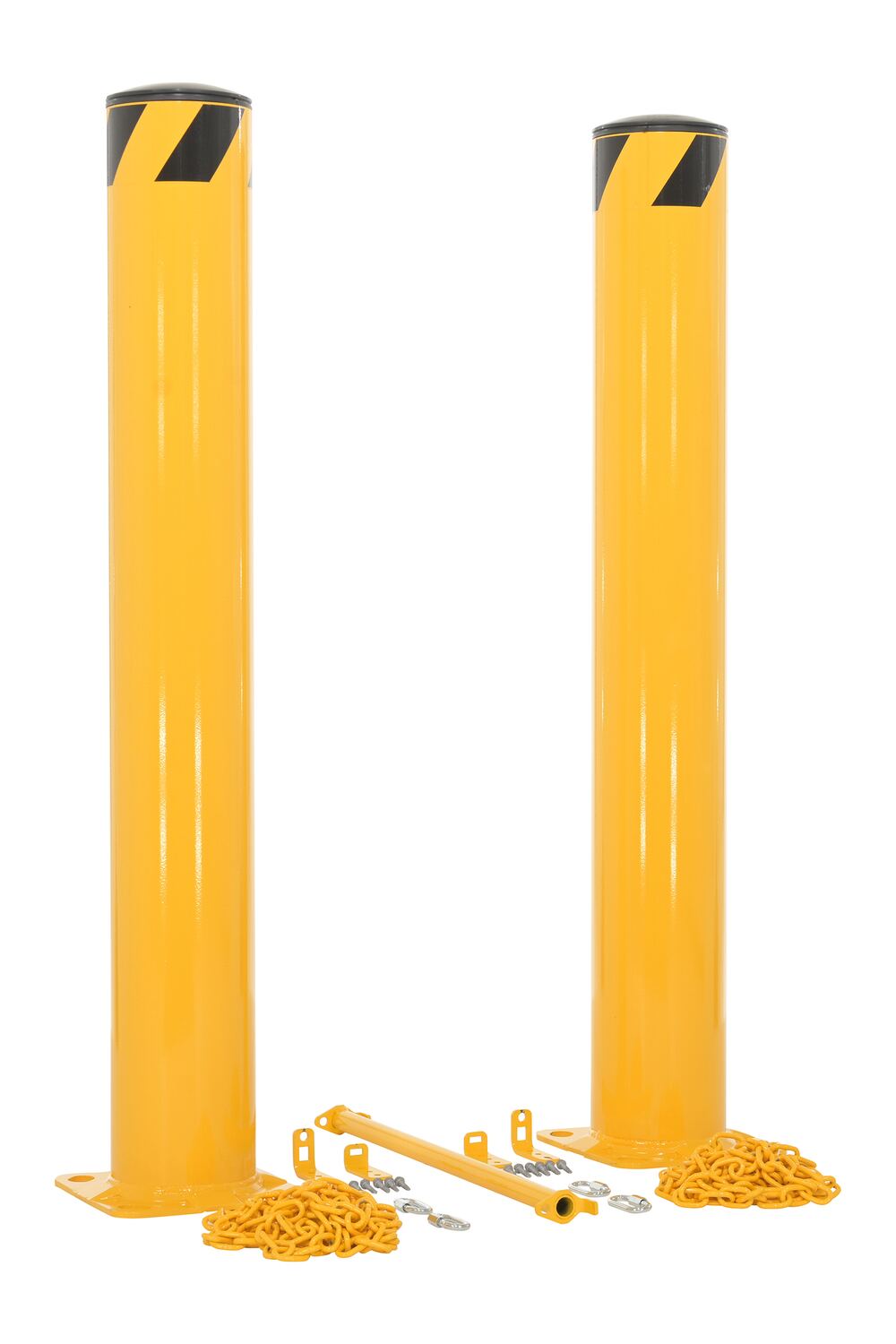

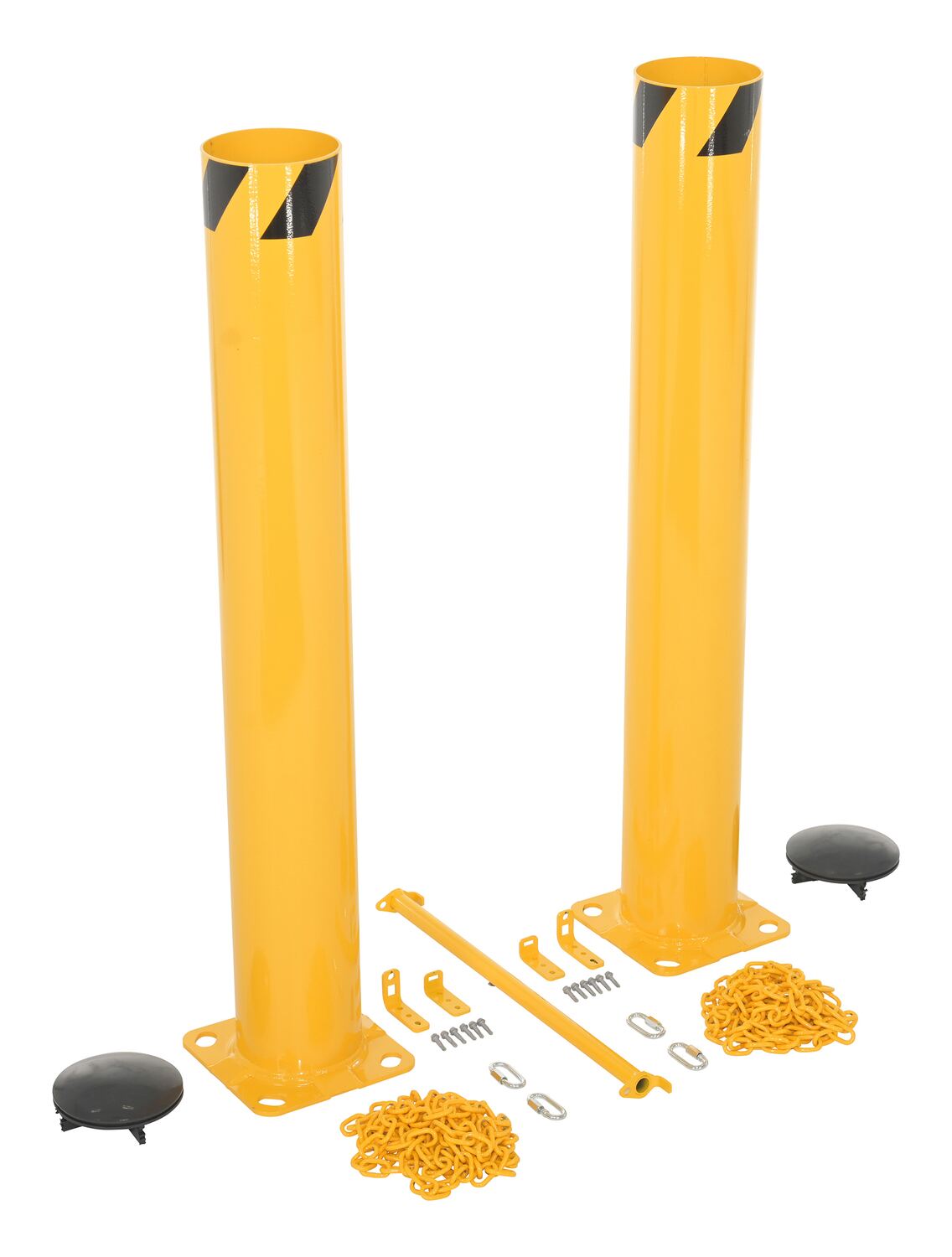

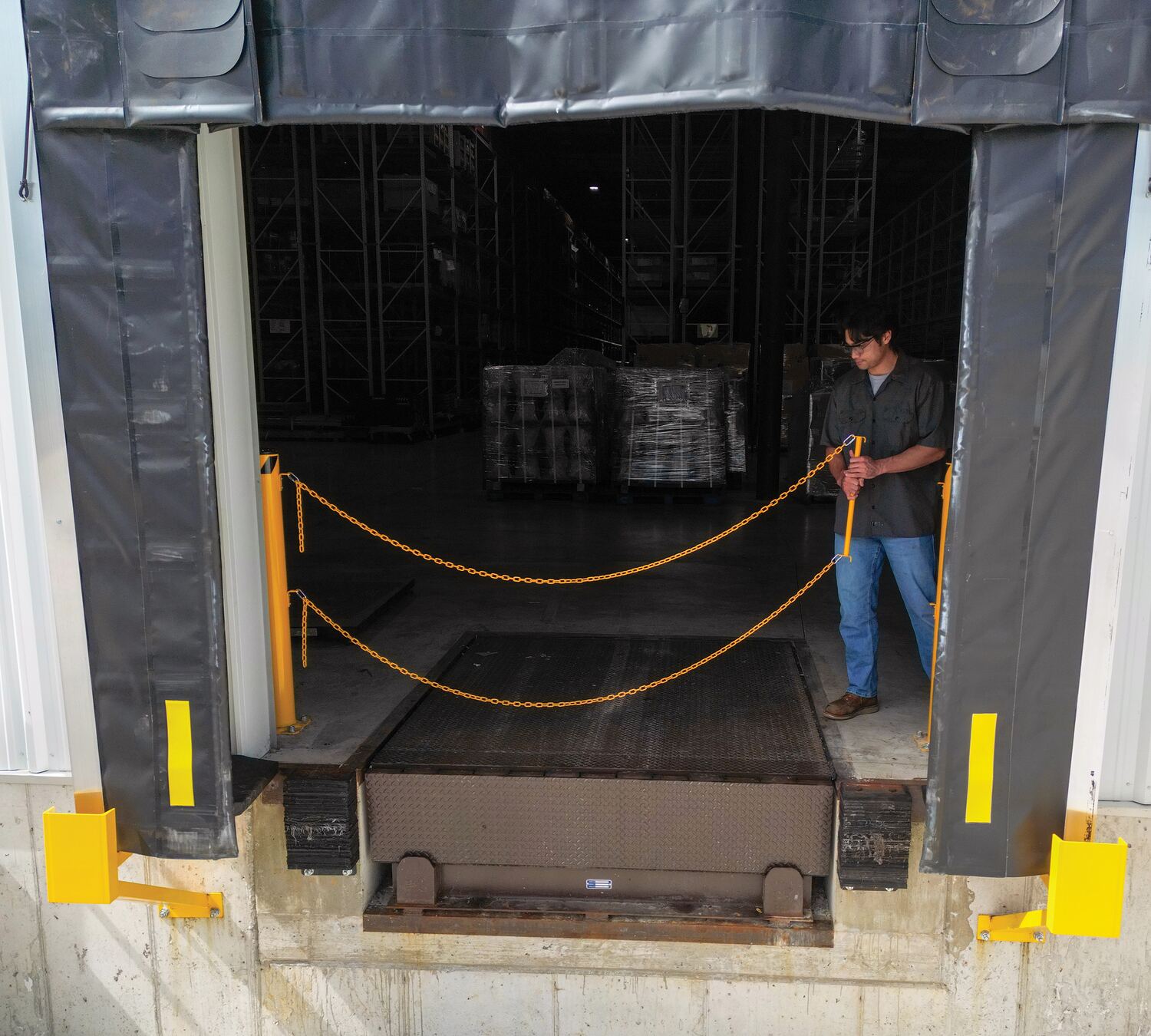

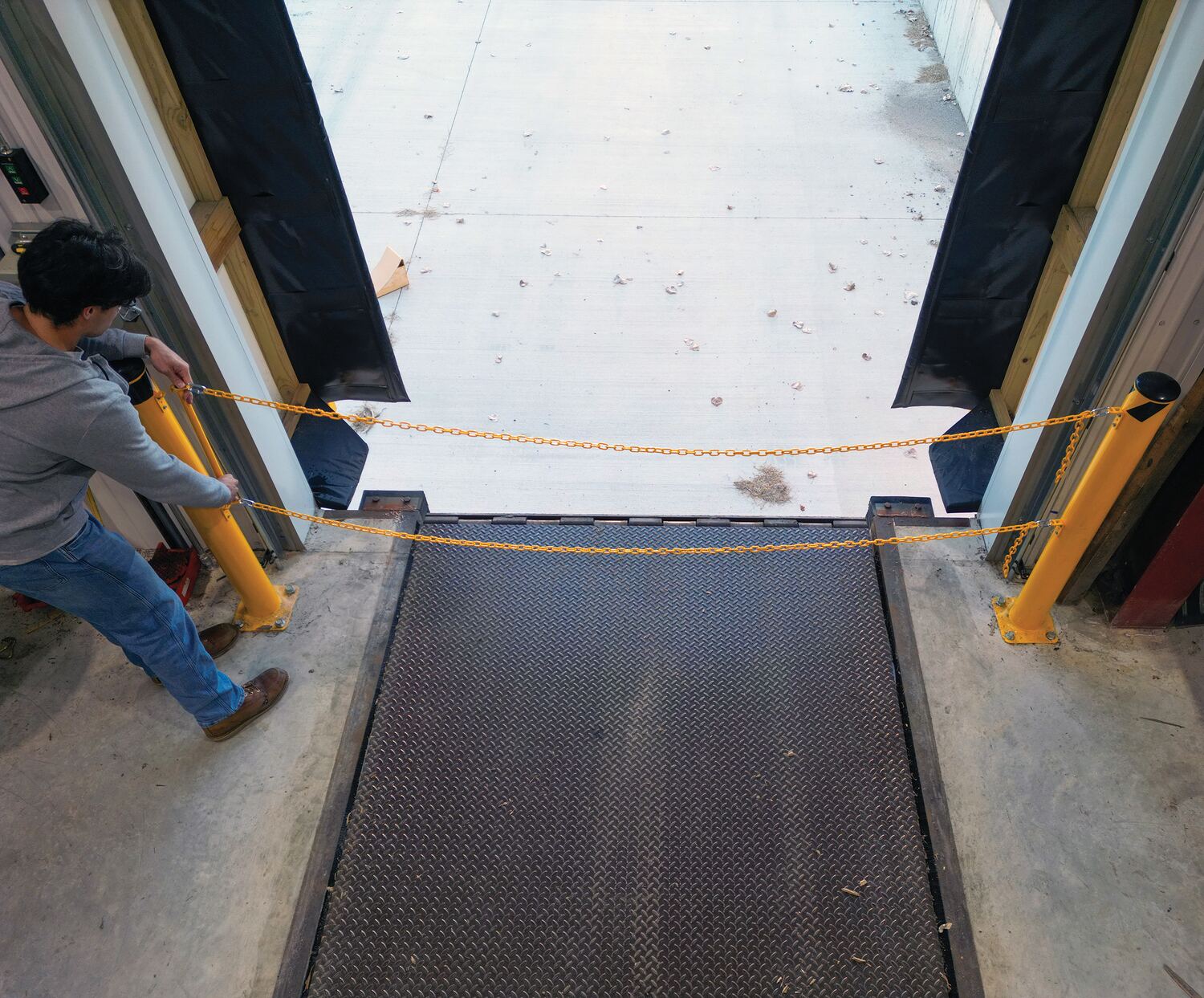

The dock chain barrier system creates a safe environment for both personnel and products. The steel constructed double chain adds extra security for door up to 10'. Unit is designed with a safety yellow finish for clear visibility and a bolt on chain hook-up enabling quick installation or removal. The chain can be cut to a specific size upon request. The barrier system includes (2) two bollards, (2) 127" long chains and (1) one bollard conversion kit. The conversion kit includes four (4) bollard mounting brackets, (16) sixteen self tapping screws, (1) post unfoldment bracket, and (4) four quick links.
Contact Vestil QuickShip
Key Features
  • Dock chain barrier bollard creates a safe environment around the dock area
  • Chains can be mounted at 21" and 39" high on the bollard
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
New Product Images Coming Soon - Design change
Product Image

Visual Reference

DCBB-42-5.5
DCBB-42-5.5
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 74 lbs
Assembled Size 8"W x 147.75"L x 42.8125"H
Total Ship Weight 64 lbs
Package 1 Size 9"W x 44"D x 9"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Bollard quantity 2
Bollard Diameter (in.) 5-9/16
Chain Quantity/Length (in.) (2) 127
Mounting Bracket (qty.) 4
Self Tapping Screw (qty.) 16
Chain Post Handle (qty.) 1
Quick Links (qty.) 4
Accommodated Door Width (ft.) 10
Impact Resistance Each BOL = 4,000 @ 4mph, connecting chain = only rated for personnel barrier of 250 lbs. load
Overall Length (in.) 147-3/4
Overall Width (in.) 8
Overall Height (in.) 42-3/16
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: DCBB-42-5.5

DCBB-42-5.5

Steel Dock Chain Barrier Bollard 5.5 In. Diameter Yellow

The dock chain barrier system creates a safe environment for both personnel and products. The steel constructed double chain adds extra security for door up to 10'. Unit is designed with a safety yellow finish for clear visibility and a bolt on chain hook-up enabling quick installation or removal. The chain can be cut to a specific size upon request. The barrier system includes (2) two bollards, (2) 127" long chains and (1) one bollard conversion kit. The conversion kit includes four (4) bollard mounting brackets, (16) sixteen self tapping screws, (1) post unfoldment bracket, and (4) four quick links.

  • Dock chain barrier bollard creates a safe environment around the dock area
  • Chains can be mounted at 21" and 39" high on the bollard
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results

Core Data

Assembled Weight: 74 Assembled Size: 8"W x 147.75"L x 42.8125"H Color: Yellow
Total Ship Weight: 64 Package 1 Size: 9"W x 44"D x 9"H Freight: Parcel

Specifications

Bollard quantity: 2
Bollard Diameter (in.): 5-9/16
Chain Quantity/Length (in.): (2) 127
Mounting Bracket (qty.): 4
Self Tapping Screw (qty.): 16
Chain Post Handle (qty.): 1
Quick Links (qty.): 4
Accommodated Door Width (ft.): 10
Impact Resistance: Each BOL = 4,000 @ 4mph, connecting chain = only rated for personnel barrier of 250 lbs. load
Overall Length (in.): 147-3/4
Overall Width (in.): 8
Overall Height (in.): 42-3/16
