Model Details

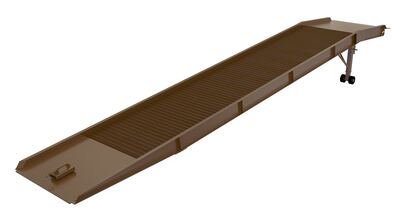

The portable steel Yard Ramp quickly loads and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites. A manual two-speed hand crank for easy one (1) person height adjustment. The standard features include: positive traction open steel grating, safety locking chains, rubber bumpers and fork positioning loop. Painted neutral earth-tone brown. Includes landing gear and crank mechanism.
Uniform Capacity (lb.): 20000 | Overall Ramp Width (in.): 73 | Usable Ramp Width (in.): 66 |
Caster Material: Steel | Caster Diameter (in.): 8-5/8 | Caster Width (in.): 3-5/8 |
Safety Curb (in.): 4 | Usable Lip Support Edge (in.): 13-7/8 | Lowered Height (in.): 45 |
Raised Height (in.): 62 | Straight Ramp (in.): 360 | Level Off (in.): 72 |
Deck Type: Grating |
Details For Model: YR-20-7336 |
||||||||||||||||||||||||||||||
Steel Overlap Yard Ramp 73 In. x 36 Ft. 20,000 lb. Capacity Earth Tone BrownThe portable steel Yard Ramp quickly loads and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites. A manual two-speed hand crank for easy one (1) person height adjustment. The standard features include: positive traction open steel grating, safety locking chains, rubber bumpers and fork positioning loop. Painted neutral earth-tone brown. Includes landing gear and crank mechanism.
|
||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||
