Model Details

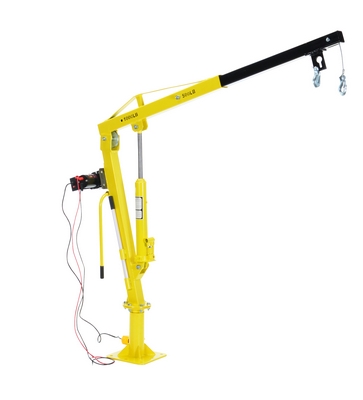

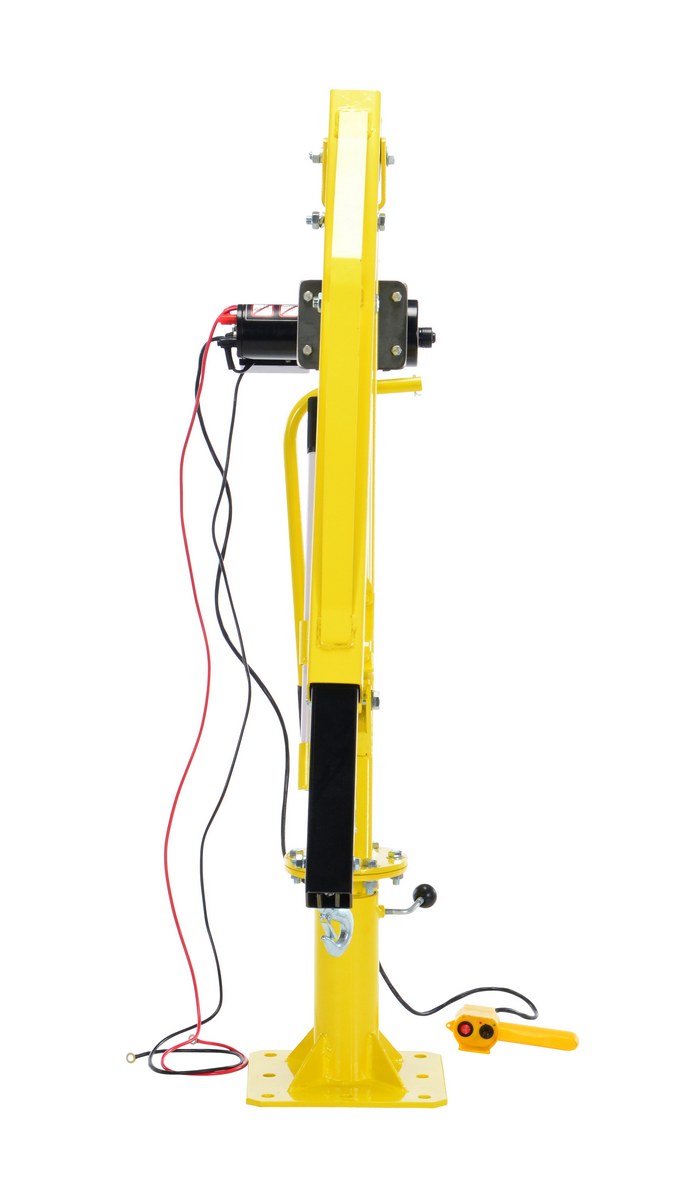

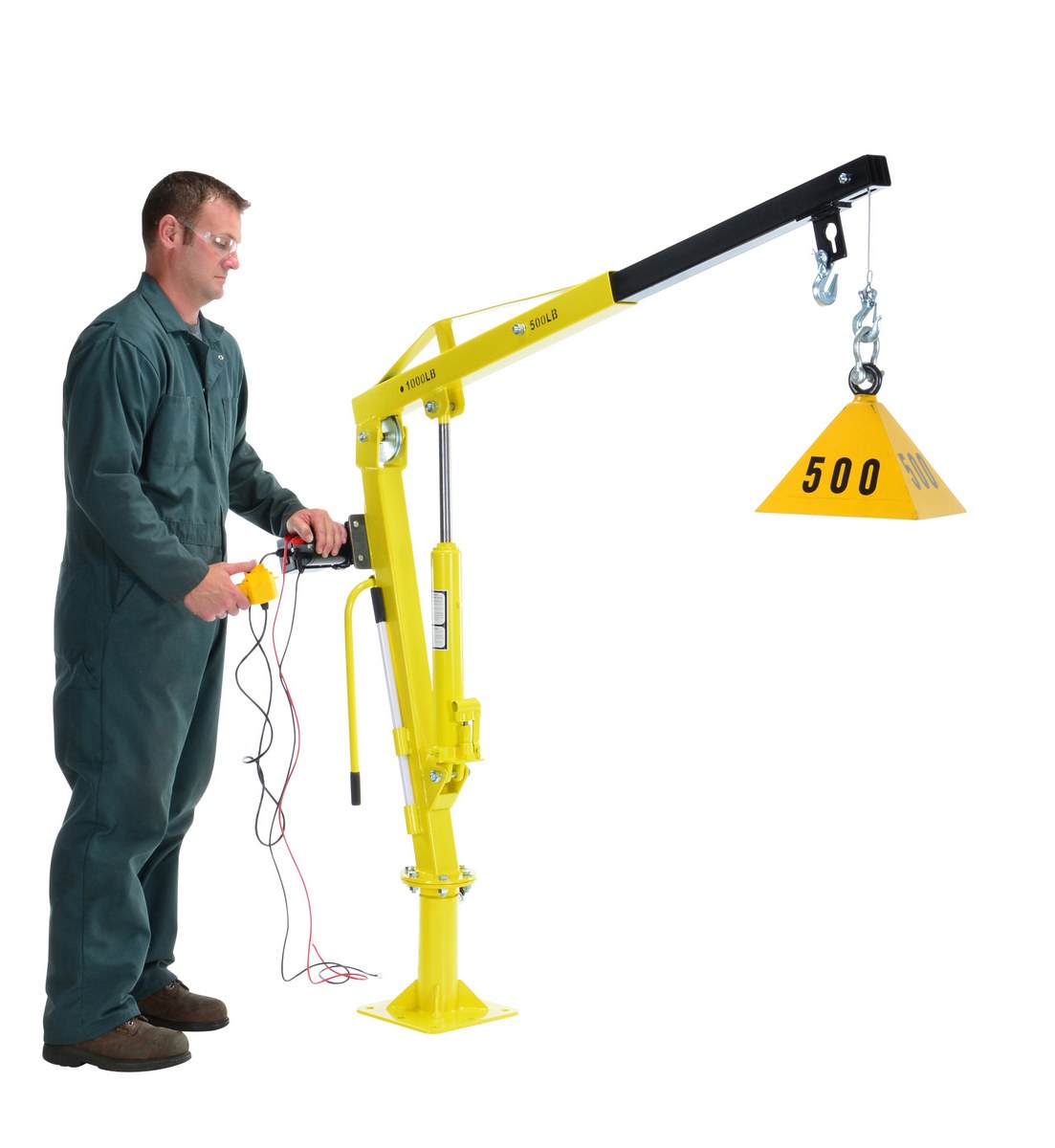

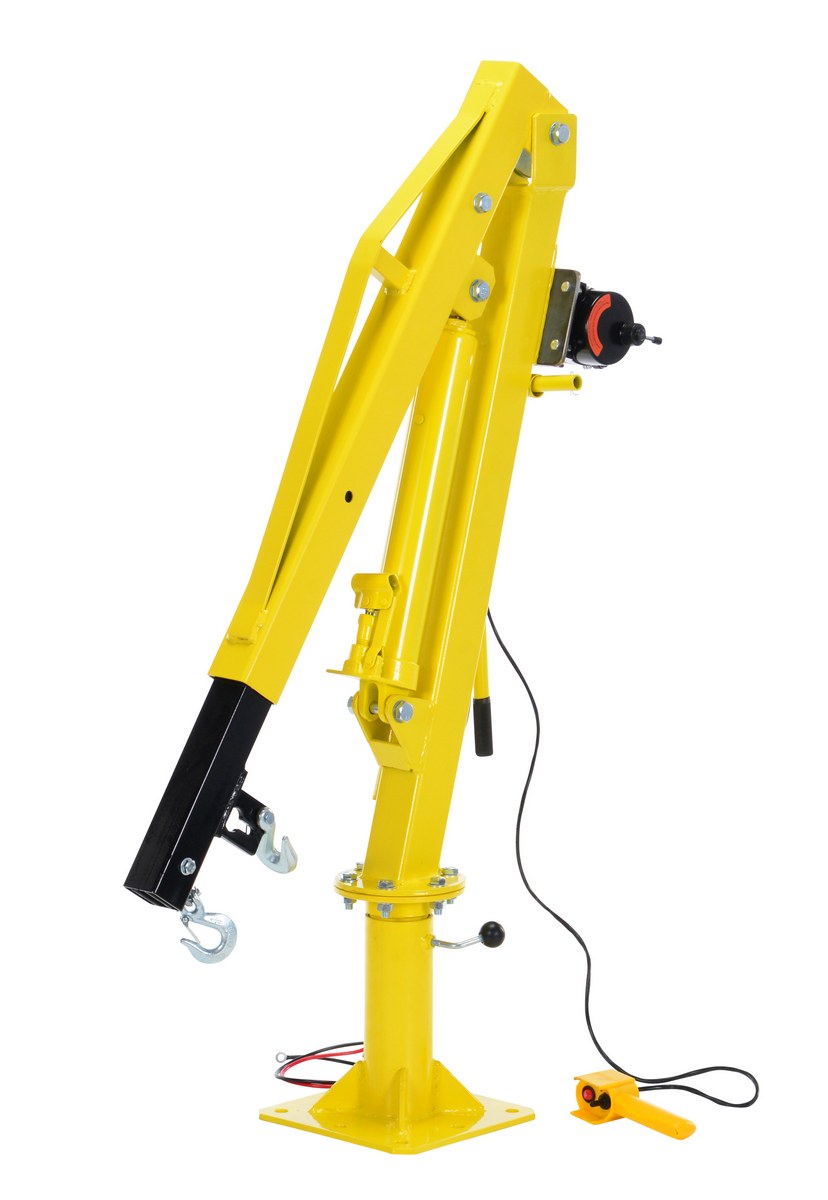

Installed in your pick-up truck bed, this winch operated jib crane will help lift loads. Lift items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. DC powered cable winch to lift and lower loads. Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch.
Uniform Cable Winch Capacity (lb.): 500 | Extended Fixed Hook Capacity (lb.): 500 | Extended Usable Reach (in.): 52 |
Extended Maximum Hook Height (in.): 99 | Extended Minimum Hook Height (in.): Zero | Retracted Fixed Hook Capacity (lb.): 1,000 |
Retracted Usable Reach (in.): 30-1/2 | Retracted Maximum Hook Height (in.): 84 | Retracted Minimum Hook Height (in.): 12-1/2 |
Overall Cable Length (ft.): 32 | Usable Cable Length (ft.): 24 | Cable Diameter (in.): 3/16 |
Mounting Plate Length (in.): 11 | Mounting Plate Width (in.): 11 | Base Height (in.): 11-1/2 |
Rotation (degrees): 360 |
Details For Model: WTJ-2-DC |
|||||||||||||||||||||||||||||||||
Steel DC Powered Winch Truck Jib Crane 500 Lb. Extended Capacity YellowInstalled in your pick-up truck bed, this winch operated jib crane will help lift loads. Lift items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. DC powered cable winch to lift and lower loads. Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch.
|
|||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
