Model Details
Achieve maximum floor space and utilize wasted air space. Mount this high clearance style Jib to walls or columns to increase hook coverage over workstations. All steel construction provides years of service. Hoist and trolley can be ordered separately.
Uniform Capacity (lb.): 1,000 | Tie Bar Length (in.): 76-3/4 | I-Beam (Flange x Height) (in.): 2-11/16 x 4 |
Usable I-Beam Length (in.): 79-3/4 | Rotation (degrees): 180 | Operation Mode: Manual |
Tie Bar Diameter (in.): 3/4 |

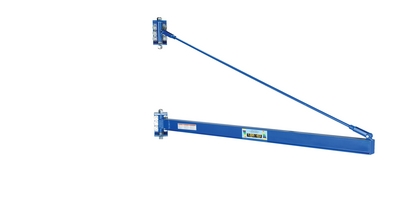

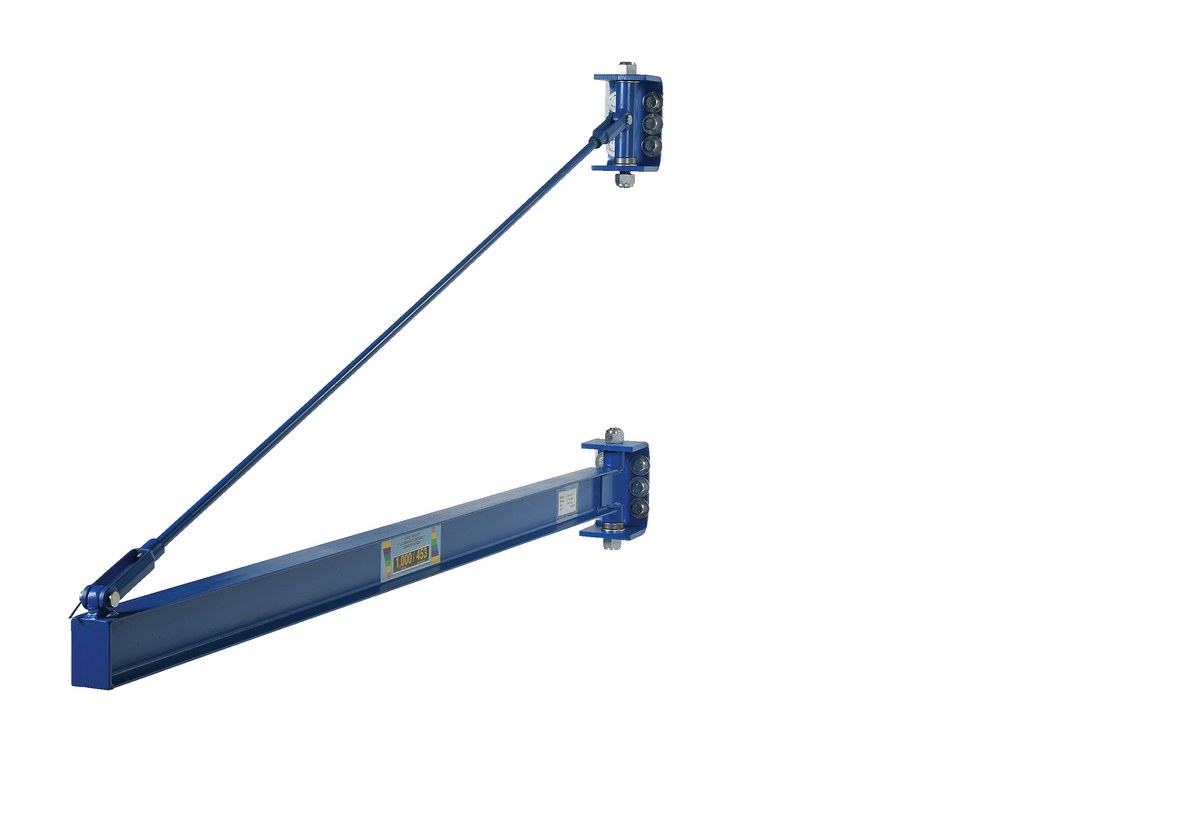

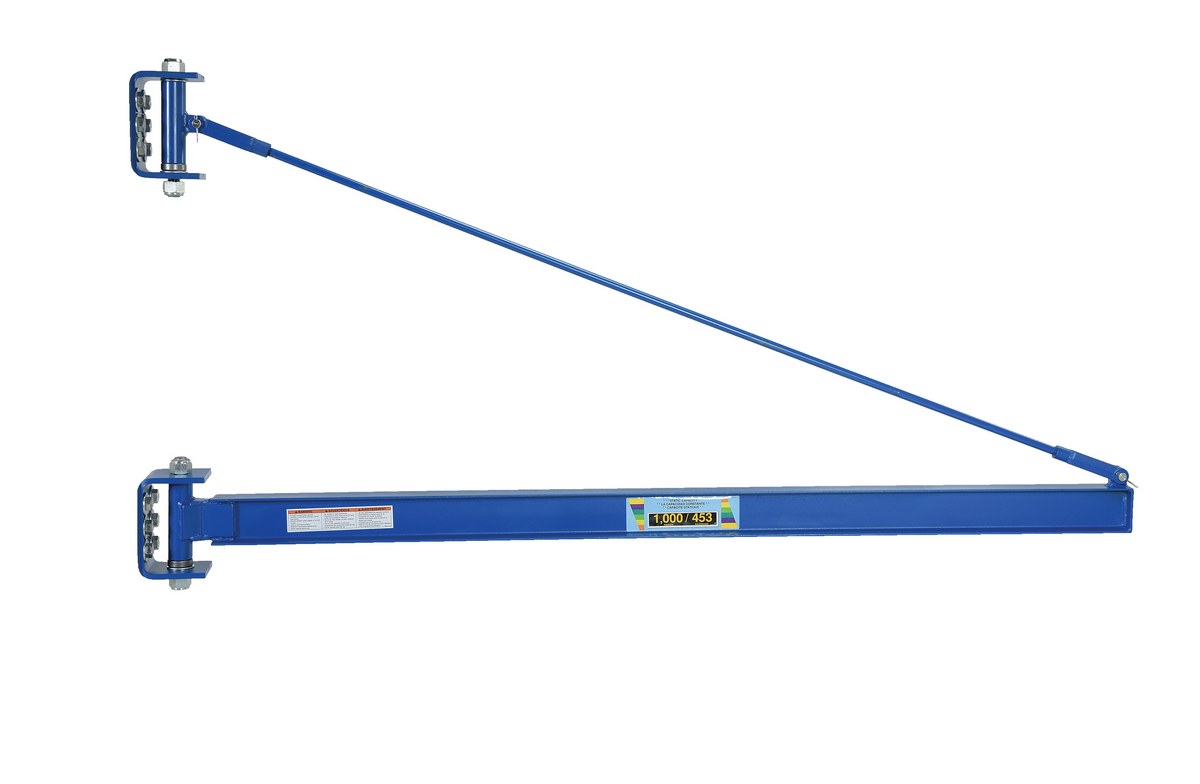

Details For Model: JIB-HC-10 |
||||||||||||||||||||||||
Steel High Clearance Tie Rod Jib 79-3/4 In. I-Beam 1000 Lb. Capacity BlueAchieve maximum floor space and utilize wasted air space. Mount this high clearance style Jib to walls or columns to increase hook coverage over workstations. All steel construction provides years of service. Hoist and trolley can be ordered separately.
|
||||||||||||||||||||||||
|
||||||||||||||||||||||||
