Extruded Bumpers

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

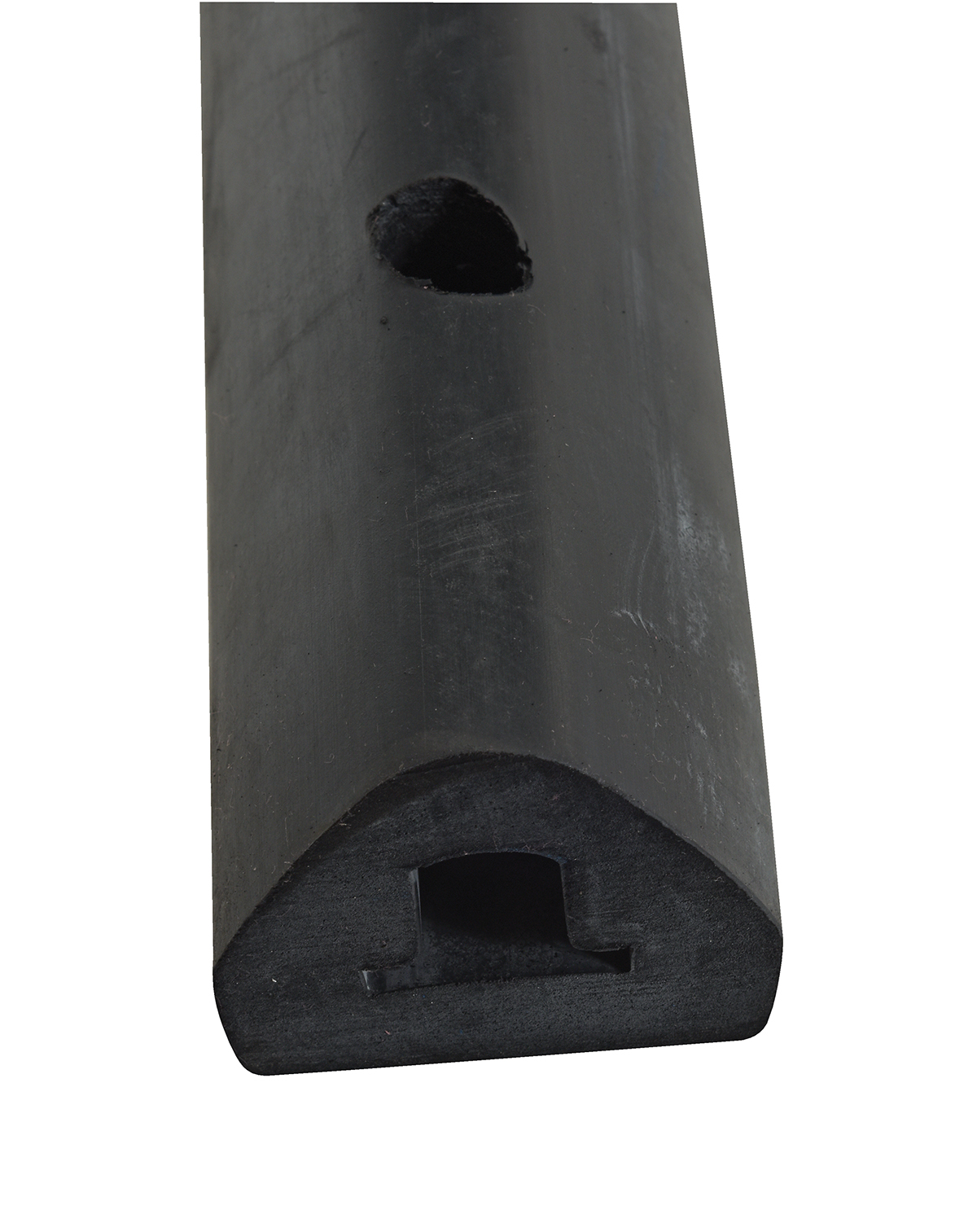

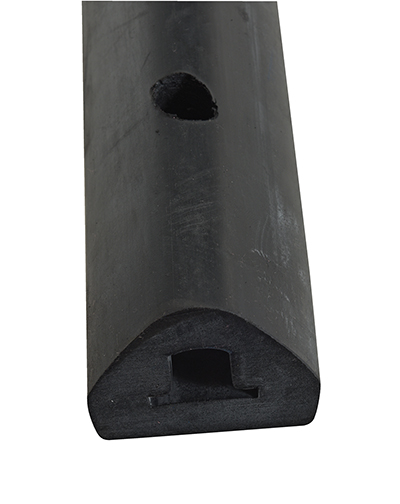

M-2-18_E.jpg M-2-18_B.jpg M-2-18_C.jpg M-2-18_D.jpg
Extruded Bumpers

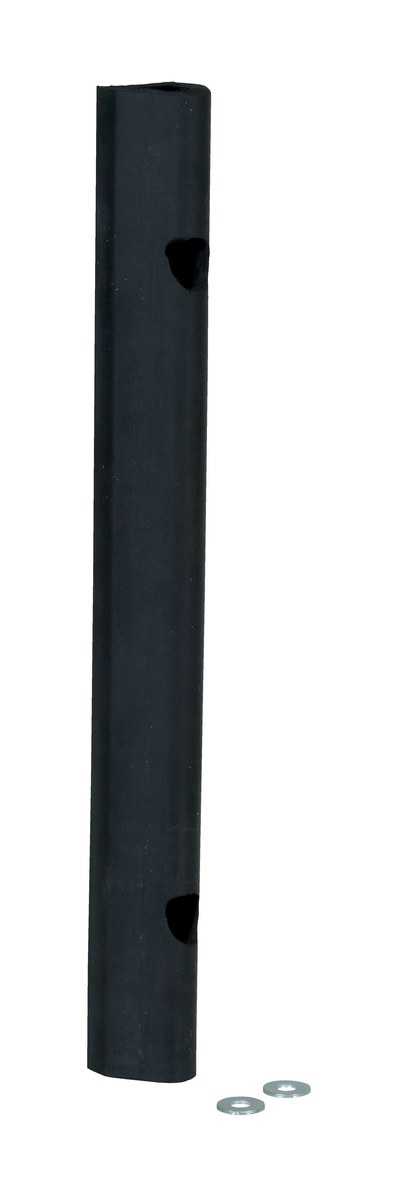

model: M-2-18



Featured Loading Dock Equipment


Wheel Alignment Curbs
Steel Container Ramps with Side Rails
Truck Mounted Strap Winches
Aluminum Truck Dockboards with Steel Safety Curbs
Dock Gates
Aluminum Wheel Chocks
Wheel Chock Accessories
Quilted Moving Pads
Steel Wheel Riser with Central Fork Pocket
model chart

Product Family Overview

Print Friendly
Extruded Bumpers
SERIES: M, M-ET

Made of all weather and abrasion resistant rubber. The half-oval shape allows for effective fendering action over a wide radius. A metal plate is located inside 4" and 6" projection bumpers for support while the 2" unit comes with one washer per hole. 120" models do not include holes or support material. 120" long bumpers run longer in order to be cut to final length. Custom lengths available up to 10 feet. Installation hardware sold separately.

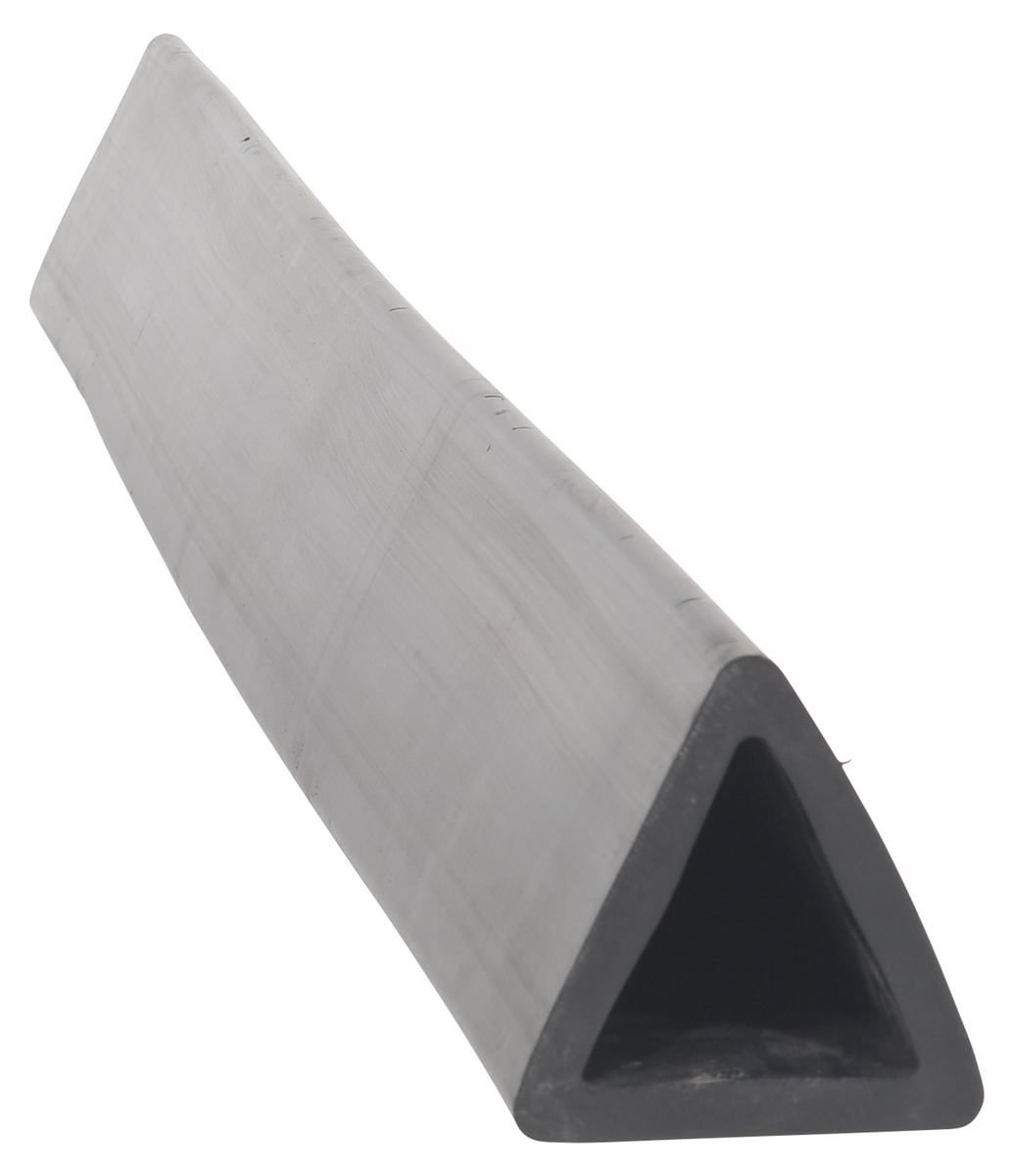

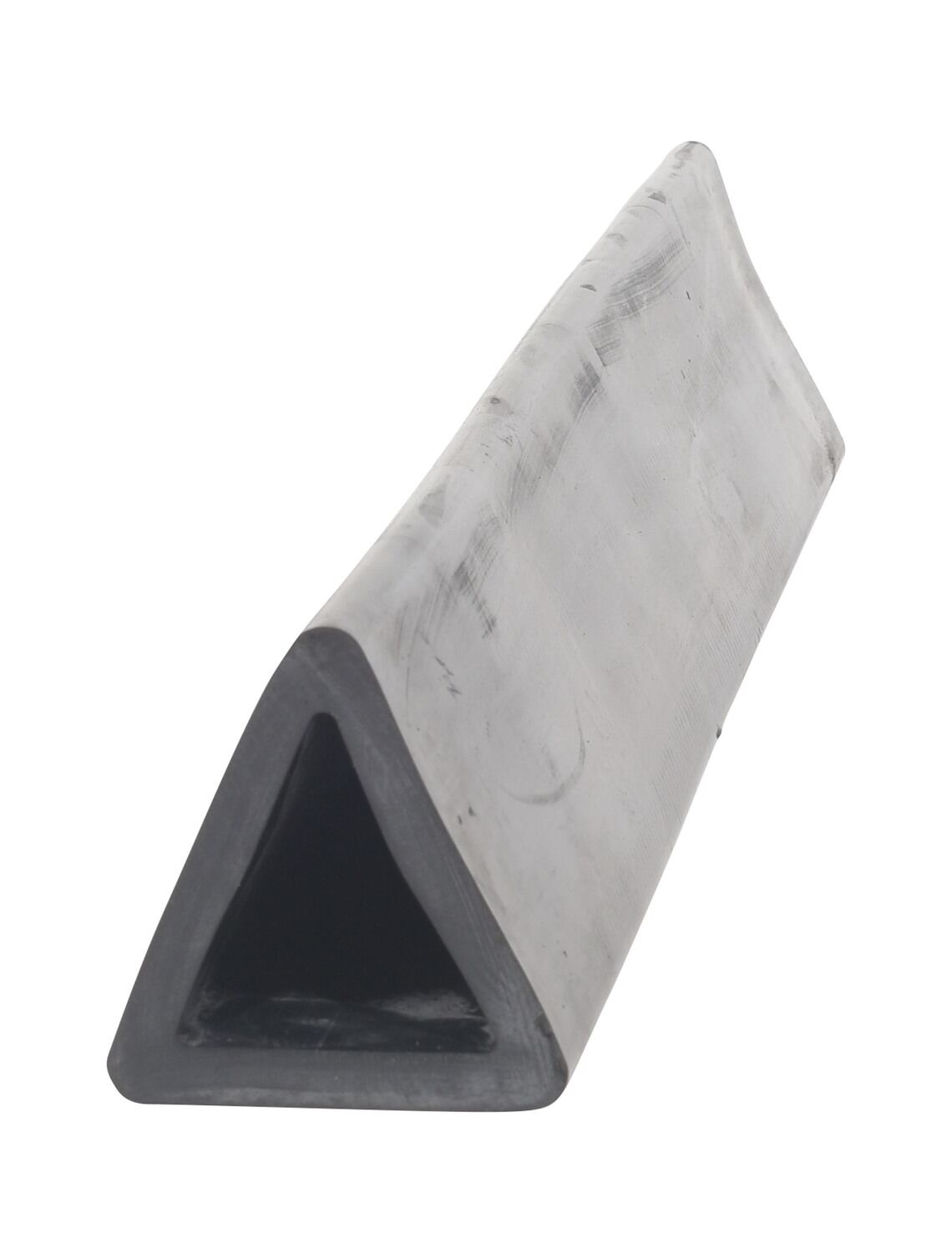

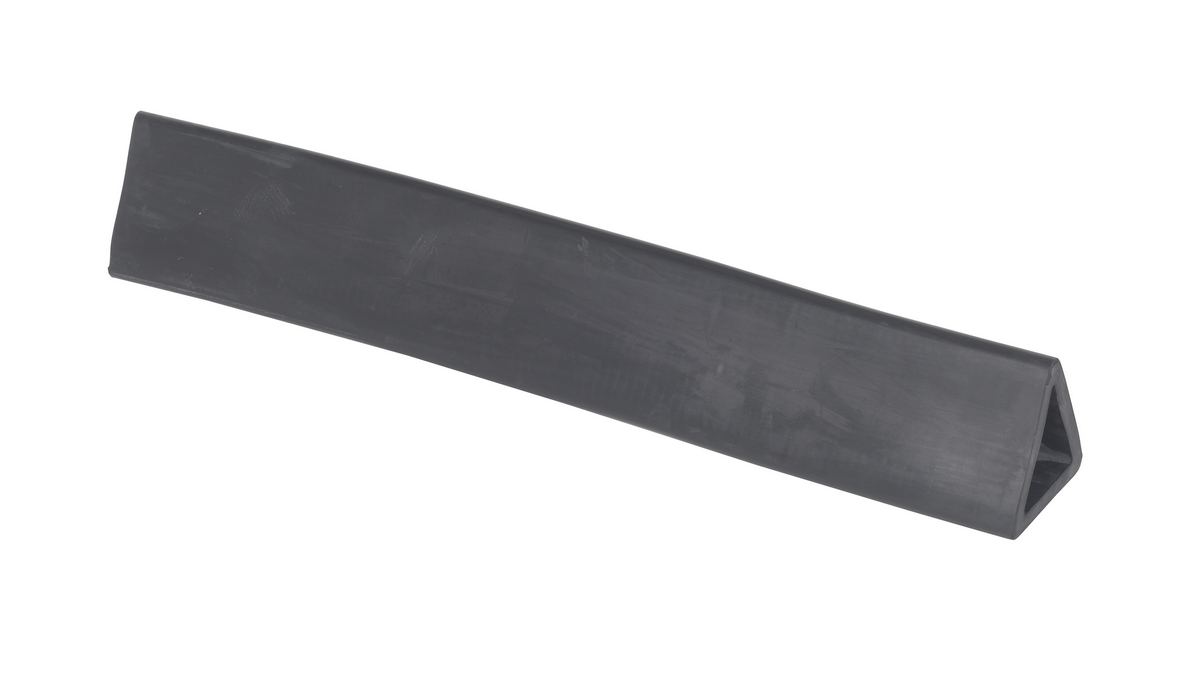

Extruded Triangular Bumpers

The Extruded Triangular Bumper protects against heavy impact and damaging results of daily contact. This Bumper is made of resistant rubber that allows for effective protection over a wide radius. Lightweight and simple to install. The installation hardware is not included, but it is available separately.

Made of all weather and abrasion resistant rubber. The half-oval shape allows for effective fendering action over a wide radius. A metal plate is located inside 4" and 6" projection bumpers for support while the 2" unit comes with one washer per hole. 120" models do not include holes or support material. 120" long bumpers run longer in order to be cut to final length. Custom lengths available up to 10 feet. Installation hardware sold separately.

Extruded Triangular Bumpers

The Extruded Triangular Bumper protects against heavy impact and damaging results of daily contact. This Bumper is made of resistant rubber that allows for effective protection over a wide radius. Lightweight and simple to install. The installation hardware is not included, but it is available separately.

Other Dock Bumpers

 Extruded Bumpers Rounded Dome Bumpers Hardened Molded Bumpers Laminated Dock Bumpers

Additional Models In This Family
view entire Image Gallery

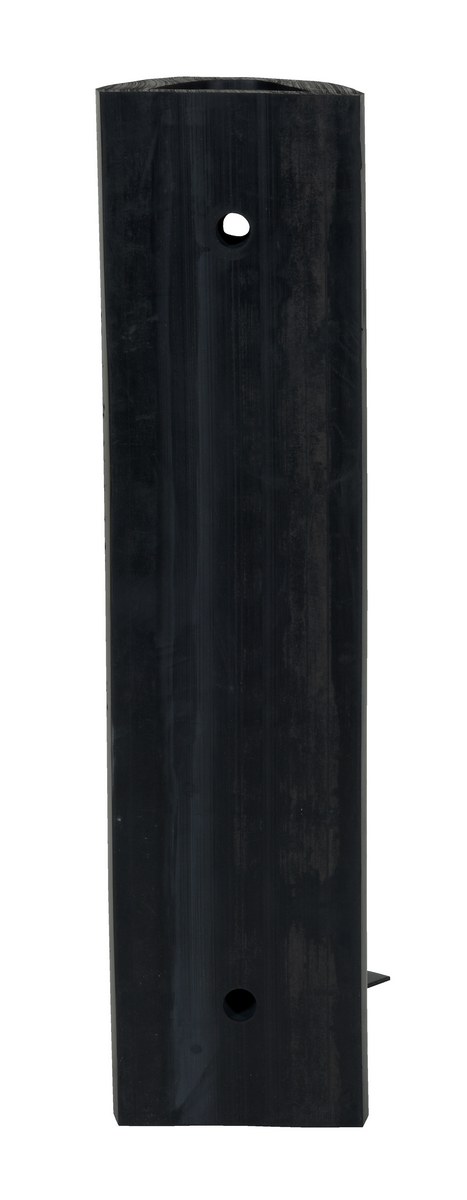

M-6-24

M-6-24

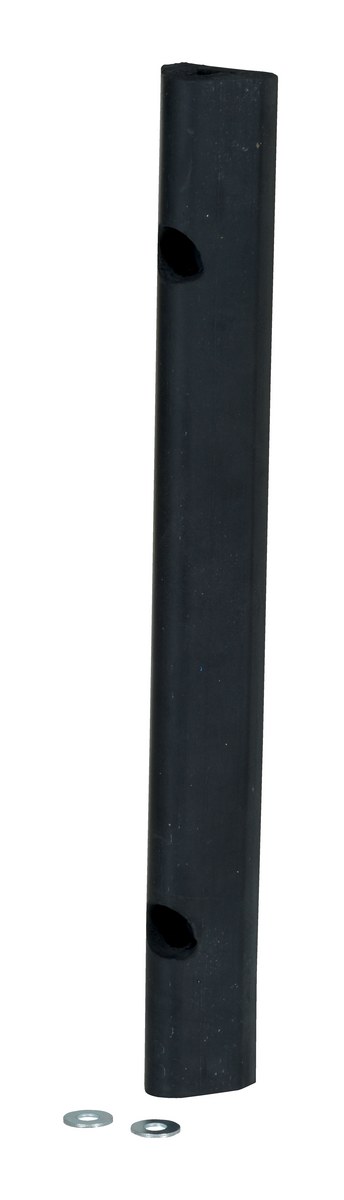

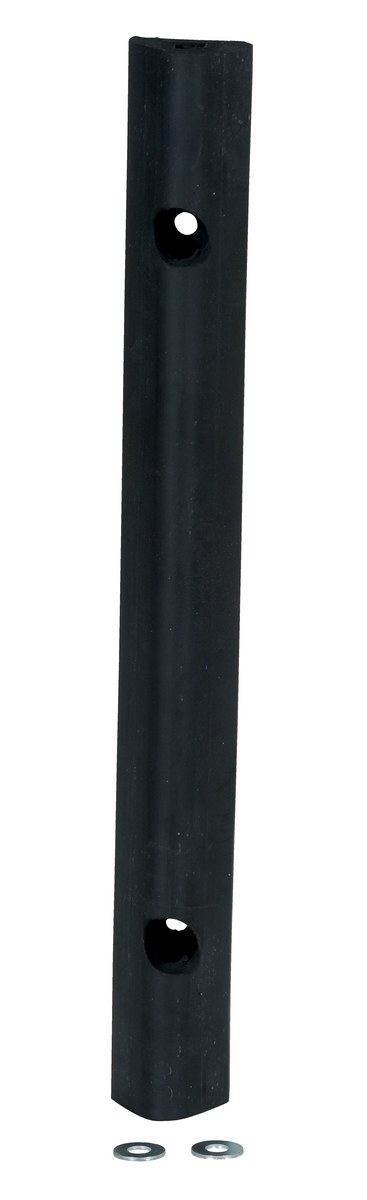

M-2-18

M-2-18

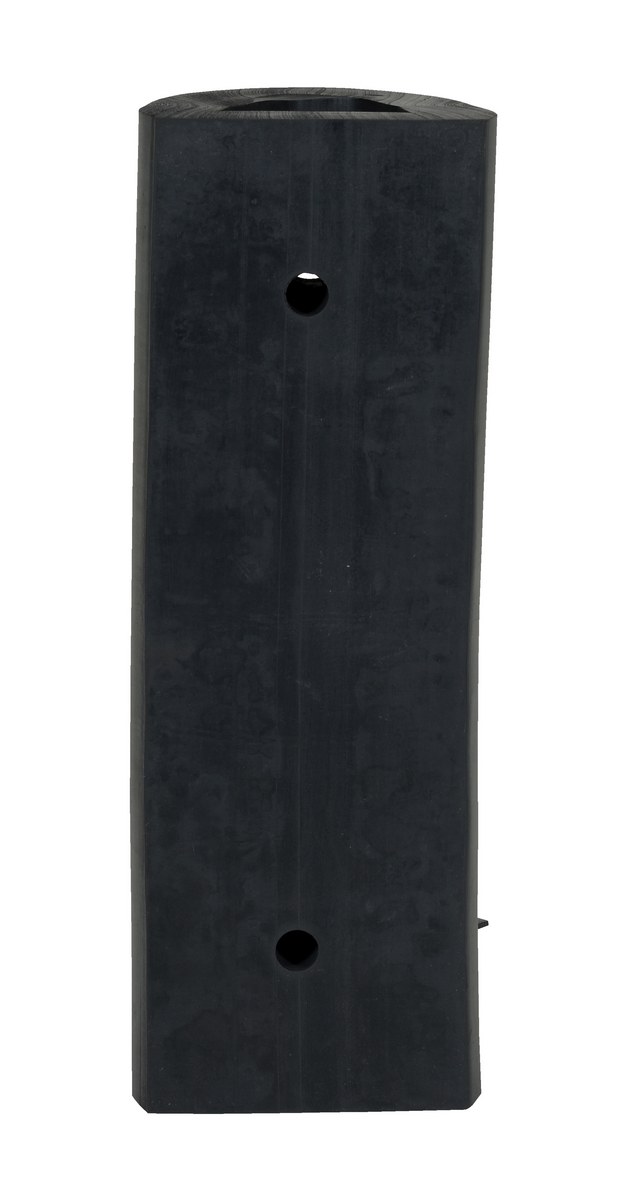

M-6-18

M-6-18

M-4-36

M-4-36

M-4-120

M-4-120

M-4-36

M-4-36

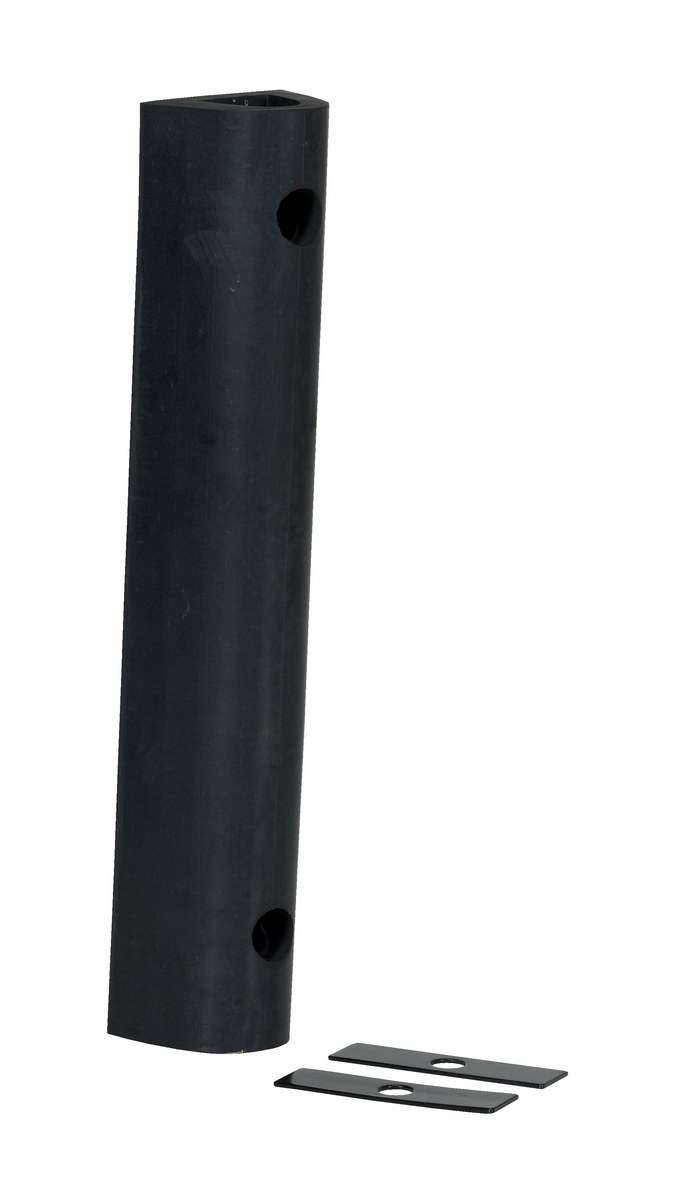

M-4-24

M-4-24

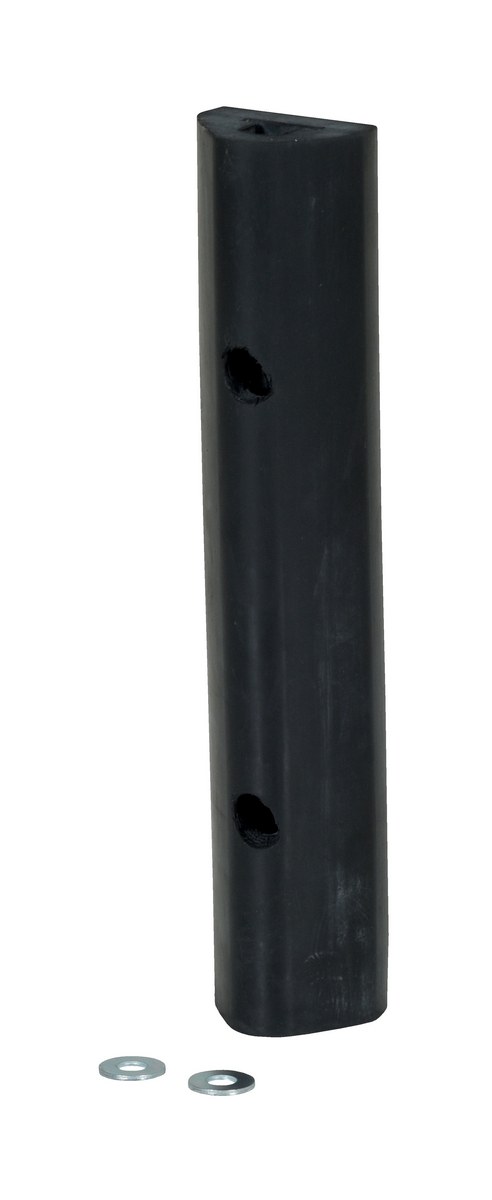

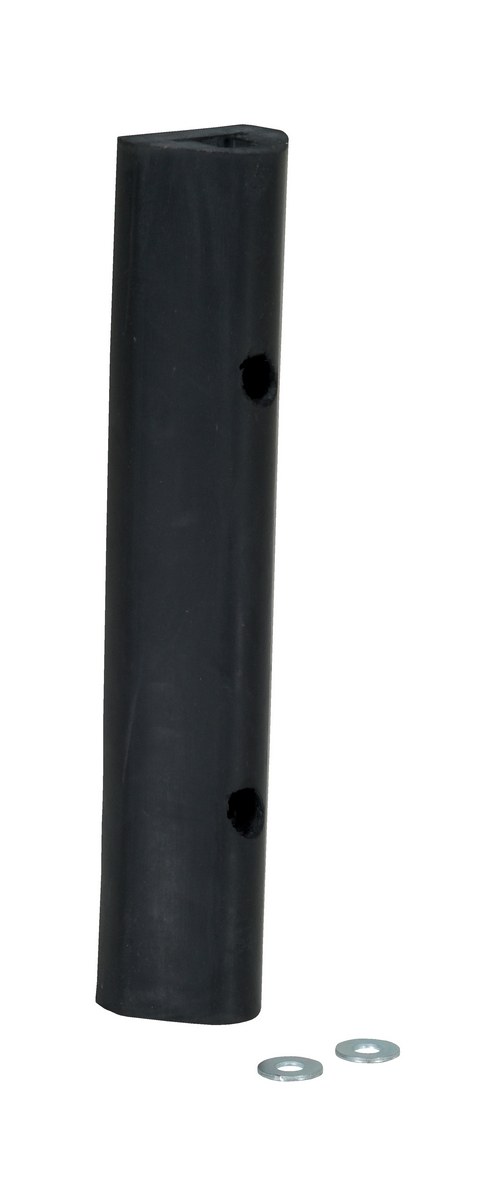

M-2-12

M-2-12

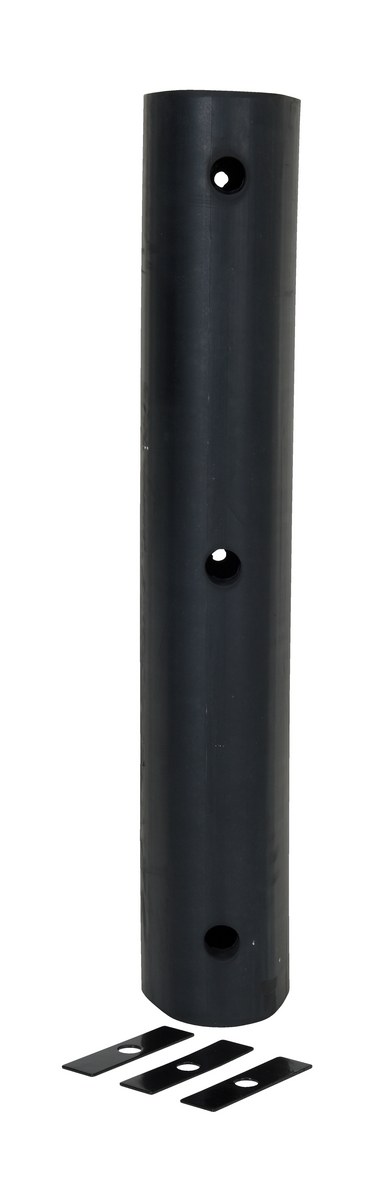

M-6-36

M-6-36

M-4-36

M-4-36

M-2-24

M-2-24

M-ET-2-24

M-ET-2-24

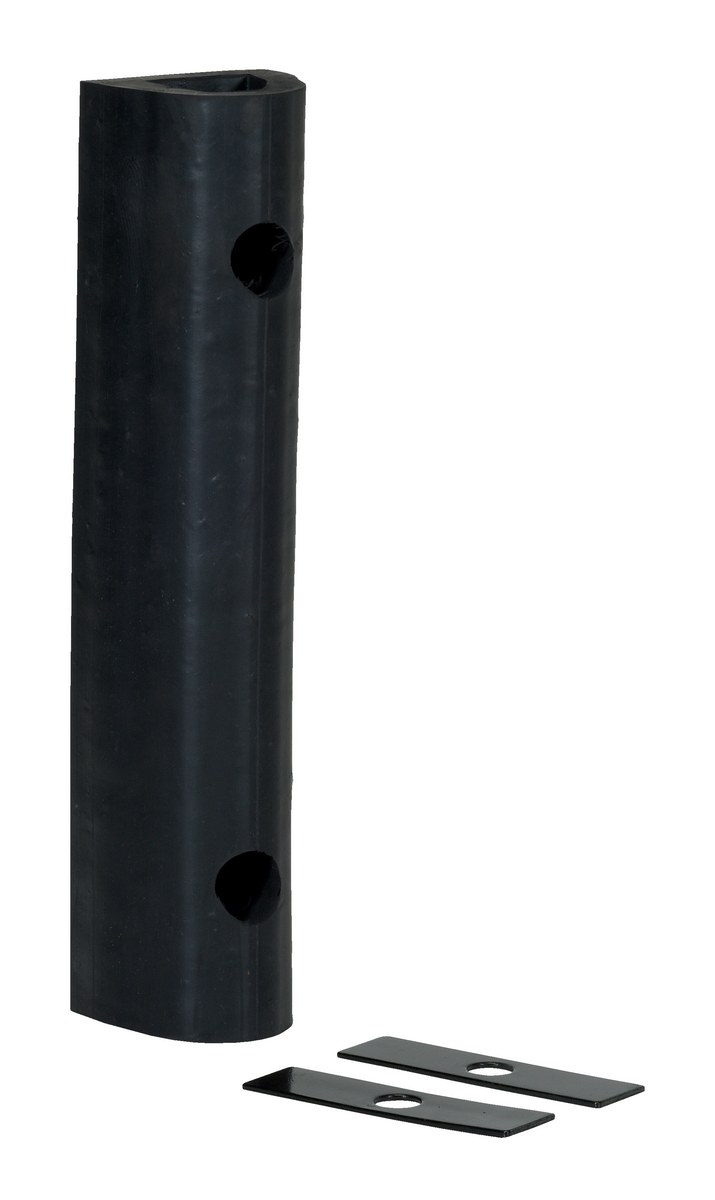

M-4-18

M-4-18

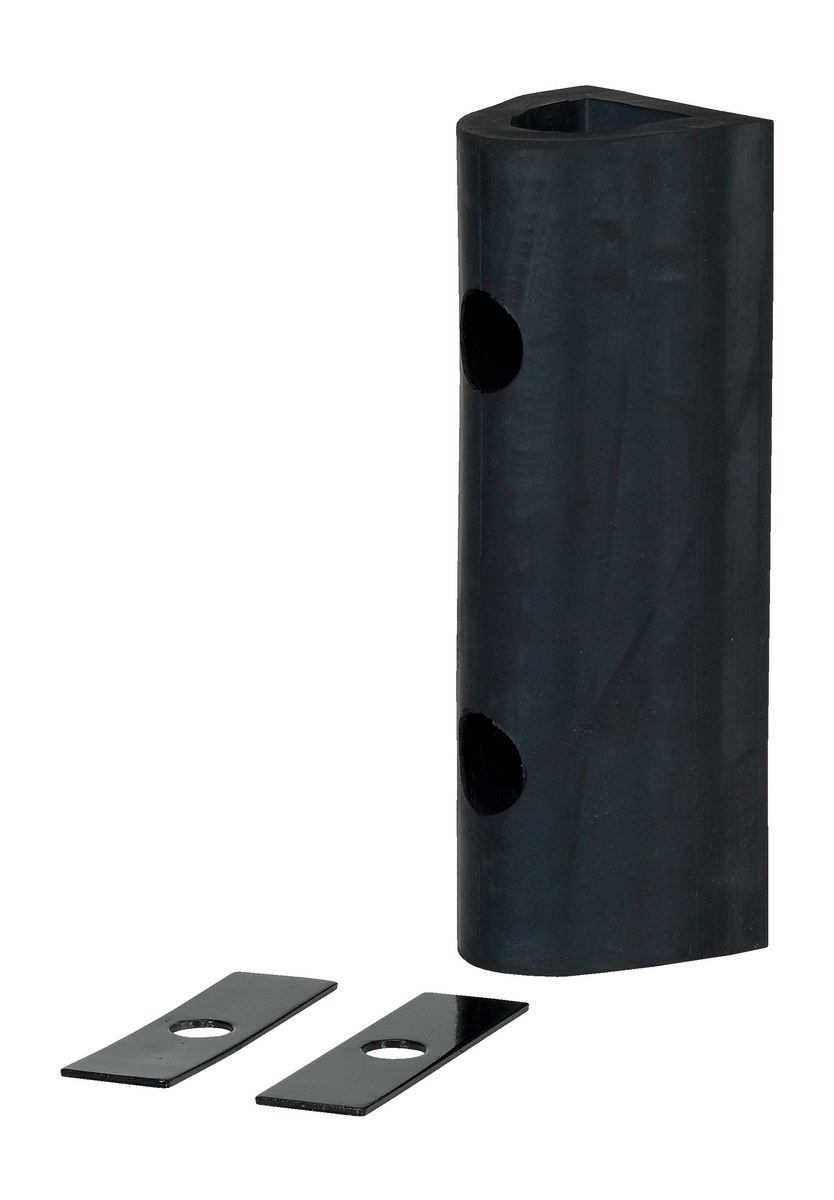

M-4-12

M-4-12

M-4-18

M-4-18

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
M-2-12 M-2-1230 Days Limited WarrantyExtruded Rubber Fender Bumper 12 In. x 2 In. x 1-3/4 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 2		2

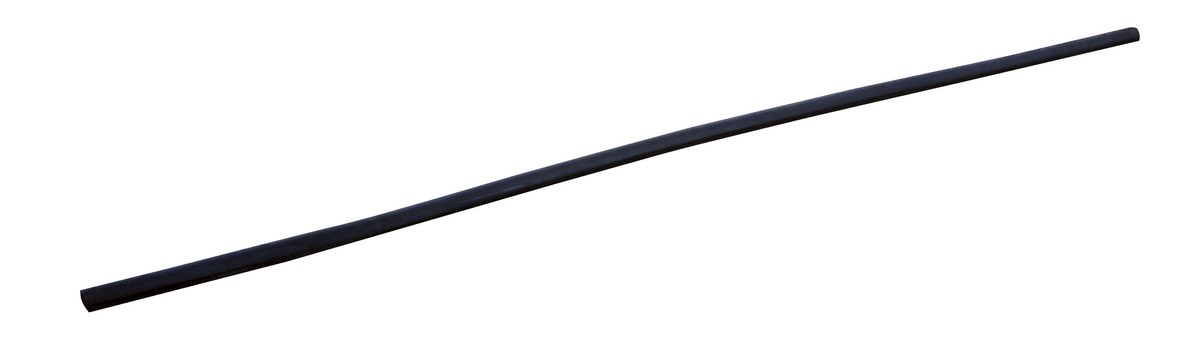

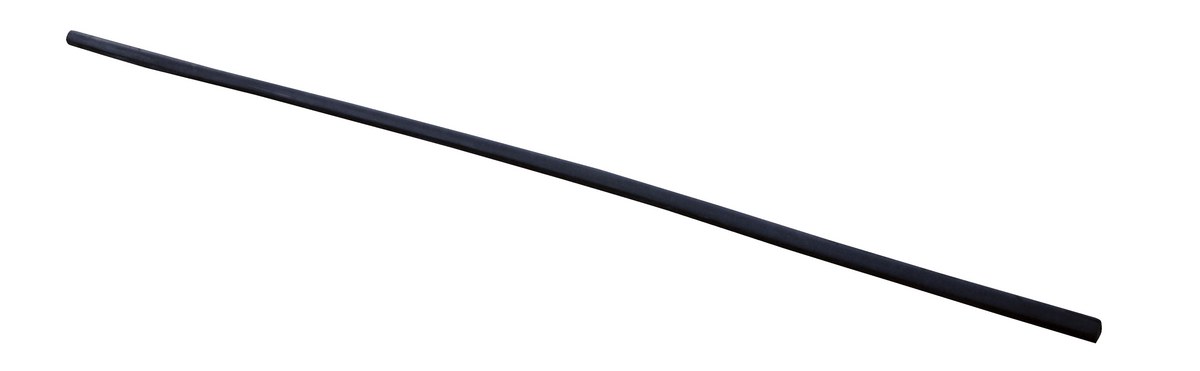

M-2-120 M-2-12030 Days Limited WarrantyExtruded Rubber Fender Bumper 120 In. x 1.875 In. x 1.5 In. BlackDurometer: +/- 70
12

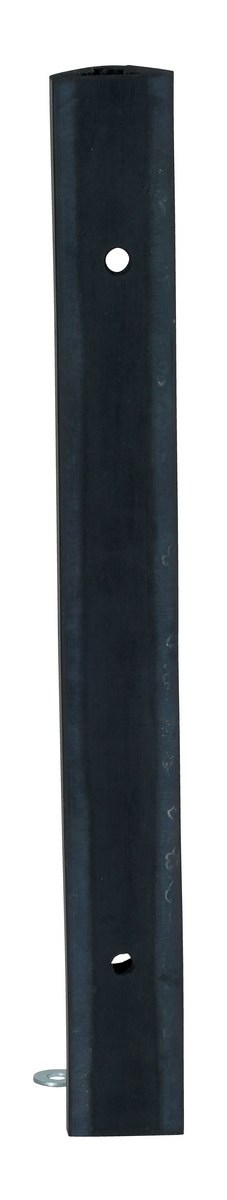

M-2-18 M-2-1830 Days Limited WarrantyExtruded Rubber Fender Bumper 18 In. x 2 In. x 1-3/4 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 1/2		2

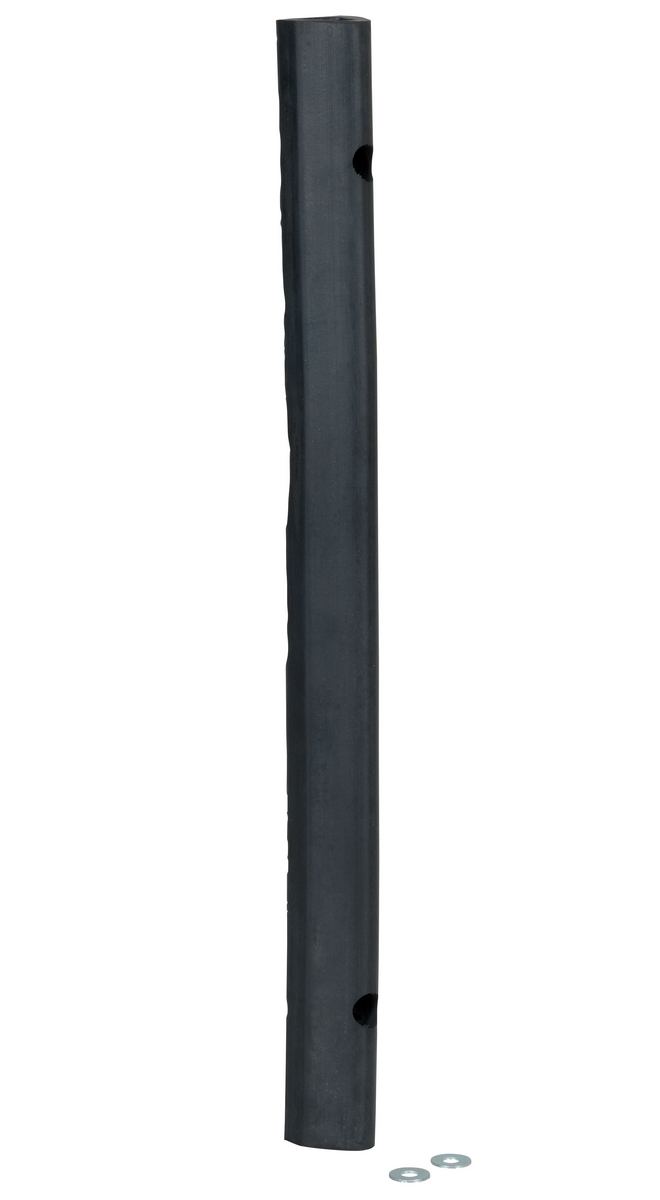

M-2-24 M-2-2430 Days Limited WarrantyExtruded Rubber Fender Bumper 24 In. x 2 In. x 1-3/4 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 2		3

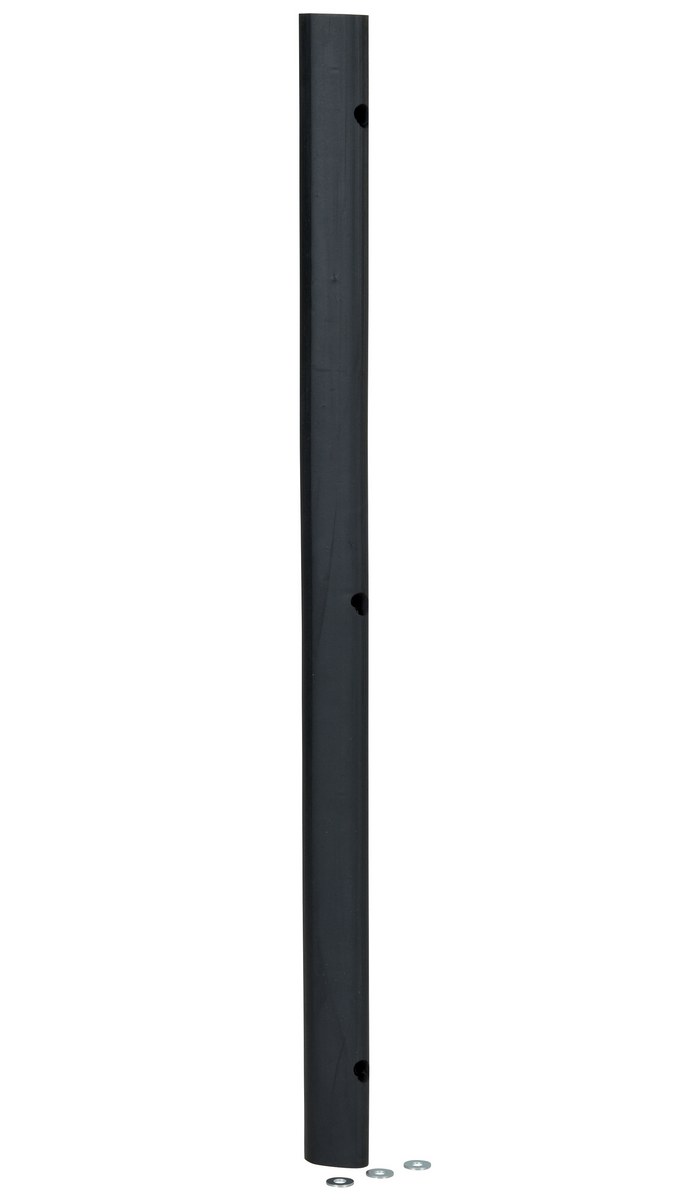

M-2-36 M-2-3630 Days Limited WarrantyExtruded Rubber Fender Bumper 36 In. x 2 In. x 1-3/4 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 3		8

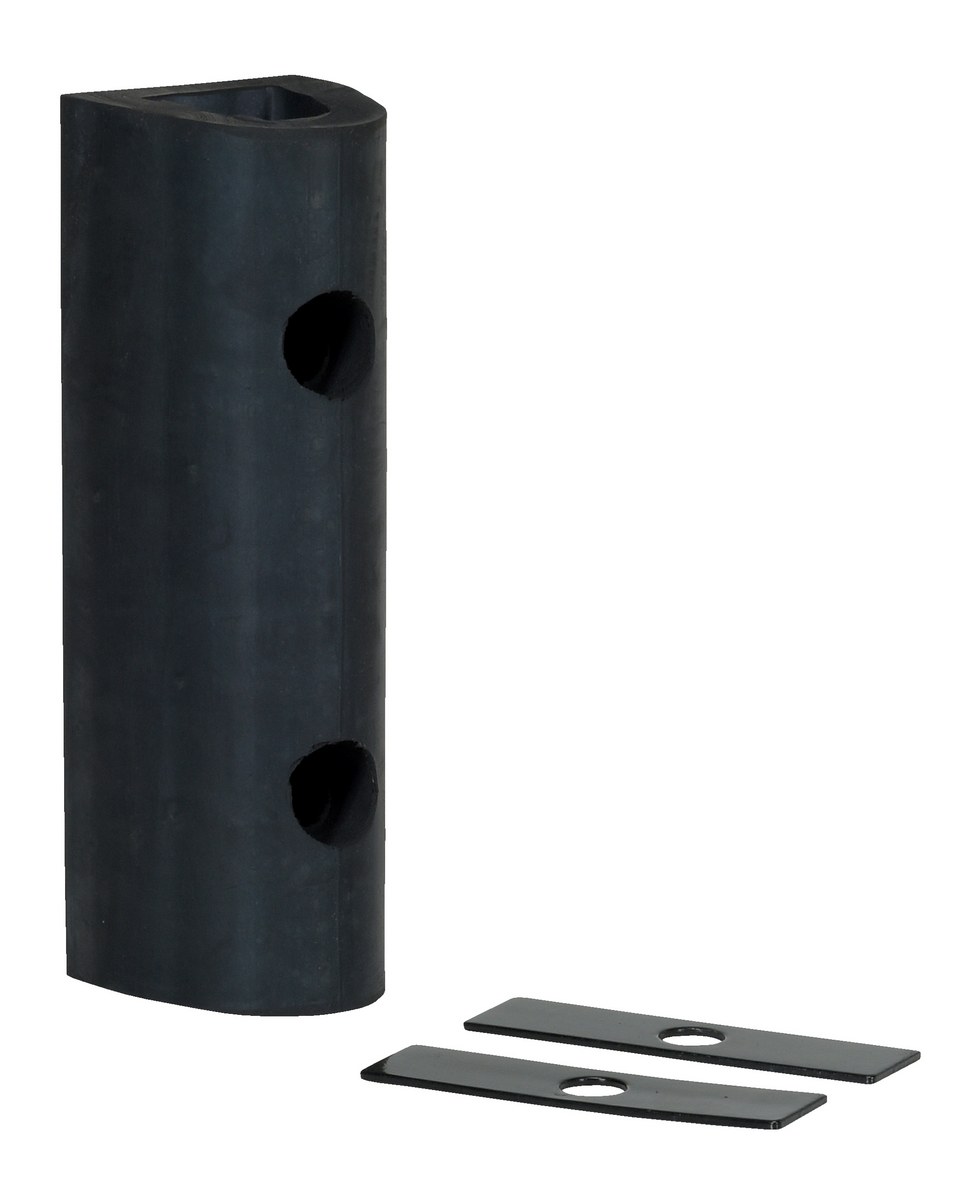

M-4-12 M-4-1230 Days Limited WarrantyExtruded Rubber Fender Bumper 12 In. x 4-1/4 In. x 4 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 2		8

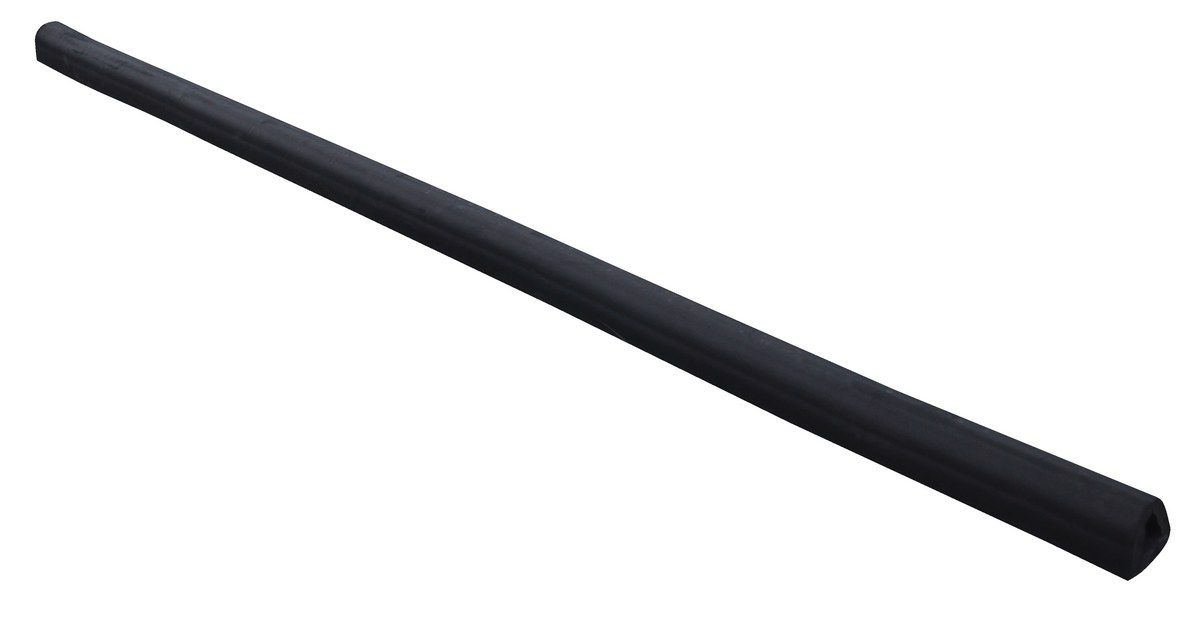

M-4-120 POPULAR M-4-12030 Days Limited WarrantyExtruded Rubber Fender Bumper 120 In. x 4-1/4 In. x 4 In. BlackDurometer: +/- 70
61
M-4-18 M-4-1830 Days Limited WarrantyExtruded Rubber Fender Bumper 18 In. x 4-1/4 In. x 4 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 2		10
M-4-24 M-4-2430 Days Limited WarrantyExtruded Rubber Fender Bumper 24 In. x 4-1/4 In. x 4 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 2		14

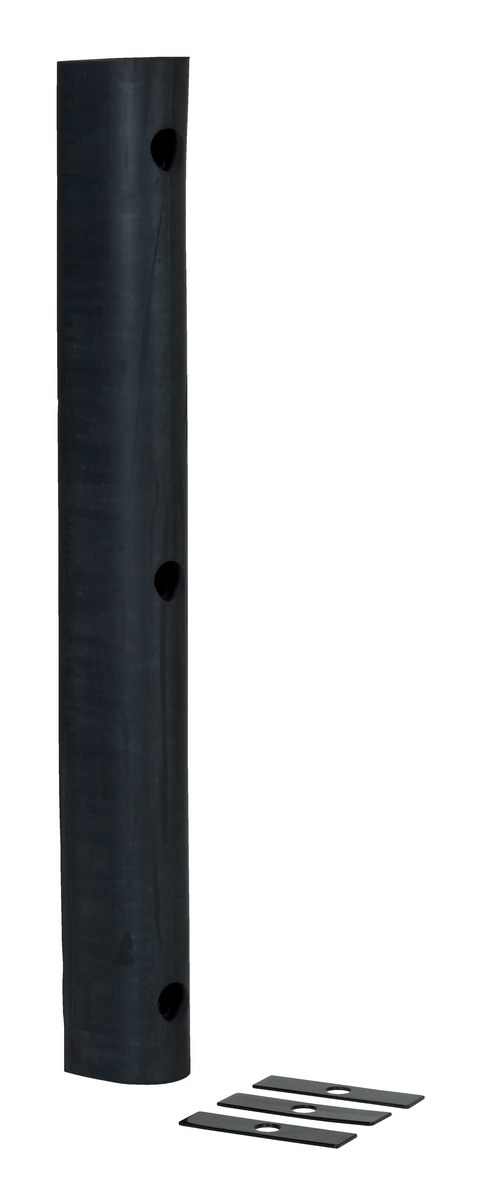

M-4-36 M-4-3630 Days Limited WarrantyExtruded Rubber Fender Bumper 36 In. x 4-1/4 In. x 4 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 3		18

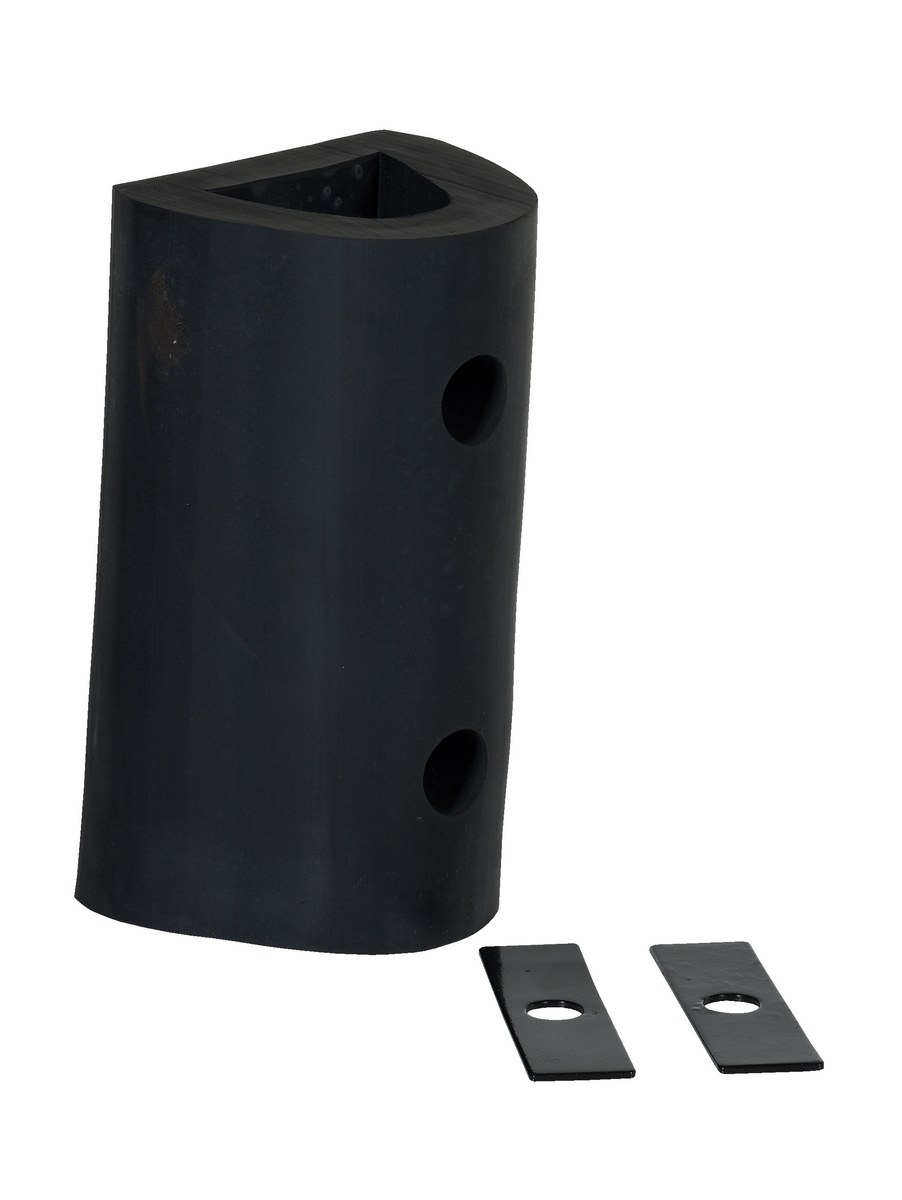

M-6-12 M-6-1230 Days Limited WarrantyExtruded Rubber Fender Bumper 12 In. x 6 In. x 6 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 2		14

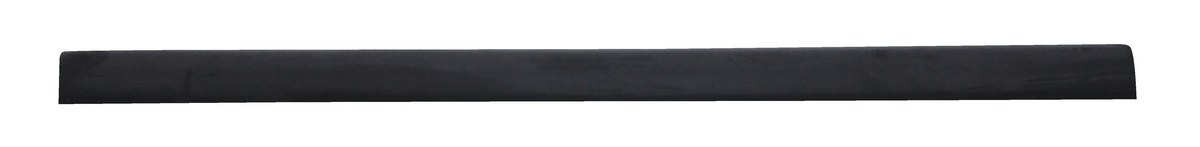

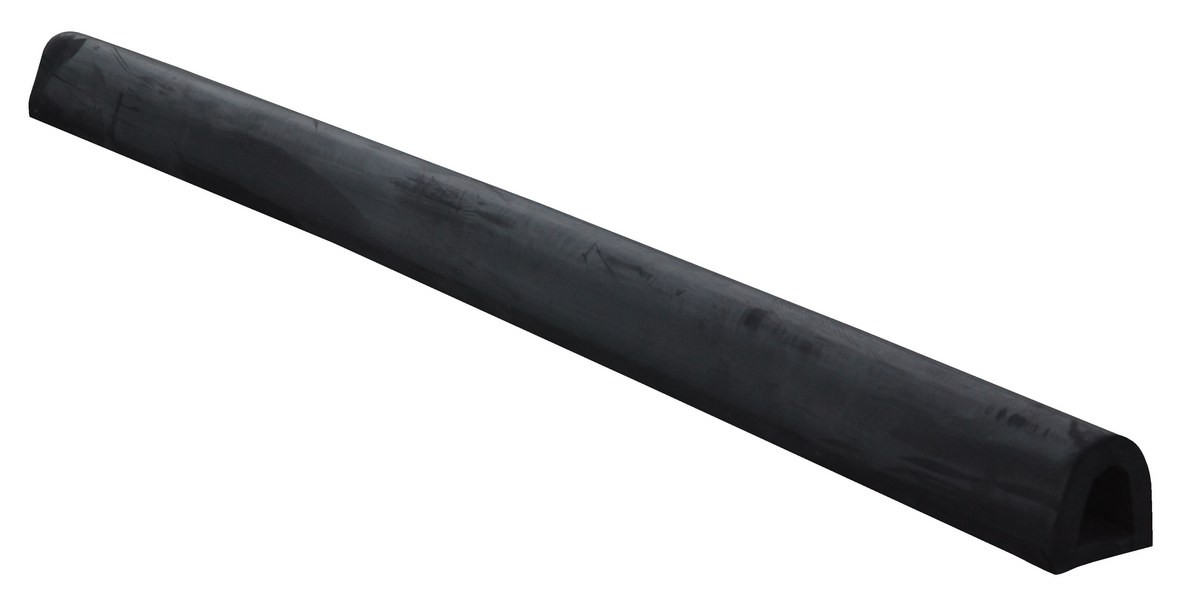

M-6-120 M-6-12030 Days Limited WarrantyExtruded Rubber Fender Bumper 120 In. x 6 In. x 6 In. BlackDurometer: +/- 70
137

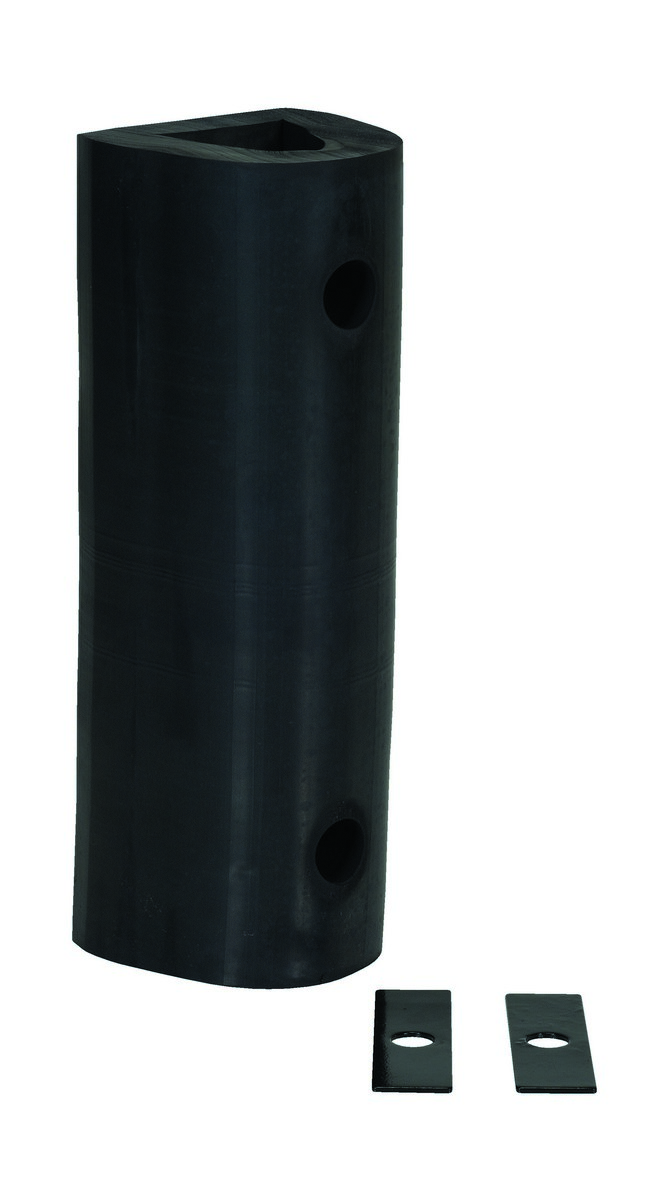

M-6-18 M-6-1830 Days Limited WarrantyExtruded Rubber Fender Bumper 18 In. x 6 In. x 6 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 2		18

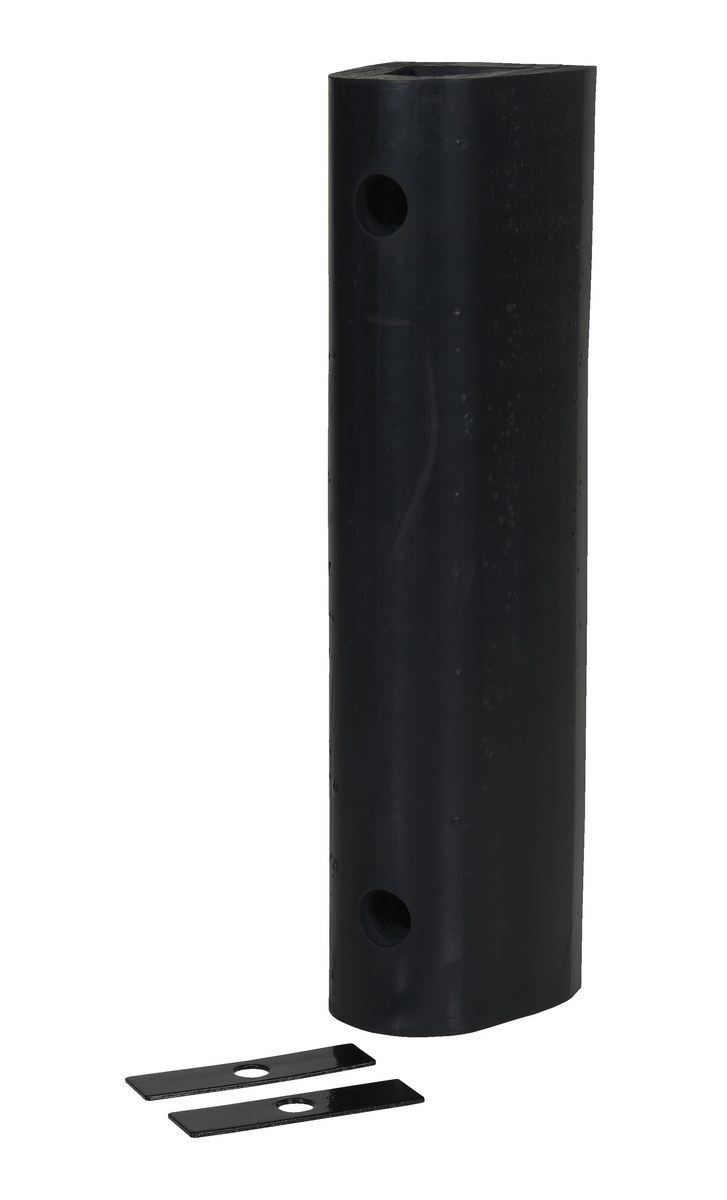

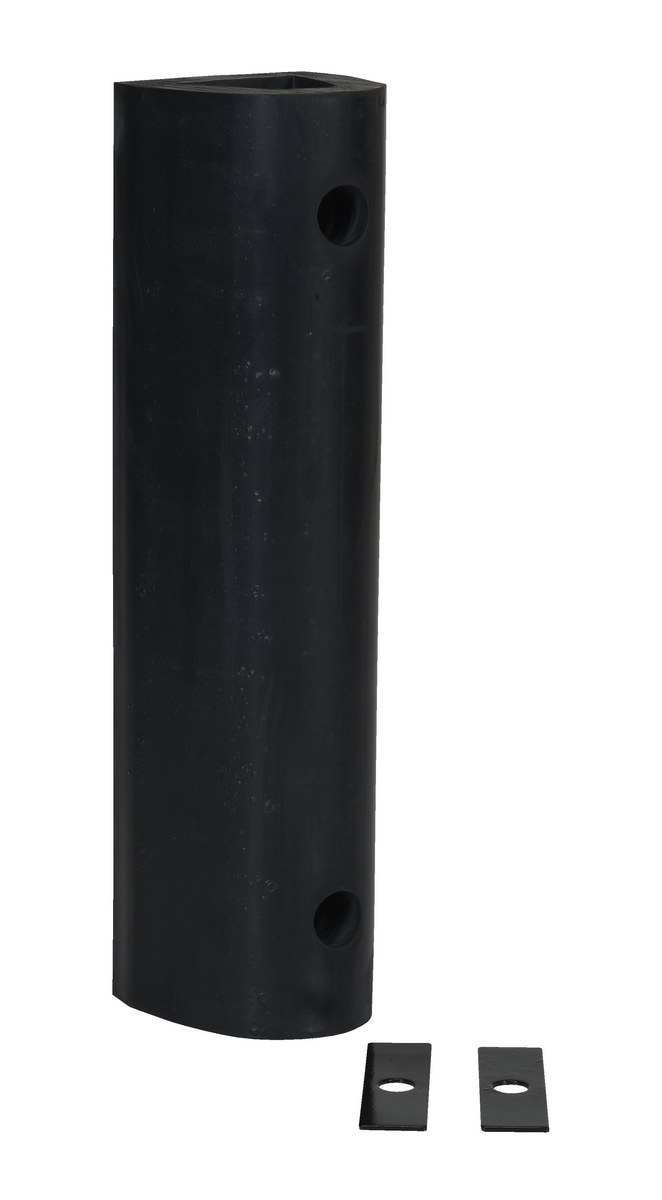

M-6-24 M-6-2430 Days Limited WarrantyExtruded Rubber Fender Bumper 24 In. x 6 In. x 6 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 2		24

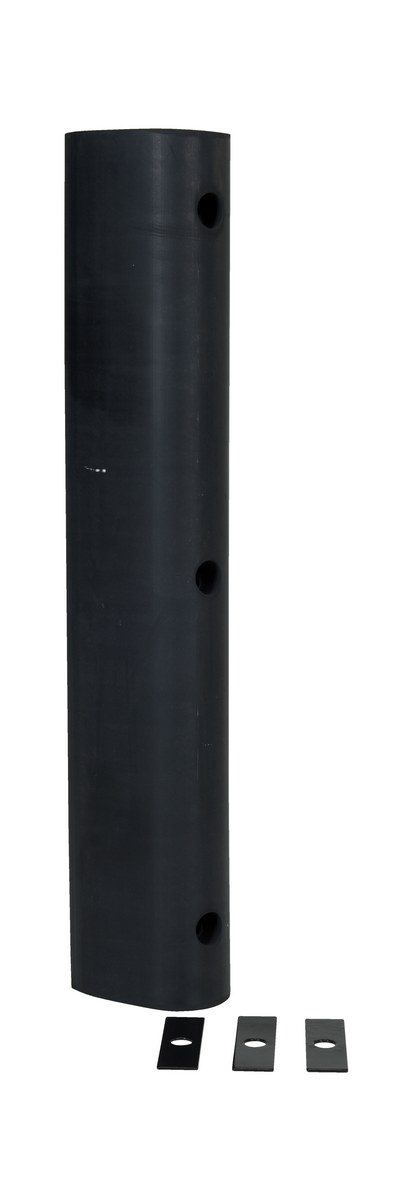

M-6-36 M-6-3630 Days Limited WarrantyExtruded Rubber Fender Bumper 36 In. x 6 In. x 6 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 3		34

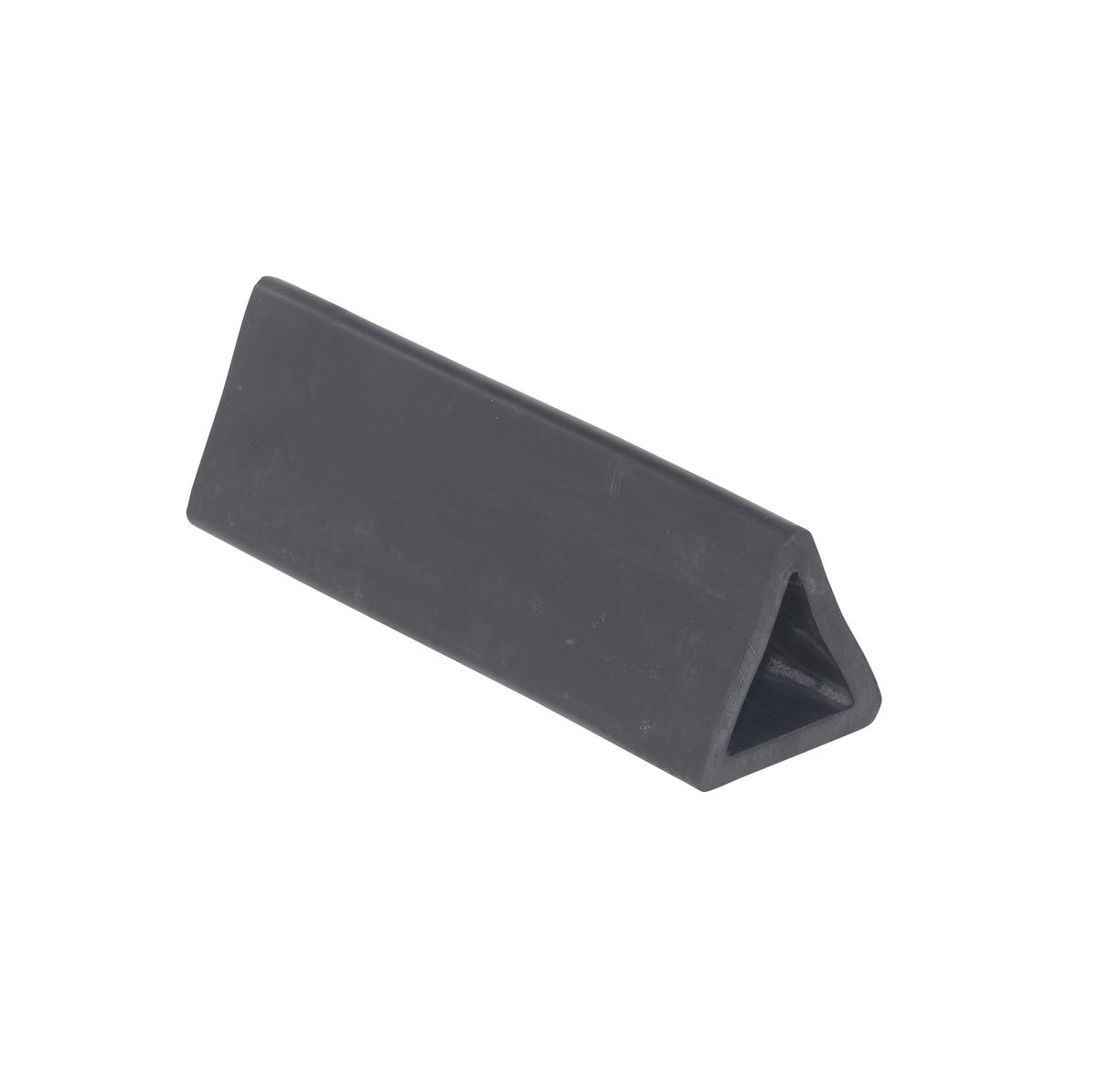

M-ET-2-12 M-ET-2-1230 Days Limited WarrantyMolded Rubber Extruded Triangular Bumper 12 In. x 3-5/8 In. x 3-3/4 In. BlackHardware: Not Included
3

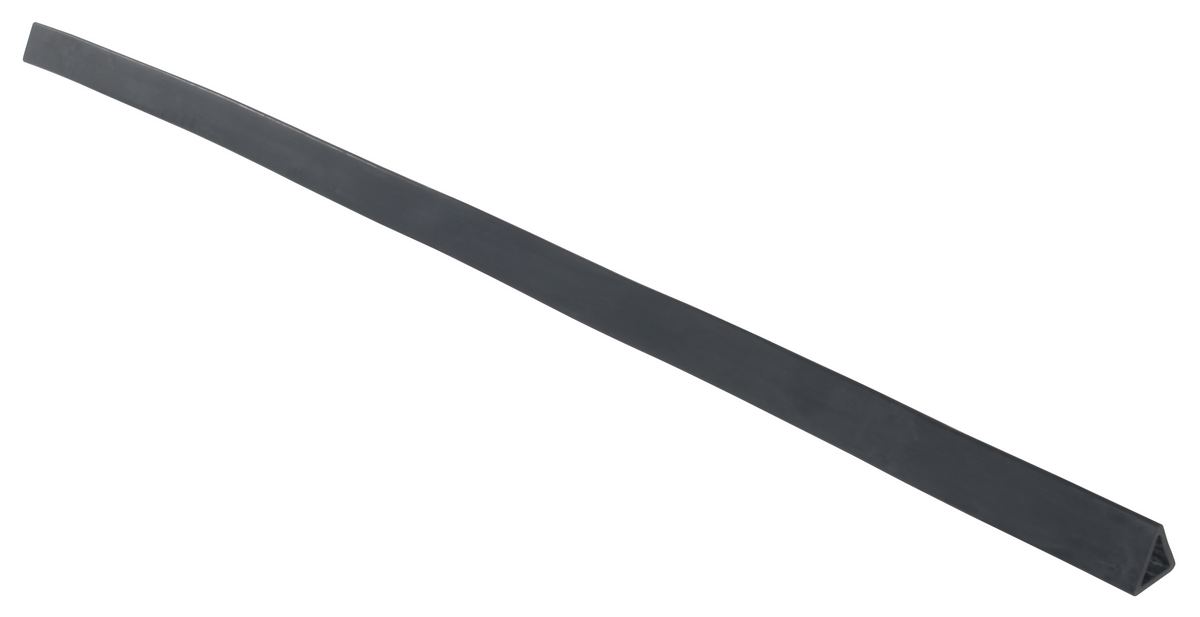

M-ET-2-120 M-ET-2-12030 Days Limited WarrantyMolded Rubber Extruded Triangular Bumper 120 In. x 3-5/8 In. x 3-3/4 In. BlackHardware: Not Included
20

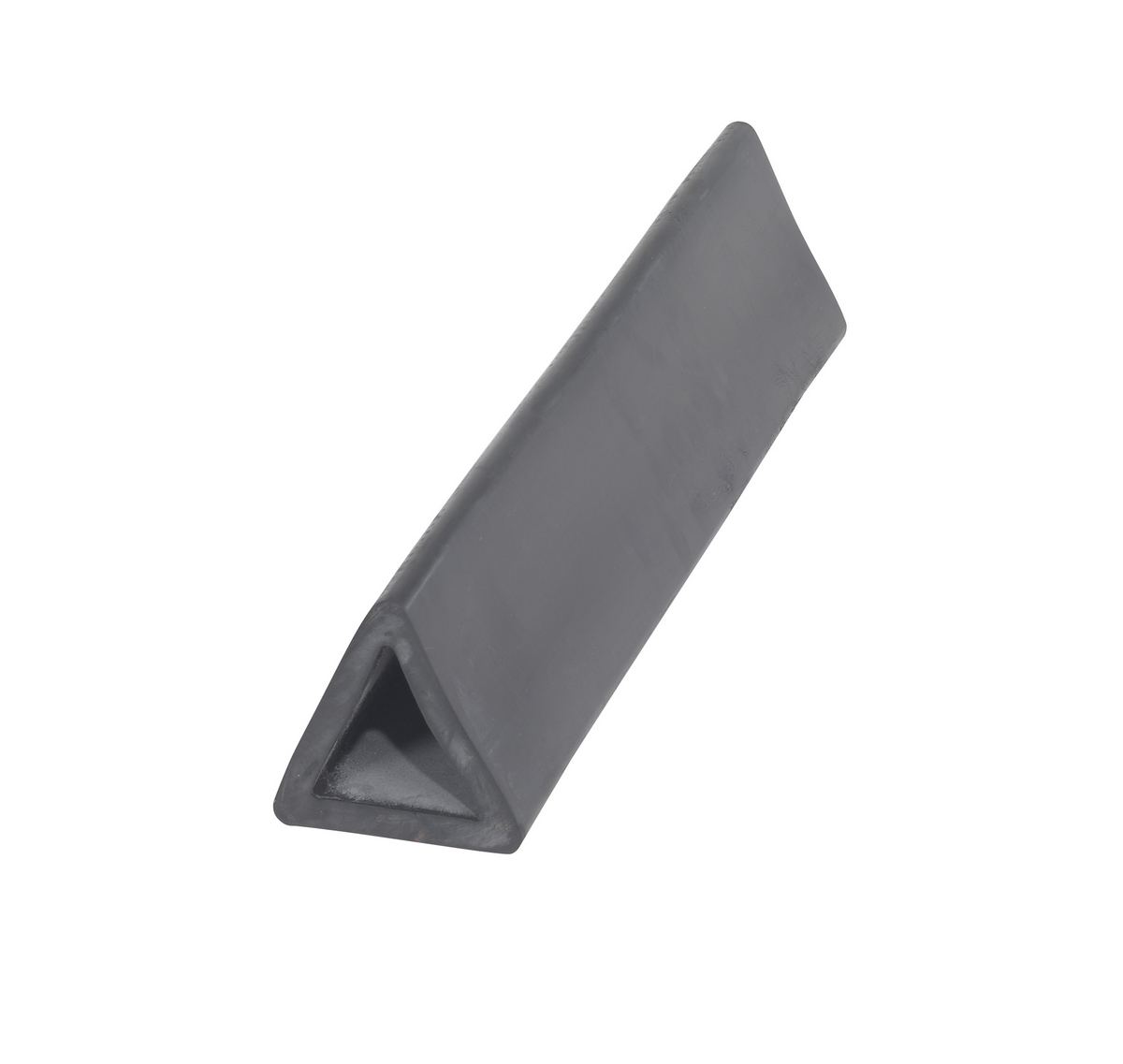

M-ET-2-18 M-ET-2-1830 Days Limited WarrantyMolded Rubber Extruded Triangular Bumper 18 In. x 3-5/8 In. x 3-3/4 In. BlackHardware: Not Included
4
M-ET-2-24 M-ET-2-2430 Days Limited WarrantyMolded Rubber Extruded Triangular Bumper 24 In. x 3-5/8 In. x 3-3/4 In. BlackHardware: Not Included
5

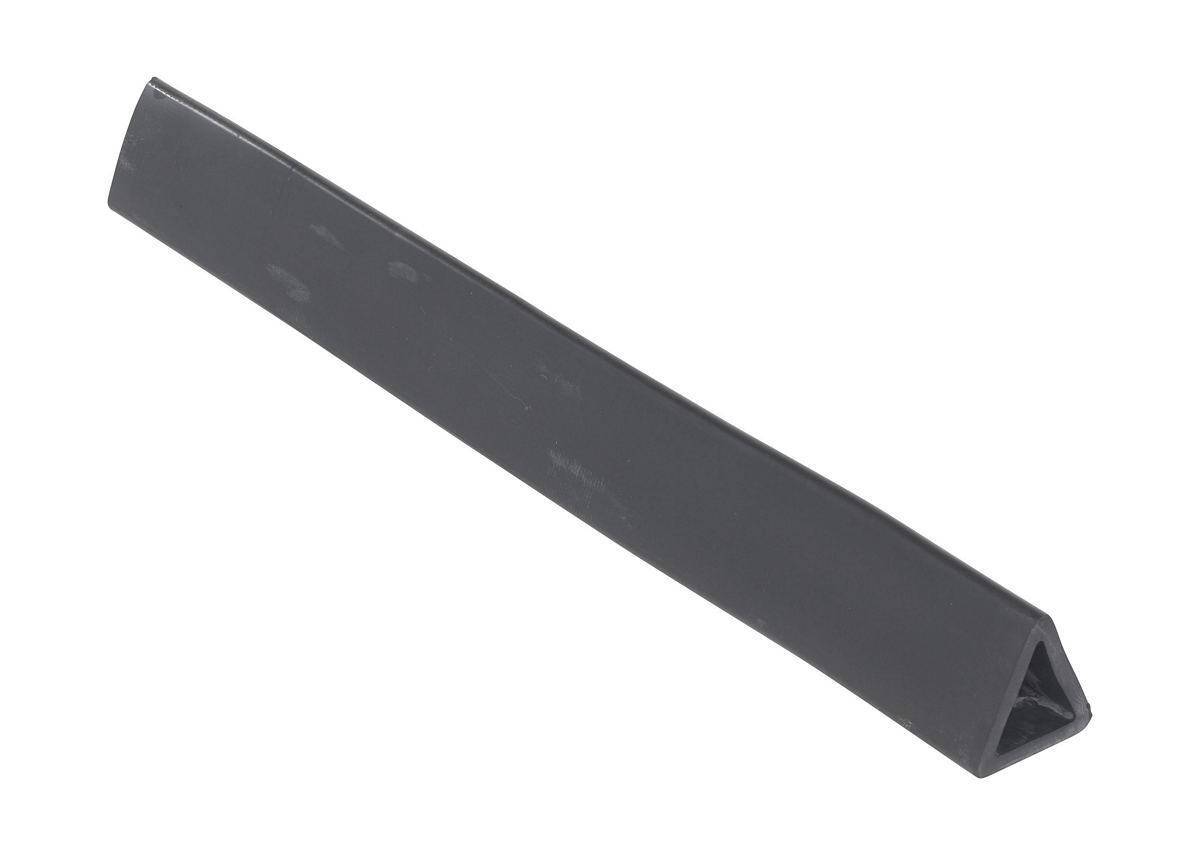

M-ET-2-36 M-ET-2-3630 Days Limited WarrantyMolded Rubber Extruded Triangular Bumper 36 In. x 3-5/8 In. x 3-3/4 In. BlackHardware: Not Included
7

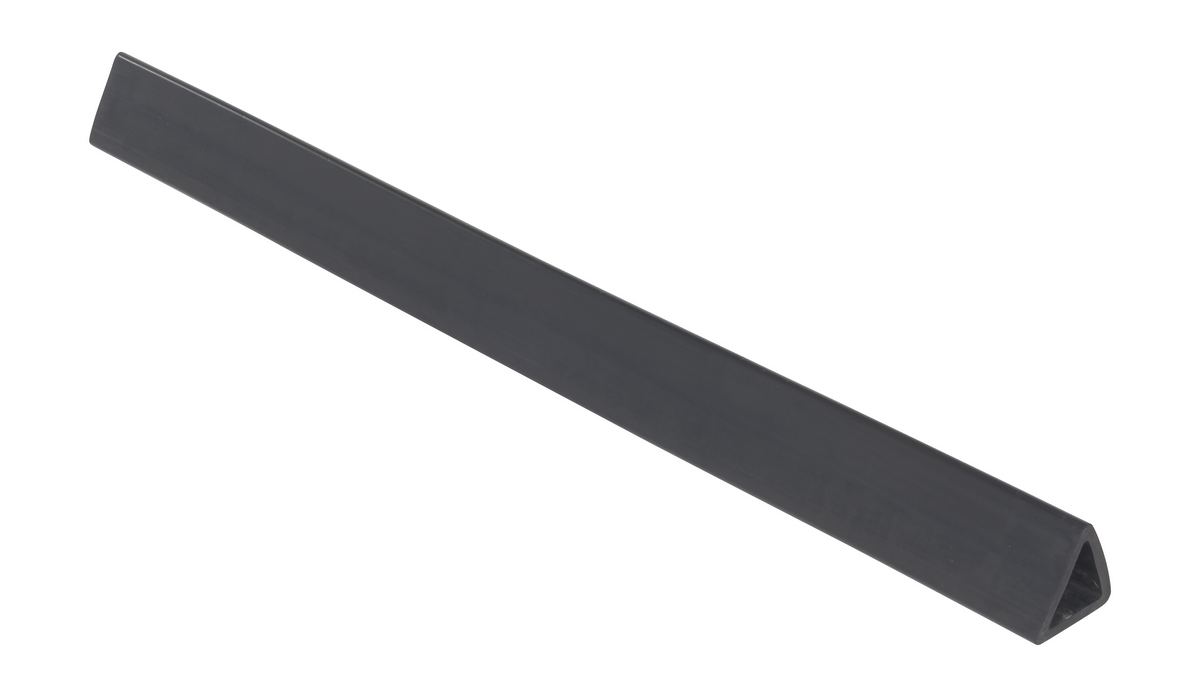

M-ET-2-48 M-ET-2-4830 Days Limited WarrantyMolded Rubber Extruded Triangular Bumper 48 In. x 3-5/8 In. x 3-3/4 In. BlackHardware: Not Included
9

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

M-2-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Durometer: (+/-5) 70
Mounting Hole Quantity: 2

M-2-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: +/- 70

Durometer: +/- 70

M-2-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 1/2
Durometer: (+/-5) 70
Mounting Hole Quantity: 1/2

M-2-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Durometer: (+/-5) 70
Mounting Hole Quantity: 2

M-2-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 3
Durometer: (+/-5) 70
Mounting Hole Quantity: 3

M-4-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Durometer: (+/-5) 70
Mounting Hole Quantity: 2

M-4-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: +/- 70

Durometer: +/- 70

M-4-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Durometer: (+/-5) 70
Mounting Hole Quantity: 2

M-4-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Durometer: (+/-5) 70
Mounting Hole Quantity: 2

M-4-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 3
Durometer: (+/-5) 70
Mounting Hole Quantity: 3

M-6-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Durometer: (+/-5) 70
Mounting Hole Quantity: 2

M-6-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: +/- 70

Durometer: +/- 70

M-6-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Durometer: (+/-5) 70
Mounting Hole Quantity: 2

M-6-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 2
Durometer: (+/-5) 70
Mounting Hole Quantity: 2

M-6-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Durometer: (+/-5) 70
Mounting Hole Quantity: 3
Durometer: (+/-5) 70
Mounting Hole Quantity: 3

M-ET-2-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware: Not Included

Hardware: Not Included

M-ET-2-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware: Not Included

Hardware: Not Included

M-ET-2-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware: Not Included

Hardware: Not Included

M-ET-2-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware: Not Included

Hardware: Not Included

M-ET-2-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware: Not Included

Hardware: Not Included

M-ET-2-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware: Not Included

Hardware: Not Included

For More Details of the Option Click the Red Model Button
Anchor Bolts Hardware For Concrete Installation
Model Image Description Quantity
AS-383 3/8" x 3", Use with M-2 Series 1
AS-383-4PK 3/8" x 3", Use with M-2 Series 4
AS-344 3/4" x 4", Use with M-4 & M-6 Series 1
AS-344-4PK 3/4" x 4", Use with M-4 & M-6 Series 4
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Extruded Bumpers PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


M-2-12

M-2-120

M-2-18

M-2-24

M-2-36

M-4-12

M-4-120

M-4-18

M-4-24

M-4-36

M-6-12

M-6-120

M-6-18

M-6-24

M-6-36

Testing Certificates


M-2-12

M-2-120

M-2-18

M-2-24

M-2-36

M-4-12

M-4-120

M-4-18

M-4-24

M-4-36

M-6-12

M-6-120

M-6-18

M-6-24

M-6-36

M-ET-2-12

M-ET-2-120

M-ET-2-18

M-ET-2-24

M-ET-2-36

M-ET-2-48

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Specialty Molded Dock Bumpers
Product

Specialty Molded Dock Bumpers

Laminated Dock Bumpers
Product

Laminated Dock Bumpers

Trailer Crane Bumpers
Product

Trailer Crane Bumpers

Hardened Molded Bumpers
Product

Hardened Molded Bumpers

Extruded Bumper Stops
Product

Extruded Bumper Stops

Rounded Dome Bumpers
Product

Rounded Dome Bumpers

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Extruded Bumpers




Made of all weather and abrasion resistant rubber. The half-oval shape allows for effective fendering action over a wide radius. A metal plate is located inside 4" and 6" projection bumpers for support while the 2" unit comes with one washer per hole. 120" models do not include holes or support material. 120" long bumpers run longer in order to be cut to final length. Custom lengths available up to 10 feet. Installation hardware sold separately.

Extruded Triangular Bumpers

The Extruded Triangular Bumper protects against heavy impact and damaging results of daily contact. This Bumper is made of resistant rubber that allows for effective protection over a wide radius. Lightweight and simple to install. The installation hardware is not included, but it is available separately.


Model # Description Attributes Net Wt.
(lbs)
M-2-12 M-2-12Extruded Rubber Fender Bumper 12 In. x 2 In. x 1-3/4 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 2		2
M-2-120 M-2-120Extruded Rubber Fender Bumper 120 In. x 1.875 In. x 1.5 In. BlackDurometer: +/- 70
12

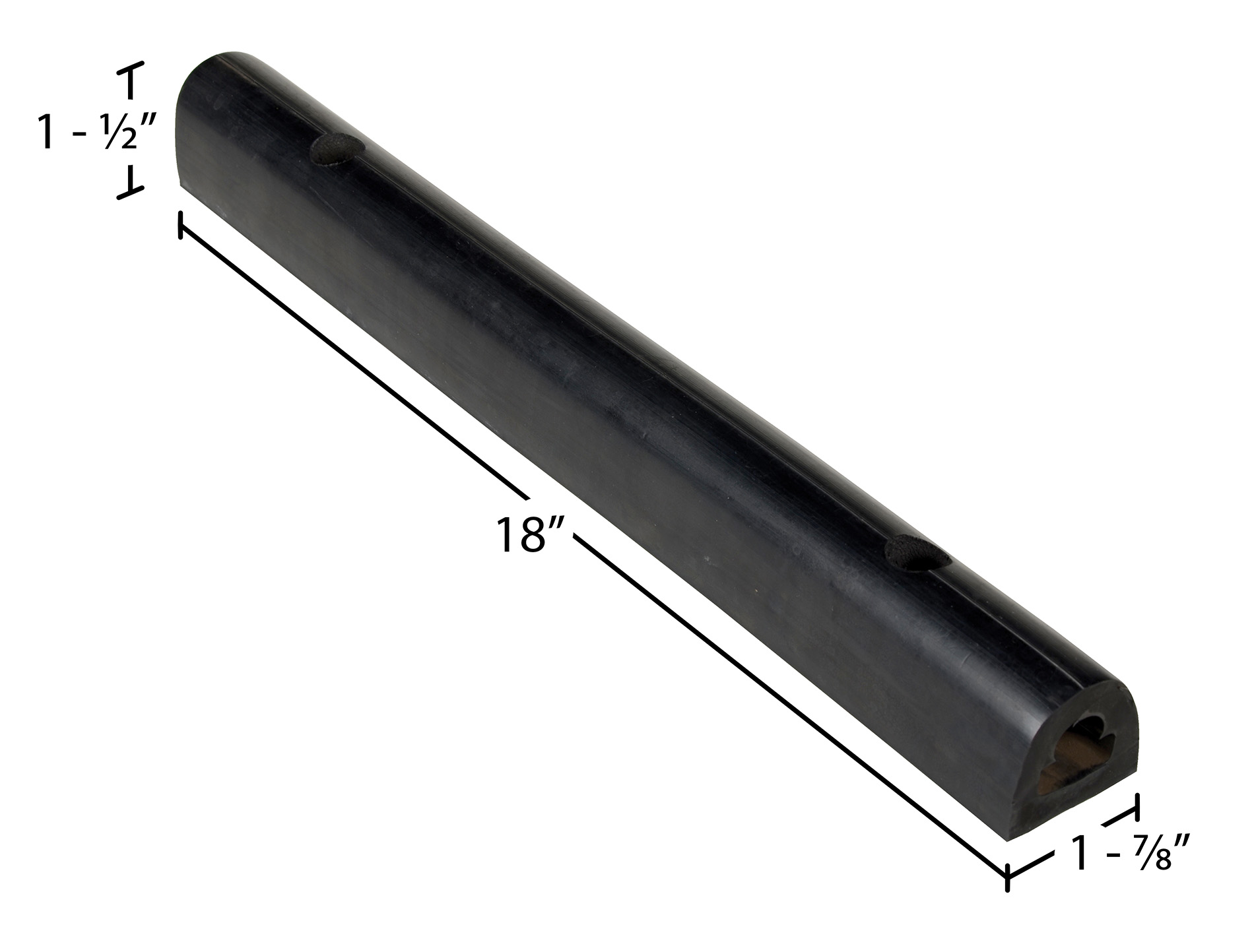

M-2-18 M-2-18Extruded Rubber Fender Bumper 18 In. x 2 In. x 1-3/4 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 1/2		2
M-2-24 M-2-24Extruded Rubber Fender Bumper 24 In. x 2 In. x 1-3/4 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 2		3
M-2-36 M-2-36Extruded Rubber Fender Bumper 36 In. x 2 In. x 1-3/4 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 3		8
M-4-12 M-4-12Extruded Rubber Fender Bumper 12 In. x 4-1/4 In. x 4 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 2		8
M-4-120 M-4-120Extruded Rubber Fender Bumper 120 In. x 4-1/4 In. x 4 In. BlackDurometer: +/- 70
61
M-4-18 M-4-18Extruded Rubber Fender Bumper 18 In. x 4-1/4 In. x 4 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 2		10
M-4-24 M-4-24Extruded Rubber Fender Bumper 24 In. x 4-1/4 In. x 4 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 2		14
M-4-36 M-4-36Extruded Rubber Fender Bumper 36 In. x 4-1/4 In. x 4 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 3		18
M-6-12 M-6-12Extruded Rubber Fender Bumper 12 In. x 6 In. x 6 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 2		14
M-6-120 M-6-120Extruded Rubber Fender Bumper 120 In. x 6 In. x 6 In. BlackDurometer: +/- 70
137
M-6-18 M-6-18Extruded Rubber Fender Bumper 18 In. x 6 In. x 6 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 2		18
M-6-24 M-6-24Extruded Rubber Fender Bumper 24 In. x 6 In. x 6 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 2		24
M-6-36 M-6-36Extruded Rubber Fender Bumper 36 In. x 6 In. x 6 In. BlackDurometer: (+/-5) 70
Mounting Hole Quantity: 3		34
M-ET-2-12 M-ET-2-12Molded Rubber Extruded Triangular Bumper 12 In. x 3-5/8 In. x 3-3/4 In. BlackHardware: Not Included
3
M-ET-2-120 M-ET-2-120Molded Rubber Extruded Triangular Bumper 120 In. x 3-5/8 In. x 3-3/4 In. BlackHardware: Not Included
20
M-ET-2-18 M-ET-2-18Molded Rubber Extruded Triangular Bumper 18 In. x 3-5/8 In. x 3-3/4 In. BlackHardware: Not Included
4
M-ET-2-24 M-ET-2-24Molded Rubber Extruded Triangular Bumper 24 In. x 3-5/8 In. x 3-3/4 In. BlackHardware: Not Included
5
M-ET-2-36 M-ET-2-36Molded Rubber Extruded Triangular Bumper 36 In. x 3-5/8 In. x 3-3/4 In. BlackHardware: Not Included
7
M-ET-2-48 M-ET-2-48Molded Rubber Extruded Triangular Bumper 48 In. x 3-5/8 In. x 3-3/4 In. BlackHardware: Not Included
9

Options


Anchor Bolts Hardware For Concrete Installation
Model Image Description Quantity
AS-383 3/8" x 3", Use with M-2 Series 1
AS-383-4PK 3/8" x 3", Use with M-2 Series 4
AS-344 3/4" x 4", Use with M-4 & M-6 Series 1
AS-344-4PK 3/4" x 4", Use with M-4 & M-6 Series 4

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
