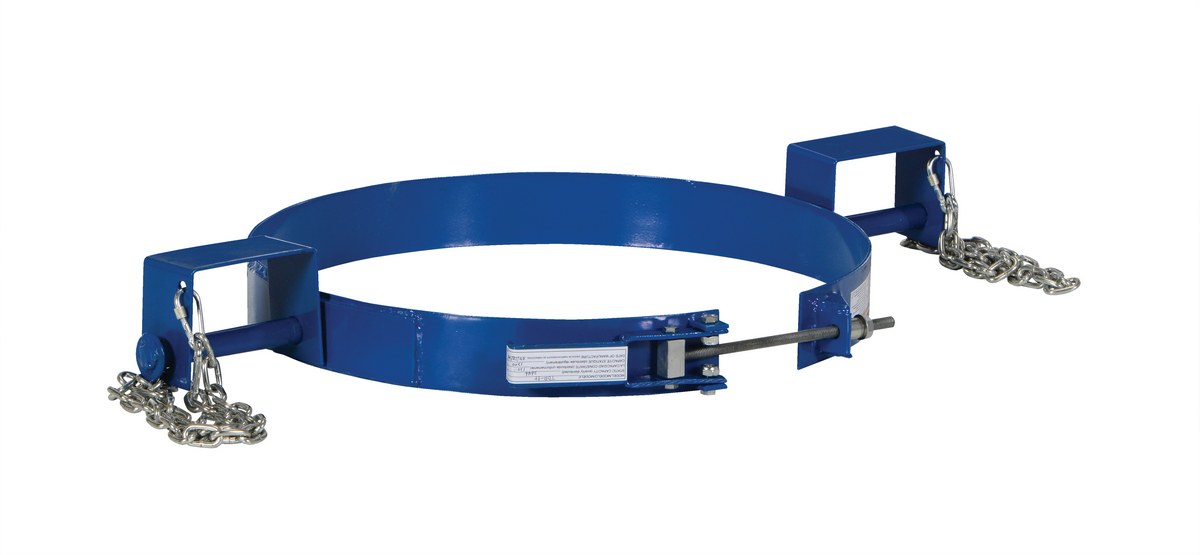

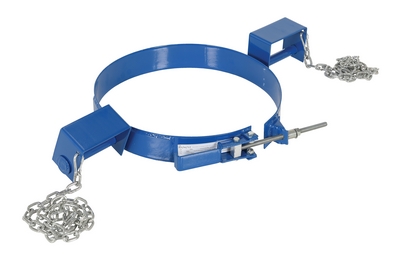

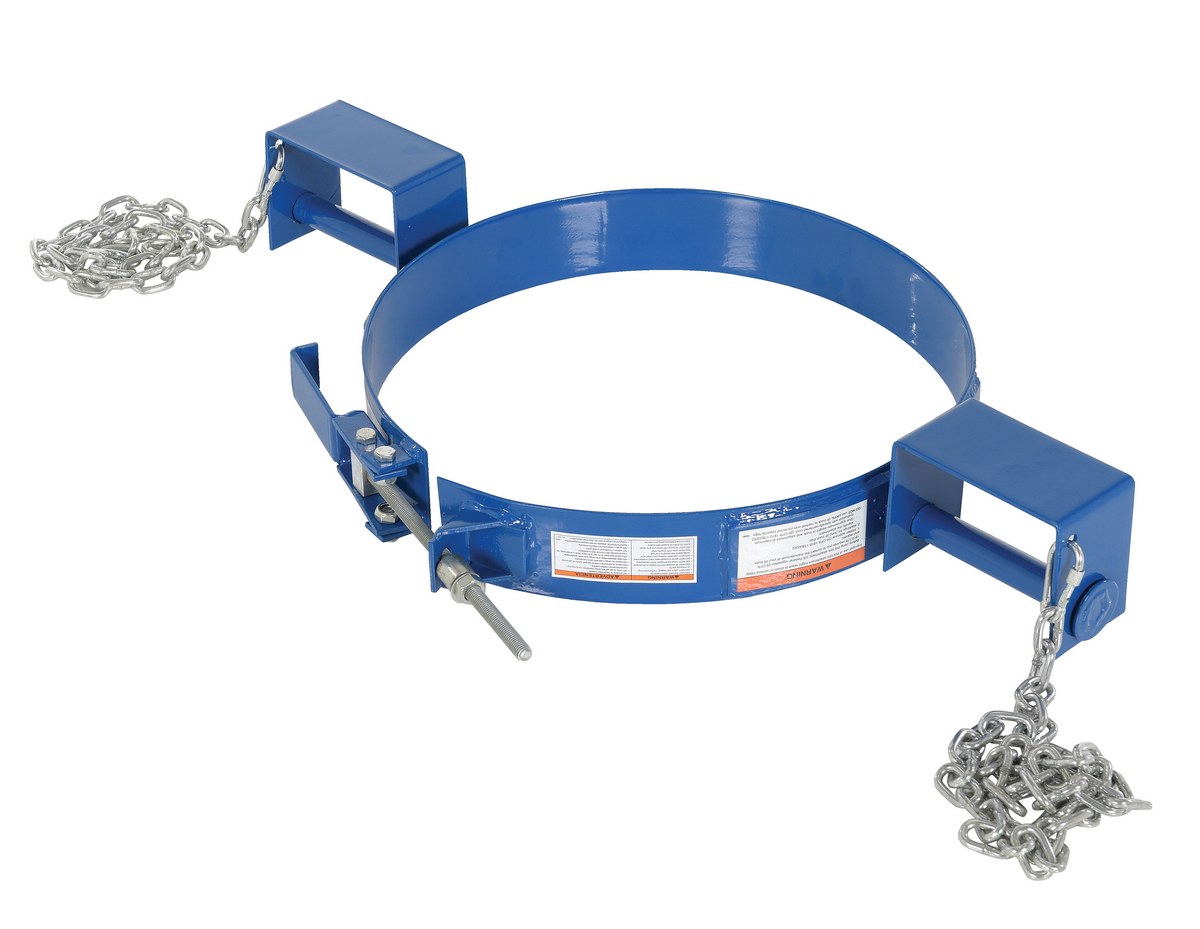

Tilting Drum Rings
SERIES: TDR

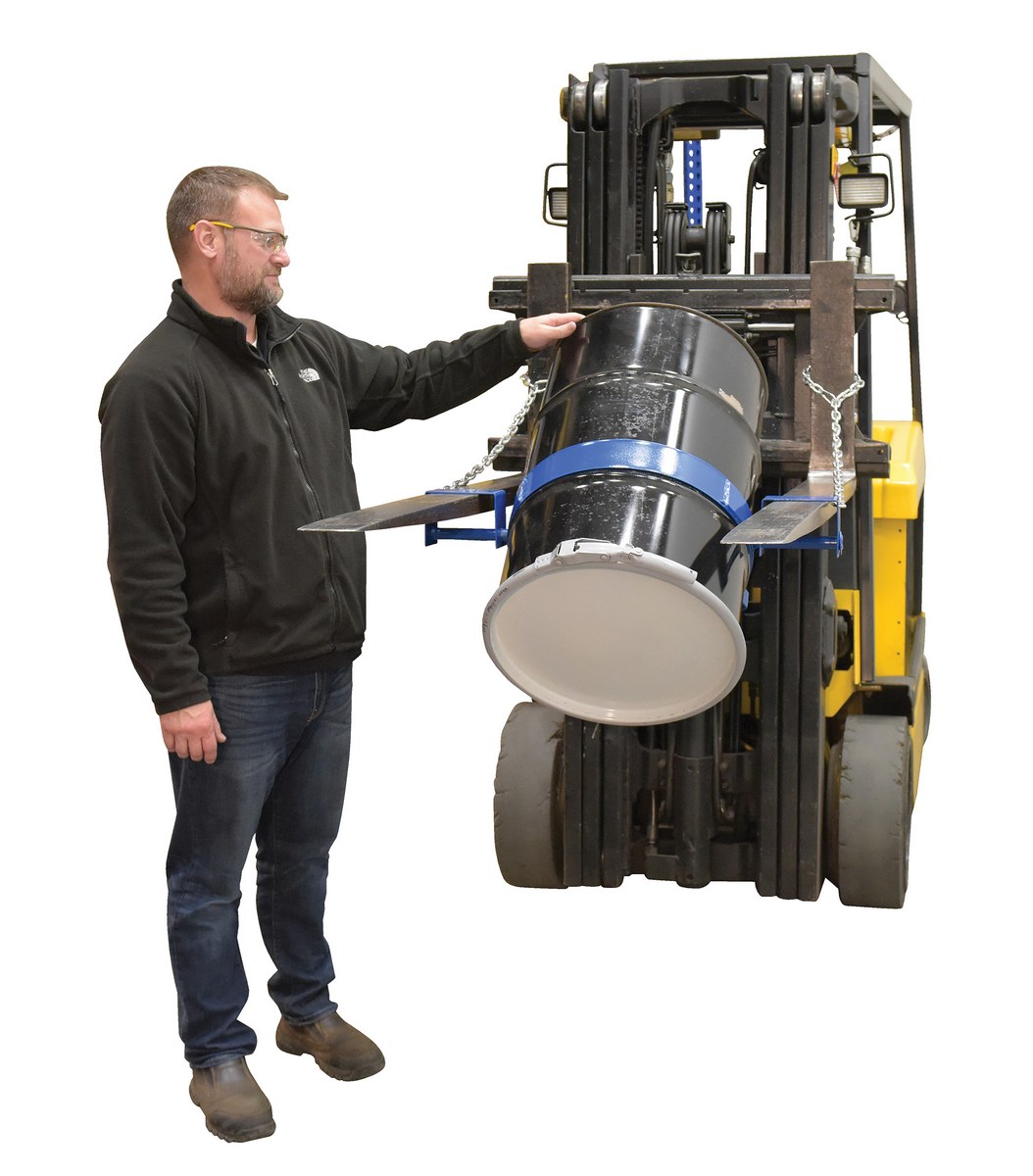

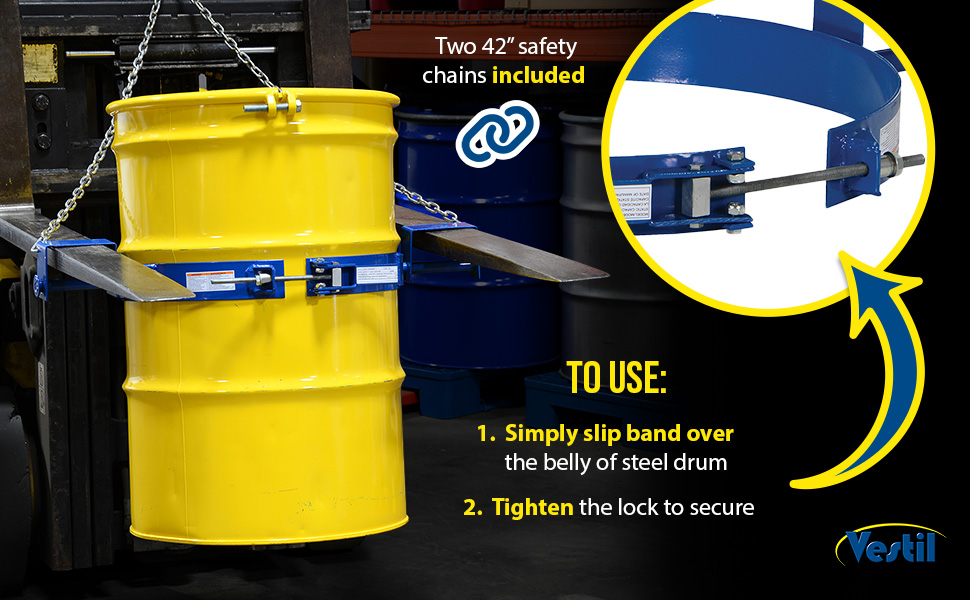

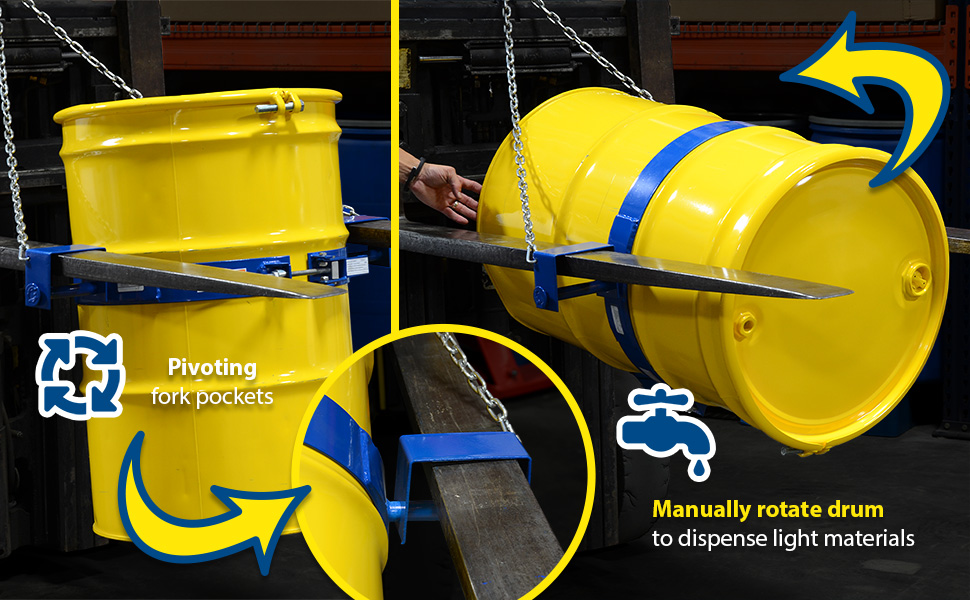

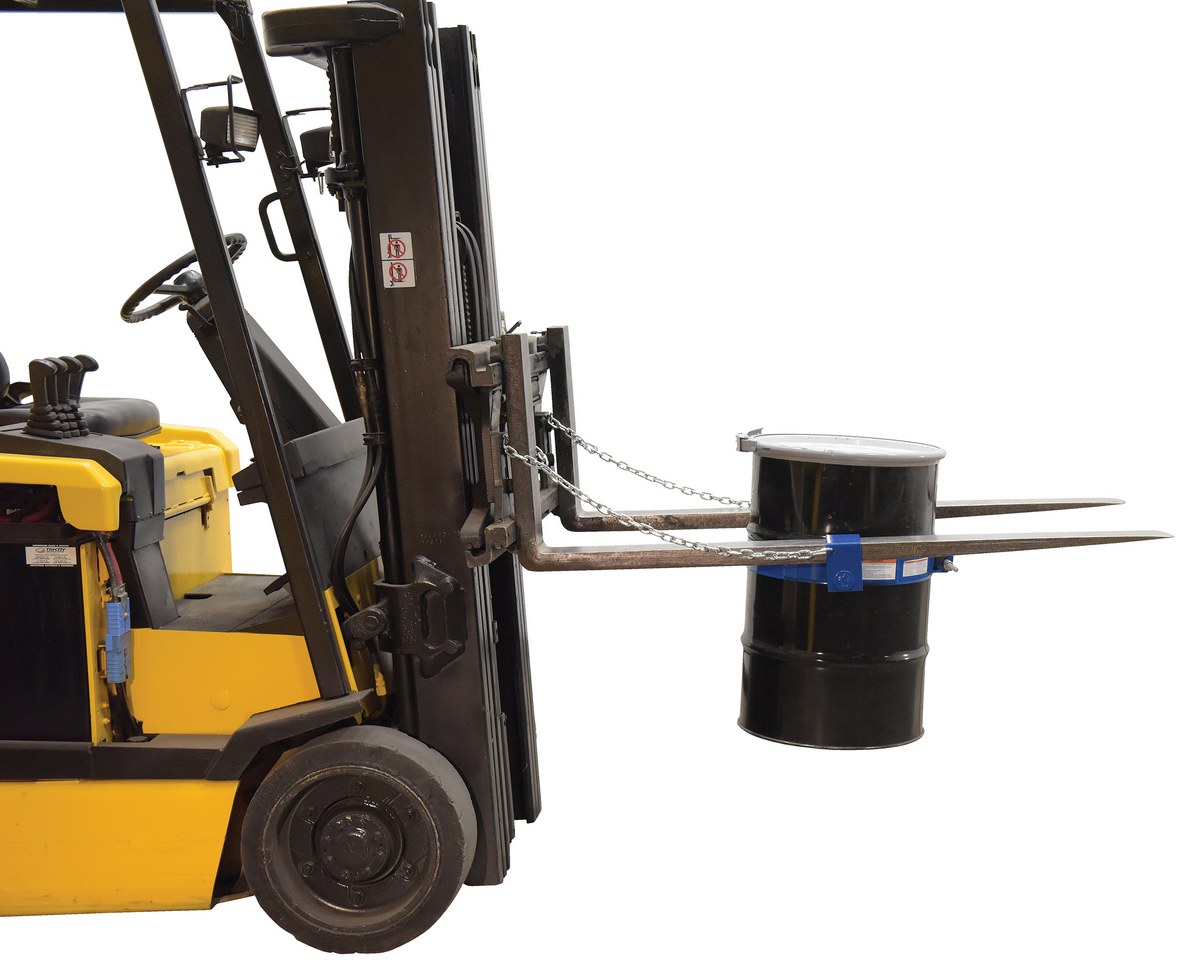

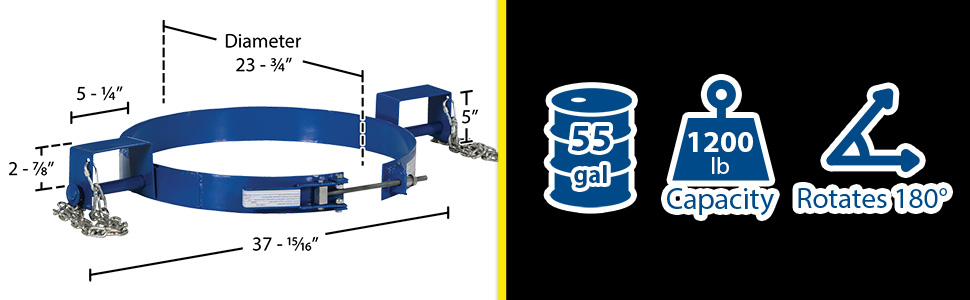

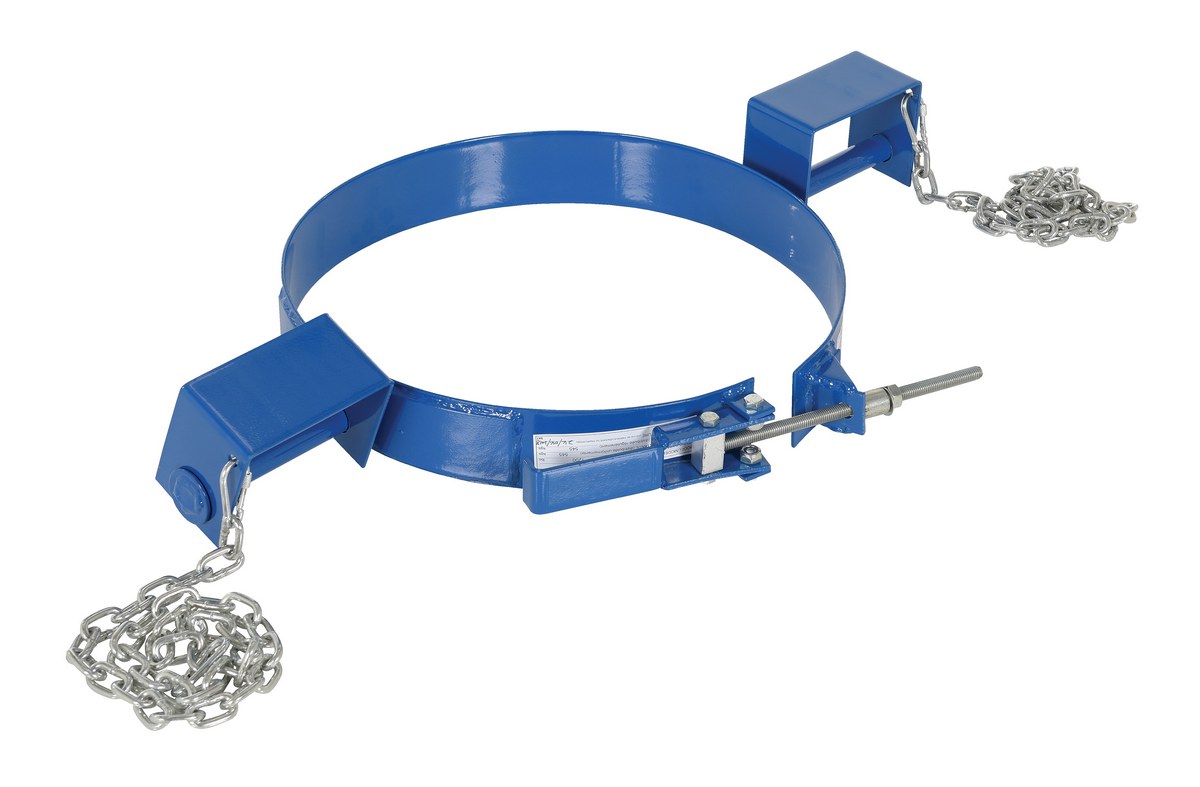

Easily transport steel drums with your fork truck and the Tilting Drum Ring. Pivoting fork pockets allow you to manually rotate drum to dispense light materials. To use, slip the band over the belly of the steel drum and tighten the lock to secure the band around the belly of the drum. Usable fork openings are 5-1/4"W x 2-7/8"H each. Welded steel construction.

Easily transport steel drums with your fork truck and the Tilting Drum Ring. Pivoting fork pockets allow you to manually rotate drum to dispense light materials. To use, slip the band over the belly of the steel drum and tighten the lock to secure the band around the belly of the drum. Usable fork openings are 5-1/4"W x 2-7/8"H each. Welded steel construction.

Other Overhead Drum Lifters

 Drum Slings Drum Clutchers Near Vertical Drum Lifter Drum Lifters

Additional Models In This Family
view entire Image Gallery

TDR-30-SS

TDR-30-SS

TDR-30-SS

TDR-30-SS

TDR-30

TDR-30

TDR-55-SS

TDR-55-SS

TDR-30-SS

TDR-30-SS

TDR-30-G

TDR-30-G

TDR-30-G

TDR-30-G

TDR-30-G

TDR-30-G

TDR-30-SS

TDR-30-SS

TDR-55

TDR-55

TDR-55-G

TDR-55-G

TDR-30-SS

TDR-30-SS

TDR-30

TDR-30

TDR-55-G

TDR-55-G

TDR-30-SS

TDR-30-SS

model chart
How To Purchase
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
TDR-30 TDR-3030 Days Limited WarrantyCarbon Steel Tilting Drum Ring 30 Gallon Drum 1,200 Lb. Capacity BlueUniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4		25
TDR-30-G TDR-30-G30 Days Limited WarrantyCarbon Galvanized Steel Tilting Drum Ring 30 Gallon Drum 1,200 Lb. Capacity GrayUniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4		23
TDR-30-SS TDR-30-SS30 Days Limited Warranty304 Stainless Steel Tilting Drum Ring 30 Gallon Drum 1,200 Lb. Capacity SilverUniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4		25
TDR-55 TDR-5530 Days Limited WarrantyCarbon Steel Tilting Drum Ring 55 Gallon Drum 1,200 Lb. Capacity BlueUniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4		25
TDR-55-G TDR-55-G30 Days Limited WarrantyCarbon Galvanized Steel Tilting Drum Ring 55 Gallon Drum 1,200 Lb. Capacity GrayUniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4		24

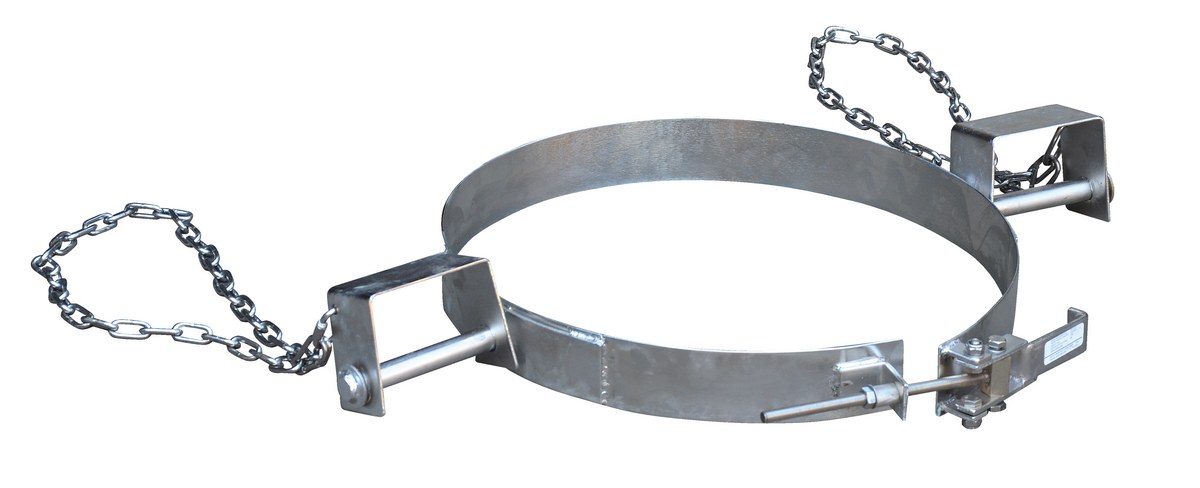

TDR-55-SS TDR-55-SS30 Days Limited Warranty304 Stainless Steel Tilting Drum Ring 55 Gallon Drum 1,200 Lb. Capacity SilverUniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4		23

* Capacity is based on full drums | Half-full drums are rated at 600 lbs.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

TDR-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4
Uniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4

TDR-30-G
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4
Uniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4

TDR-30-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4
Uniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4

TDR-55
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4
Uniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4

TDR-55-G
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4
Uniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4

TDR-55-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4
Uniform Capacity (lb.): 1,200
Usable Fork Opening Width (in.): 5-1/4
Tilting Drum Rings PDF's will open in a new window when clicked.

Manuals


TDR
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


TDR-30

TDR-55

Testing Certificates


TDR-30

TDR-30-G

TDR-30-SS

TDR-55

TDR-55-G

TDR-55-SS
