Portable Cantilever Hoists

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
P-JIB-4_A.jpg P-JIB-4_E.jpg P-JIB-4_H.jpg P-JIB-4_N.jpg
P-JIB-4_D.jpg P-JIB-4_F.jpg P-JIB-4_J.jpg P-JIB-4_R.jpg
Portable Cantilever Hoists

model: P-JIB-4



Featured Overhead Lifting


Galvanized Two-Speed Cable Puller
Hand Chain Hoists
Spreader Beam With Adjustable Hand Chain Crank Bail
Quick Install Manual Trollies
Low Headroom Combination Chain Hoist/Trolley
Crane Scales
Manipulator Style Control Electric Chain Hoist
Fixed Height Steel Gantry Cranes - Knockdown
Vacuum Move Lifter
model chart

Product Family Overview

Print Friendly
Portable Cantilever Hoists
SERIES: P-JIB

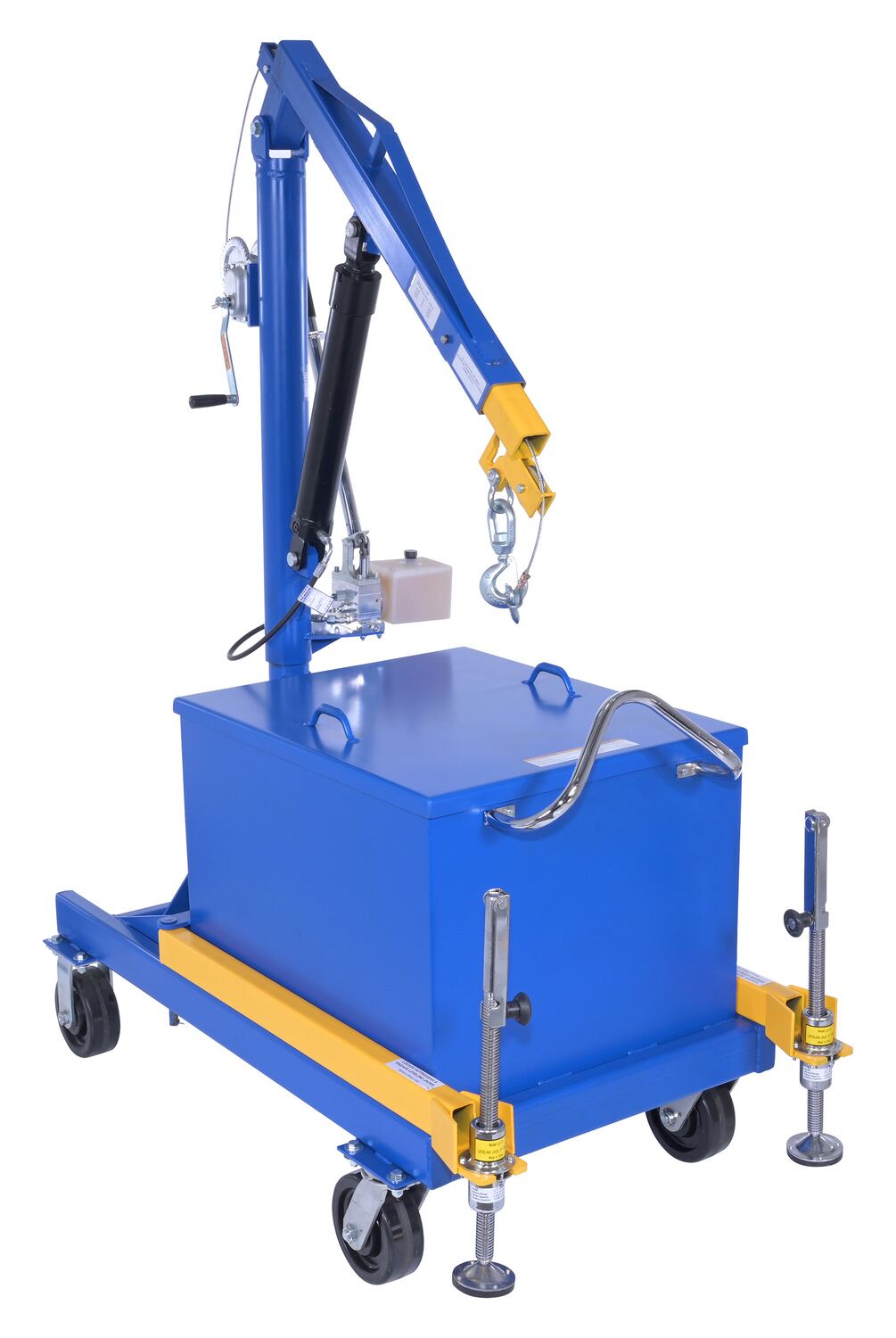

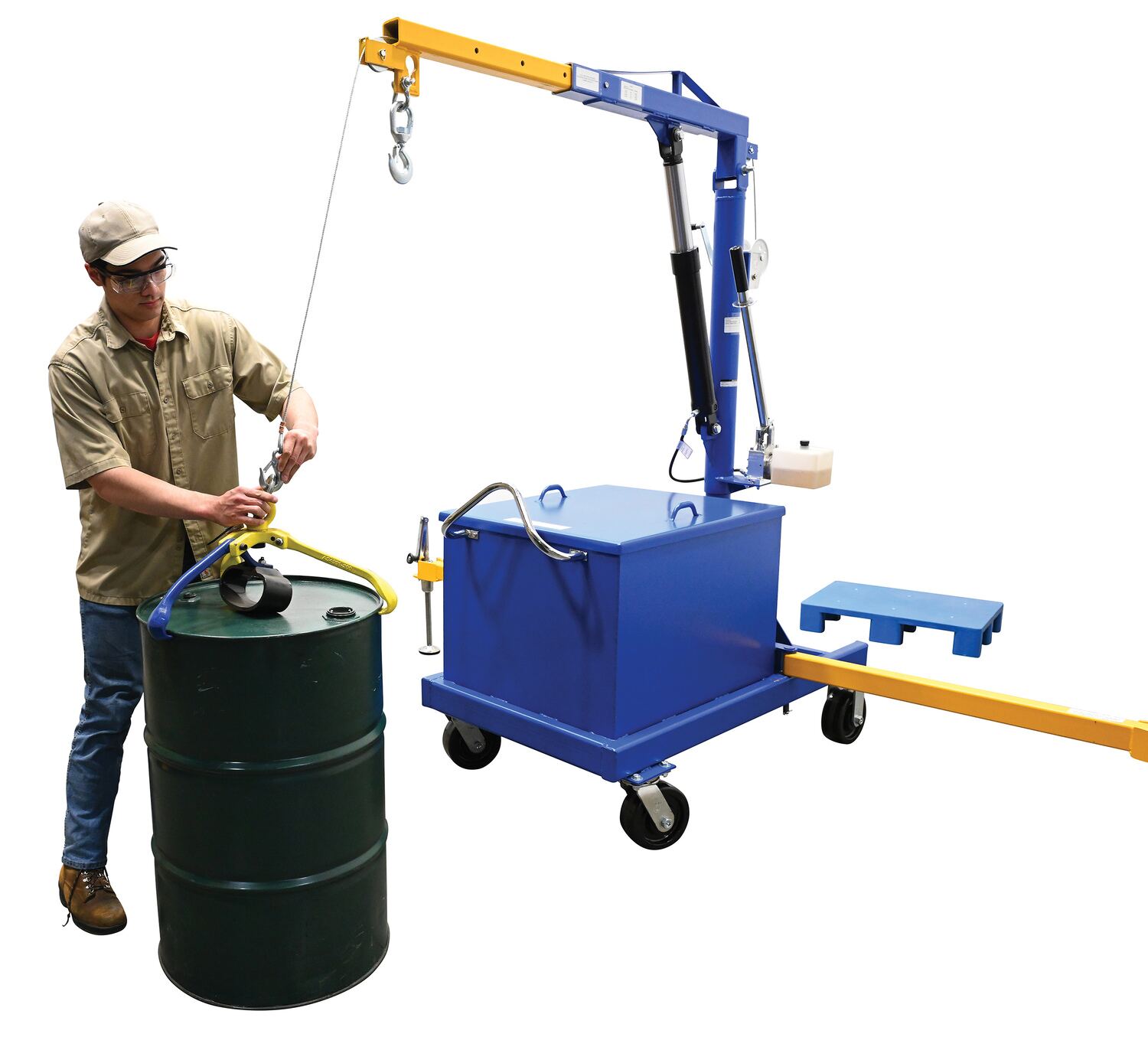

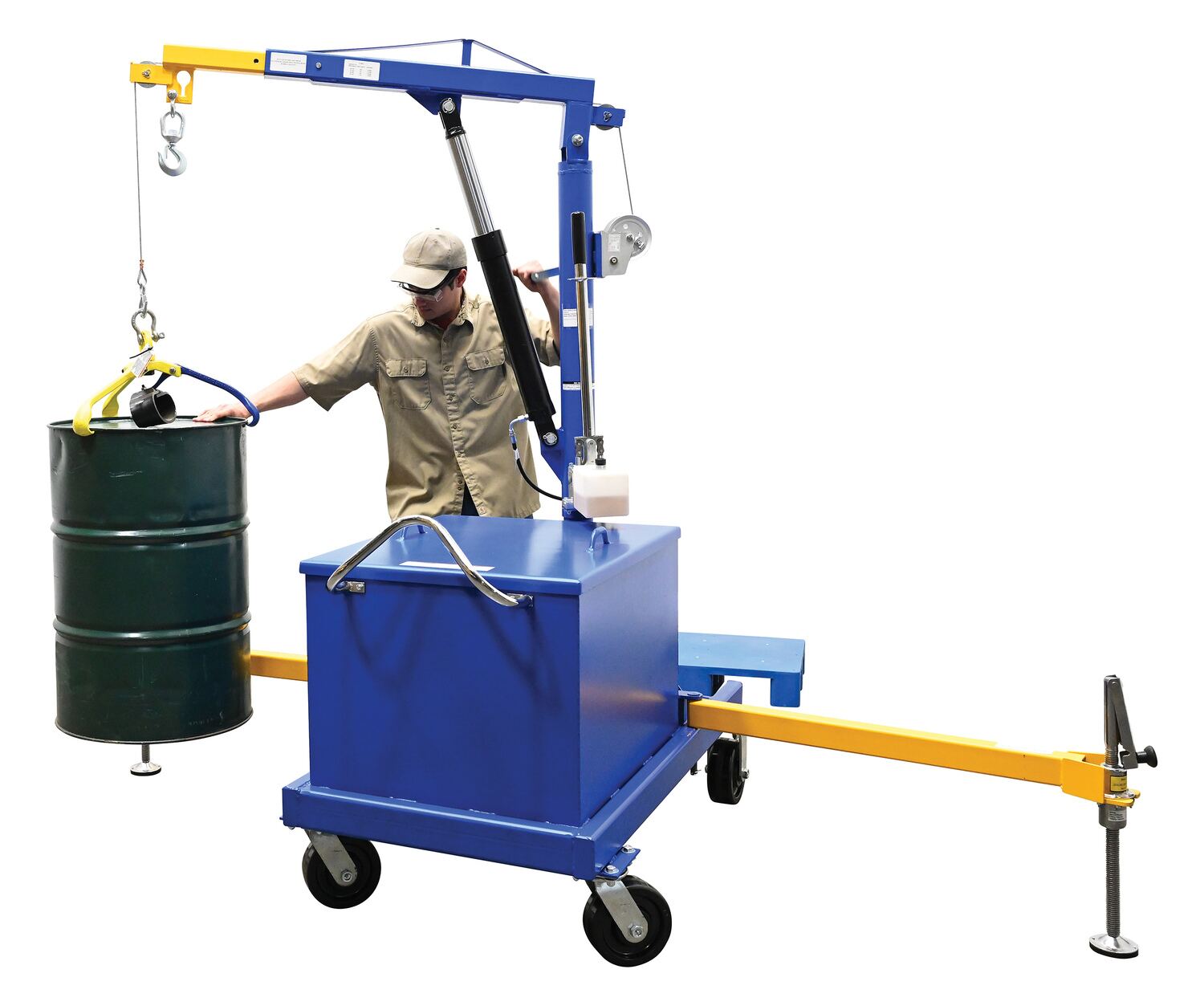

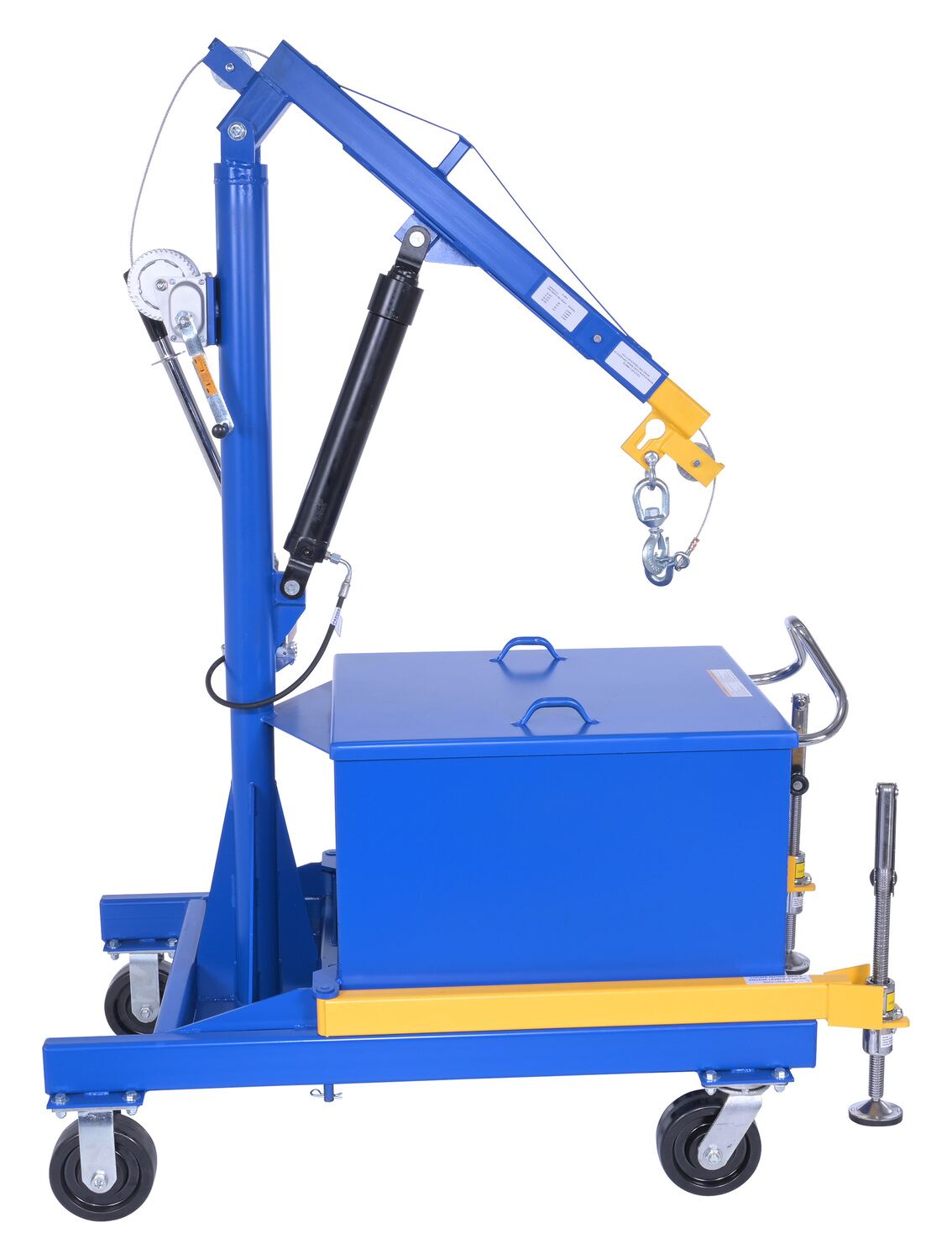

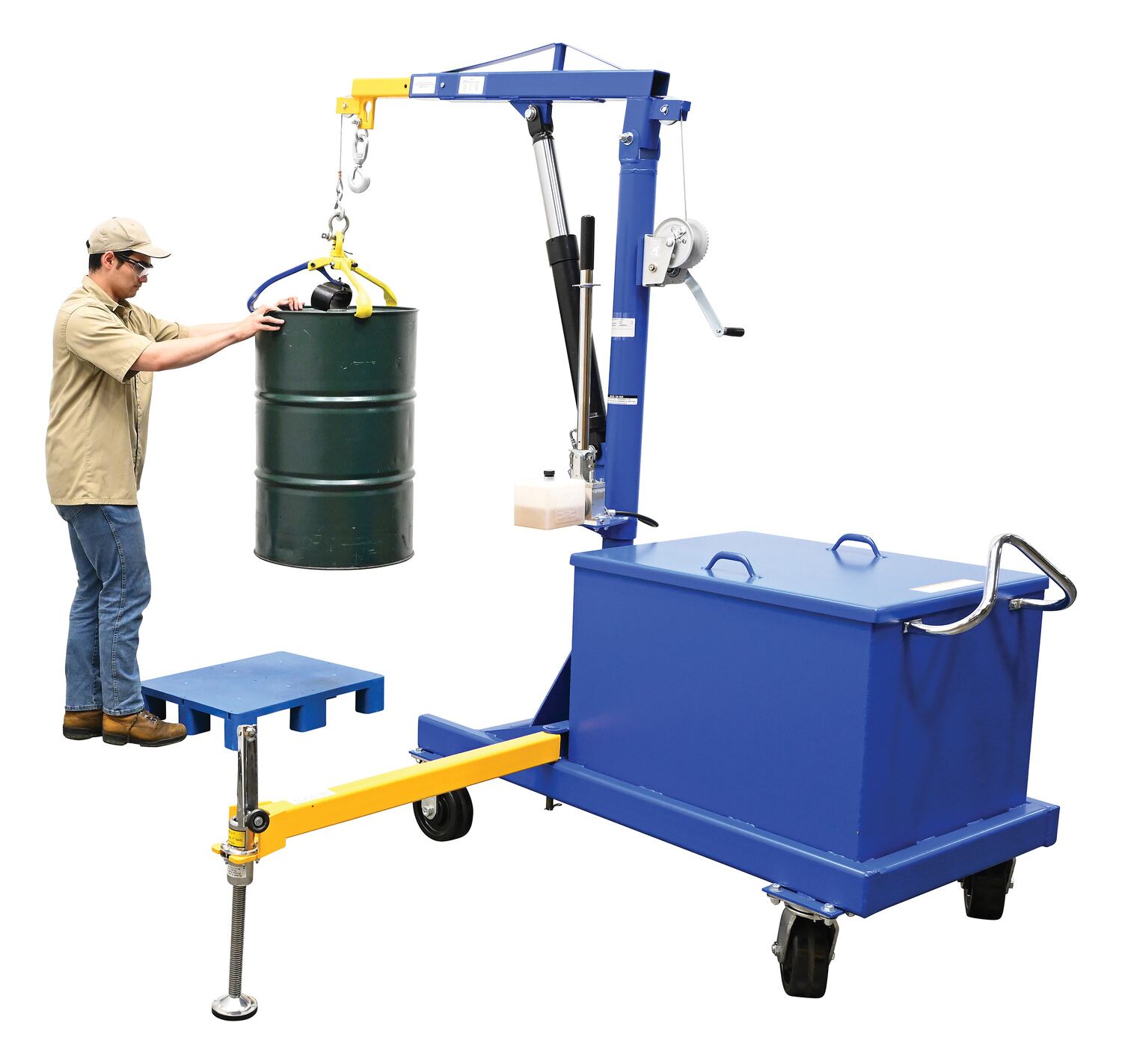

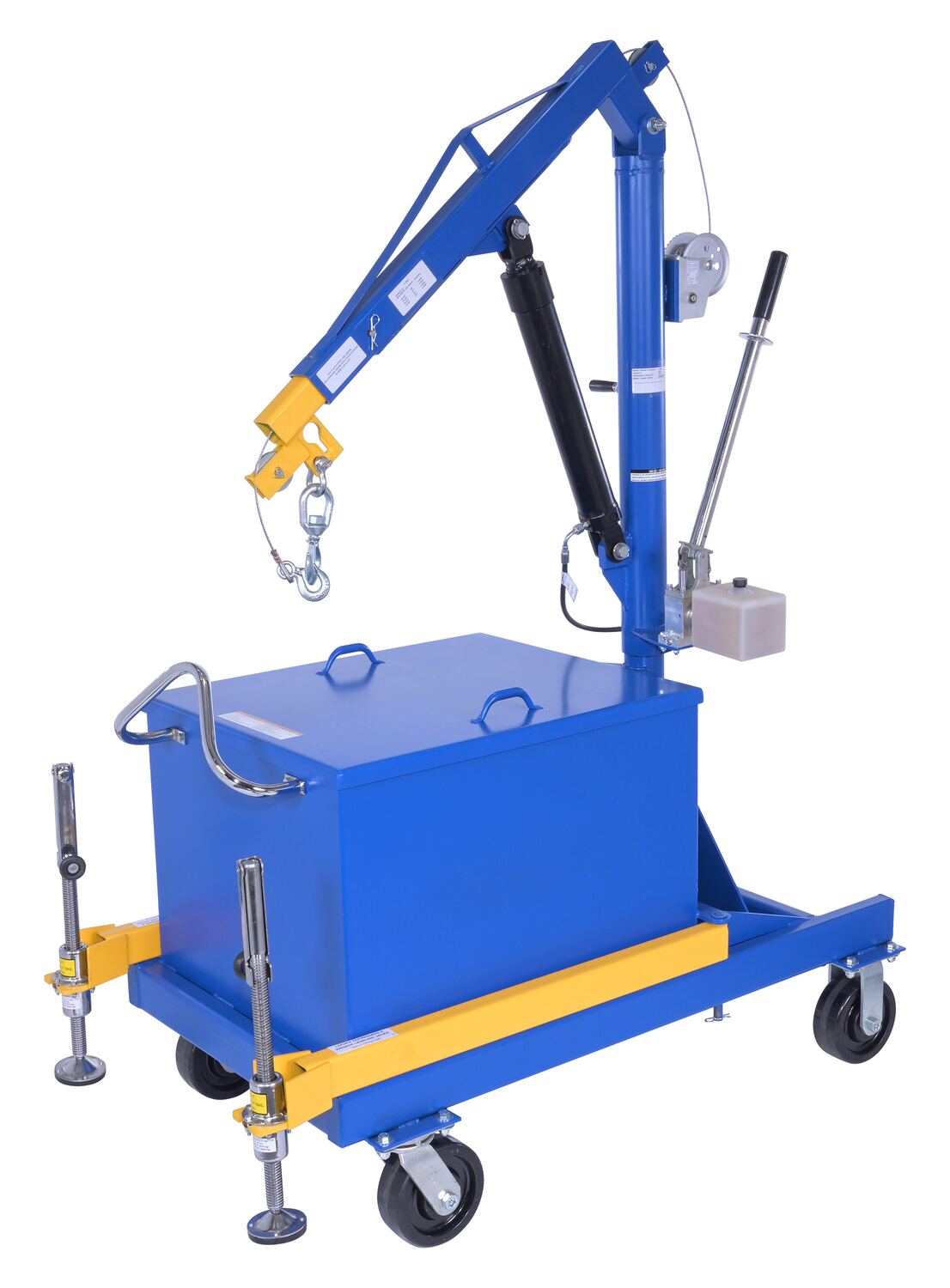

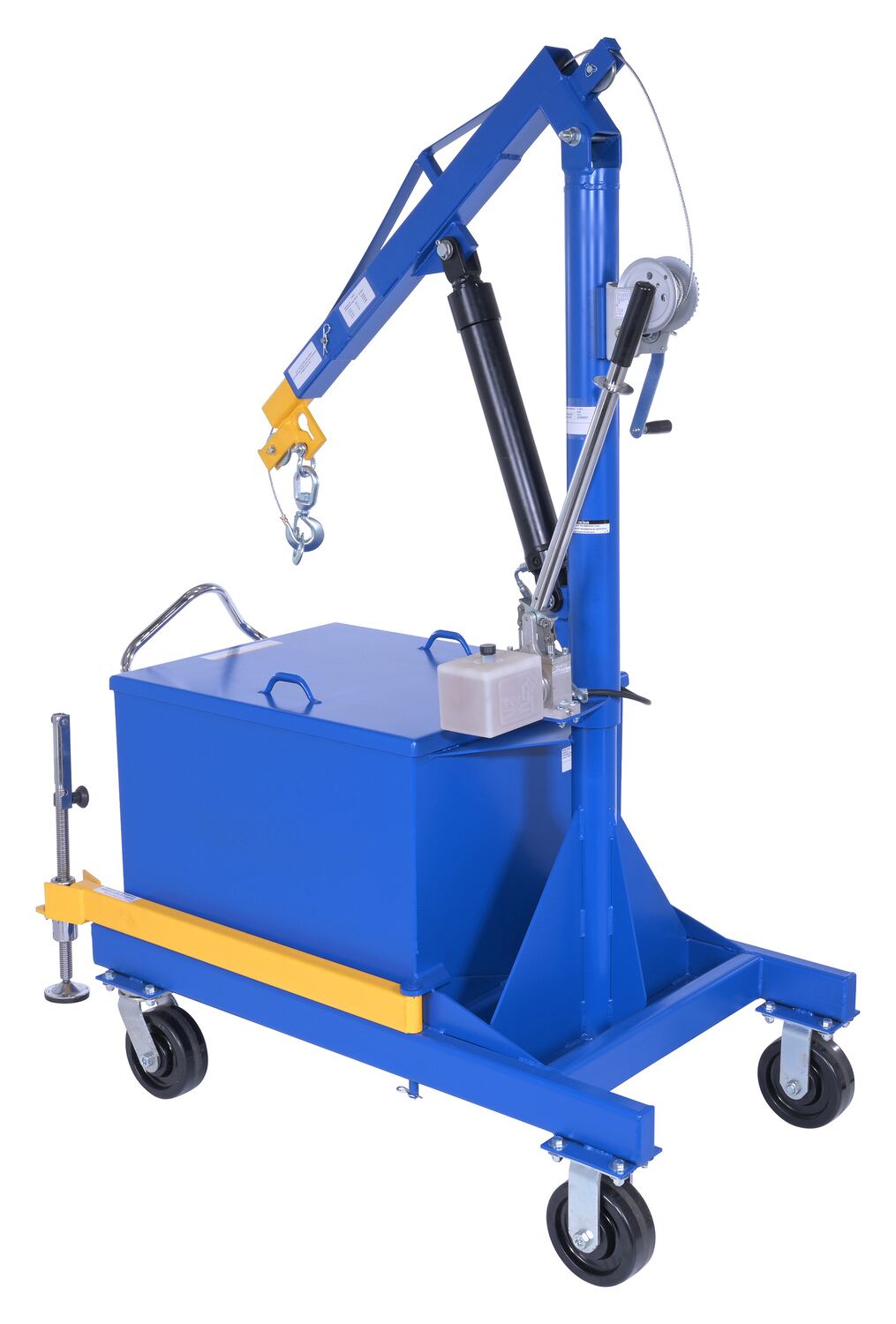

The Portable Cantilever Hoist is built for heavy lifting. The swivel crane makes for simple side loading and controlled lowering. Maximum arm length beyond fram is 50-3/8". Unit is available with or without counter balancing ballast. Painted finish.

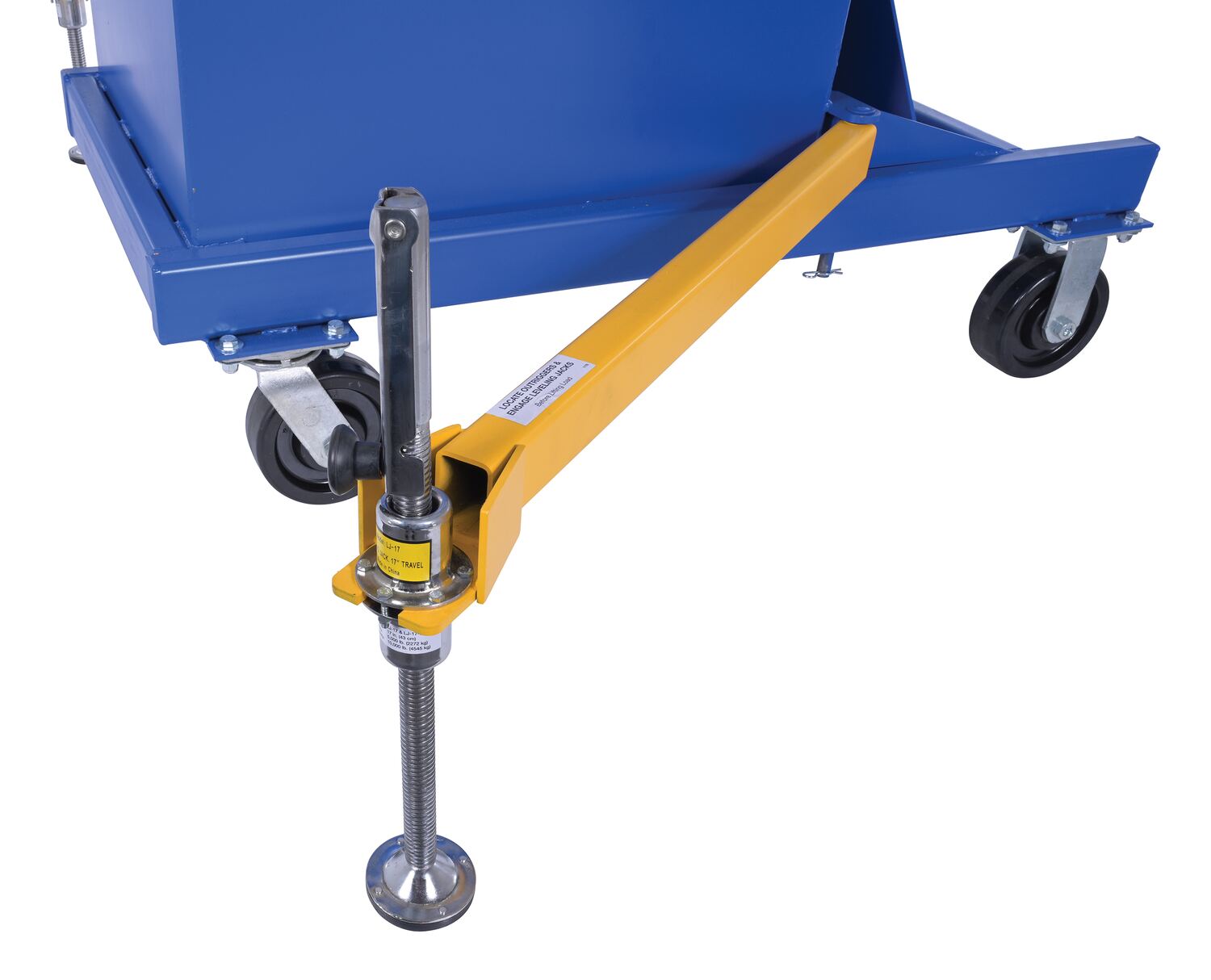

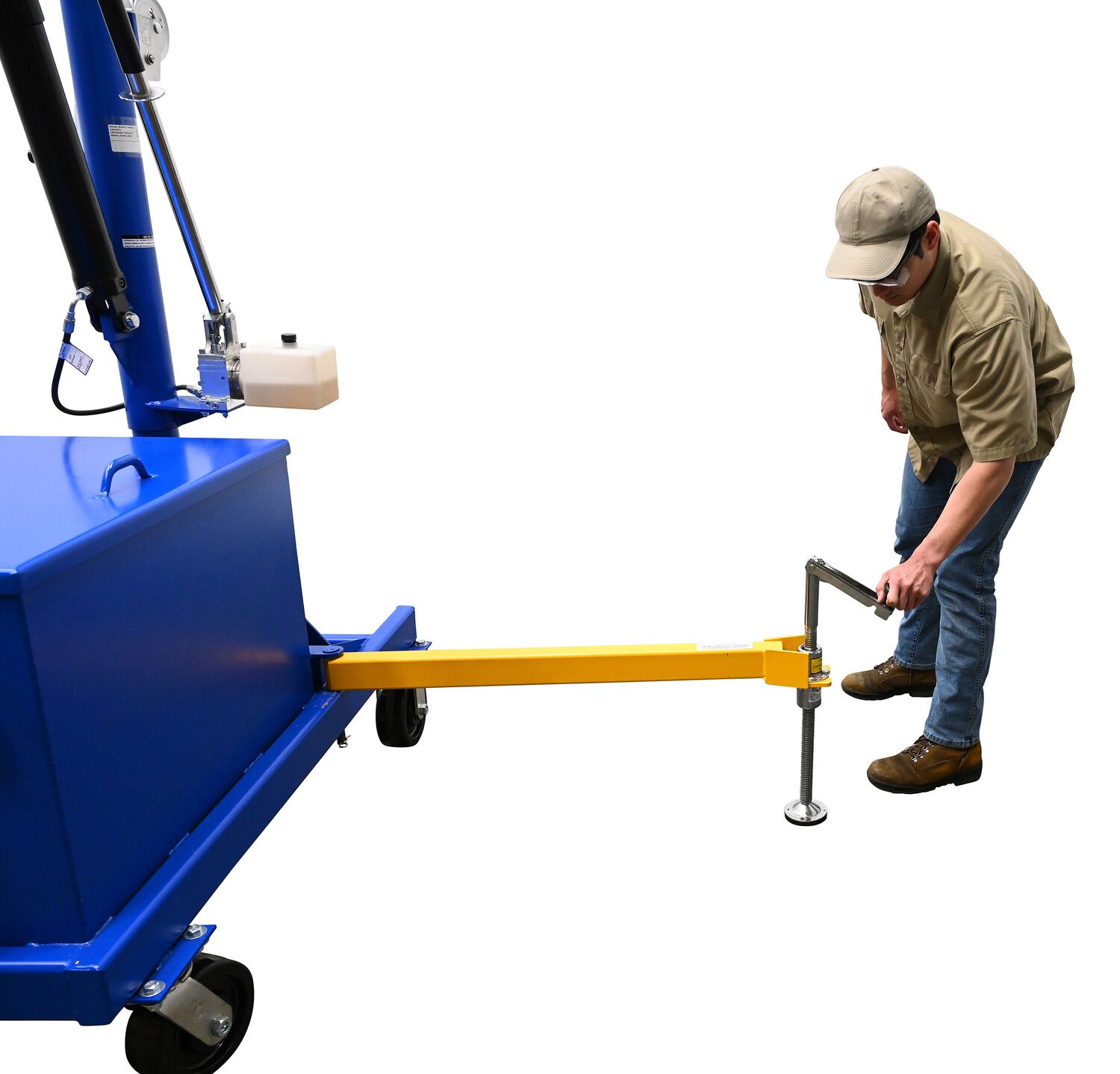

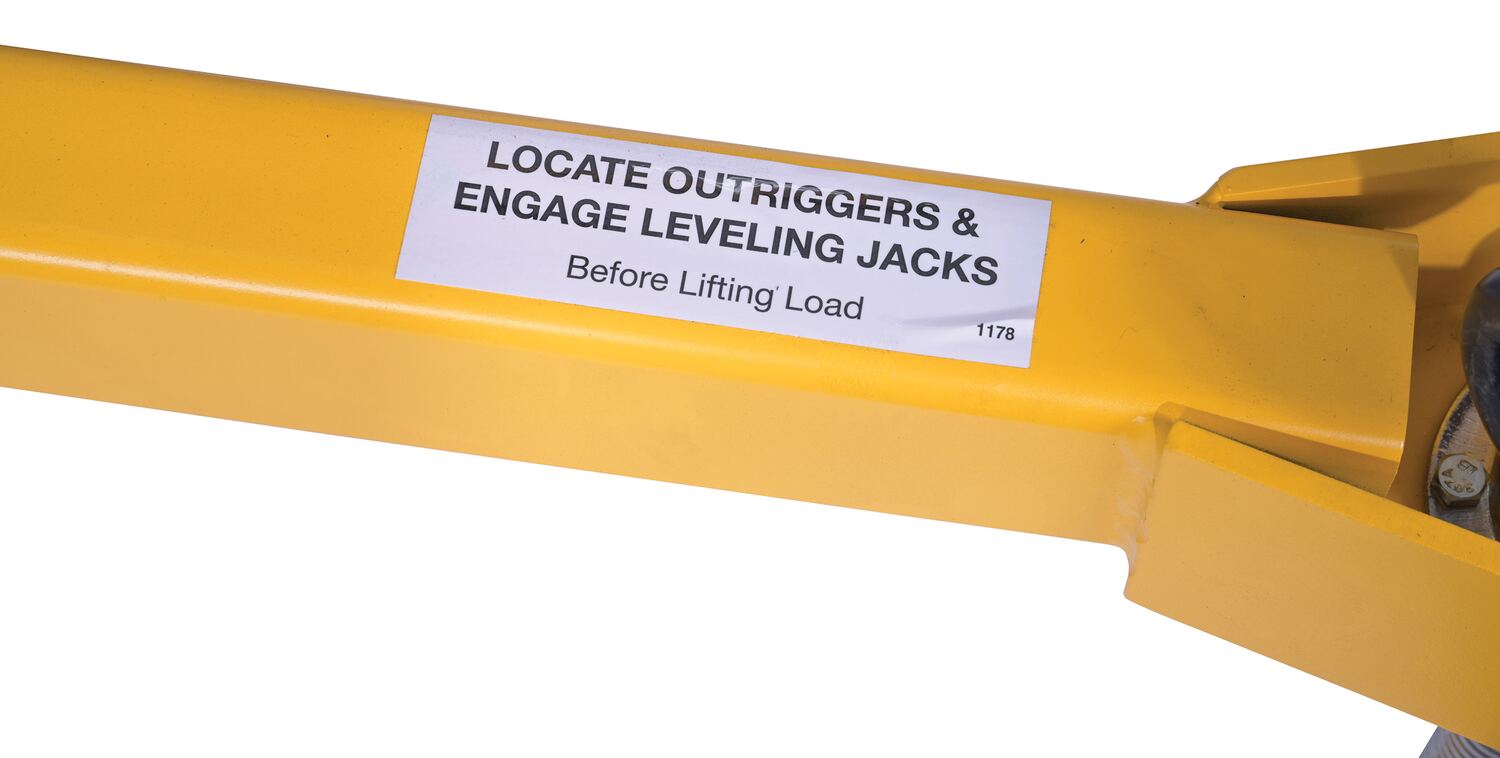

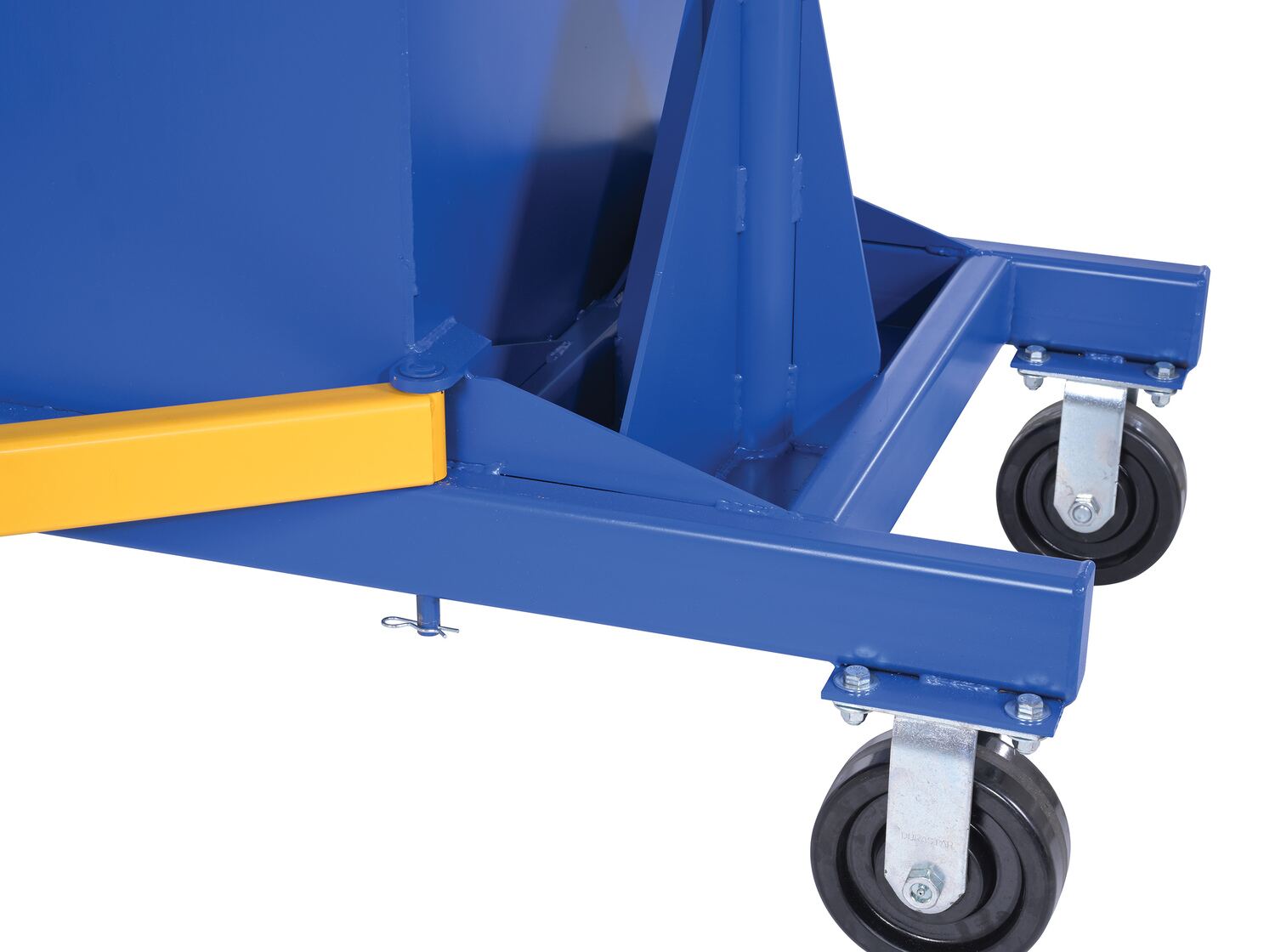

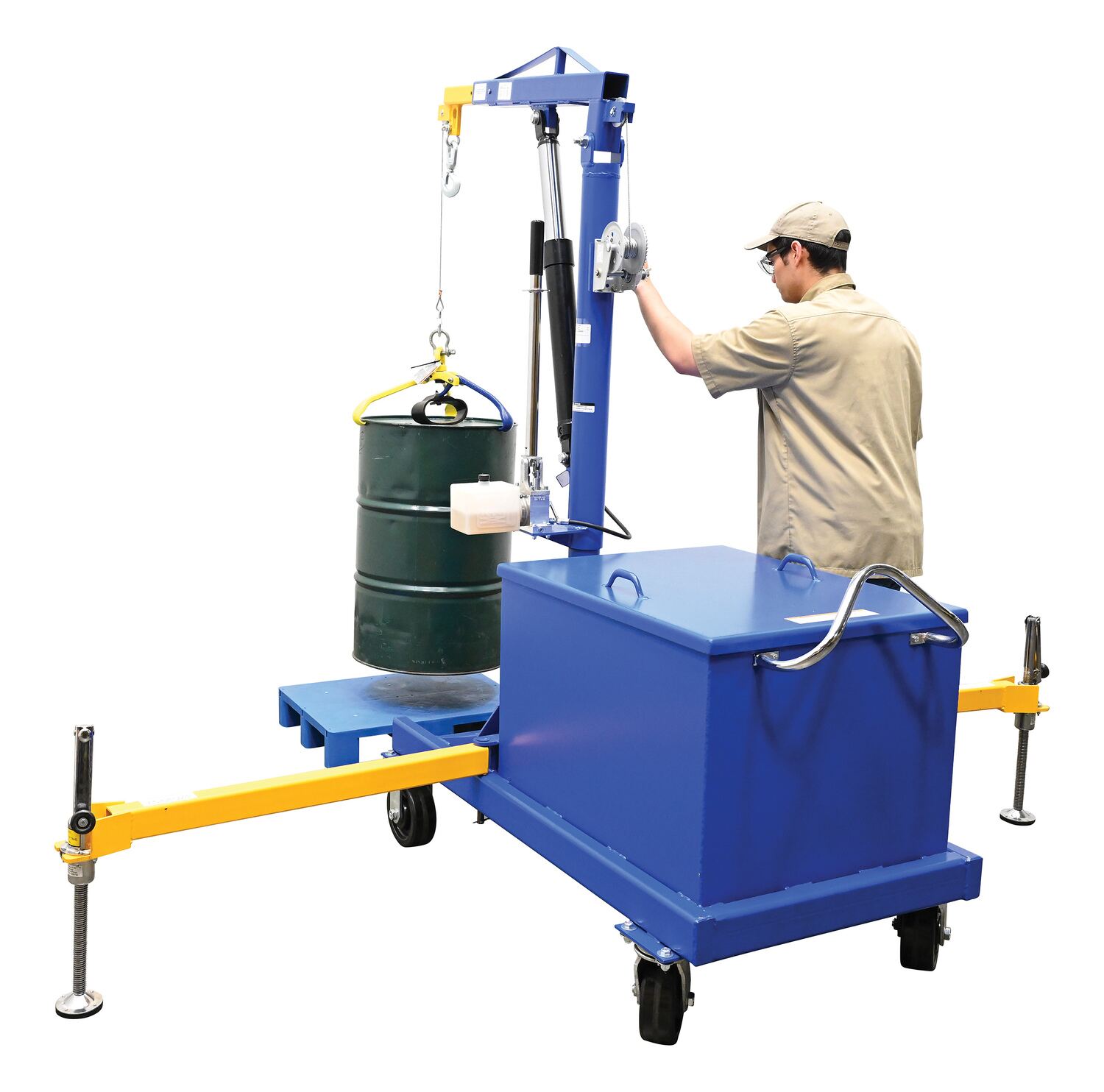

  • Outriggers increase stability with counter-balanced/cantilever design

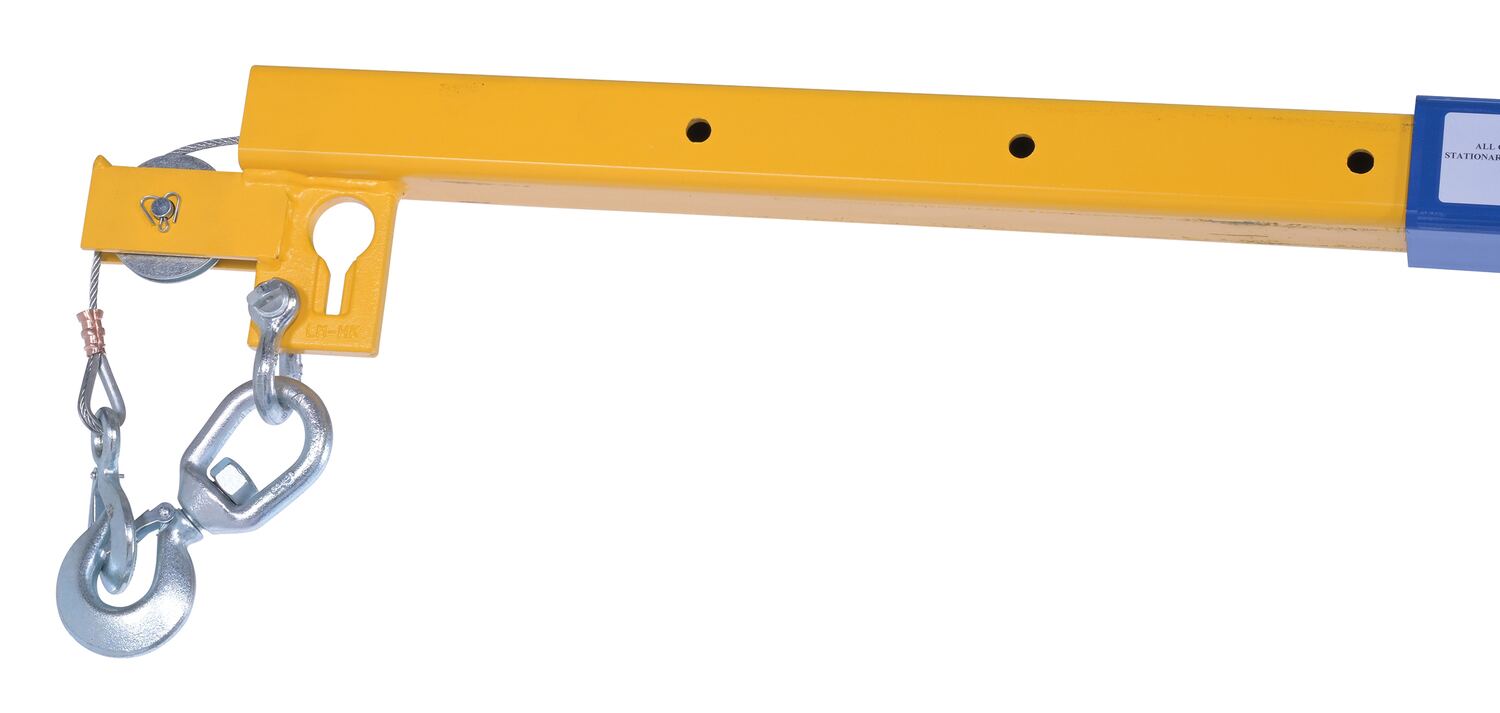

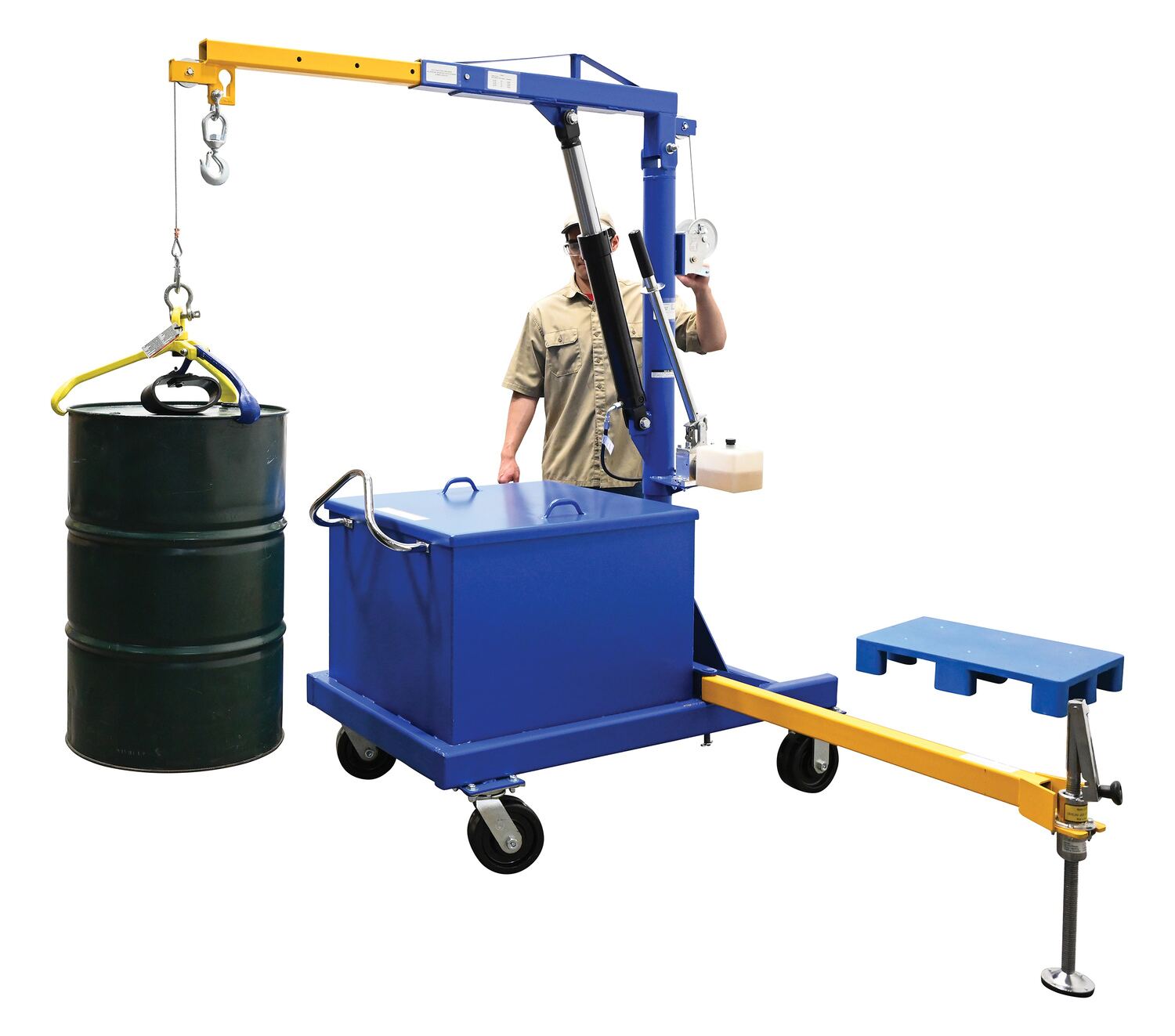

  • Adjustable extendable boom
  • Boom swivels 360 degrees

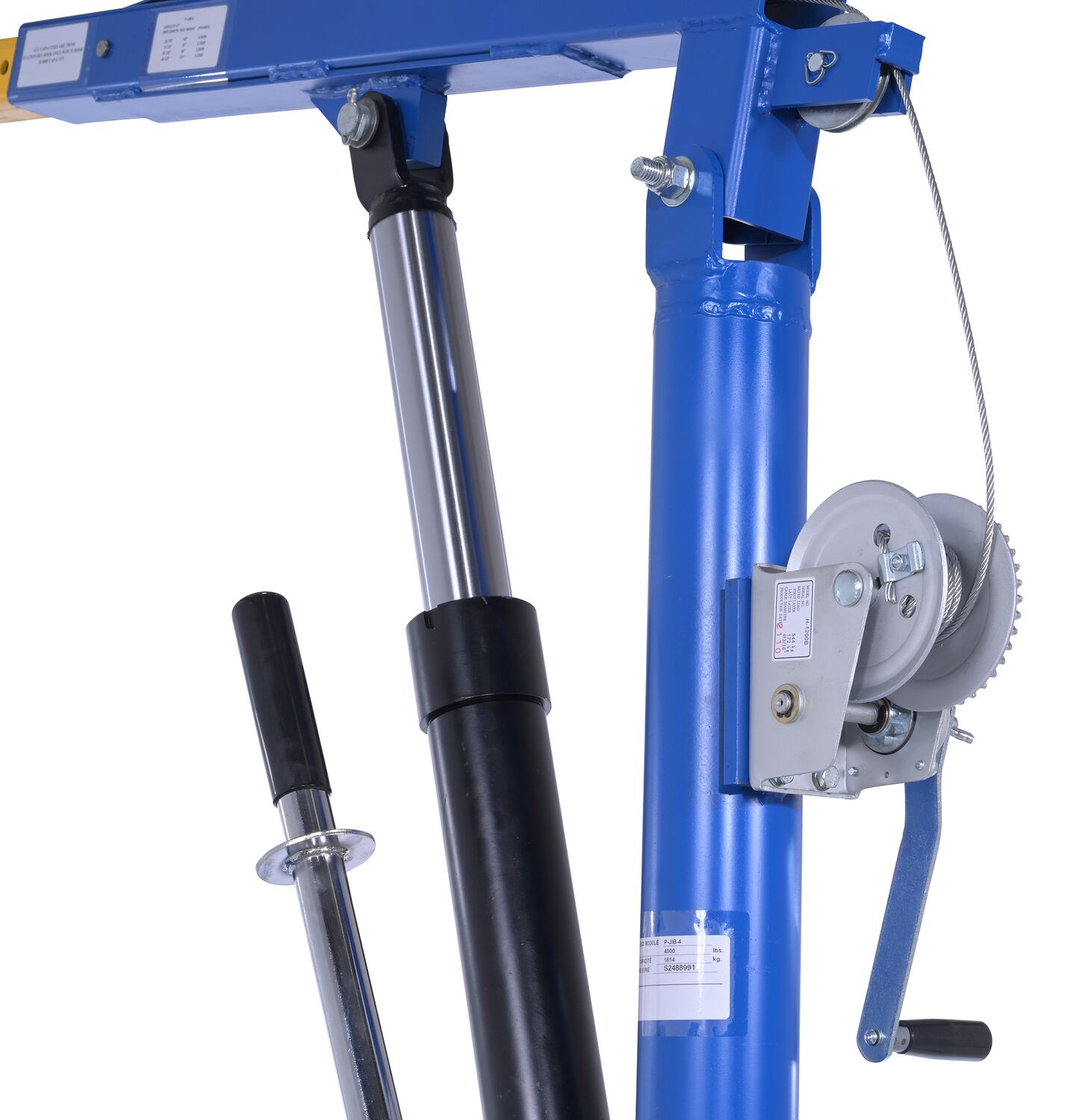

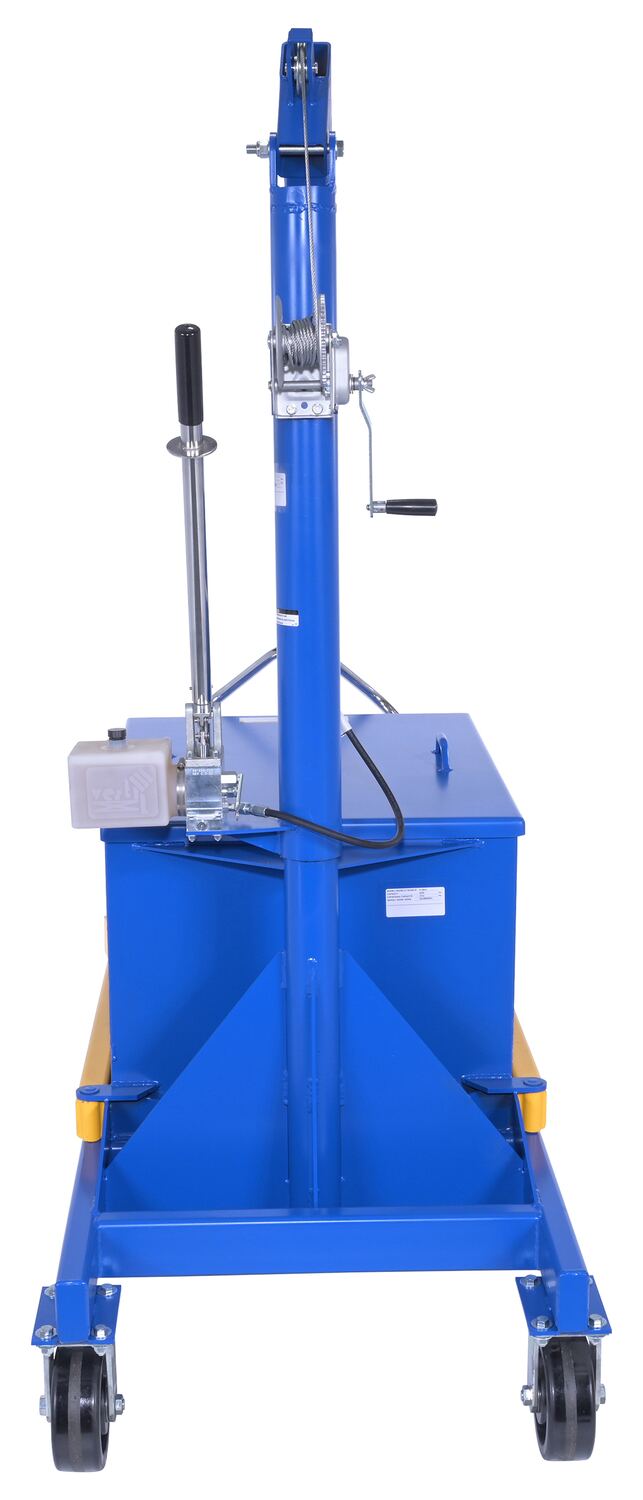

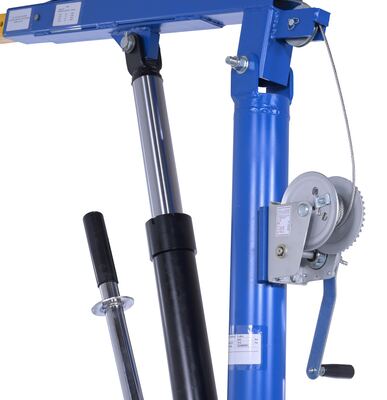

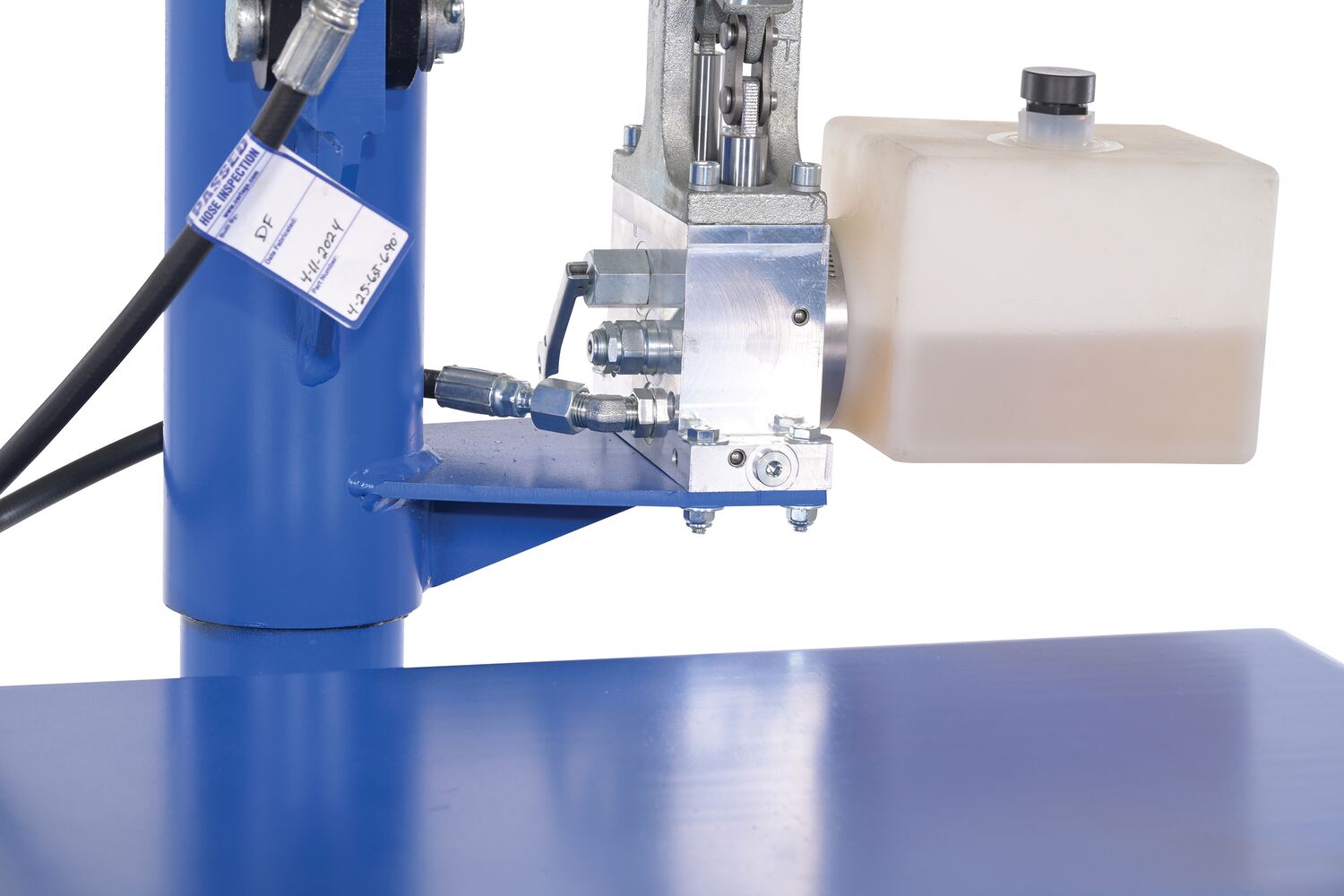

  • Double acting hydraulic hand pump

The Portable Cantilever Hoist is built for heavy lifting. The swivel crane makes for simple side loading and controlled lowering. Maximum arm length beyond fram is 50-3/8". Unit is available with or without counter balancing ballast. Painted finish.

  • Outriggers increase stability with counter-balanced/cantilever design
  • Adjustable extendable boom
  • Boom swivels 360 degrees
  • Double acting hydraulic hand pump

Other Engine Hoists & Floor Cranes

 Electric Powered Floor Cranes Lifter Jibs Power Lift Jib Cranes Hoist Trailer

Additional Models In This Family
view entire Image Gallery

P-JIB-4

model P-JIB-4

P-JIB-BALL-4

model P-JIB-BALL-4

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

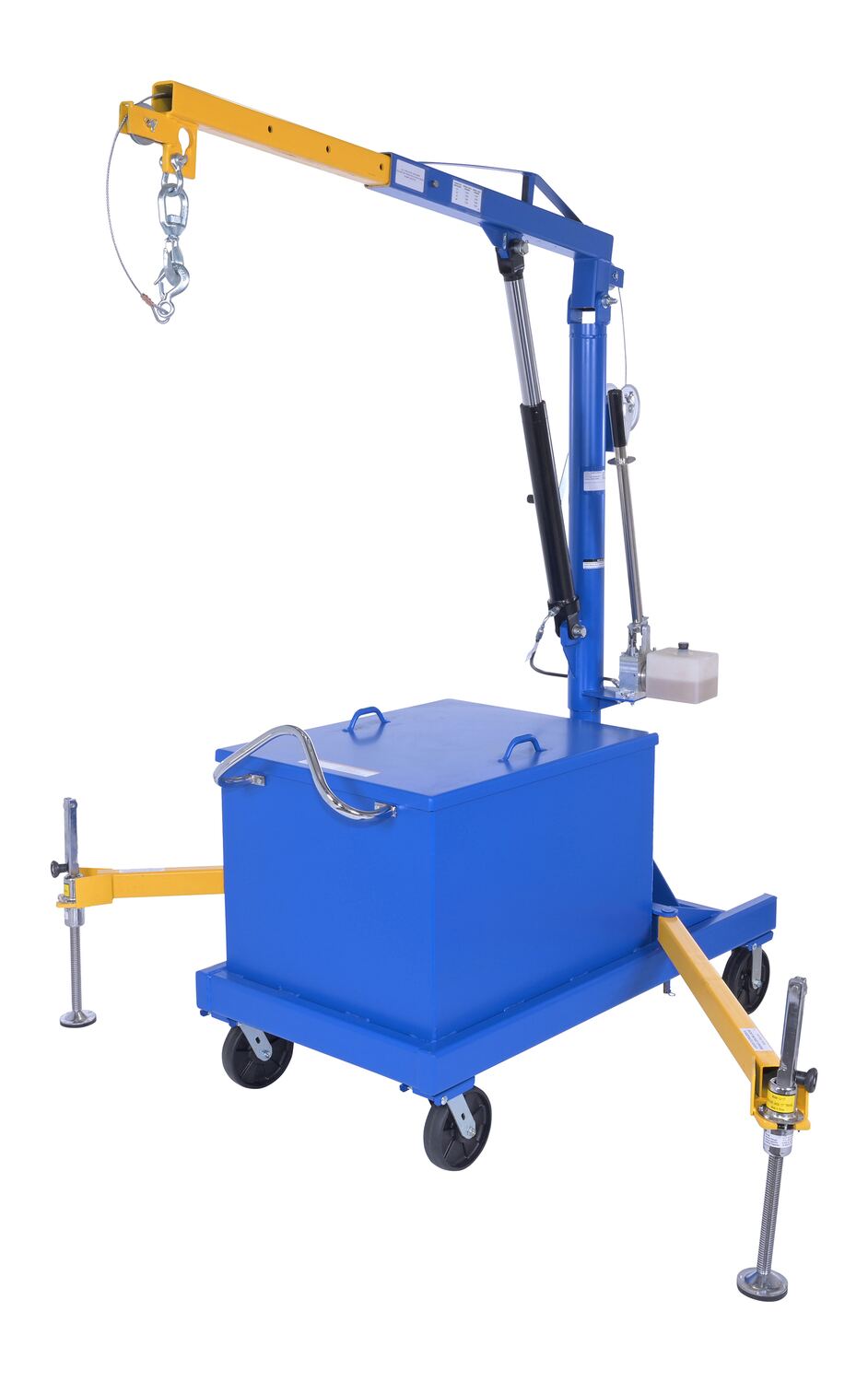

P-JIB-2 POPULAR P-JIB-21 Year Limited WarrantySteel Portable Cantilever Hoist 113-3/8 In. x 35-11/16 In. x 89 In. 2000 Lb. Capacity BlueUniform Capacity - Arm Length 24-3/8 inches (lb.): 2,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 1600		939
P-JIB-4 P-JIB-41 Year Limited WarrantySteel Portable Cantilever Hoist 113-3/8 In. x 35-11/16 In. x 89 In. 4000 Lb. Capacity BlueUniform Capacity - Arm Length 24-3/8 inches (lb.): 4,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 3200		950

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

P-JIB-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity - Arm Length 24-3/8 inches (lb.): 2,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 1600
Uniform Capacity - Arm Length 24-3/8 inches (lb.): 2,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 1600

P-JIB-4
Unit:
Size: W x L x H
Weight:
Limited Warranty

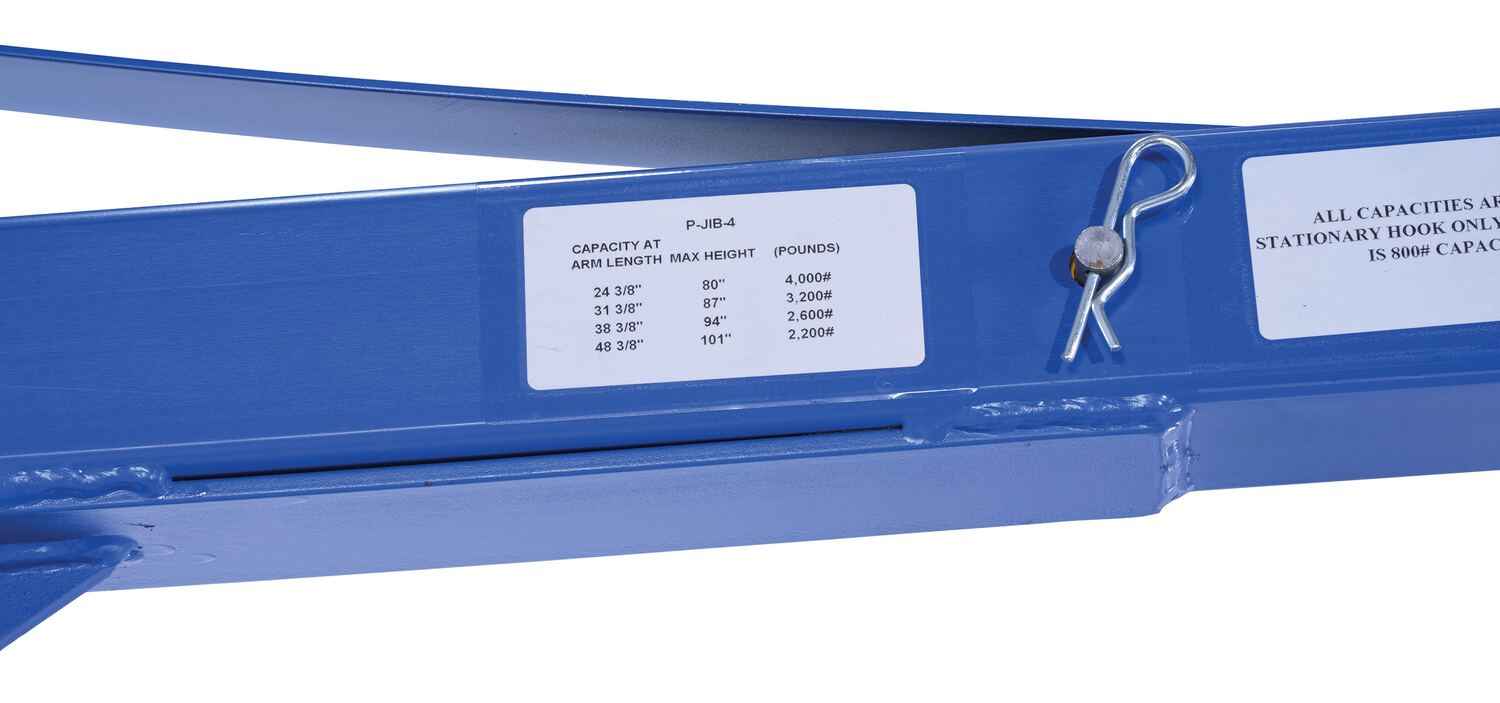

Uniform Capacity - Arm Length 24-3/8 inches (lb.): 4,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 3200
Uniform Capacity - Arm Length 24-3/8 inches (lb.): 4,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 3200
For More Details of the Option Click the Red Model Button

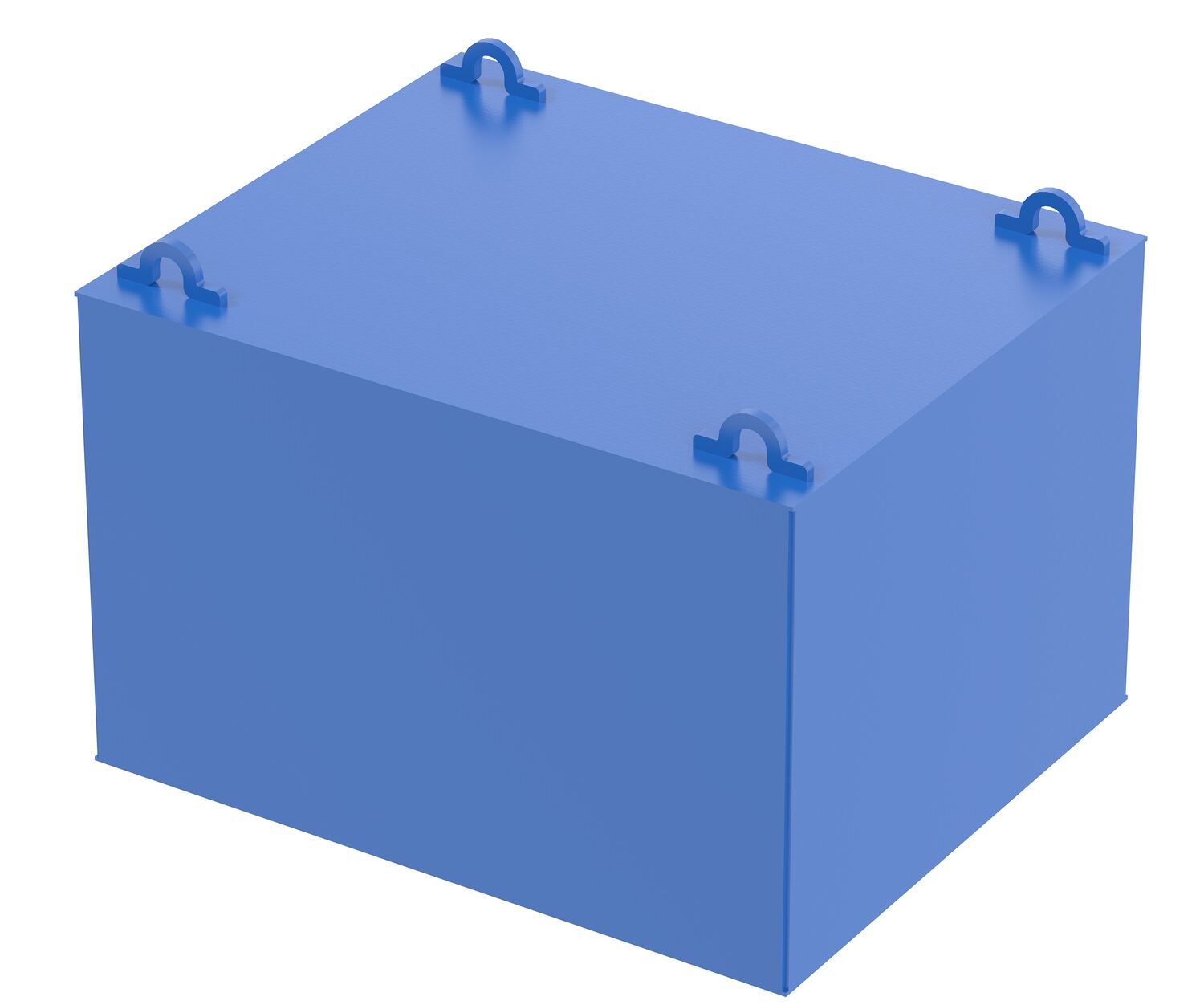

P-JIB-BALL-2 P-JIB-BALL-21 Year Limited WarrantySteel Cantilever Hoist Ballast 16-1/2 In. x 27 In. x 24 In. 2000 Lb. Capacity BlueAttachment Method: Hook and Chain through 4 Lifting Eyes welded onto unit
Package Contents: (1) Steel Cantilever Hoist Ballast		2780

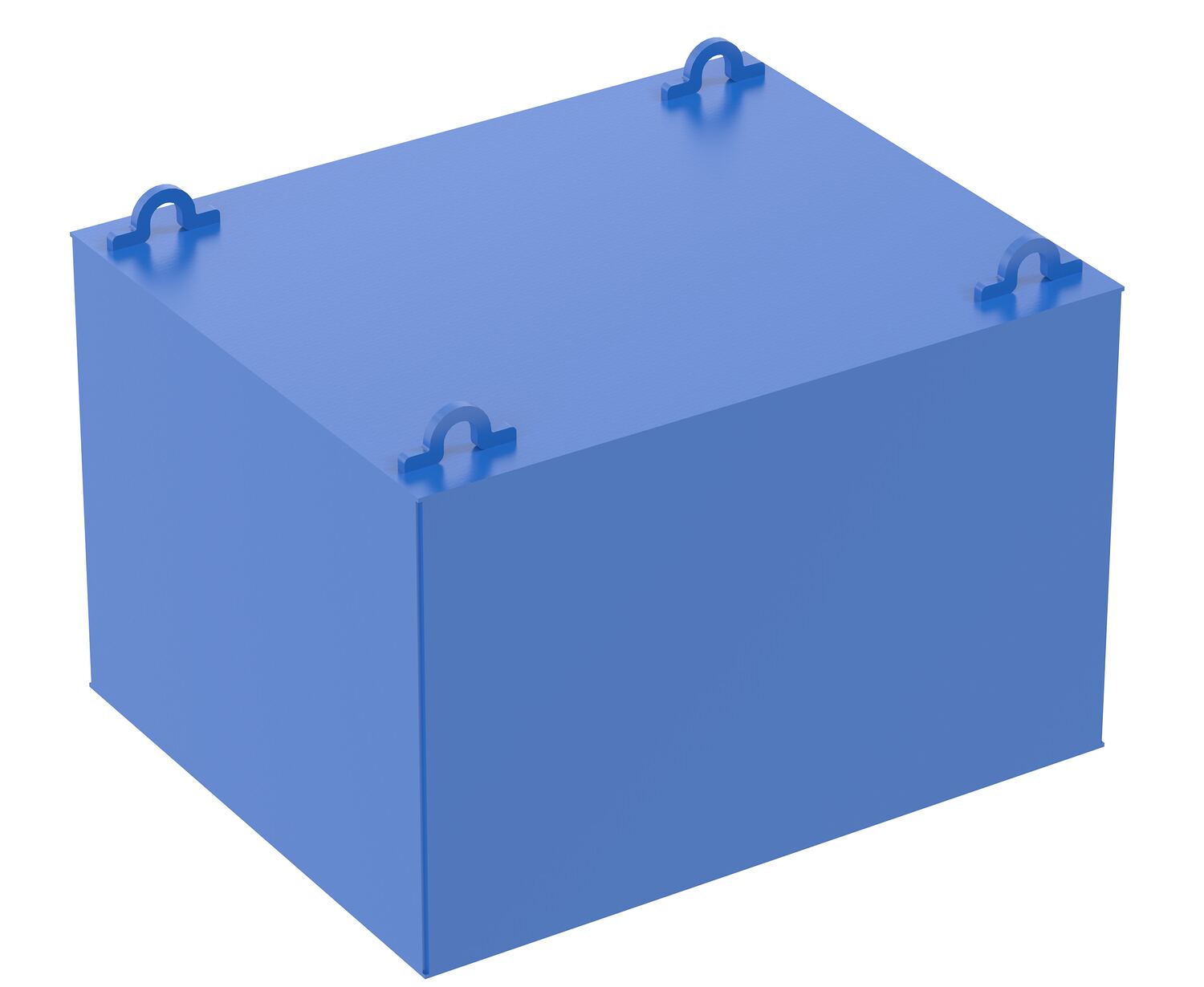

P-JIB-BALL-4 P-JIB-BALL-41 Year Limited WarrantySteel Cantilever Hoist Ballast 33 In. x 27 In. x 24 In. 4000 Lb. Capacity BlueAttachment Method: Hook and Chain through 4 Lifting Eyes welded onto unit
Package Contents: (1) Steel Cantilever Hoist Ballast		3650

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Portable Cantilever Hoists PDF's will open in a new window when clicked.

Manuals


P-JIB
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


P-JIB-2

P-JIB-4

P-JIB-BALL-2

P-JIB-BALL-4

Testing Certificates


P-JIB-2

P-JIB-4

P-JIB-BALL-2

P-JIB-BALL-4

SDS Sheets

Hydraulic Oil SDS Sheet for: P-JIB-2
Hydraulic Oil SDS Sheet for: P-JIB-4

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the length of the line on the portable cantilever hoist?

A: The line on the P-JIB-2 is 14' long.

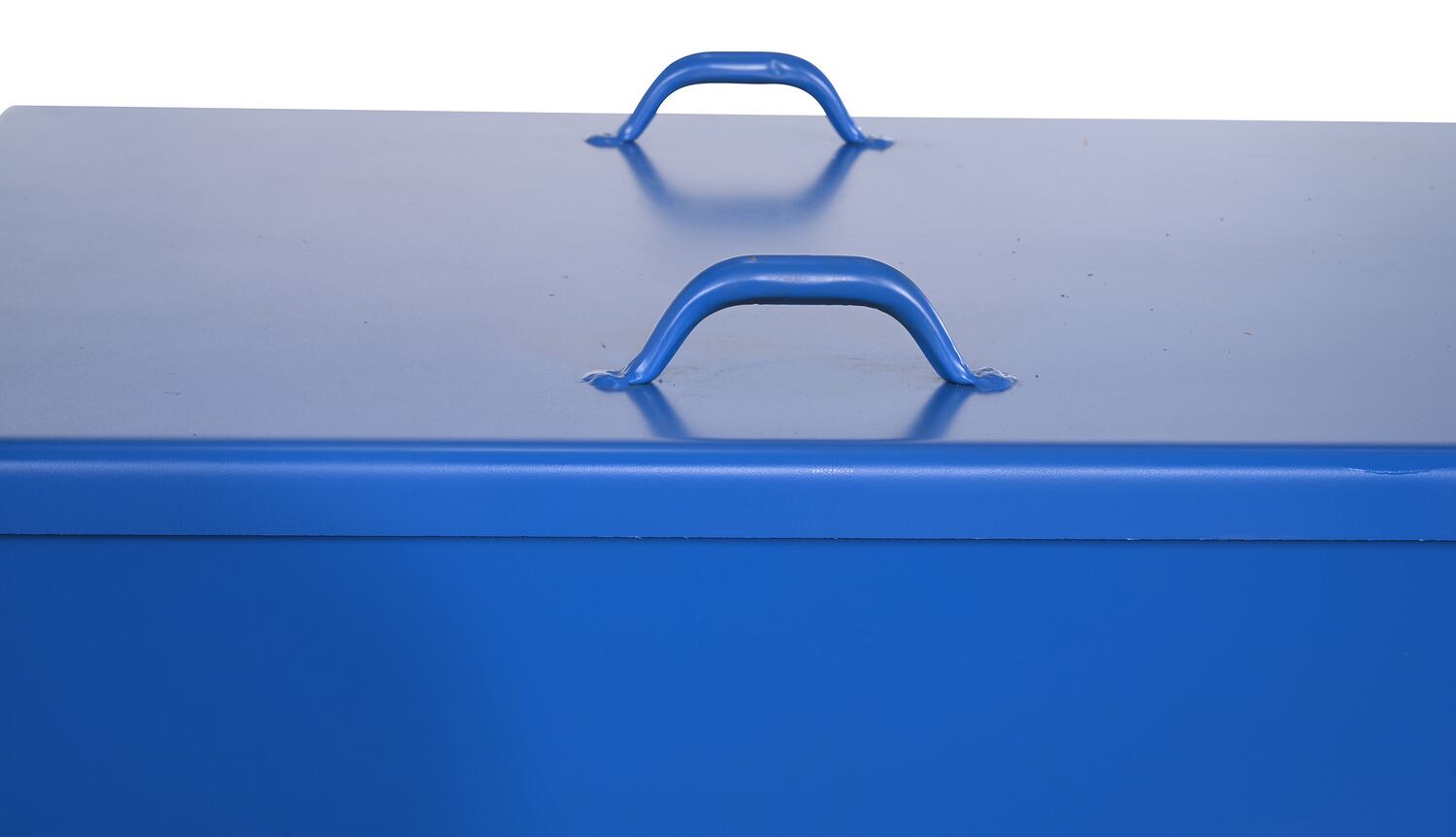

Q: What should be used for the ballast?

A: Our removable ballast weight is available. Or sand, scrap steel or bags of quikrete would be adequate for use with the JIB.

Q: What is the hook to ground measurement when boom is fully extended both horizontally and vertically?

A: The hook to ground measurement is 110"

Q: What is the overall height when the boom is extended?

A: 125"H (boom fully extended and fully raised)

Q: What is the length of the line on model P-JIB-4?

A: 15'-0" cable length

Q: Would you please advise if the P-Jib-4 can be moved when loaded?

A: The P-JIB should NOT be moved while loaded. If you need to transport a load, I'd suggest the CBFC units




Related or Similar Products:

Power Lift Jib Cranes
Product

Power Lift Jib Cranes

Lifter Jibs
Product

Lifter Jibs

Shop Crane Engine Hoists
Product

Shop Crane Engine Hoists

Air/Hand Pump Hydraulic Shop Crane
Product

Air/Hand Pump Hydraulic Shop Crane

Electric Powered Floor Cranes
Product

Electric Powered Floor Cranes

Counter Balanced Floor Cranes
Product

Counter Balanced Floor Cranes

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Portable Cantilever Hoists




The Portable Cantilever Hoist is built for heavy lifting. The swivel crane makes for simple side loading and controlled lowering. Maximum arm length beyond fram is 50-3/8". Unit is available with or without counter balancing ballast. Painted finish.

  • Outriggers increase stability with counter-balanced/cantilever design
  • Adjustable extendable boom
  • Boom swivels 360 degrees
  • Double acting hydraulic hand pump

Model # Description Attributes Net Wt.
(lbs)
P-JIB-2 P-JIB-2Steel Portable Cantilever Hoist 113-3/8 In. x 35-11/16 In. x 89 In. 2000 Lb. Capacity BlueUniform Capacity - Arm Length 24-3/8 inches (lb.): 2,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 1600		939
P-JIB-4 P-JIB-4Steel Portable Cantilever Hoist 113-3/8 In. x 35-11/16 In. x 89 In. 4000 Lb. Capacity BlueUniform Capacity - Arm Length 24-3/8 inches (lb.): 4,000
Uniform Capacity - Arm Length 31-3/8 inches (lb.): 3200		950

Options


.
