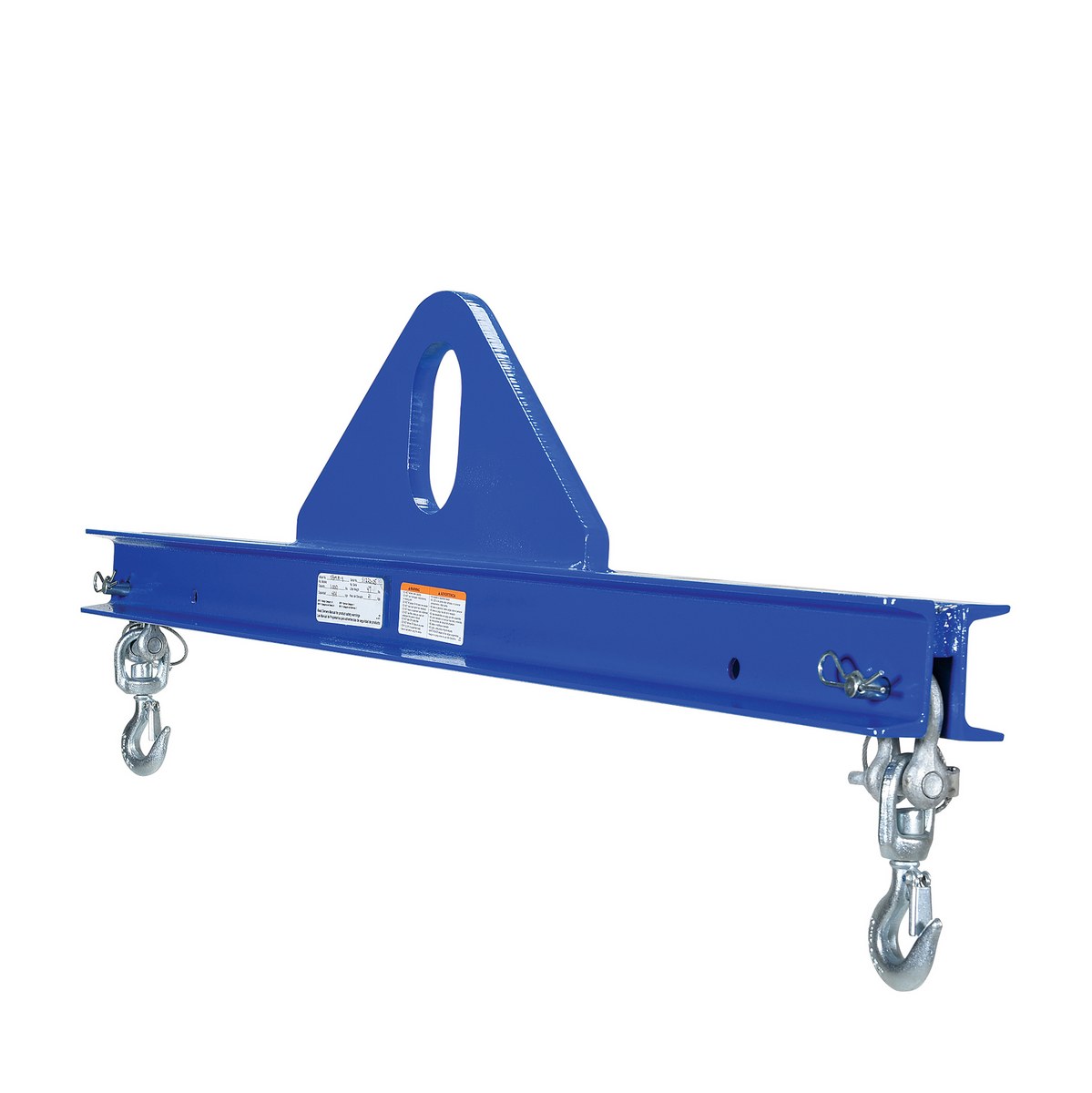

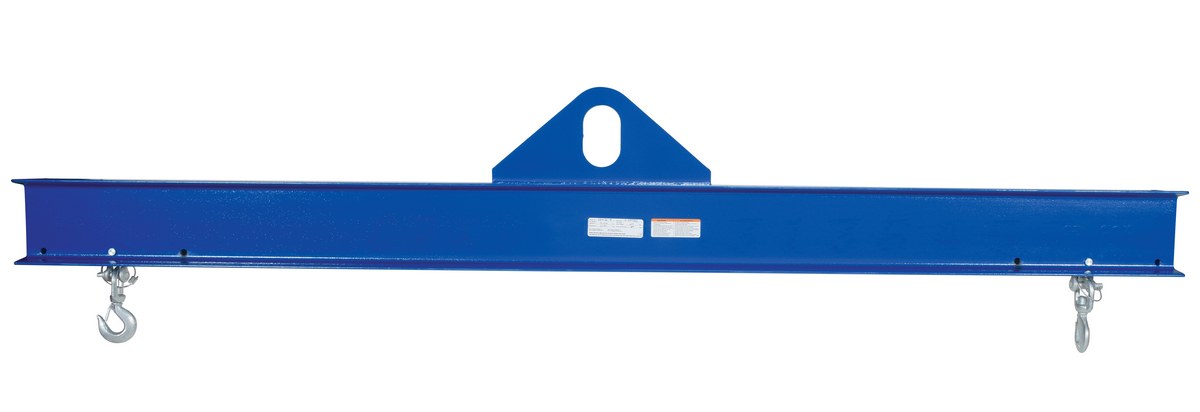

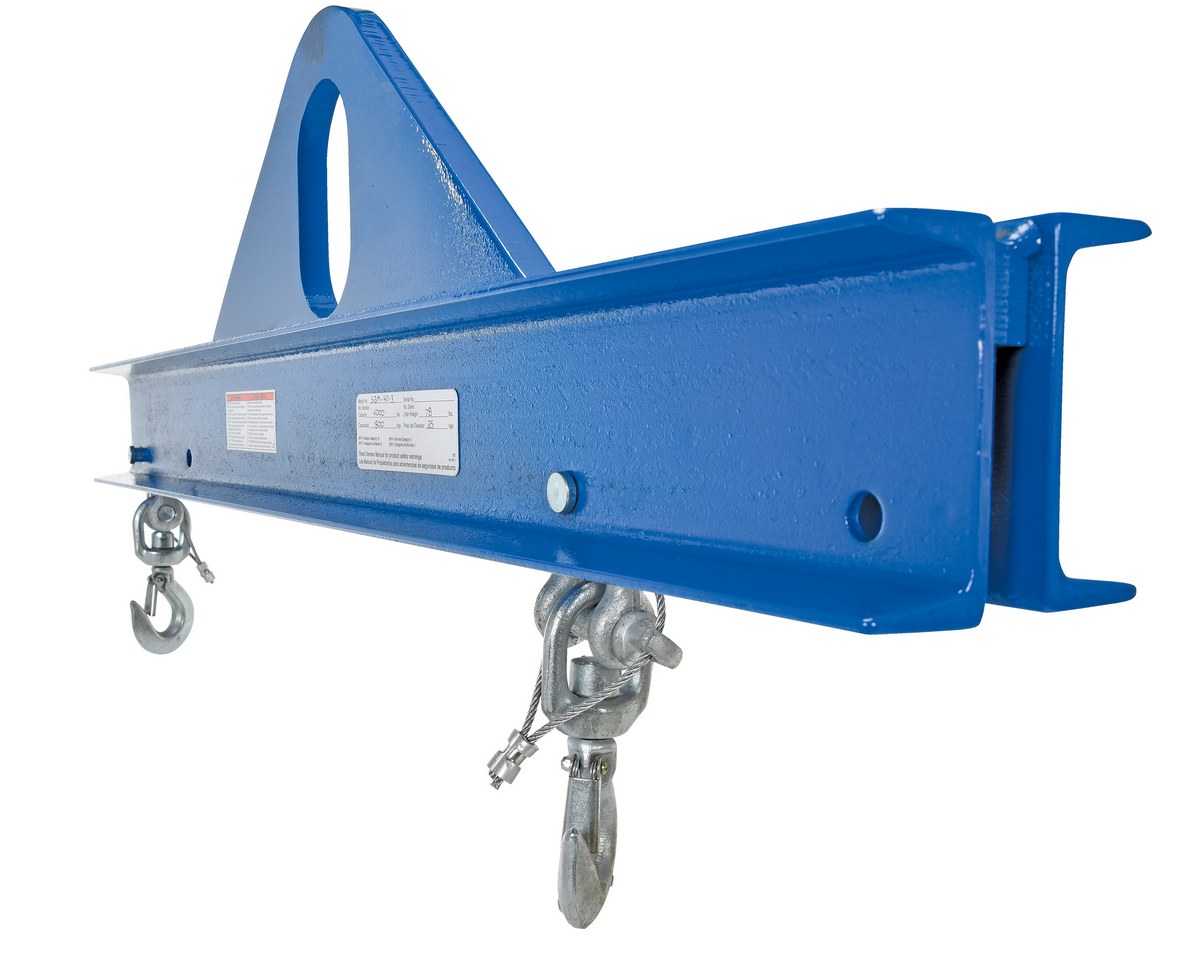

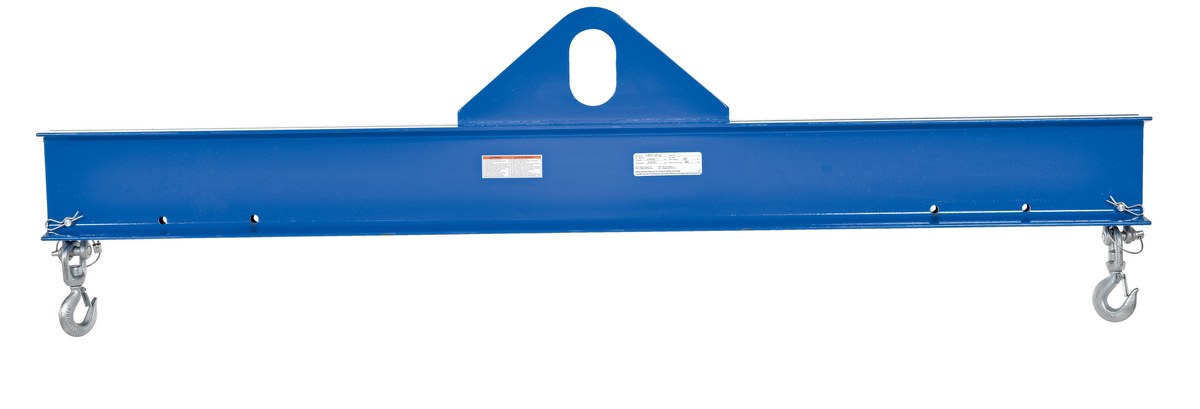

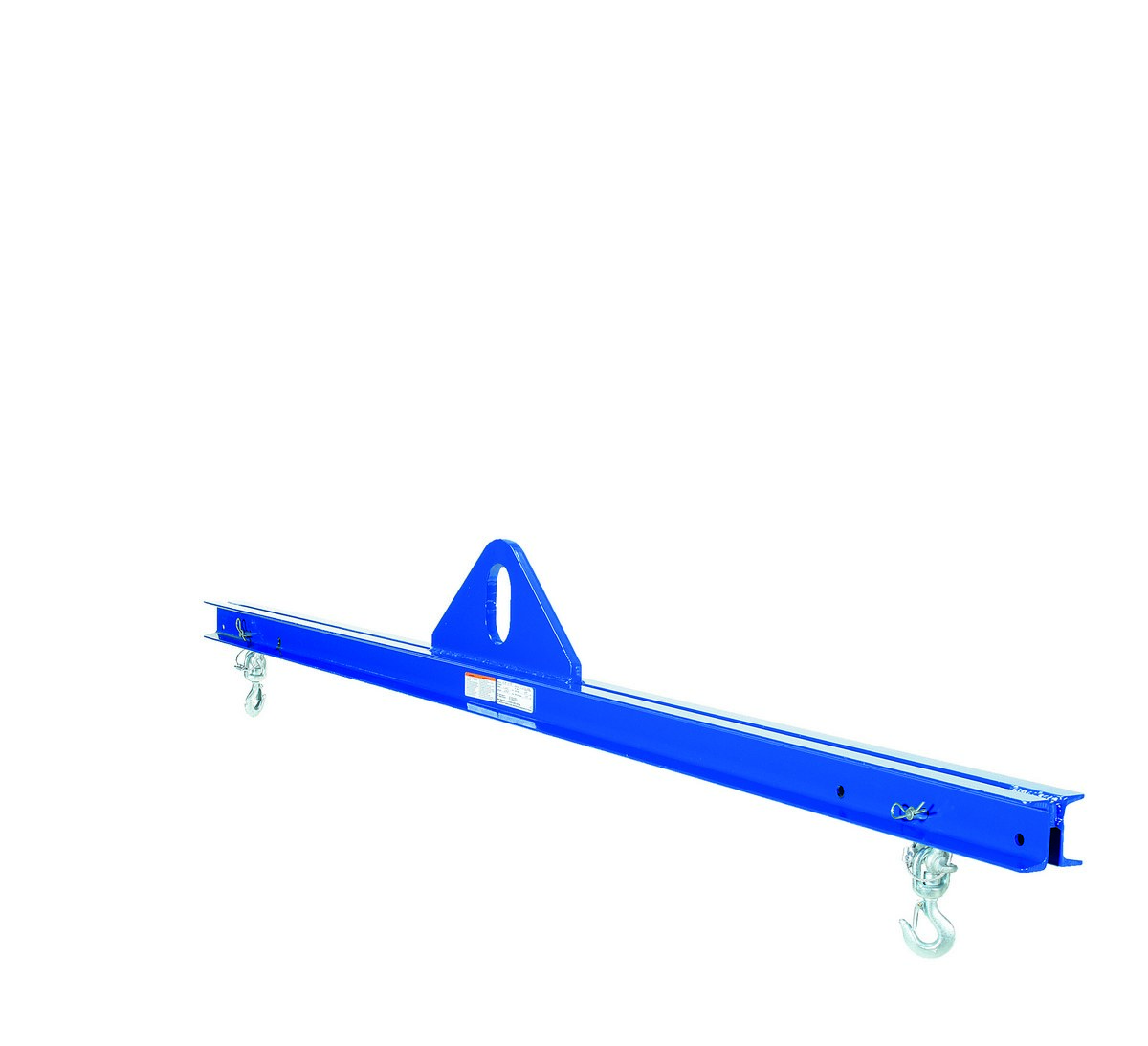

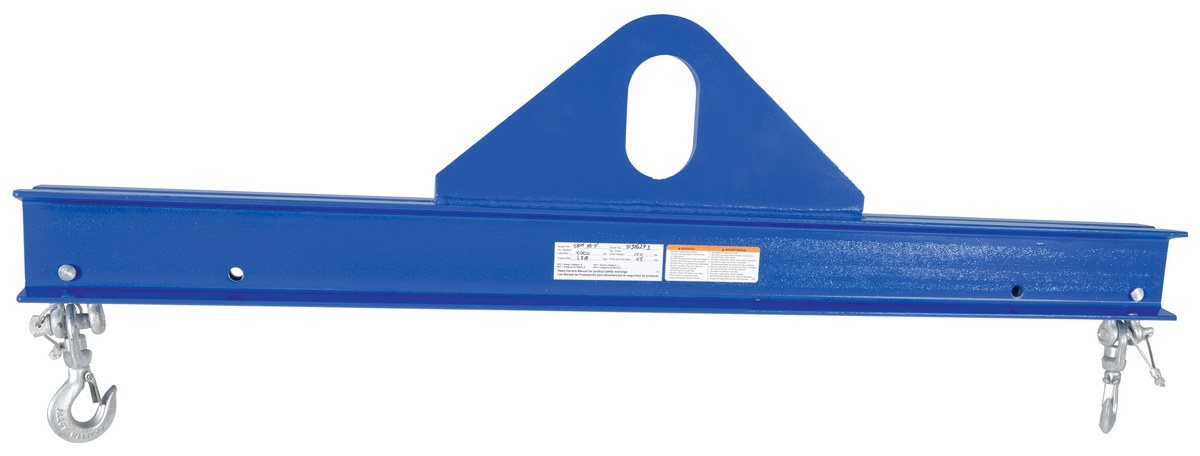

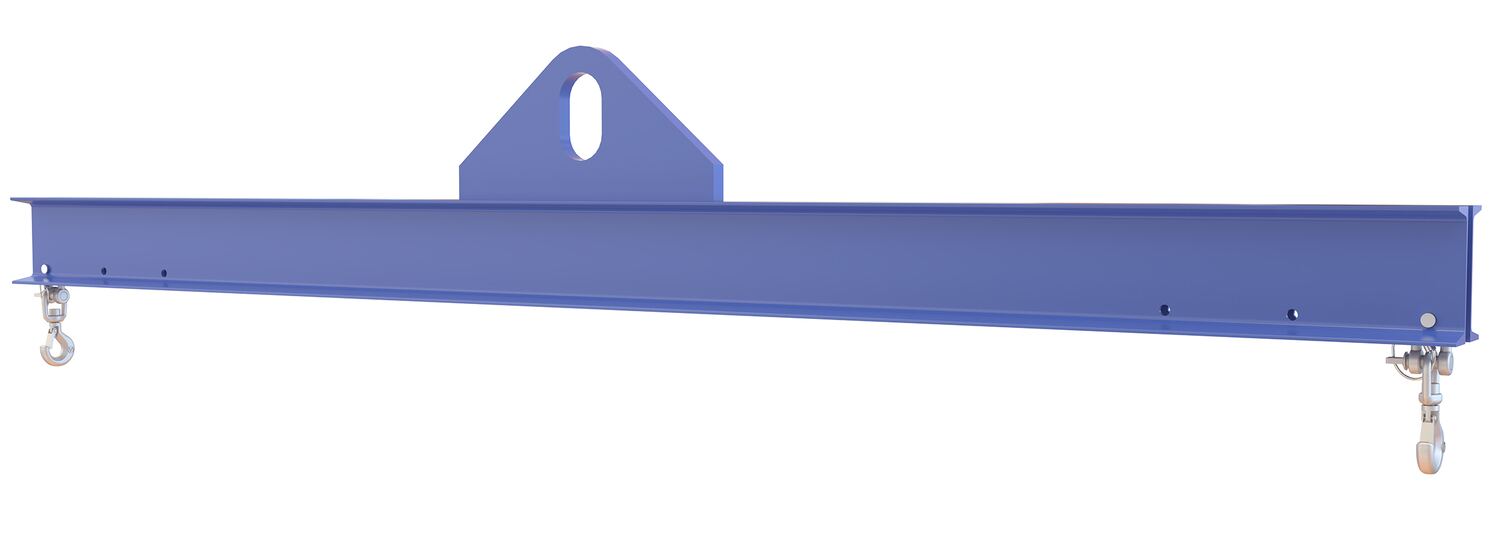

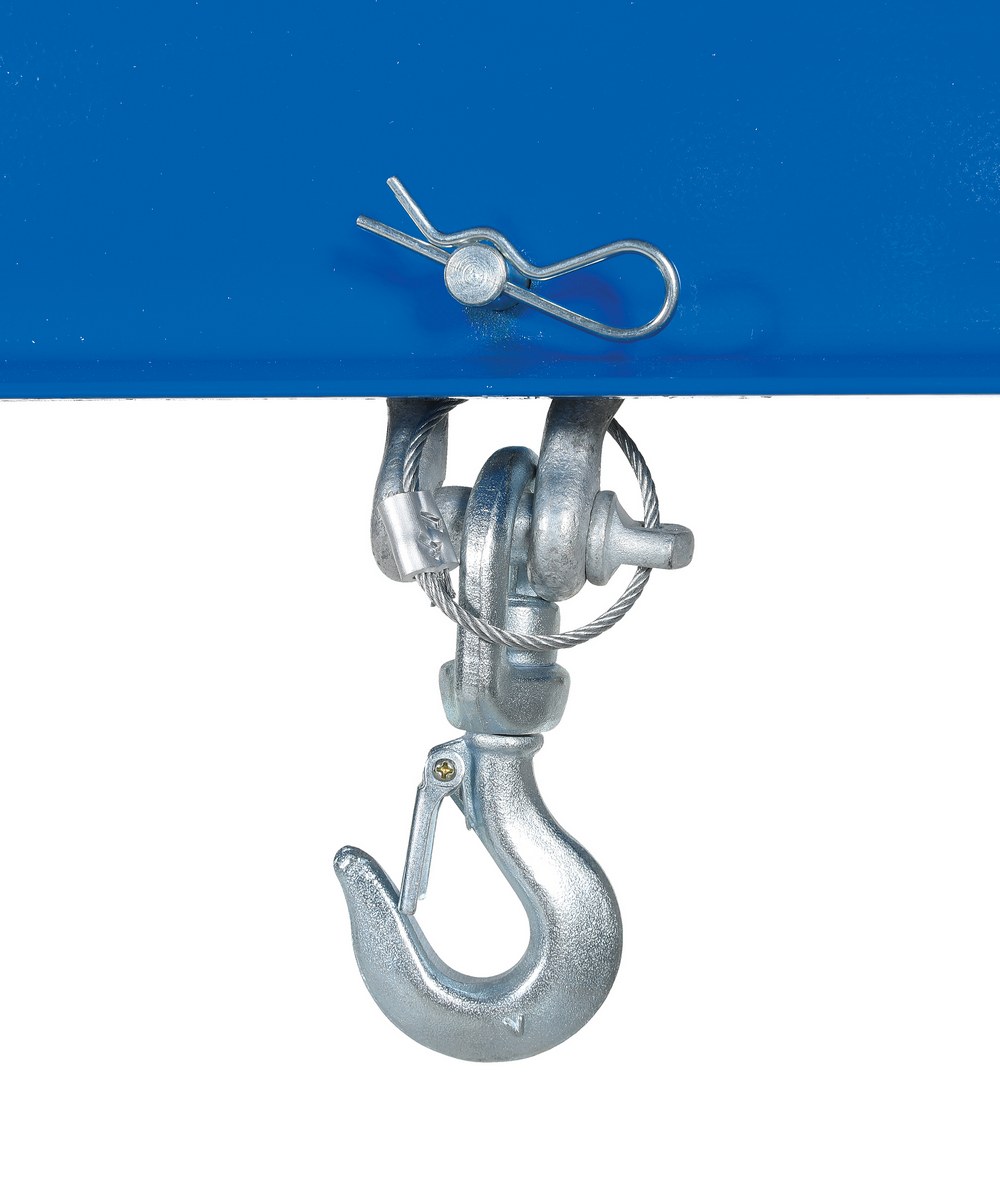

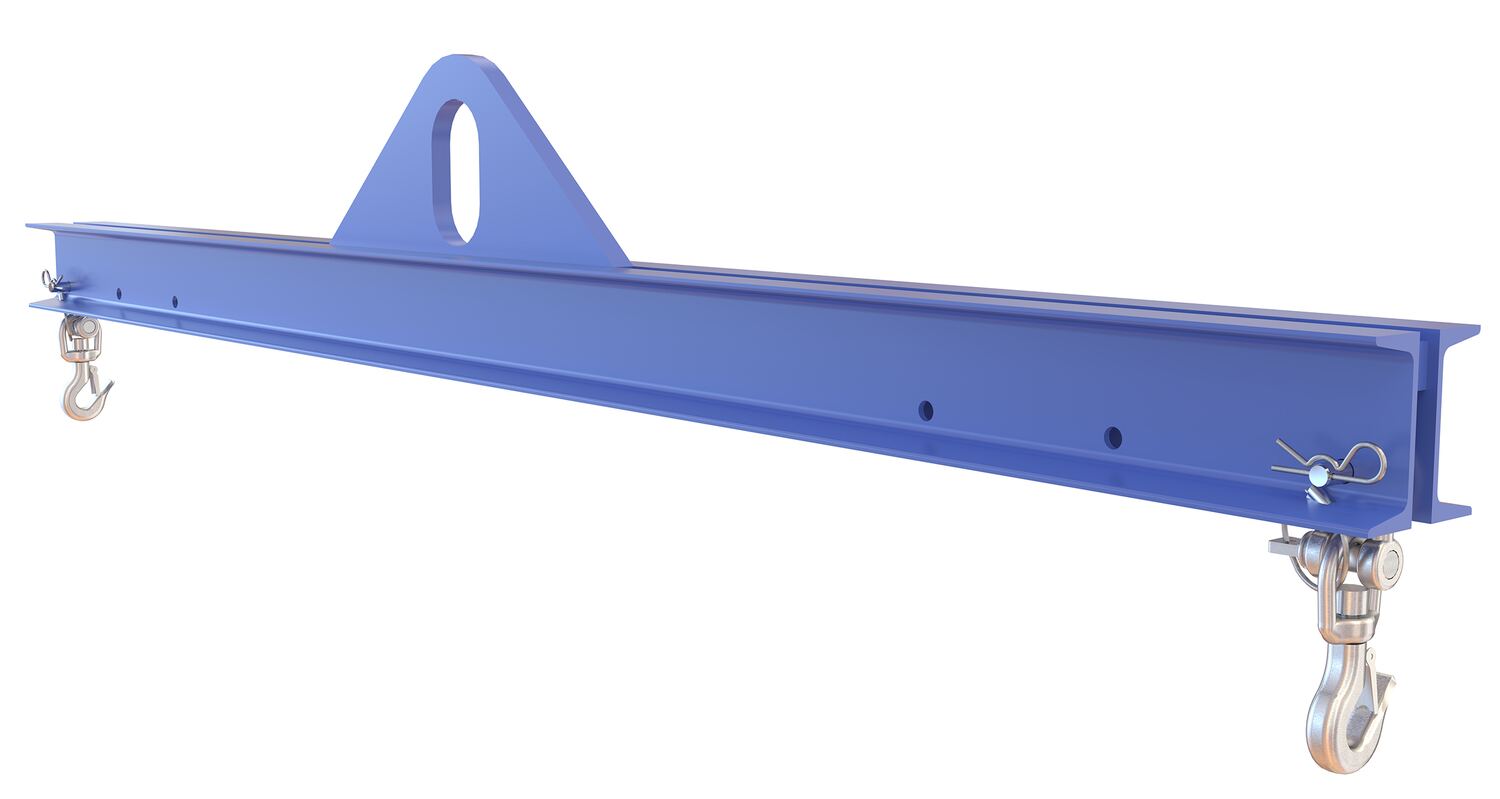

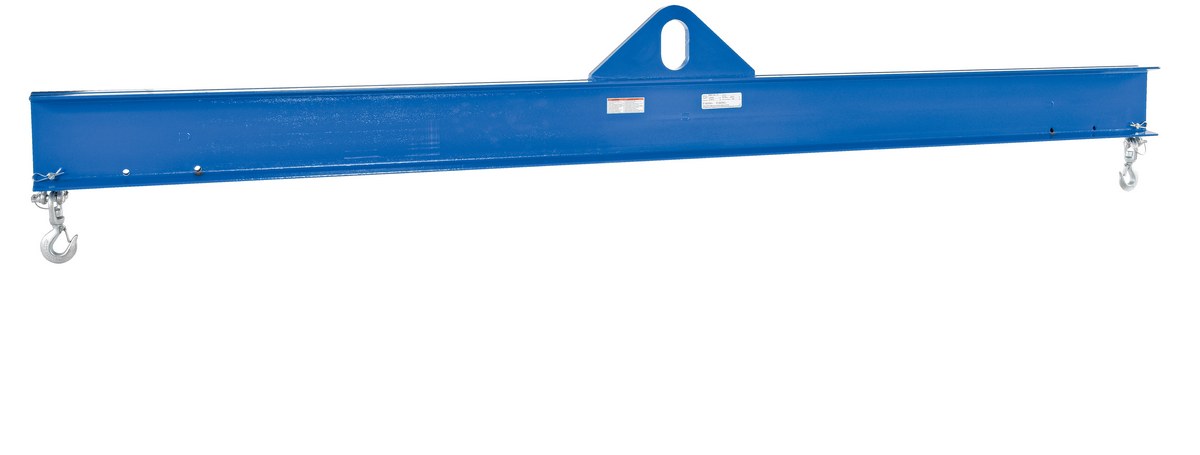

Economy Spreader BeamsThese versatile lifters are ideal for lifting a variety of loads where headroom is limited. Complies with OSHA and ANSI B30.20 standards. Usable bail is 3" wide, 5" high. Two safety swivel hooks and durable baked-in powder-coat finish for toughness. Heavy-duty welded steel construction.
- Designed to lift and move uneven and awkward loads
- Complies with ASME B30.20-1993 standards

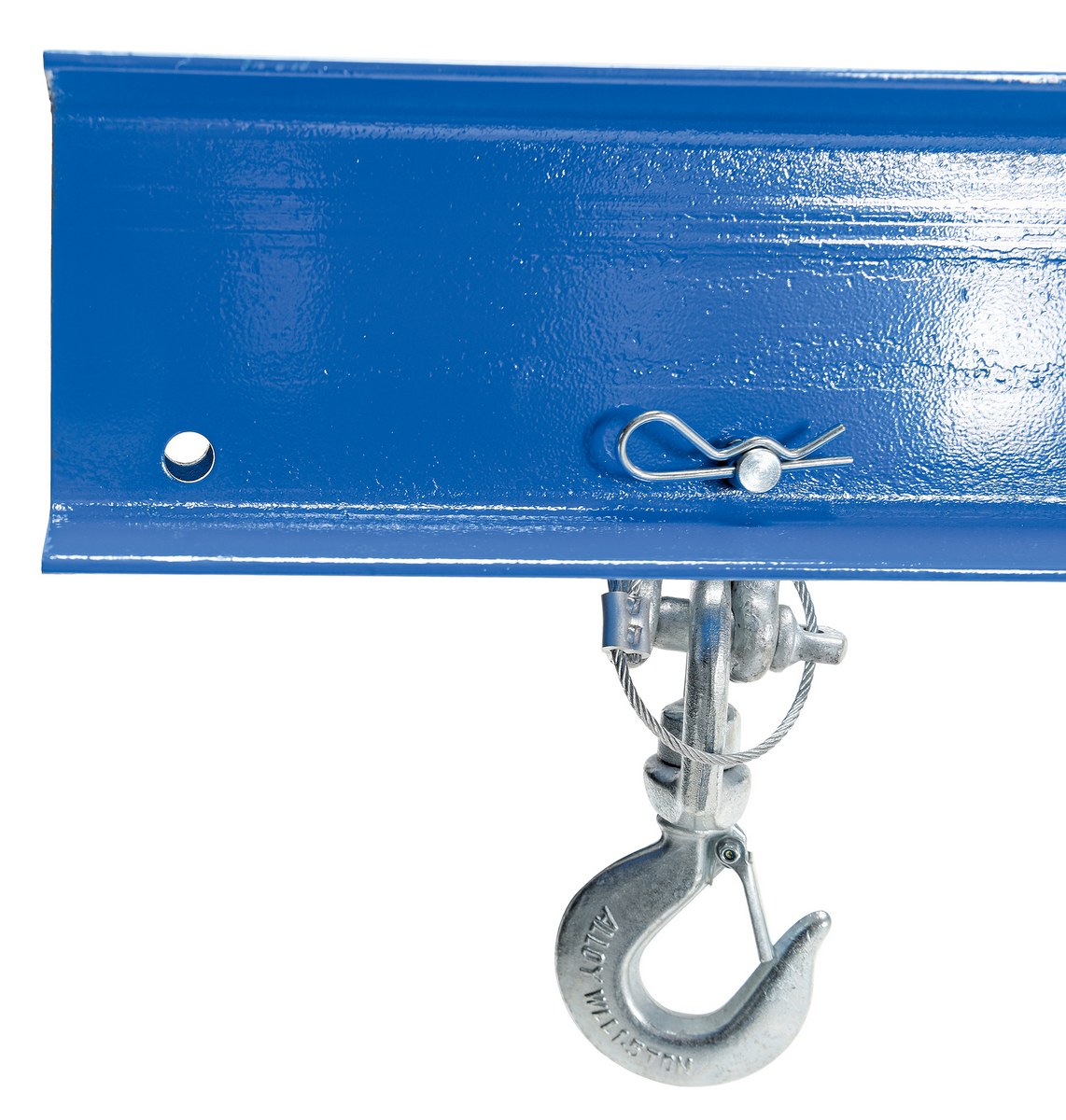

- Includes two swivel lifting hooks for added versatility
- Welded steel construction for heavy duty performance
Spreader Beam Roll Lifter
Telescoping Adjustable Spreader Beams
Adjustable Spreader BeamsAdditional Models In This Family
SBM-10-4
SBM-60-6
SBM-40-6
SBM-10-10
SBM-60-3
SBM-40-10
SBM-40-6
SBM-40-3
SBM-20-3
SBM-40-4
SBM-10-12
SBM-20-4
SBM-10-3
SBM-10-8
SBM-60-8
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

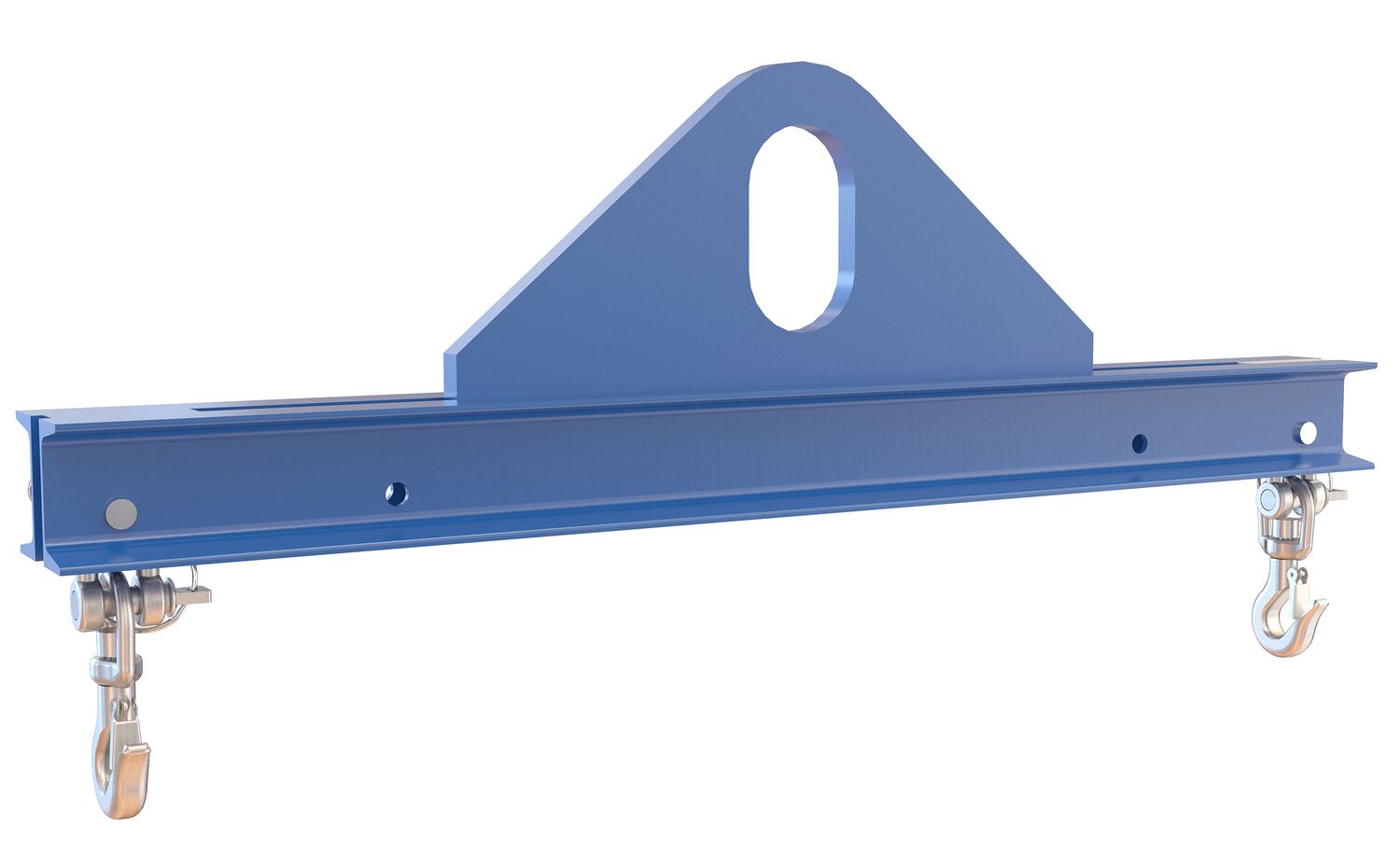

| SBM-10-3 | | 90 Days Limited Warranty | Steel Economy Spreader Beam 36 In. Length 1,000 Lb. Capacity Blue | Uniform Capacity (lb.): 1000 Headroom (in.): 14 | 270 | ||

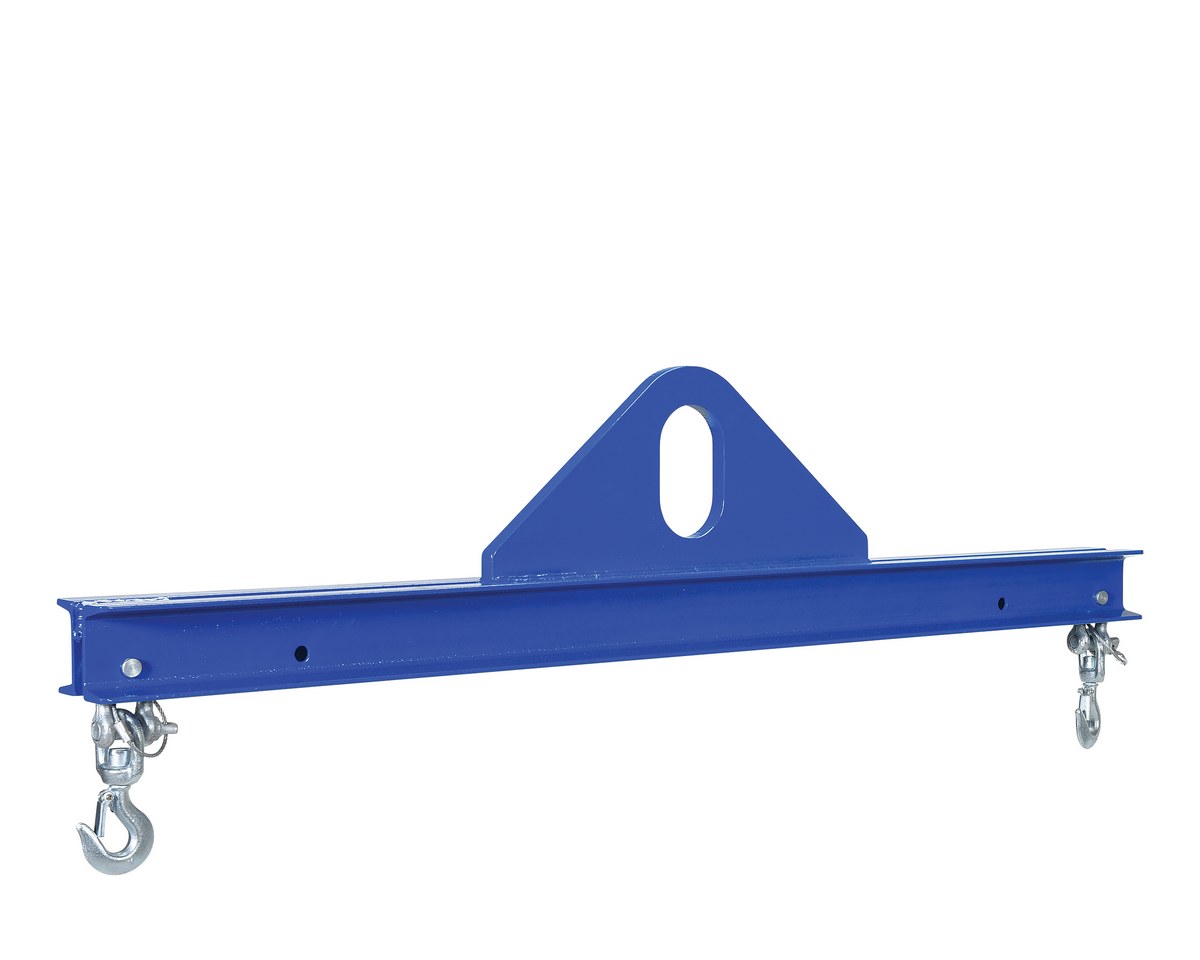

| SBM-10-4 | | 90 Days Limited Warranty | Steel Economy Spreader Beam 48 In Length 1,000 Lb. Capacity Blue | Uniform Capacity (lb.): 1000 Headroom (in.): 14 | 278 | ||

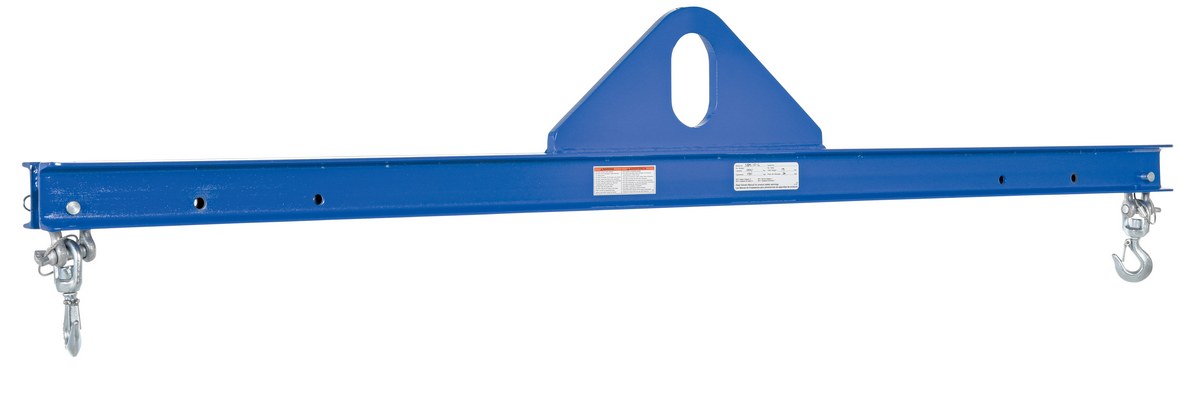

| SBM-10-6 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 72 In Length 1,000 Lb. Capacity Blue | Uniform Capacity (lb.): 1000 Headroom (in.): 14 | 140 | ||

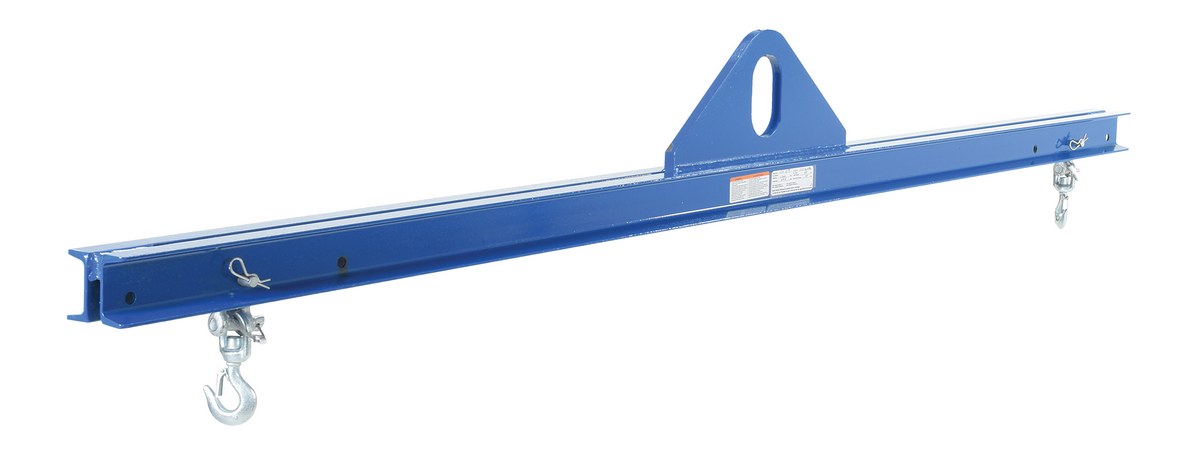

| SBM-10-8 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 96 In Length 1,000 Lb. Capacity Blue | Uniform Capacity (lb.): 1000 Headroom (in.): 14 | 120 | ||

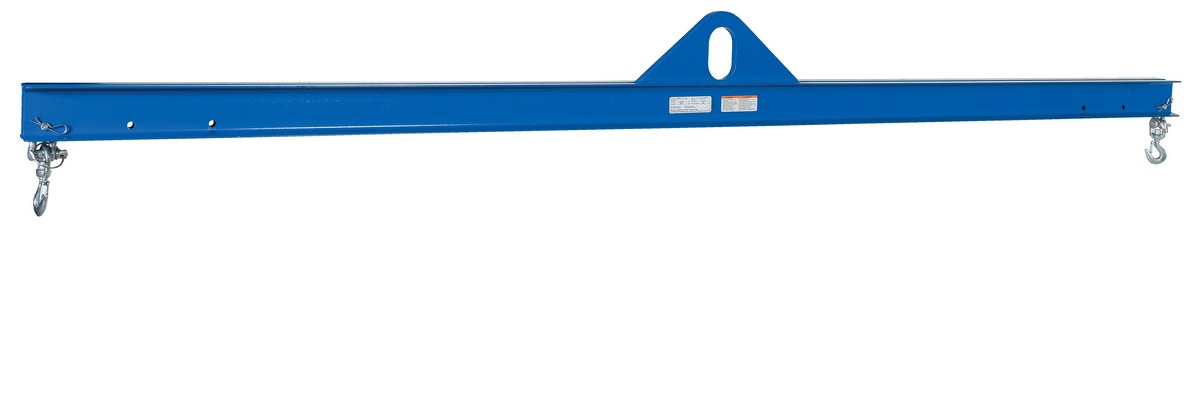

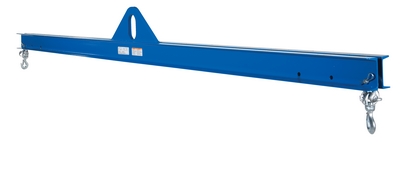

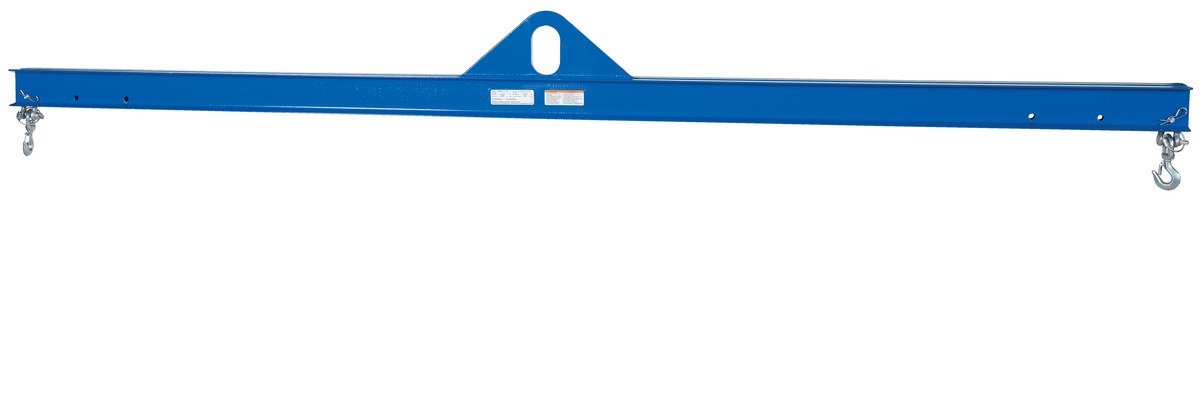

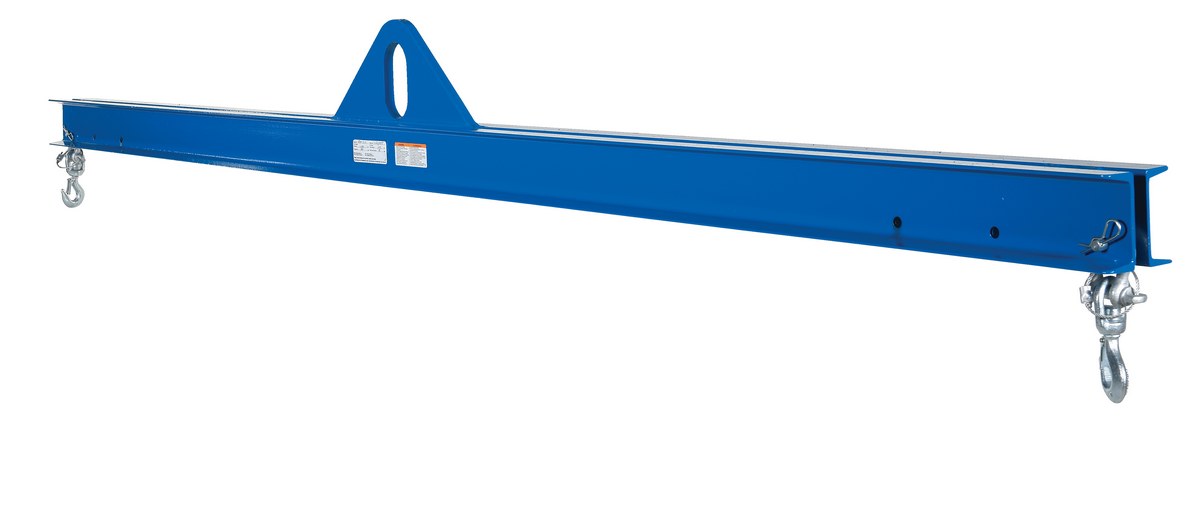

| SBM-10-10 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 120 In Length 1,000 Lb. Capacity Blue | Uniform Capacity (lb.): 1000 Headroom (in.): 14 | 232 | ||
| SBM-10-12 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 144 In Length 1,000 Lb. Capacity Blue | Uniform Capacity (lb.): 1000 Headroom (in.): 14 | 198 | ||

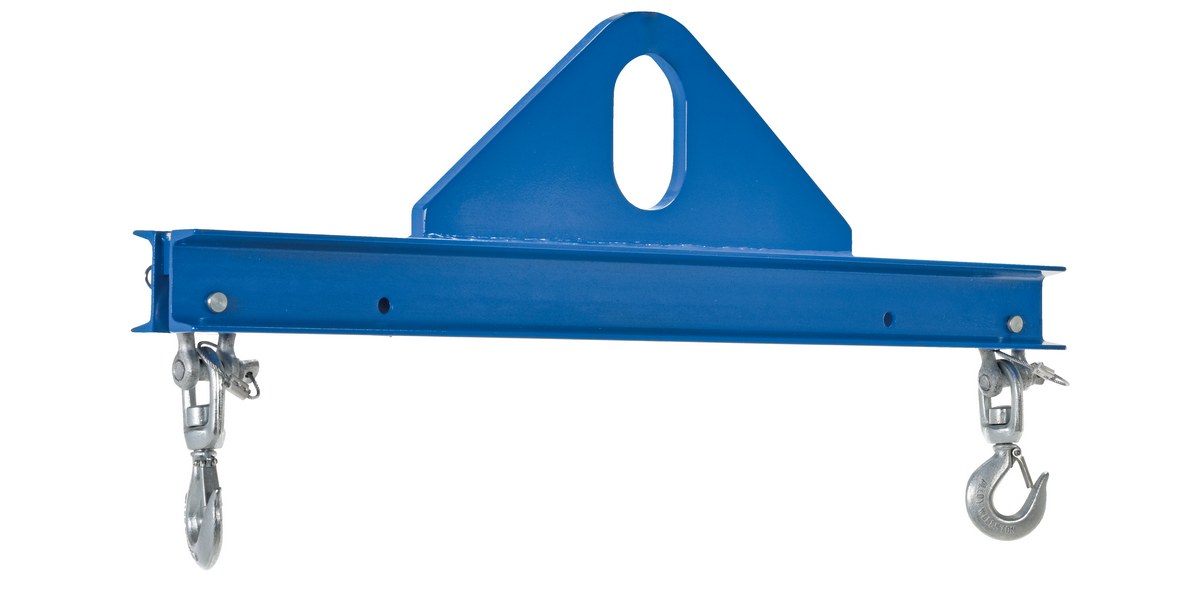

| SBM-20-3 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 36 In. Length 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Headroom (in.): 14 | 257 | ||

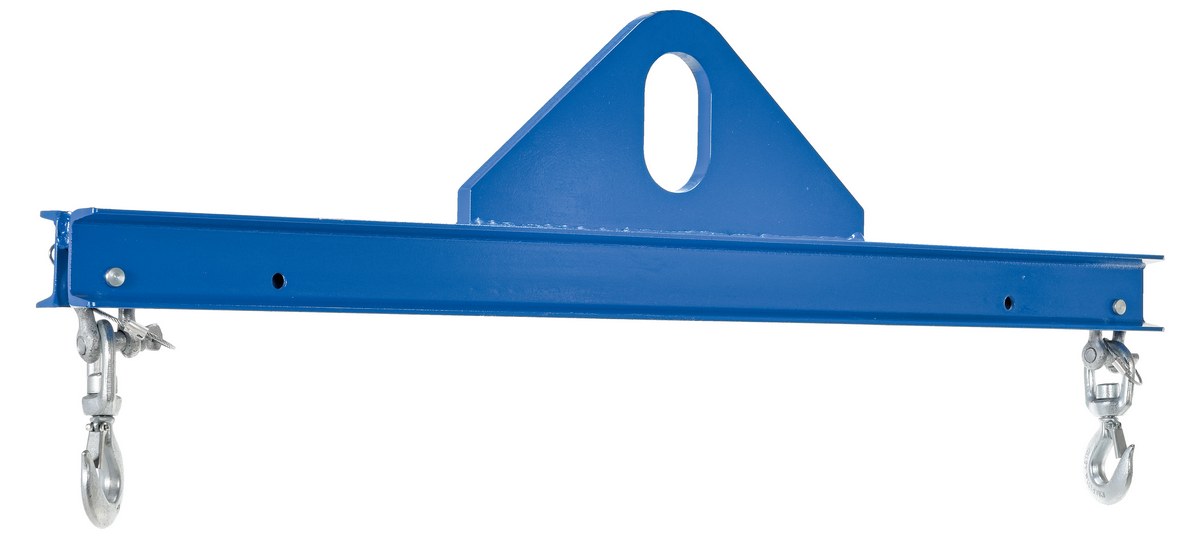

| SBM-20-4 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 48 In Length 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Headroom (in.): 14 | 264 | ||
| SBM-20-6 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 72 In Length 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Headroom (in.): 14 | 122 | ||

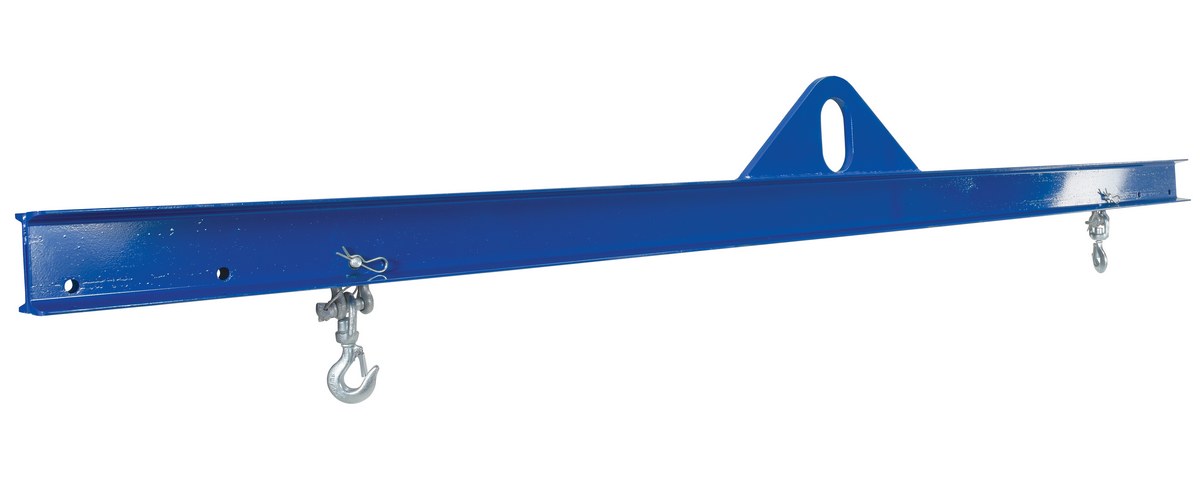

| SBM-20-8 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 96 In Length 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Headroom (in.): 14 | 172 | ||

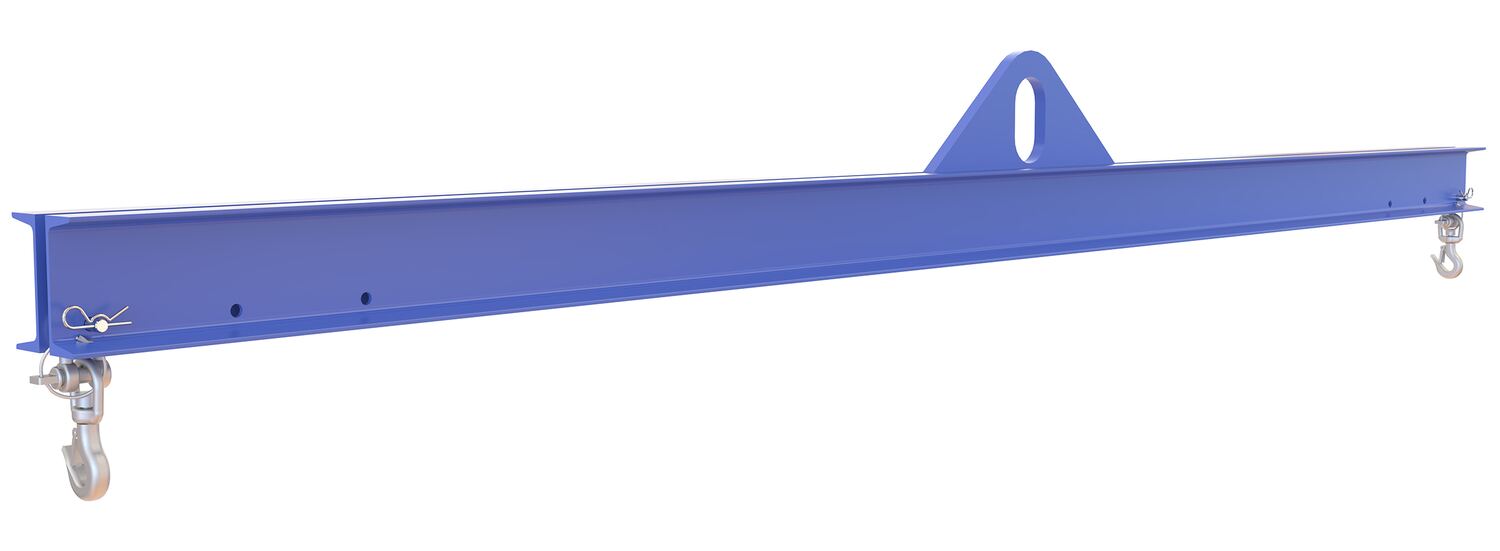

| SBM-20-10 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 120 In Length 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Headroom (in.): 15 | 202 | ||

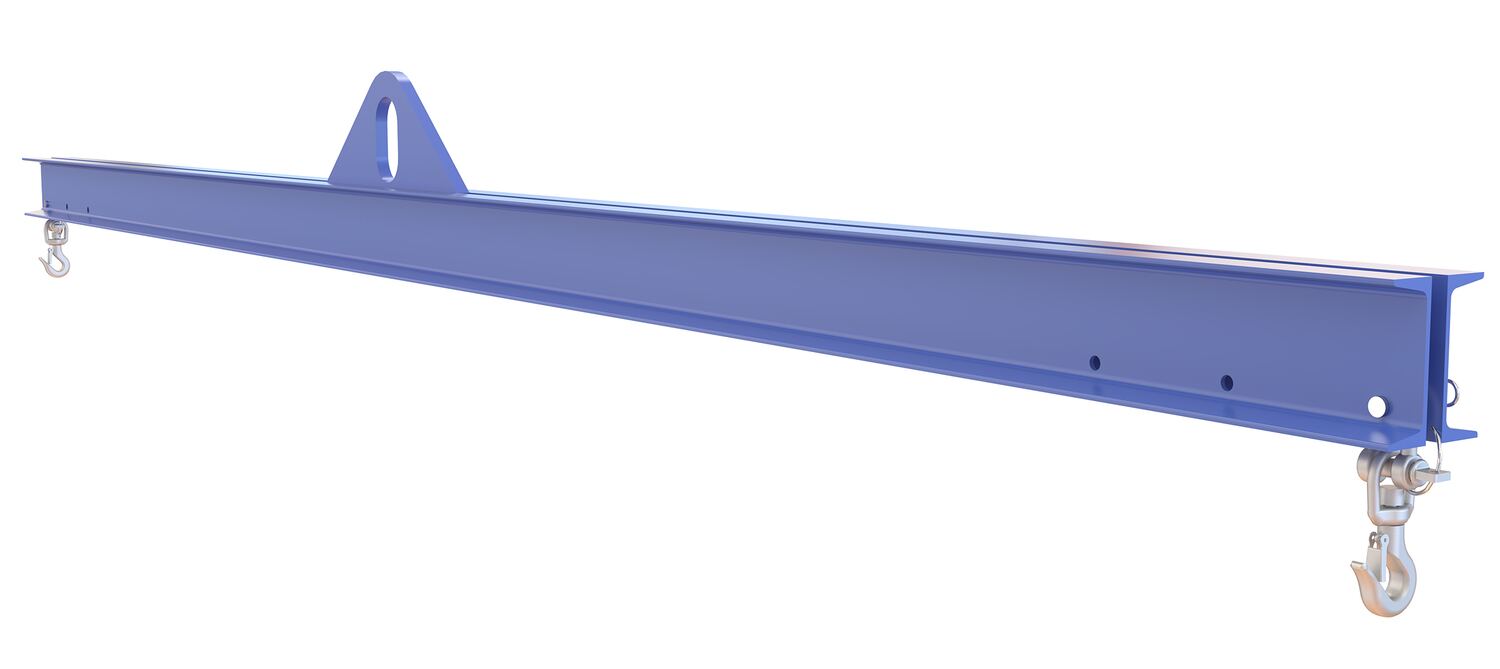

| SBM-20-12 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 144 In Length 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Headroom (in.): 15 | 2286 | ||

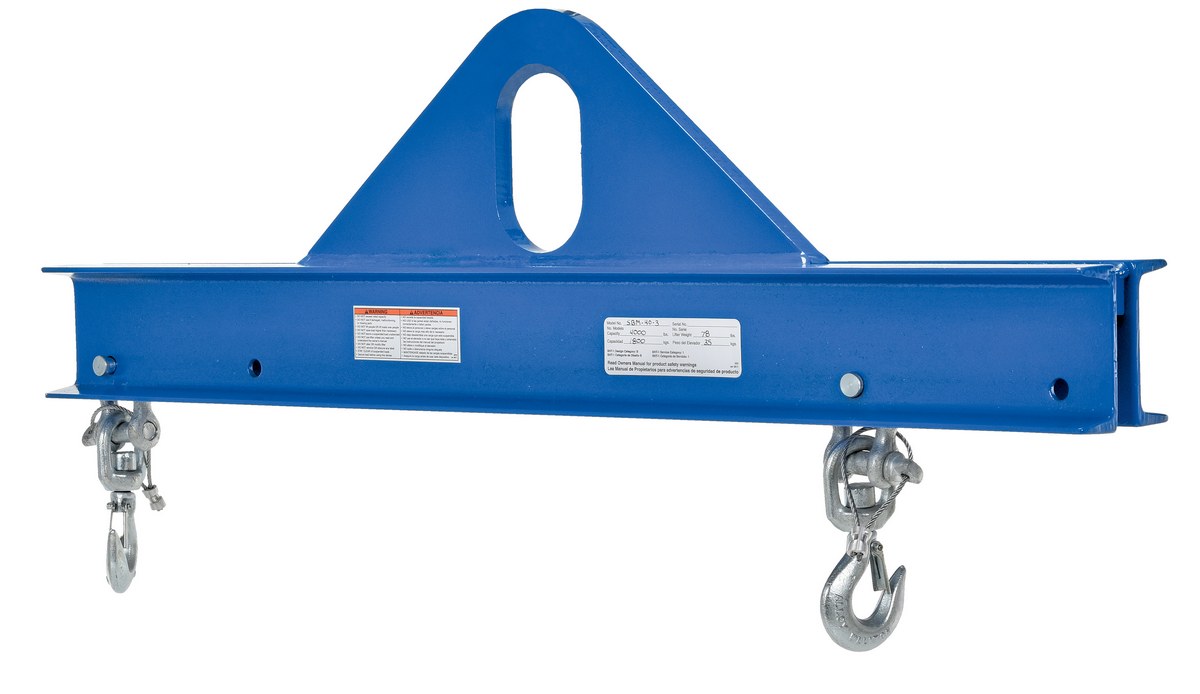

| SBM-40-3 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 36 In. Length 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Headroom (in.): 14-3/8 | 82 | ||

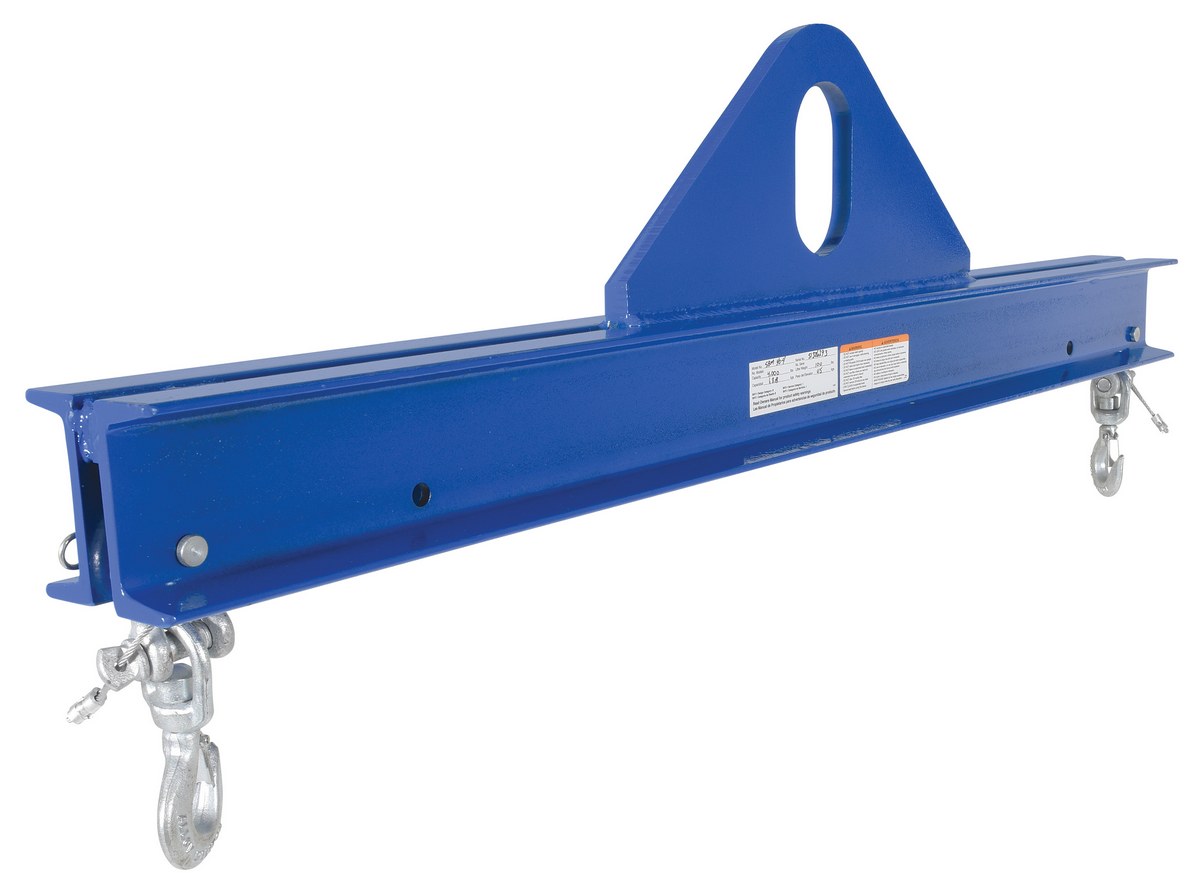

| SBM-40-4 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 48 In Length 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Headroom (in.): 14-3/8 | 130 | ||

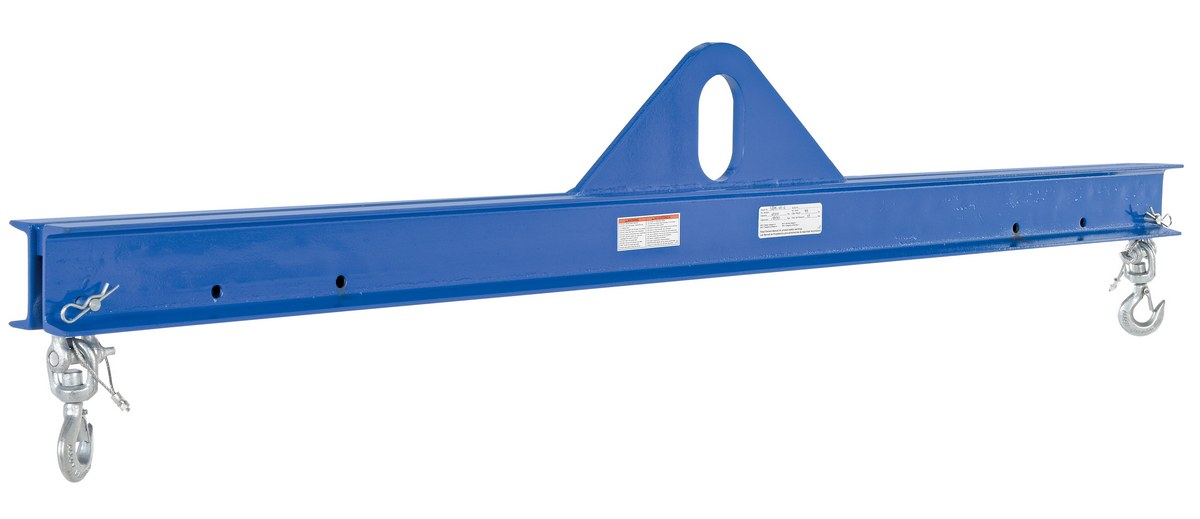

| SBM-40-6 | | 90 Days Limited Warranty | Steel Economy Spreader Beam 72 In Length 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Headroom (in.): 15-3/8 | 156 | ||
| SBM-40-8 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 96 In Length 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Headroom (in.): 18-3/8 | 210 | ||

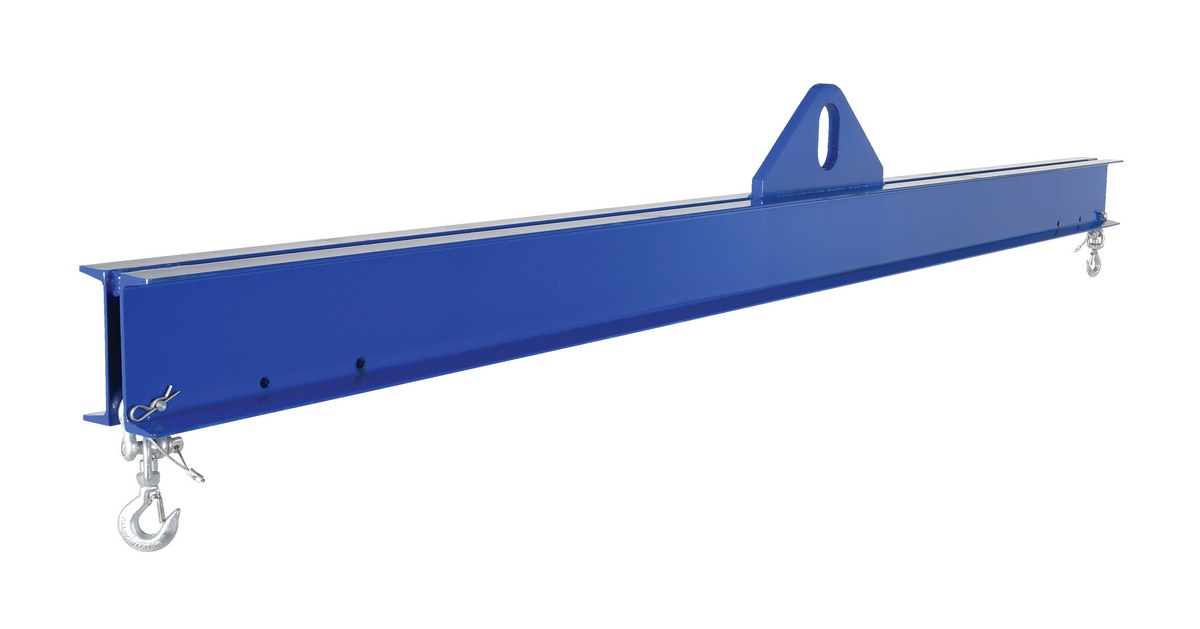

| SBM-40-10 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 120 In Length 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Headroom (in.): 18-3/8 | 322 | ||

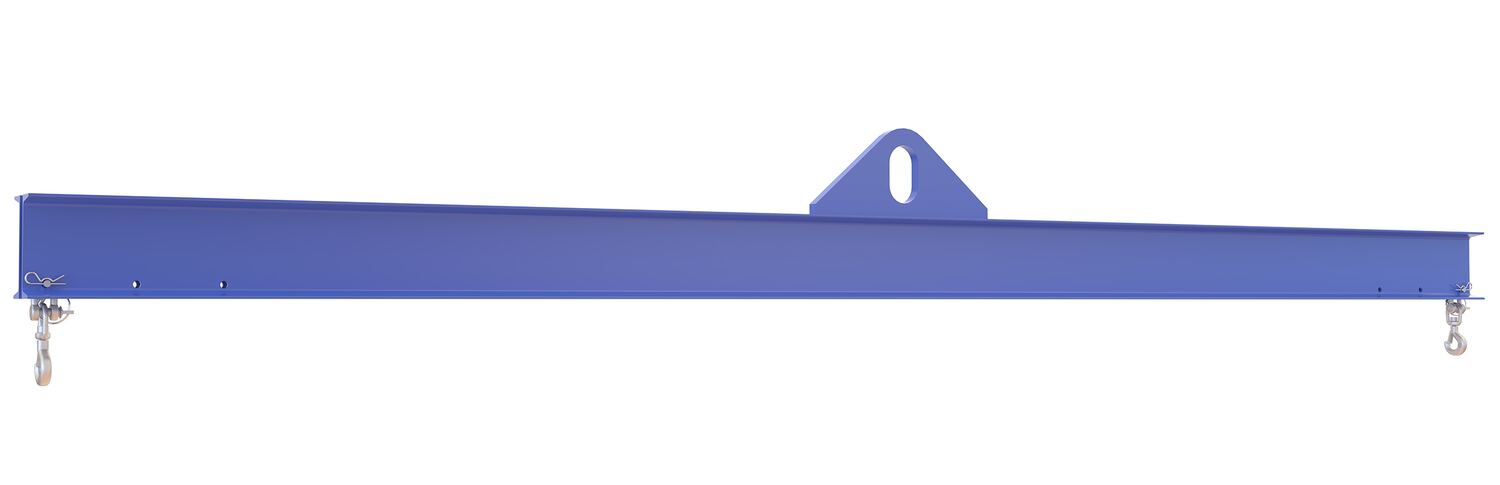

| SBM-40-12 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 144 In Length 4,000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Headroom (in.): 18-3/8 | 336 | ||

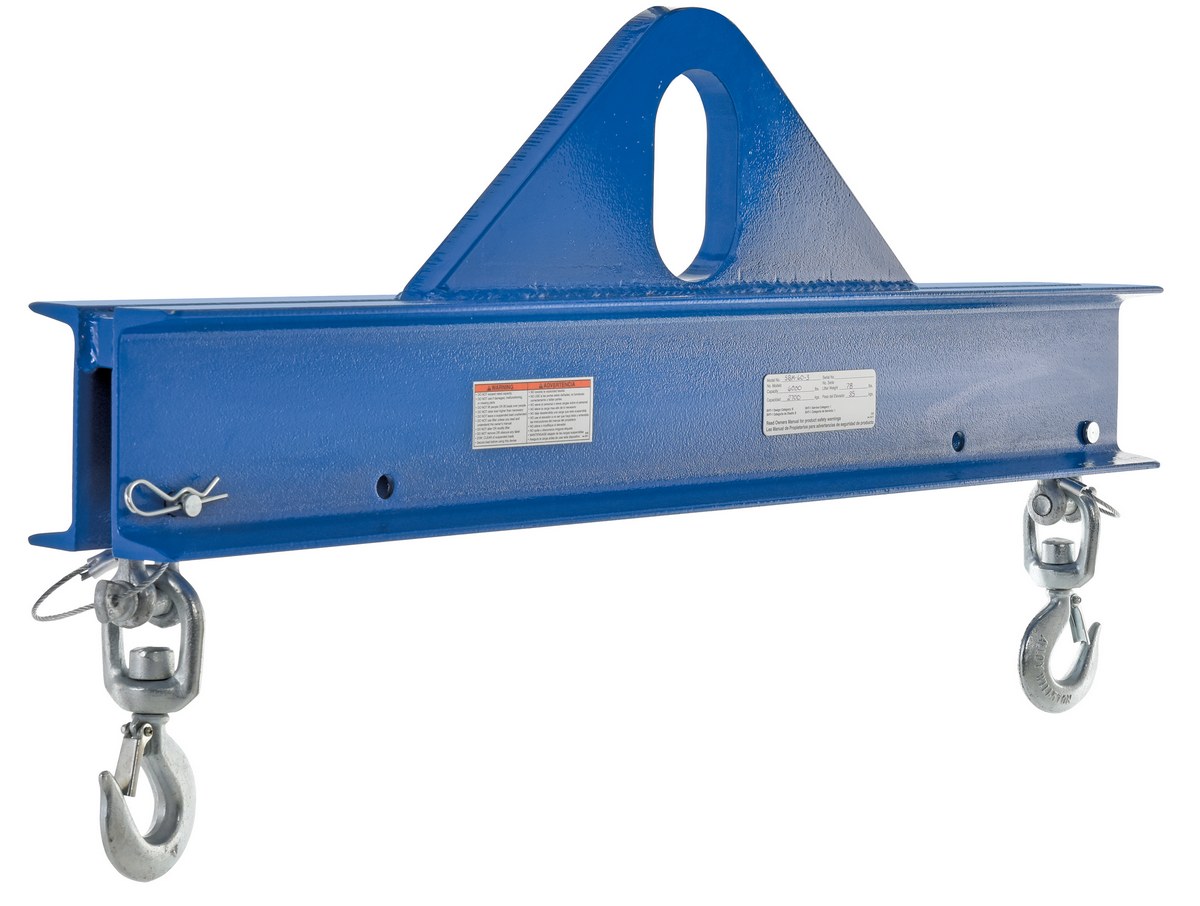

| SBM-60-3 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 36 In Length 6,000 Lb. Capacity Blue | Uniform Capacity (lb.): 6,000 Headroom (in.): 15-11/16 | 104 | ||

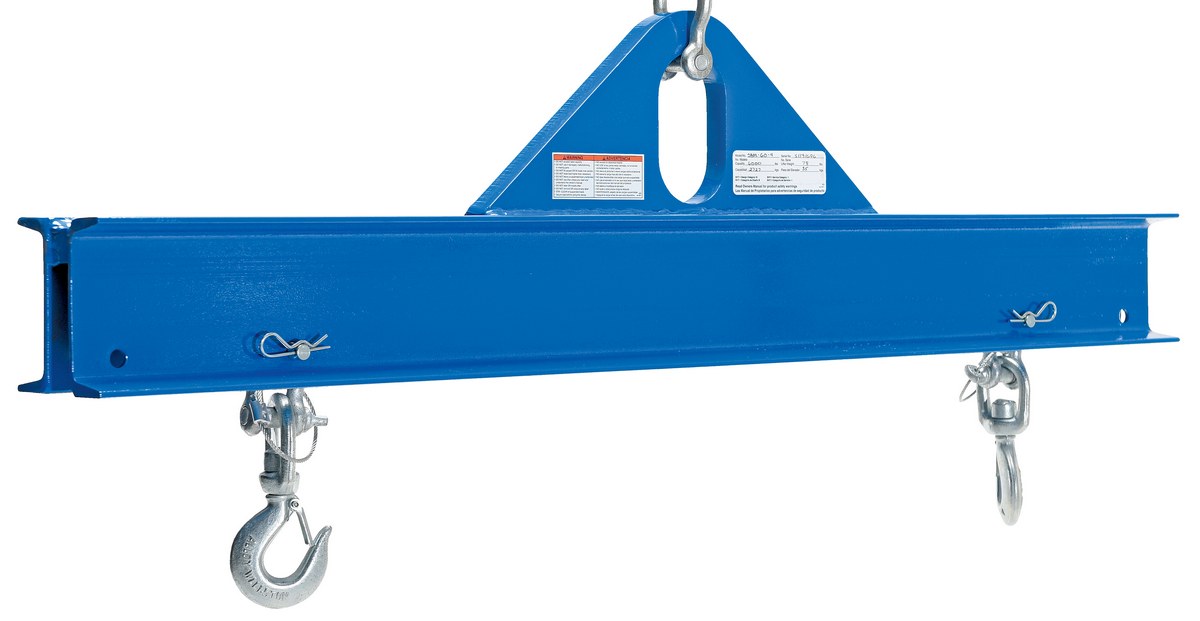

| SBM-60-4 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 48 In Length 6,000 Lb. Capacity Blue | Uniform Capacity (lb.): 6,000 Headroom (in.): 15-11/16 | 134 | ||

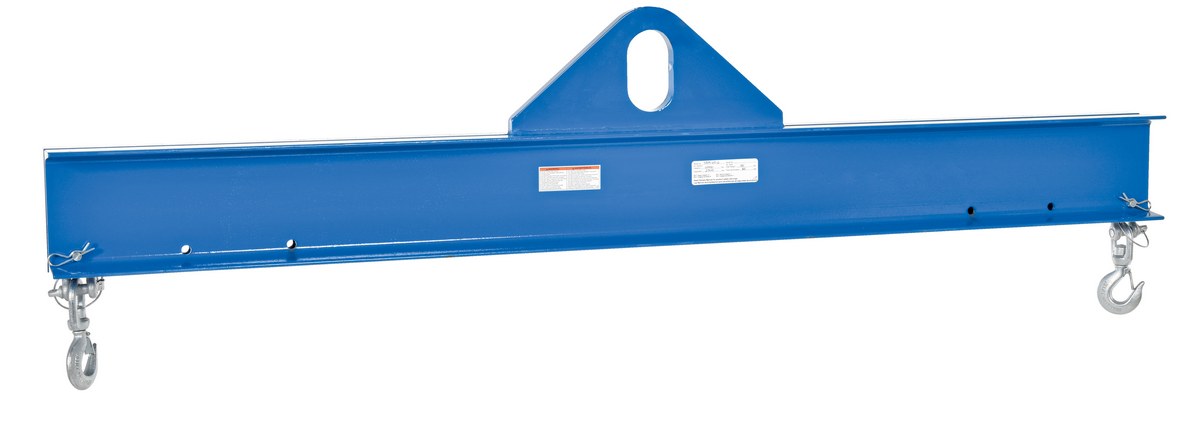

| SBM-60-6 | | 90 Days Limited Warranty | Steel Economy Spreader Beam 72 In Length 6,000 Lb. Capacity Blue | Uniform Capacity (lb.): 6,000 Headroom (in.): 18-11/16 | 224 | ||

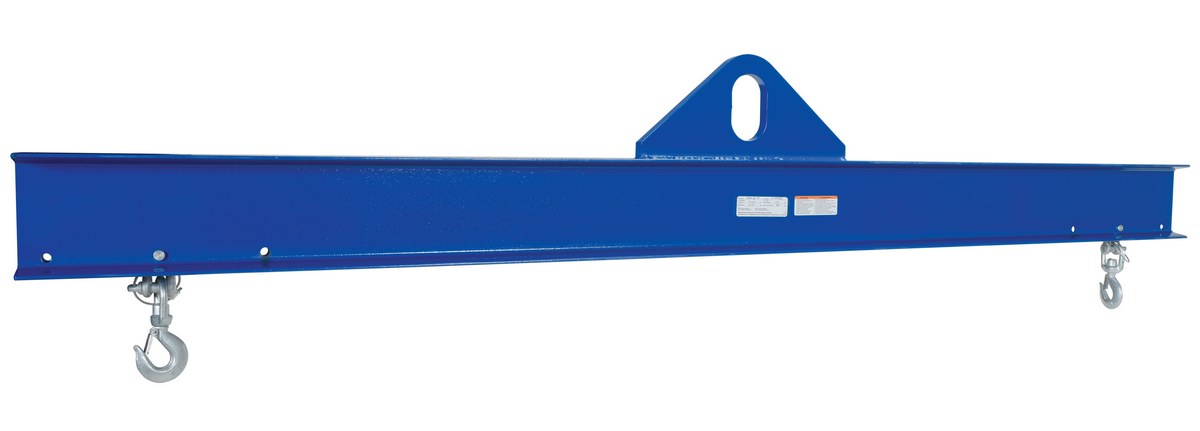

| SBM-60-8 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 96 In Length 6,000 Lb. Capacity Blue | Uniform Capacity (lb.): 6,000 Headroom (in.): 18-11/16 | 254 | ||
| SBM-60-10 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 120 In Length 6,000 Lb. Capacity Blue | Uniform Capacity (lb.): 6,000 Headroom (in.): 18-11/16 | 375 | ||

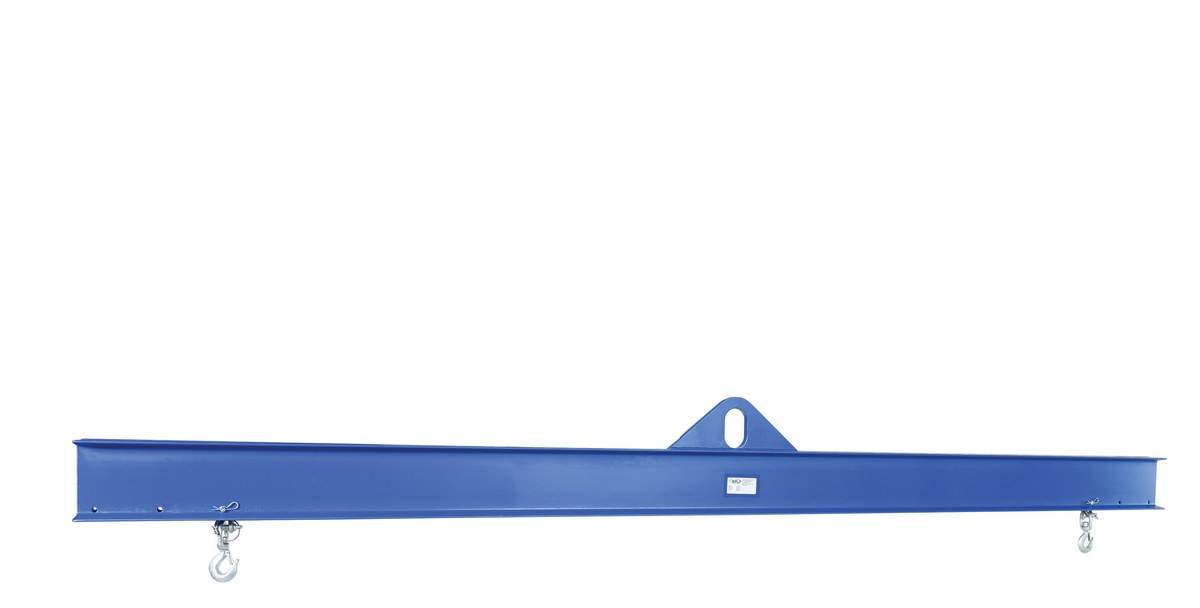

| SBM-60-12 |  | 90 Days Limited Warranty | Steel Economy Spreader Beam 144 In Length 6,000 Lb. Capacity Blue | Uniform Capacity (lb.): 6,000 Headroom (in.): 18-11/16 | 498 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Headroom (in.): 14
Uniform Capacity (lb.): 2000
Headroom (in.): 14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Headroom (in.): 14
Uniform Capacity (lb.): 2000
Headroom (in.): 14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Headroom (in.): 14
Uniform Capacity (lb.): 2000
Headroom (in.): 14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Headroom (in.): 14
Uniform Capacity (lb.): 2000
Headroom (in.): 14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Headroom (in.): 15
Uniform Capacity (lb.): 2000
Headroom (in.): 15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Headroom (in.): 15
Uniform Capacity (lb.): 2000
Headroom (in.): 15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Headroom (in.): 14-3/8
Uniform Capacity (lb.): 4,000
Headroom (in.): 14-3/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Headroom (in.): 14-3/8
Uniform Capacity (lb.): 4,000
Headroom (in.): 14-3/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Headroom (in.): 15-3/8
Uniform Capacity (lb.): 4,000
Headroom (in.): 15-3/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8
Uniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8
Uniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8
Uniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Headroom (in.): 15-11/16
Uniform Capacity (lb.): 6,000
Headroom (in.): 15-11/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Headroom (in.): 15-11/16
Uniform Capacity (lb.): 6,000
Headroom (in.): 15-11/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
Uniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
Uniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
Uniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
Uniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
Economy Spreader Beams PDF's will open in a new window when clicked.
Manuals
Survey Sheets
No Survey Sheets For This Product
Approval Drawings
Testing Certificates
SDS Sheets
No SDS Sheets For This Product
Other PDF's
No "Other PDFs" For This Product...
Directory Links Of Available PDF's For All Products
For more Specialty Designs similar to these... Click Here
Q: What service class is the SBM-60-12 built to?
A: Design Category B and Service Category 1
Q: What kind of steel are SBM models made from?
A: A-36
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Economy Spreader Beams |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
These versatile lifters are ideal for lifting a variety of loads where headroom is limited. Complies with OSHA and ANSI B30.20 standards. Usable bail is 3" wide, 5" high. Two safety swivel hooks and durable baked-in powder-coat finish for toughness. Heavy-duty welded steel construction.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
