Vertical Plate Clamps

- - - -

Description
Model Chart
PDF's
Image Gallery

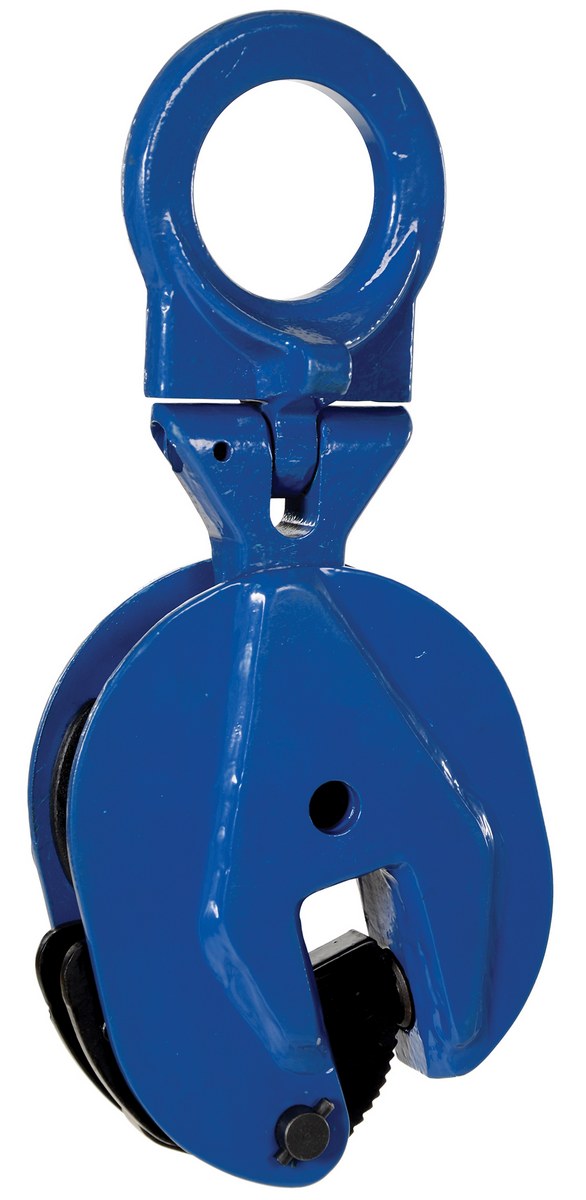

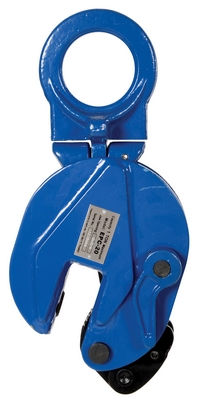

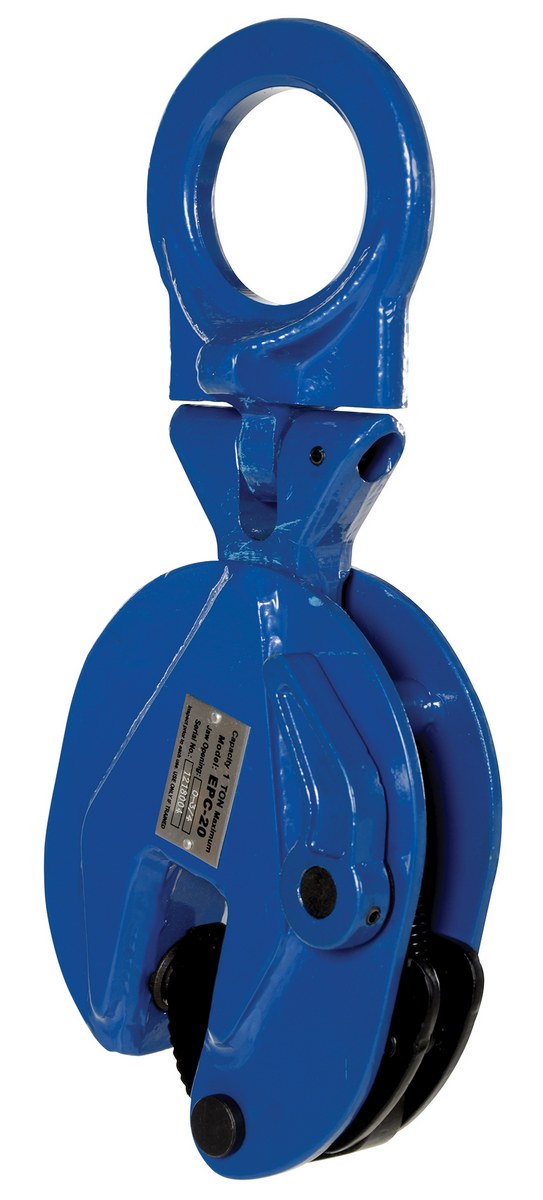

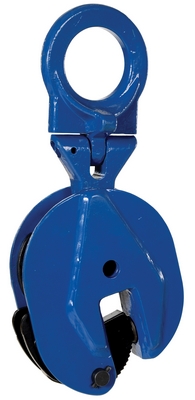

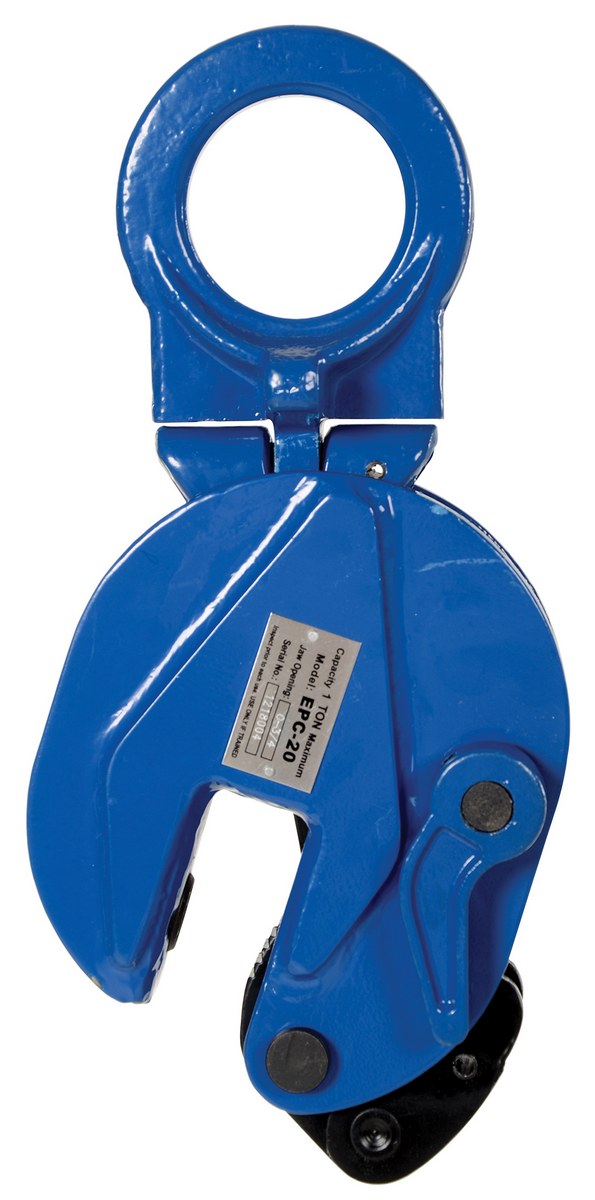

EPC-20_A.jpg EPC-20_B.jpg EPC-20_C.jpg EPC-20_D.jpg

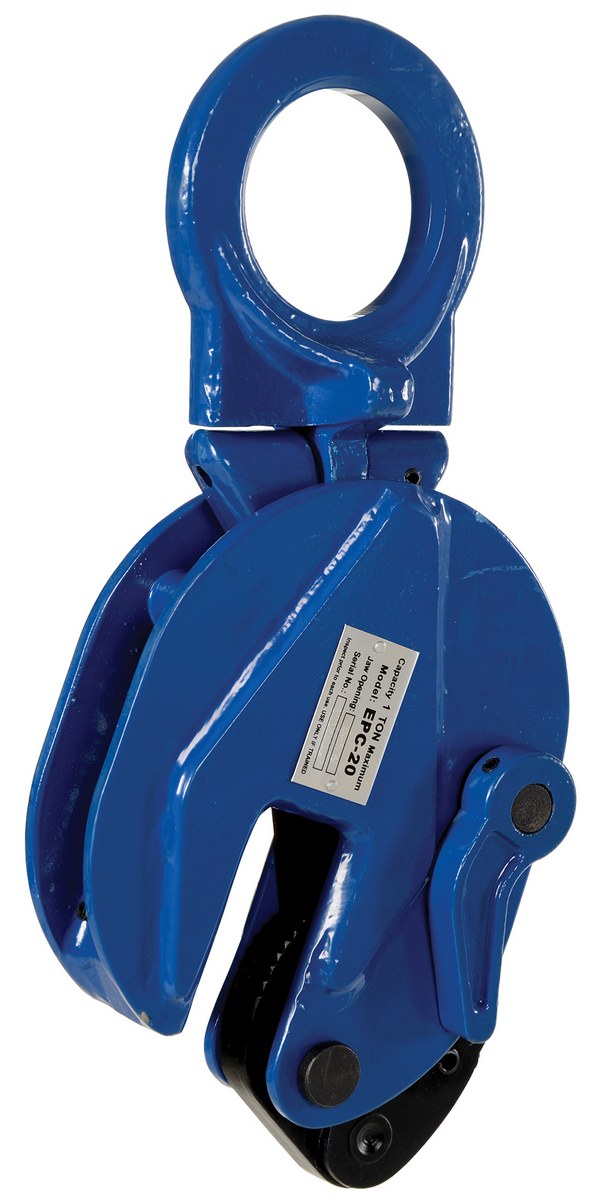

Vertical Plate Clamps

model: EPC-20



Featured Overhead Lifting


High Speed Electric Chain Hoist
Adjustable Steel Gantry Cranes - Knockdown
Heavy-Duty Beam Tongs
Adjustable Steel Gantry Cranes with V-Groove Casters
Reel Lifter
Heavy-Duty Pipe Grabs
Winch Operated Truck Jib Cranes
Shop Crane Engine Hoists
Galvanized Two-Speed Cable Puller
model chart

Product Family Overview

Print Friendly
Vertical Plate Clamps
SERIES: EPC

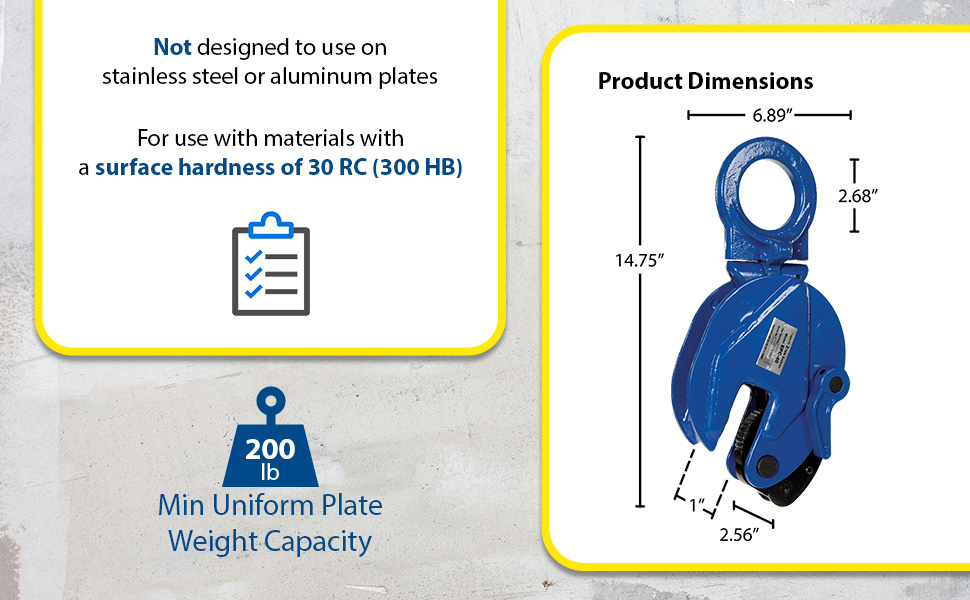

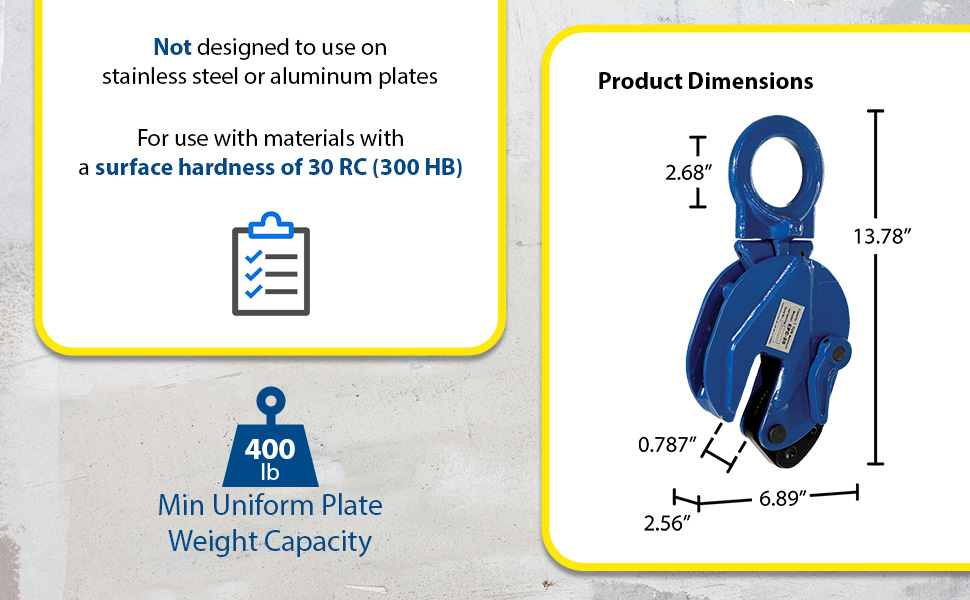

Pivoting bail for easier and more versatile operation. Automatic serrated hardened steel cams and pads. Drop-forged steel case for maximum strength. Designed to meet ASME B30.20. Warning: Do not exceed the working load limit. Serious bodily injury or property damage may result. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Pivoting bale provides more versatile operation
  • Drop-forged steel case provides maximum strength
  • Unique design lifts one clean and oil free plate at a time
  • Automatic serrated hardened steel cams and pads lock plate in place

Pivoting bail for easier and more versatile operation. Automatic serrated hardened steel cams and pads. Drop-forged steel case for maximum strength. Designed to meet ASME B30.20. Warning: Do not exceed the working load limit. Serious bodily injury or property damage may result. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Pivoting bale provides more versatile operation
  • Drop-forged steel case provides maximum strength
  • Unique design lifts one clean and oil free plate at a time
  • Automatic serrated hardened steel cams and pads lock plate in place

Other Clamps & Tongs

 Non-Marring Plate Clamps Heavy-Duty Beam Tongs Positive Locking Plate Clamps Heavy-Duty Die Lifting Tongs

Additional Models In This Family
view entire Image Gallery

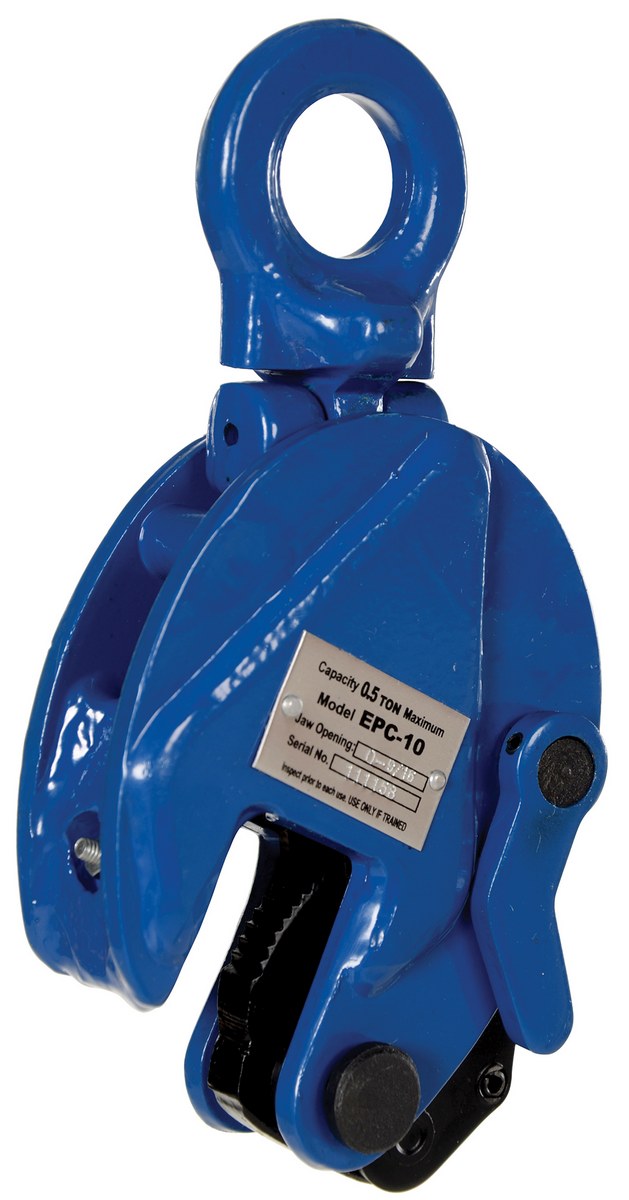

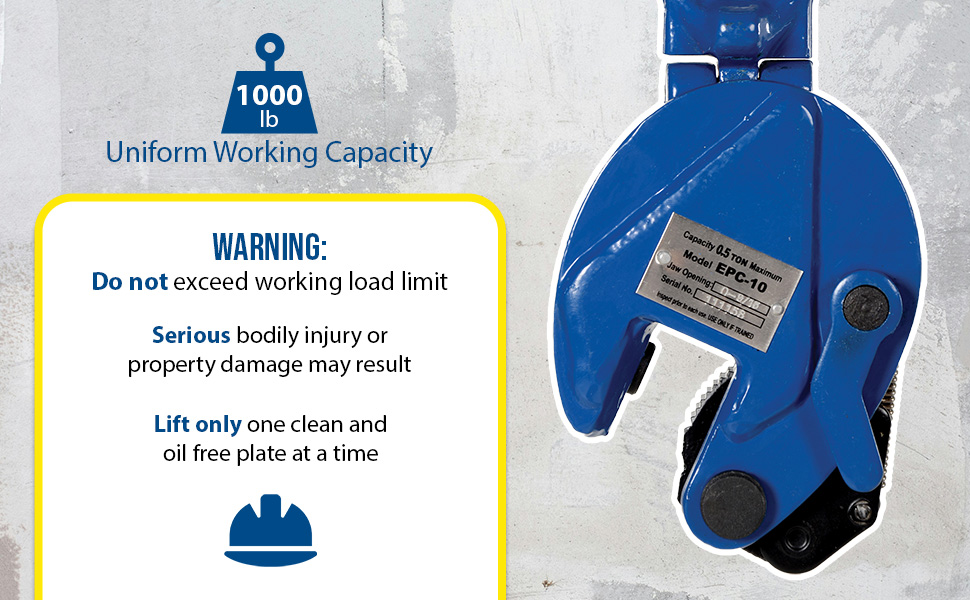

EPC-10

model EPC-10

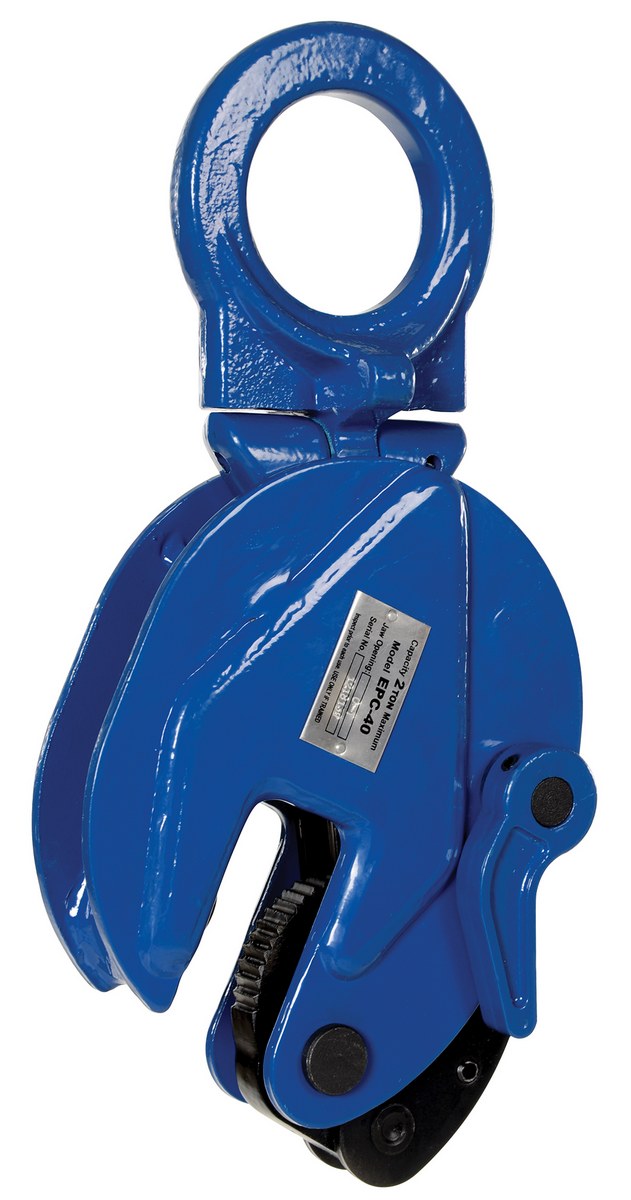

EPC-40

model EPC-40

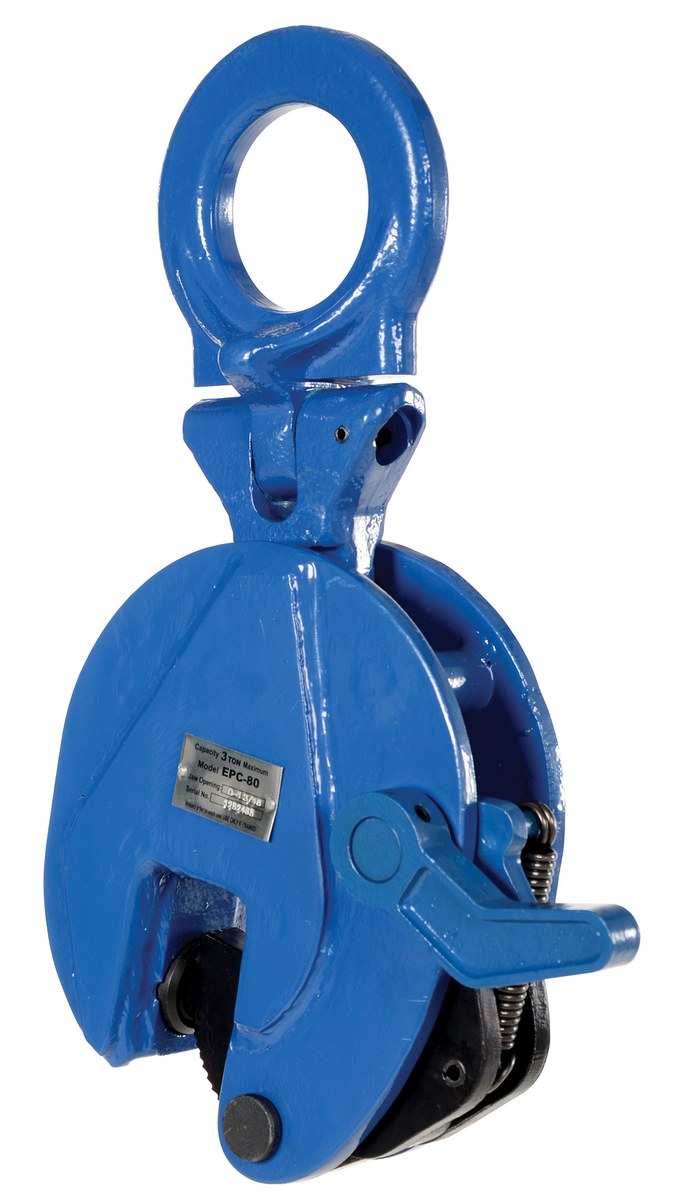

EPC-80

model EPC-80

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

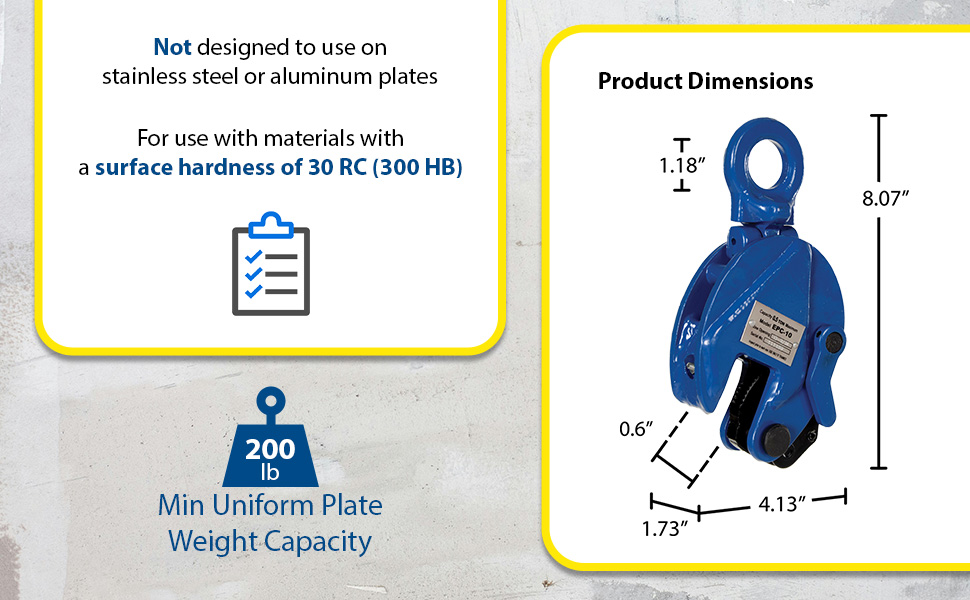

EPC-10 EPC-1090 Days Limited WarrantySteel Vertical Plate Clamp 1,000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000		5
EPC-20 POPULAR EPC-2090 Days Limited WarrantySteel Vertical Plate Clamp 2,000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000		16
EPC-40 EPC-4090 Days Limited WarrantySteel Vertical Plate Clamp 4,000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000		17
EPC-80 EPC-8090 Days Limited WarrantySteel Vertical Plate Clamp 6,600 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 1,320
Uniform Working Load Limit (lb.): 6,600		32

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

EPC-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000
Min Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000

EPC-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000
Min Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000

EPC-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000
Min Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000

EPC-80
Unit:
Size: W x L x H
Weight:
Limited Warranty
Min Uniform Plate Weight (lb.): 1,320
Uniform Working Load Limit (lb.): 6,600
Min Uniform Plate Weight (lb.): 1,320
Uniform Working Load Limit (lb.): 6,600
Vertical Plate Clamps PDF's will open in a new window when clicked.

Manuals


EPC
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


EPC-10

EPC-20

EPC-40

EPC-80

Testing Certificates


EPC-10

EPC-20

EPC-40

EPC-80

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Related or Similar Products:

Positive Locking Plate Clamps
Product

Positive Locking Plate Clamps

Vertical Plate Clamps with Chain
Product

Vertical Plate Clamps with Chain

Horizontal Plate Clamps
Product

Horizontal Plate Clamps

Heavy-Duty Beam Tongs
Product

Heavy-Duty Beam Tongs

Heavy-Duty Die Lifting Tongs
Product

Heavy-Duty Die Lifting Tongs

Heavy-Duty Pipe Grabs
Product

Heavy-Duty Pipe Grabs

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Vertical Plate Clamps




Pivoting bail for easier and more versatile operation. Automatic serrated hardened steel cams and pads. Drop-forged steel case for maximum strength. Designed to meet ASME B30.20. Warning: Do not exceed the working load limit. Serious bodily injury or property damage may result. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Pivoting bale provides more versatile operation
  • Drop-forged steel case provides maximum strength
  • Unique design lifts one clean and oil free plate at a time
  • Automatic serrated hardened steel cams and pads lock plate in place

Model # Description Attributes Net Wt.
(lbs)
EPC-10 EPC-10Steel Vertical Plate Clamp 1,000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000		5
EPC-20 EPC-20Steel Vertical Plate Clamp 2,000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000		16
EPC-40 EPC-40Steel Vertical Plate Clamp 4,000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000		17
EPC-80 EPC-80Steel Vertical Plate Clamp 6,600 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 1,320
Uniform Working Load Limit (lb.): 6,600		32
