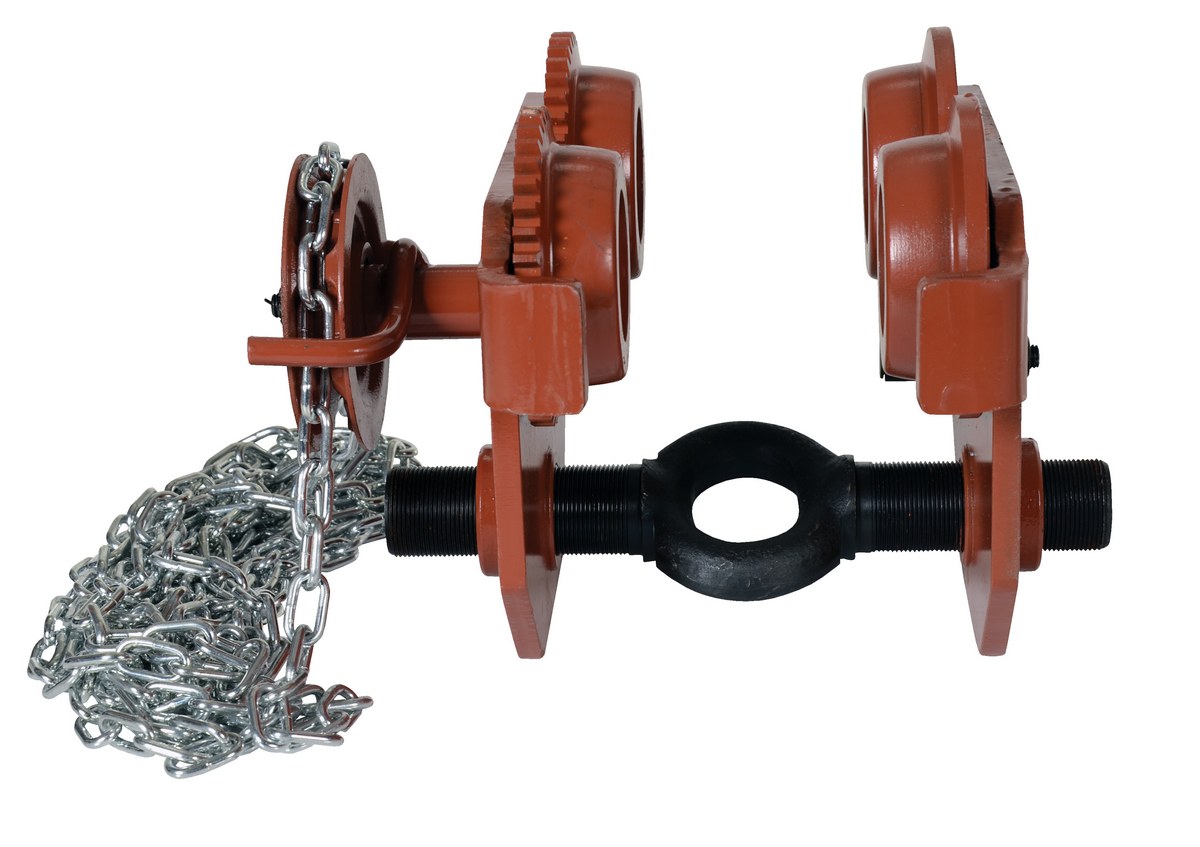

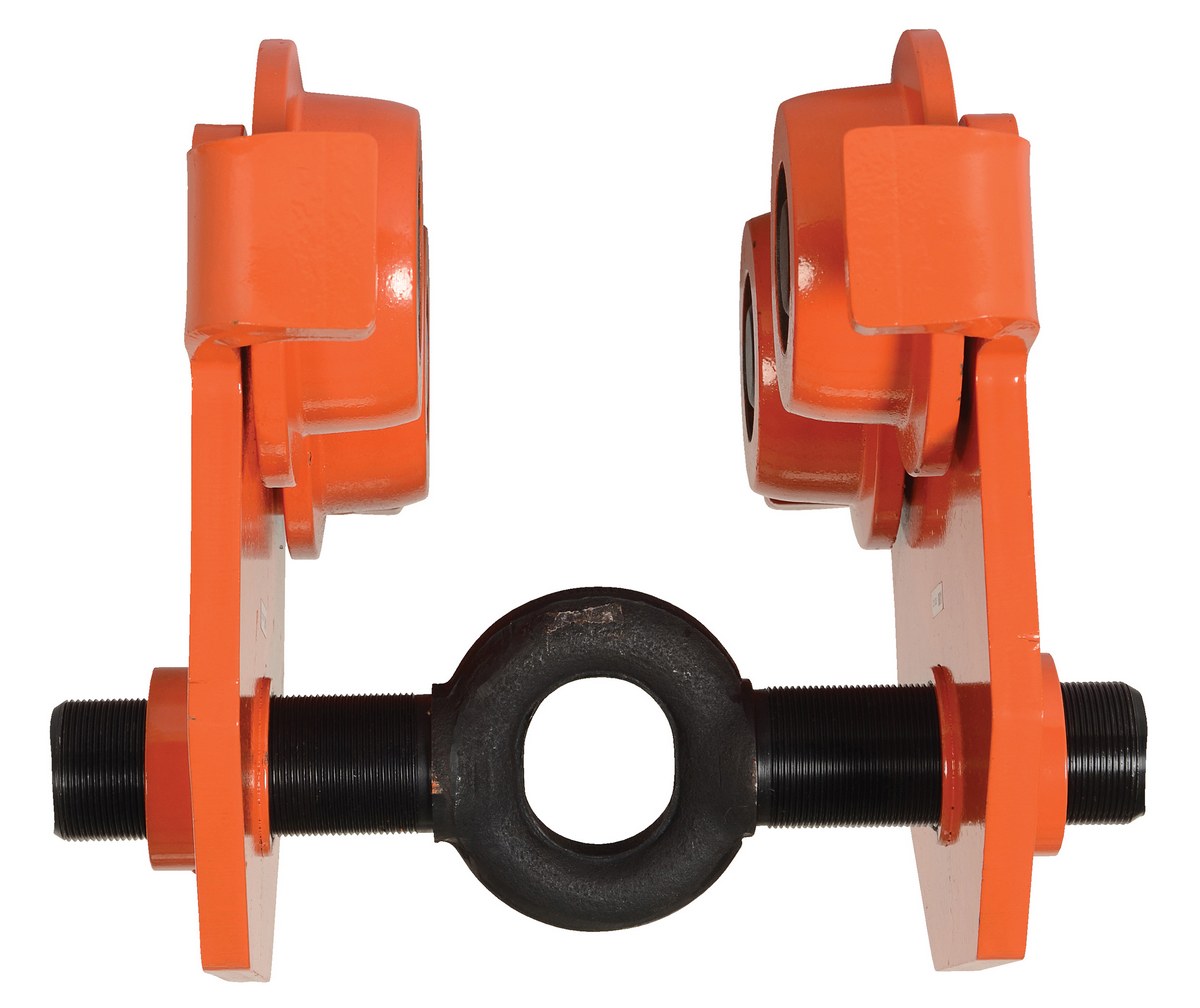

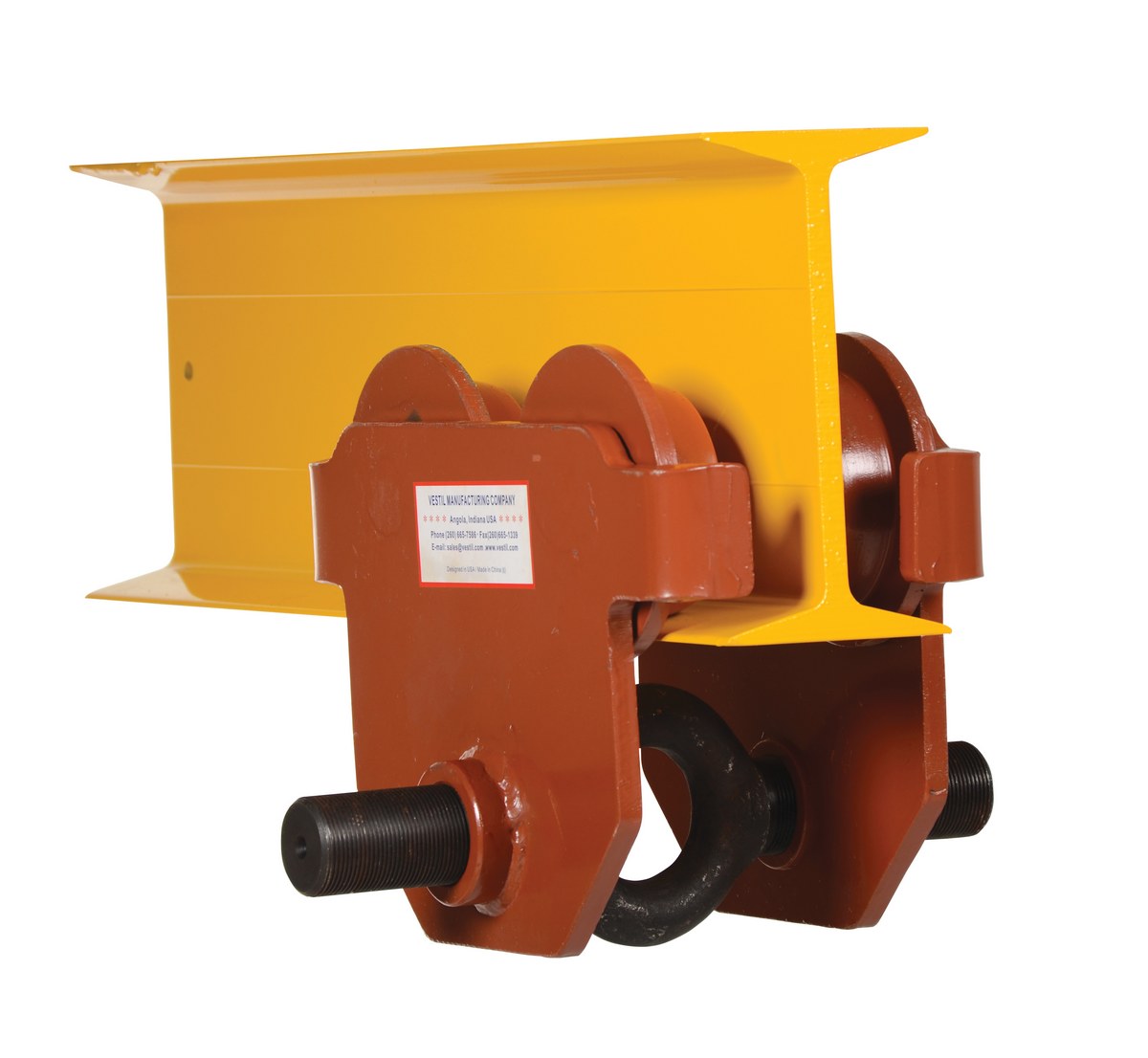

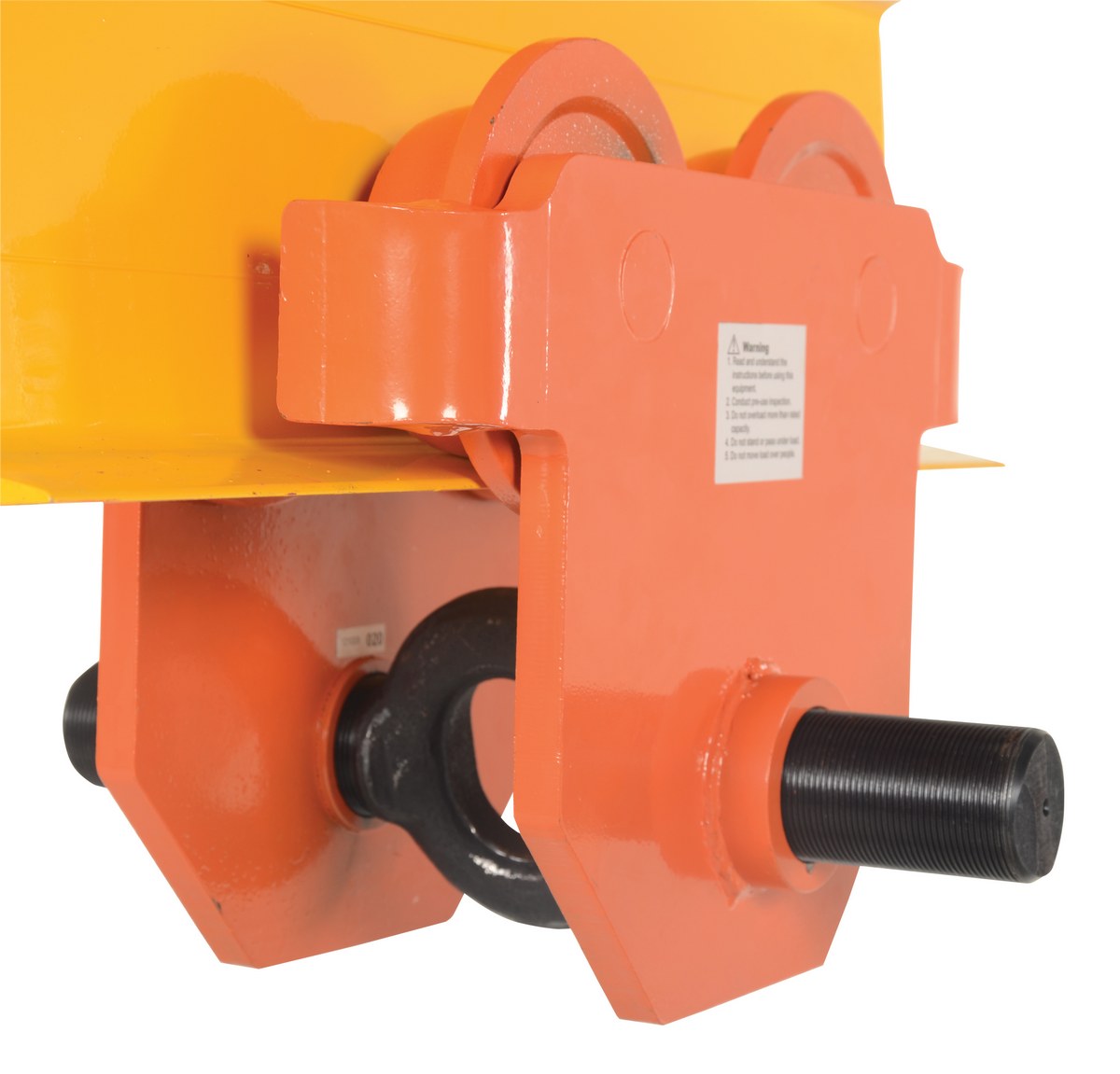

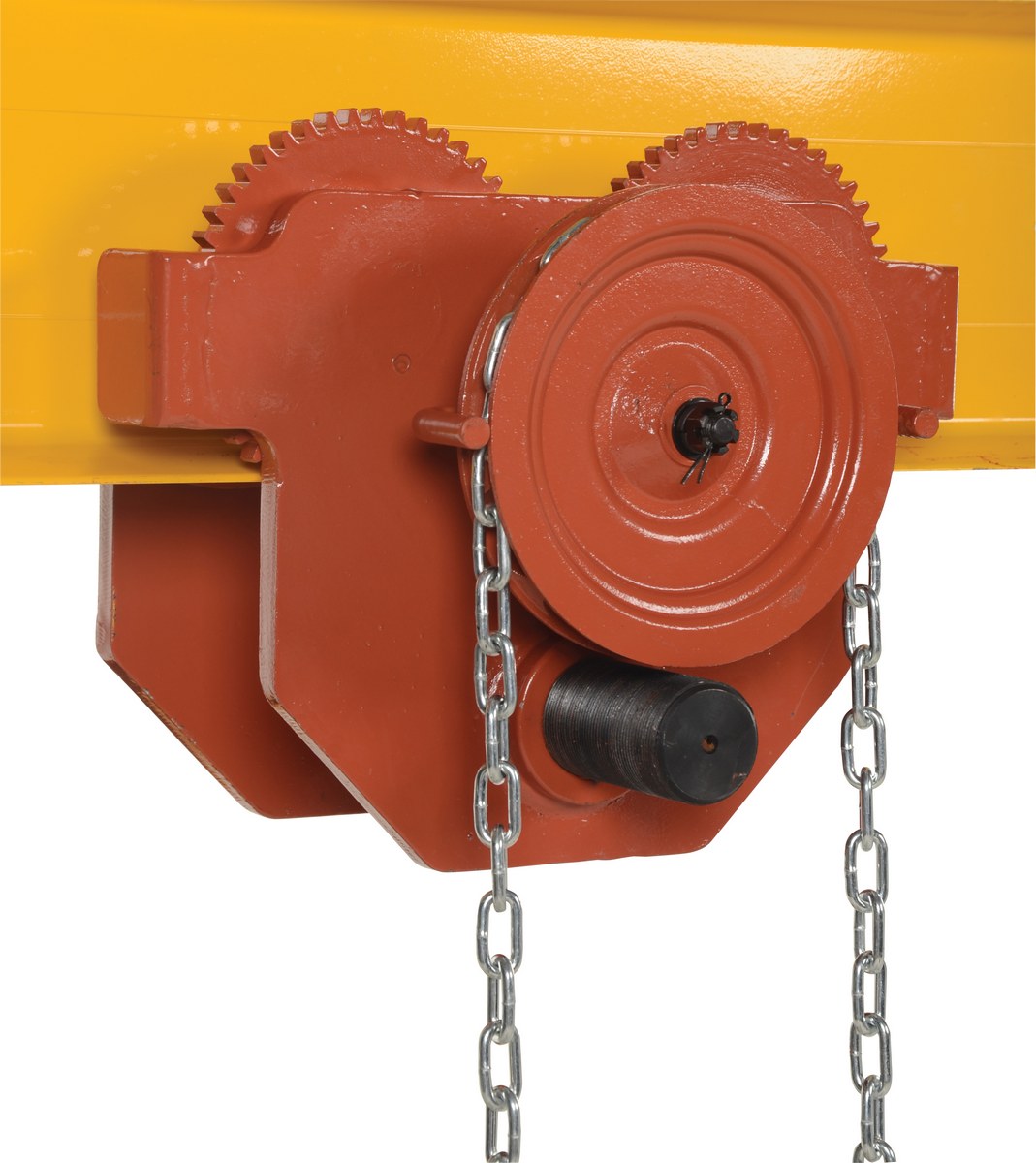

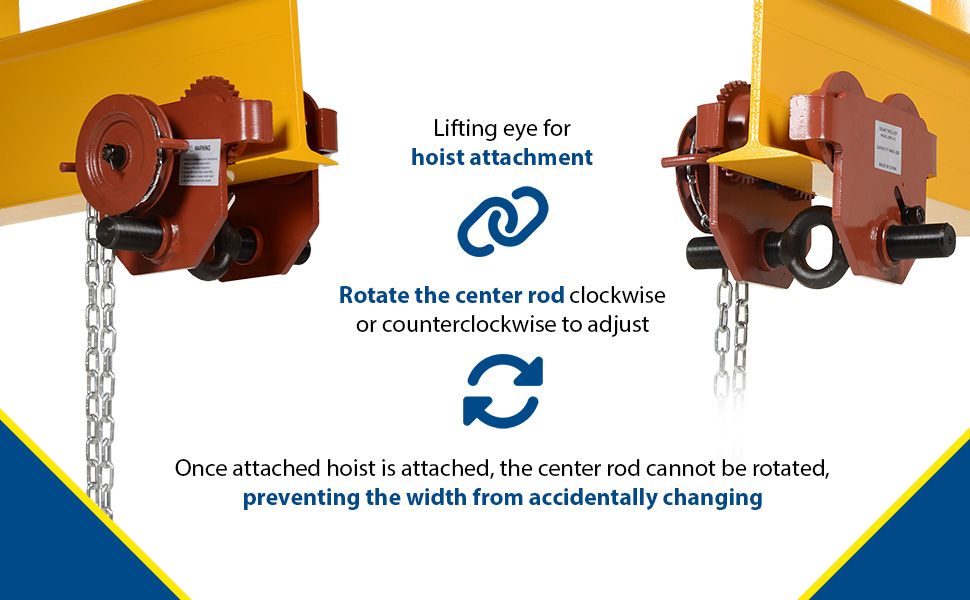

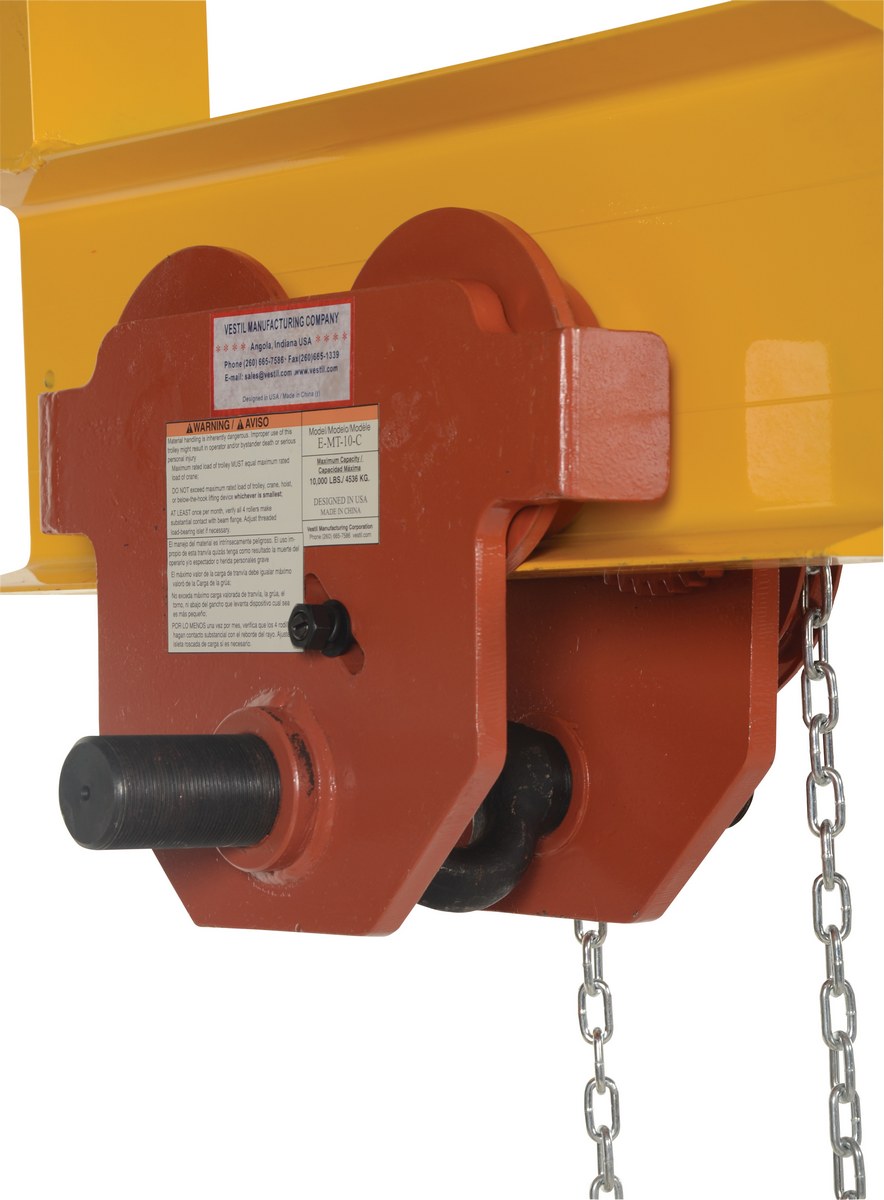

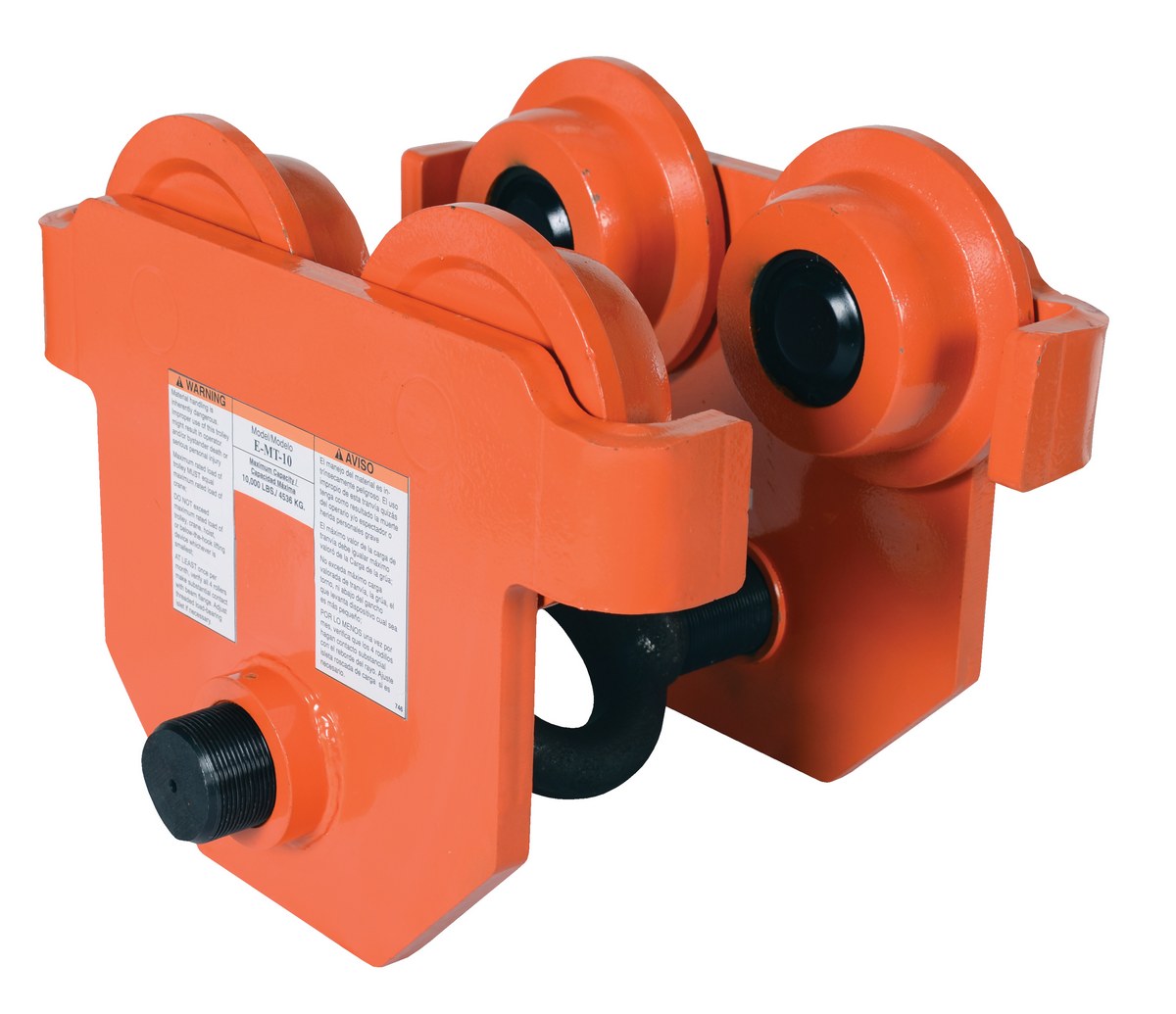

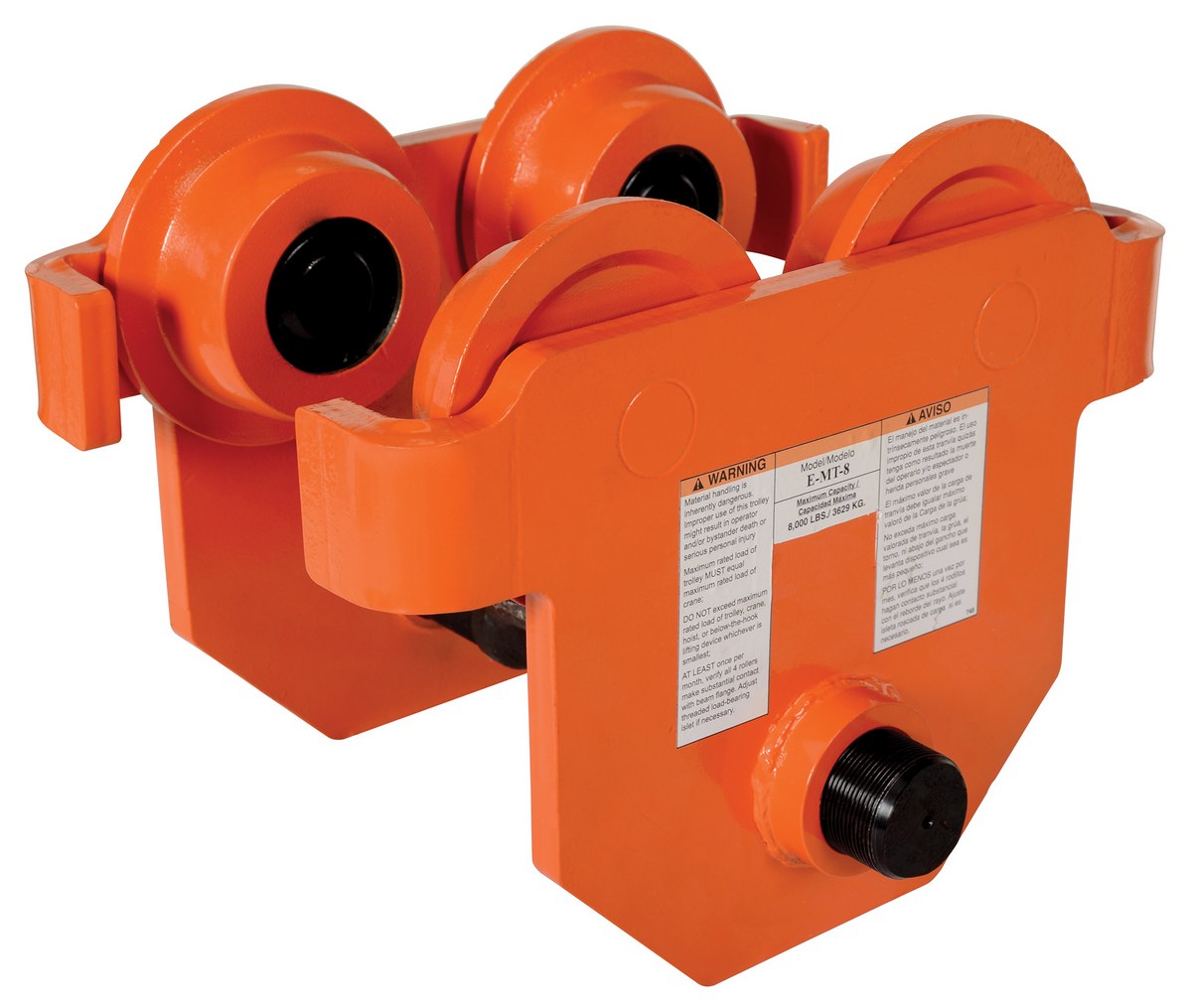

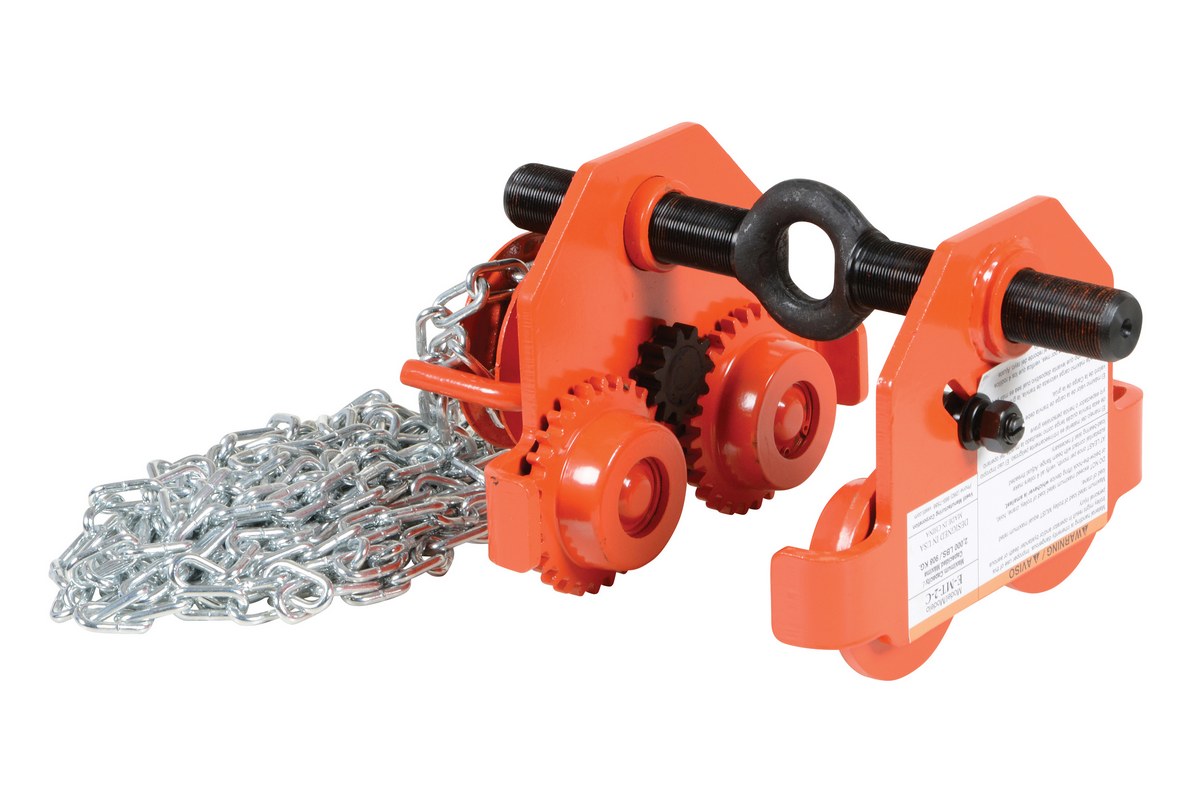

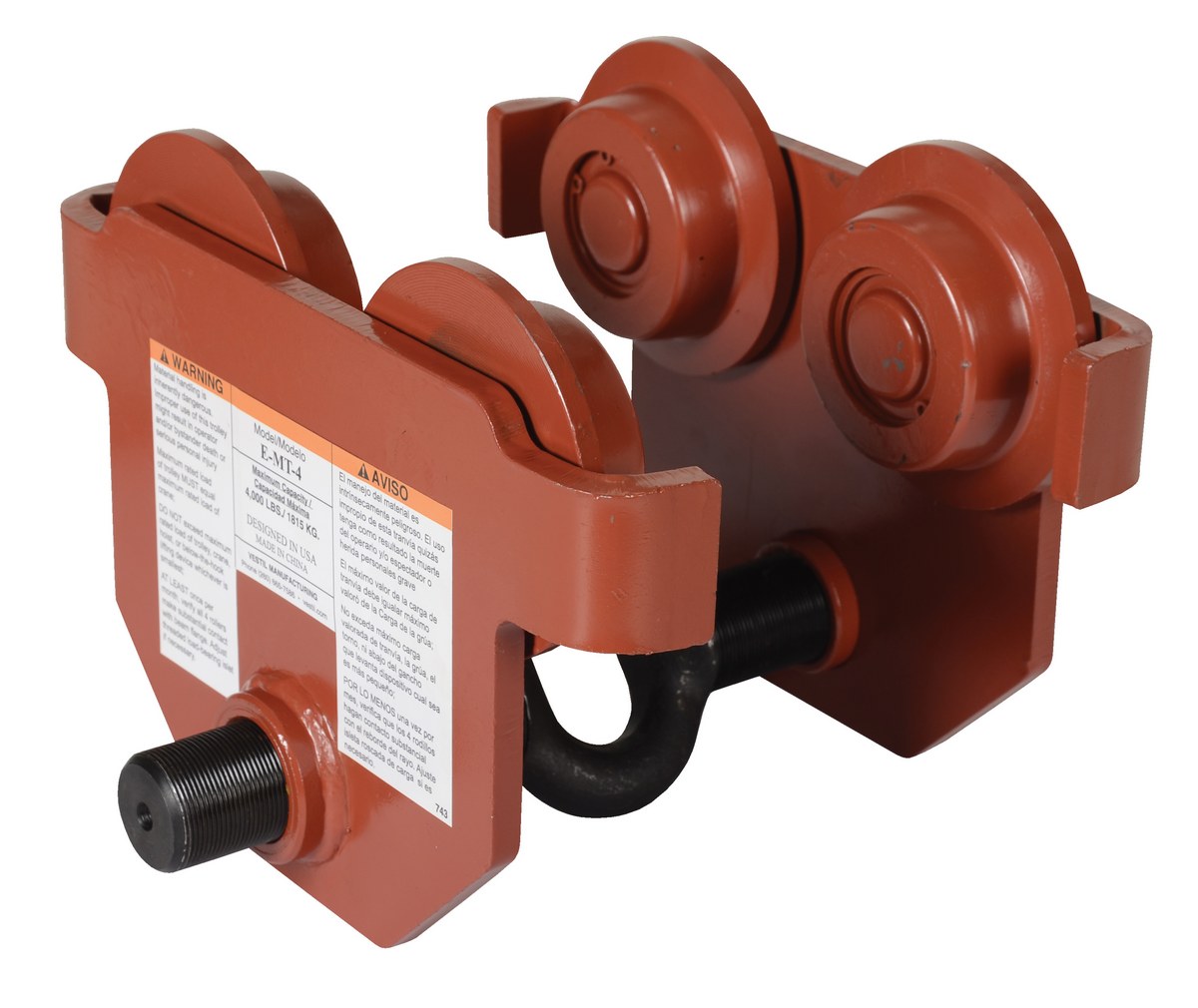

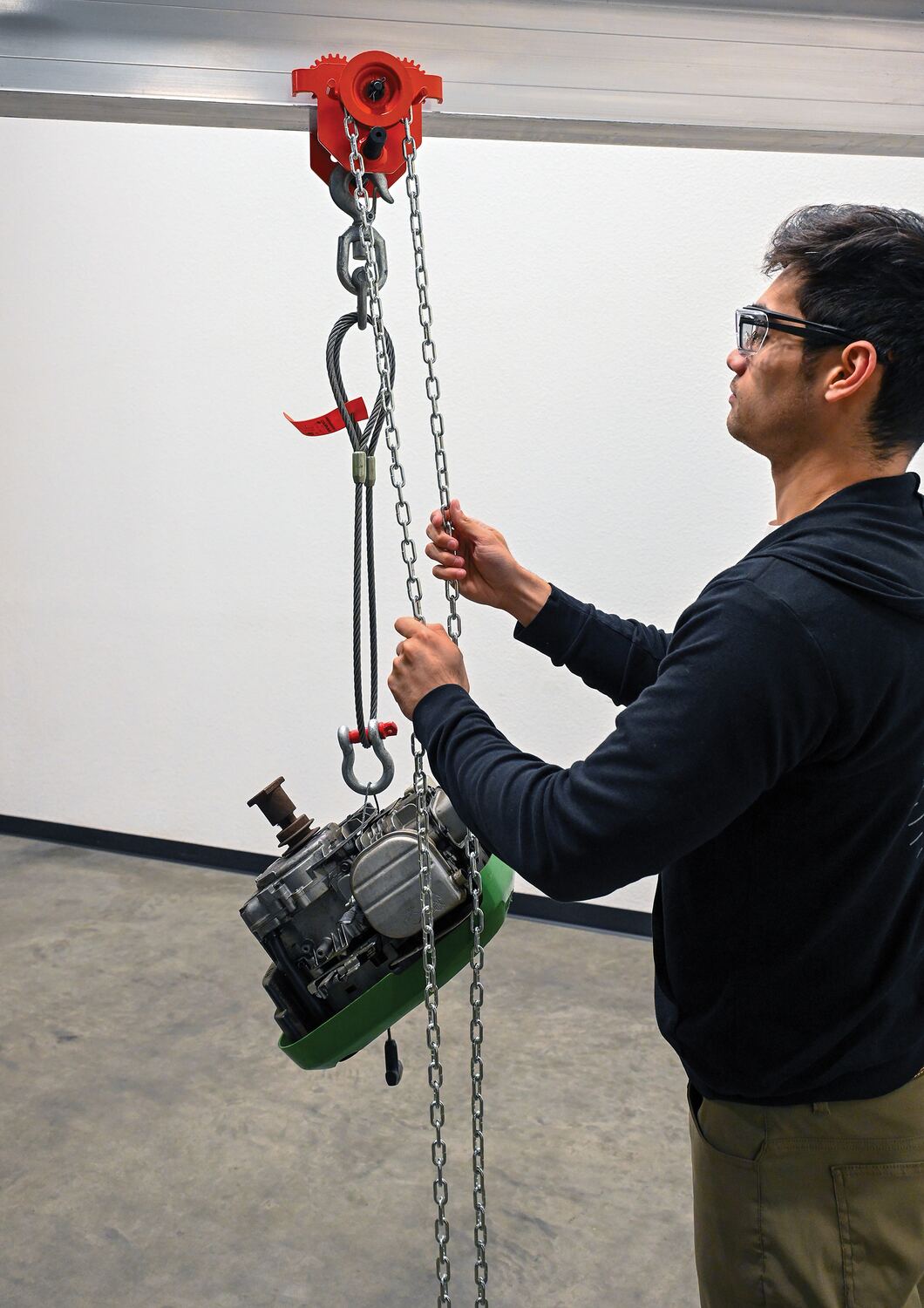

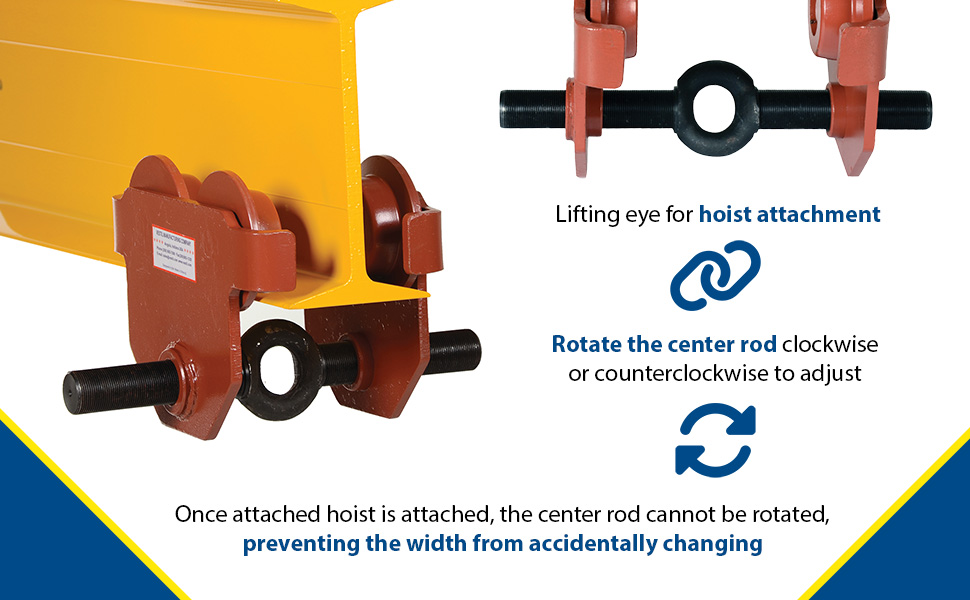

Low Profile Manual TrolliesThese trollies have been designed to quickly install on virtually any S, H,W, and M type I-beam. The width of the trolley is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise. Once hoist (not included) is attached, center rod cannot be rotated which prevents trolley width from accidentally changing. Choose either push trolley or geared trolley. Geared trolley is ideal for use when precise positioning of the trolley is required. The trolley includes four rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included). Steel construction and painted finish. Headroom is measured from the bottom of wheel to bottom of hooking eye.
- Special design works with S, H, W and M type I-beams

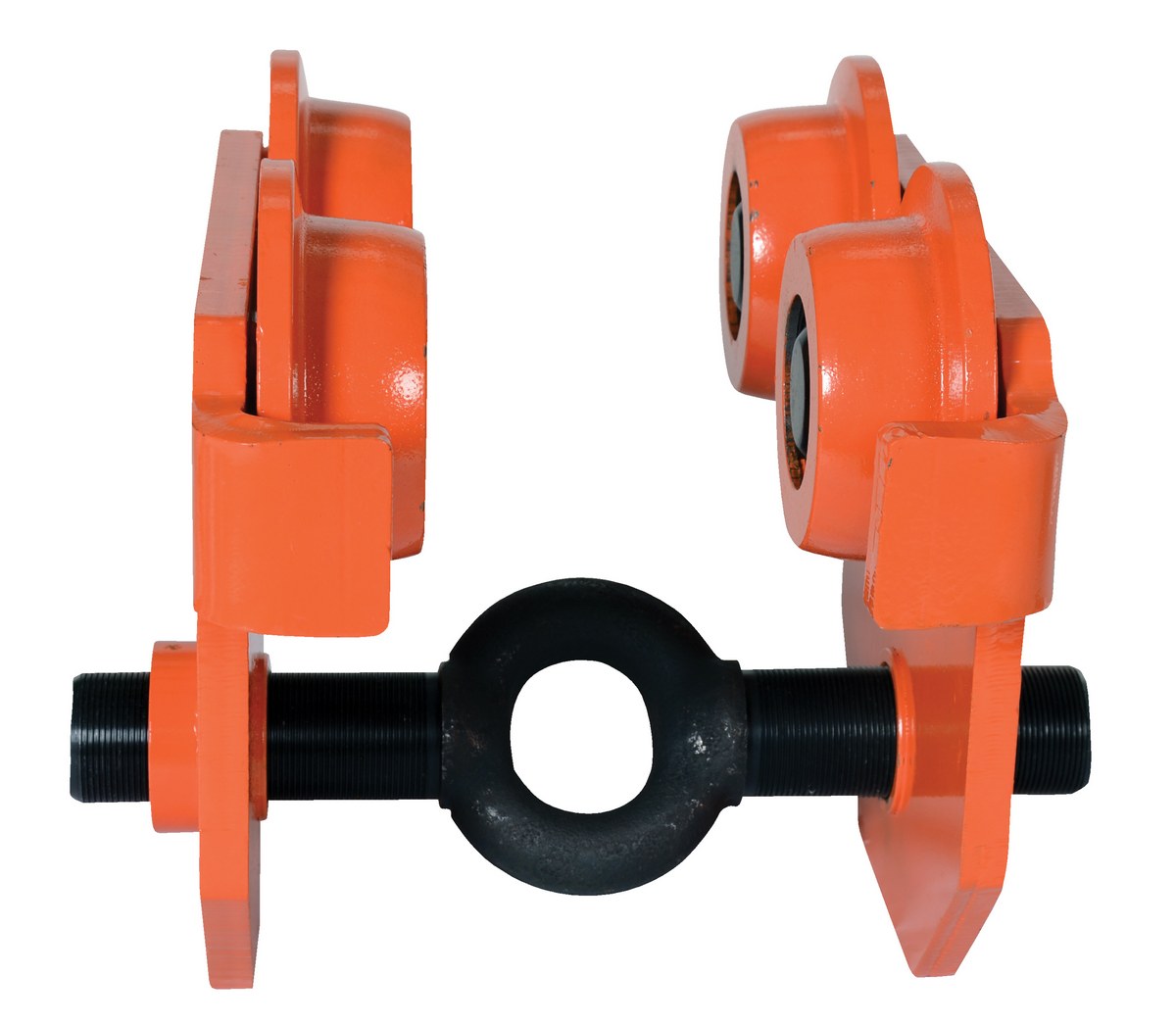

- Turning center screw with eye easily adjusts trolley width
- Solid steel construction provides long lasting rugged use

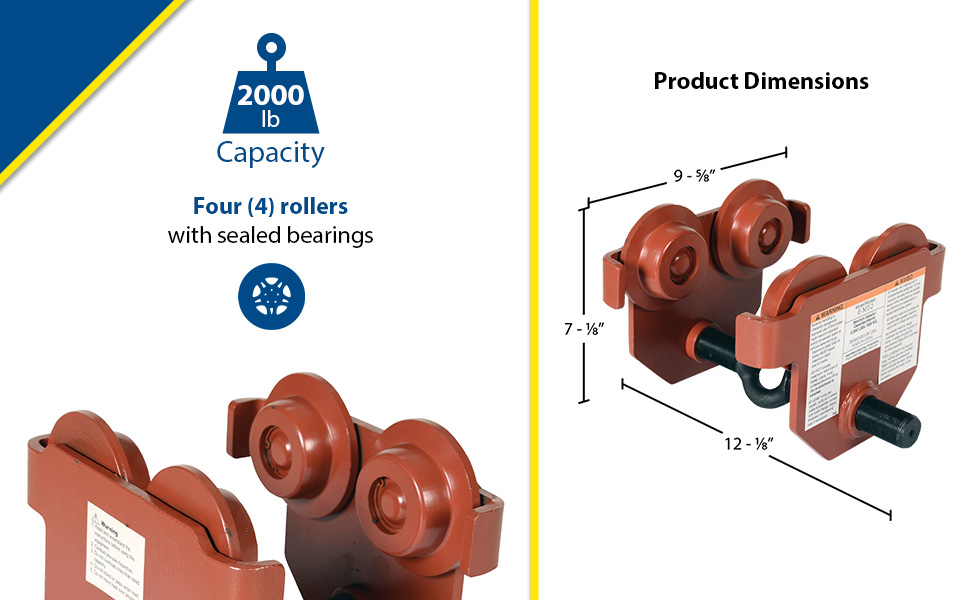

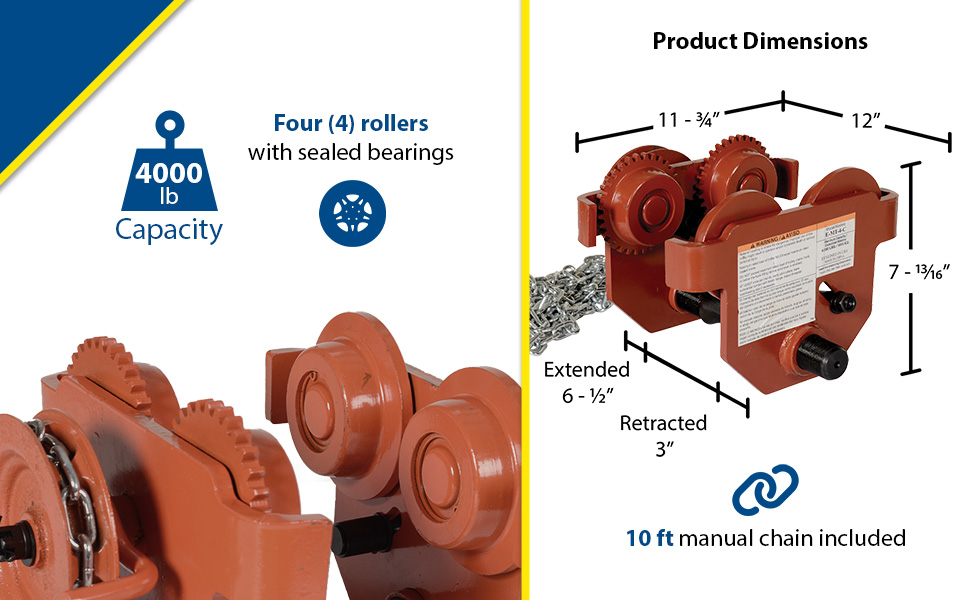

- Sealed bearings provide long life
Economy Chain Hoists with Chain Container
Manipulator Style Control Electric Chain Hoist
Mini Cable Hoists
Electric Chain HoistsAdditional Models In This Family
E-MT-4-C

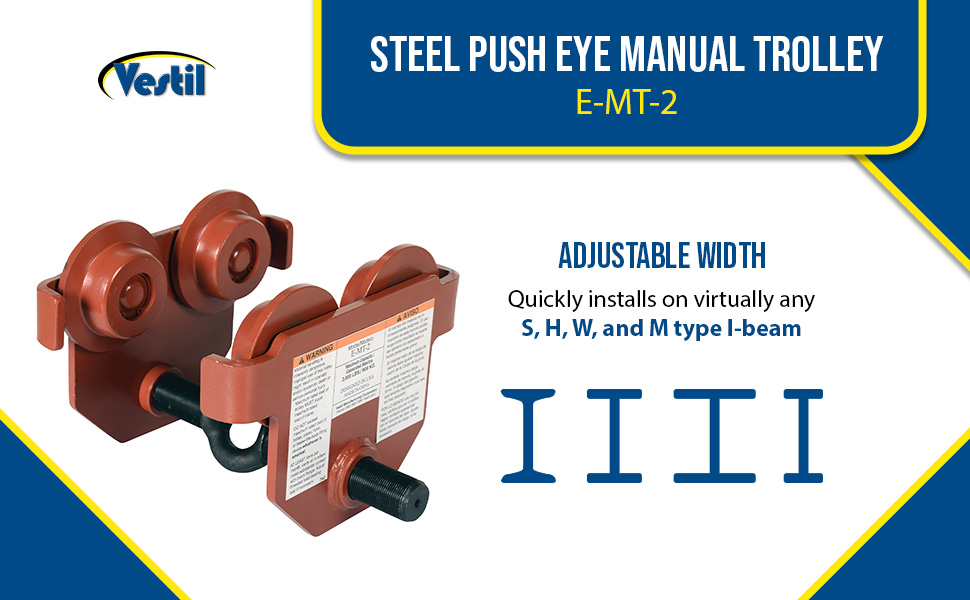

E-MT-2
E-MT-1
E-MT-2
E-MT-10-C
E-MT-8-C
E-MT-10
E-MT-10
E-MT-4-C
E-MT-8
E-MT-1-C
E-MT-10
E-MT-6
E-MT-6
E-MT-1-C
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| E-MT-1 |  | 90 Days Limited Warranty | Steel Push Eye Manual Trolley 1000 Lb. Capacity Orange | Uniform Capacity (lb.): 1,000 Fits Beam Flange Width (in.): 2 to 8-5/8 | 12 | ||

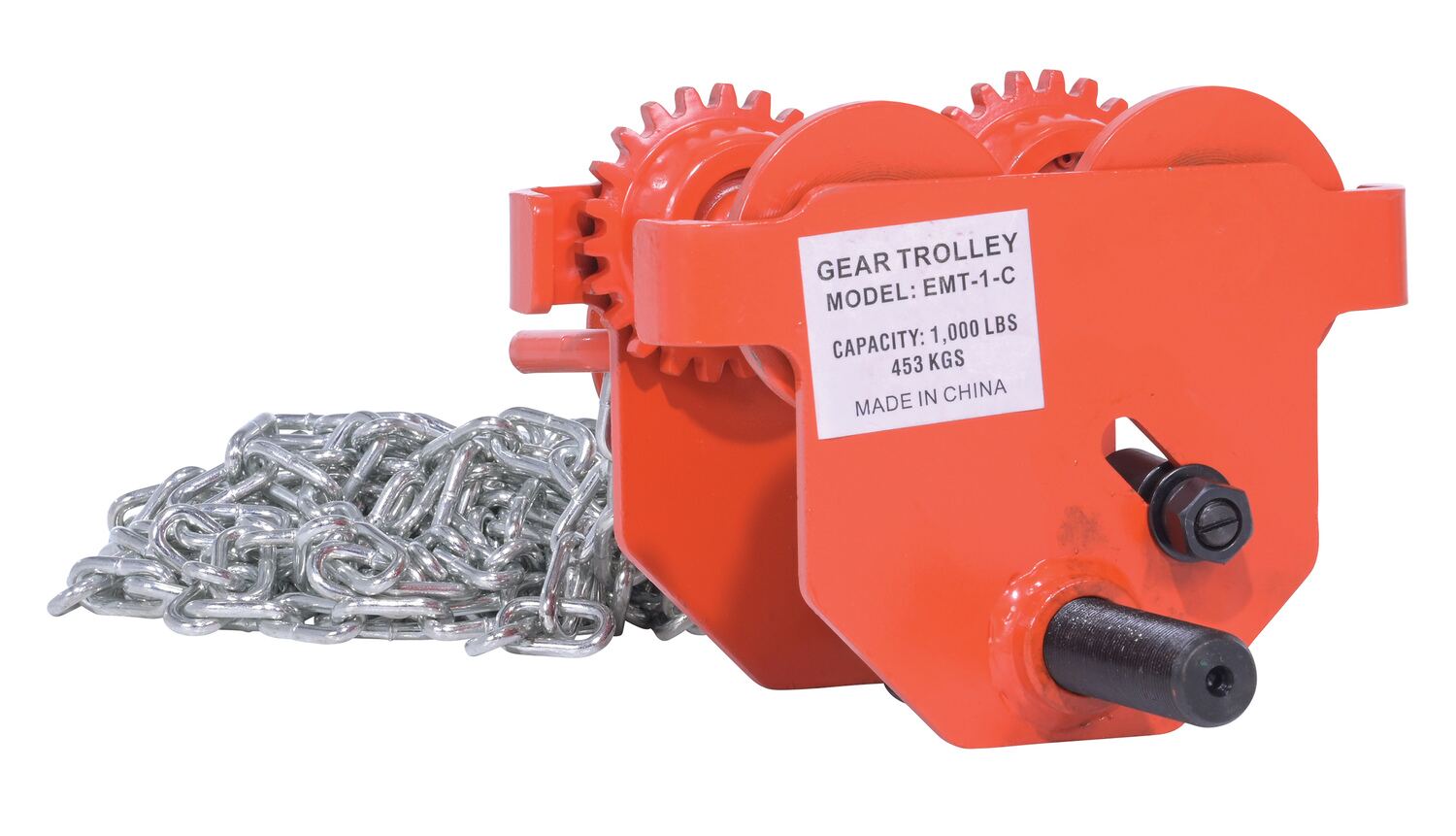

| E-MT-1-C |  | 90 Days Limited Warranty | Steel Geared Eye Manual Trolley 1000 Lb. Capacity Orange | Uniform Capacity (lb.): 1,000 Fits Beam Flange Width (in.): 2-1/2 to 5-1/2 | 21 | ||

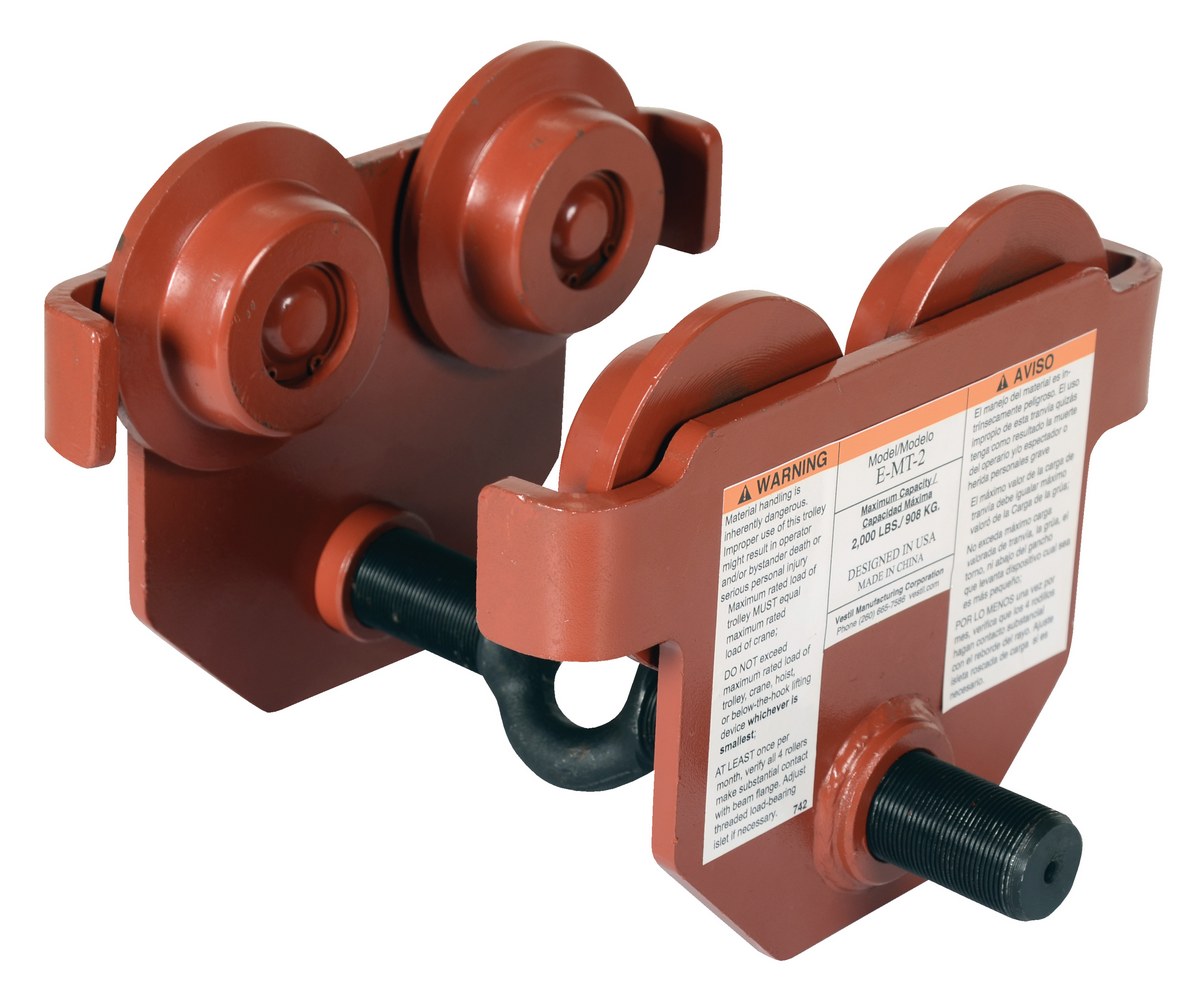

| E-MT-2 |  | 90 Days Limited Warranty | Steel Push Eye Manual Trolley 2000 Lb. Capacity Orange | Uniform Capacity (lb.): 2,000 Fits Beam Flange Width (in.): 2-1/2 to 10-1/8 | 20 | ||

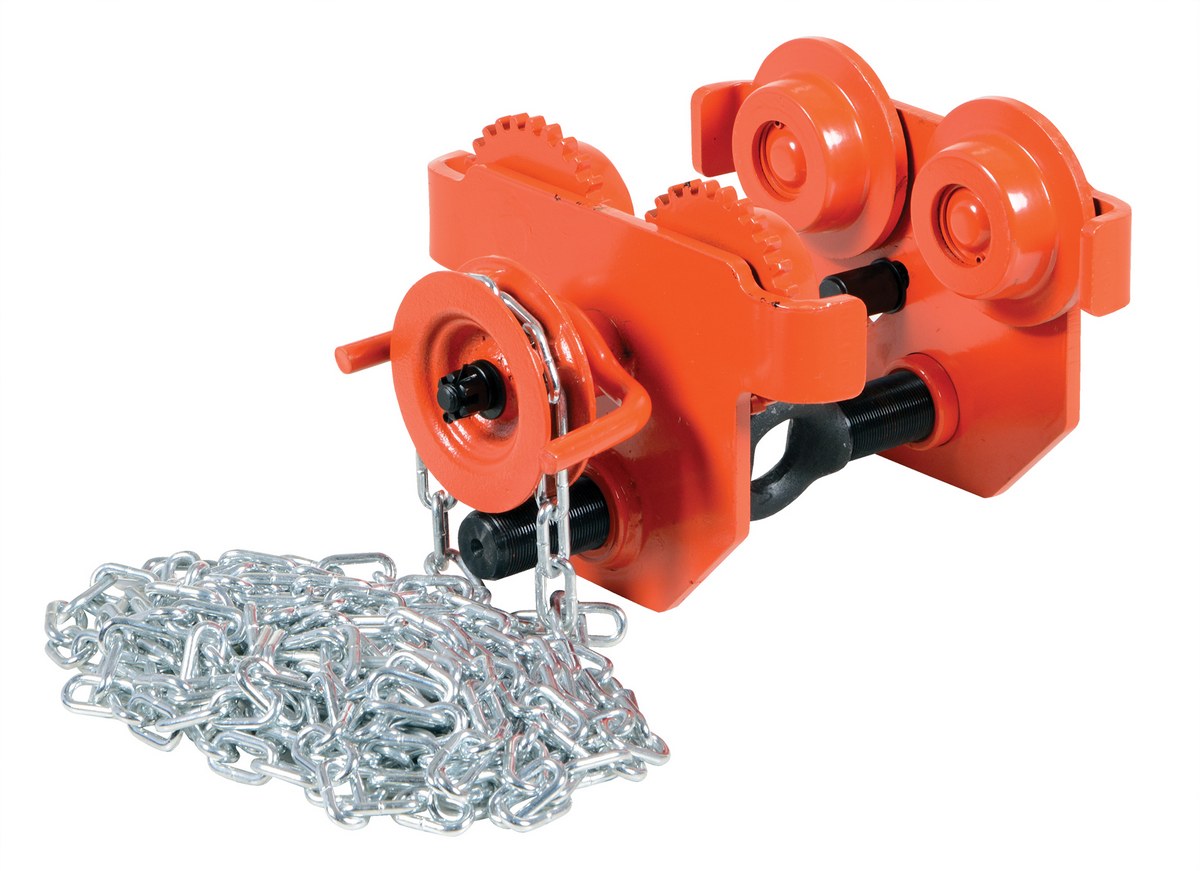

| E-MT-2-C |  | 90 Days Limited Warranty | Steel Geared Eye Manual Trolley 2000 Lb. Capacity Orange | Uniform Capacity (lb.): 2,000 Fits Beam Flange Width (in.): 2-1/2 to 5-1/2 | 29 | ||
| E-MT-4 |  | 90 Days Limited Warranty | Steel Push Eye Manual Trolley 4000 Lb. Capacity Orange | Uniform Capacity (lb.): 4,000 Fits Beam Flange Width (in.): 2-1/2 to 8-5/8 | 31 | ||

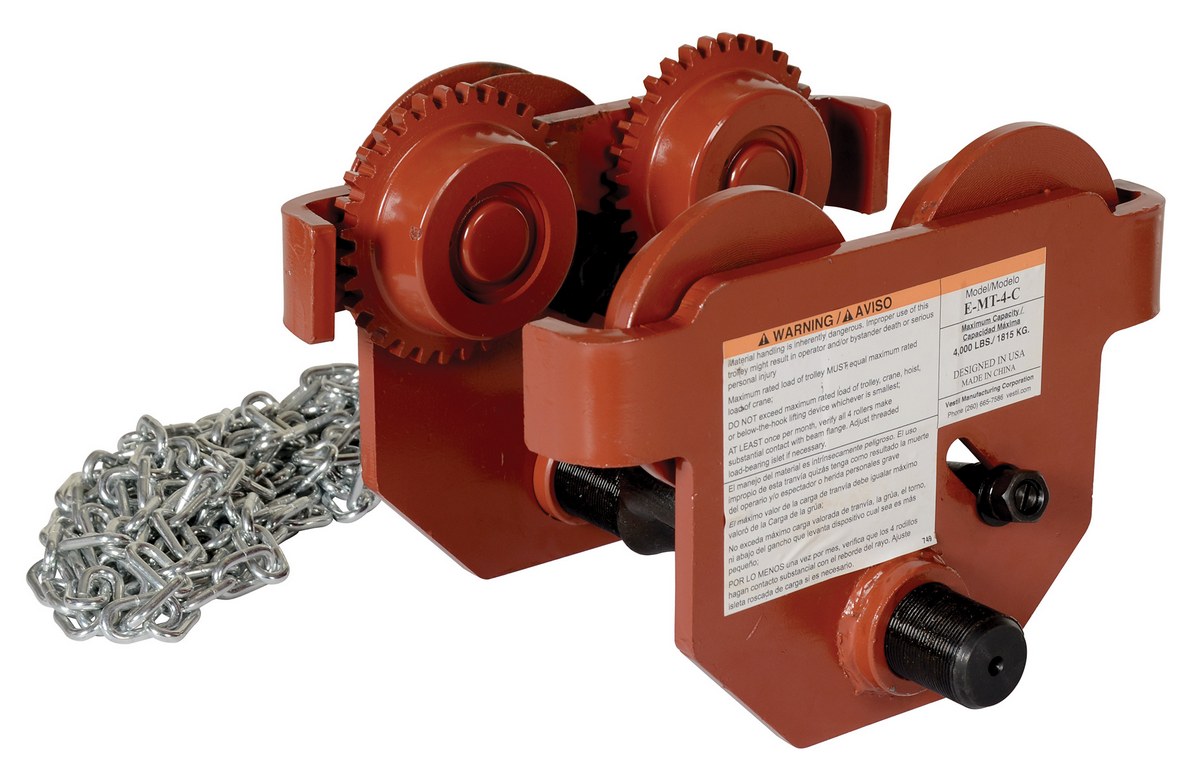

| E-MT-4-C | | 90 Days Limited Warranty | Steel Geared Eye Manual Trolley 4000 Lb. Capacity Orange | Uniform Capacity (lb.): 4,000 Fits Beam Flange Width (in.): 3 to 6-1/2 | 41 | ||

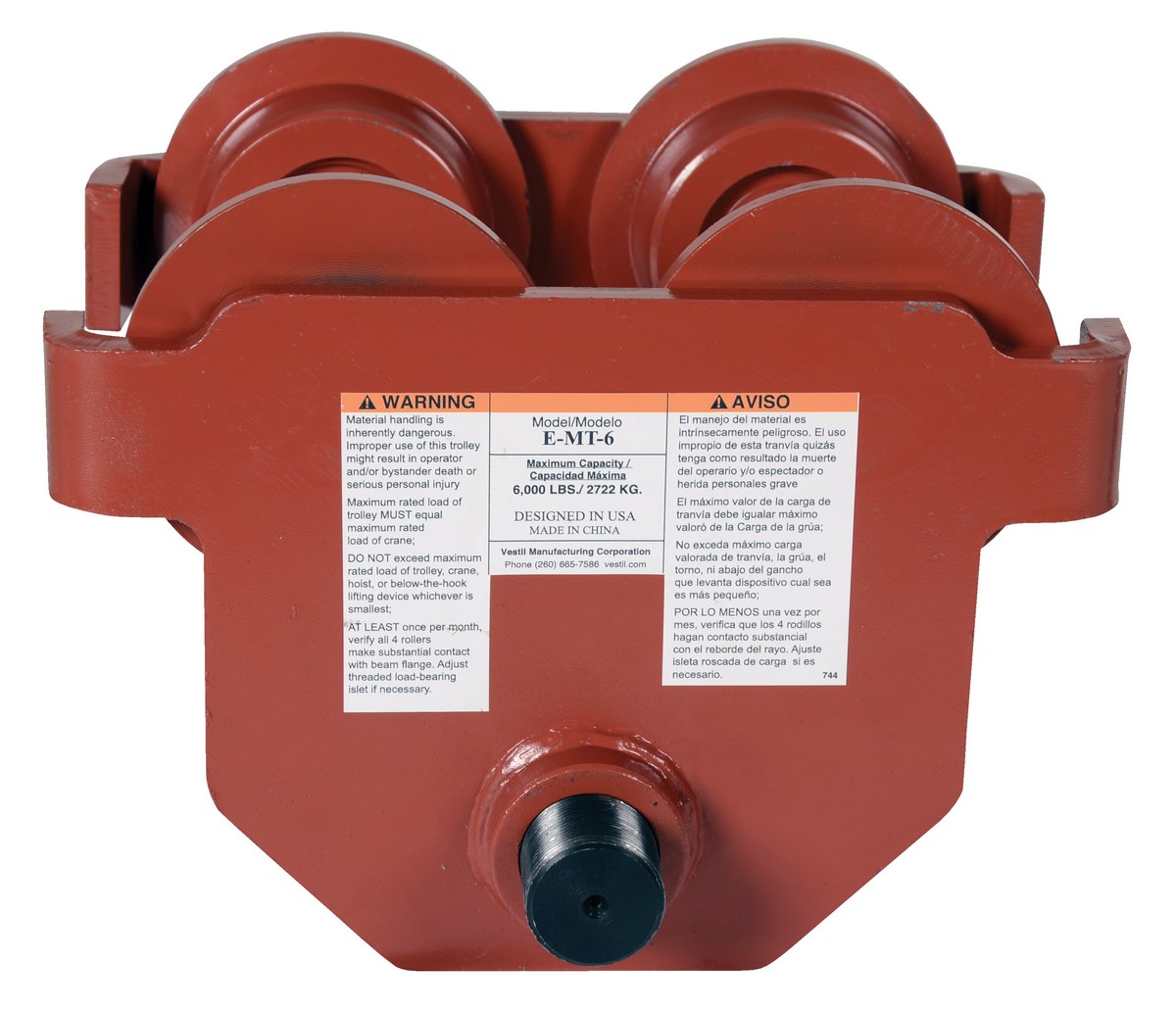

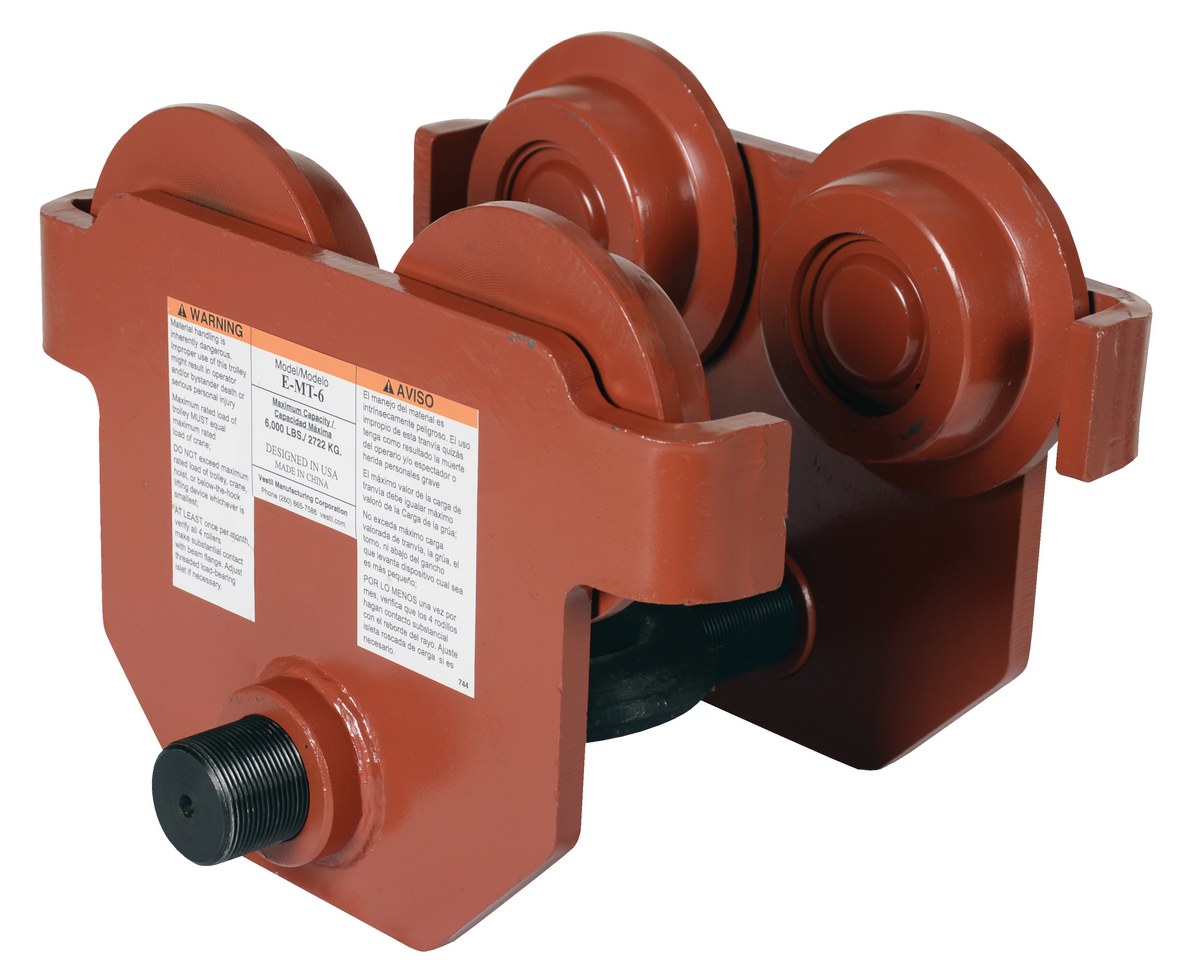

| E-MT-6 |  | 90 Days Limited Warranty | Steel Push Eye Manual Trolley 6000 Lb. Capacity Orange | Uniform Capacity (lb.): 6,000 Fits Beam Flange Width (in.): 3 to 8-5/8 | 52 | ||

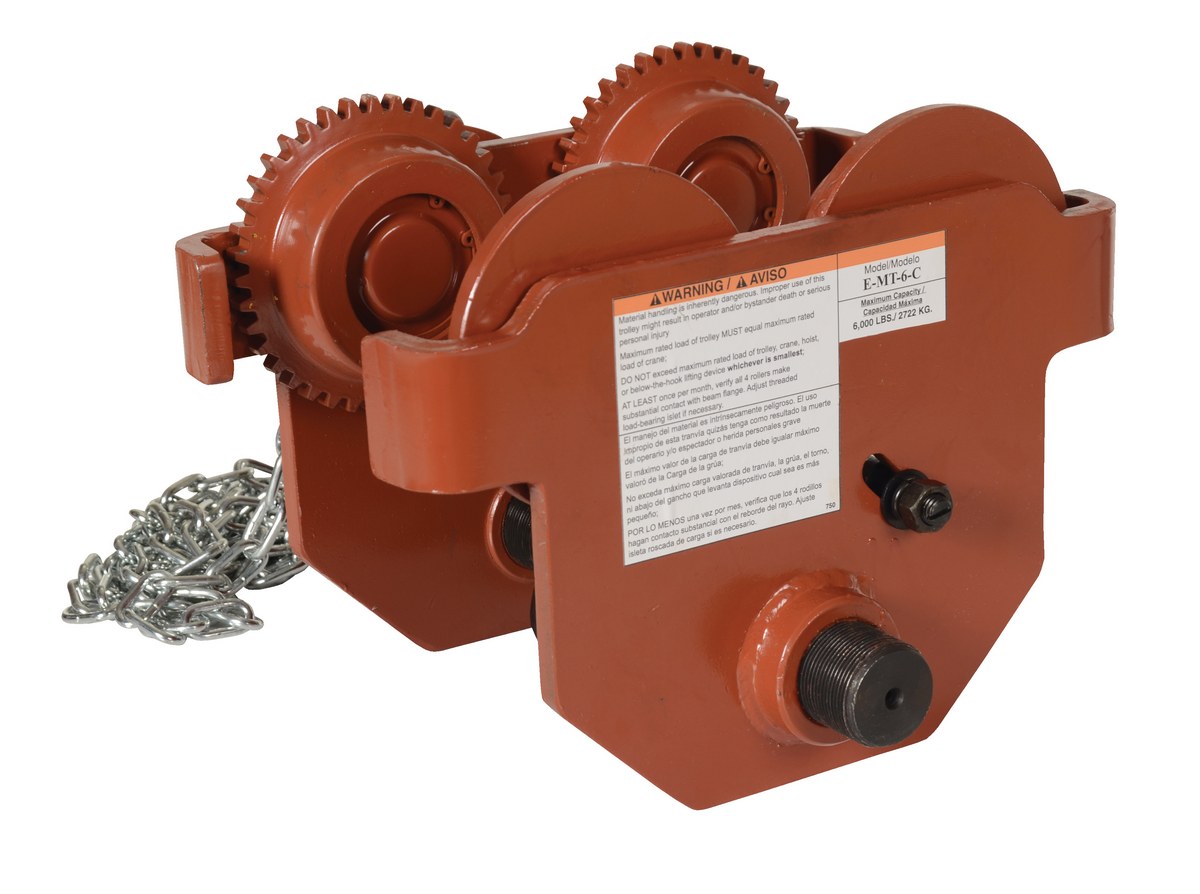

| E-MT-6-C |  | 90 Days Limited Warranty | Steel Geared Eye Manual Trolley 6000 Lb. Capacity Orange | Uniform Capacity (lb.): 6,000 Fits Beam Flange Width (in.): 3 to 8 | 62 | ||
| E-MT-8 |  | 90 Days Limited Warranty | Steel Push Eye Manual Trolley 8000 Lb. Capacity Orange | Uniform Capacity (lb.): 8,000 Fits Beam Flange Width (in.): 3 to 9 | 62 | ||
| E-MT-8-C |  | 90 Days Limited Warranty | Steel Geared Eye Manual Trolley 8000 Lb. Capacity Orange | Uniform Capacity (lb.): 8,000 Fits Beam Flange Width (in.): 3 to 9 | 100 | ||

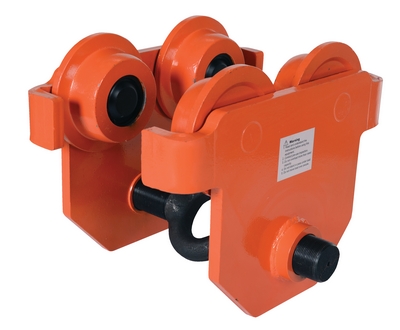

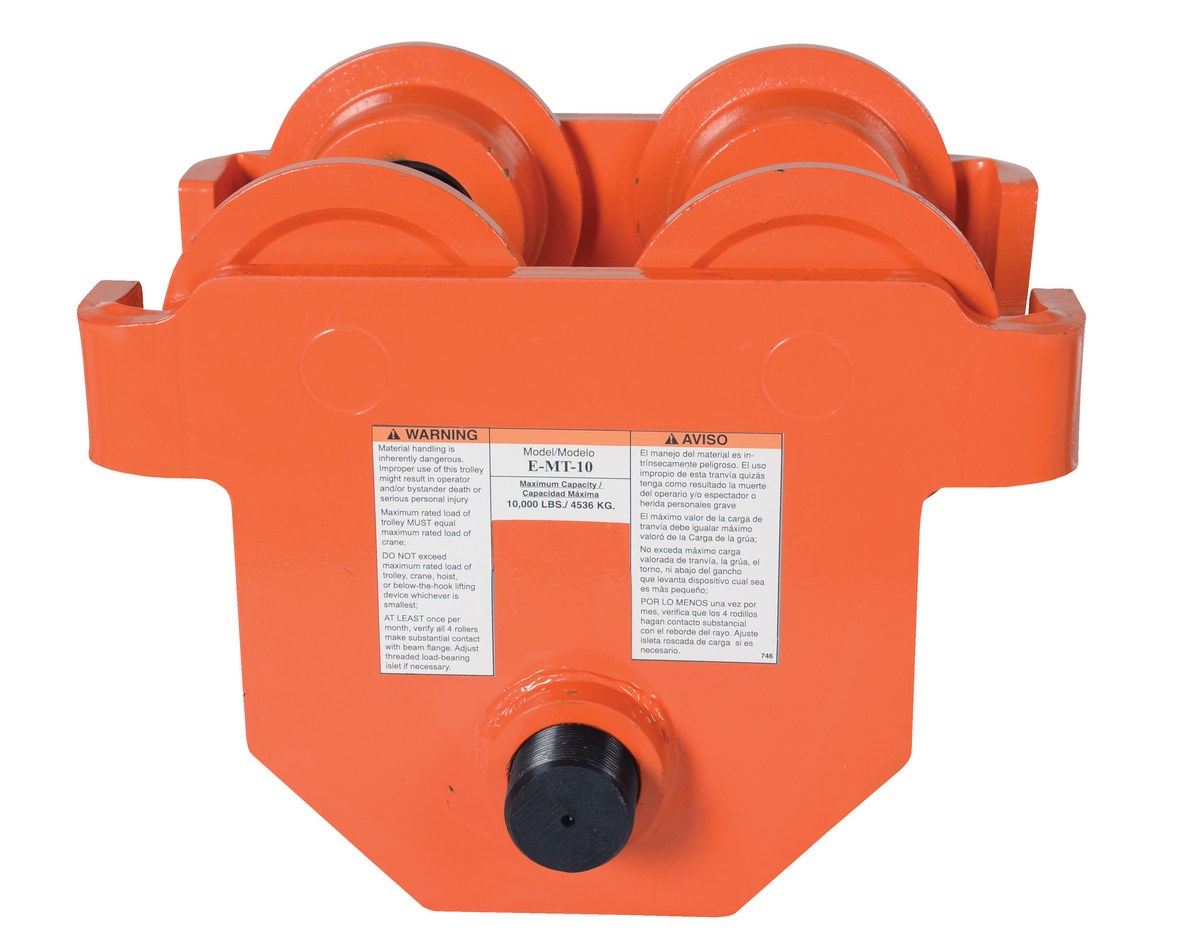

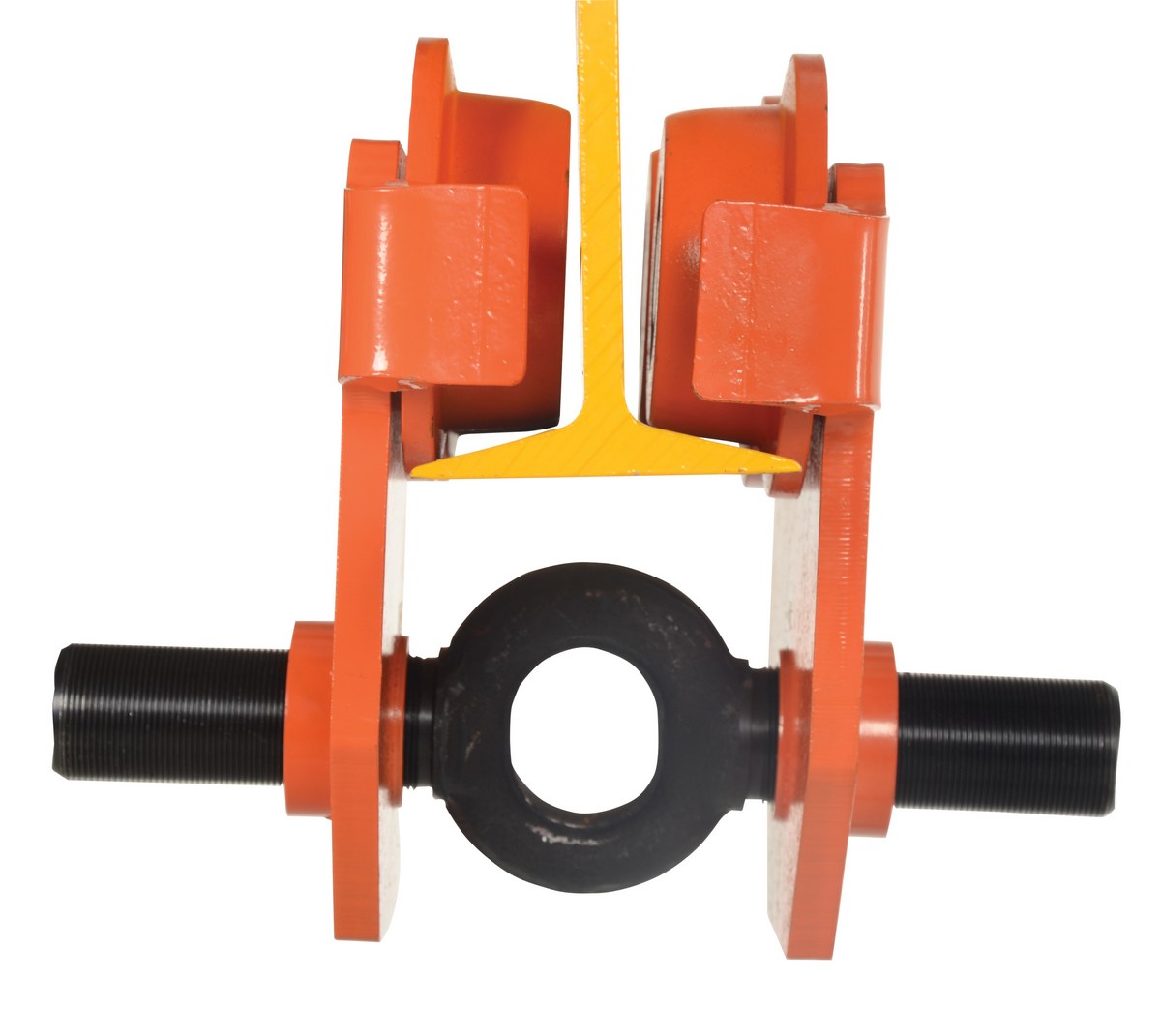

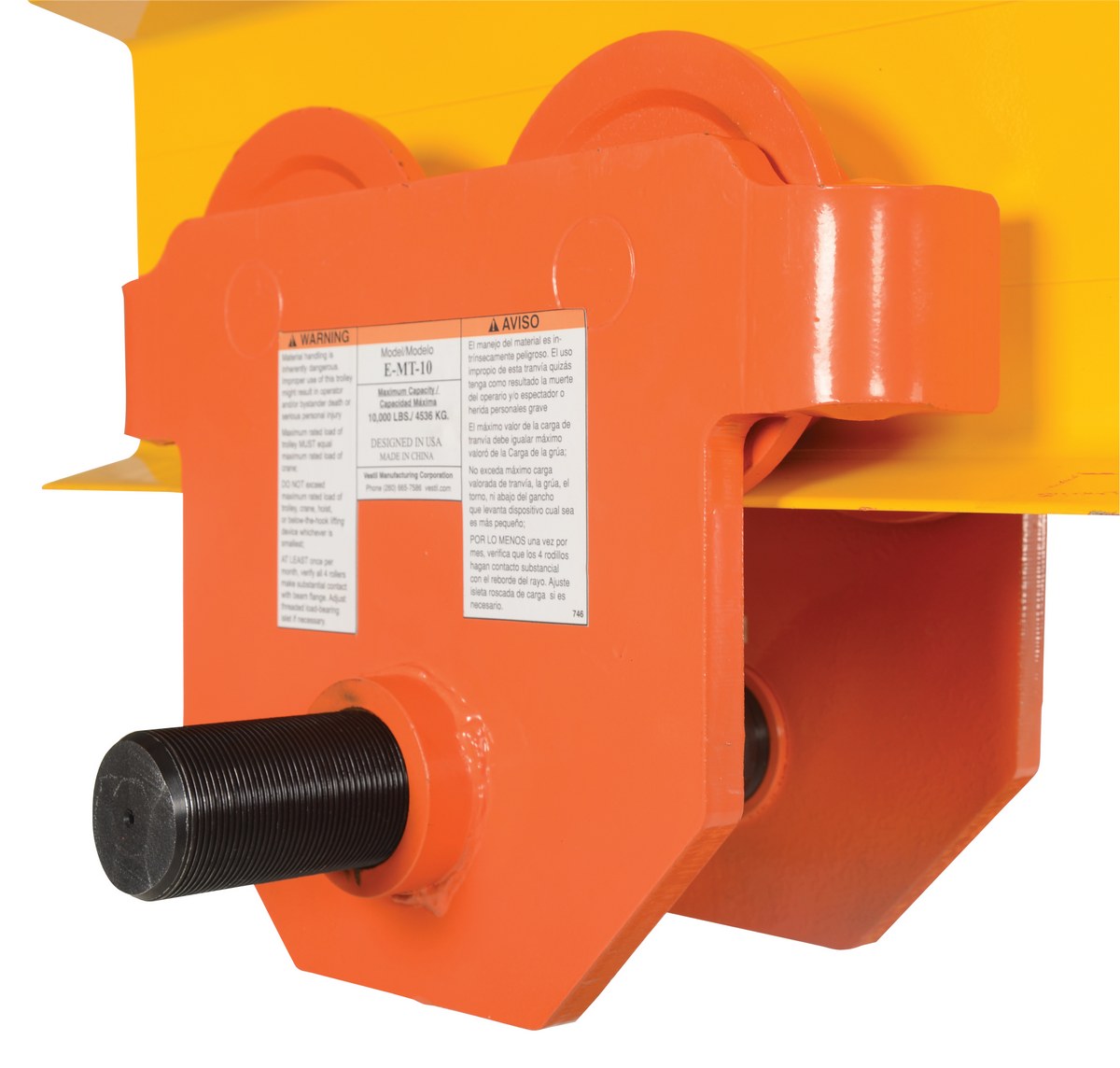

| E-MT-10 |  | 90 Days Limited Warranty | Steel Push Eye Manual Trolley 10000 Lb. Capacity Orange | Uniform Capacity (lb.): 10,000 Fits Beam Flange Width (in.): 3 to 9 | 82 | ||

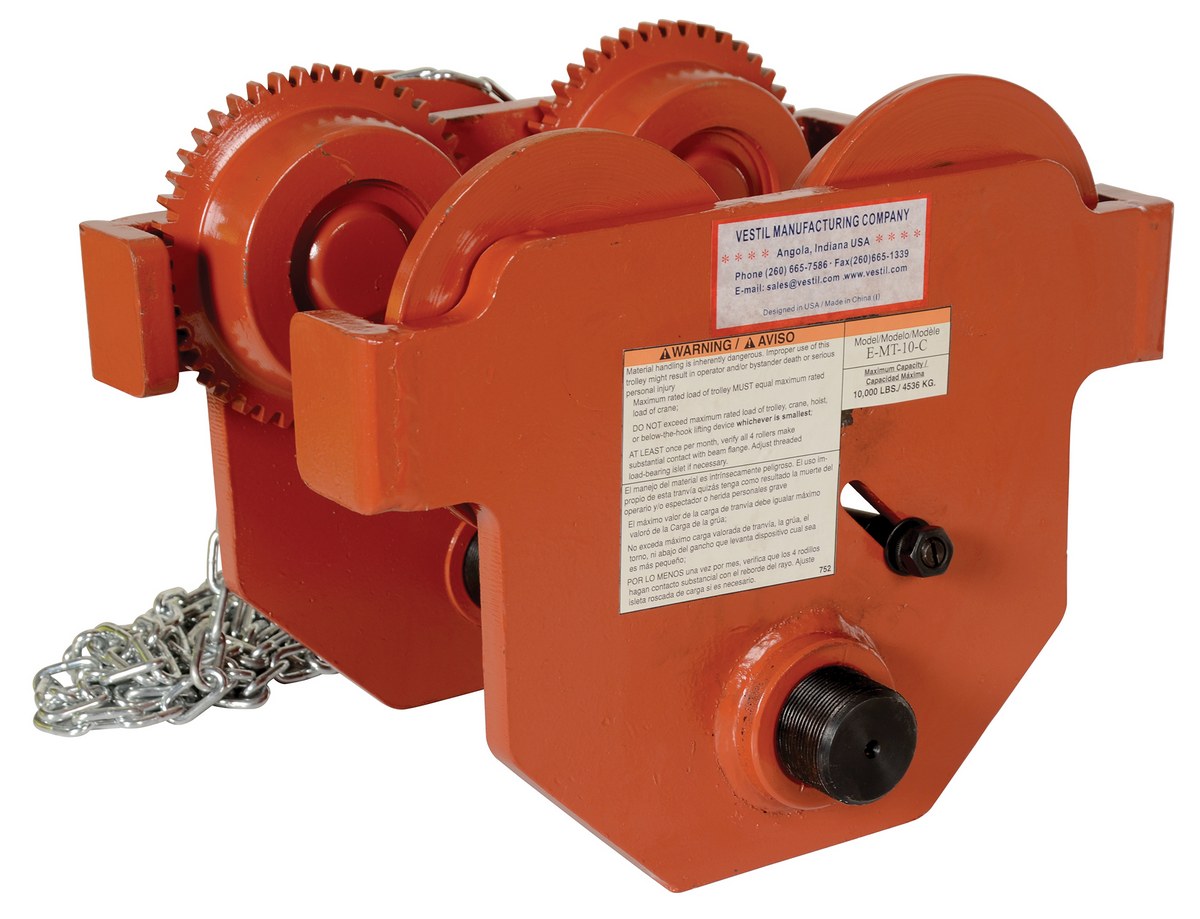

| E-MT-10-C |  | 90 Days Limited Warranty | Steel Geared Eye Manual Trolley 10000 Lb. Capacity Orange | Uniform Capacity (lb.): 10,000 Fits Beam Flange Width (in.): 3 to 9 | 103 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 8-5/8
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 8-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 10-1/8
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 10-1/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 2-1/2 to 8-5/8
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 2-1/2 to 8-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3 to 6-1/2
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3 to 6-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 8-5/8
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 8-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 8
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3 to 9
Uniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3 to 9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3 to 9
Uniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3 to 9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 3 to 9
Uniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 3 to 9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 3 to 9
Uniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 3 to 9
