Fixed Steel Gantry Cranes

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

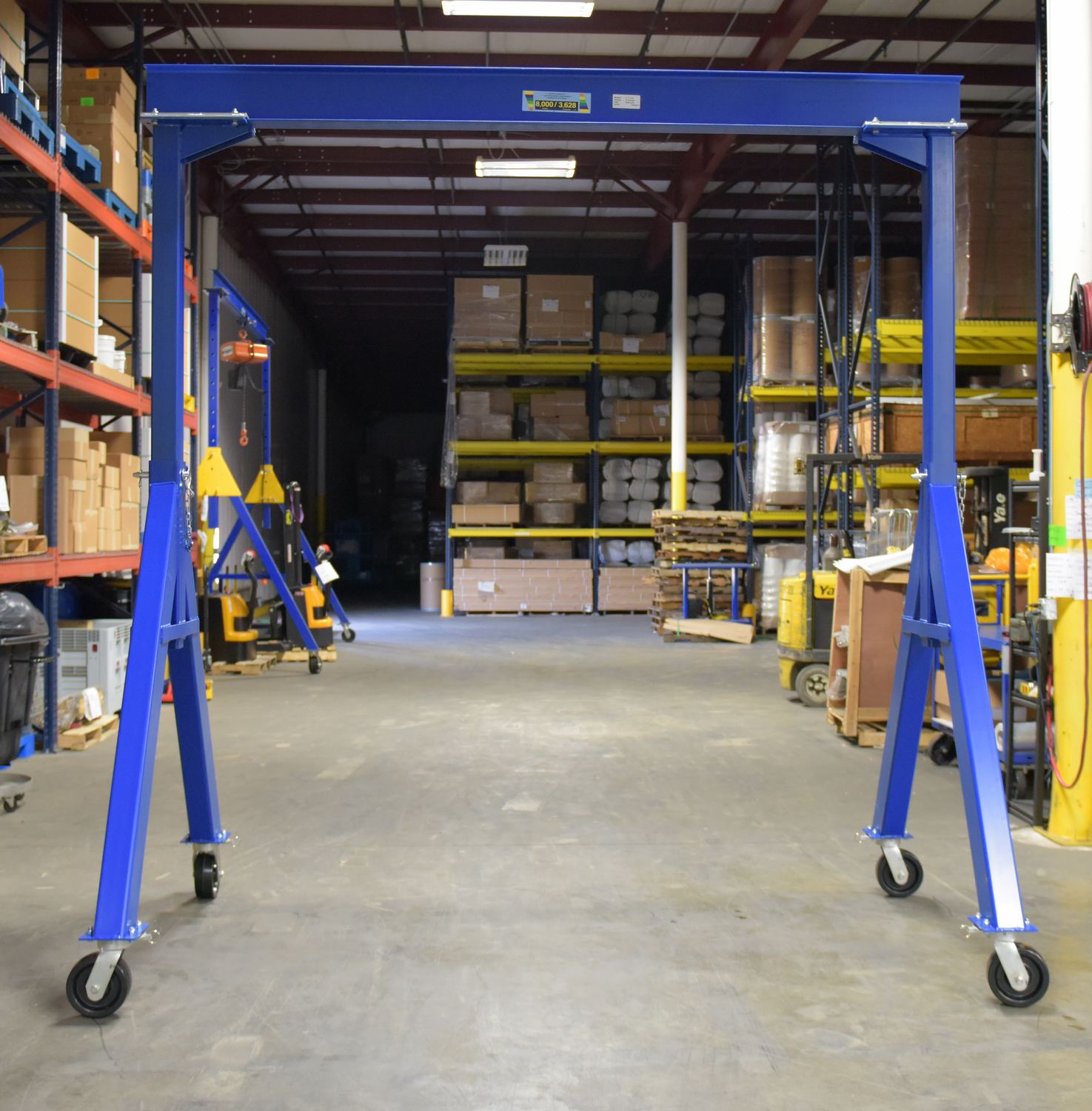

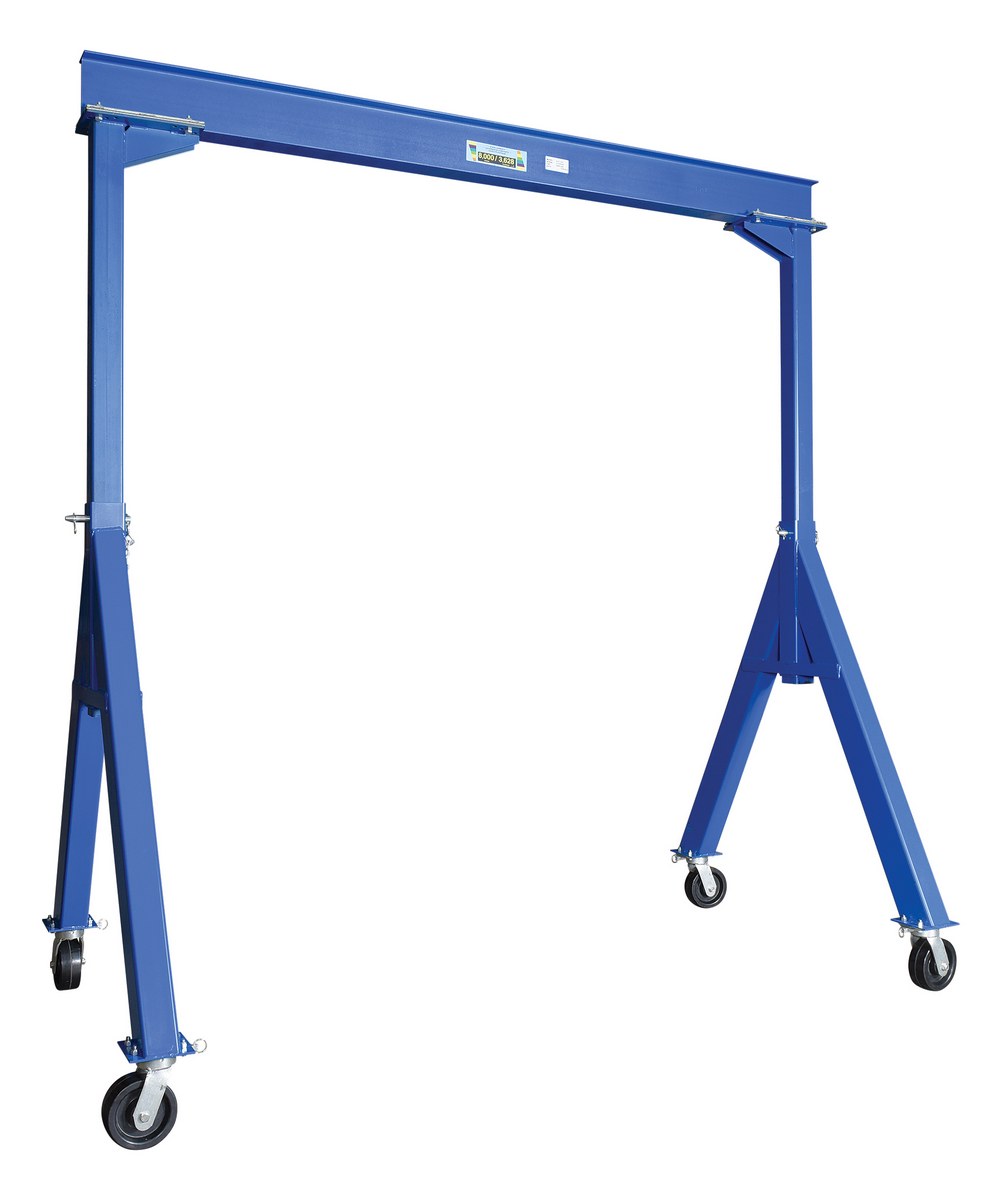

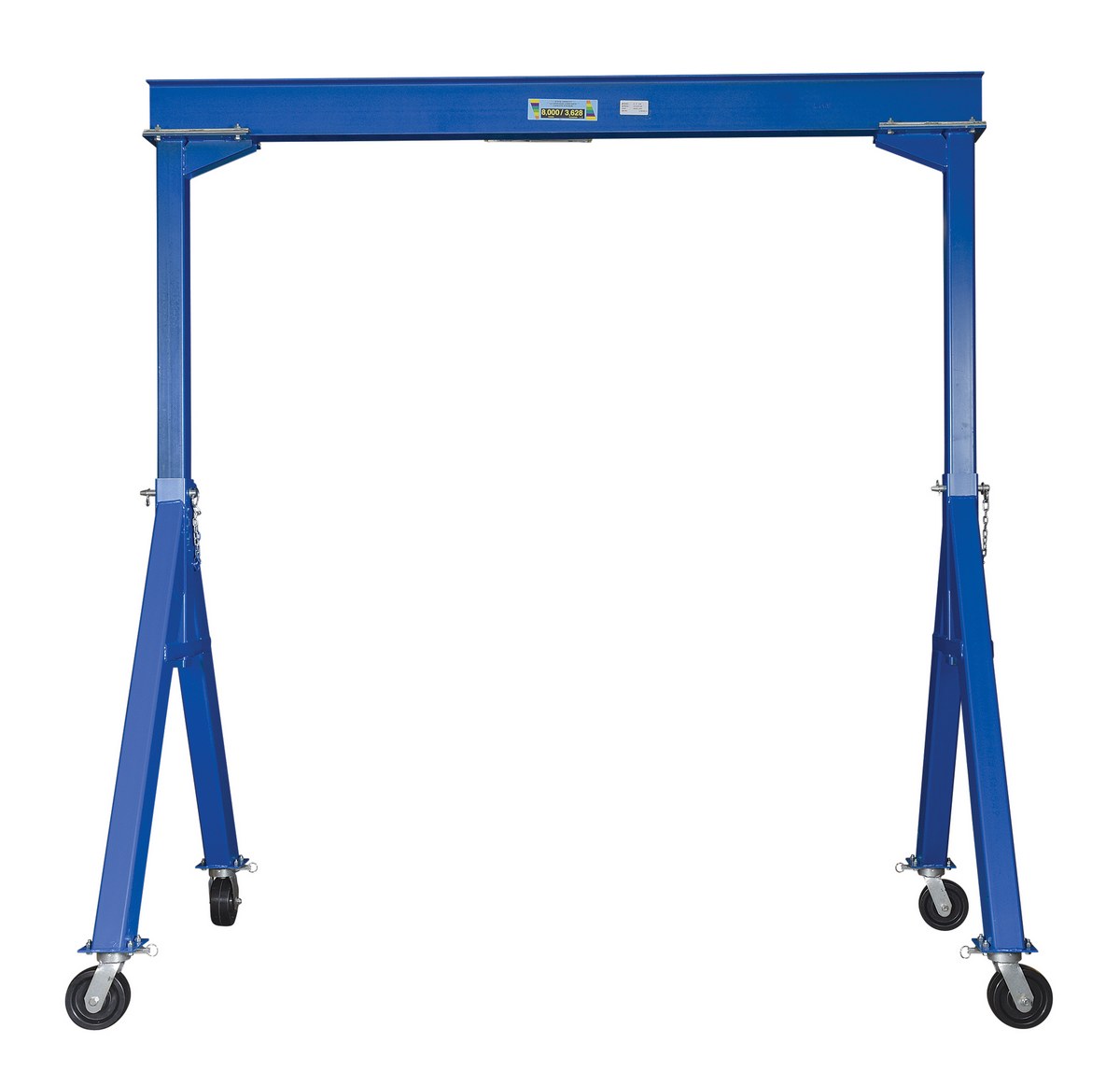

FHS-8-10_A.jpg FHS-8-10_1.jpg FHS-8-10_C.jpg

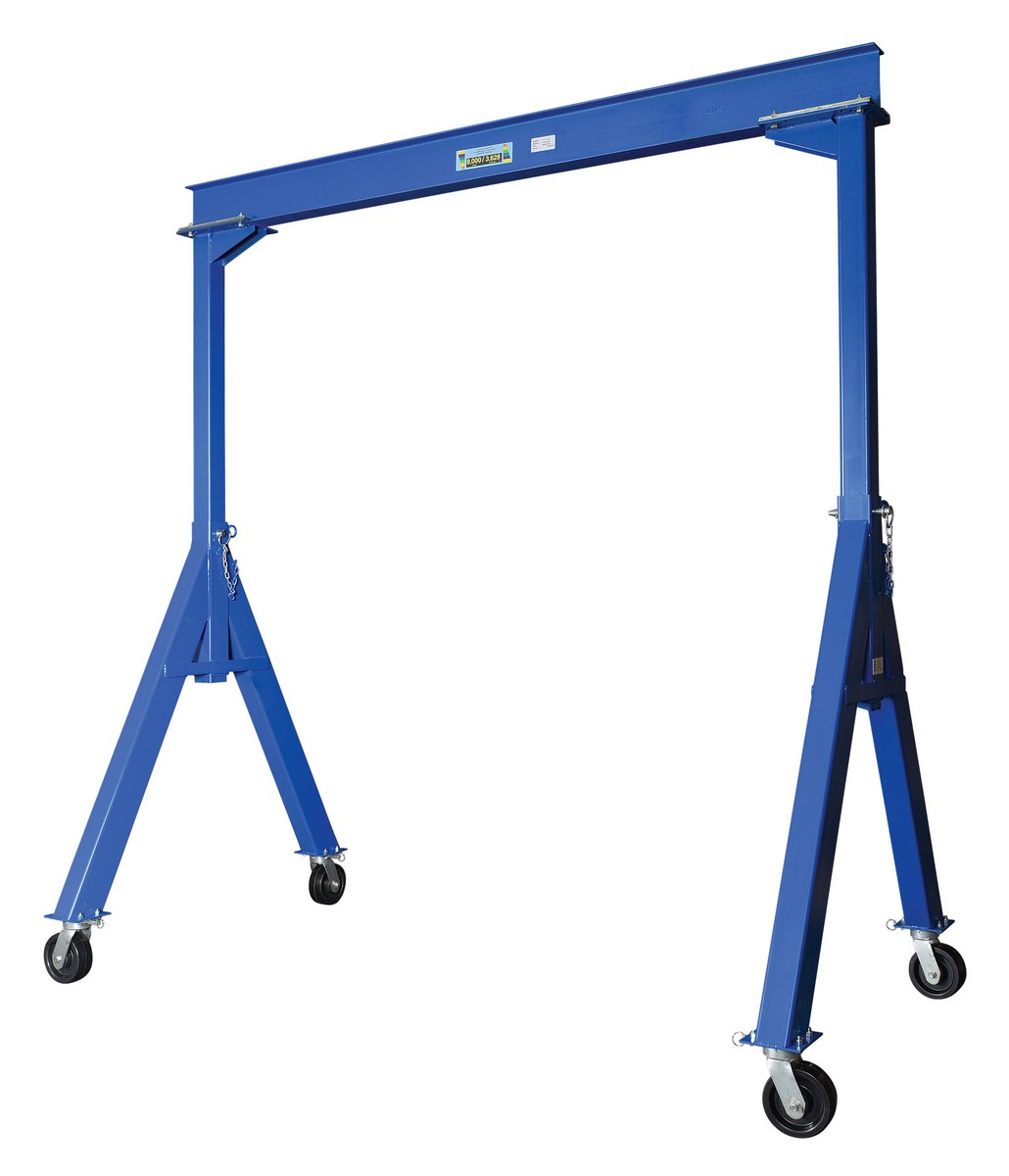

Fixed Steel Gantry Cranes

model: FHS-8-10



Featured Overhead Lifting


Gantry Sling Racks
Air/Hand Pump Hydraulic Shop Crane
Steel Gantry Crane Power Traction Drive Options
Magnetic Easy Lift
Gantry Cranes
Fixed Height Aluminum Gantry Cranes
Adjustable Steel Gantry Cranes with V-Groove Casters
Low Profile Manual Trollies
Economy Chain Hoists with Chain Container
model chart

Product Family Overview

Print Friendly
Fixed Steel Gantry Cranes
SERIES: FHS

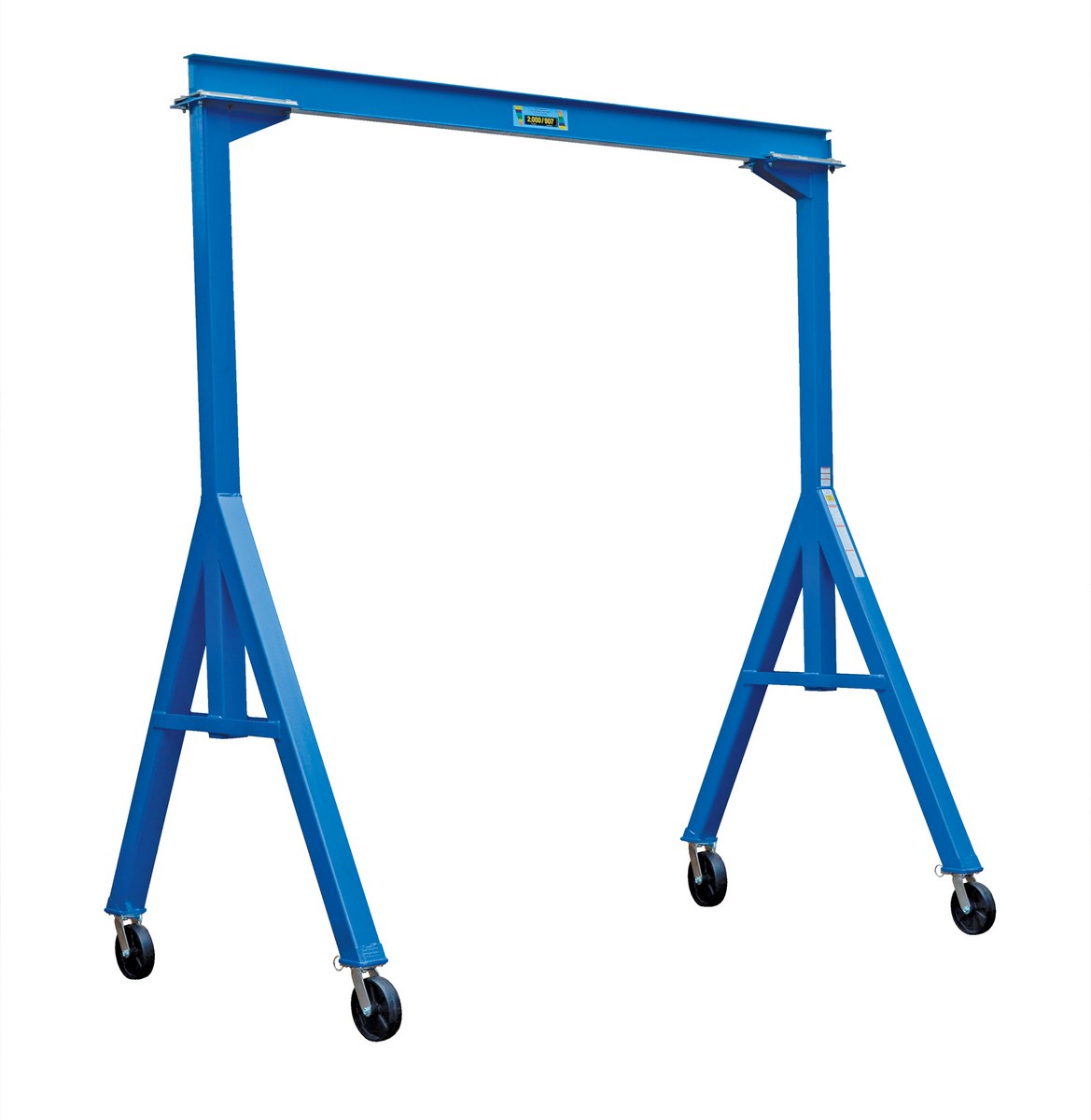

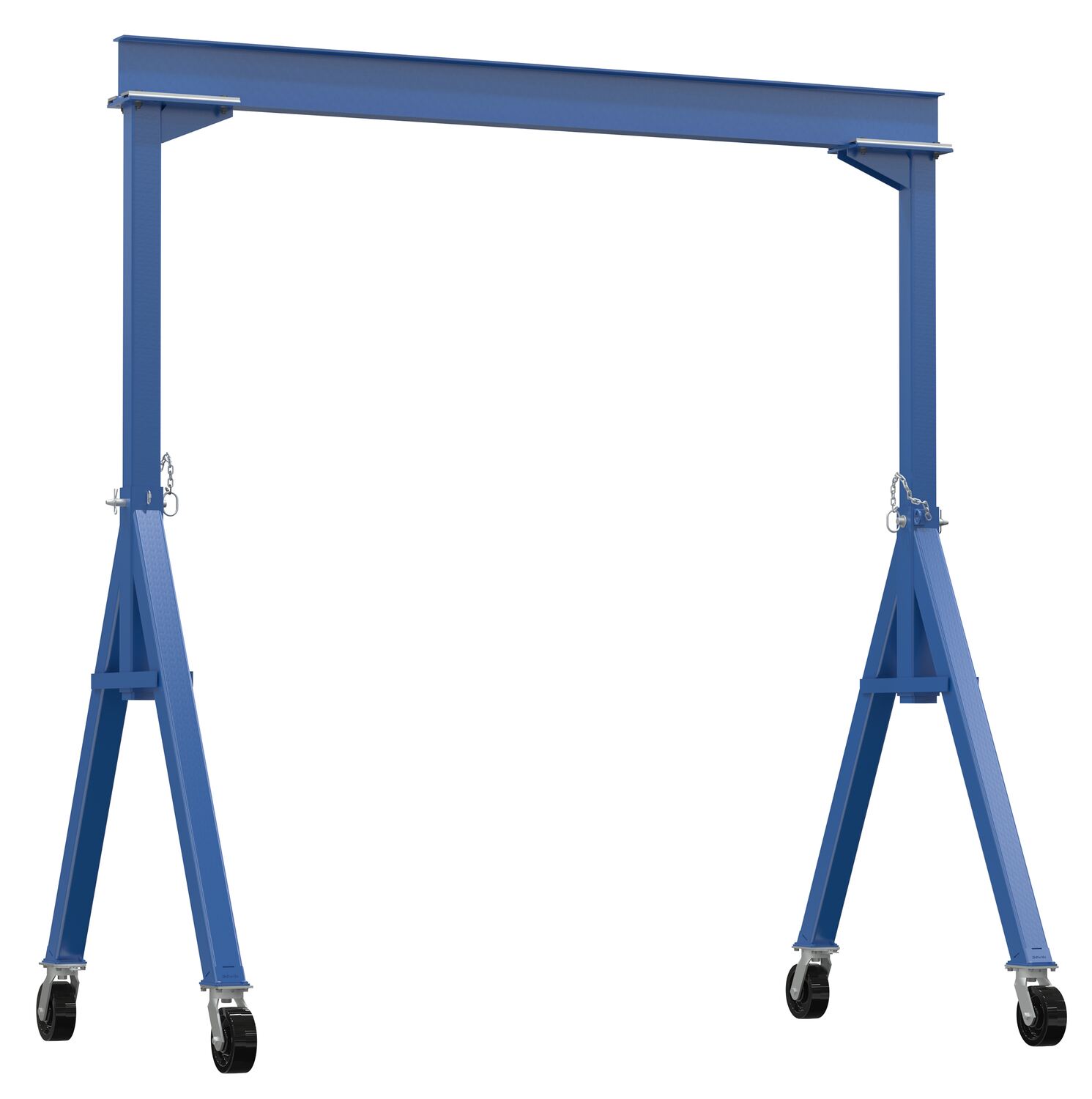

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware.Unit comes standard four (4) position locking swivel casters with roller bearings (2K units have glass filled nylon casters. 4K-8K units have phenolic casters. 10K model has steel casters). The rigging locks in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit. Hoists & Trollies can be ordered seperately.

  • Heavy-duty welded steel construction for long lasting use

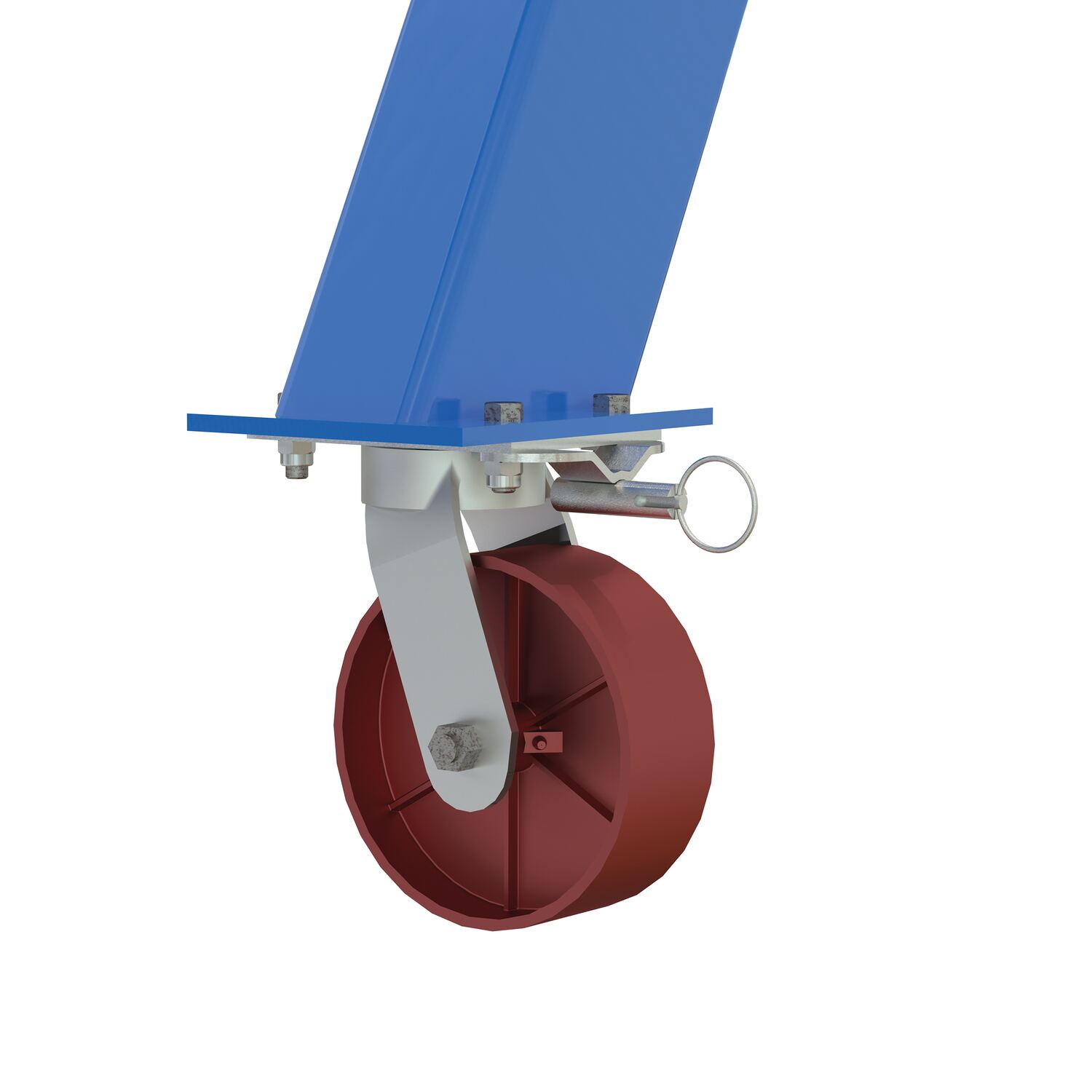

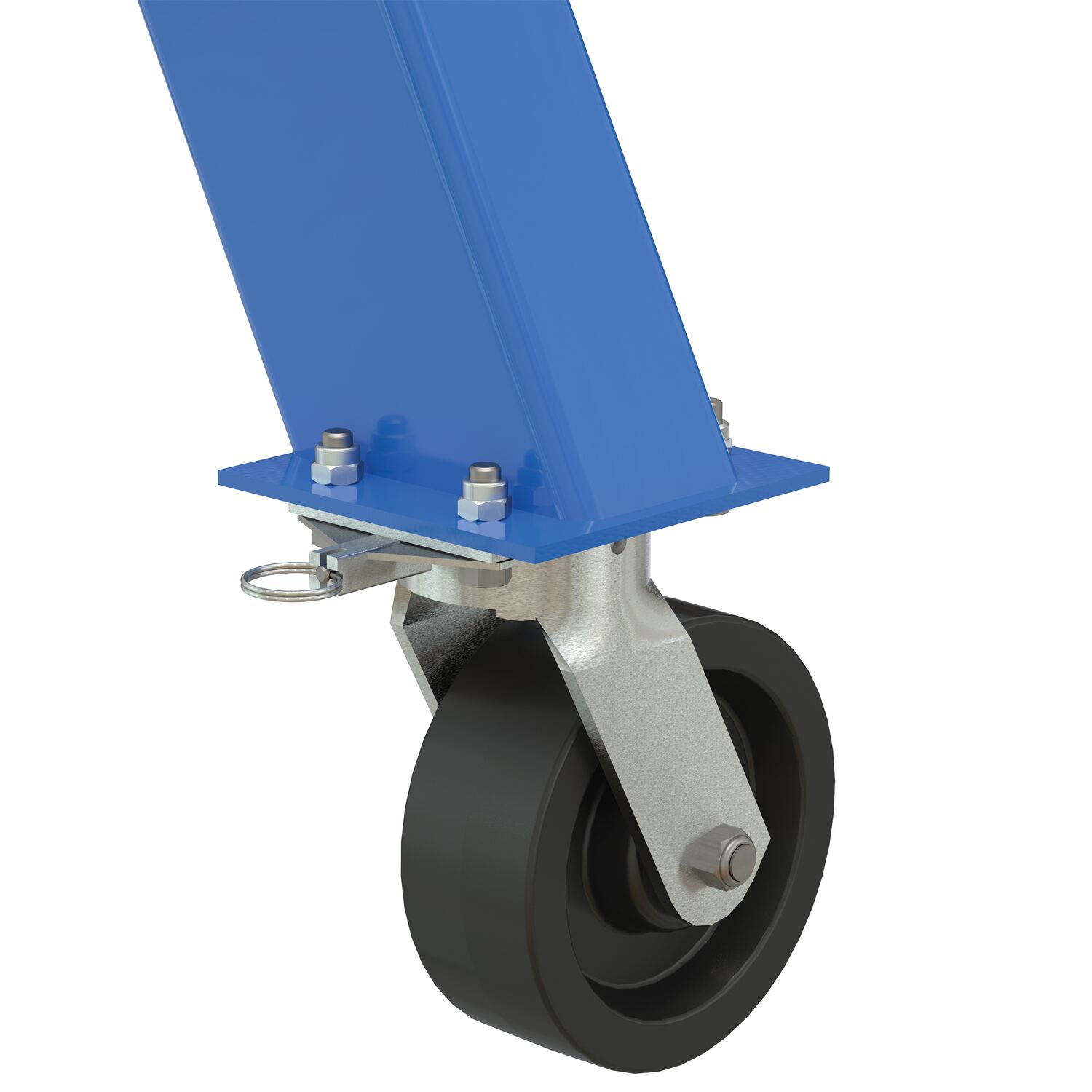

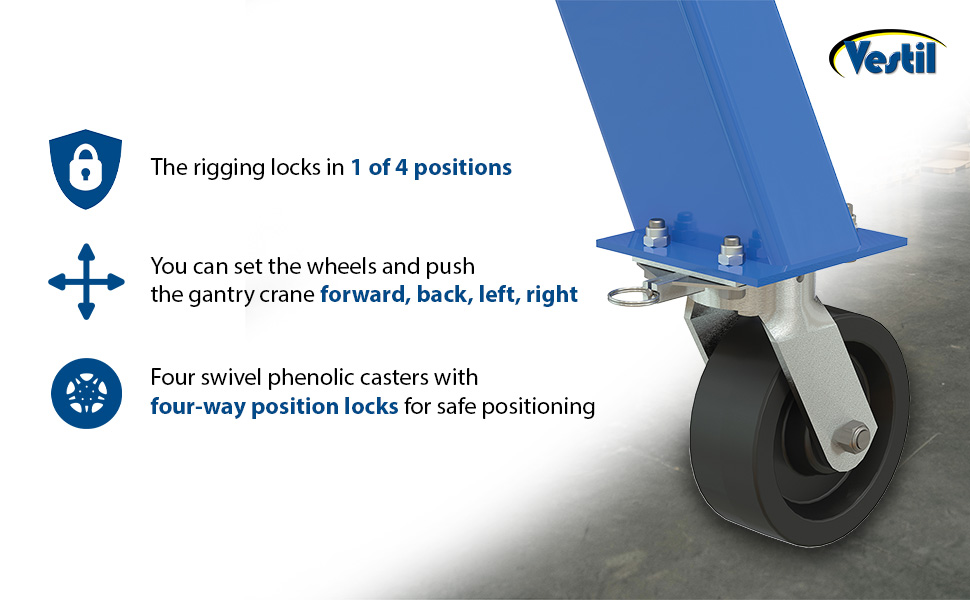

  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware.Unit comes standard four (4) position locking swivel casters with roller bearings (2K units have glass filled nylon casters. 4K-8K units have phenolic casters. 10K model has steel casters). The rigging locks in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit. Hoists & Trollies can be ordered seperately.

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

Other Gantry Cranes

 Fixed Steel Gantry Cranes with V-Groove Casters Adjustable Steel Gantry Cranes with V-Groove Casters - Knockdown Self-Supporting Bridge Cranes Work Area Portable Steel Gantry Cranes

Additional Models In This Family
view entire Image Gallery

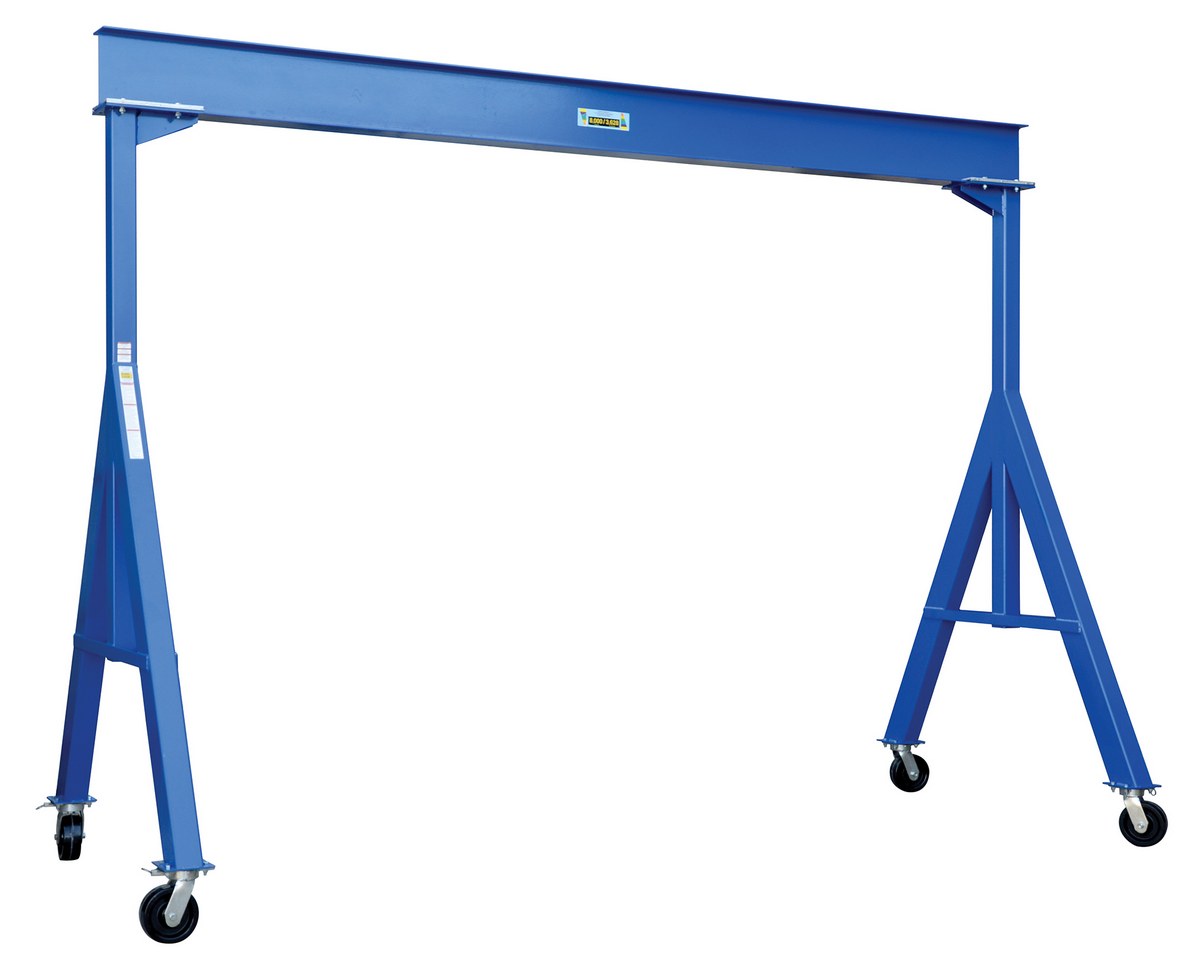

FHS-8-15

FHS-8-15

FHS-8-10

FHS-8-10

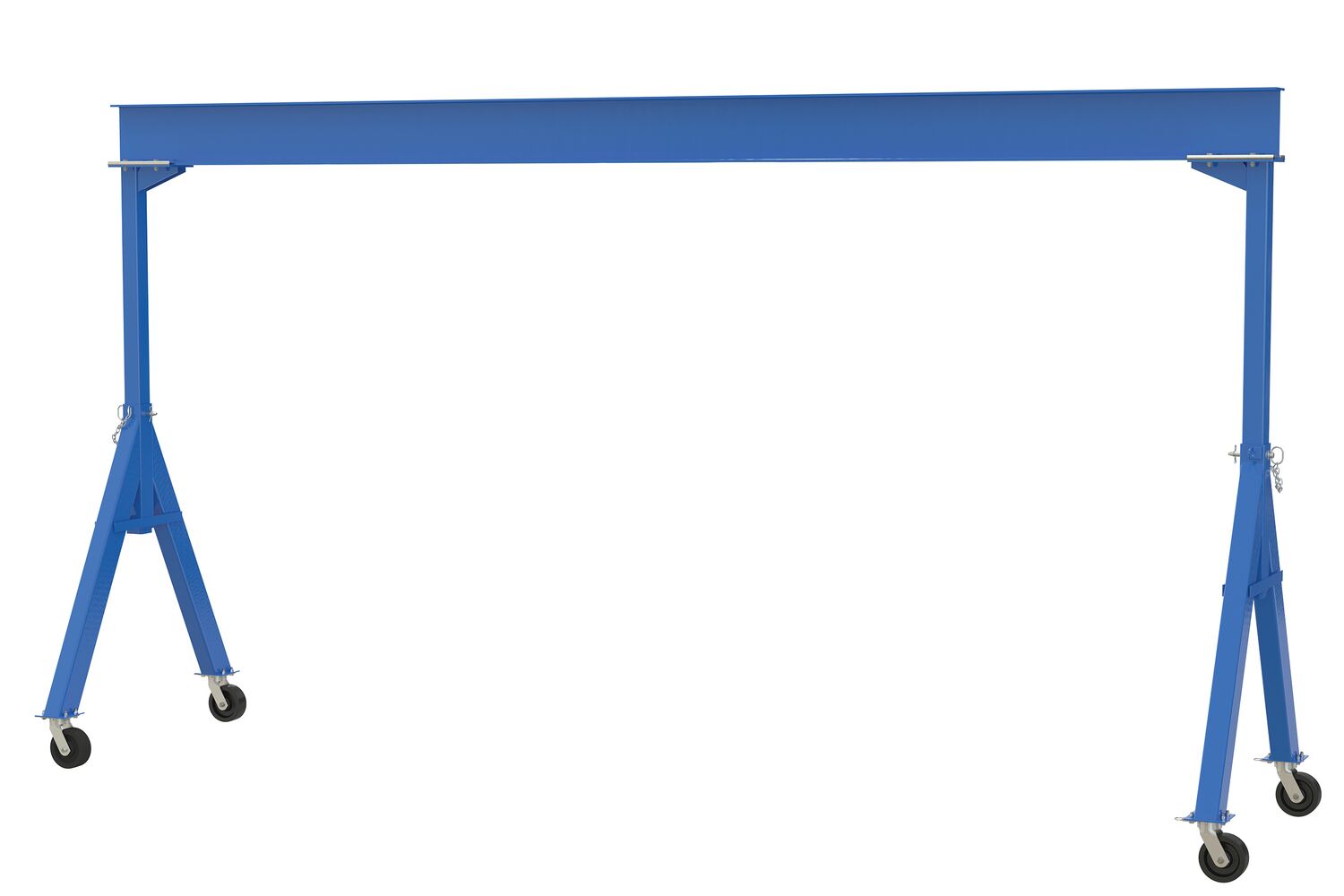

FHS-8-20

FHS-8-20

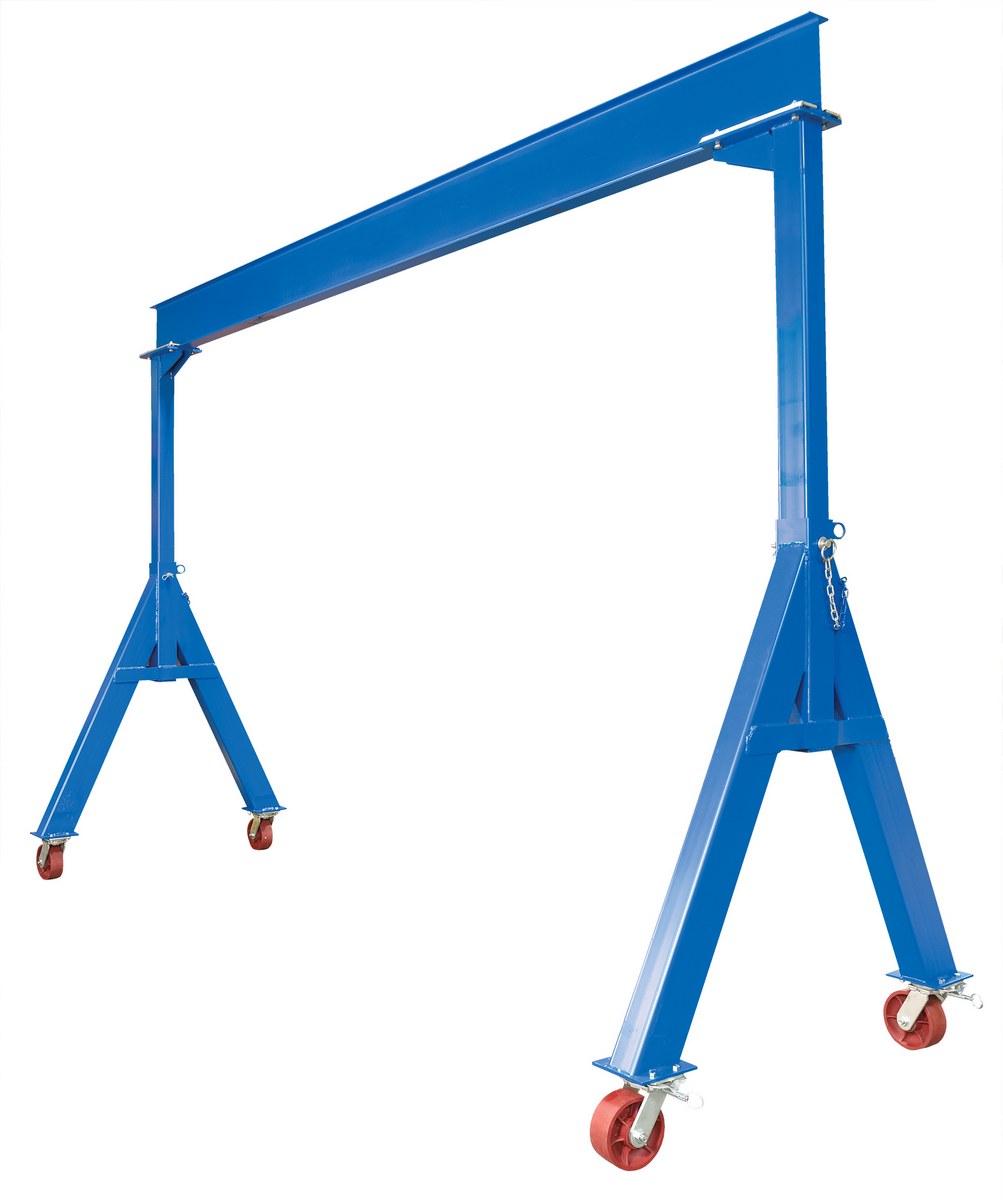

FHS-10-15

FHS-10-15

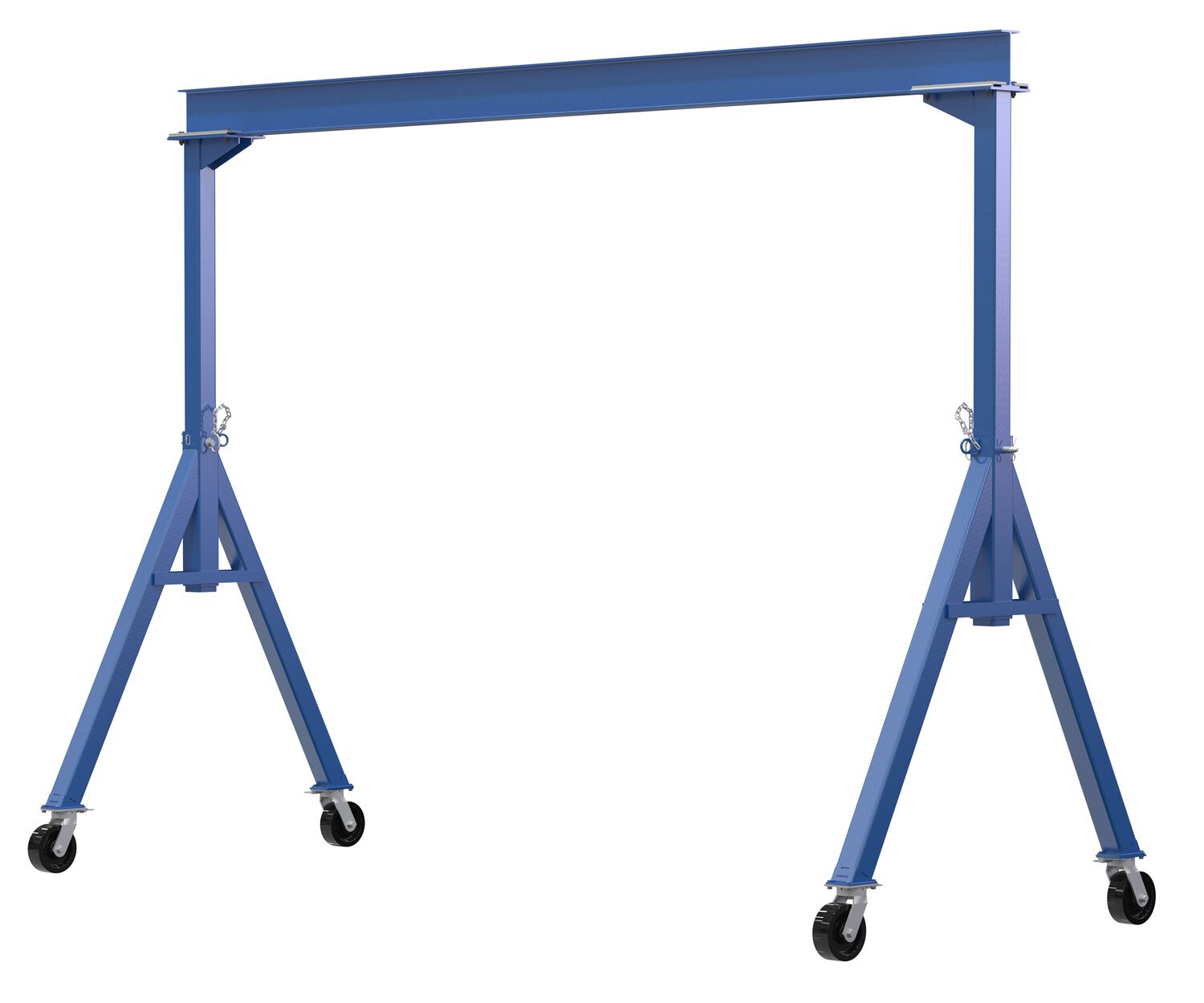

FHS-4-15

FHS-4-15

FHS-STLO

FHS-STLO

FHS-STLO-RF

FHS-STLO-RF

FHS-10-15

FHS-10-15

FHS-4-20

FHS-4-20

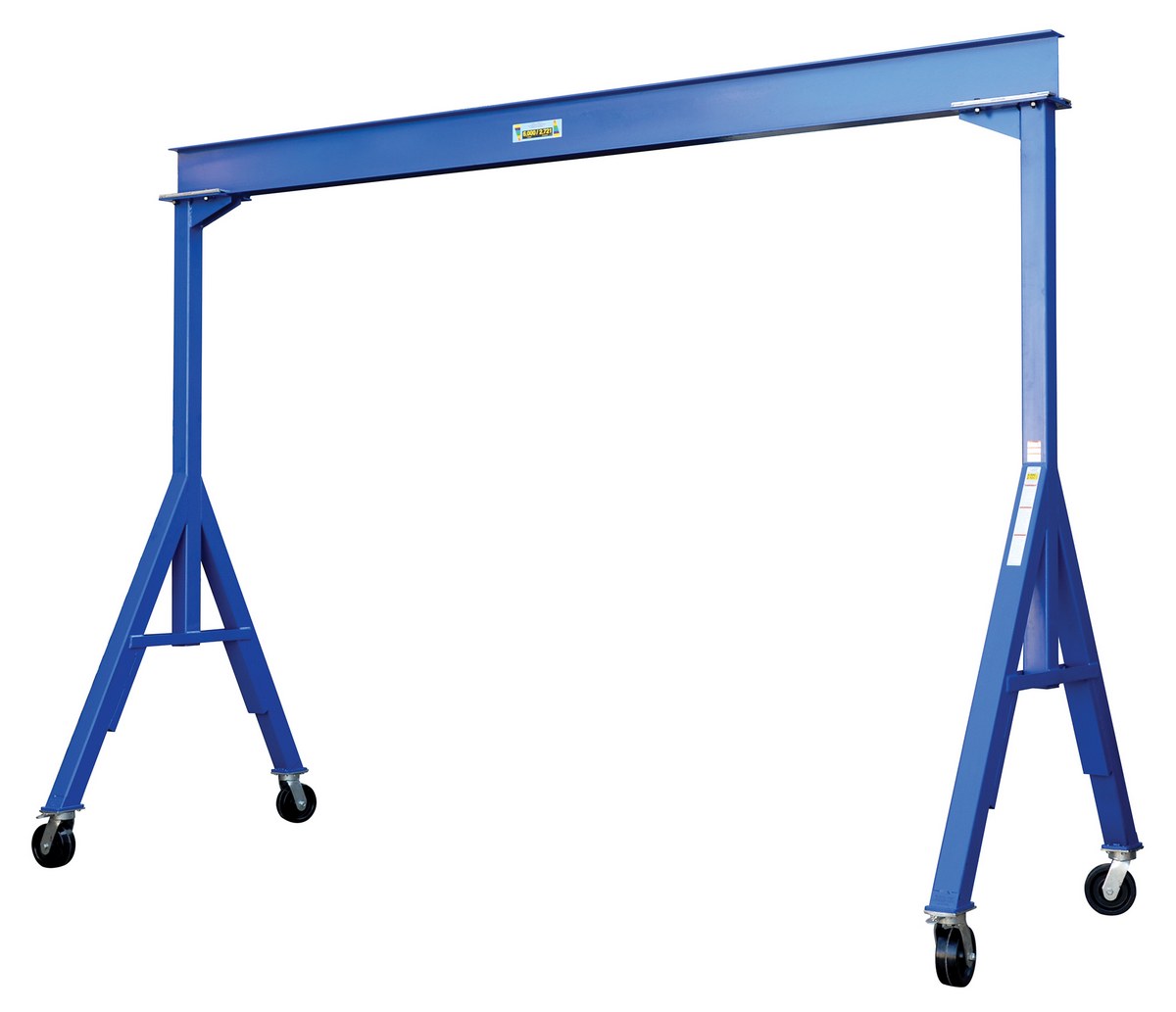

FHS-6-10

FHS-6-10

FHS-8-15

FHS-8-15

FHS-2-10

FHS-2-10

FHS-STLO-RF

FHS-STLO-RF

FHS-8-10

FHS-8-10

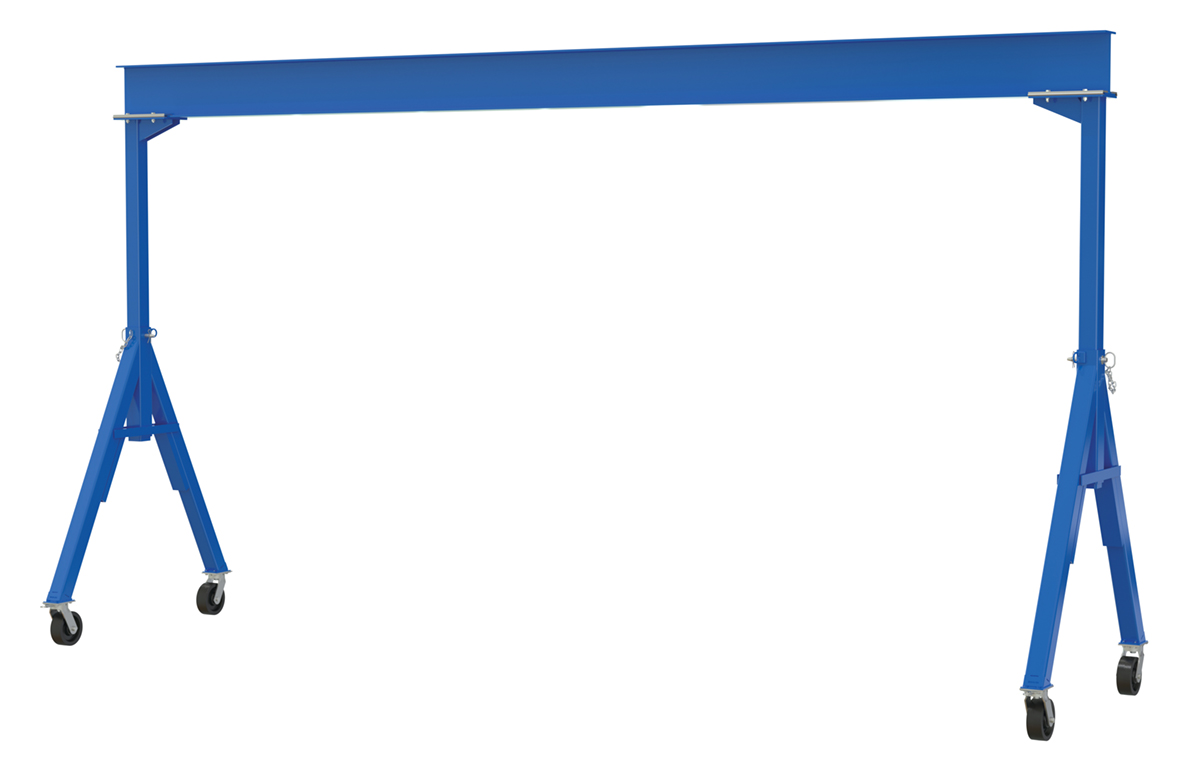

FHS-6-20

FHS-6-20

Applications



Construction Projects

Warehouses

Do It Yourself

Automotive

Farming and Agriculture

Maintenance Yards

Packaging Areas
model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

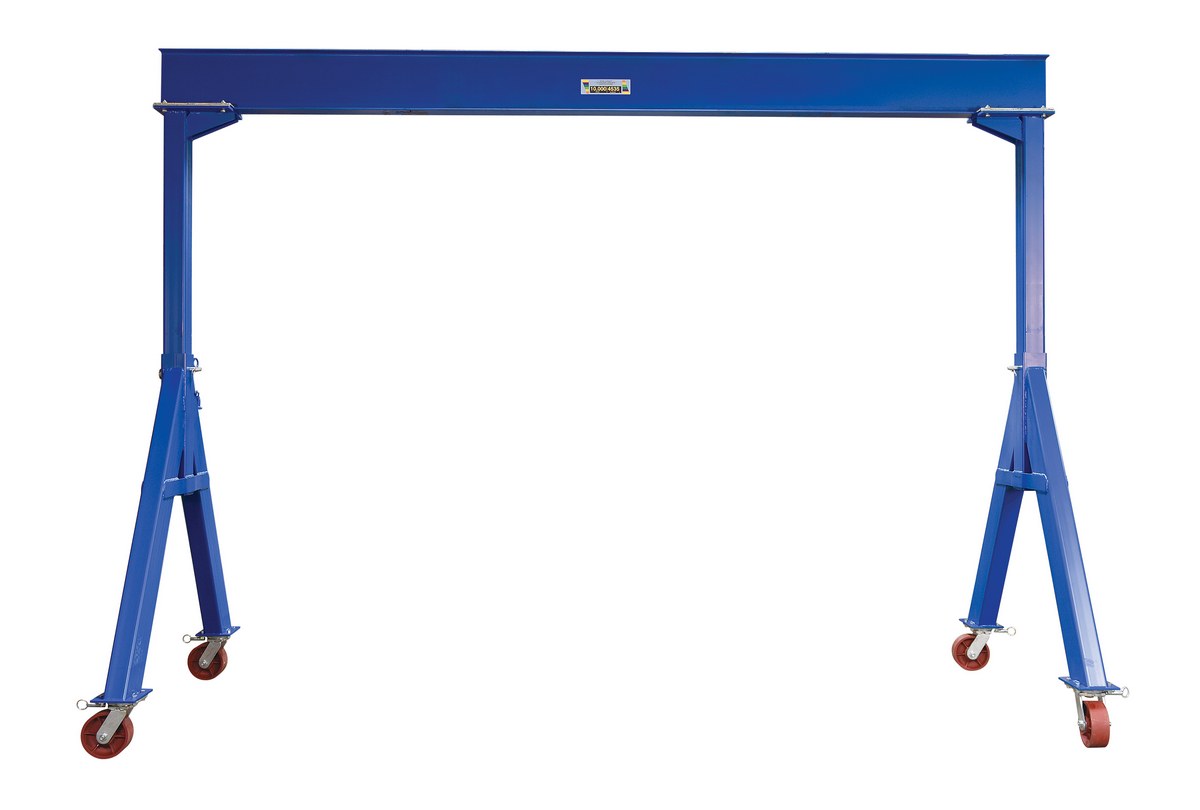

FHS-10-10 FHS-10-101 Year Limited WarrantySteel Fixed Gantry Crane with Ductile Steel Locking Casters 10 Ft. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10,000
Overall I-Beam Length (ft.): 10		21120
FHS-10-15 FHS-10-151 Year Limited WarrantySteel Fixed Gantry Crane with Ductile Steel Locking Casters 15 Ft. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10,000
Overall I-Beam Length (ft.): 15		21235
FHS-2-10 FHS-2-101 Year Limited WarrantySteel Fixed Gantry Crane with Glass Filled Nylon Casters 10 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10		2780

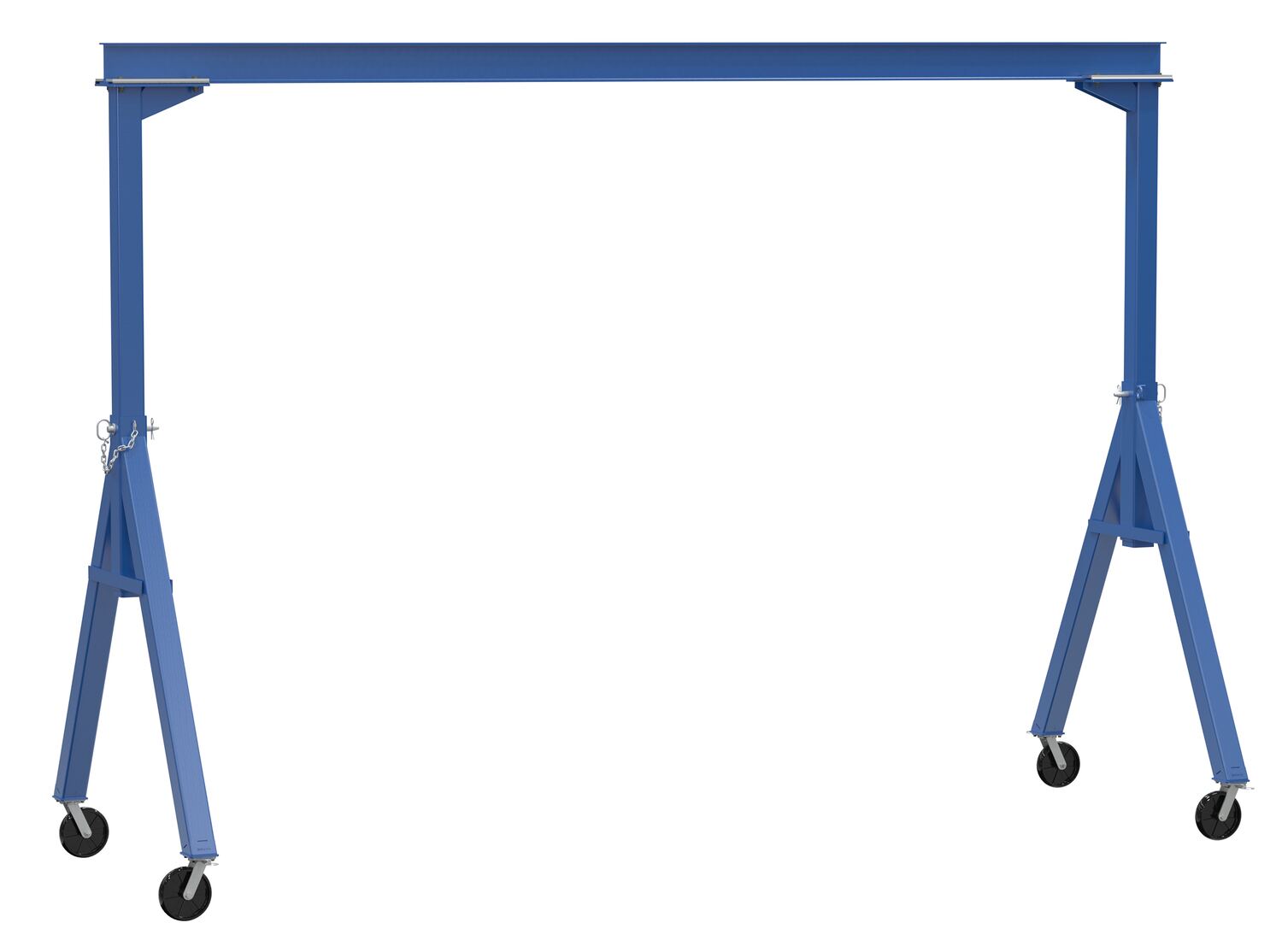

FHS-2-15 FHS-2-151 Year Limited WarrantySteel Fixed Gantry Crane with Glass Filled Nylon Casters 15 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15		2862
FHS-2-20 FHS-2-201 Year Limited WarrantySteel Fixed Gantry Crane with Glass Filled Nylon Casters 20 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20		21047

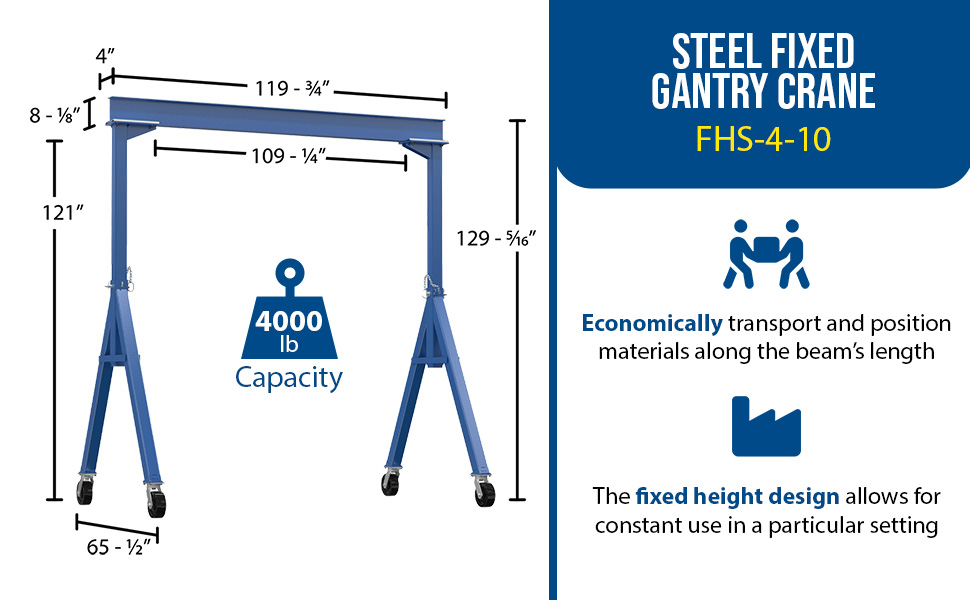

FHS-4-10 POPULAR FHS-4-101 Year Limited WarrantySteel Fixed Gantry Crane with Phenolic Casters 10 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Overall I-Beam Length (ft.): 10		2816
FHS-4-15 FHS-4-151 Year Limited WarrantySteel Fixed Gantry Crane with Phenolic Casters 15 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Overall I-Beam Length (ft.): 15		2879

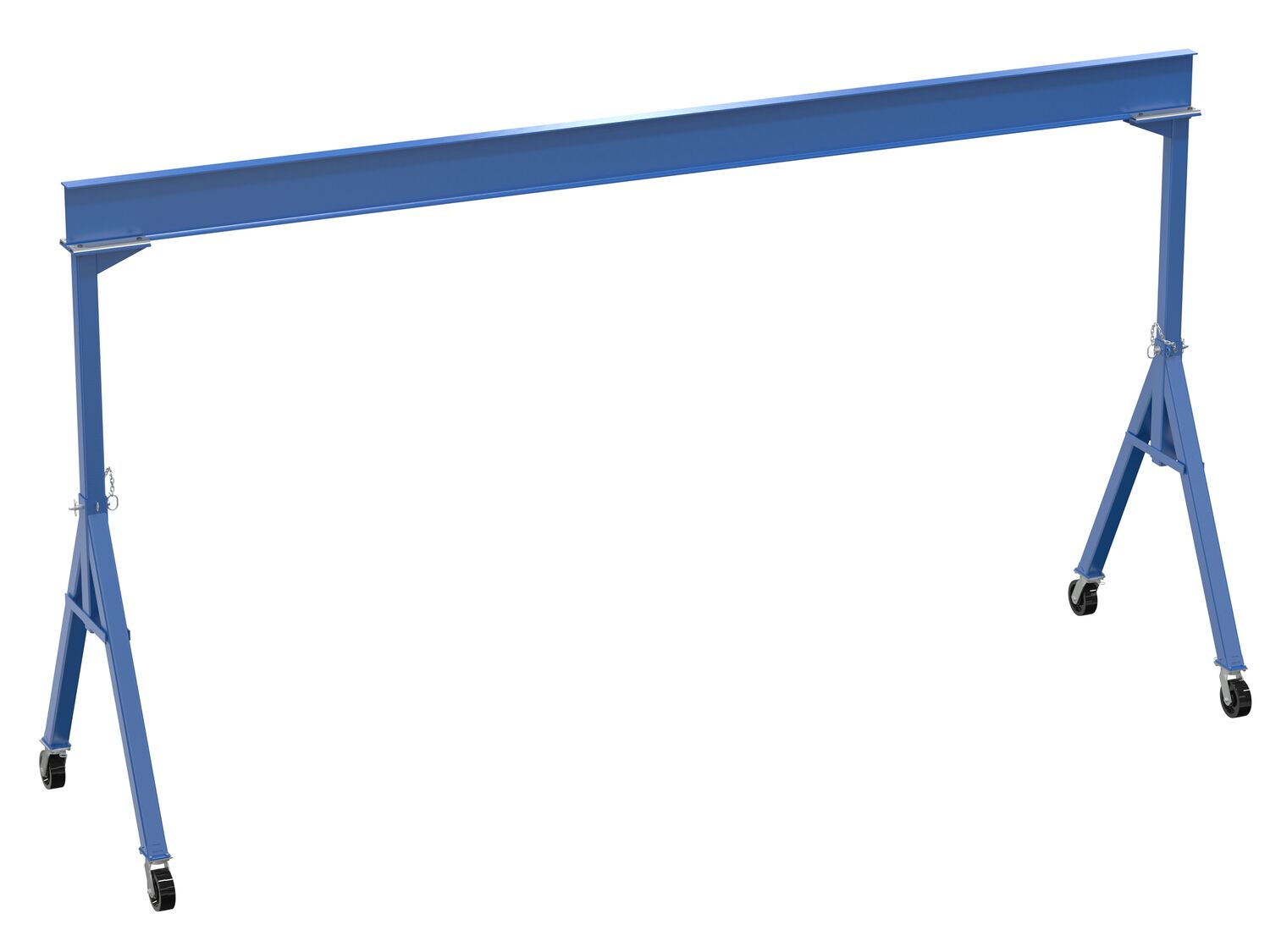

FHS-4-20 FHS-4-201 Year Limited WarrantySteel Fixed Gantry Crane with Phenolic Casters 20 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Overall I-Beam Length (ft.): 20		21005
FHS-6-10 FHS-6-101 Year Limited WarrantySteel Fixed Gantry Crane with Phenolic Casters 10 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Overall I-Beam Length (ft.): 10		2816

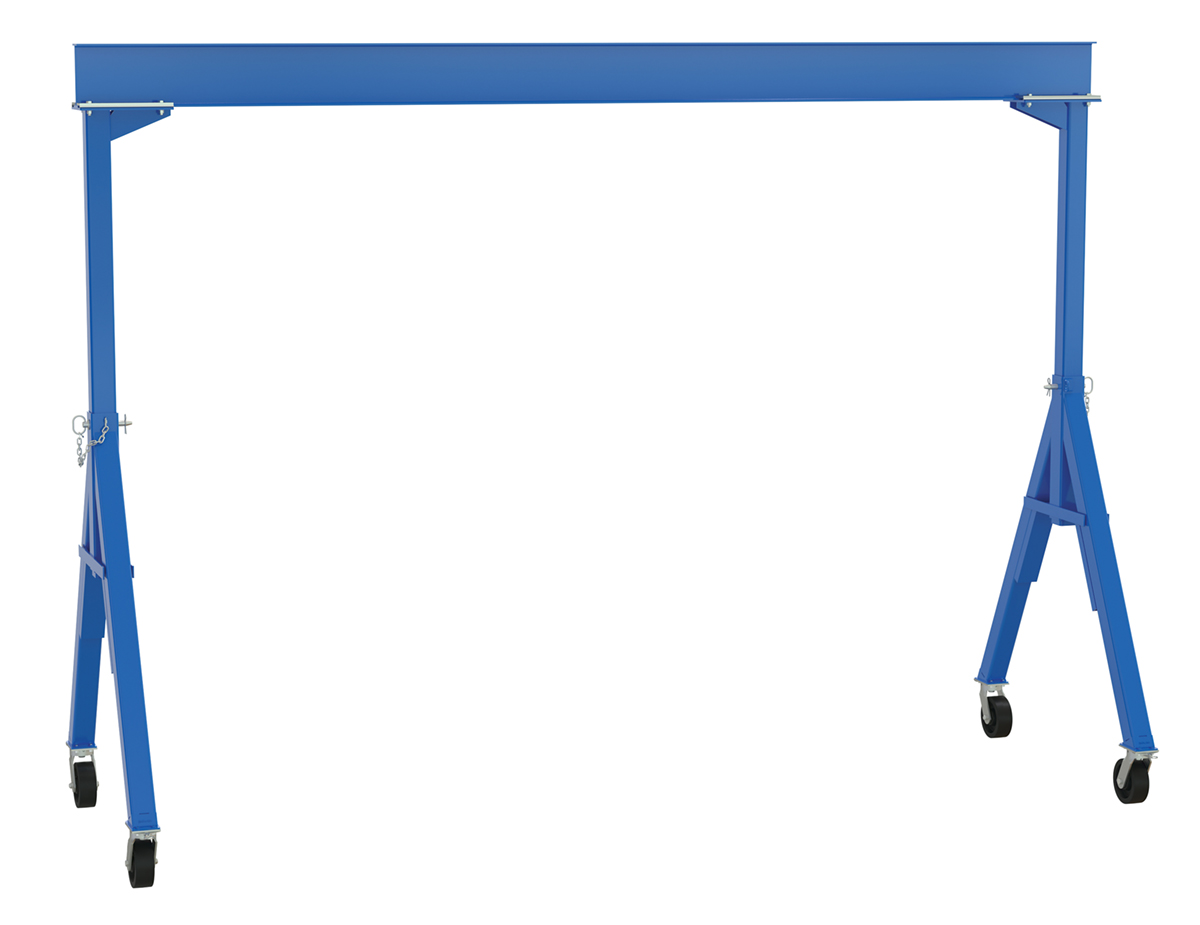

FHS-6-15 FHS-6-151 Year Limited WarrantySteel Fixed Gantry Crane with Phenolic Casters 15 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Overall I-Beam Length (ft.): 15		21021
FHS-6-20 FHS-6-201 Year Limited WarrantySteel Fixed Gantry Crane with Phenolic Casters 20 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Overall I-Beam Length (ft.): 20		21433
FHS-8-10 FHS-8-101 Year Limited WarrantySteel Fixed Gantry Crane with Phenolic Casters 10 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Overall I-Beam Length (ft.): 10		2896
FHS-8-15 FHS-8-151 Year Limited WarrantySteel Fixed Gantry Crane with Phenolic Casters 15 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Overall I-Beam Length (ft.): 15		21014
FHS-8-20 FHS-8-201 Year Limited WarrantySteel Fixed Gantry Crane with Phenolic Casters 20 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Overall I-Beam Length (ft.): 20		21385

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

FHS-10-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 10,000
Overall I-Beam Length (ft.): 10

FHS-10-15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 10,000
Overall I-Beam Length (ft.): 15

FHS-2-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10

FHS-2-15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15

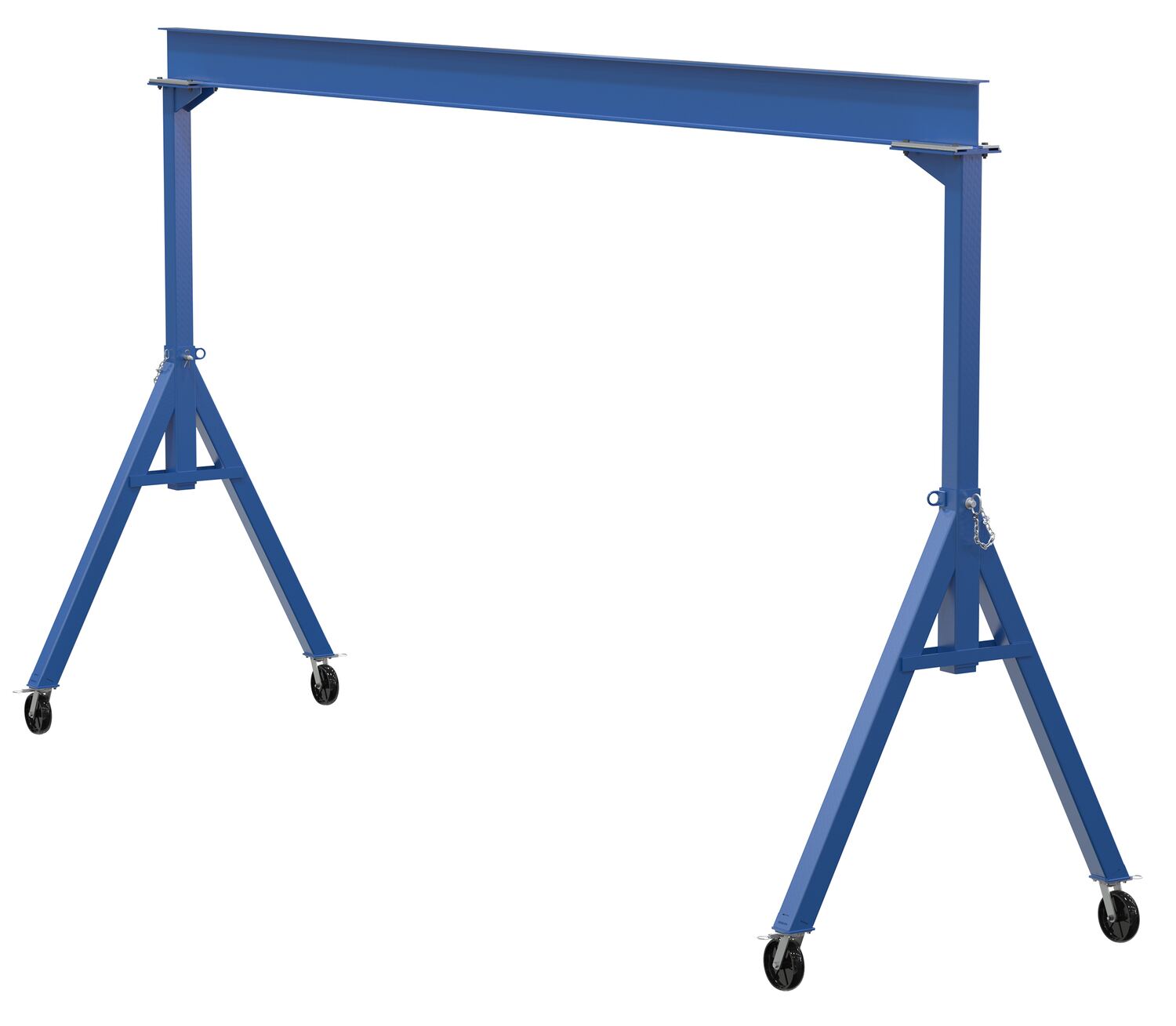

FHS-2-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20
Uniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20

FHS-4-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 4,000
Overall I-Beam Length (ft.): 10

FHS-4-15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 4,000
Overall I-Beam Length (ft.): 15

FHS-4-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Overall I-Beam Length (ft.): 20
Uniform Capacity (lb.): 4,000
Overall I-Beam Length (ft.): 20

FHS-6-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 6,000
Overall I-Beam Length (ft.): 10

FHS-6-15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 6,000
Overall I-Beam Length (ft.): 15

FHS-6-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Overall I-Beam Length (ft.): 20
Uniform Capacity (lb.): 6,000
Overall I-Beam Length (ft.): 20

FHS-8-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Overall I-Beam Length (ft.): 10
Uniform Capacity (lb.): 8,000
Overall I-Beam Length (ft.): 10

FHS-8-15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Overall I-Beam Length (ft.): 15
Uniform Capacity (lb.): 8,000
Overall I-Beam Length (ft.): 15

FHS-8-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Overall I-Beam Length (ft.): 20
Uniform Capacity (lb.): 8,000
Overall I-Beam Length (ft.): 20
For More Details of the Option Click the Red Model Button

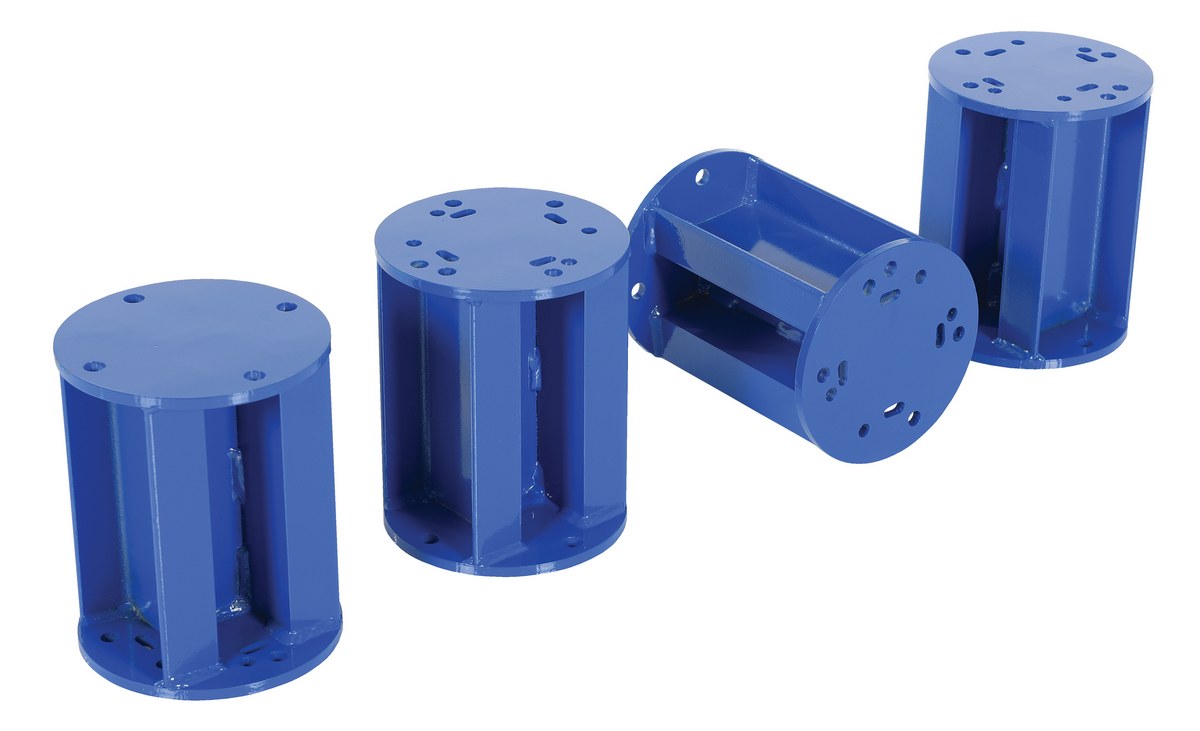

FHS-STLO FHS-STLO1 Year Limited WarrantyFactory Installed Steel Stationary Legs Kit Quantity 4 For Fixed Height Steel Gantry CranesQuantity: 4
85
FHS-STLO-RF FHS-STLO-RF1 Year Limited WarrantySteel Field Installed Stationary Legs For Fixed Height Steel Gantry Crane Models BlueQuantity: 4
85

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Fixed Steel Gantry Cranes PDF's will open in a new window when clicked.

Manuals


FHS
Owners Manual

Survey Sheets


FHS
Survey Sheet

Approval Drawings


FHS-10-10

FHS-10-15

FHS-2-10

FHS-2-15

FHS-2-20

FHS-4-10

FHS-4-15

FHS-4-20

FHS-6-10

FHS-6-15

FHS-6-20

FHS-8-10

FHS-8-15

FHS-8-20

FHS-STLO

FHS-STLO-RF

Testing Certificates


FHS-10-10

FHS-10-15

FHS-2-10

FHS-2-15

FHS-2-20

FHS-4-10

FHS-4-15

FHS-4-20

FHS-6-10

FHS-6-15

FHS-6-20

FHS-8-10

FHS-8-15

FHS-8-20

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Does the gantry come with a hoist?

A: The hoists and trolleys for the fixed height steel gantry cranes are sold separately. You'll find multiple options available.

Q: We are looking at the V-Groove system. Is it possible to keep the gantry on the rail with one person pushing the crane on one end?

A: The V-Groove option makes moving much easier. We recommend pushing the gantry on both ends when re-positioning it.




Related or Similar Products:

Adjustable Steel Gantry Cranes - Knockdown
Product

Adjustable Steel Gantry Cranes - Knockdown

Adjustable Steel Gantry Cranes
Product

Adjustable Steel Gantry Cranes

Drum Grippers
Product

Drum Grippers

Fixed Height Steel Gantry Cranes - Knockdown
Product

Fixed Height Steel Gantry Cranes - Knockdown

Steel Gantry Crane Power Traction Drive Options
Product

Steel Gantry Crane Power Traction Drive Options

Adjustable Height Aluminum Gantry Cranes
Product

Adjustable Height Aluminum Gantry Cranes

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Fixed Steel Gantry Cranes




The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware.Unit comes standard four (4) position locking swivel casters with roller bearings (2K units have glass filled nylon casters. 4K-8K units have phenolic casters. 10K model has steel casters). The rigging locks in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit. Hoists & Trollies can be ordered seperately.

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option


Model # Description Attributes Net Wt.
(lbs)
FHS-10-10 FHS-10-10Steel Fixed Gantry Crane with Ductile Steel Locking Casters 10 Ft. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10,000
Overall I-Beam Length (ft.): 10		910
FHS-10-15 FHS-10-15Steel Fixed Gantry Crane with Ductile Steel Locking Casters 15 Ft. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10,000
Overall I-Beam Length (ft.): 15		915
FHS-2-10 FHS-2-10Steel Fixed Gantry Crane with Glass Filled Nylon Casters 10 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 10		621
FHS-2-15 FHS-2-15Steel Fixed Gantry Crane with Glass Filled Nylon Casters 15 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 15		624
FHS-2-20 FHS-2-20Steel Fixed Gantry Crane with Glass Filled Nylon Casters 20 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall I-Beam Length (ft.): 20		627
FHS-4-10 FHS-4-10Steel Fixed Gantry Crane with Phenolic Casters 10 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Overall I-Beam Length (ft.): 10		625
FHS-4-15 FHS-4-15Steel Fixed Gantry Crane with Phenolic Casters 15 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Overall I-Beam Length (ft.): 15		621
FHS-4-20 FHS-4-20Steel Fixed Gantry Crane with Phenolic Casters 20 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Overall I-Beam Length (ft.): 20		625
FHS-6-10 FHS-6-10Steel Fixed Gantry Crane with Phenolic Casters 10 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Overall I-Beam Length (ft.): 10		625
FHS-6-15 FHS-6-15Steel Fixed Gantry Crane with Phenolic Casters 15 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Overall I-Beam Length (ft.): 15		730
FHS-6-20 FHS-6-20Steel Fixed Gantry Crane with Phenolic Casters 20 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Overall I-Beam Length (ft.): 20		735
FHS-8-10 FHS-8-10Steel Fixed Gantry Crane with Phenolic Casters 10 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Overall I-Beam Length (ft.): 10		705
FHS-8-15 FHS-8-15Steel Fixed Gantry Crane with Phenolic Casters 15 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Overall I-Beam Length (ft.): 15		723
FHS-8-20 FHS-8-20Steel Fixed Gantry Crane with Phenolic Casters 20 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Overall I-Beam Length (ft.): 20		765

Options


.

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
