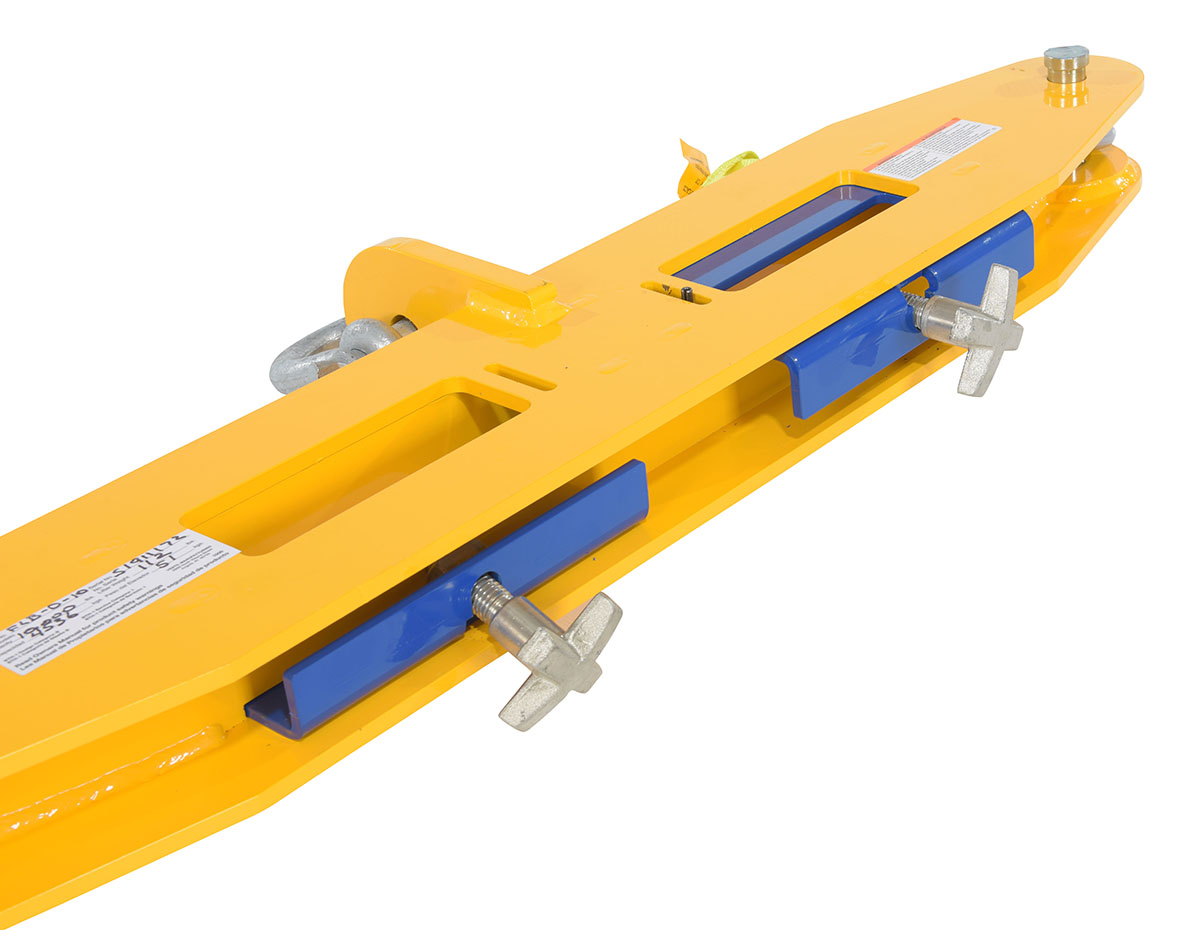

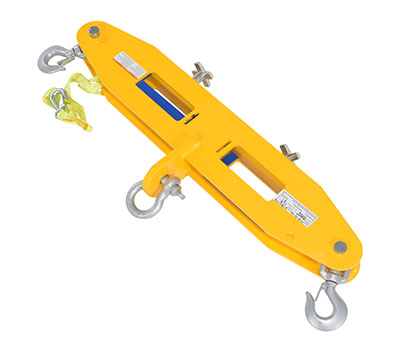

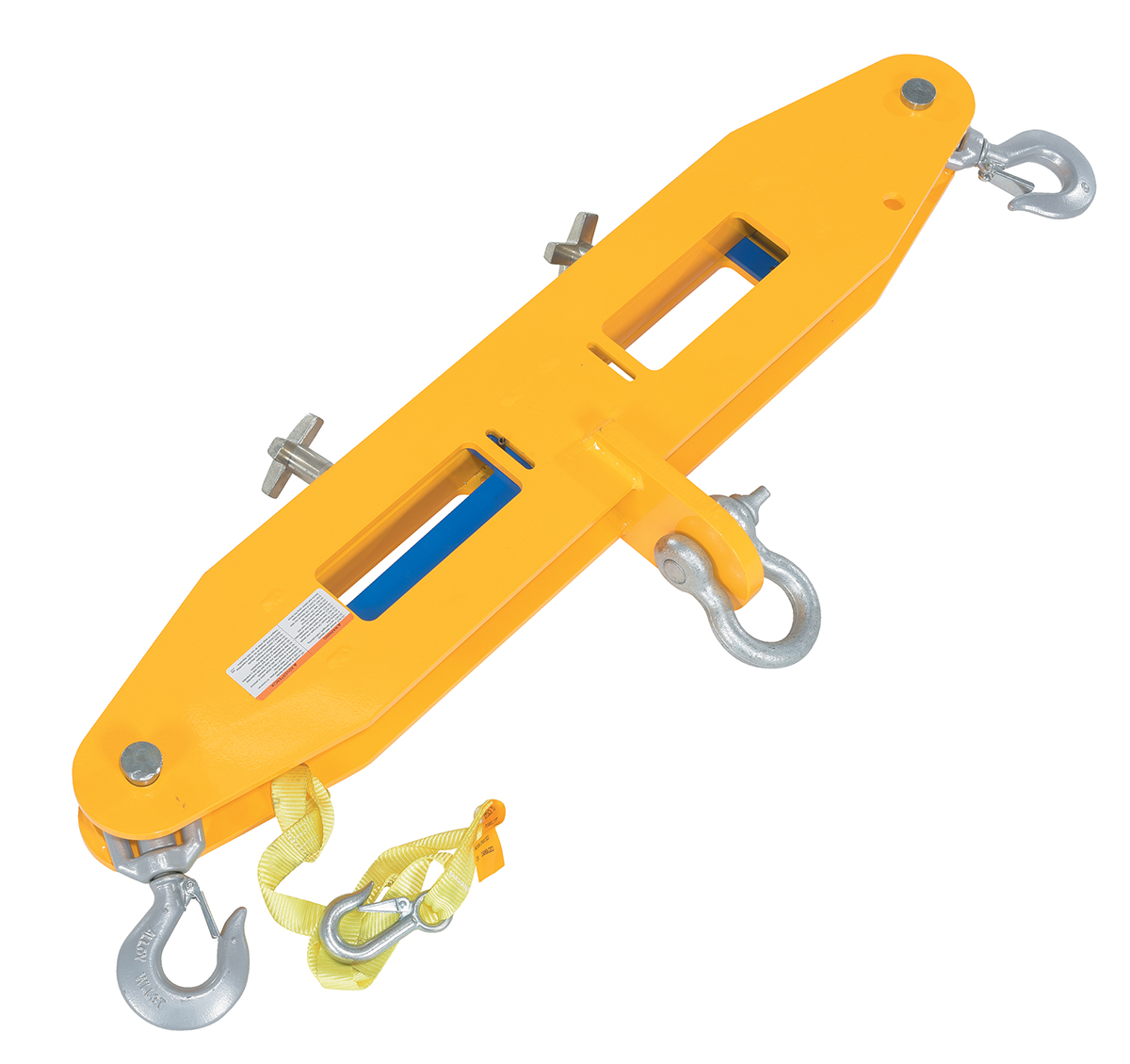

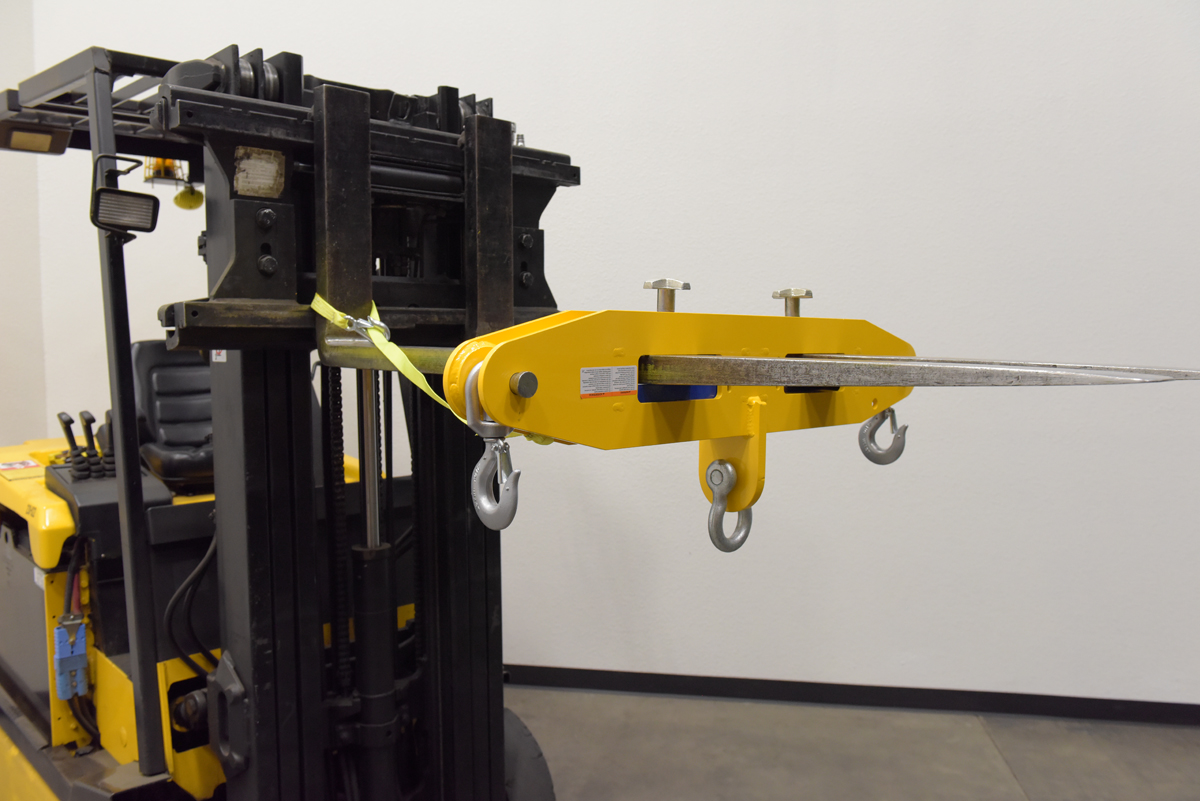

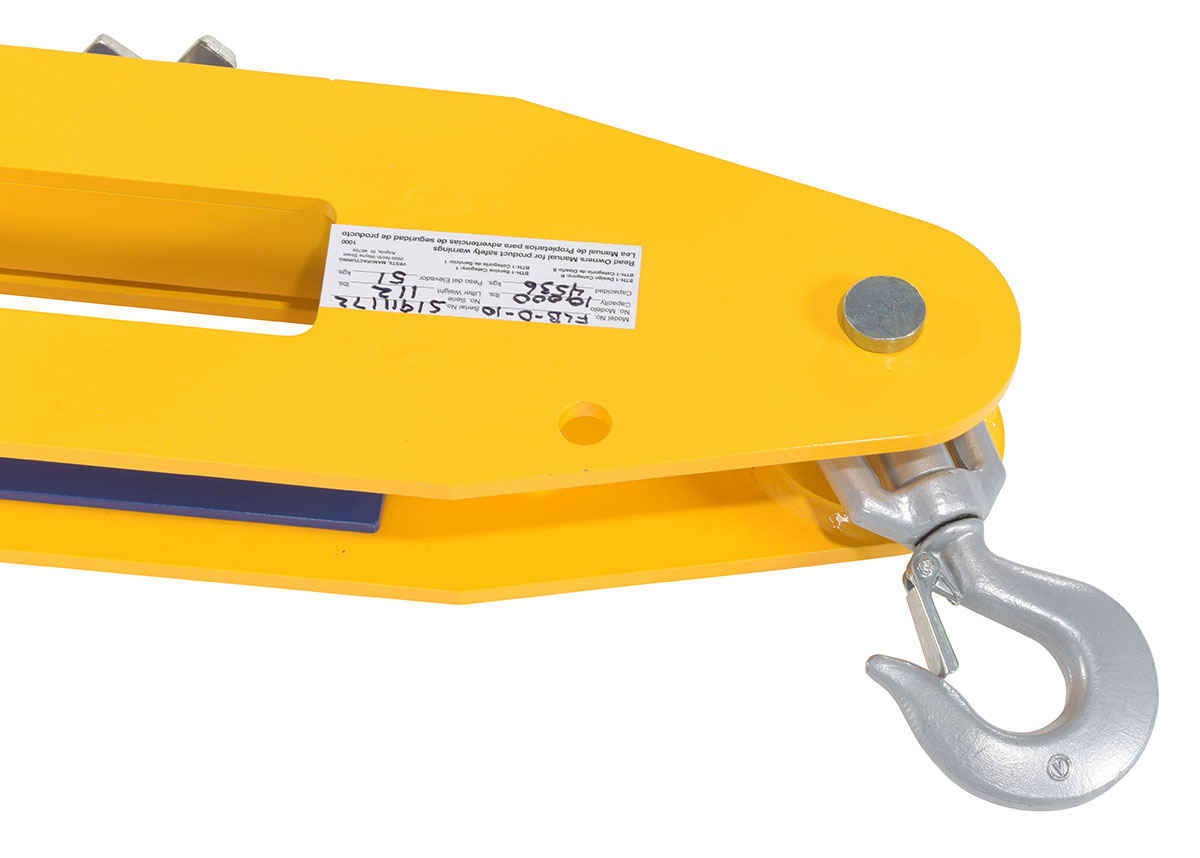

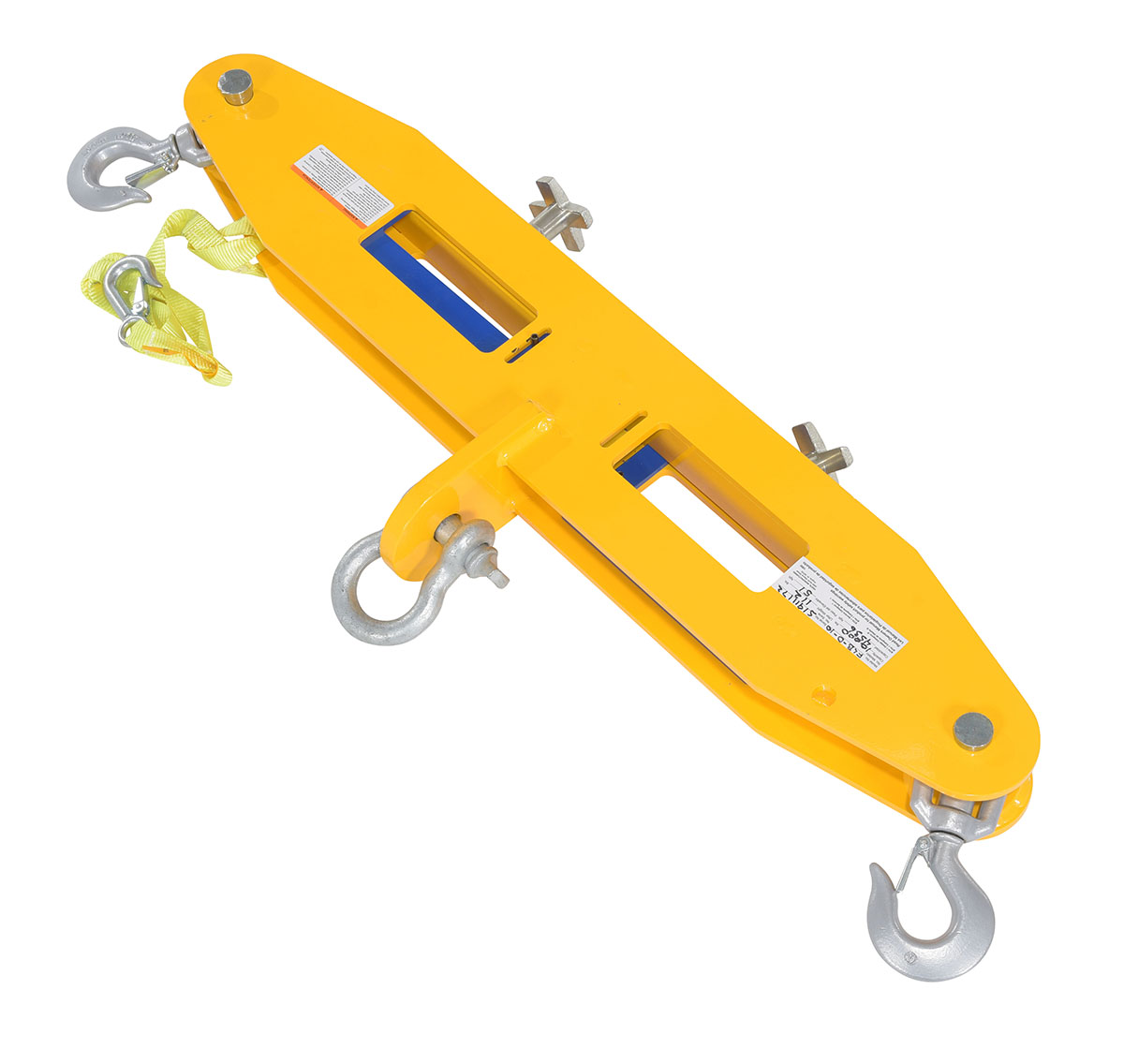

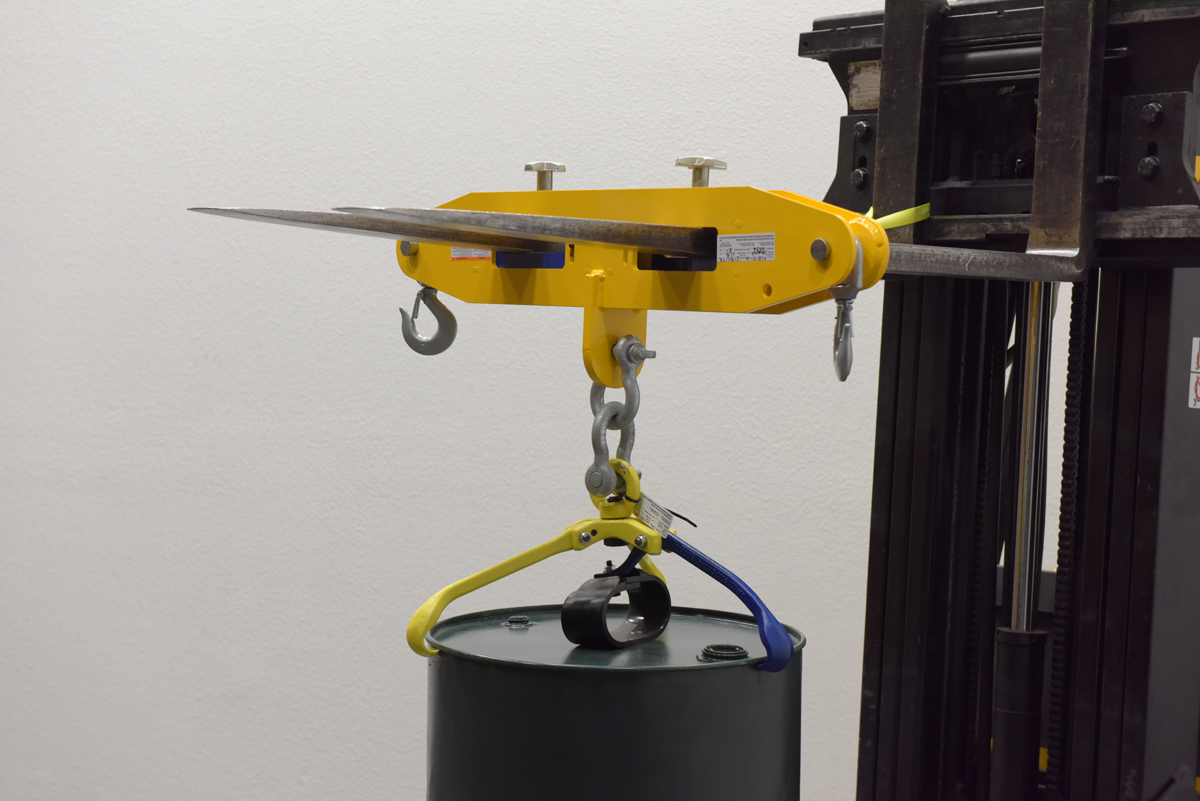

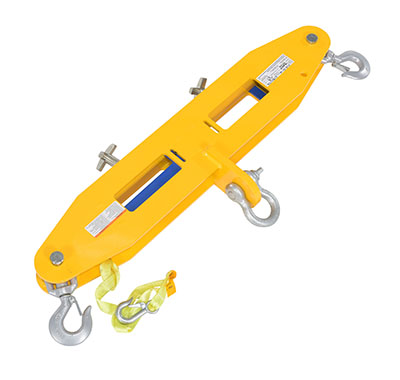

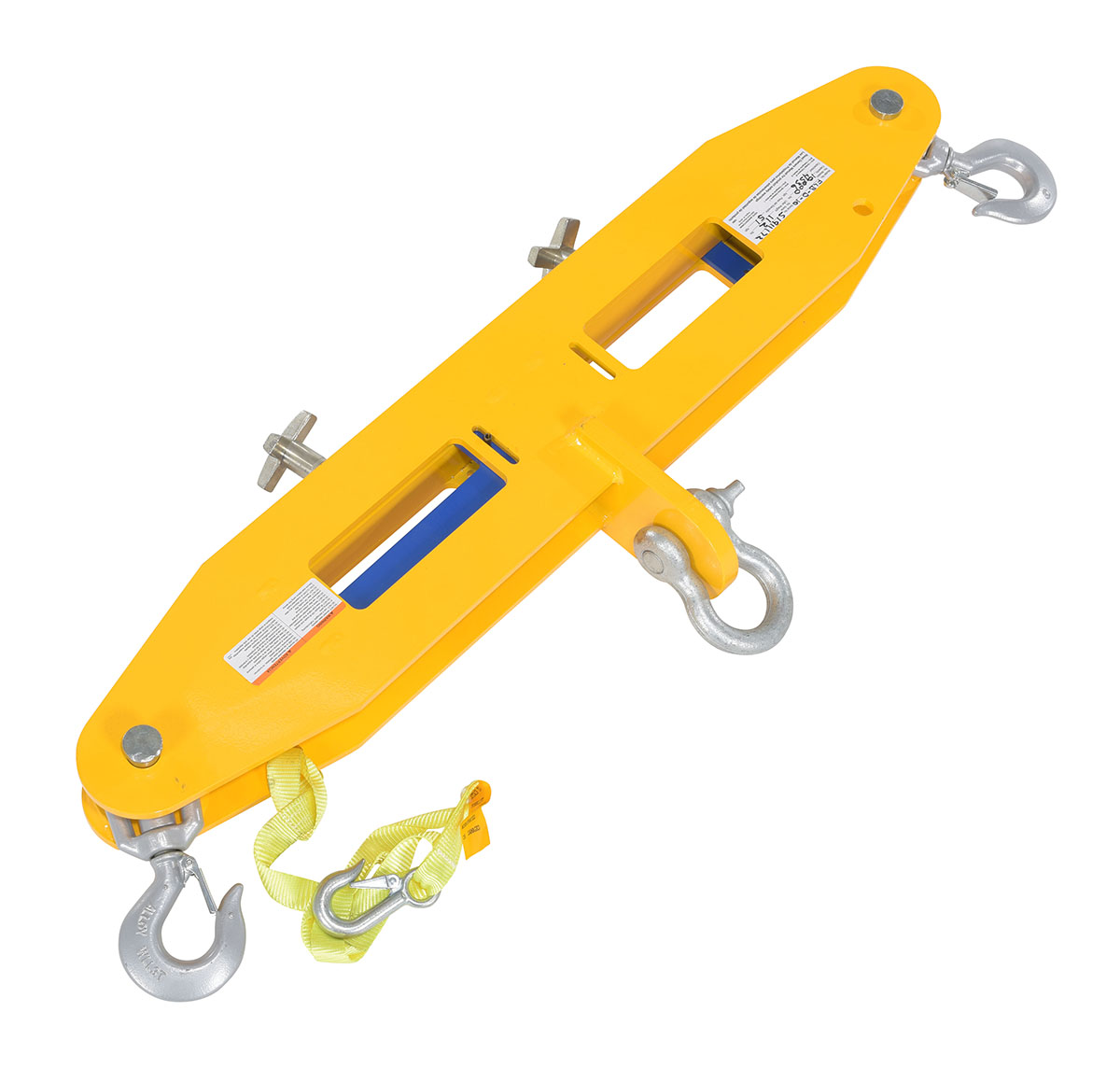

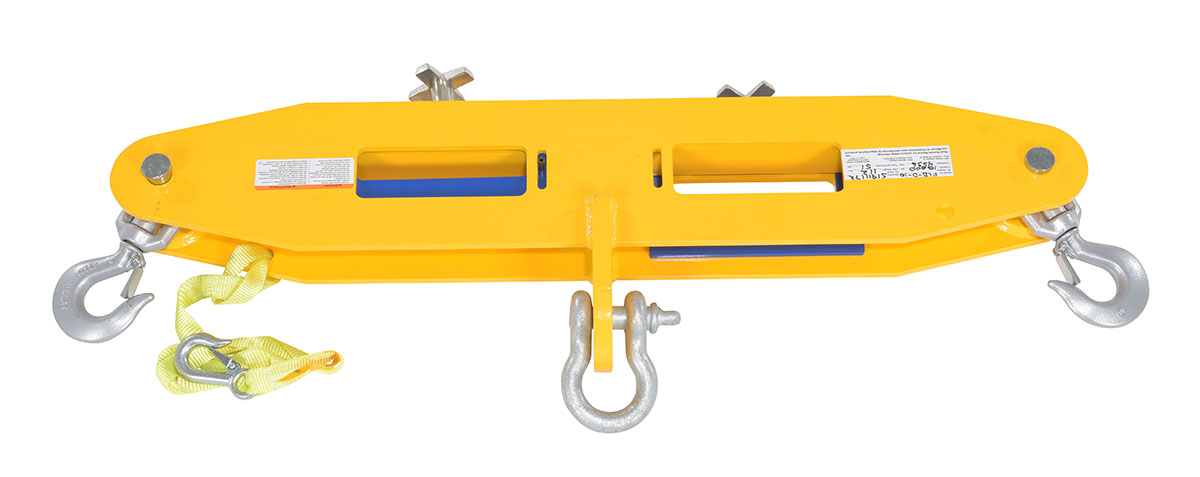

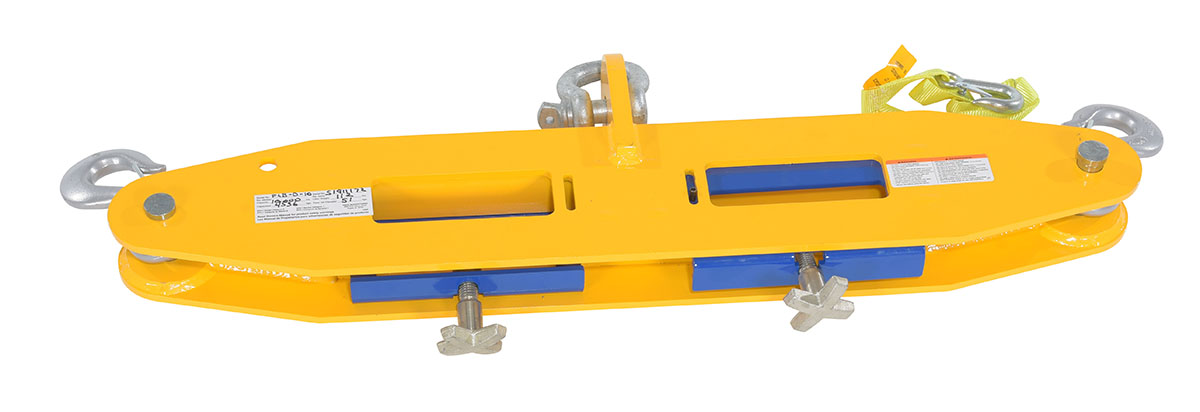

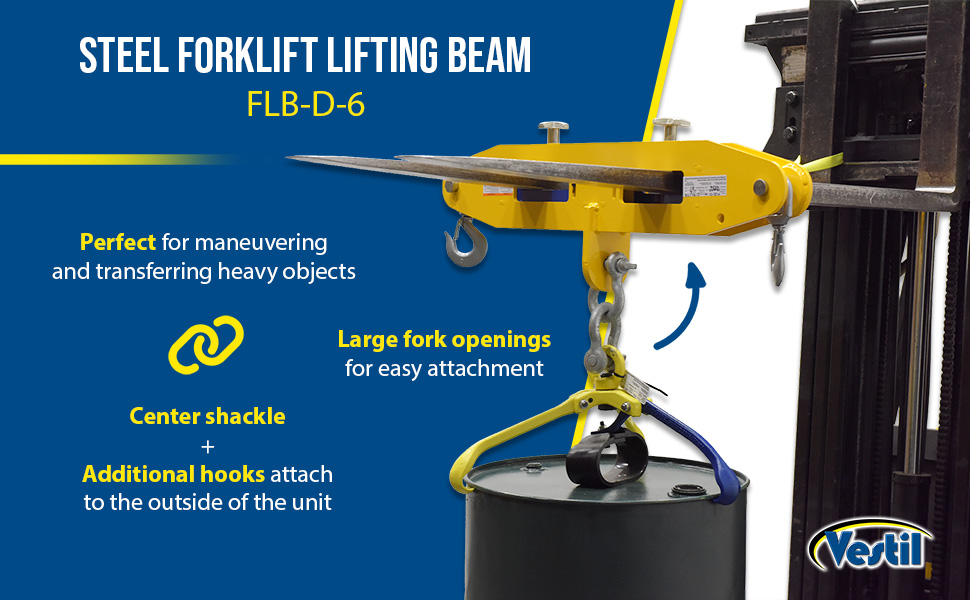

Forklift Lifting BeamA Forklift Lifting Beam is the perfect asset for maneuvering and transferring heavy objects. The centrally located hook between two fork pockets allow the user to safely attach to the unit and transport to the desired location. Hooks are also attached to the outside of the unit for a more secure lifting experience. The strong steel construction with a bright finish enables high visibility from both near and far. Secure to the fork truck by means of a 48" long safety restraint and screw clamps.
- Large fork openings for easy attachment
- Durable construction for long term use
- Smooth finish for easy handling
- Yellow surface color for clear visibility
Push Bumper

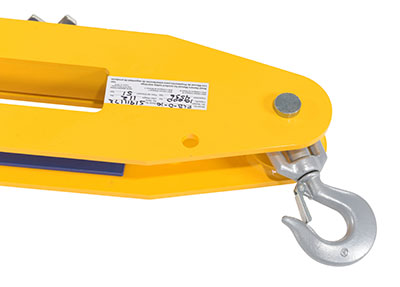

Hoisting Hooks
"Skid Loader" Multi-Purpose Lifting Attachment
Bulk Bag Lifters
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| FLB-D-4 |  | 90 Days Limited Warranty | Steel Forklift Lifting Beam 40 In. x 4-7/8 In. x 17-1/16 In. 4,000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4000 Fork Pocket Width/Height (in.): 7 x 2-1/2 | 63 | ||
| FLB-D-6 |  | 90 Days Limited Warranty | Steel Forklift Lifting Beam 40 In. x 4-7/8 In. x 17-1/16 In. 6,000 Lb. Capacity Yellow | Uniform Capacity (lb.): 6000 Fork Pocket Width/Height (in.): 7 x 2-1/2 | 64 | ||

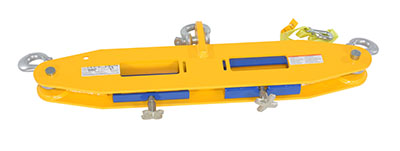

| FLB-D-10 | POPULAR |  | 90 Days Limited Warranty | Steel Forklift Lifting Beam 40 In. x 4-3/4 In. x 15 In. 10,000 Lb. Capacity Yellow | Uniform Capacity (lb.): 10000 Fork Pocket Width/Height (in.): 8 x 3 | 85 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Width/Height (in.): 7 x 2-1/2
Uniform Capacity (lb.): 4000
Fork Pocket Width/Height (in.): 7 x 2-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Fork Pocket Width/Height (in.): 7 x 2-1/2
Uniform Capacity (lb.): 6000
Fork Pocket Width/Height (in.): 7 x 2-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Fork Pocket Width/Height (in.): 8 x 3
Uniform Capacity (lb.): 10000
Fork Pocket Width/Height (in.): 8 x 3
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products

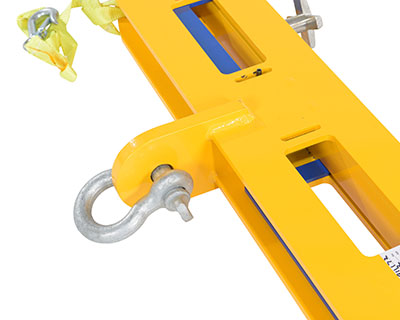

Q: The FLB-D-10 is symmetrical and the hooks on the ends appear to rotate 18+ degrees. Can the beam be used upside down with a load cell on a central hook upwards and the load below from outer hooks?

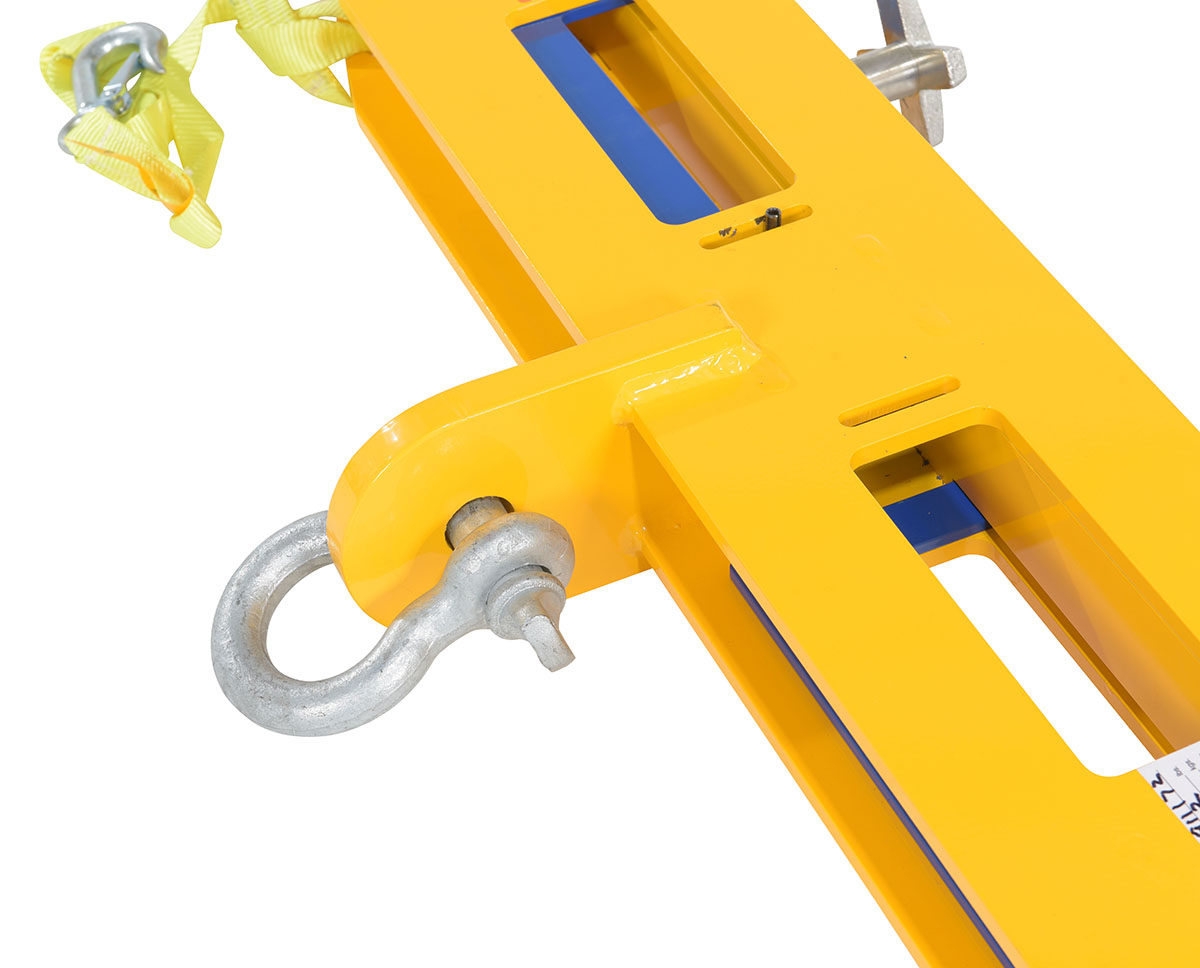

A: Yes this product can be used “upside down”, using the center bail to either pick up the load or use it to hang the beam from a hoist to use the outer hooks to lift the load.
 |
||||||||||||||||||||||
Forklift Lifting Beam |
||||||||||||||||||||||
 |
||||||||||||||||||||||
A Forklift Lifting Beam is the perfect asset for maneuvering and transferring heavy objects. The centrally located hook between two fork pockets allow the user to safely attach to the unit and transport to the desired location. Hooks are also attached to the outside of the unit for a more secure lifting experience. The strong steel construction with a bright finish enables high visibility from both near and far. Secure to the fork truck by means of a 48" long safety restraint and screw clamps.
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
||||||||||||||||||||||
