High Speed Strapping Machine* Dispenses 1/2" polypropylene strapping
* Automatic strapping operation
* Heat welded polypropylene strapping
* Up to 30 cycles per minute
* Strap tension is adjustable 15 lbs. to 150 lbs.

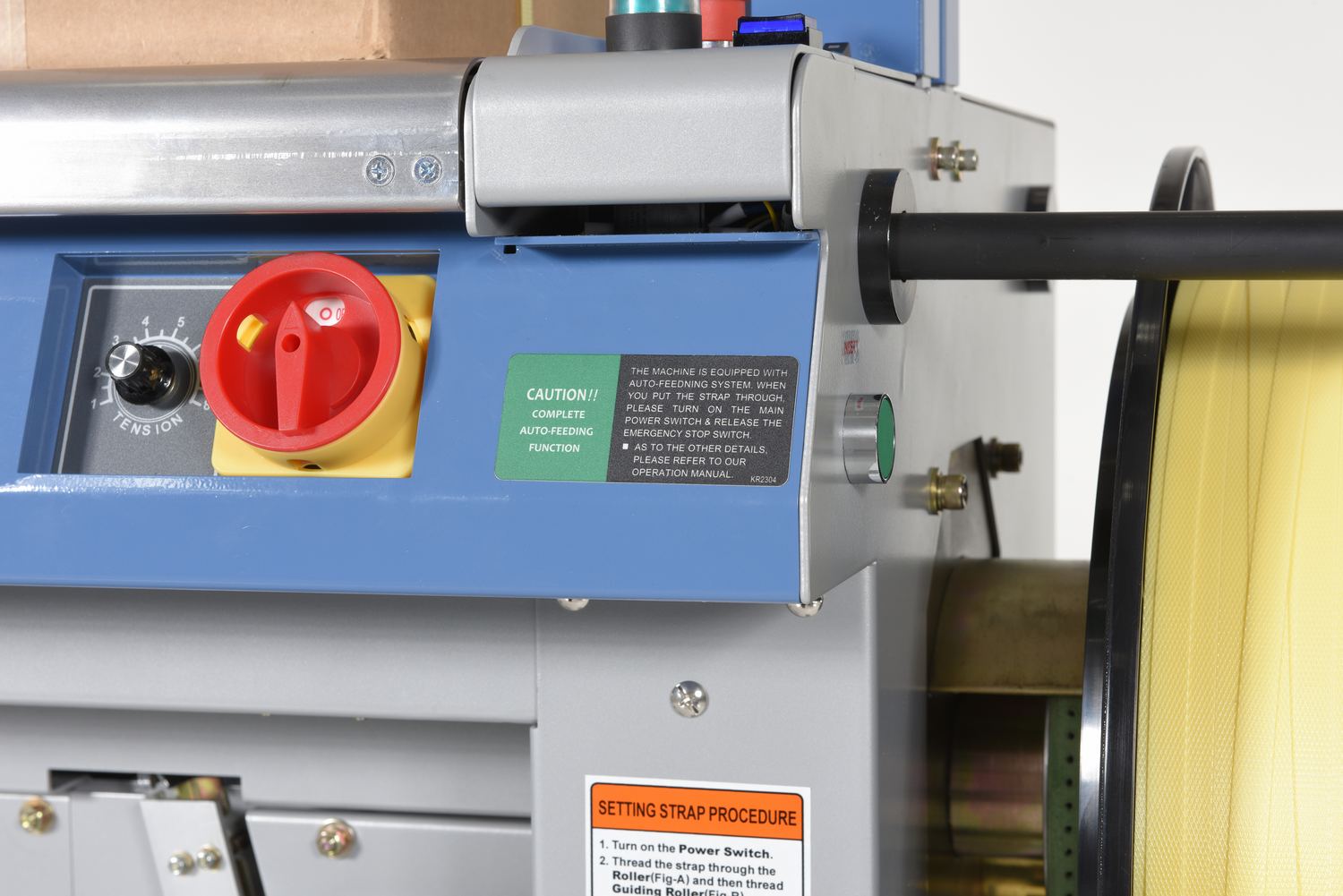

* User friendly controls
* Strapping Core size is 6" to 8"

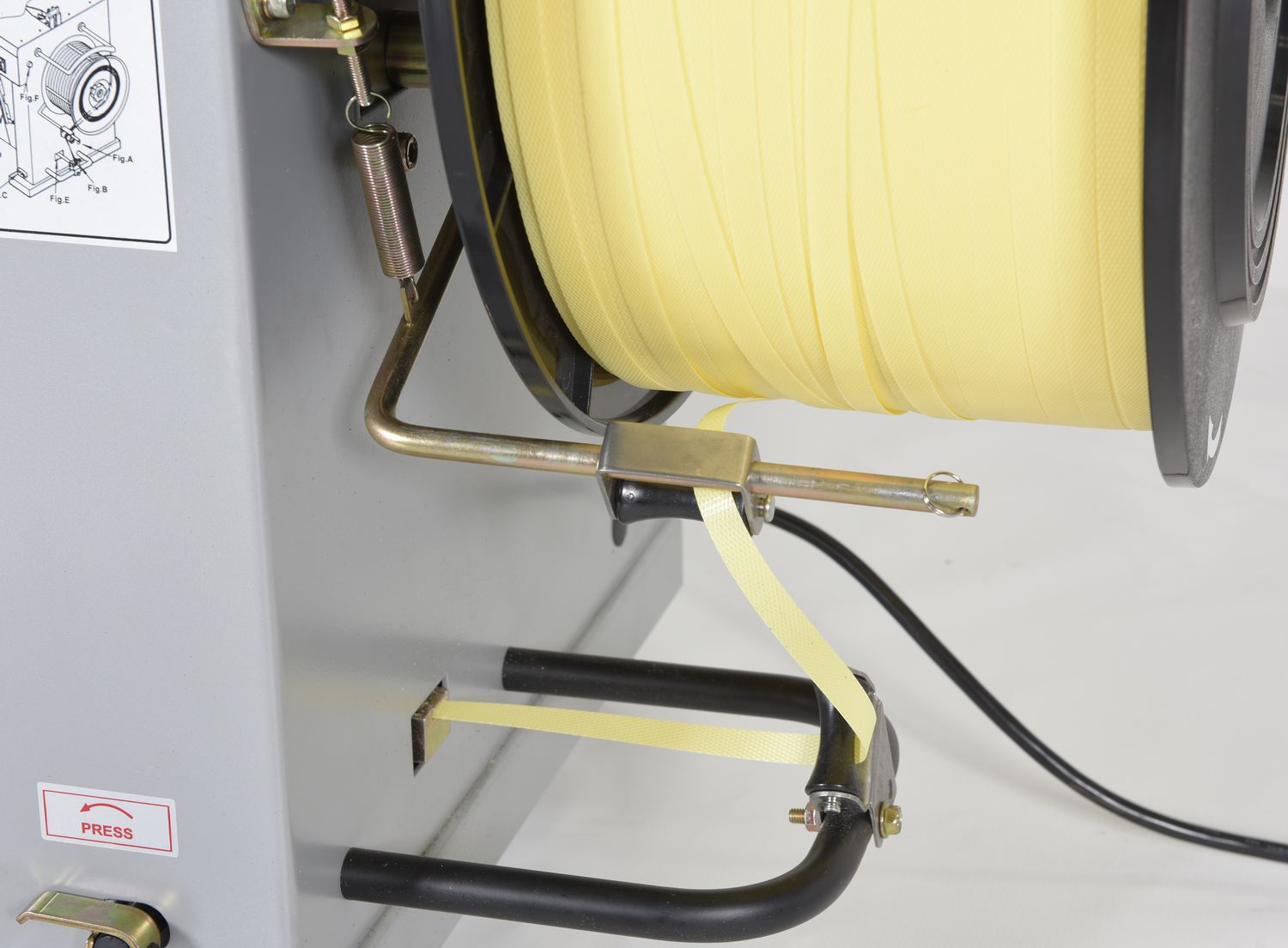

* Easy access for reloading strapping

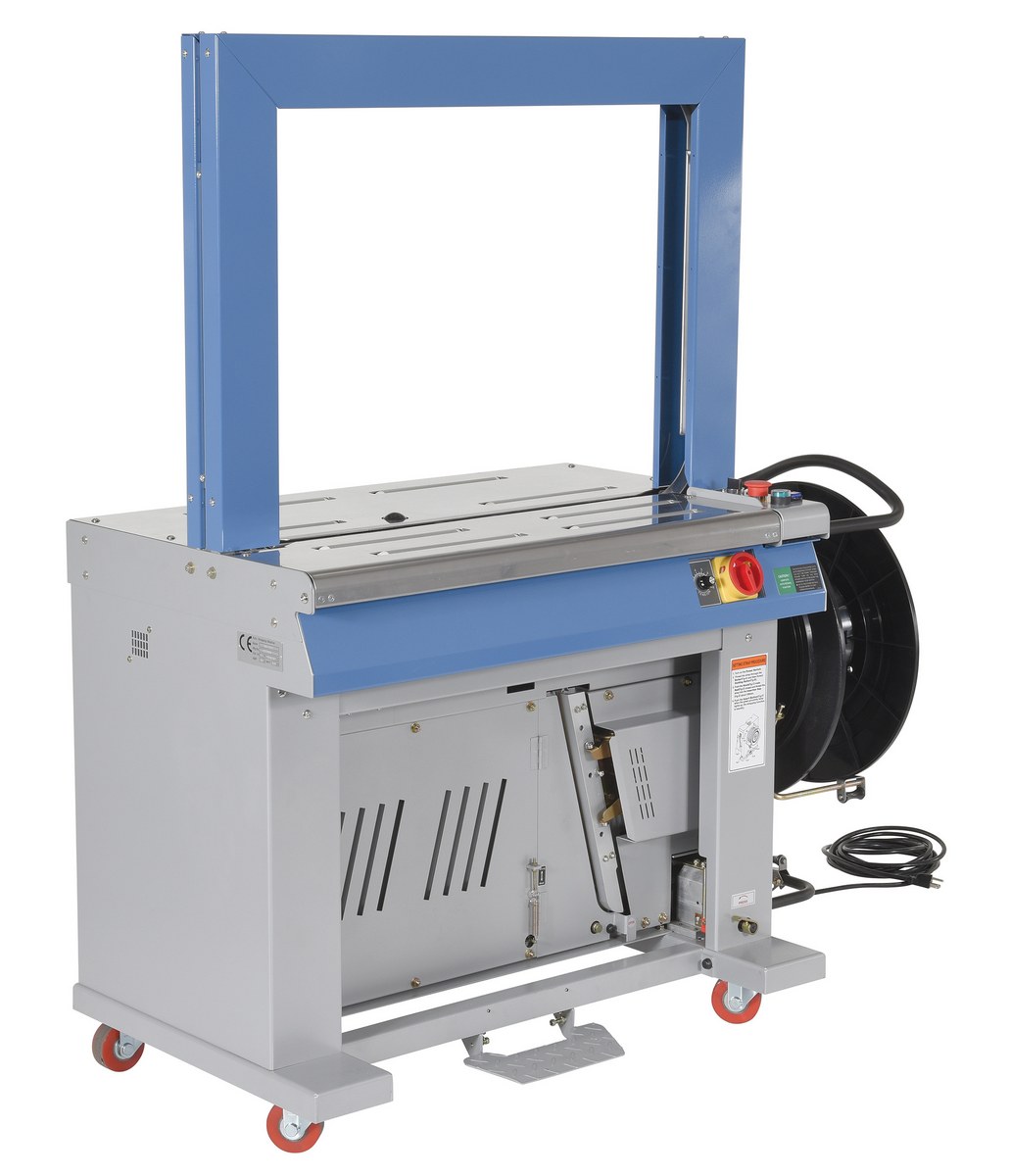

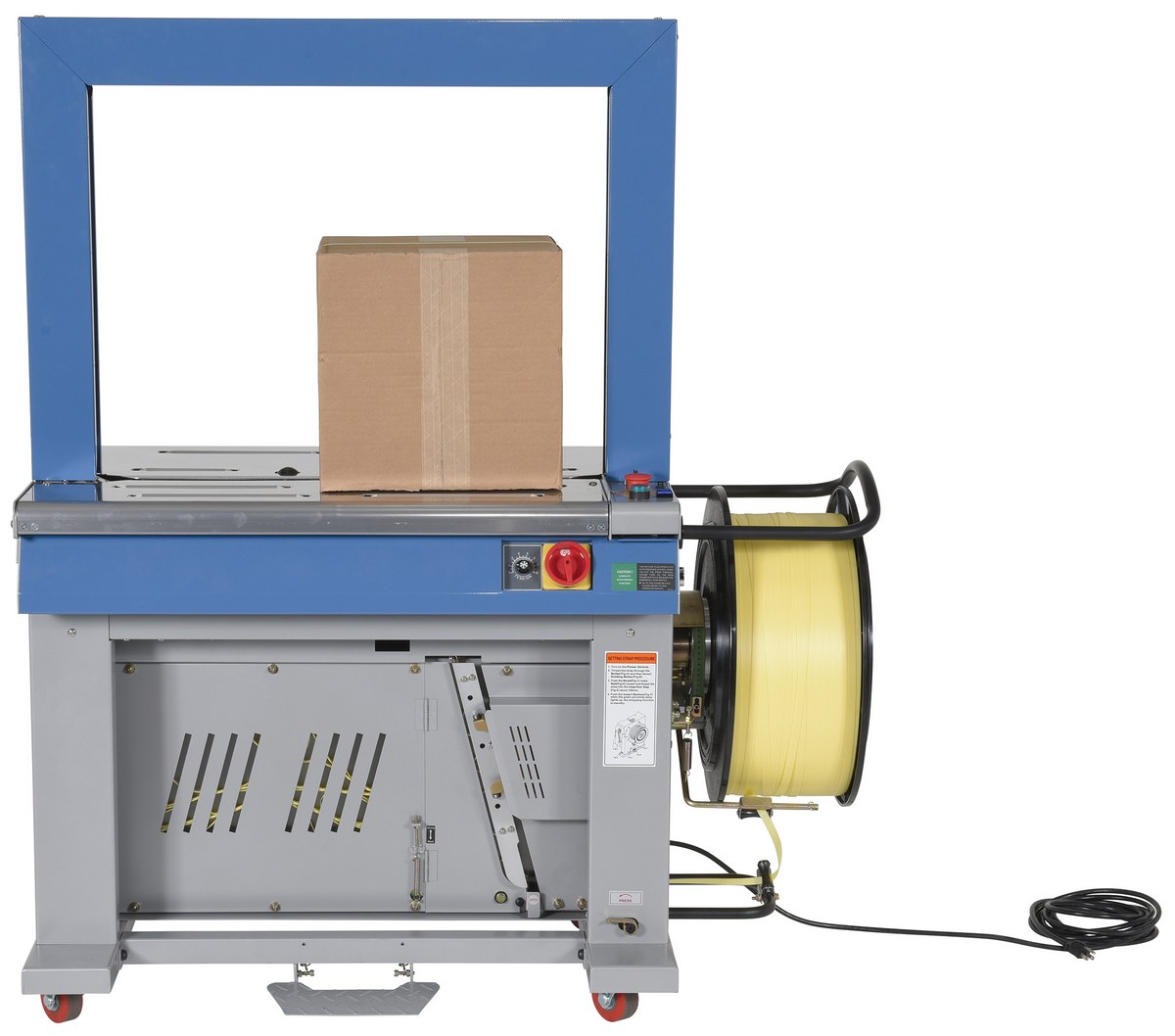

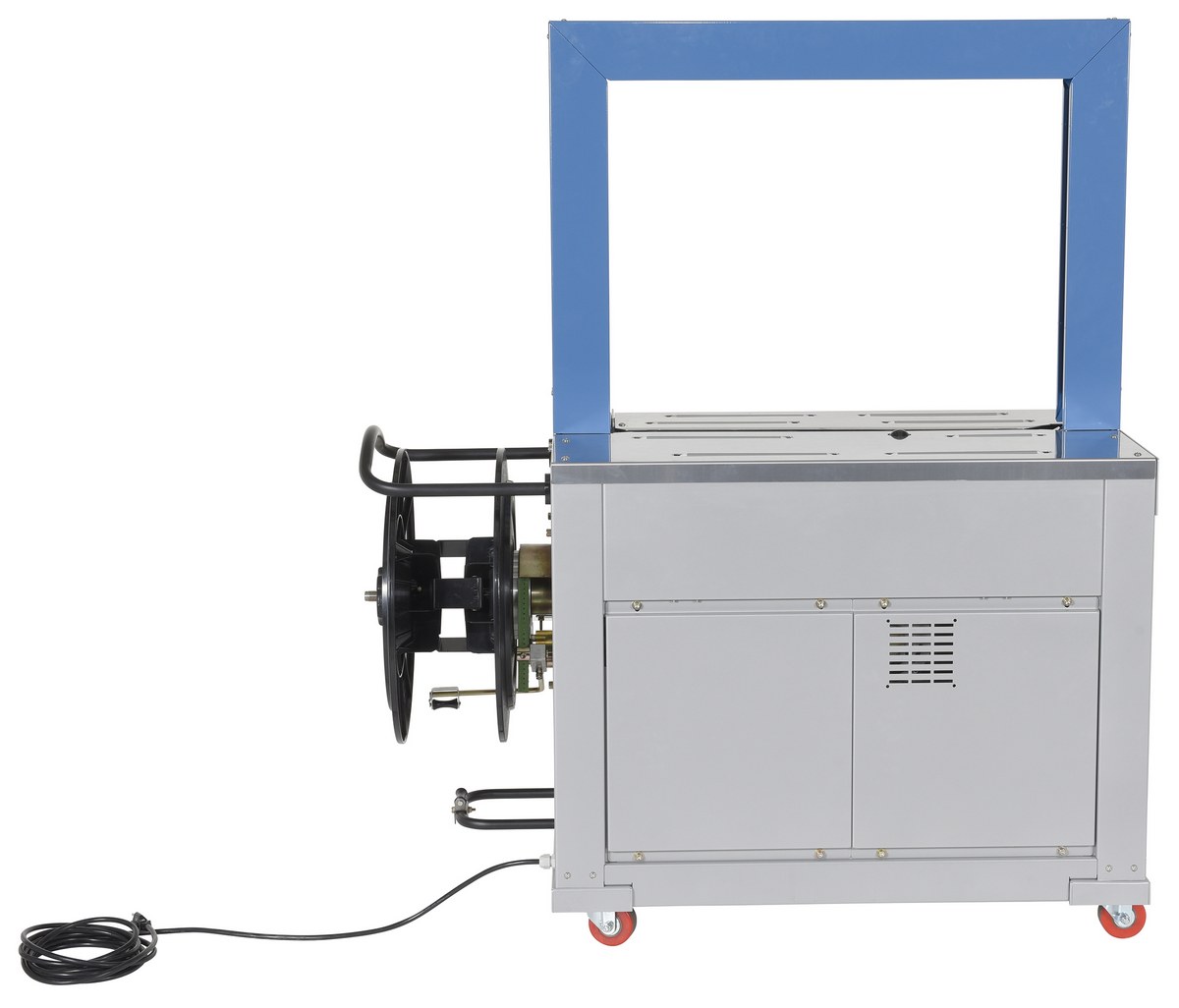

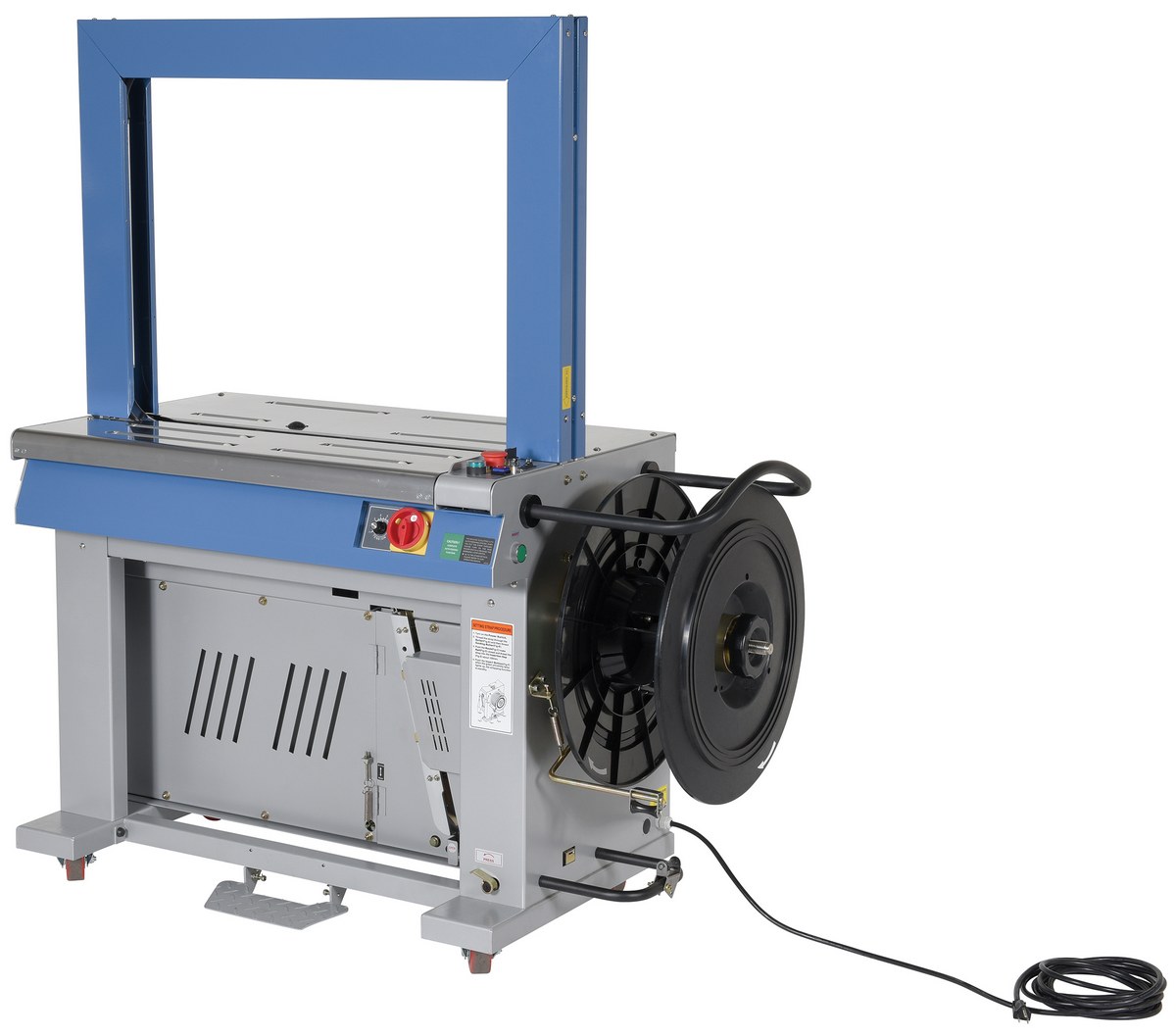

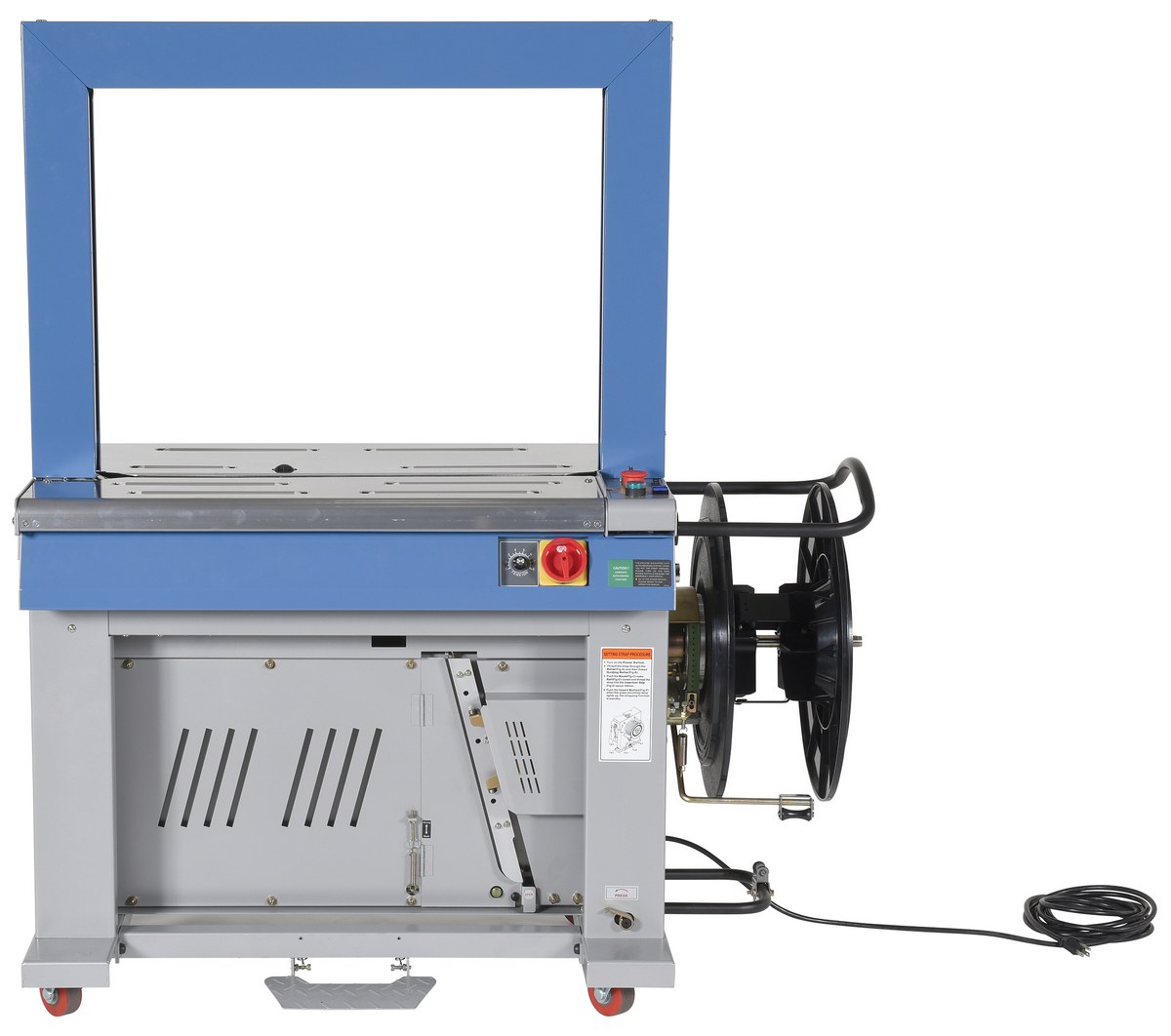

The High Speed Strapping Machine is a productive solution to most polypropylene strapping tasks. This automatic Arch Strapping Machine features the "Auto-Feeding" function that automatically feeds polypropylene strapping to arch and is ready for each application. The "Auto-Positioning" system automatically positions and secures the polypropylene strapping efficiently for each cycle. The "Jam-Free" feature ejects missed strap cycles, and resets the unit. User friendly controls allow operator to choose between panel mounted controls, foot pedal, or table top ball switch. Actual production will vary depending on package size, chute size and operator dexterity. The unit has heat welded polypropylene strapping, easy access for reloading strapping and portability for convenience. 115V, 1phase power standard. Polypropylene strapping is sold separately.
- Solution to most polypropylene strapping tasks
- Auto-feeding automatically feeds arch and is ready for each application
- Auto-positioning automatically positions and secures efficiently for each cycle
- Jam-free feature ejects missed strap cycles and resets the unit
Wall-Mounted Strapping Dispenser
Cutters
Strapping Carts
Heavy-Duty Banding Cart
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| ASM-3123 | POPULAR |  | 90 Days Limited Warranty | Steel Automatic High Speed Strapping Machine 23-1/8 In. x 48-3/8 In. x 58 In. Gray | Maximum Package Width (in.): 29-1/4 Maximum Package Height (in.): 22-1/2 | 531 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Maximum Package Width (in.): 29-1/4
Maximum Package Height (in.): 22-1/2
Maximum Package Width (in.): 29-1/4
Maximum Package Height (in.): 22-1/2
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the maximum weight of the box can be used on this?
A: Weight should not exceed 70 lbs.
Q: What is the arch size, speed/minute, strapping size(s)?
A: Fits 16" diameter roll, strapping size 1/2", 23 1/8"L x 48 3/8"W x 58"H.
 |
||||||||||||
