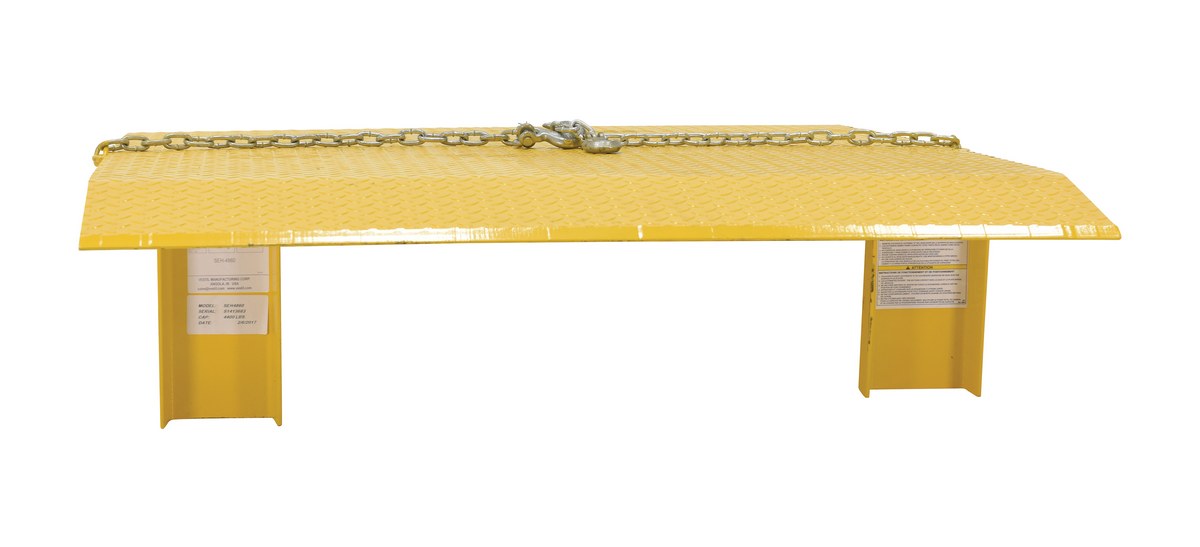

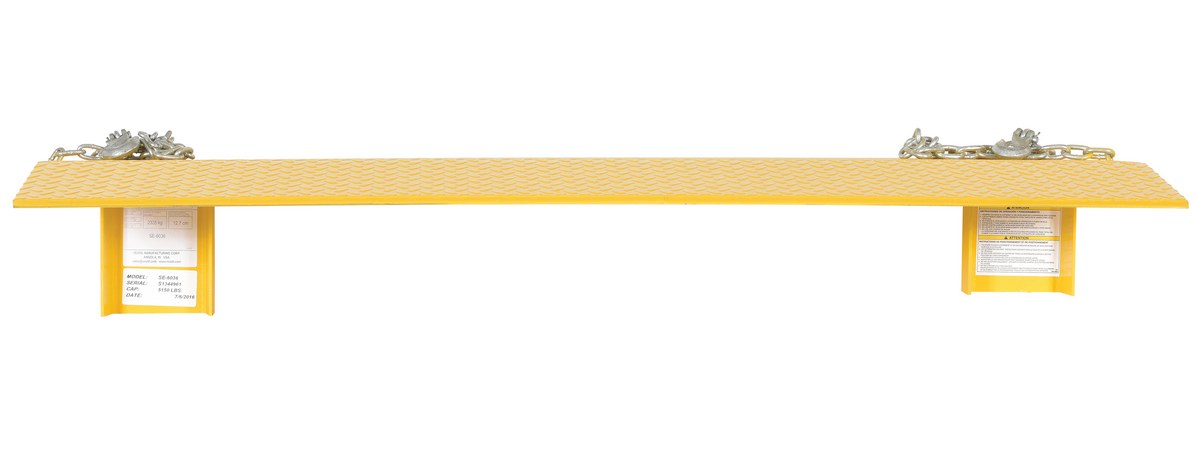

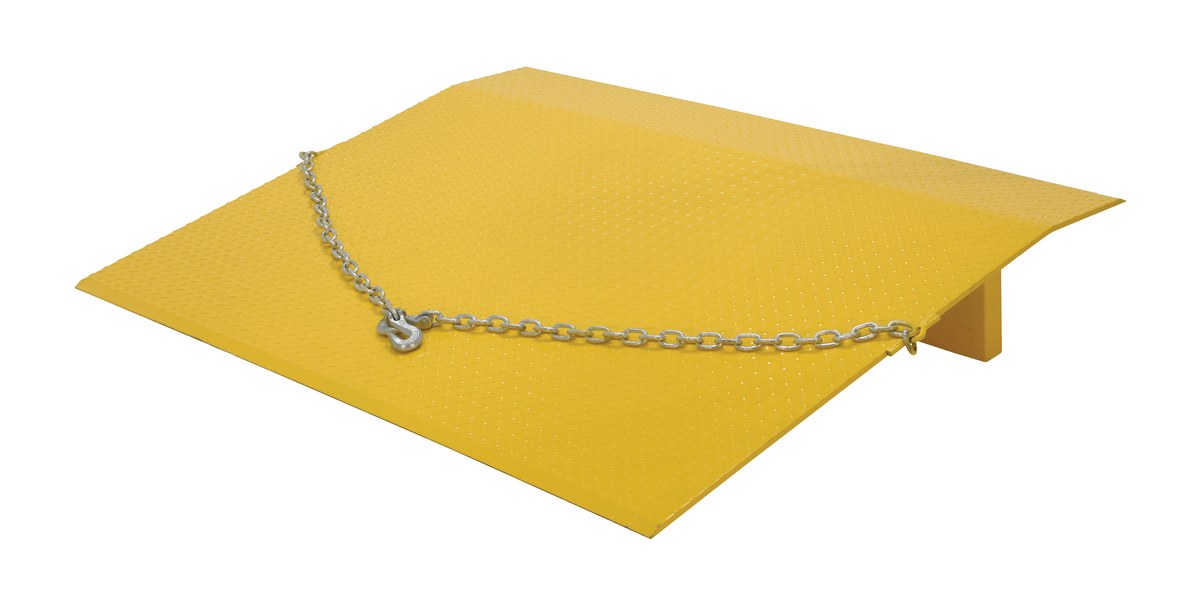

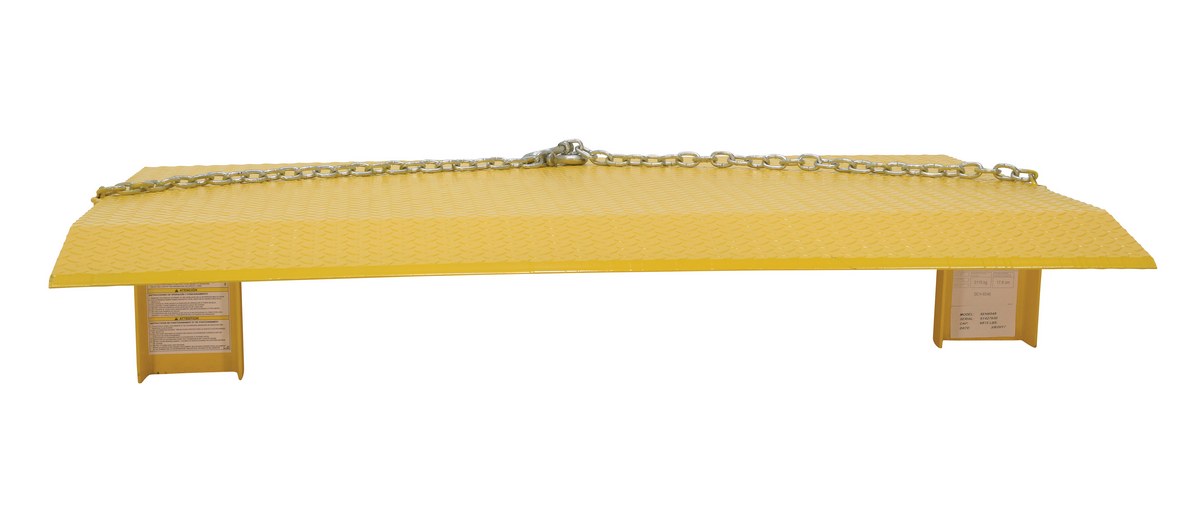

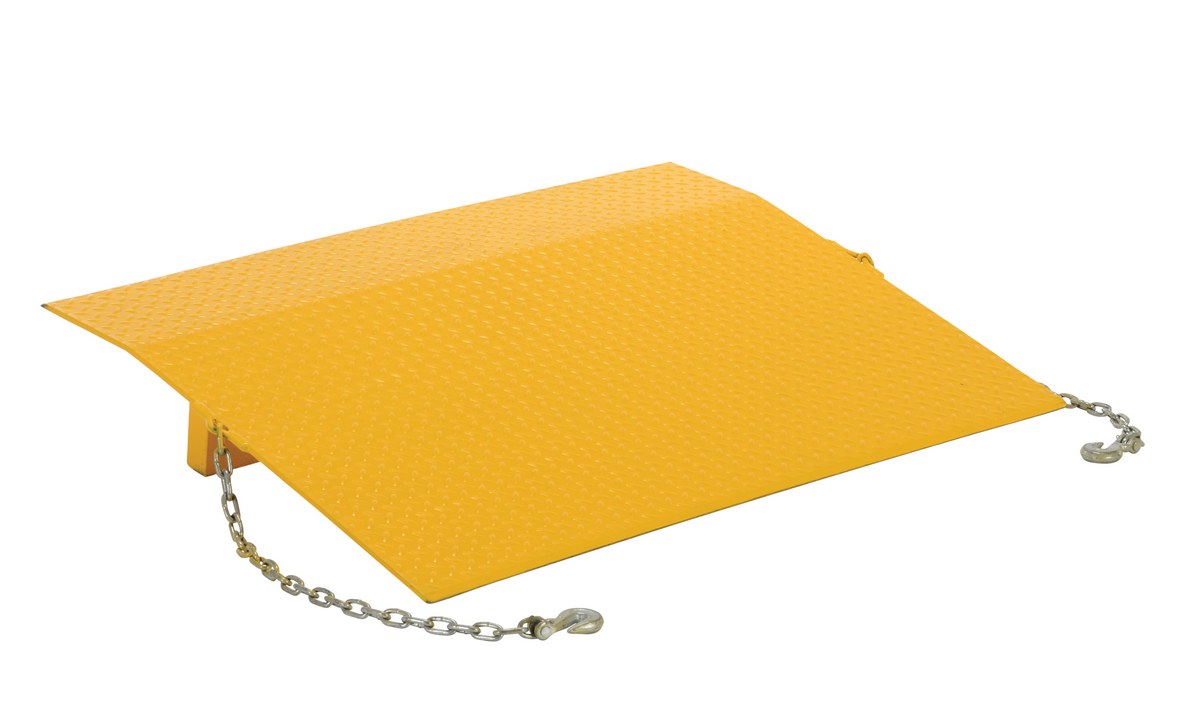

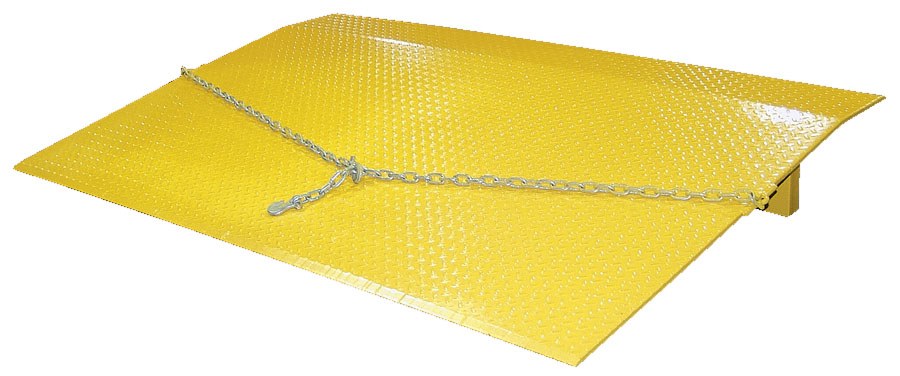

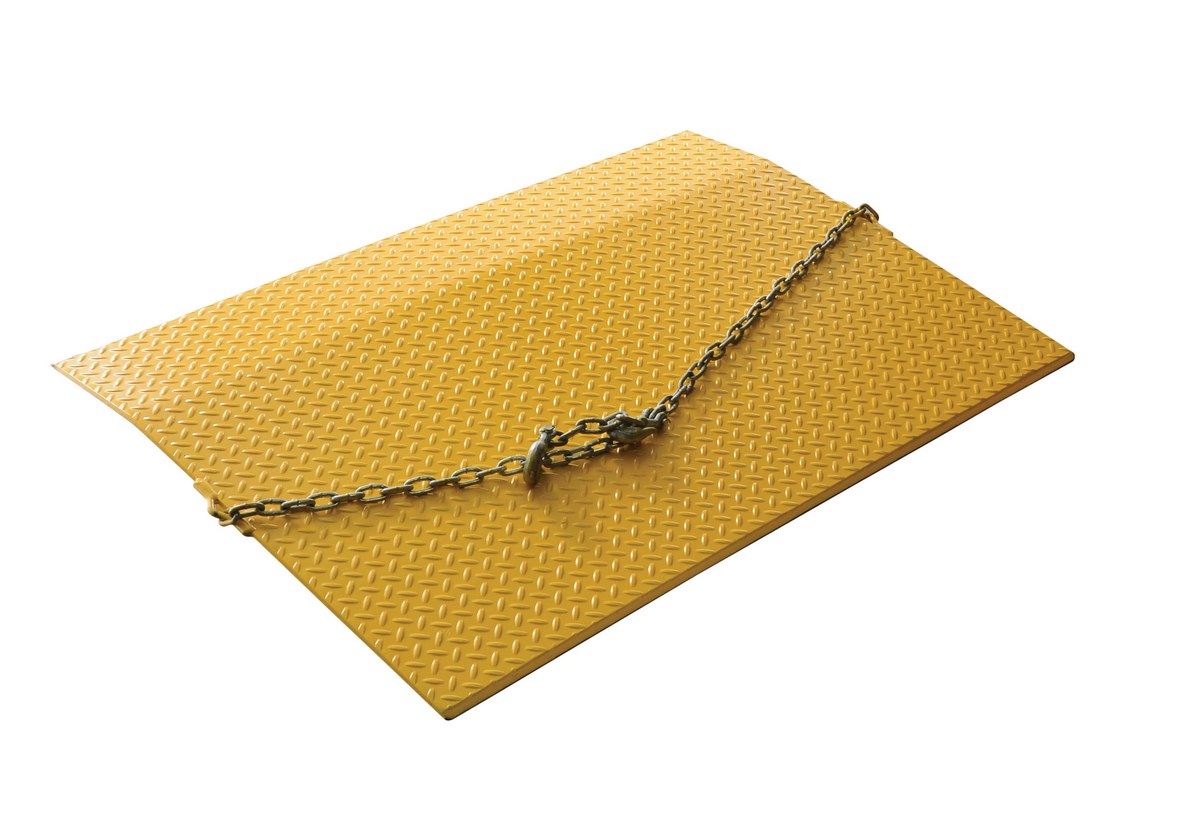

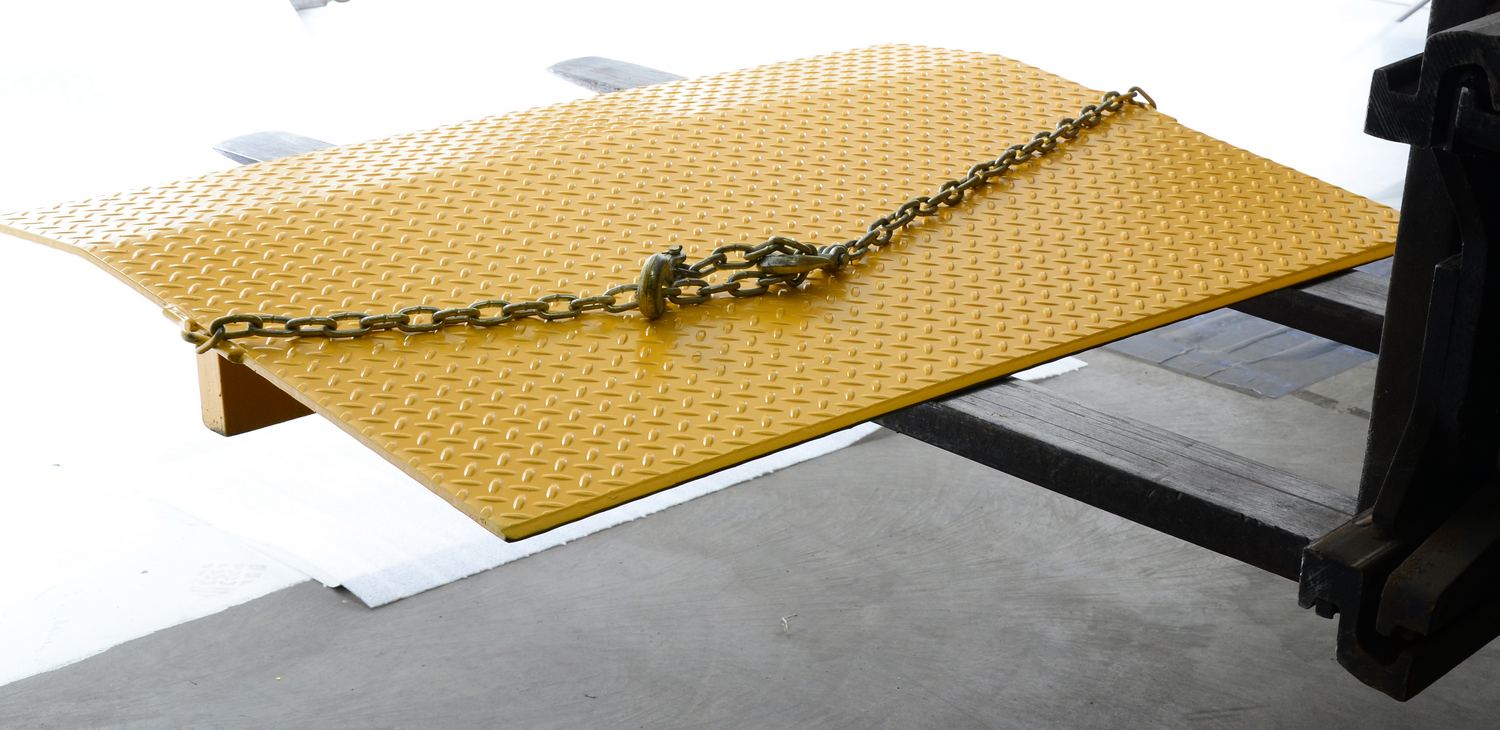

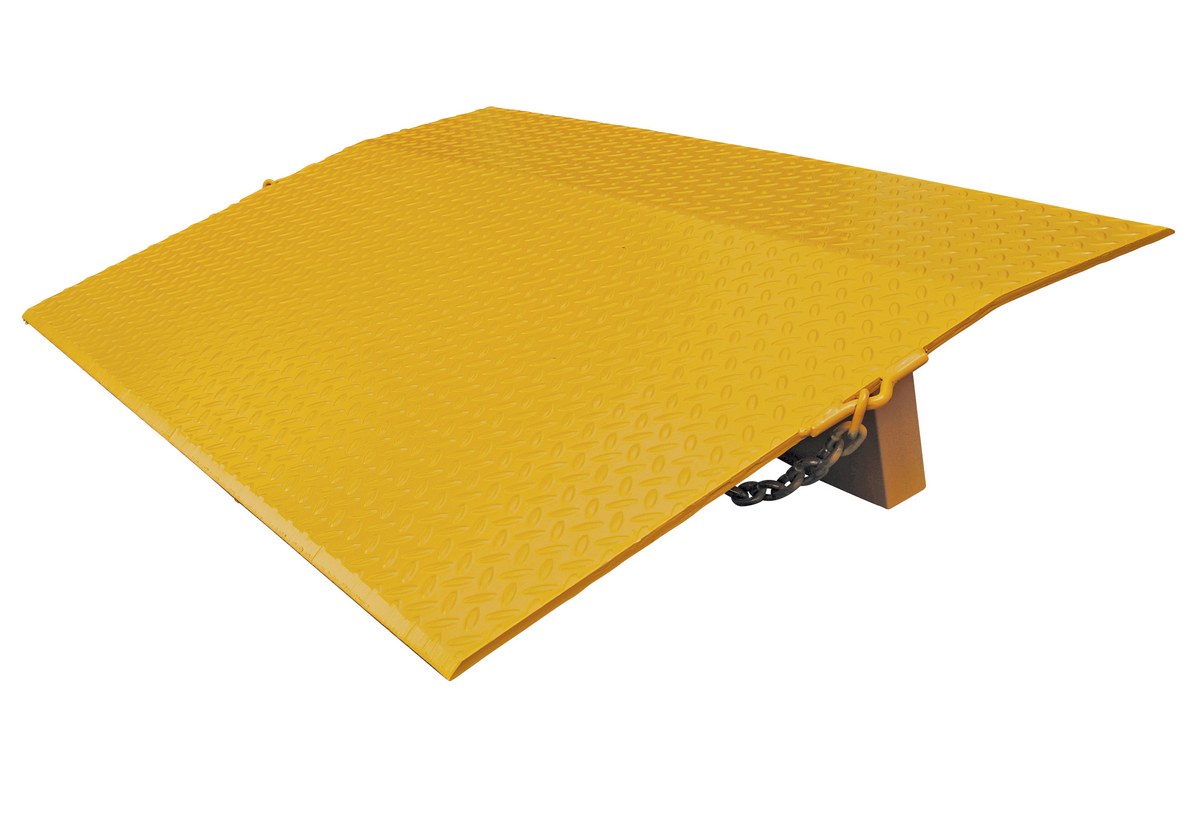

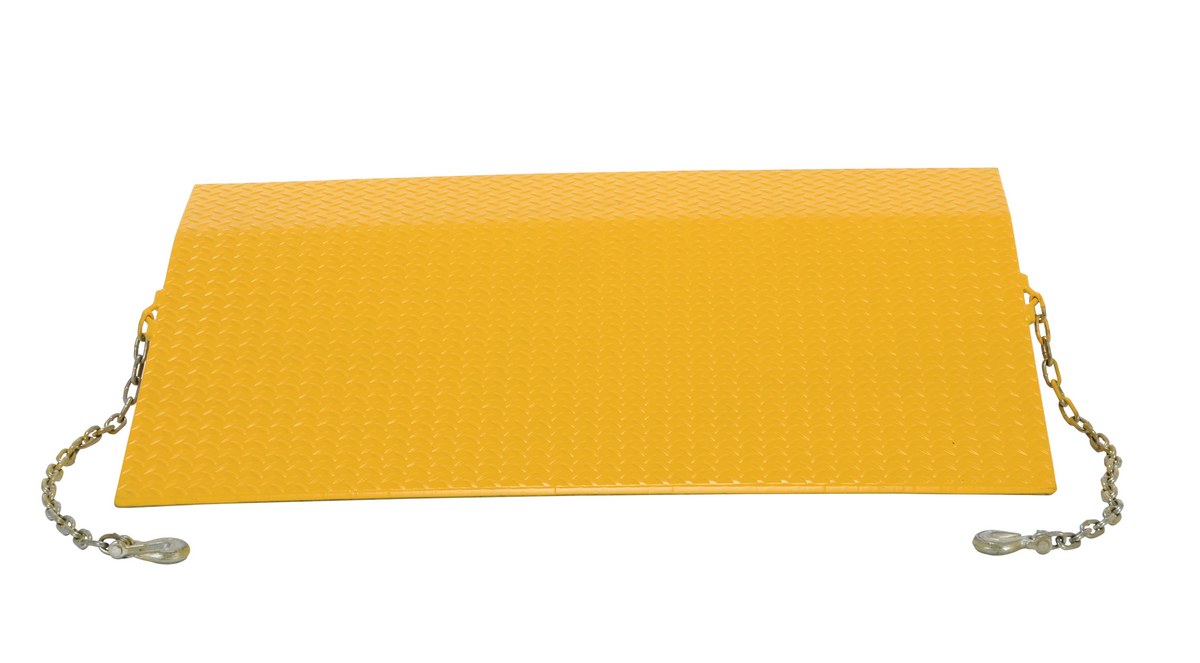

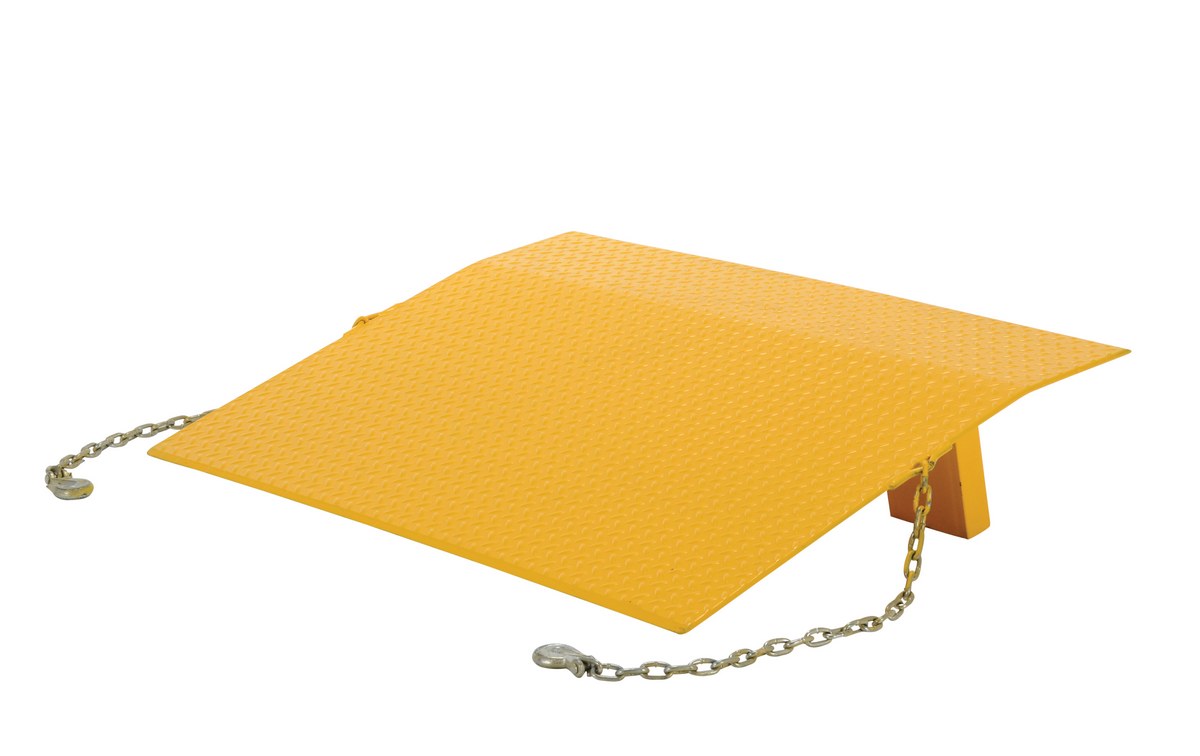

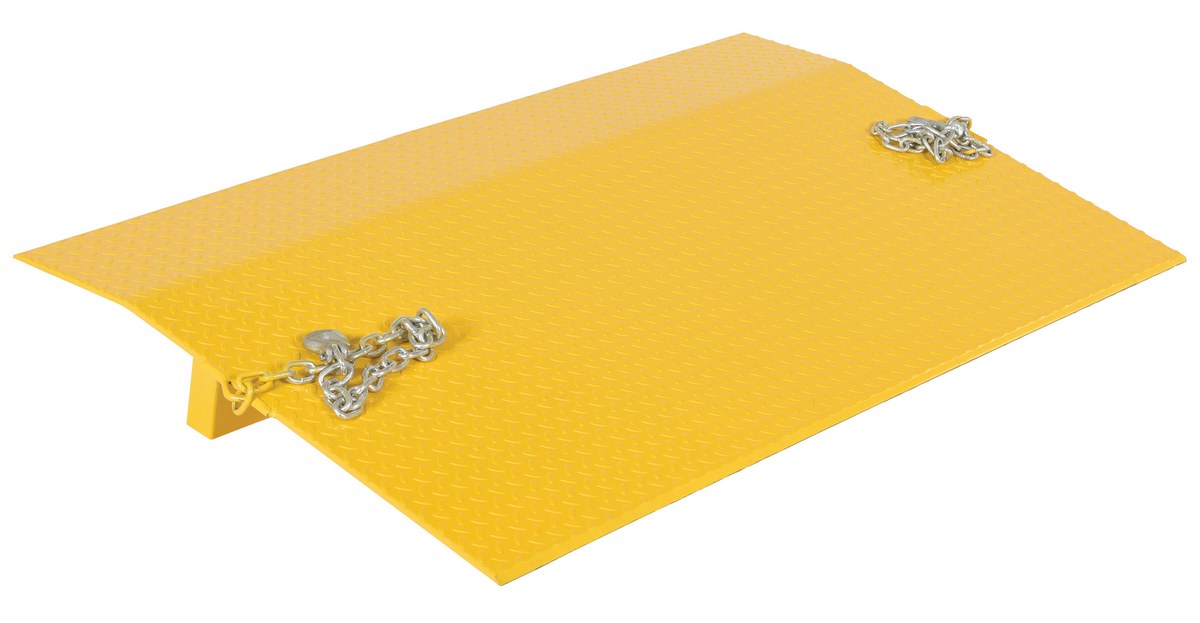

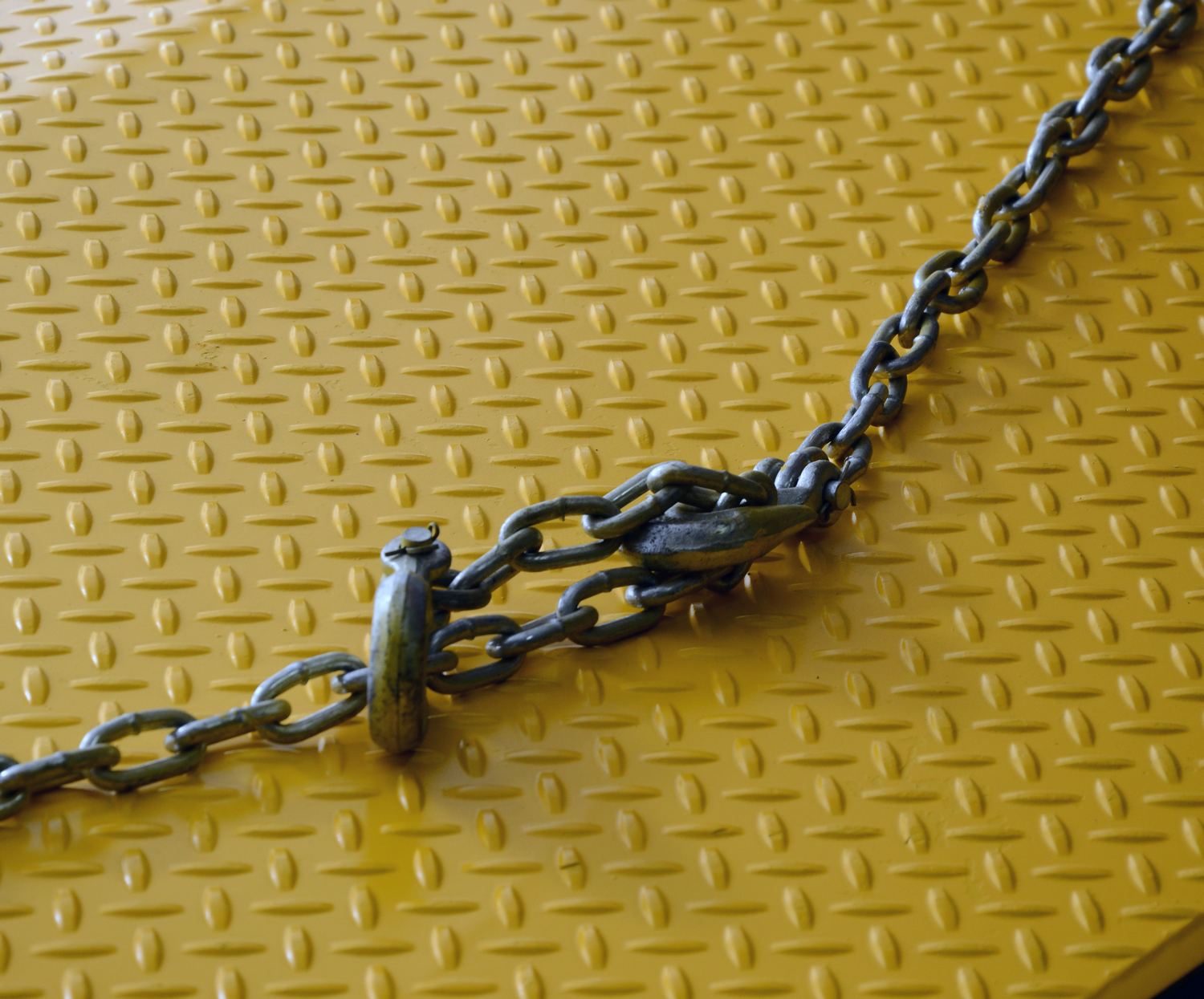

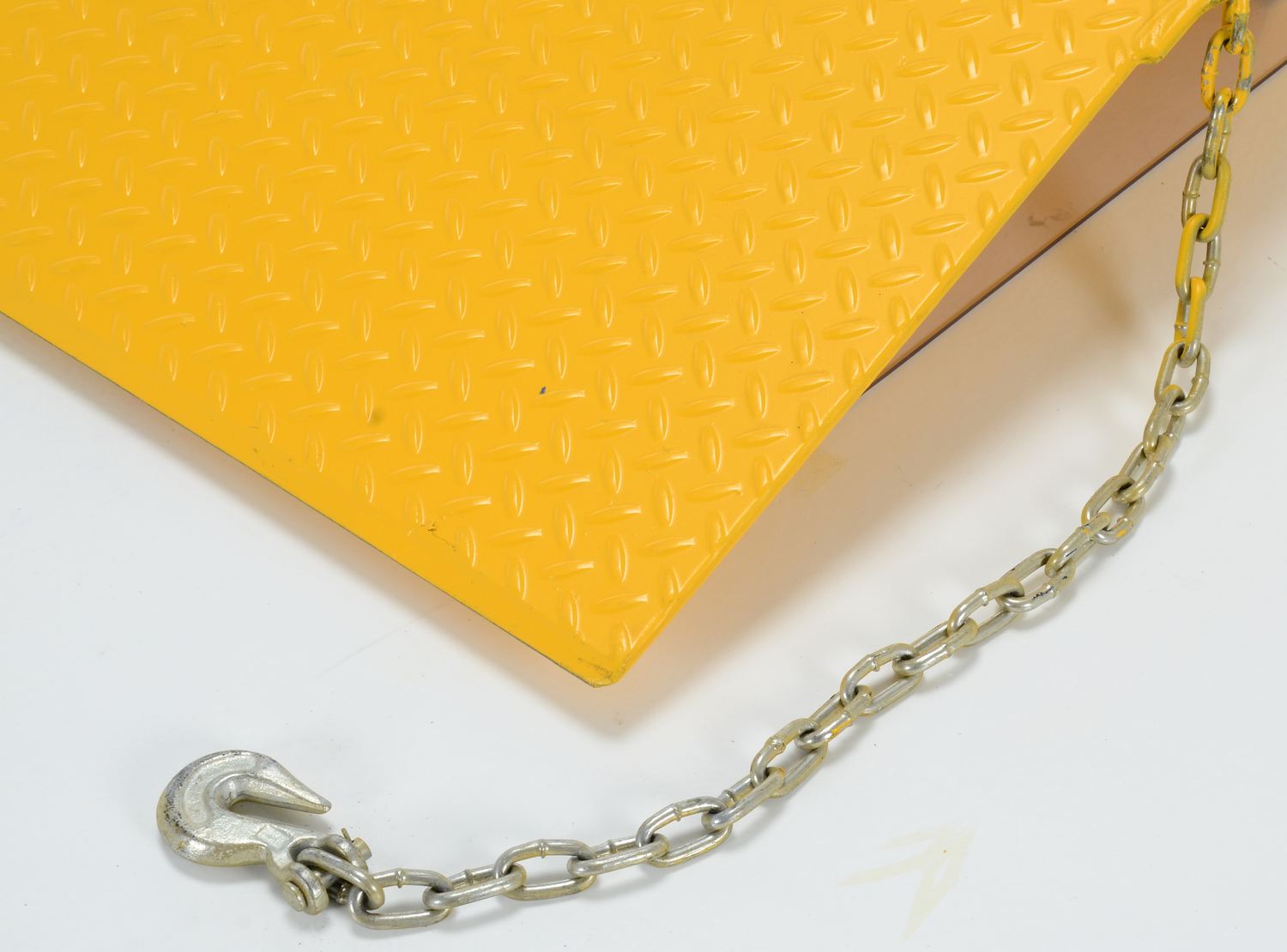

Steel Truck DockplatesSteel Truck Dockplates are constructed of high strength (55,000 psi) steel. Safety locking legs prevent slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for smooth entry and exit. Chain pickup comes standard. Designed with an 11 degree bend located 9" from the beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When using three-wheeled pallet trucks, select capacity +20% due to concentrated load center of board.
- Manufactured from high-strength steel tread plate for maximum durability
- Raised pattern safety tread plate helps provide positive traction

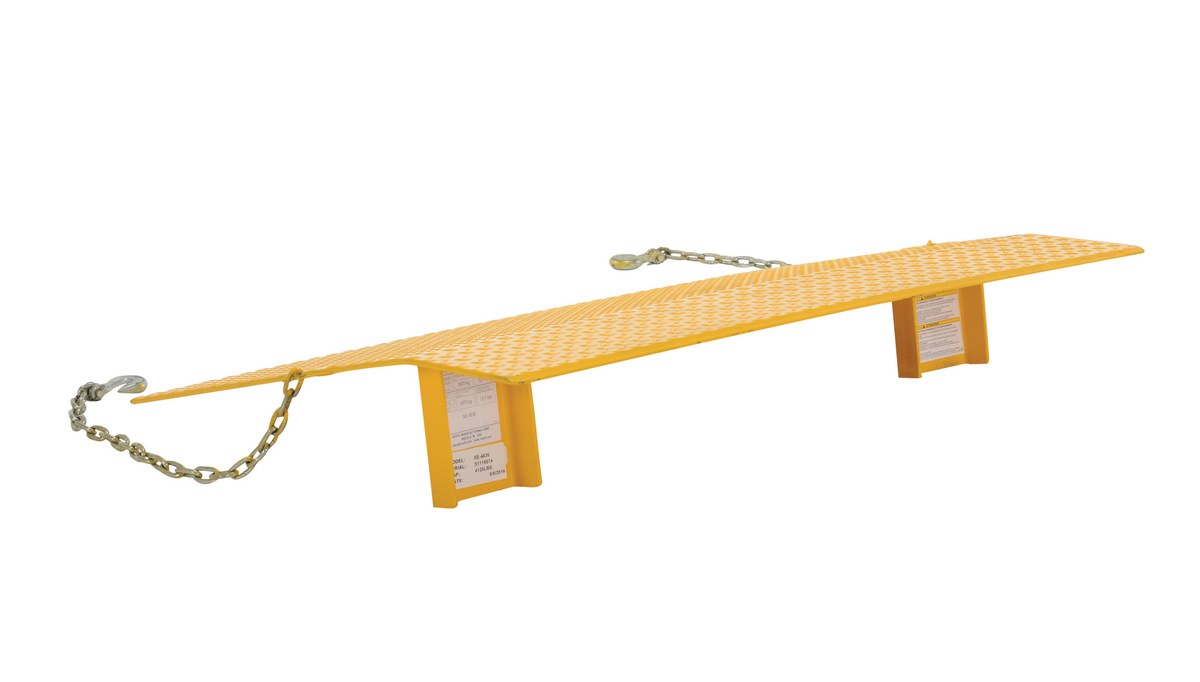

- OSHA compliant locking legs secure dock plate when in use
- Beveled entry and exit edges provide a smooth transition
Steel Railroad Dockboards
Steel Dock Plate Storage Rack
Aluminum Economizer Dockplates
Aluminum Mini DockplatesAdditional Models In This Family
SE-6048
SEH-7248
SEH-6048
SEH-7230
SE-6036
SEH-6048
SE-6036
SEH-4830
SE-4830
SEH-6060
SE-4836
SE-4836
SEH-6060
SEH-4860
SE-7260
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| SE-4830 | | 90 Days Limited Warranty | Steel Truck Dock Plate 30 In. x 48 In. x 7-9/16 In. 5,000 Lb. Capacity Yellow | Uniform Capacity (lb.): 5000 Height Difference (in.): 4 | 177 | ||

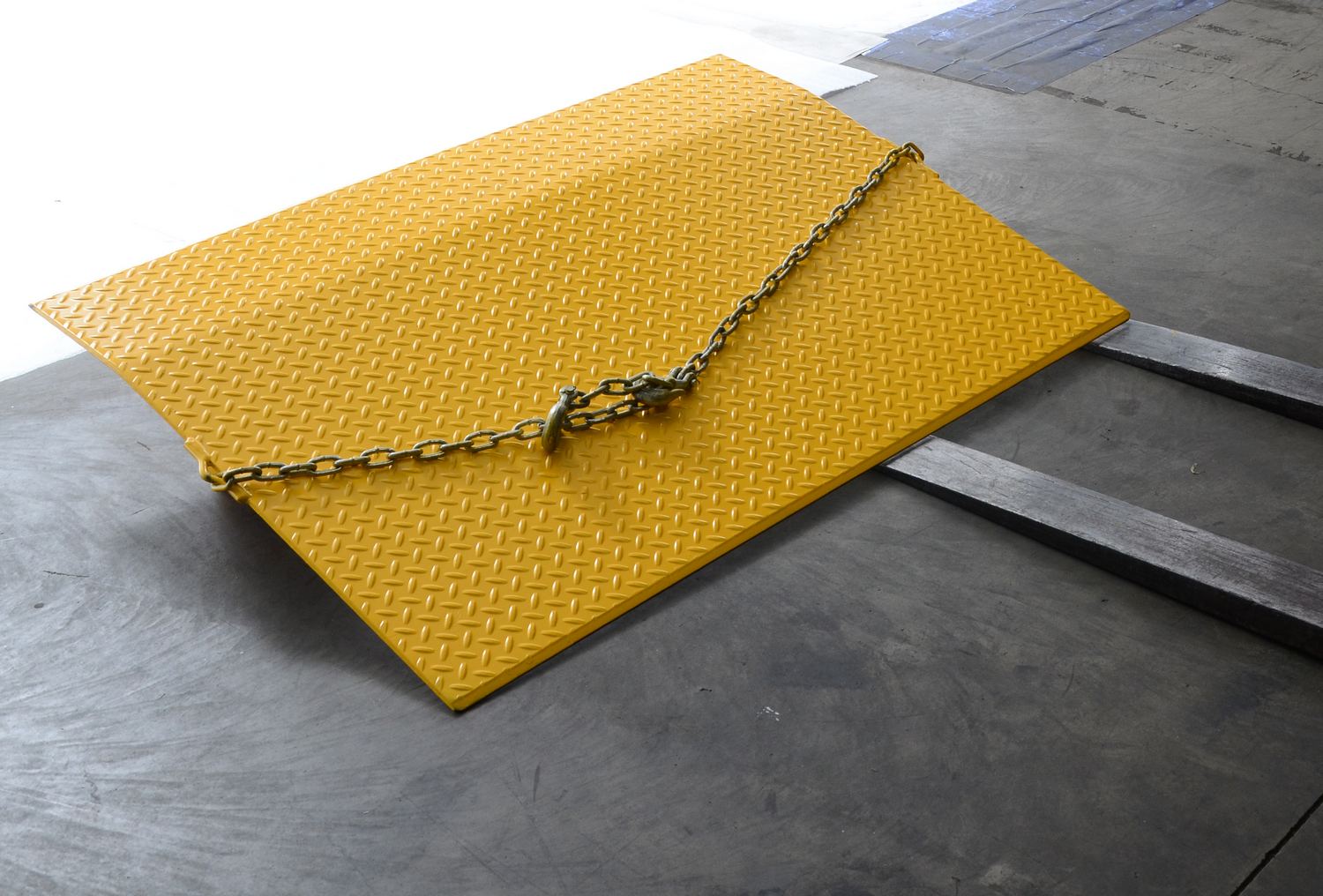

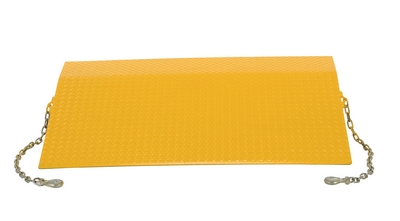

| SE-4836 | | 90 Days Limited Warranty | Steel Truck Dock Plate 36 In. x 48 In. x 8-9/16 In. 4,125 Lb. Capacity Yellow | Uniform Capacity (lb.): 4125 Height Difference (in.): 5 | 215 | ||
| SE-4848 |  | 90 Days Limited Warranty | Steel Truck Dock Plate 48 In. x 48 In. x 9-9/16 In. 3,090 Lb. Capacity Yellow | Uniform Capacity (lb.): 3090 Height Difference (in.): 7 | 324 | ||
| SE-4860 |  | 90 Days Limited Warranty | Steel Truck Dock Plate 60 In. x 48 In. x 12-1/2 In. 2,475 Lb. Capacity Yellow | Uniform Capacity (lb.): 2475 Height Difference (in.): 9 | 341 | ||
| SE-6036 | | 90 Days Limited Warranty | Steel Truck Dock Plate 36 In. x 60 In. x 8-9/16 In. 5,150 Lb. Capacity Yellow | Uniform Capacity (lb.): 5150 Height Difference (in.): 5 | 261 | ||
| SE-6048 | | 90 Days Limited Warranty | Steel Truck Dock Plate 48 In. x 60 In. x 9-9/16 In. 3,860 Lb. Capacity Yellow | Uniform Capacity (lb.): 3860 Height Difference (in.): 7 | 362 | ||
| SE-6060 |  | 90 Days Limited Warranty | Steel Truck Dock Plate 60 In. x 60 In. x 12-1/2 In. 3,090 Lb. Capacity Yellow | Uniform Capacity (lb.): 3090 Height Difference (in.): 9 | 498 | ||
| SE-7230 |  | 90 Days Limited Warranty | Steel Truck Dock Plate 30 In. x 72 In. x 7-9/16 In. 7,720 Lb. Capacity Yellow | Uniform Capacity (lb.): 7720 Height Difference (in.): 4 | 289 | ||
| SE-7236 |  | 90 Days Limited Warranty | Steel Truck Dock Plate 36 In. x 72 In. x 8-9/16 In. 6,430 Lb. Capacity Yellow | Uniform Capacity (lb.): 6430 Height Difference (in.): 5 | 303 | ||
| SE-7248 |  | 90 Days Limited Warranty | Steel Truck Dock Plate 48 In. x 72 In. x 9-9/16 In. 4,820 Lb. Capacity Yellow | Uniform Capacity (lb.): 4820 Height Difference (in.): 7 | 413 | ||
| SE-7260 | | 90 Days Limited Warranty | Steel Truck Dock Plate 60 In. x 72 In. x 12-1/2 In. 3,860 Lb. Capacity Yellow | Uniform Capacity (lb.): 3860 Height Difference (in.): 9 | 475 | ||
| SEH-4830 | | 90 Days Limited Warranty | Steel Truck Dock Plate 30 In. x 48 In. x 7-11/16 In. 8,800 Lb. Capacity Yellow | Uniform Capacity (lb.): 8800 Height Difference (in.): 4 | 227 | ||
| SEH-4836 |  | 90 Days Limited Warranty | Steel Truck Dock Plate 36 In. x 48 In. x 8-11/16 In. 7,300 Lb. Capacity Yellow | Uniform Capacity (lb.): 7300 Height Difference (in.): 5 | 263 | ||
| SEH-4848 |  | 90 Days Limited Warranty | Steel Truck Dock Plate 48 In. x 48 In. x 9-11/16 In. 5,500 Lb. Capacity Yellow | Uniform Capacity (lb.): 5500 Height Difference (in.): 7 | 429 | ||

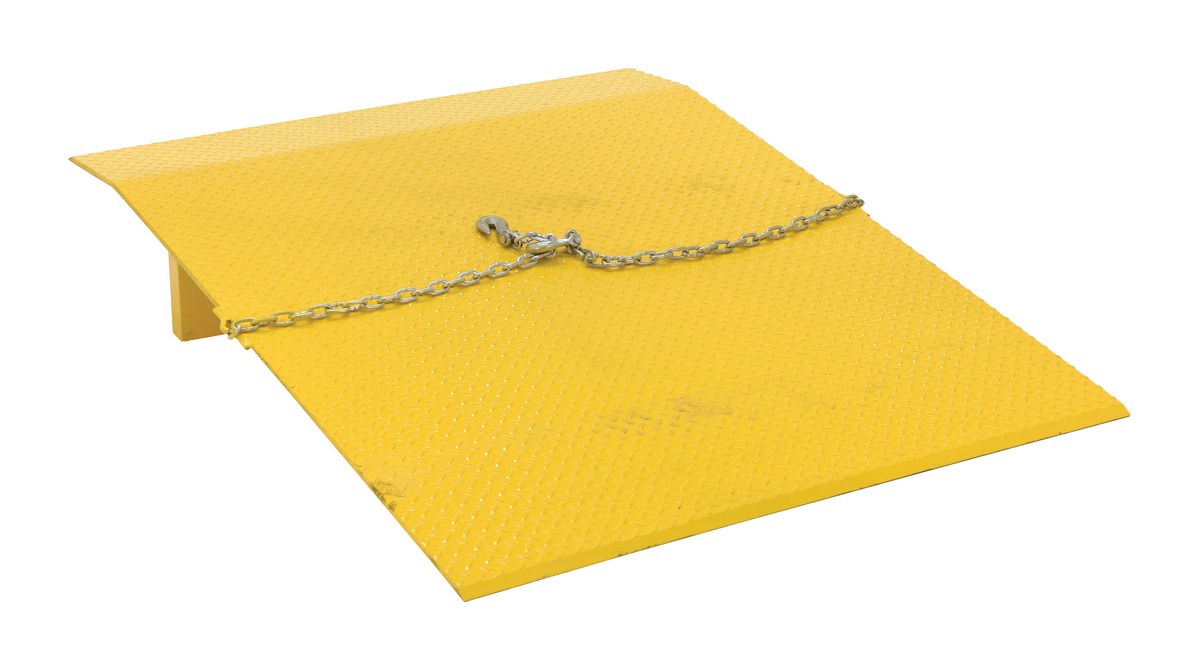

| SEH-4860 |  | 90 Days Limited Warranty | Steel Truck Dock Plate 60 In. x 48 In. x 12-5/8 In. 4,400 Lb. Capacity Yellow | Uniform Capacity (lb.): 4400 Height Difference (in.): 9 | 528 | ||
| SEH-6036 |  | 90 Days Limited Warranty | Steel Truck Dock Plate 36 In. x 60 In. x 8-11/16 In. 9,160 Lb. Capacity Yellow | Uniform Capacity (lb.): 9160 Height Difference (in.): 5 | 317 | ||

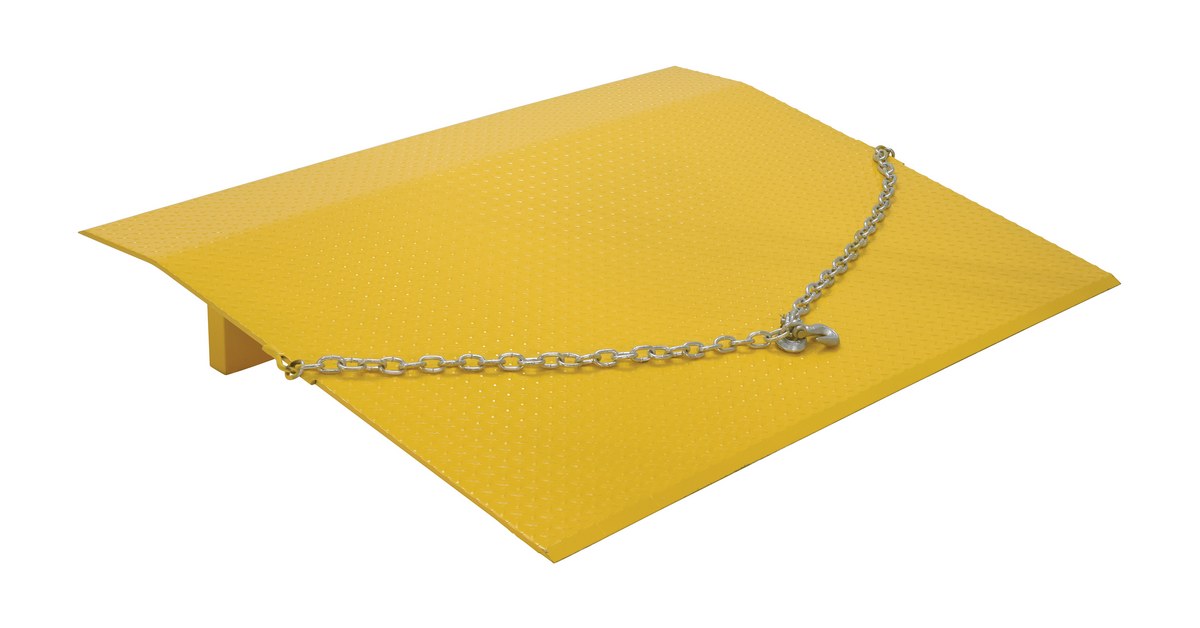

| SEH-6048 |  | 90 Days Limited Warranty | Steel Truck Dock Plate 48 In. x 60 In. x 9-11/16 In. 6,875 Lb. Capacity Yellow | Uniform Capacity (lb.): 6875 Height Difference (in.): 7 | 445 | ||

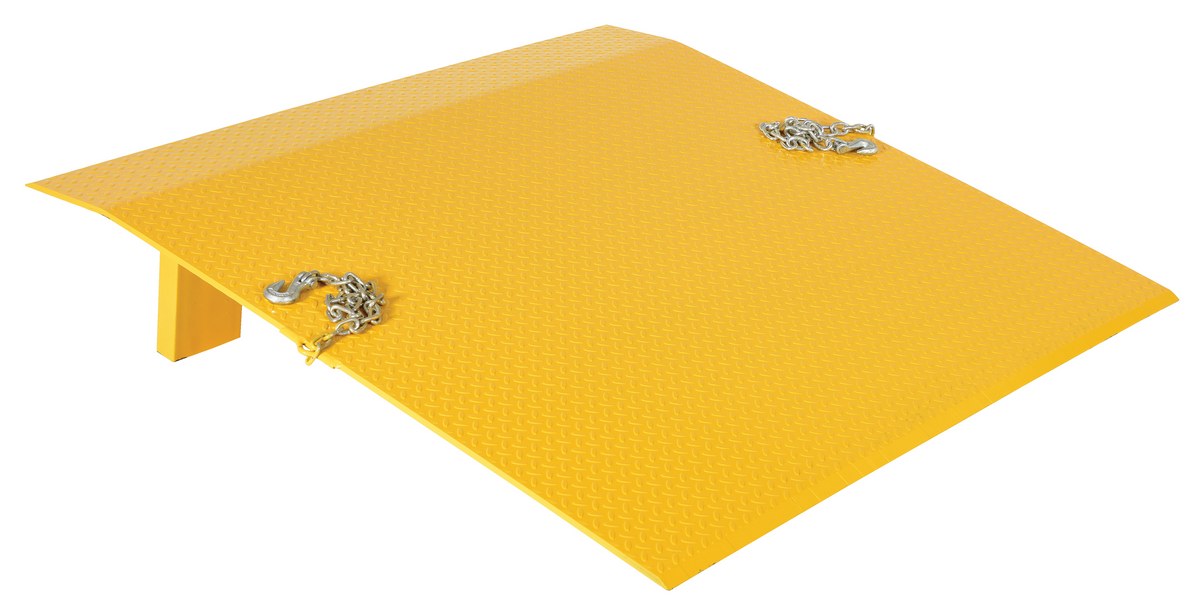

| SEH-6060 | | 90 Days Limited Warranty | Steel Truck Dock Plate 60 In. x 60 In. x 12-5/8 In. 5,500 Lb. Capacity Yellow | Uniform Capacity (lb.): 5500 Height Difference (in.): 9 | 554 | ||
| SEH-7230 | | 90 Days Limited Warranty | Steel Truck Dock Plate 30 In. x 72 In. x 7-11/16 In. 13,200 Lb. Capacity Yellow | Uniform Capacity (lb.): 13200 Height Difference (in.): 4 | 369 | ||
| SEH-7236 |  | 90 Days Limited Warranty | Steel Truck Dock Plate 36 In. x 72 In. x 8-11/16 In. 11,000 Lb. Capacity Yellow | Uniform Capacity (lb.): 11000 Height Difference (in.): 5 | 385 | ||
| SEH-7248 | | 90 Days Limited Warranty | Steel Truck Dock Plate 48 In. x 72 In. x 9-11/16 In. 8,250 Lb. Capacity Yellow | Uniform Capacity (lb.): 8250 Height Difference (in.): 7 | 528 | ||
| SEH-7260 |  | 90 Days Limited Warranty | Steel Truck Dock Plate 60 In. x 72 In. x 12-5/8 In. 6,600 Lb. Capacity Yellow | Uniform Capacity (lb.): 6600 Height Difference (in.): 9 | 627 |
* Custom Sizes Available As Special Order
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Height Difference (in.): 4
Uniform Capacity (lb.): 5000
Height Difference (in.): 4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4125
Height Difference (in.): 5
Uniform Capacity (lb.): 4125
Height Difference (in.): 5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3090
Height Difference (in.): 7
Uniform Capacity (lb.): 3090
Height Difference (in.): 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2475
Height Difference (in.): 9
Uniform Capacity (lb.): 2475
Height Difference (in.): 9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5150
Height Difference (in.): 5
Uniform Capacity (lb.): 5150
Height Difference (in.): 5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3860
Height Difference (in.): 7
Uniform Capacity (lb.): 3860
Height Difference (in.): 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3090
Height Difference (in.): 9
Uniform Capacity (lb.): 3090
Height Difference (in.): 9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 7720
Height Difference (in.): 4
Uniform Capacity (lb.): 7720
Height Difference (in.): 4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6430
Height Difference (in.): 5
Uniform Capacity (lb.): 6430
Height Difference (in.): 5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4820
Height Difference (in.): 7
Uniform Capacity (lb.): 4820
Height Difference (in.): 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3860
Height Difference (in.): 9
Uniform Capacity (lb.): 3860
Height Difference (in.): 9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8800
Height Difference (in.): 4
Uniform Capacity (lb.): 8800
Height Difference (in.): 4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 7300
Height Difference (in.): 5
Uniform Capacity (lb.): 7300
Height Difference (in.): 5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5500
Height Difference (in.): 7
Uniform Capacity (lb.): 5500
Height Difference (in.): 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4400
Height Difference (in.): 9
Uniform Capacity (lb.): 4400
Height Difference (in.): 9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 9160
Height Difference (in.): 5
Uniform Capacity (lb.): 9160
Height Difference (in.): 5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6875
Height Difference (in.): 7
Uniform Capacity (lb.): 6875
Height Difference (in.): 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5500
Height Difference (in.): 9
Uniform Capacity (lb.): 5500
Height Difference (in.): 9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 13200
Height Difference (in.): 4
Uniform Capacity (lb.): 13200
Height Difference (in.): 4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 11000
Height Difference (in.): 5
Uniform Capacity (lb.): 11000
Height Difference (in.): 5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8250
Height Difference (in.): 7
Uniform Capacity (lb.): 8250
Height Difference (in.): 7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6600
Height Difference (in.): 9
Uniform Capacity (lb.): 6600
Height Difference (in.): 9
For More Details of the Option Click the Red Model Button
| Model | Image | Descriptions | ||||||
| RPL-STL |  |
 |
Removable Pickup Loops | |||||
| SP-STL | |
|
Span Pins & Holes (4) | |||||
| HOLE-STL | |
|
Extra Span Holes | |||||
| PIN-STL | |
|
Extra Span Pins | |||||
| ATC-12 | |
|
Anti-Theft Chain (144") | |||||
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
