Low Profile Pallet Trucks

- - - -

Description
Model Chart
PDF's
Image Gallery

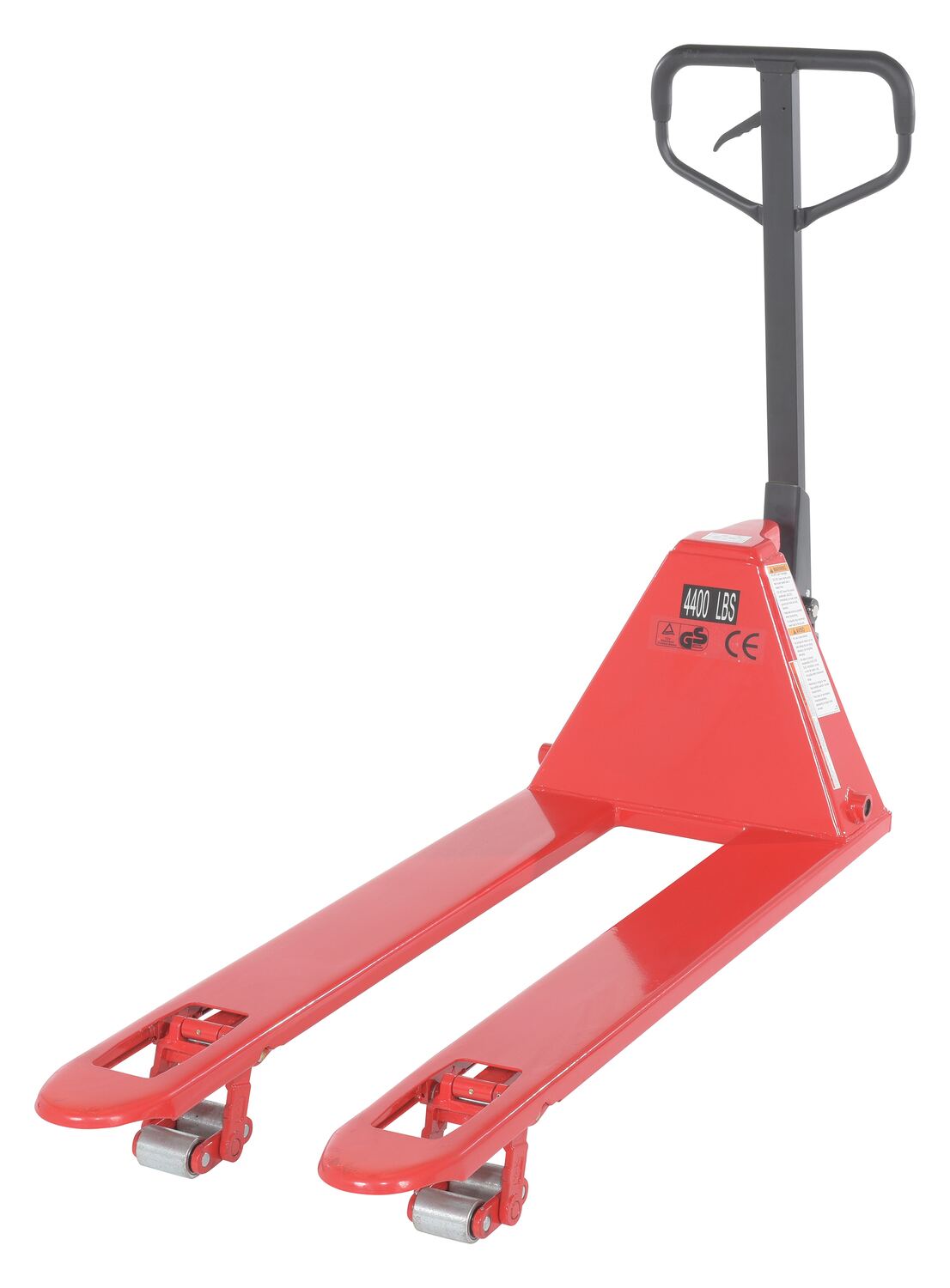

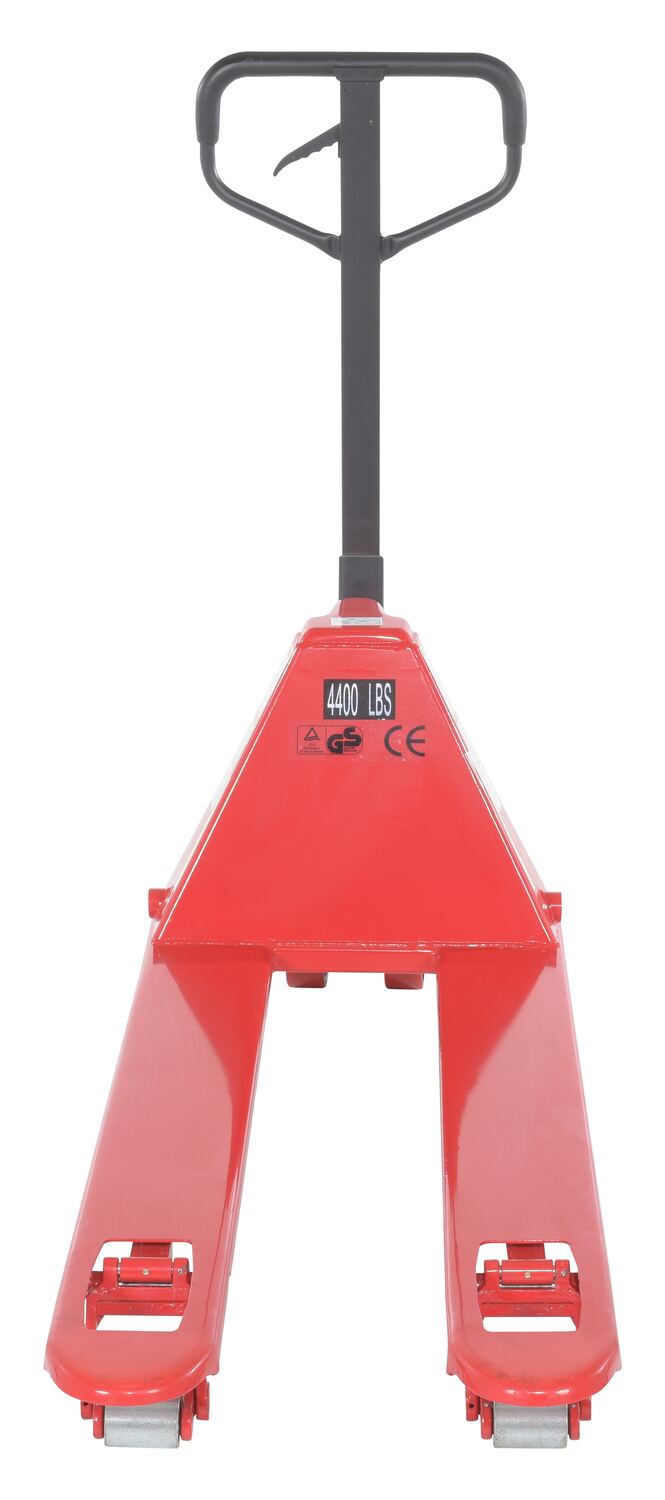

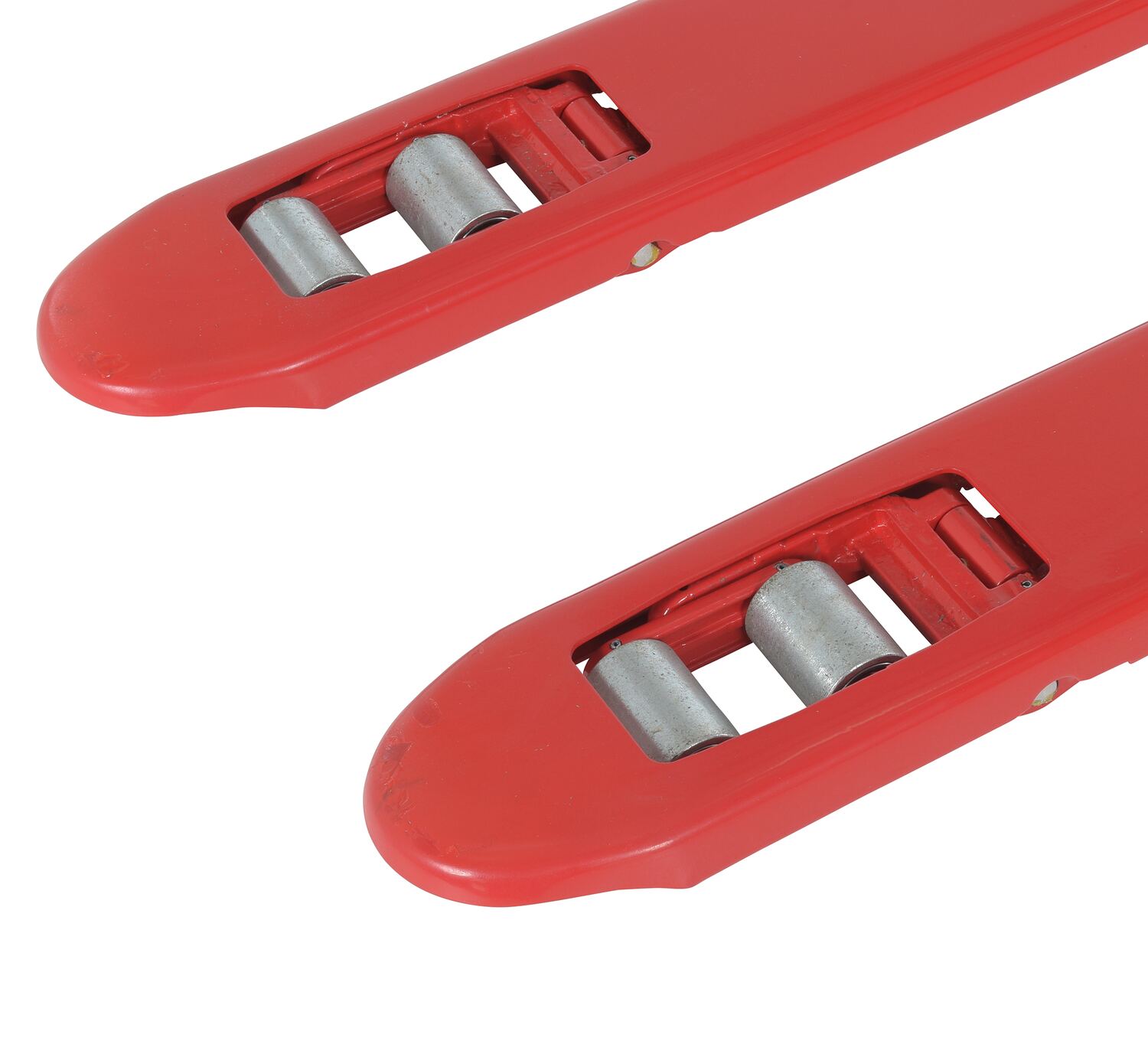

PM4-2148-LP_A.jpg PM4-2148-LP_B.jpg PM4-2148-LP_C.jpg PM4-2148-LP_D.jpg
PM4-2148-LP_E.jpg PM4-2148-LP_F.jpg PM4-2148-LP_G.jpg

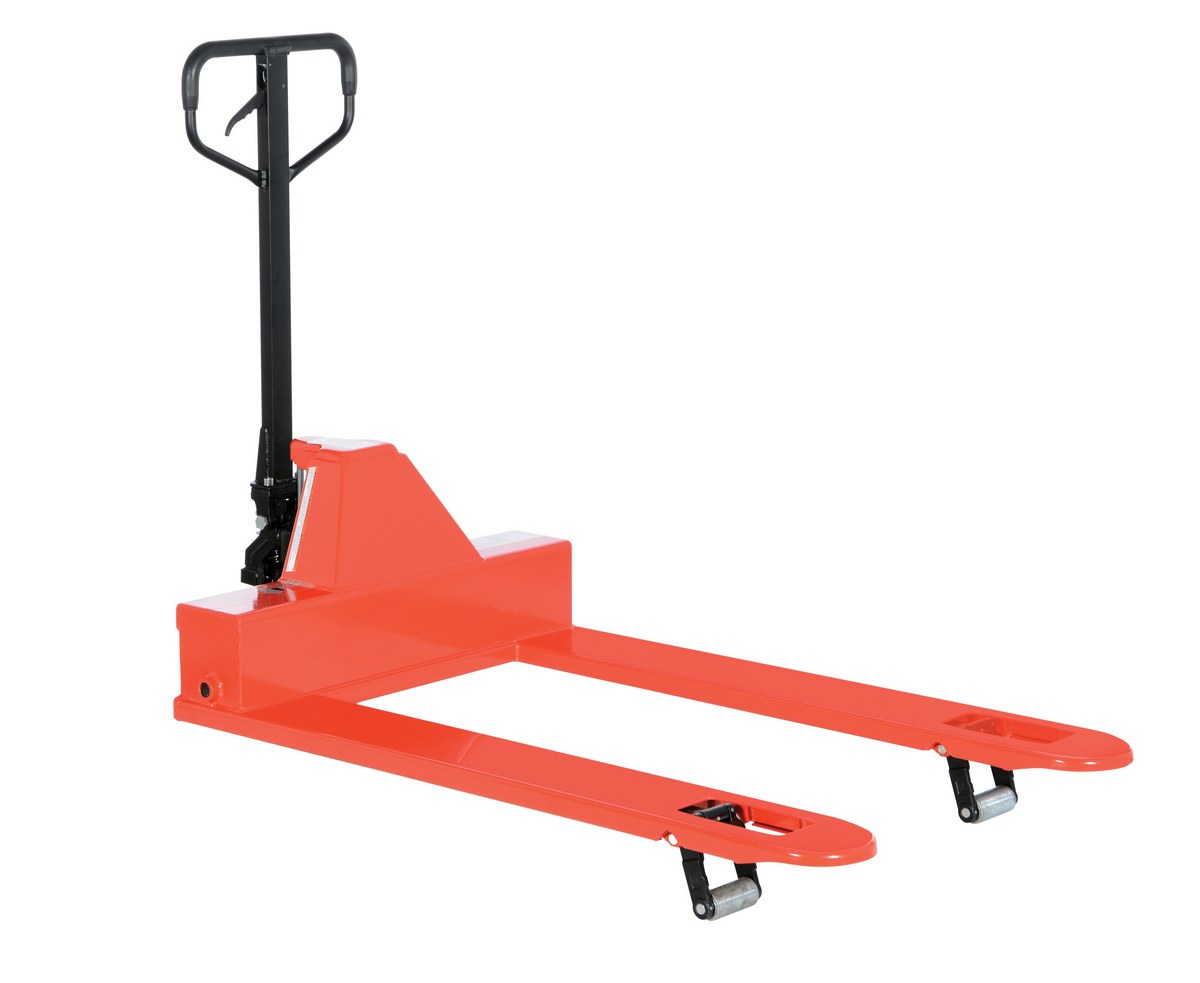

Low Profile Pallet Trucks

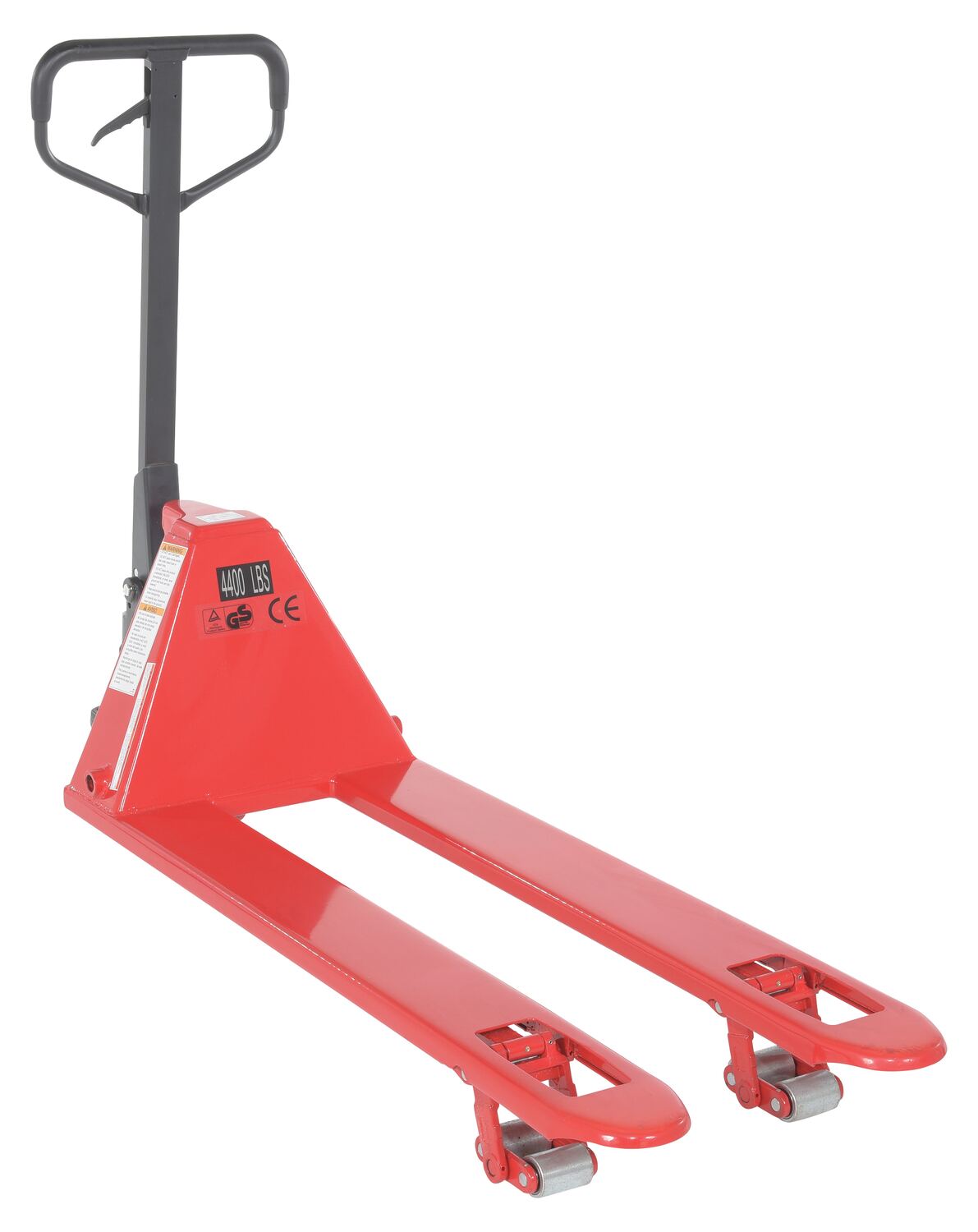

model: PM4-2148-LP



Featured Ergonomic Solutions


Manual & DC Work Positioners
DC Powered Tilt Master
Ground Lift Scissor Tables
Lift & Tilt High Lift Pallet Truck
Ground Lift Scissor Tables with Handrails
Low Profile Scissor Lift Cart
Pallet Trucks with Hand Brake
Trash Can Carts
Pallet Trucks
model chart

Product Family Overview

Print Friendly
Low Profile Pallet Trucks
SERIES: PM4

Ships with the Handle Detached Standard

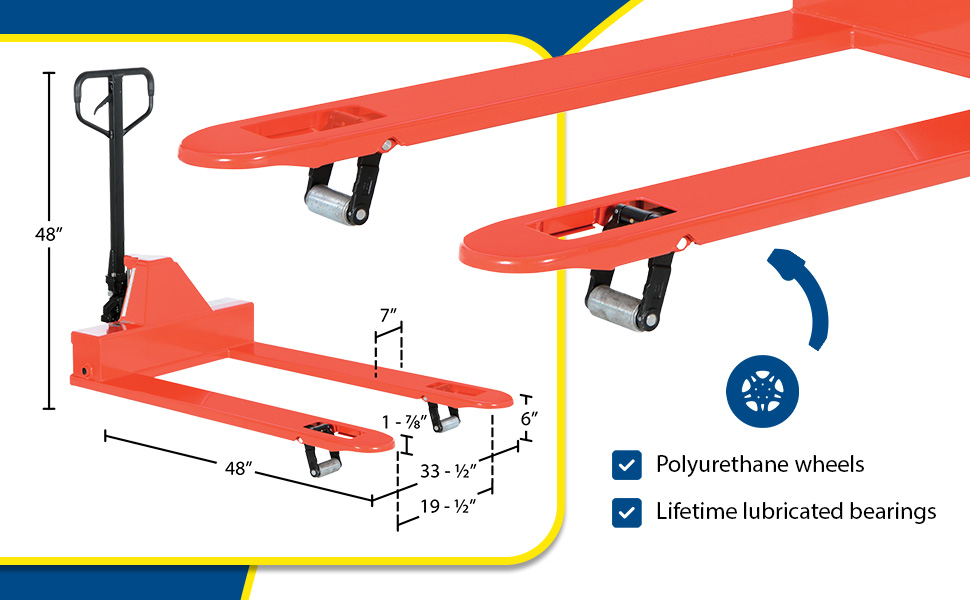

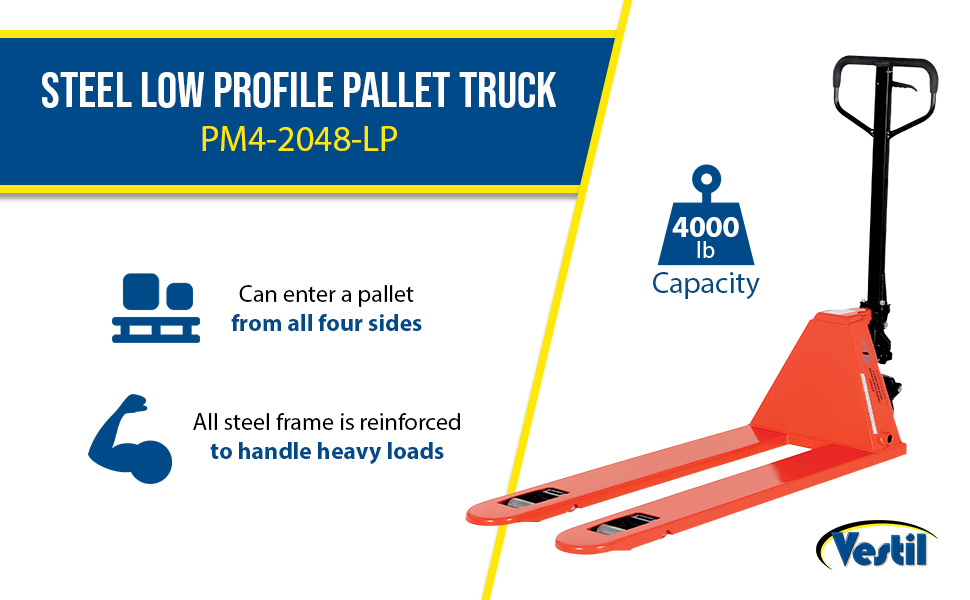

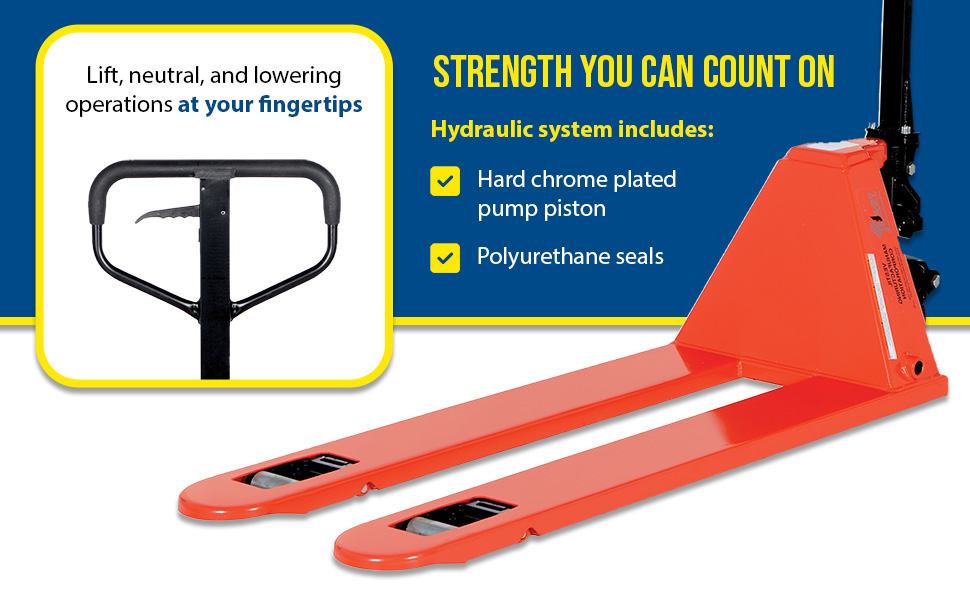

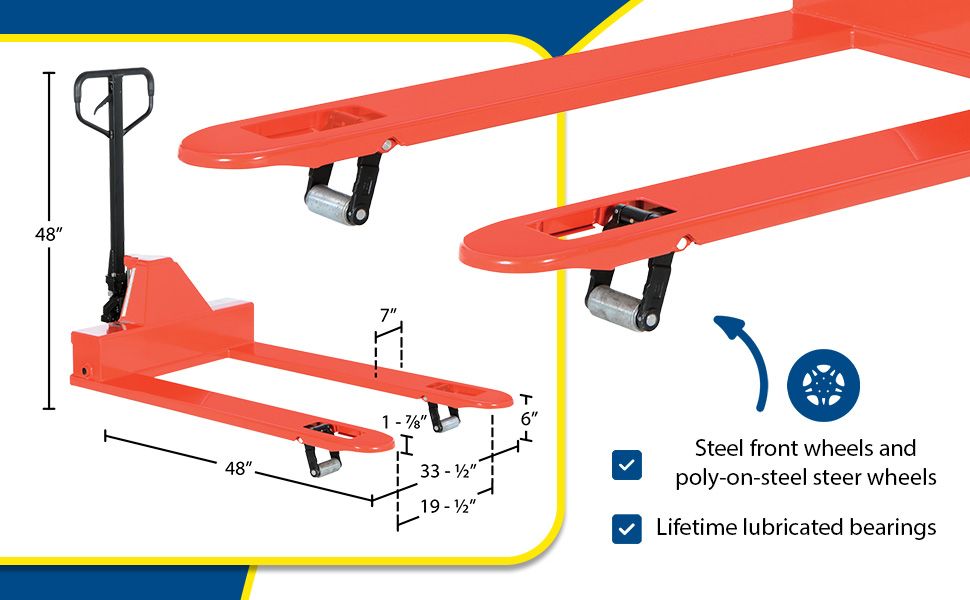

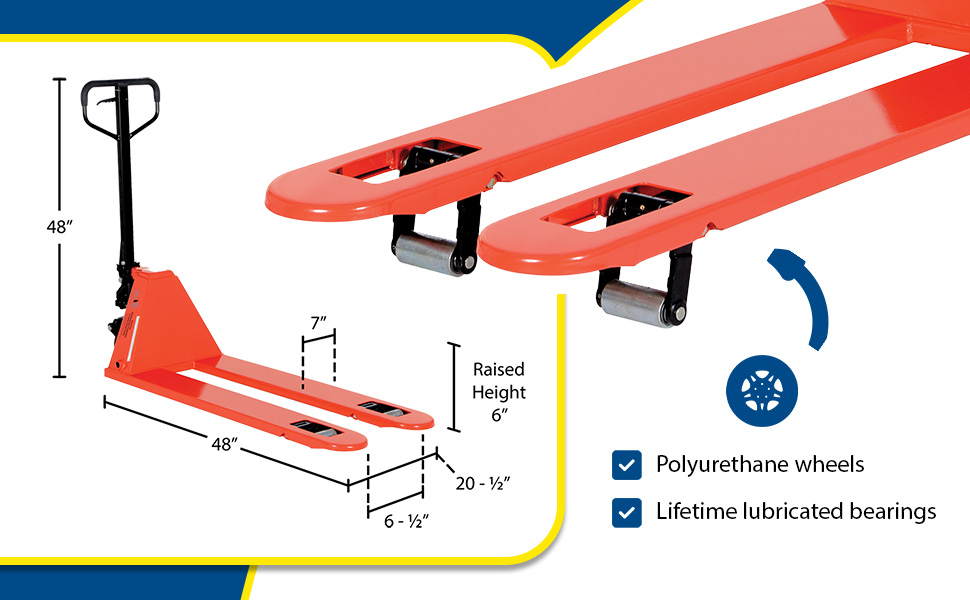

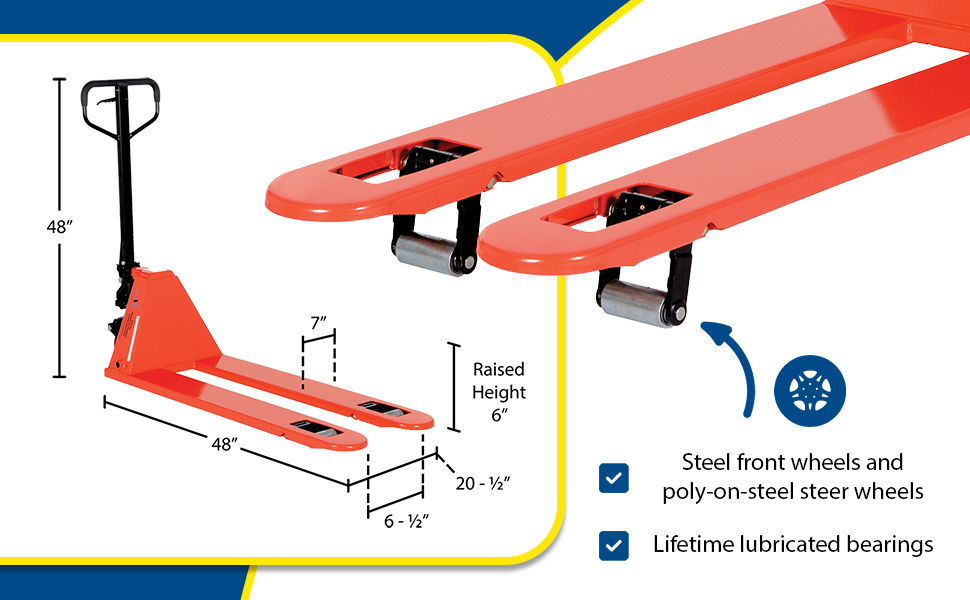

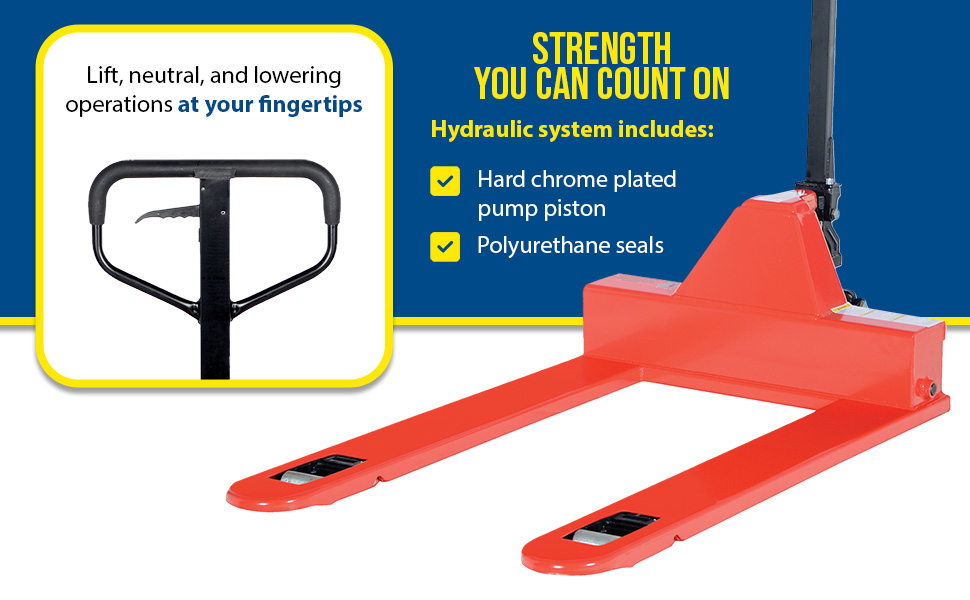

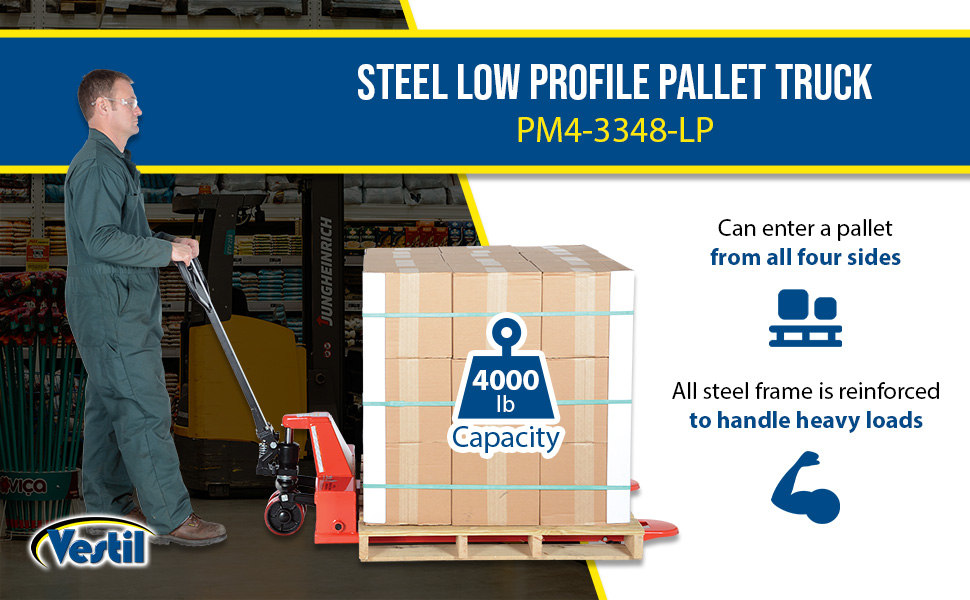

The Low Profile Pallet Truck enters pallets from all four sides. All steel frame is reinforced to handle 4,000 lb. capacity loads. Individual fork width is 7" wide. Wide loop control handle with lift, neutral, and lower functions provides fingertip control. Lifetime lubricated bearings. Hydraulic system has hard chrome plated pump piston with polyurethane seals. Suspension system has a heavy-duty thrust bearing. Complete with adjustable push rods, polyurethane wheels, steel load rollers and red baked-in powder-coated toughness.

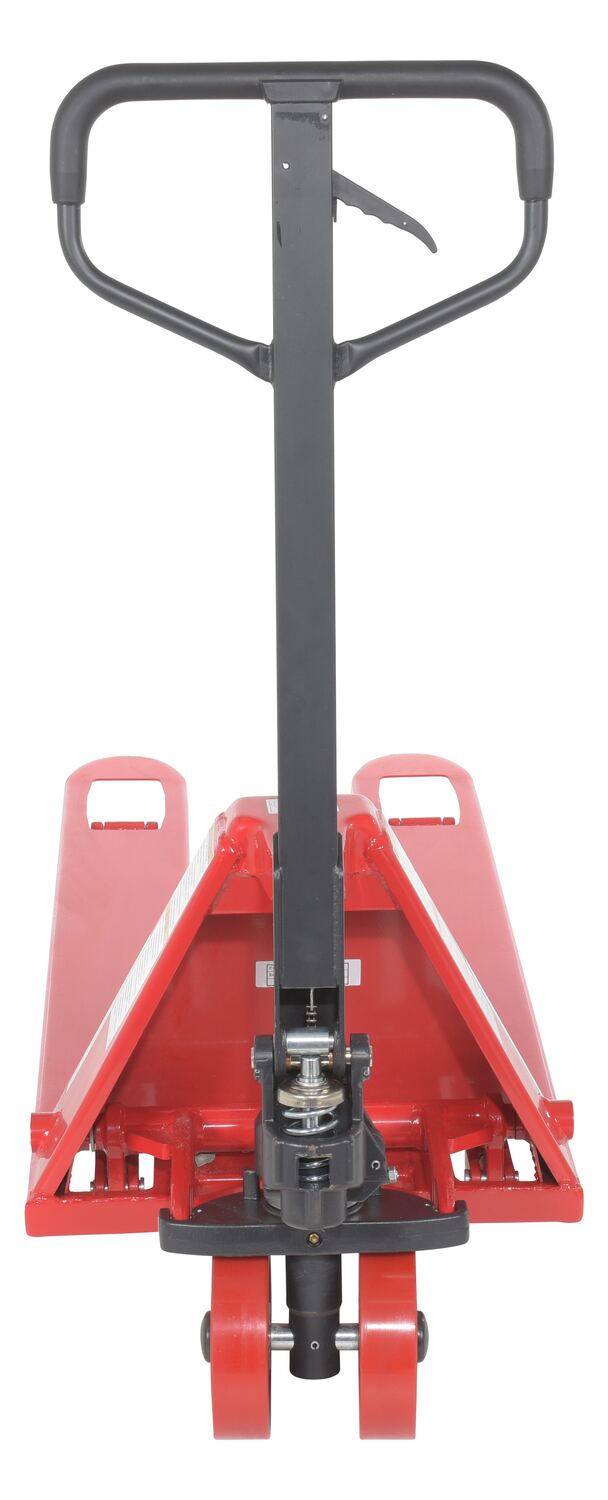

  • Wide loop handle offers easy unit maneuverability
  • Fingertip lever provides an easy lift, lower and neutral operation

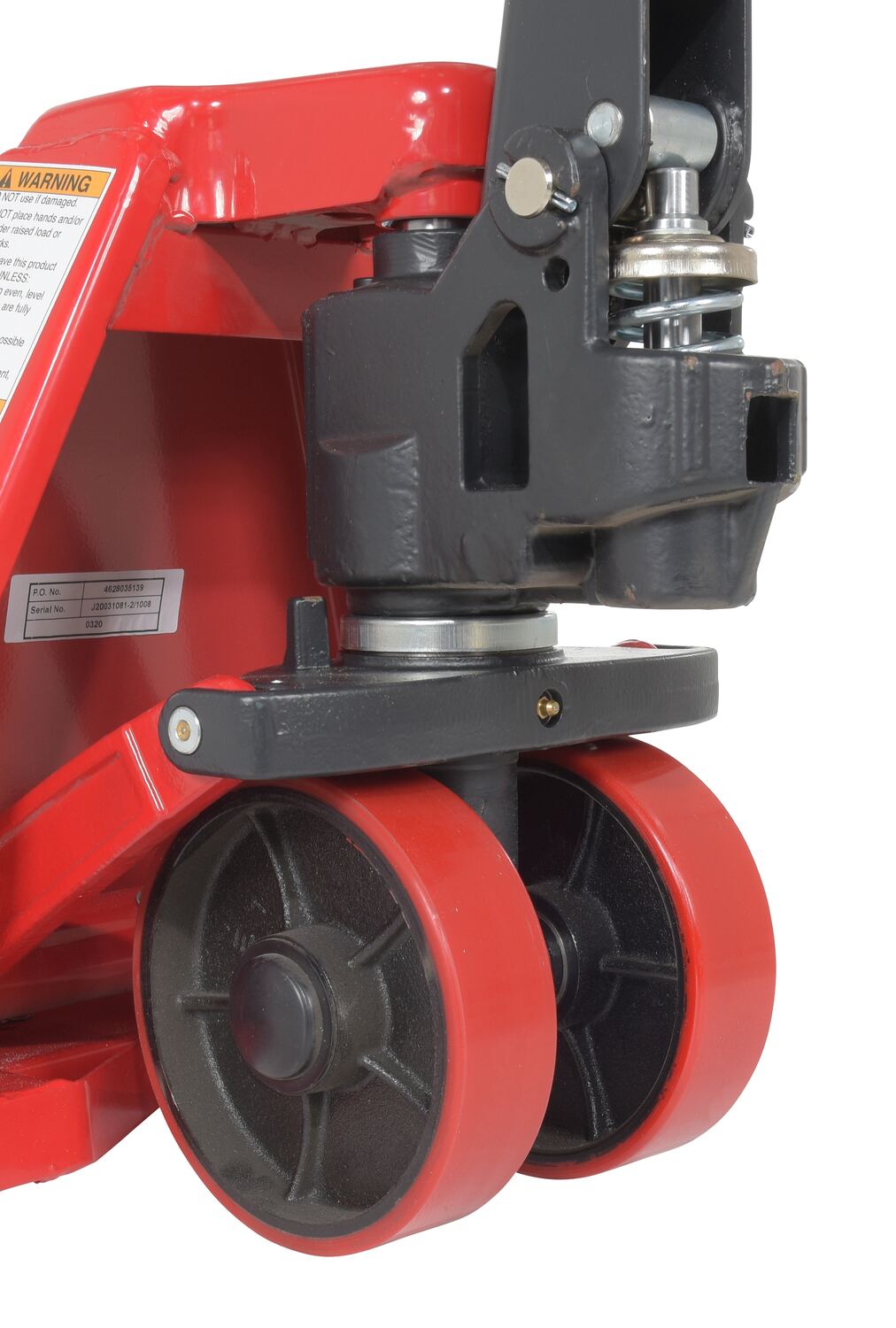

  • Suspension system has heavy-duty thrust bearing for long lasting use
  • Lifetime lubricated bearings never need maintenance work

Ships with the Handle Detached Standard

The Low Profile Pallet Truck enters pallets from all four sides. All steel frame is reinforced to handle 4,000 lb. capacity loads. Individual fork width is 7" wide. Wide loop control handle with lift, neutral, and lower functions provides fingertip control. Lifetime lubricated bearings. Hydraulic system has hard chrome plated pump piston with polyurethane seals. Suspension system has a heavy-duty thrust bearing. Complete with adjustable push rods, polyurethane wheels, steel load rollers and red baked-in powder-coated toughness.

  • Wide loop handle offers easy unit maneuverability
  • Fingertip lever provides an easy lift, lower and neutral operation
  • Suspension system has heavy-duty thrust bearing for long lasting use
  • Lifetime lubricated bearings never need maintenance work

Other Manual Pallet Trucks

 Cold Room Hand Pallet Truck Pallet Trucks with Hand Brake Pallet Truck with Digital Scale (Pramac) Single Fork Pallet Master

Additional Models In This Family
view entire Image Gallery

PM4-2048-LP

model PM4-2048-LP

PM4-3348-LP

model PM4-3348-LP

PM4-2748-LP

model PM4-2748-LP

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

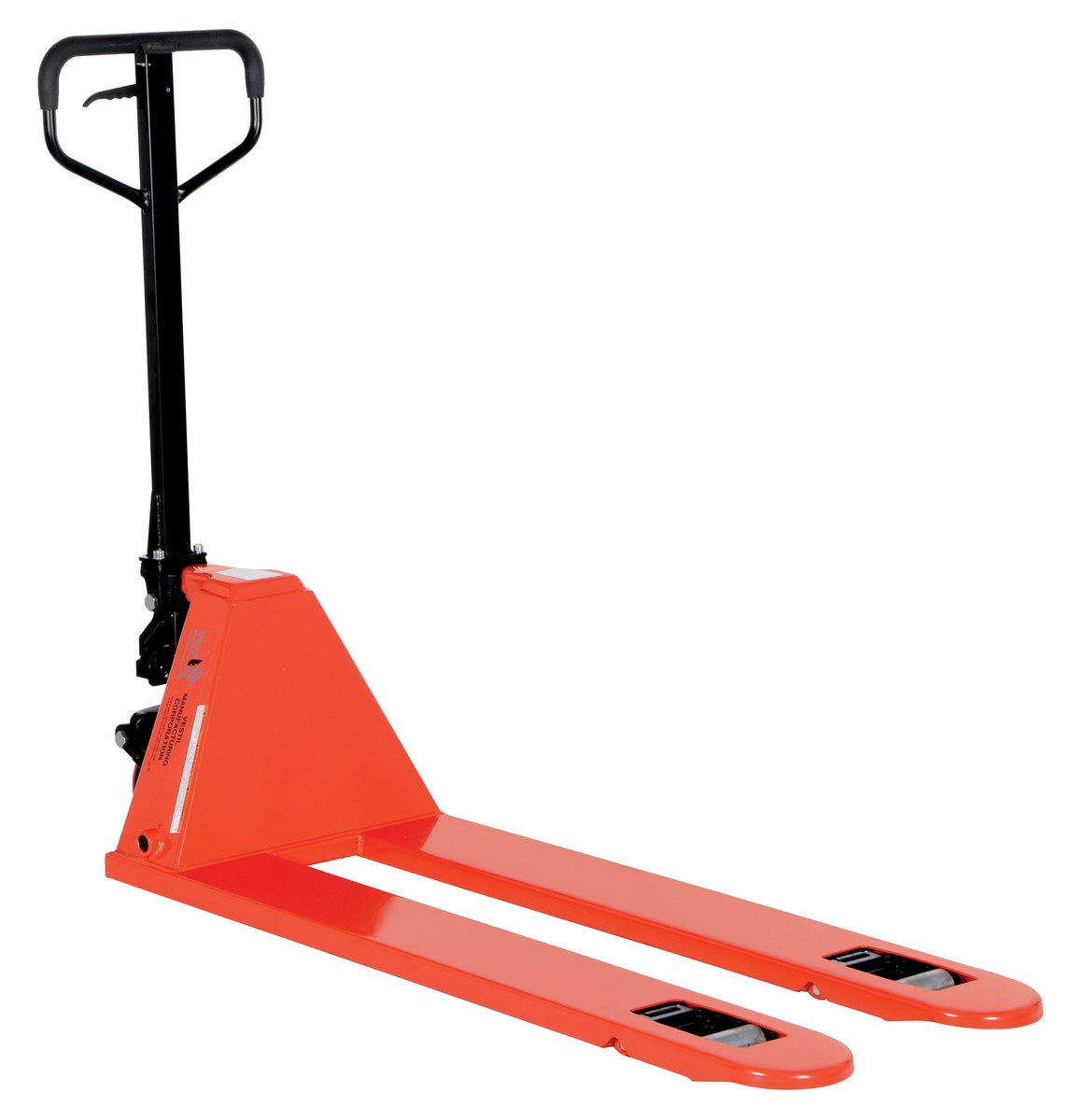

PM4-2048-LP POPULAR PM4-2048-LP1 Year Limited WarrantySteel Low Profile Pallet Truck 61 In. x 20-1/2 In. x 49 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8		229
PM4-2048-LP-6PKG PM4-2048-LP-6PKG1 Year Limited WarrantySteel (Quantity 6) Low Profile Pallet Truck 61 In. x 20-1/2 In. x 49 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8		1123
PM4-2148-LP PM4-2148-LP1 Year Limited WarrantySteel Low Profile Pallet Truck 21 In. x 48 In. 4,000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 21		241

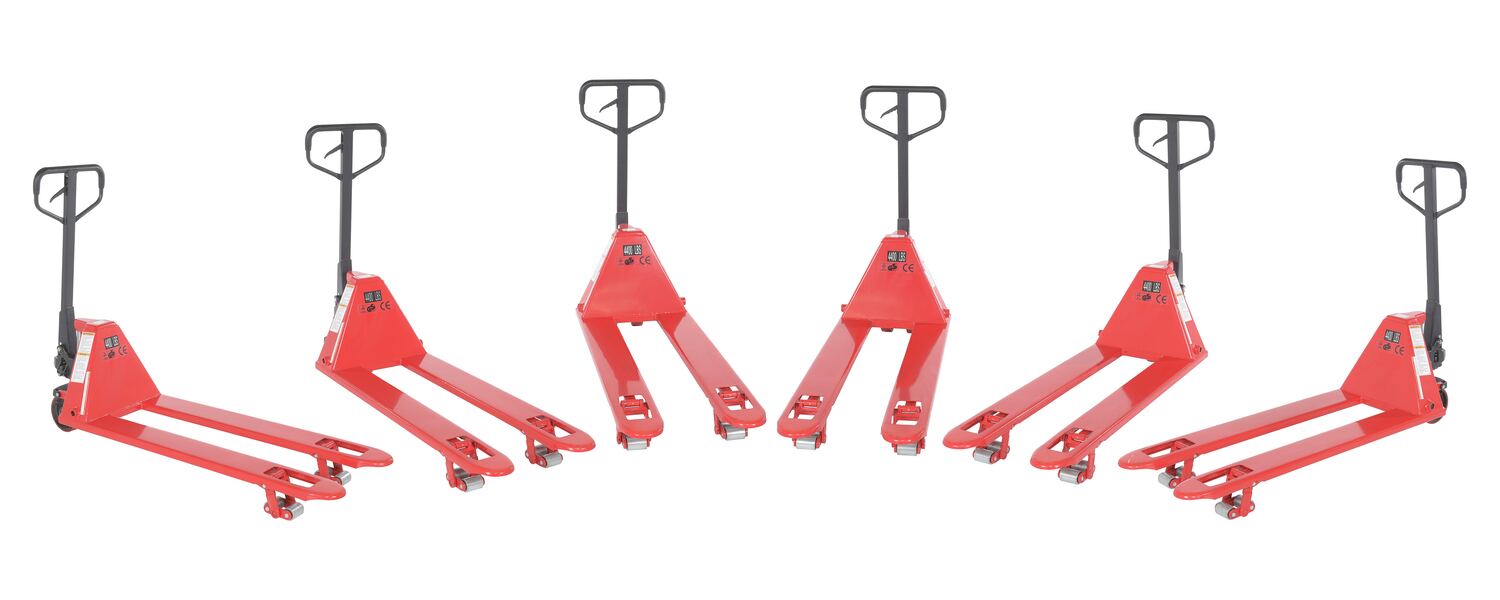

PM4-2148-LP-6PKG PM4-2148-LP-6PKG1 Year Limited WarrantySteel Low Profile Pallet Trucks 6 Pack 21 In. x 48 In. 4,000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 21		1140

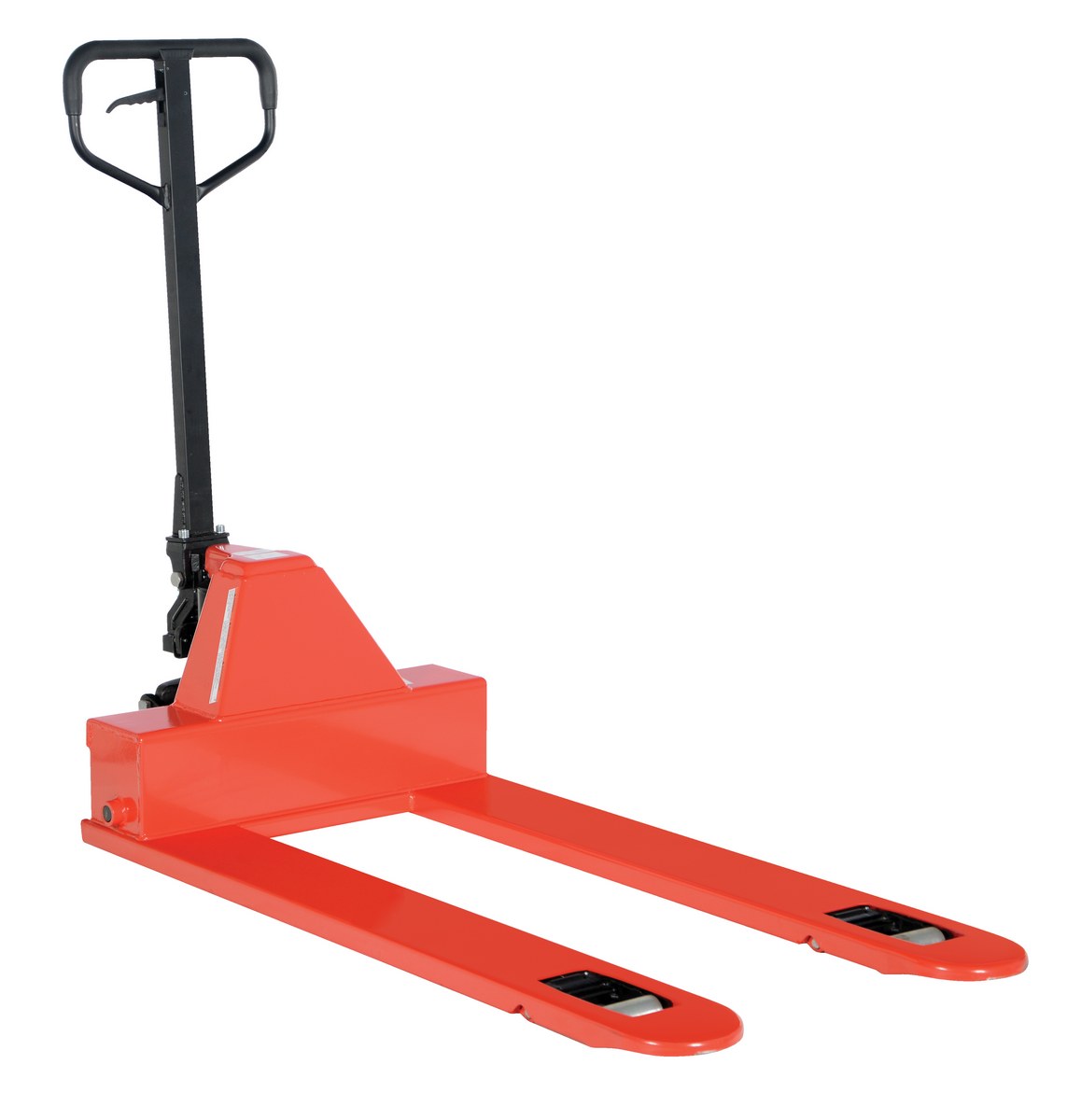

PM4-2748-LP PM4-2748-LP1 Year Limited WarrantySteel Low Profile Pallet Truck 64 In. x 27 In. x 48 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 27		253
PM4-2748-LP-6PKG PM4-2748-LP-6PKG1 Year Limited WarrantySteel (Quantity 6) Low Profile Pallet Truck 64 In. x 27 In. x 48 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 27		1372
PM4-3348-LP PM4-3348-LP1 Year Limited WarrantySteel Low Profile Pallet Truck 63 In. x 33 In. x 48 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 33		286
PM4-3348-LP-6PKG PM4-3348-LP-6PKG1 Year Limited WarrantySteel (Quantity 6) Low Profile Pallet Truck 63 In. x 33 In. x 48 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4000
Overall Fork Width (in.): 33		1538

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

PM4-2048-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8

PM4-2048-LP-6PKG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 20-5/8

PM4-2148-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 21
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 21

PM4-2148-LP-6PKG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 21
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 21

PM4-2748-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 27
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 27

PM4-2748-LP-6PKG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 27
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 27

PM4-3348-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 33
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 33

PM4-3348-LP-6PKG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 33
Uniform Capacity (lb.): 4000
Overall Fork Width (in.): 33
Low Profile Pallet Trucks PDF's will open in a new window when clicked.

Manuals


PM4-LP
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


PM4-2048-LP

PM4-2748-LP

PM4-3348-LP

Testing Certificates


PM4-2048-LP

PM4-2048-LP-6PKG

PM4-2148-LP

PM4-2148-LP-6PKG

PM4-2748-LP

PM4-2748-LP-6PKG

PM4-3348-LP

PM4-3348-LP-6PKG

SDS Sheets

Hydraulic Oil SDS Sheet for: PM4-2048-LP
Hydraulic Oil SDS Sheet for: PM4-2048-LP-6PKG
Hydraulic Oil SDS Sheet for: PM4-2748-LP
Hydraulic Oil SDS Sheet for: PM4-2748-LP-6PKG
Hydraulic Oil SDS Sheet for: PM4-3348-LP
Hydraulic Oil SDS Sheet for: PM4-3348-LP-6PKG

Other PDF's

MEZZ-R5
Low Profile Pallet Jack Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the distance in between the forks for PM4-2148-LP?

A: The distance between the forks is about 8"
