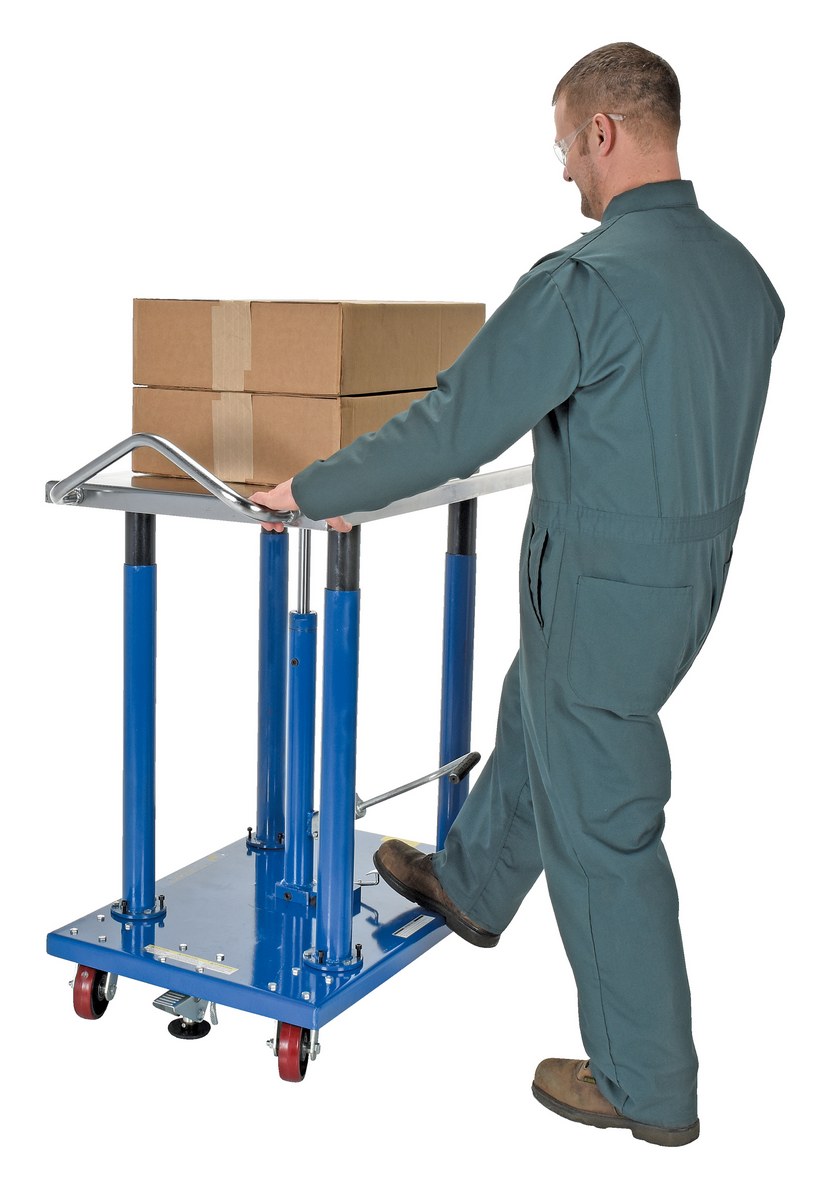

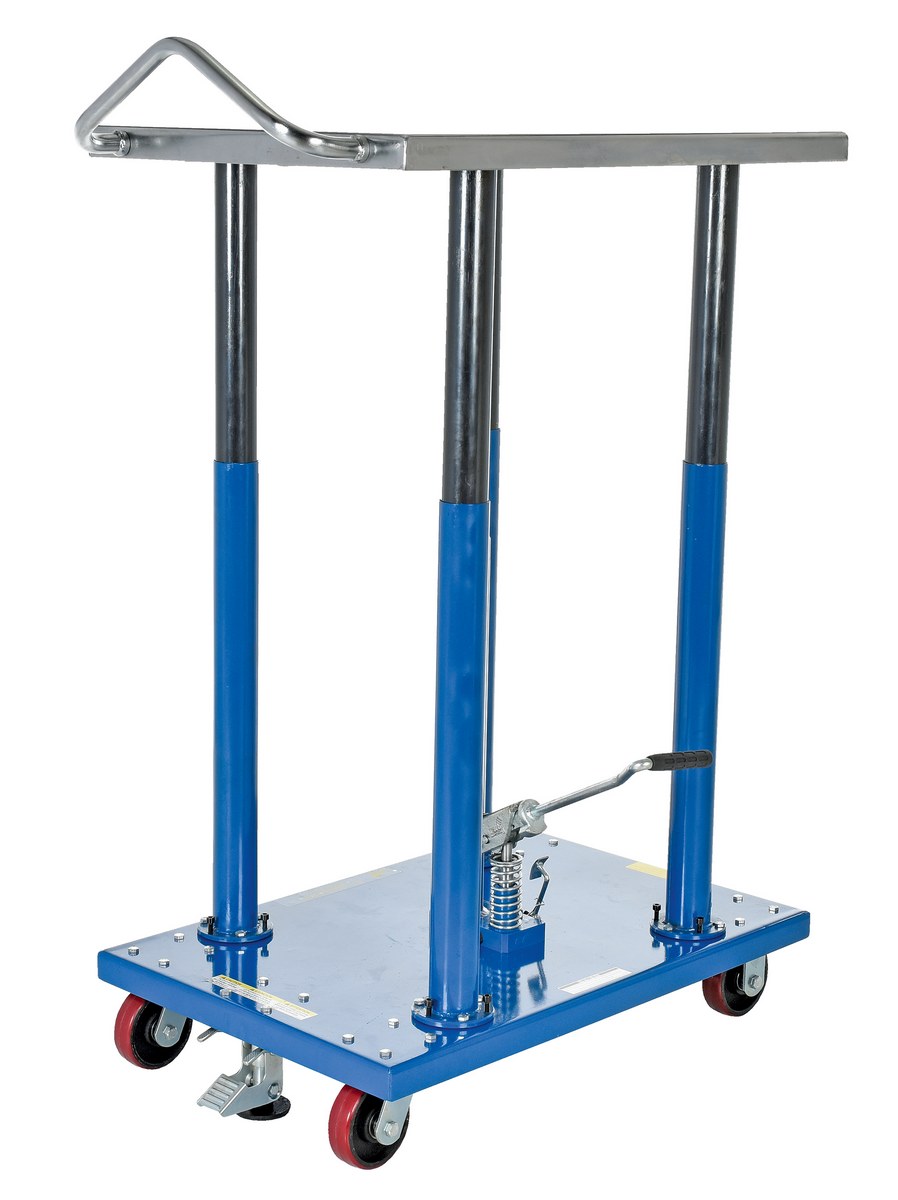

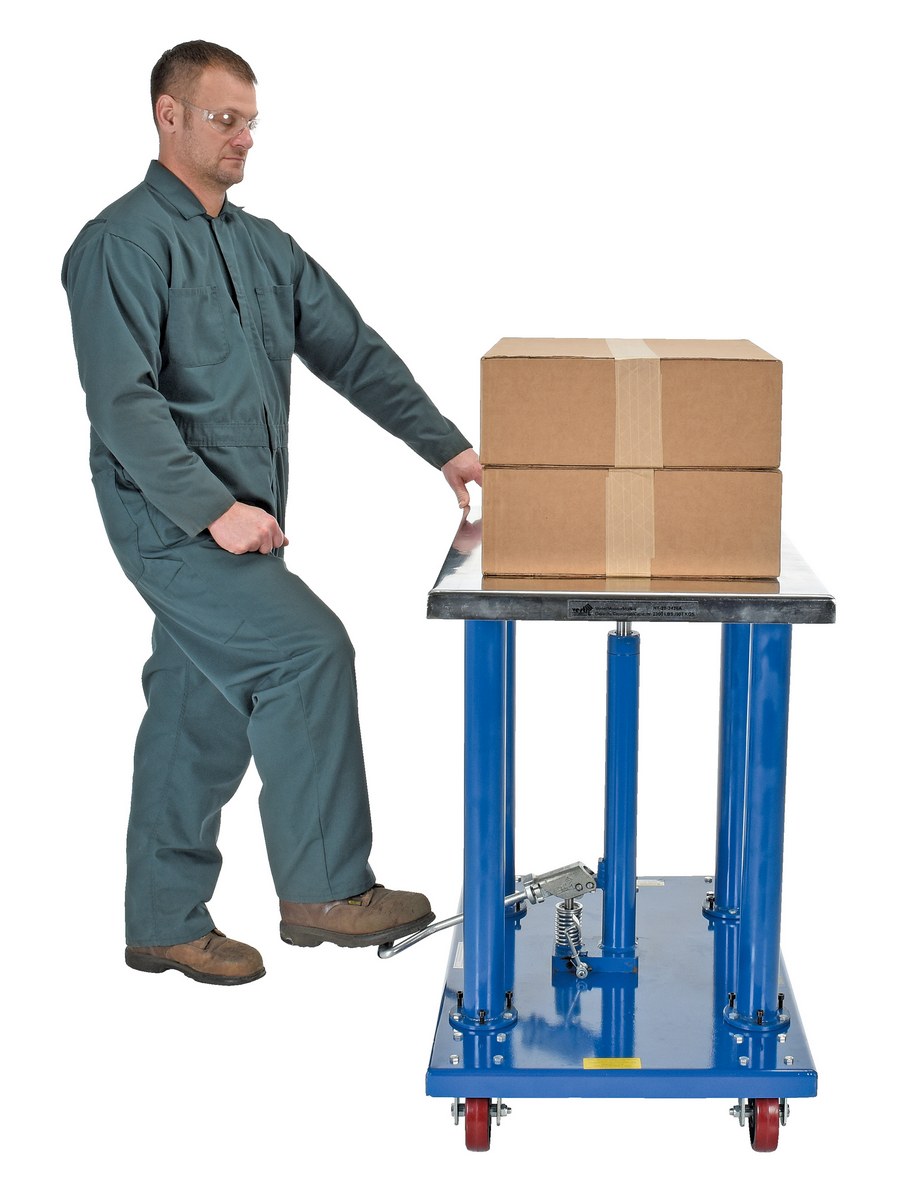

HT-20-2436A_J.jpg HT-20-2436A_I.jpg HT-20-2436A_H.jpg HT-20-2436A_G.jpg
HT-20-2436A_A.jpg HT-20-2436A_B.jpg HT-20-2436A_C.jpg HT-20-2436A_D.jpg
Hydraulic Post Tables

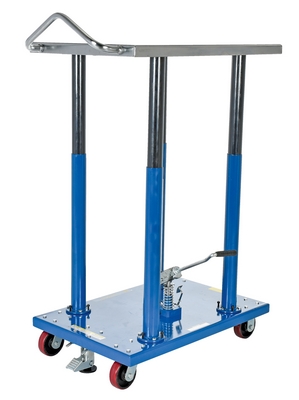

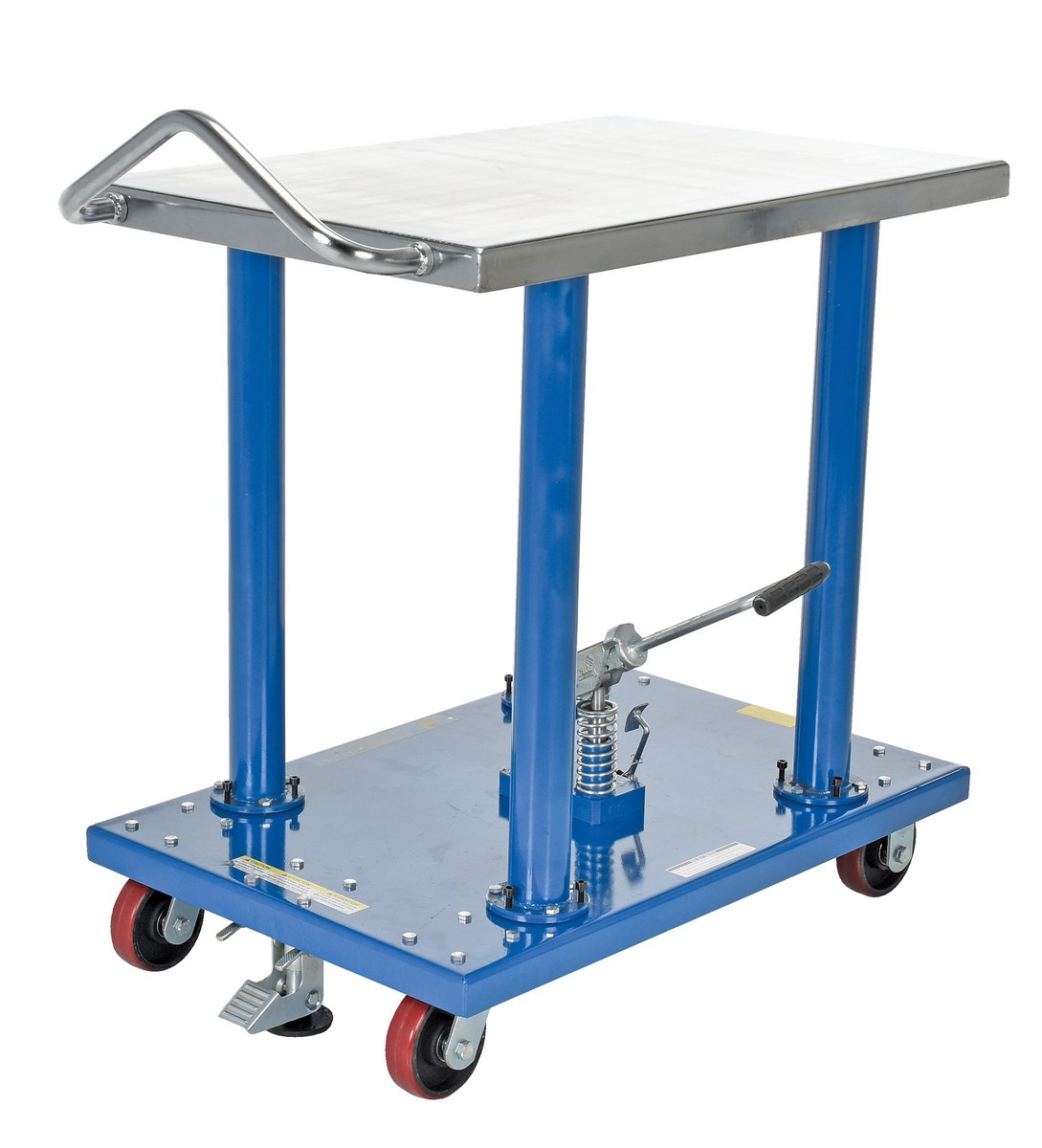

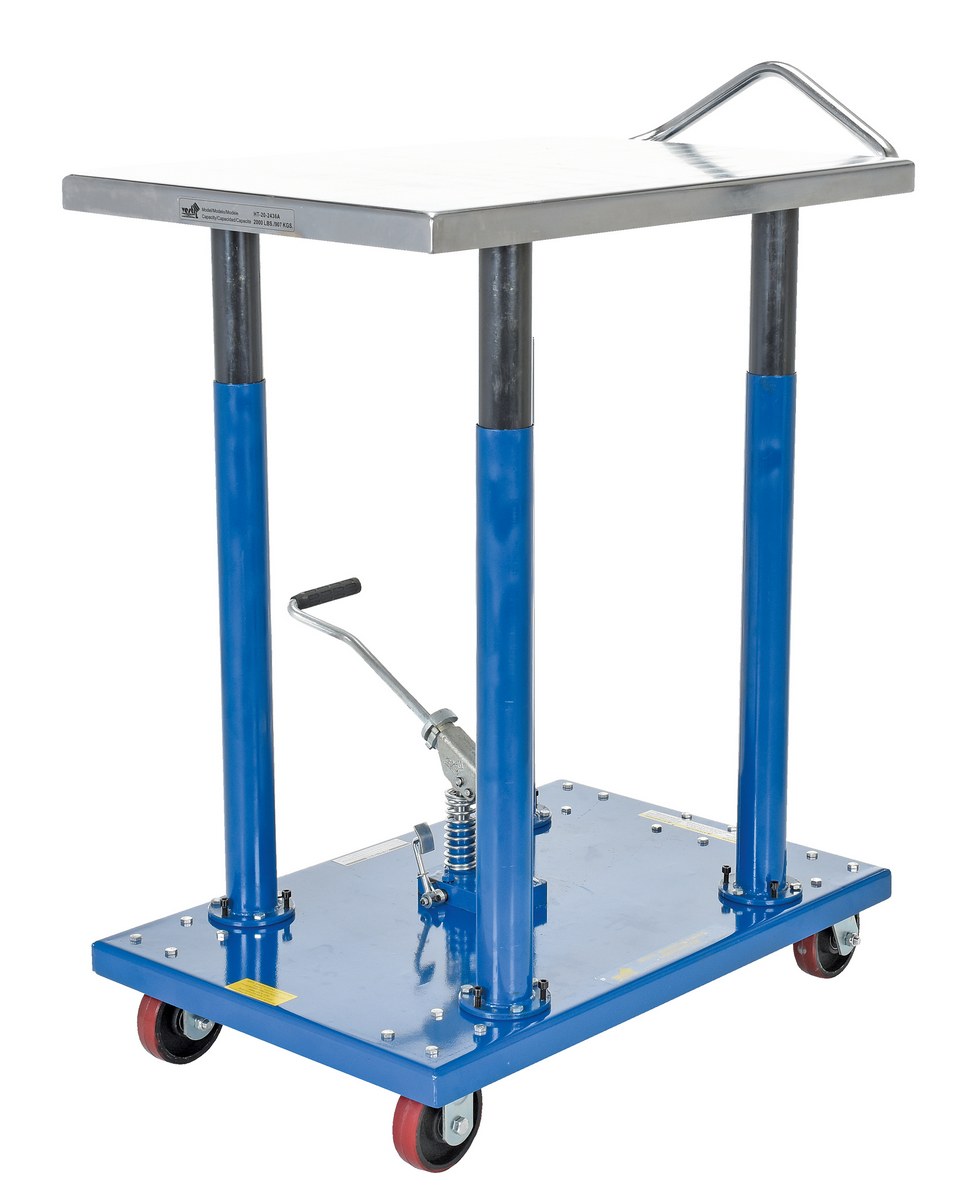

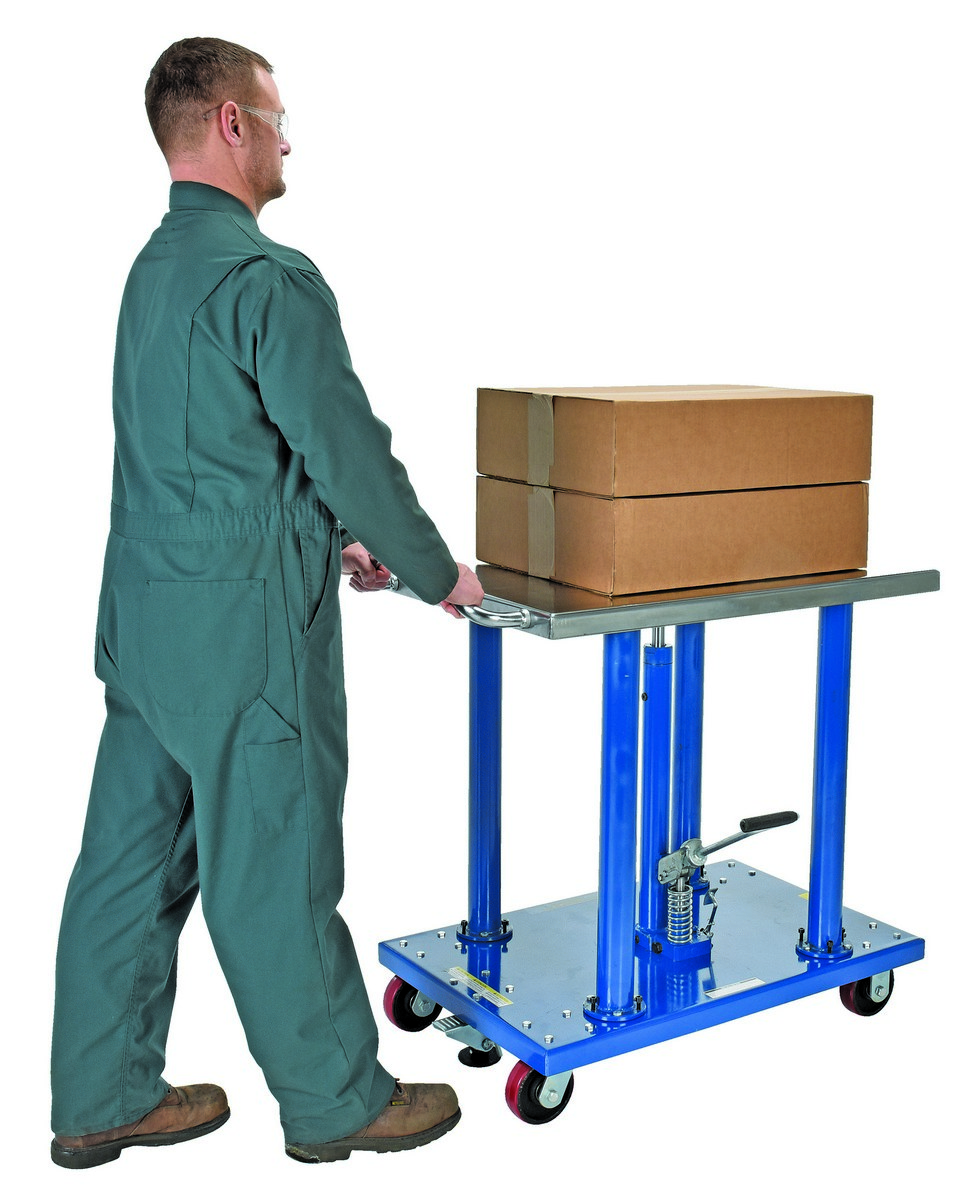

model: HT-20-2436A



Featured Ergonomic Solutions


Universal Trash Can Dumpers
DC Powered and Manual Scissor Carts (partially stainless steel)
Mobile Tilting Work Tables
Work Station Electric Hydraulic Scissor Tables
Pneumatic Scissor Lift Table
Low Profile Electric/Hydraulic Scissor Lift Tables
Manual & DC Work Positioners
Worker Platforms
Mechanical Machinery Jacks
model chart

Product Family Overview

Print Friendly
Hydraulic Post Tables
SERIES: HT

Hydraulic Post Tables are ideal in material handling facilities. The unit can be of use in a variety of environments from lifting dies and castings to moving machine parts. The corner posts are telescoping to help stabilize and fully support the load during operation. The tables roll smoothly on two (2) locking swivel casters with brakes and two (2) rigid. The tables can be lifted/lowered with a single speed foot pump, two-speed foot pump, or a two speed auto shifter that automatically shifts when the table is loaded. DC units include one (1) 12V battery to raise and lower the platform. They also include a battery, on-board charger, and a hand control on an 8 ft. coil cord. *PP stands for poly-on-poly casters. PS = poly-on-steel casters. PP = polypropylene casters. Model HT-02-1616A and HT-03-1616A includes a platform that swivels 360 degrees for use as a turntable. Model HT-02-1616A, HT-03-1616A and HT-05-1818A standard with a removable rubber platform cover. Partially Stainless Steel Post Tables feature a zinc plated pump assembly and leg posts while the platform, base frame, handle, casters rigs, and hardware are stainless steel.

  • Heavy-duty construction is ideal for industrial work areas

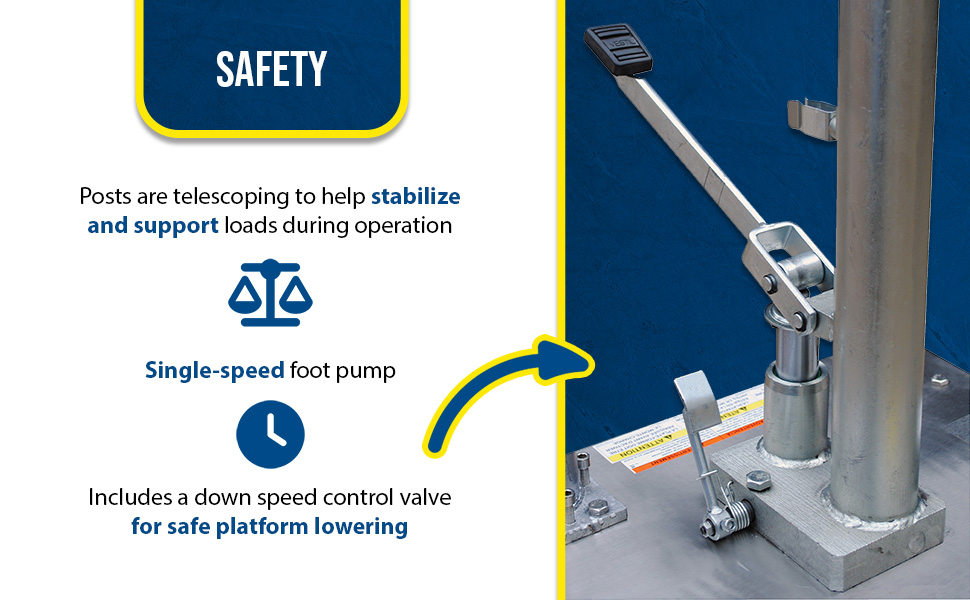

  • Telescopic posts stabilize loads during use

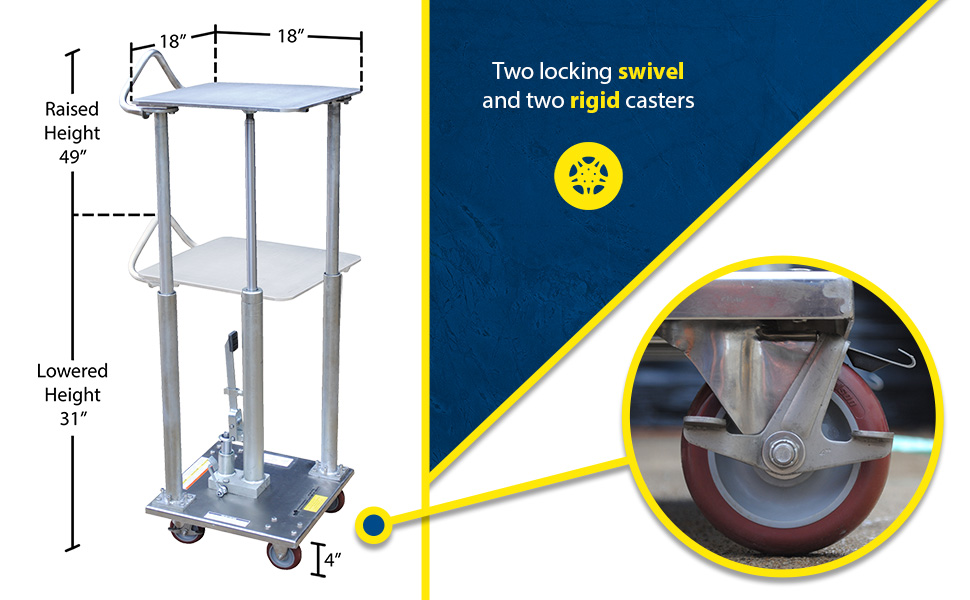

  • Units feature two rigid and two swivel casters for easy portability
  • Patented ergonomic push handle makes pushing the unit safe and easy

Other Post Tables:
HT-02-24R
Hydraulic Post Tables w/ Round Top		 HT-02-1616-LA_A.jpg
Linear Actuated Post Tables
Air Hydraulic Post Tables		 MT-2436-HP_E.jpg
Mechanical Post Tables

Hydraulic Post Tables are ideal in material handling facilities. The unit can be of use in a variety of environments from lifting dies and castings to moving machine parts. The corner posts are telescoping to help stabilize and fully support the load during operation. The tables roll smoothly on two (2) locking swivel casters with brakes and two (2) rigid. The tables can be lifted/lowered with a single speed foot pump, two-speed foot pump, or a two speed auto shifter that automatically shifts when the table is loaded. DC units include one (1) 12V battery to raise and lower the platform. They also include a battery, on-board charger, and a hand control on an 8 ft. coil cord. *PP stands for poly-on-poly casters. PS = poly-on-steel casters. PP = polypropylene casters. Model HT-02-1616A and HT-03-1616A includes a platform that swivels 360 degrees for use as a turntable. Model HT-02-1616A, HT-03-1616A and HT-05-1818A standard with a removable rubber platform cover. Partially Stainless Steel Post Tables feature a zinc plated pump assembly and leg posts while the platform, base frame, handle, casters rigs, and hardware are stainless steel.

  • Heavy-duty construction is ideal for industrial work areas
  • Telescopic posts stabilize loads during use
  • Units feature two rigid and two swivel casters for easy portability
  • Patented ergonomic push handle makes pushing the unit safe and easy

Other Post Tables:
HT-02-24R
Hydraulic Post Tables w/ Round Top		 HT-02-1616-LA_A.jpg
Linear Actuated Post Tables
Air Hydraulic Post Tables		 MT-2436-HP_E.jpg
Mechanical Post Tables

Other Post Tables

 Mechanical Post Tables Air Hydraulic Post Tables Linear Actuated Post Table Die Tables

Additional Models In This Family
view entire Image Gallery

PT2436E

PT2436E

HT-40-3248

HT-40-3248

PT2436E

PT2436E

PT12-10

PT12-10

HT-60-3248

HT-60-3248

PT12-10

PT12-10

HT-20-2436A

HT-20-2436A

HT-20-2436A

HT-20-2436A

HT-60-4048

HT-60-4048

HT-02-1616A

HT-02-1616A

PT2436E

PT2436E

PT12-10

PT12-10

PT12-40

PT12-40

HT-03-1616A

HT-03-1616A

PT12-10

PT12-10

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

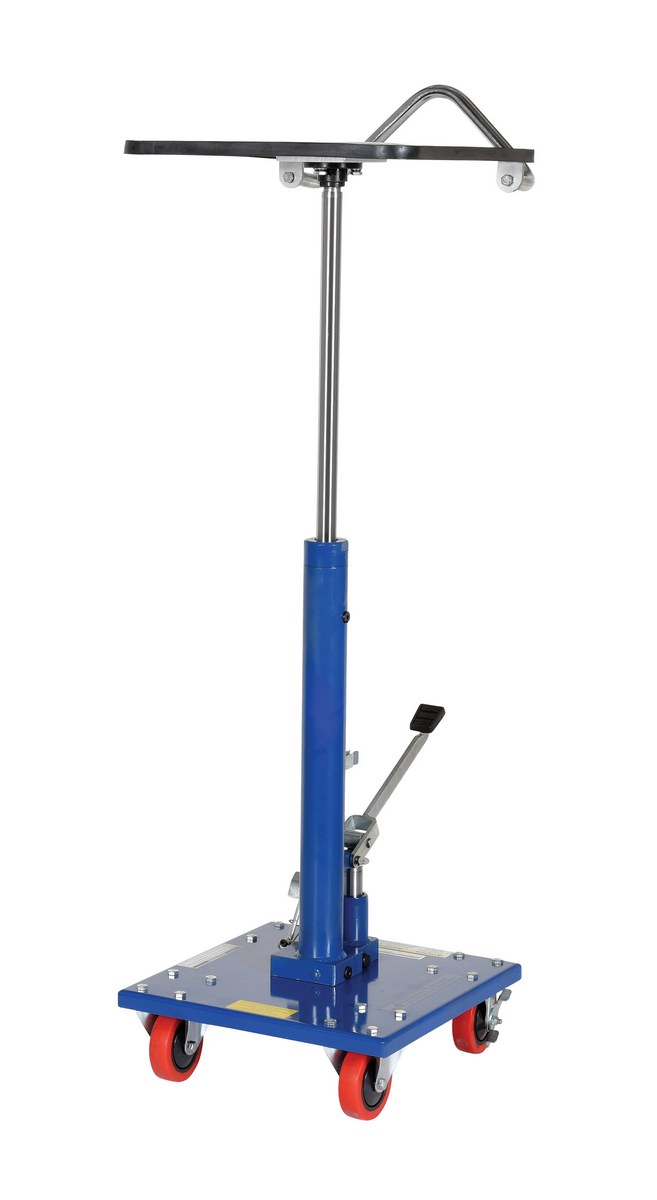

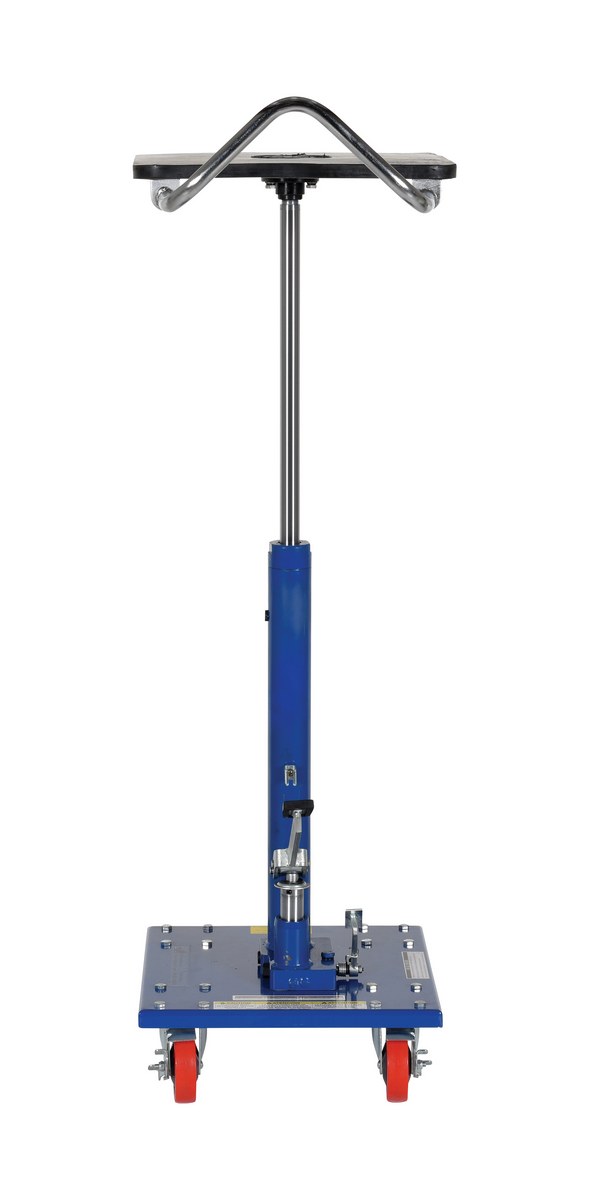

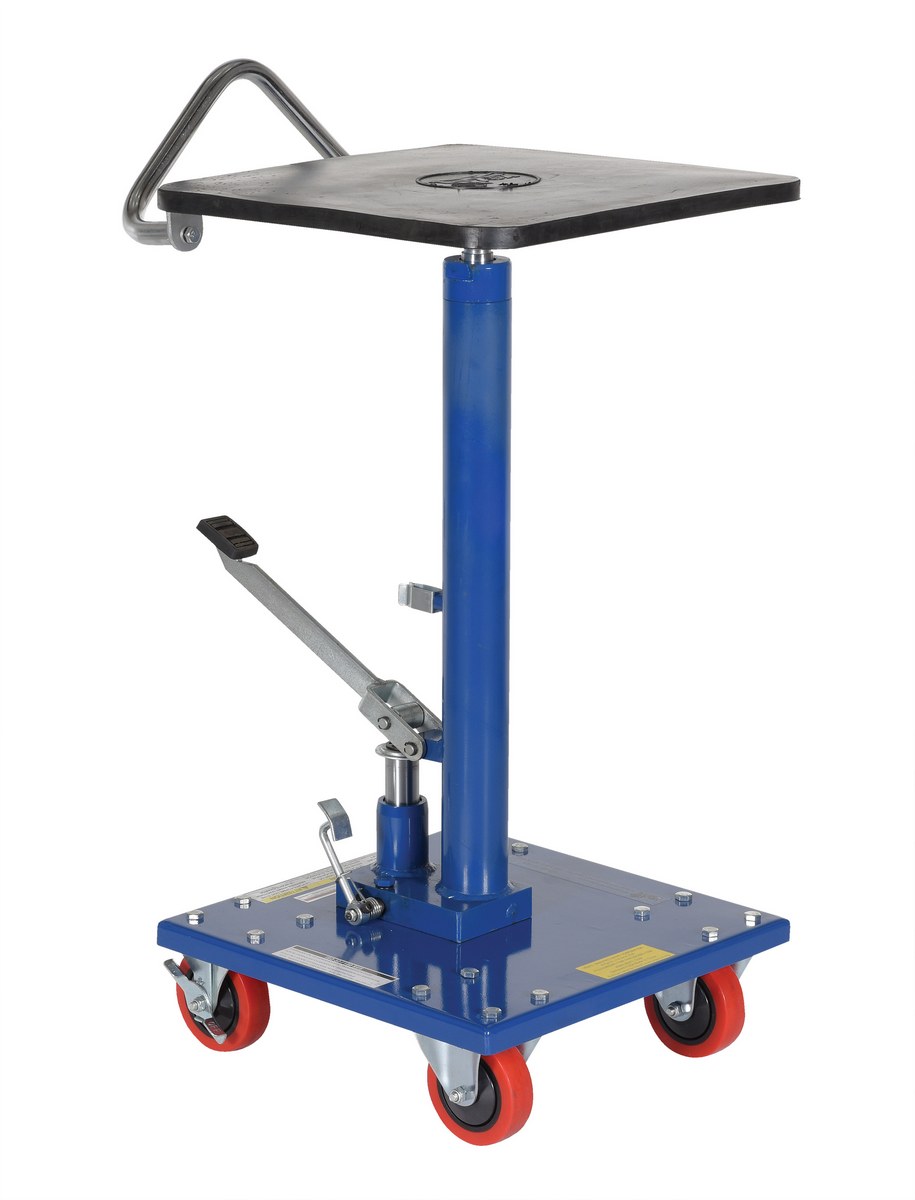

HT-02-1616A HT-02-1616A1 Year Limited WarrantySteel Hydraulic Post Table 16 In. x 16 In. 200 Lb. Capacity BlueUniform Capacity (lb.): 200
Platform Width (in.): 16-1/4		126

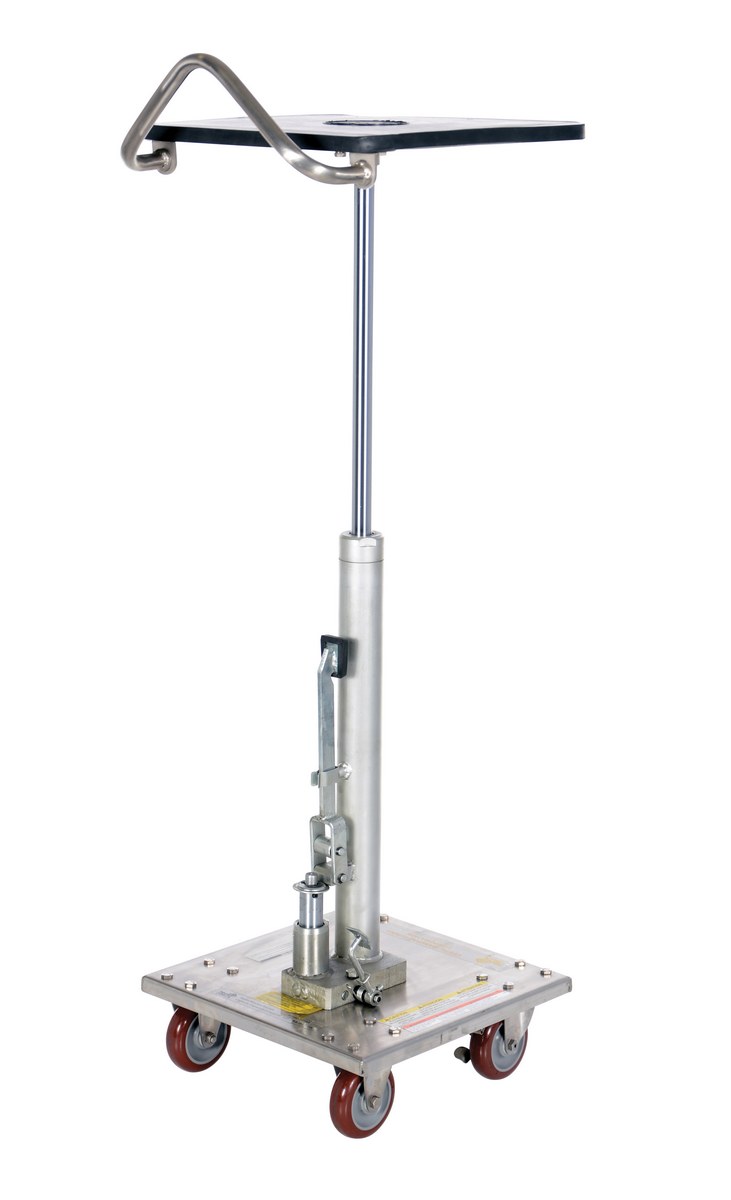

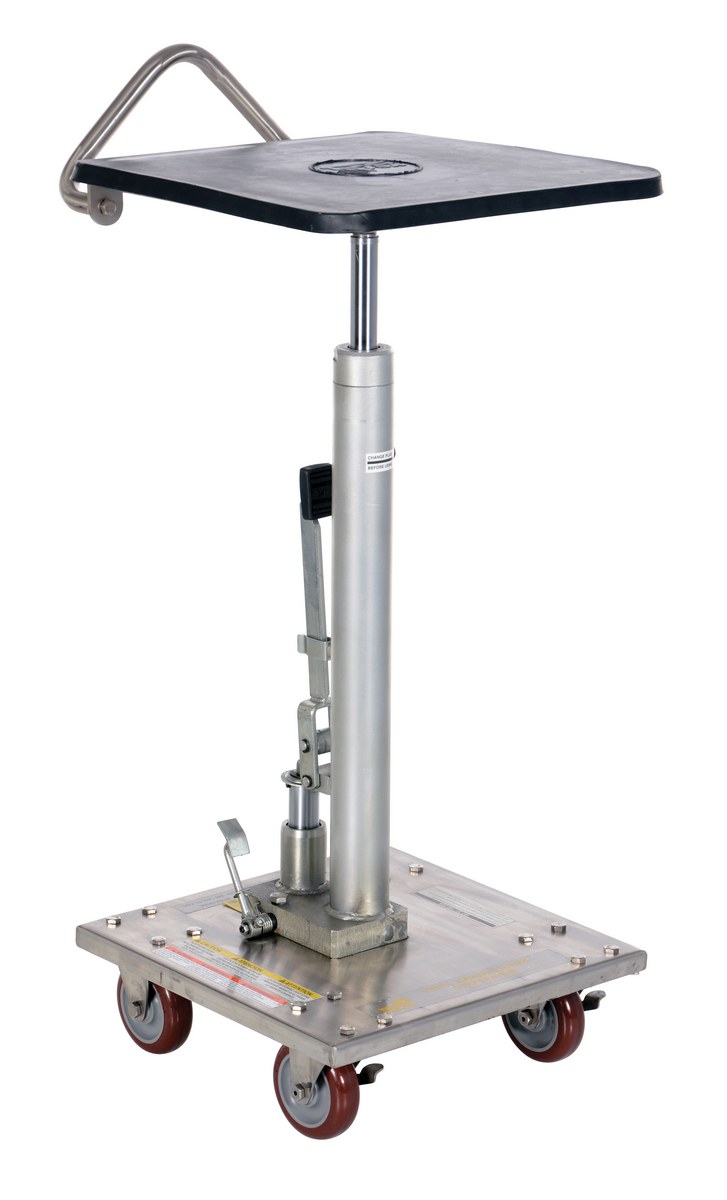

HT-02-1616A-PSS HT-02-1616A-PSS1 Year Limited WarrantyPartially Stainless Steel Hydraulic Post Table 16 In. x 16 In. 200 Lb. Capacity SilverUniform Capacity (lb.): 200
Platform Width (in.): 16-1/4		126

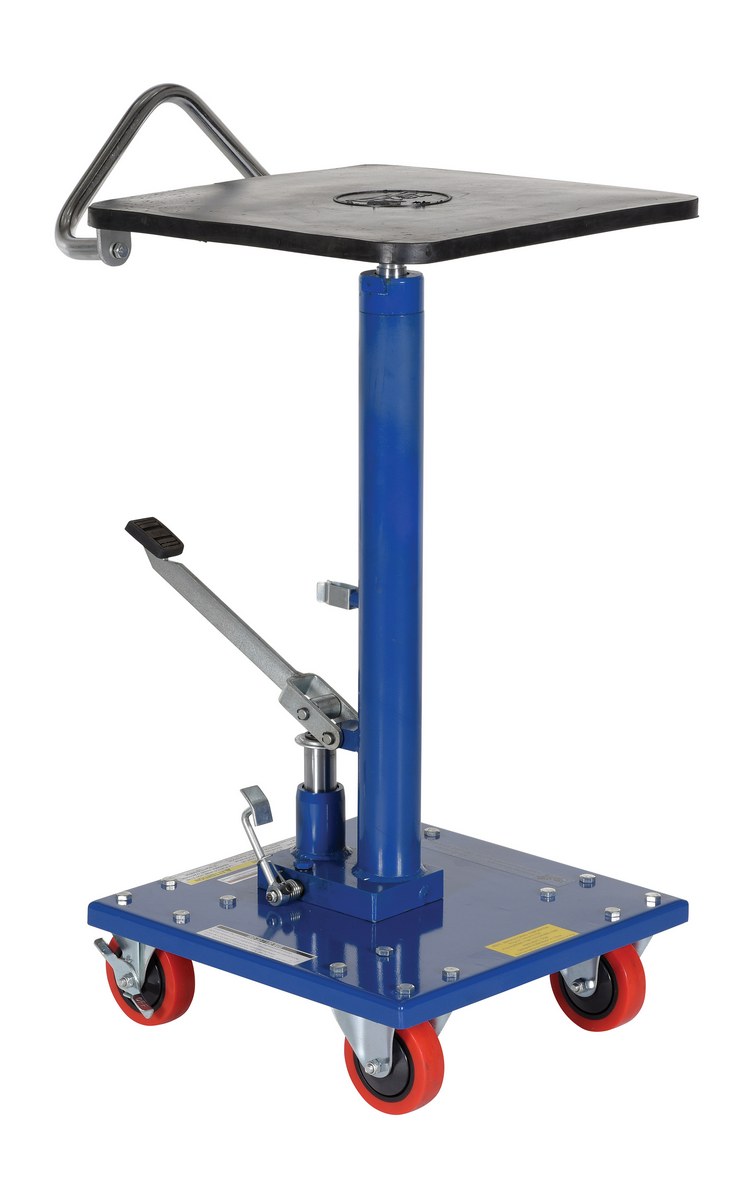

HT-03-1616A HT-03-1616A1 Year Limited WarrantySteel Hydraulic Post Table 16 In. x 16 In. 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Platform Width (in.): 16		126

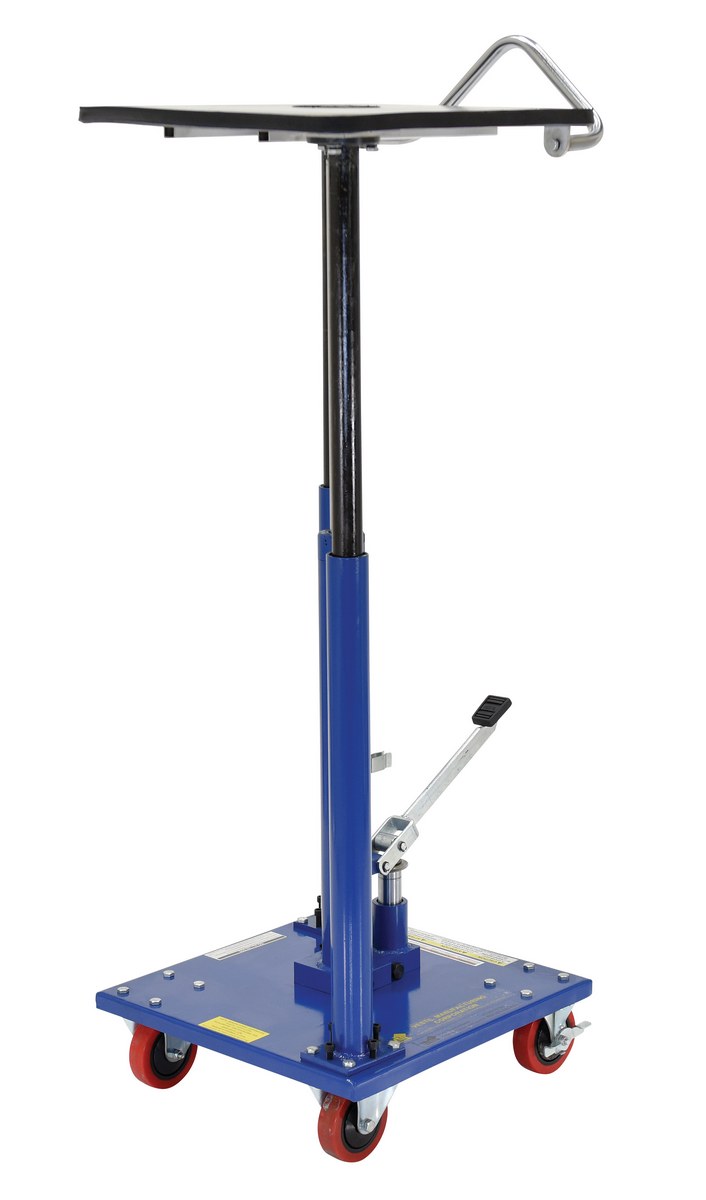

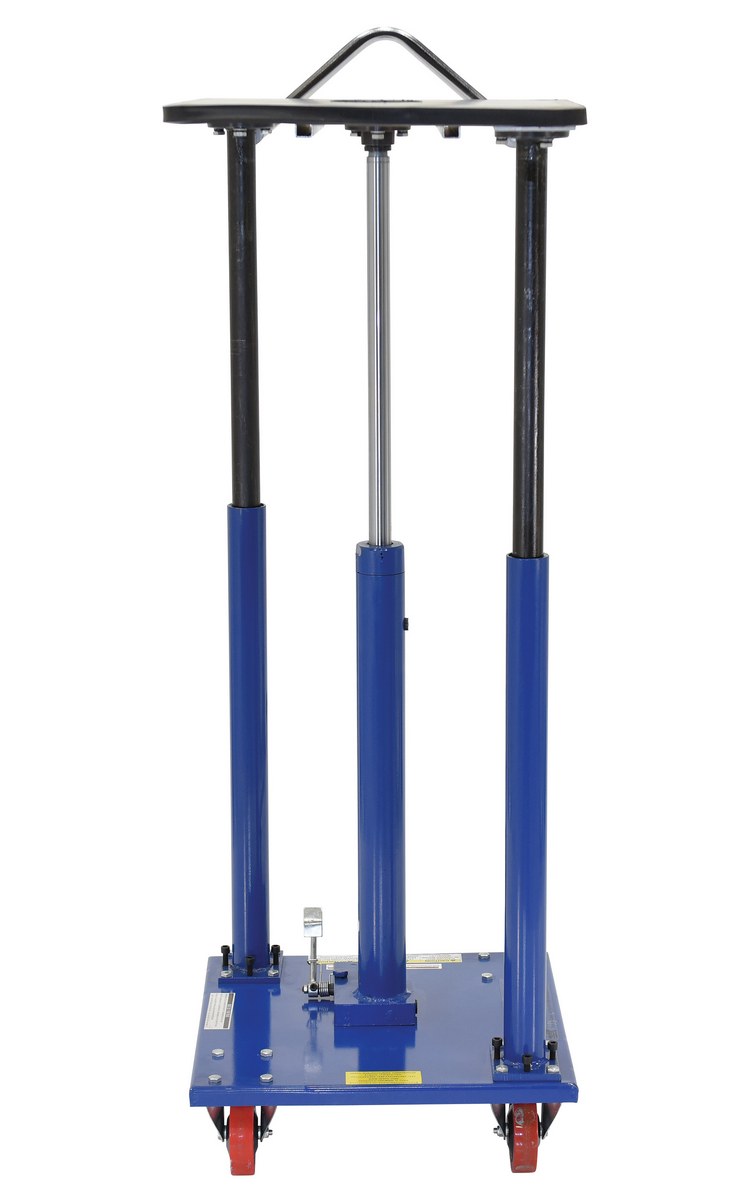

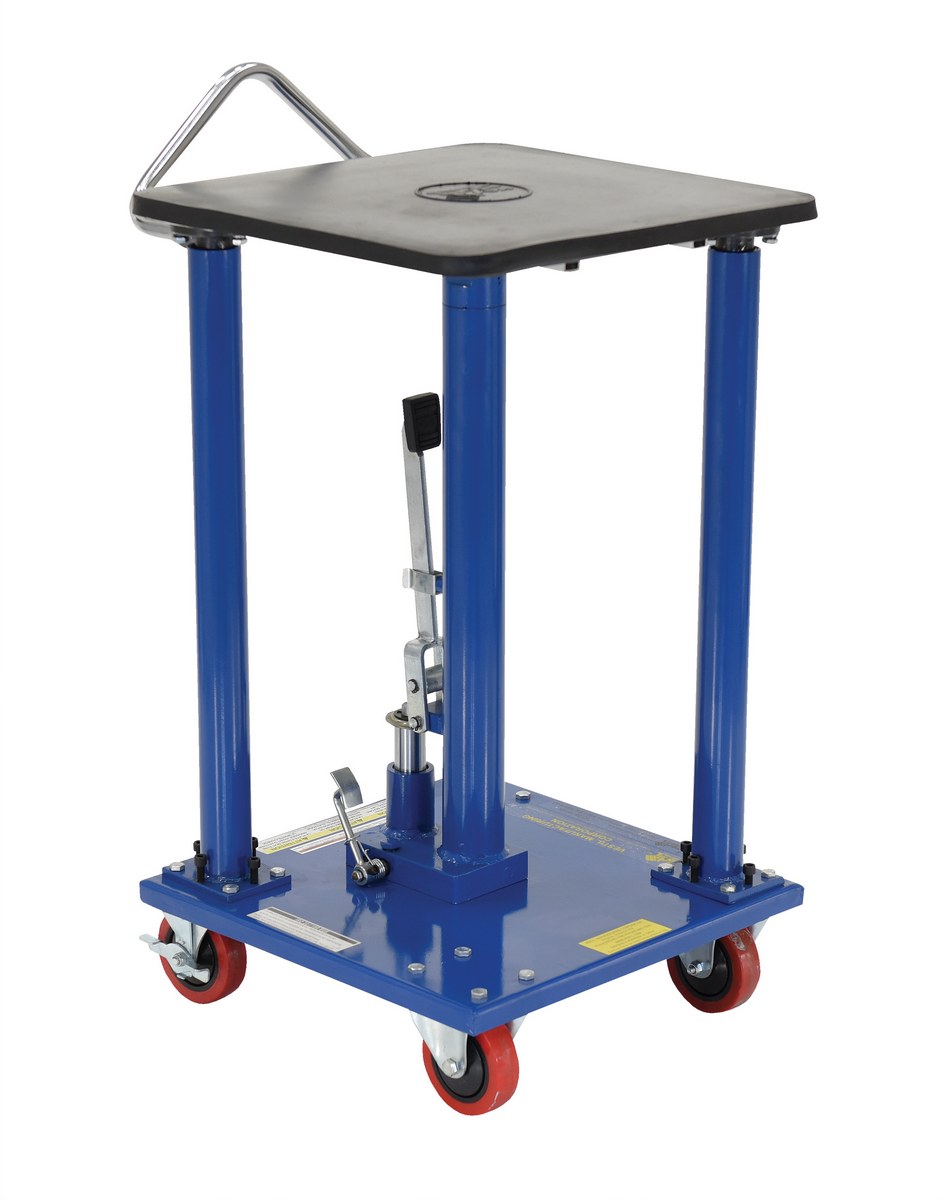

HT-05-1818A HT-05-1818A1 Year Limited WarrantySteel Hydraulic Post Table 18 In. x 18 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 18		151

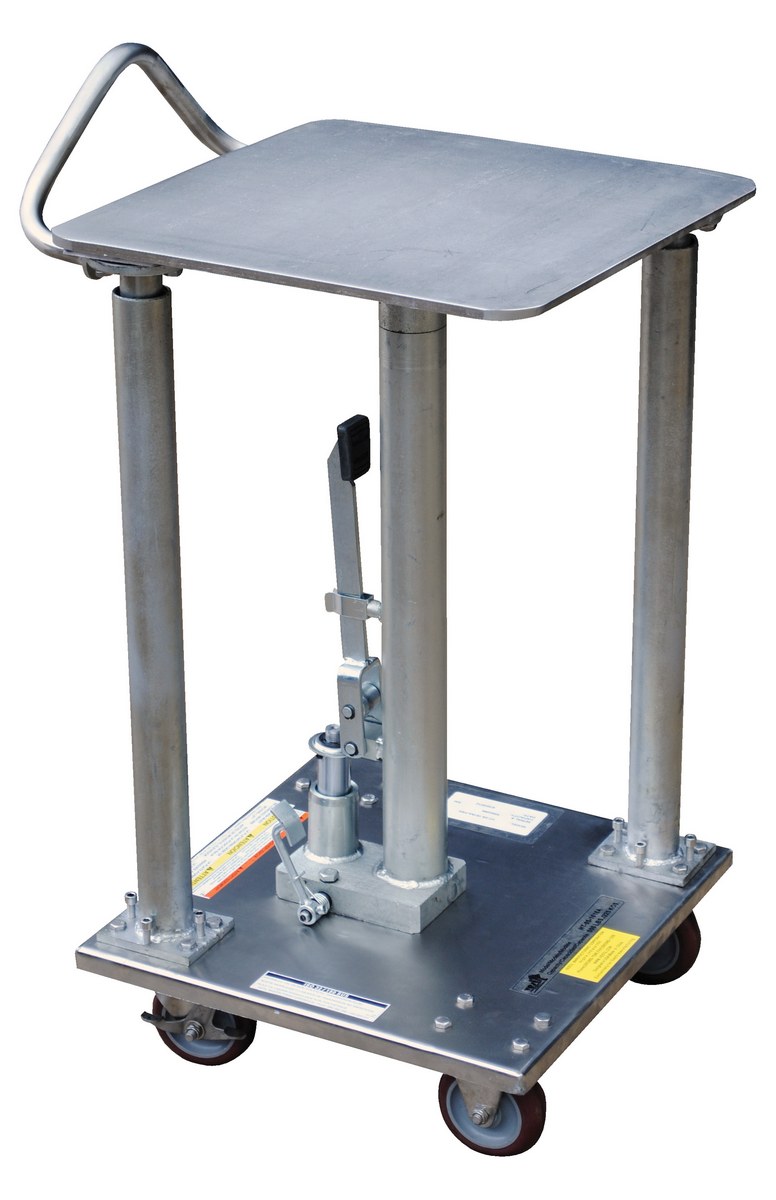

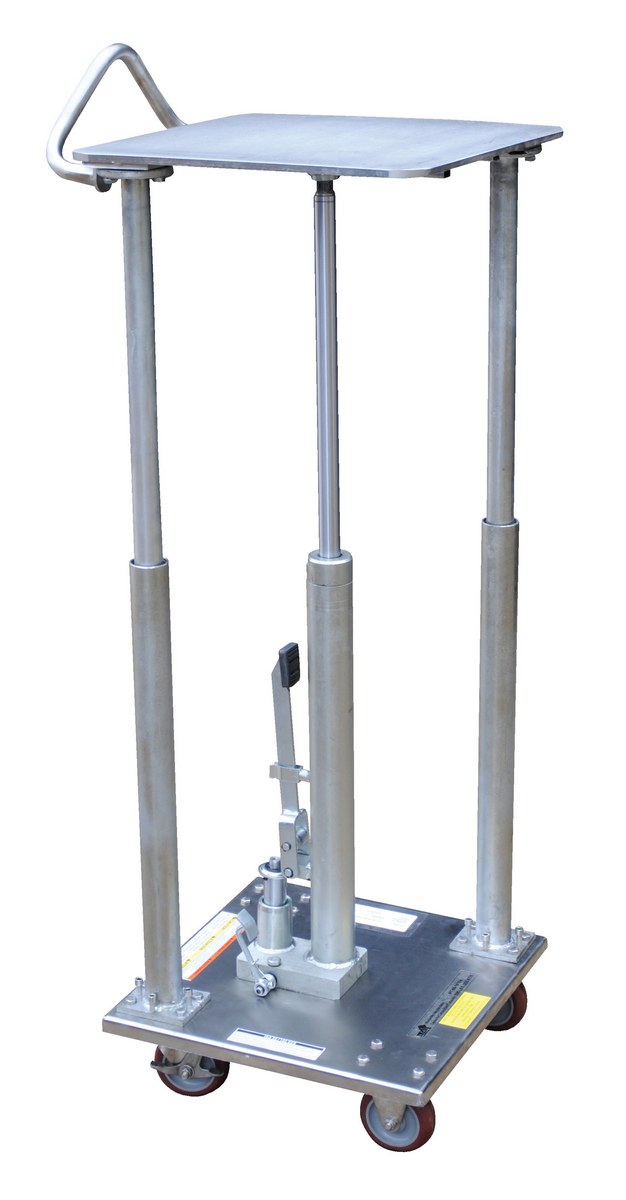

HT-05-1818A-PSS HT-05-1818A-PSS1 Year Limited WarrantyPartially Stainless Steel Hydraulic Post Table 18 In. x 18 In. 500 Lb. Capacity SilverUniform Capacity (lb.): 500
Platform Width (in.): 18		151

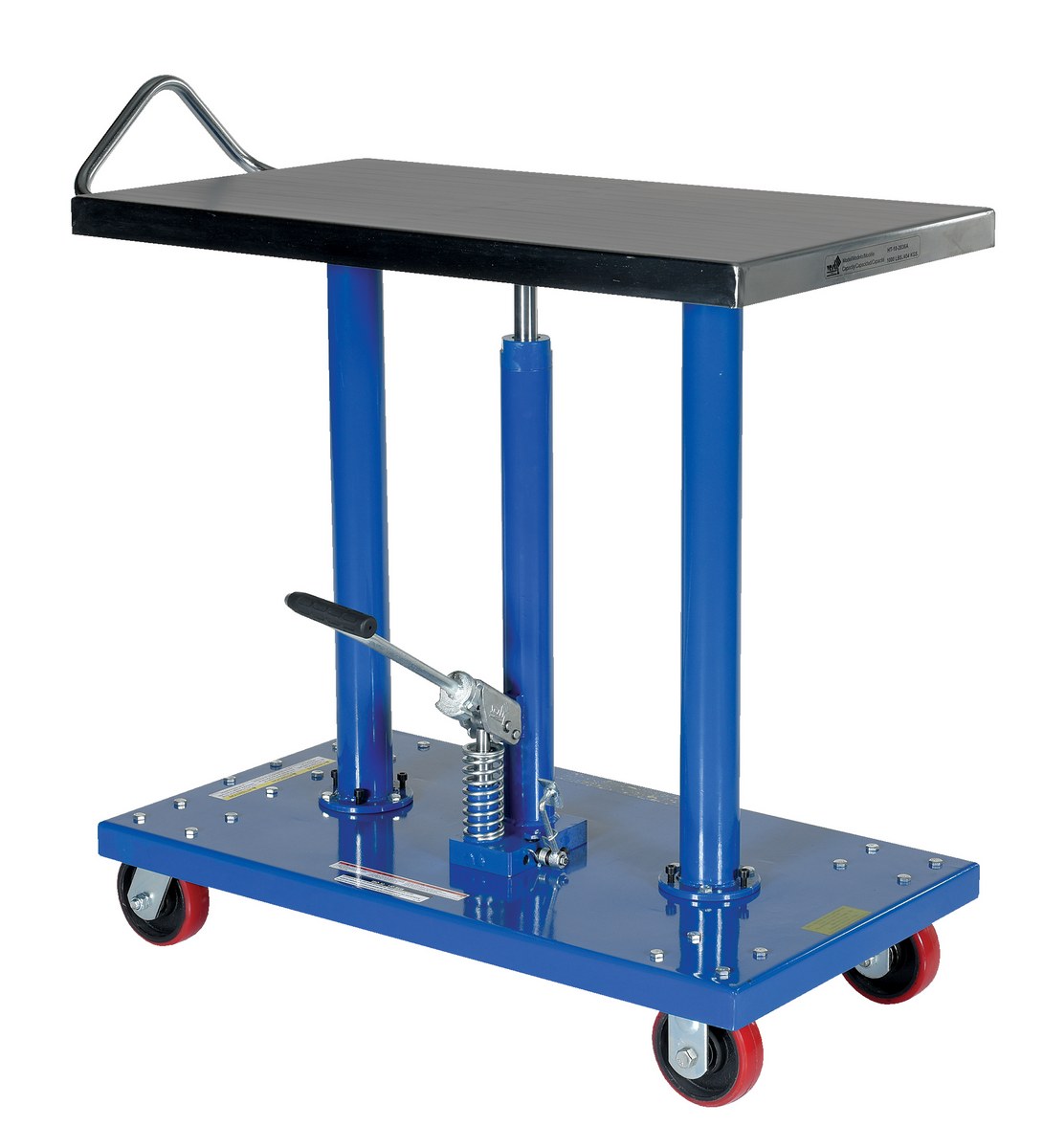

HT-10-2036A POPULAR HT-10-2036A1 Year Limited WarrantySteel Hydraulic Post Table 20 In. x 36 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20		241

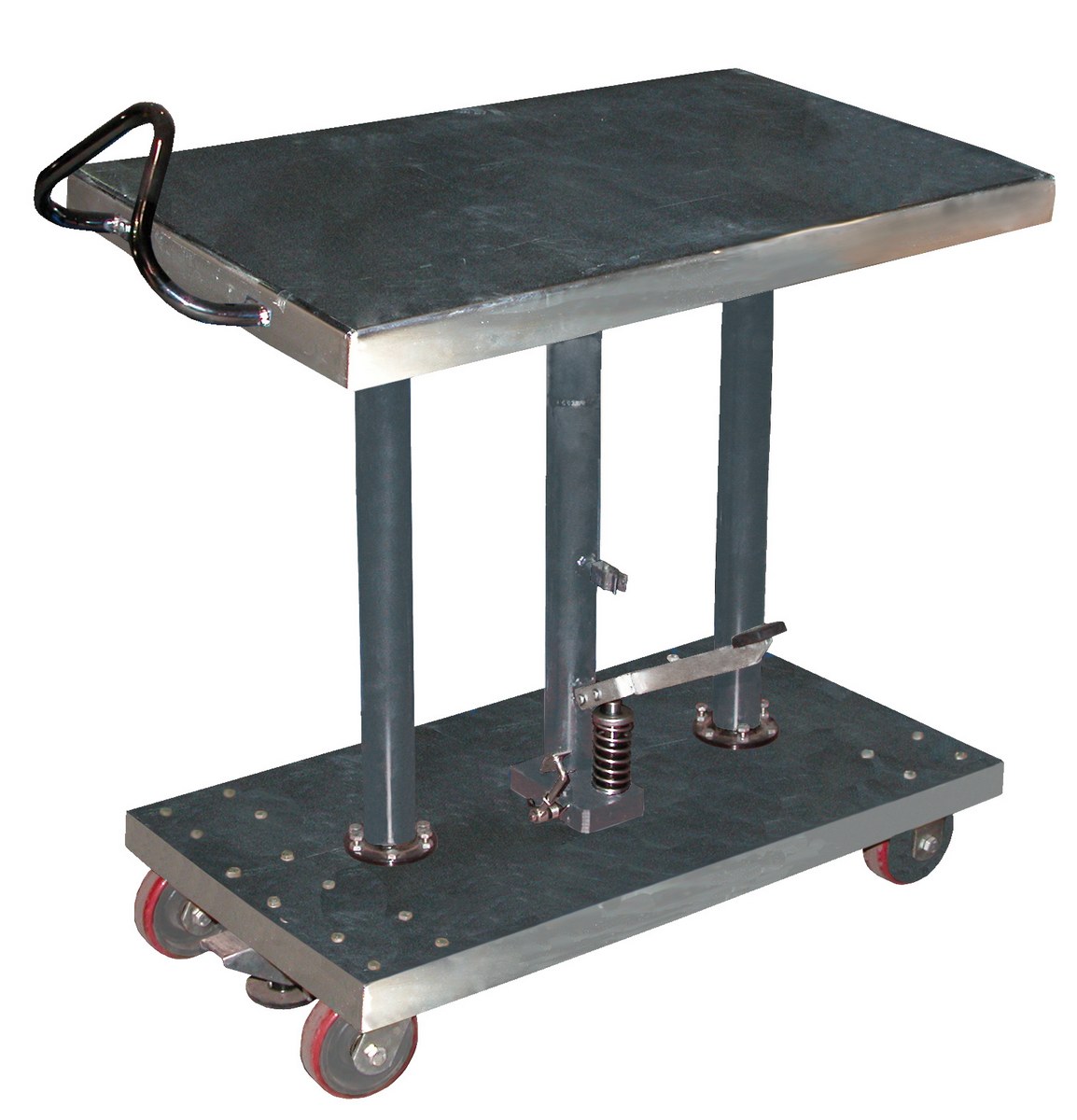

HT-10-2036A-PSS HT-10-2036A-PSS1 Year Limited WarrantyPartially Stainless Steel Hydraulic Post Table 20 In. x 36 In. 1000 Lb. Capacity SilverUniform Capacity (lb.): 1000
Platform Width (in.): 20		241

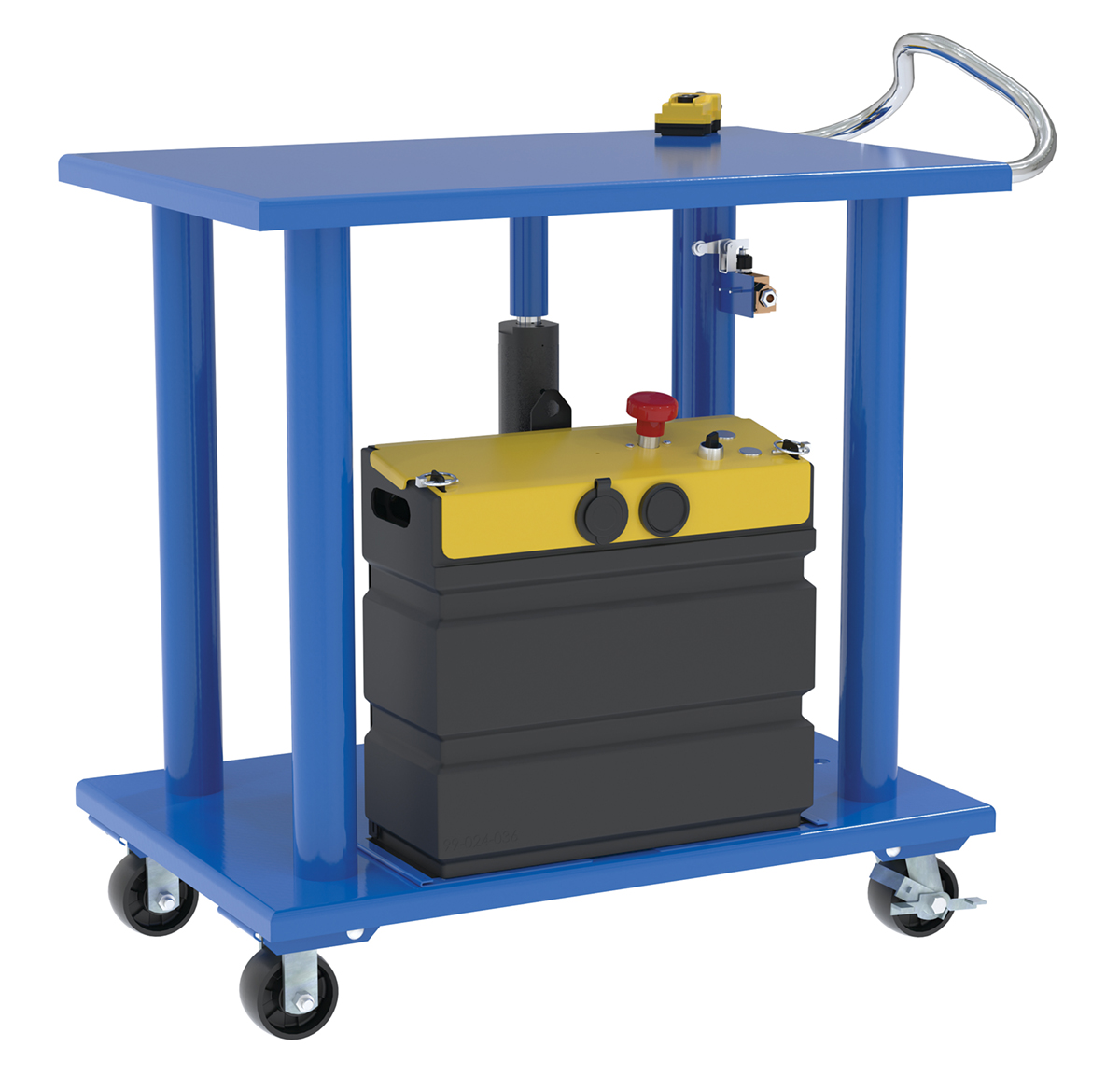

HT-20-2436-DC HT-20-2436-DC1 Year Limited WarrantySteel DC Powered Hydraulic Post Table 24 In. x 36 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 24		396

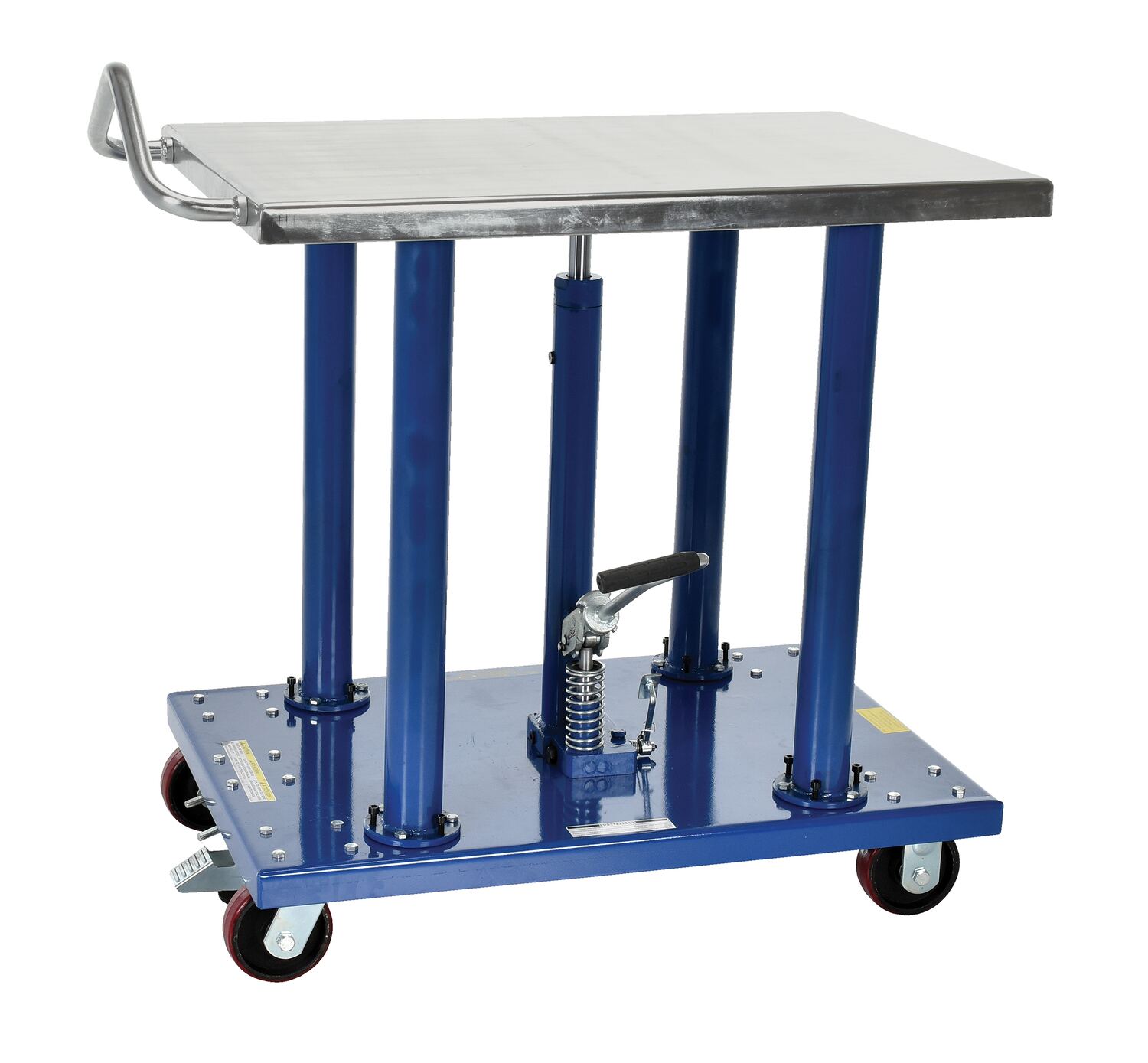

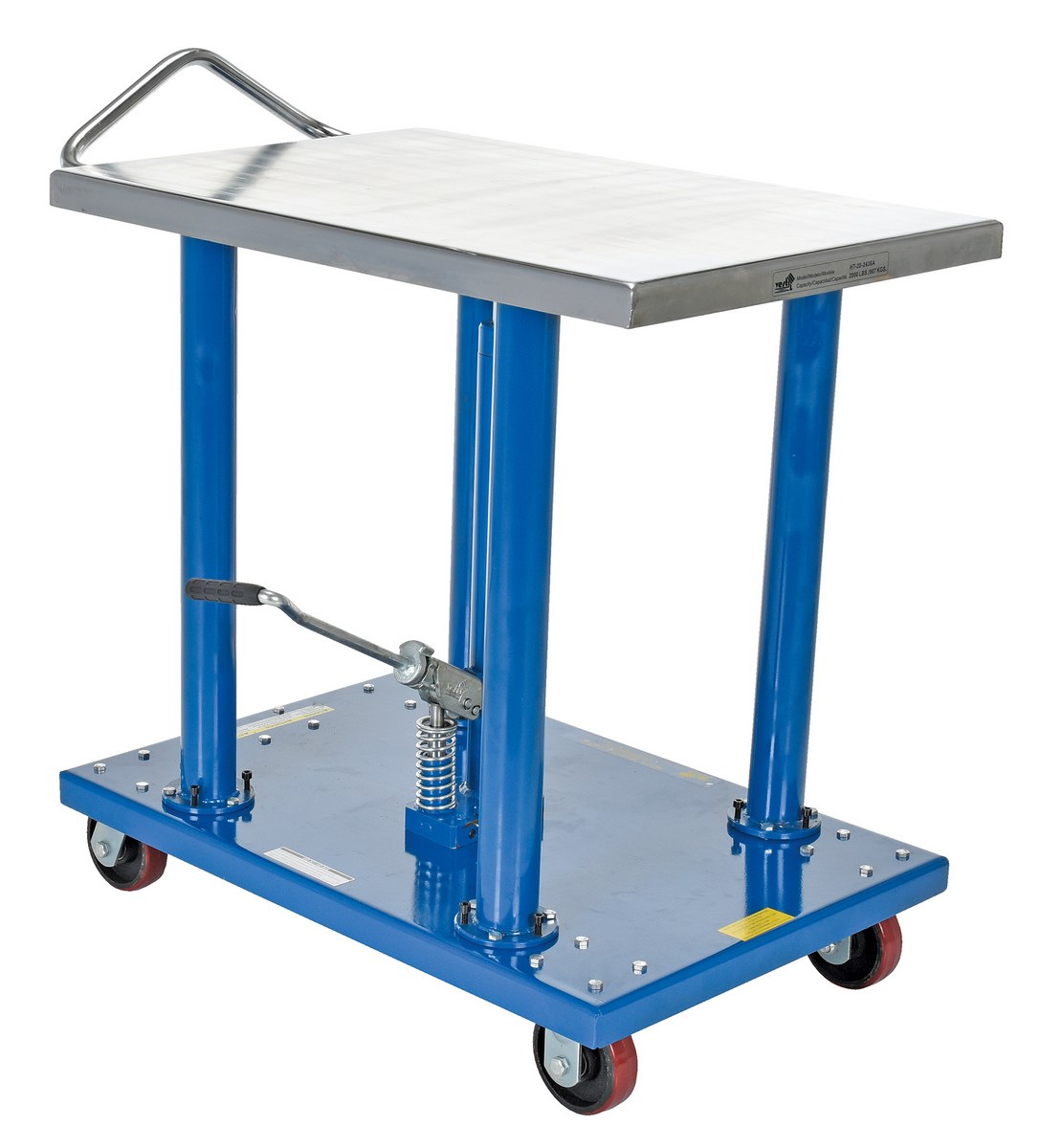

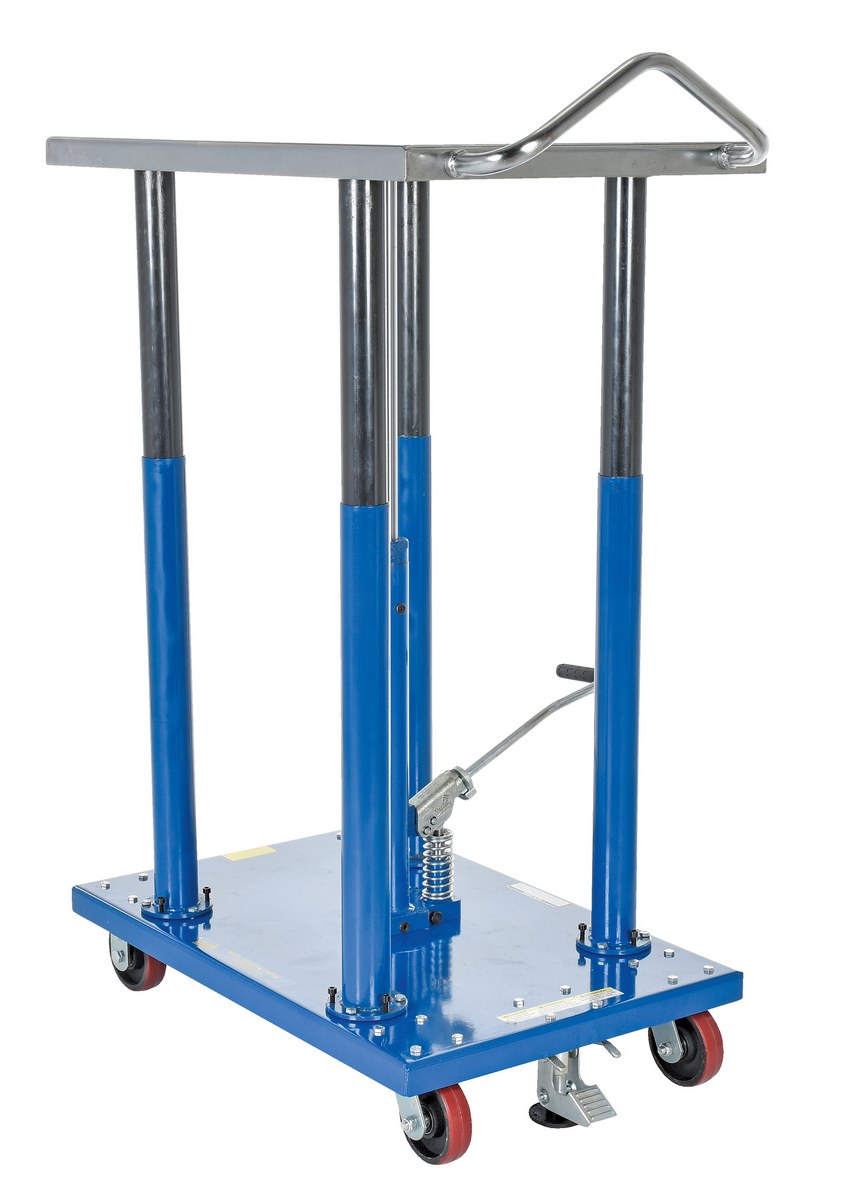

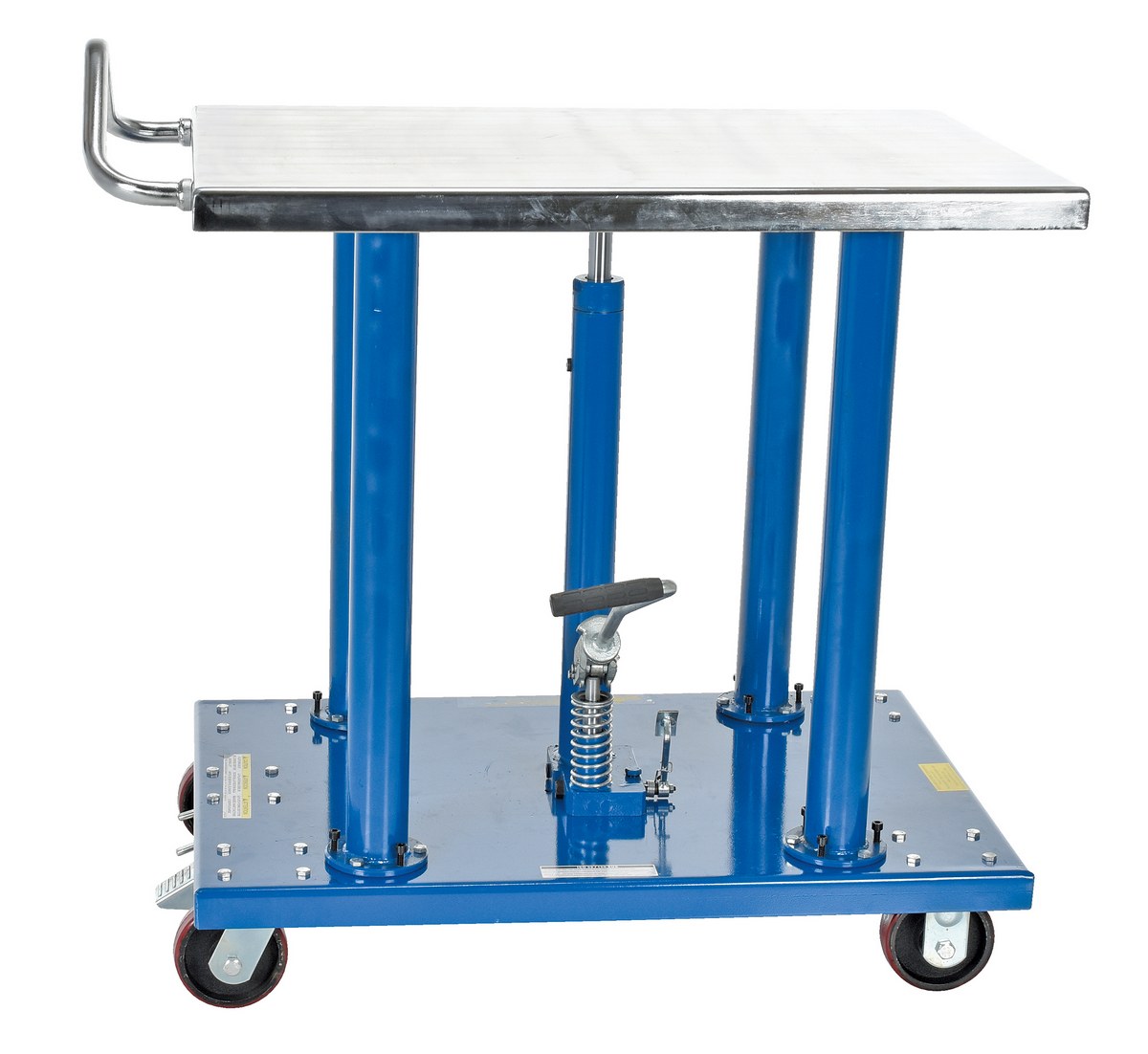

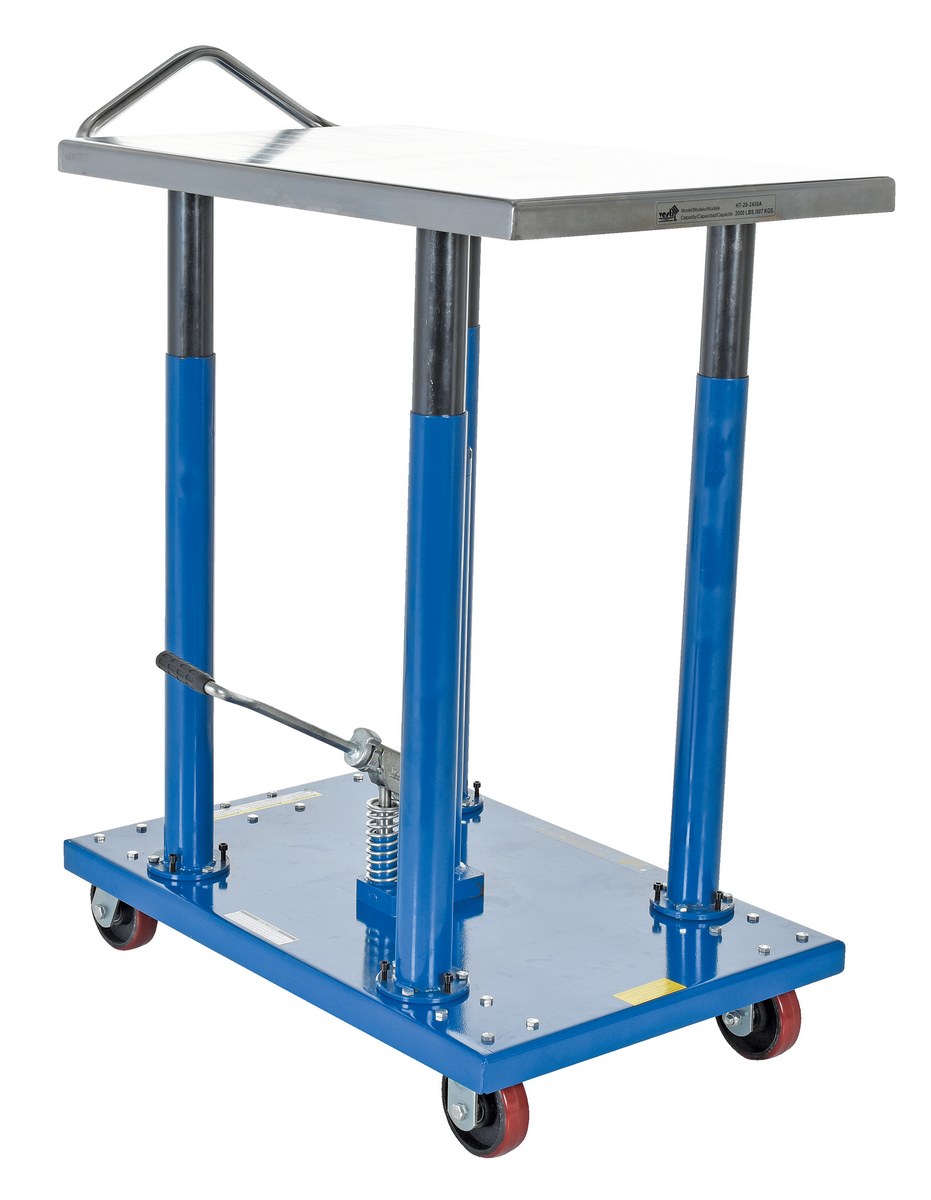

HT-20-2436A HT-20-2436A1 Year Limited WarrantySteel Hydraulic Post Table 24 In. x 36 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 24		332

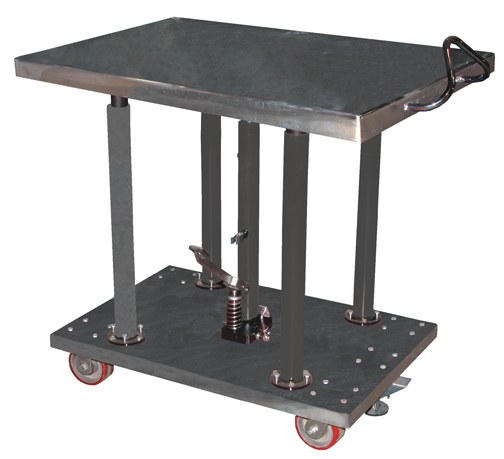

HT-20-2436A-PSS HT-20-2436A-PSS1 Year Limited WarrantyPartially Stainless Steel Hydraulic Post Table 24 In. x 36 In. 2000 Lb. Capacity SilverUniform Capacity (lb.): 2000
Platform Width (in.): 24		332

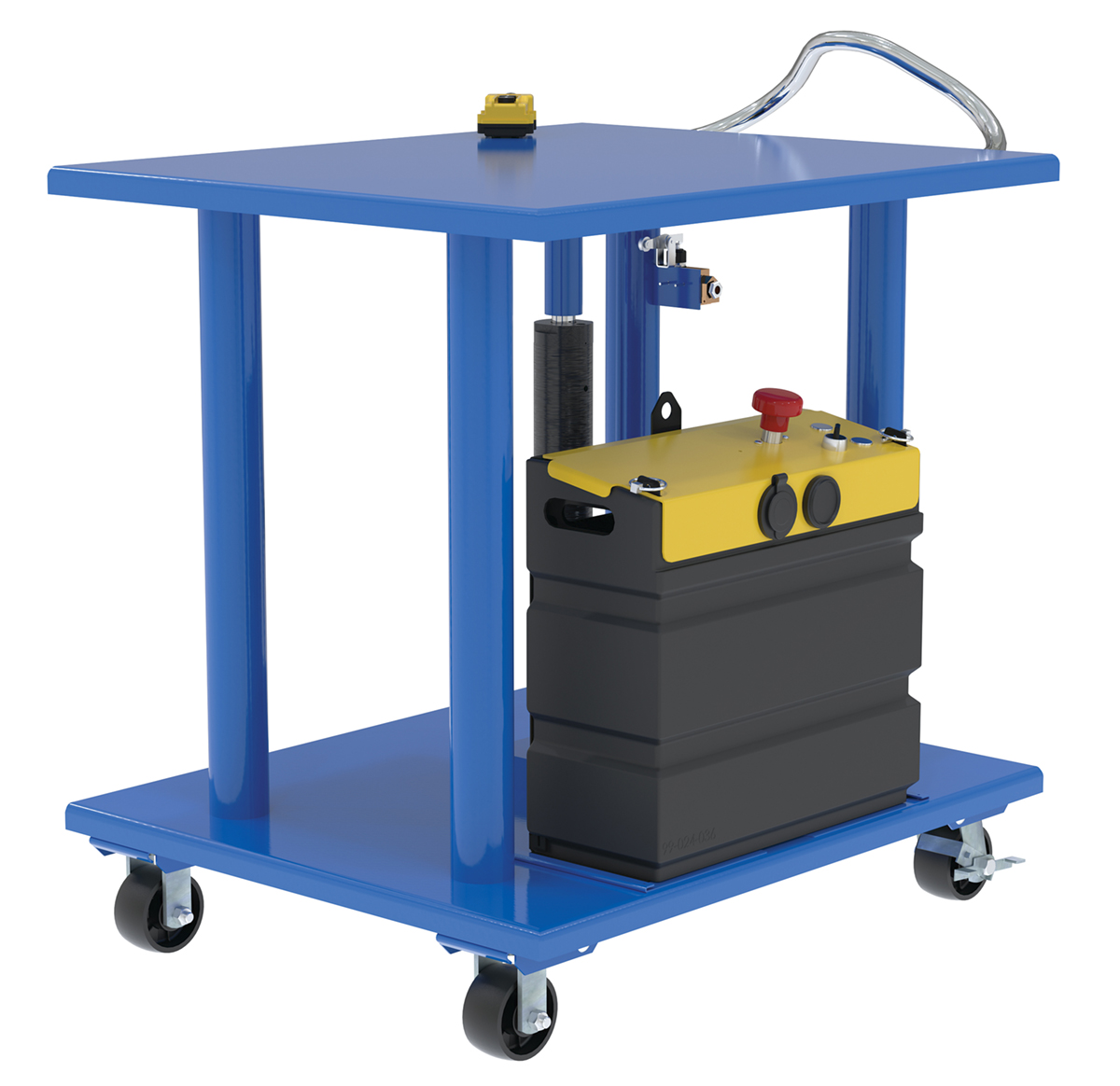

HT-20-3036-DC HT-20-3036-DC1 Year Limited WarrantySteel DC Powered Hydraulic Post Table 30 In x 36 In 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30		425

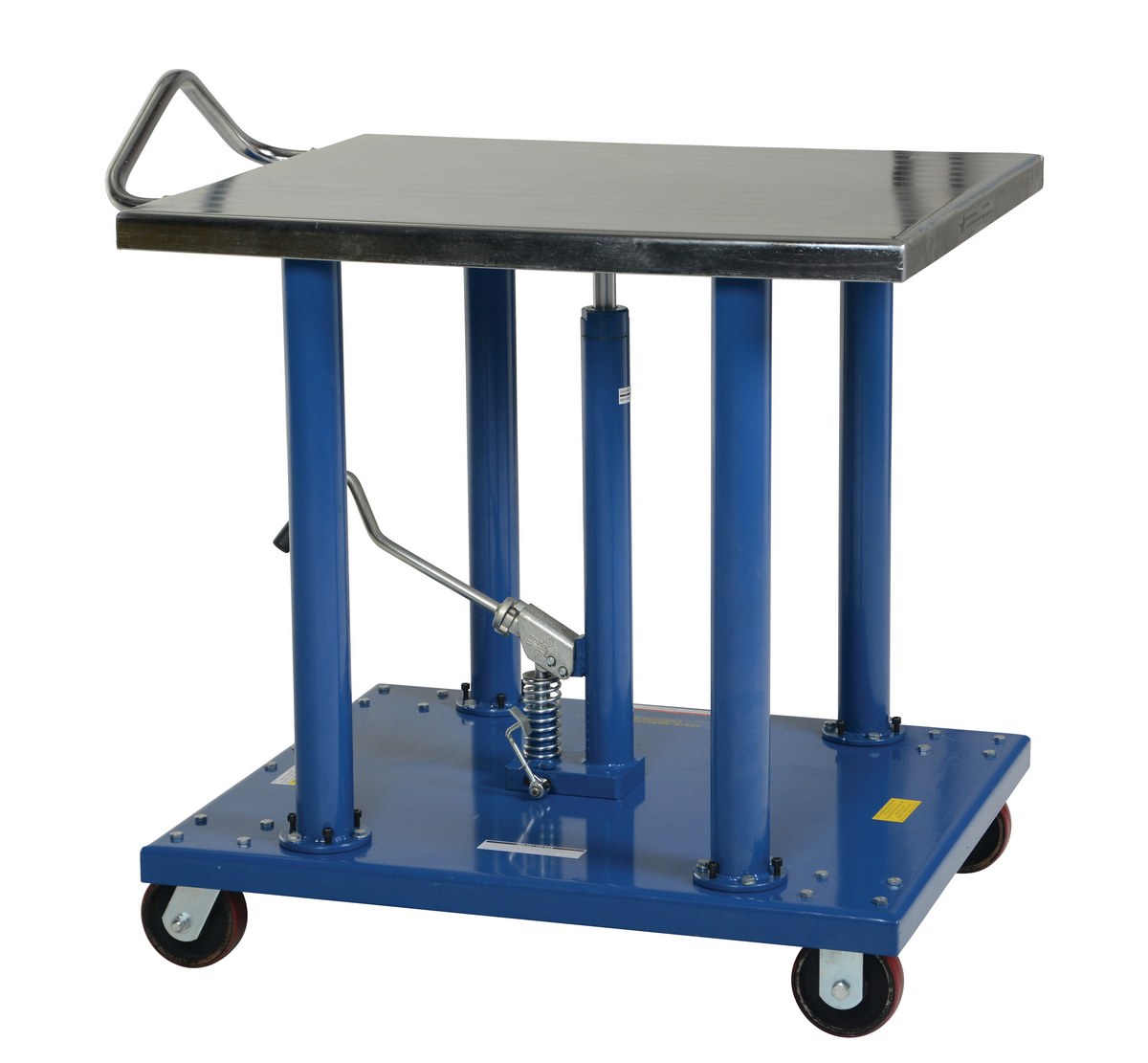

HT-20-3036A HT-20-3036A1 Year Limited WarrantySteel Hydraulic Post Table 30 In. x 36 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30		376
HT-20-3036A-PSS HT-20-3036A-PSS1 Year Limited WarrantyPartially Stainless Steel Hydraulic Post Table 30 In. x 36 In. 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2000
Platform Width (in.): 30		376

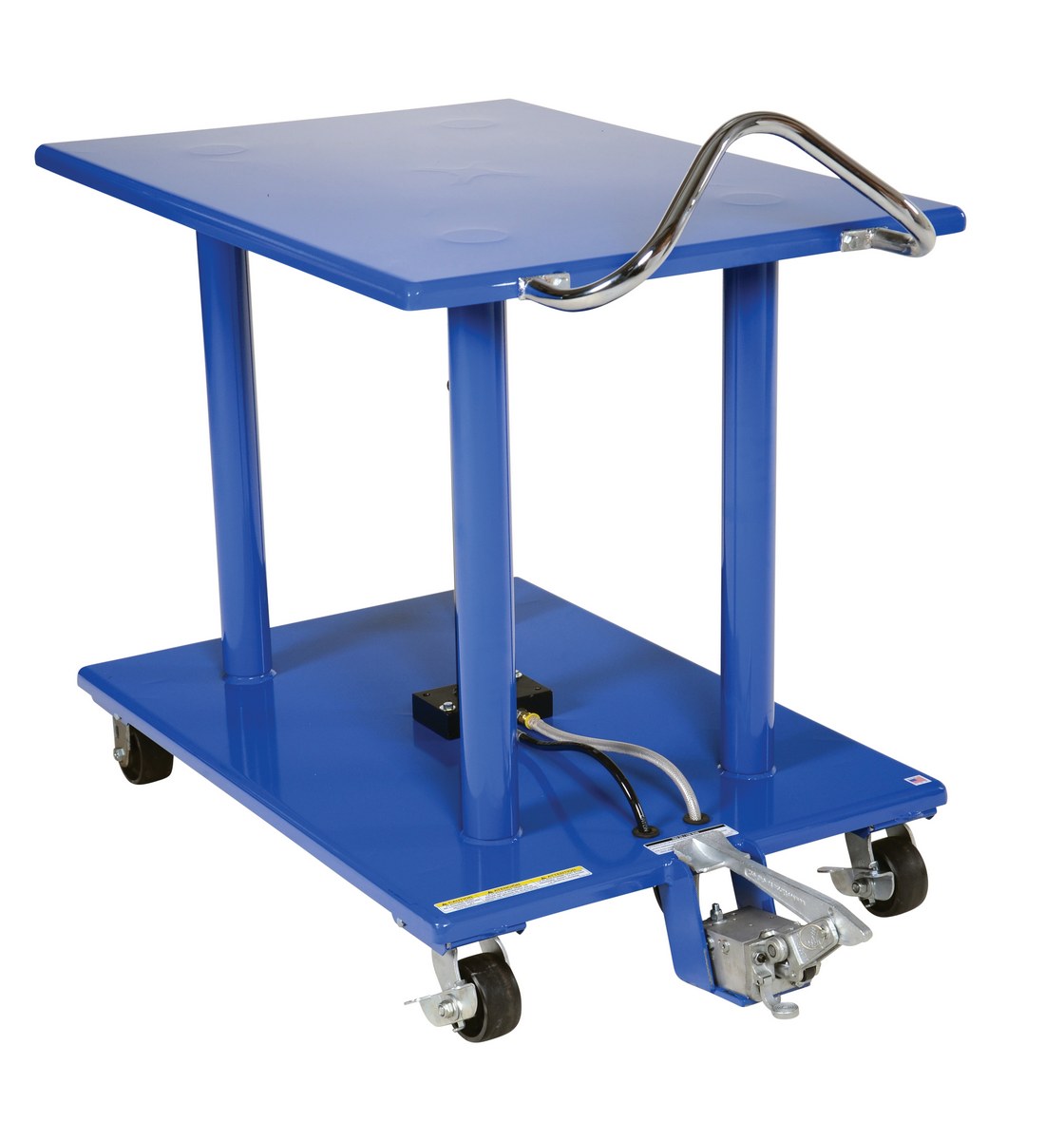

HT-20-3042 HT-20-30421 Year Limited WarrantySteel Hydraulic Post Table 30 In. x 42 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30		483

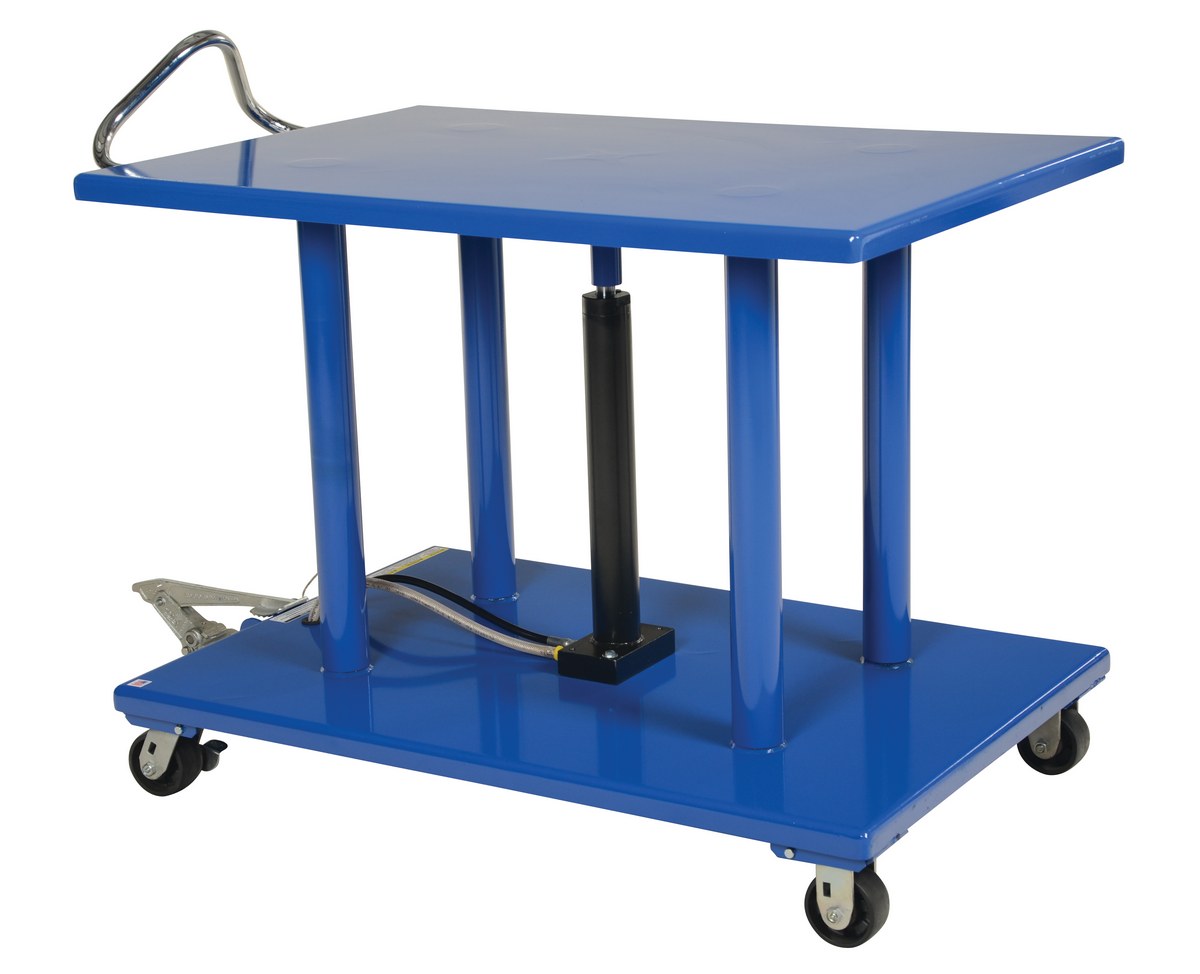

HT-20-3248 HT-20-32481 Year Limited WarrantySteel Hydraulic Post Table 32 In. x 48 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 32		475
HT-20-4048 HT-20-40481 Year Limited WarrantySteel Hydraulic Post Table 40 In. x 48 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 40		540
HT-20-4848 HT-20-48481 Year Limited WarrantySteel Hydraulic Post Table 48 In. x 48 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 48		565

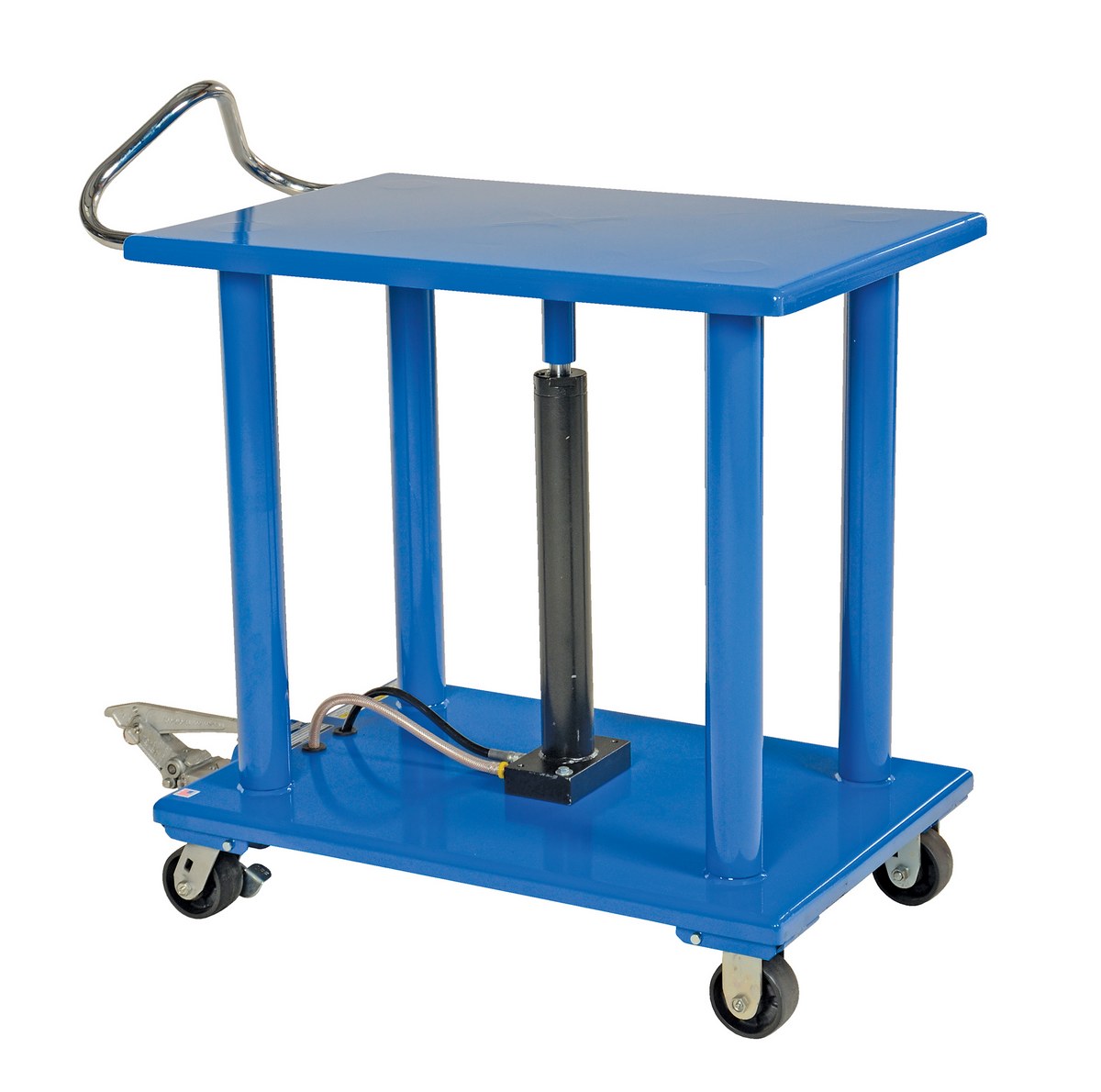

HT-30-2436 HT-30-24361 Year Limited WarrantySteel Hydraulic Post Table 24 In. x 36 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Platform Width (in.): 24		340

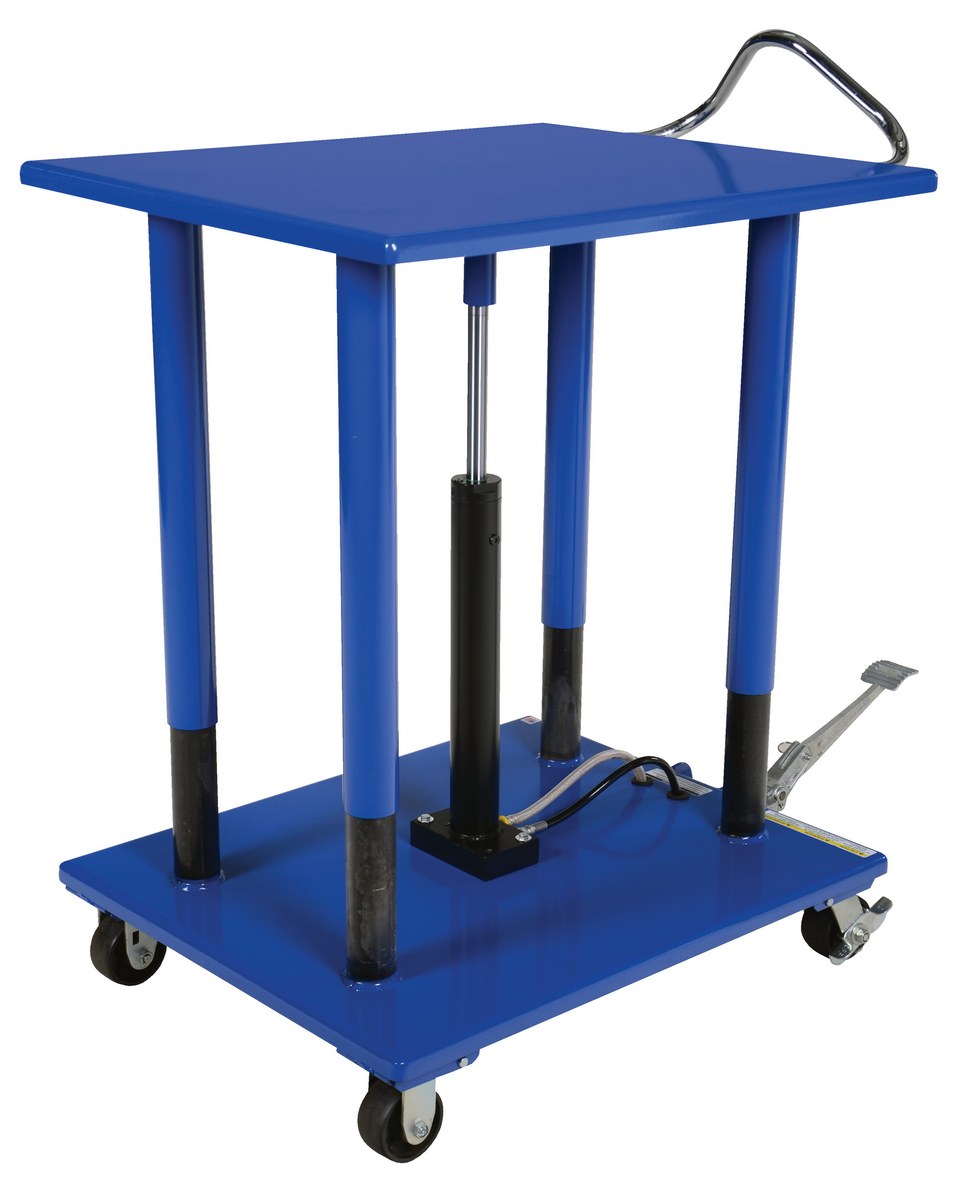

HT-30-3036 HT-30-30361 Year Limited WarrantySteel Hydraulic Post Table 30 In. x 36 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Platform Width (in.): 30		400
HT-30-3042 HT-30-30421 Year Limited WarrantySteel Hydraulic Post Table 30 In. x 42 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Platform Width (in.): 30		470
HT-30-3248 HT-30-32481 Year Limited WarrantySteel Hydraulic Post Table 32 In. x 48 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Platform Width (in.): 32		475
HT-30-4048 HT-30-40481 Year Limited WarrantySteel Hydraulic Post Table 40 In. x 48 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Platform Width (in.): 40		540
HT-30-4848 HT-30-48481 Year Limited WarrantySteel Hydraulic Post Table 48 In. x 48 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Platform Width (in.): 48		565
HT-40-2436 HT-40-24361 Year Limited WarrantySteel Hydraulic Post Table 24 In. x 36 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 24		346

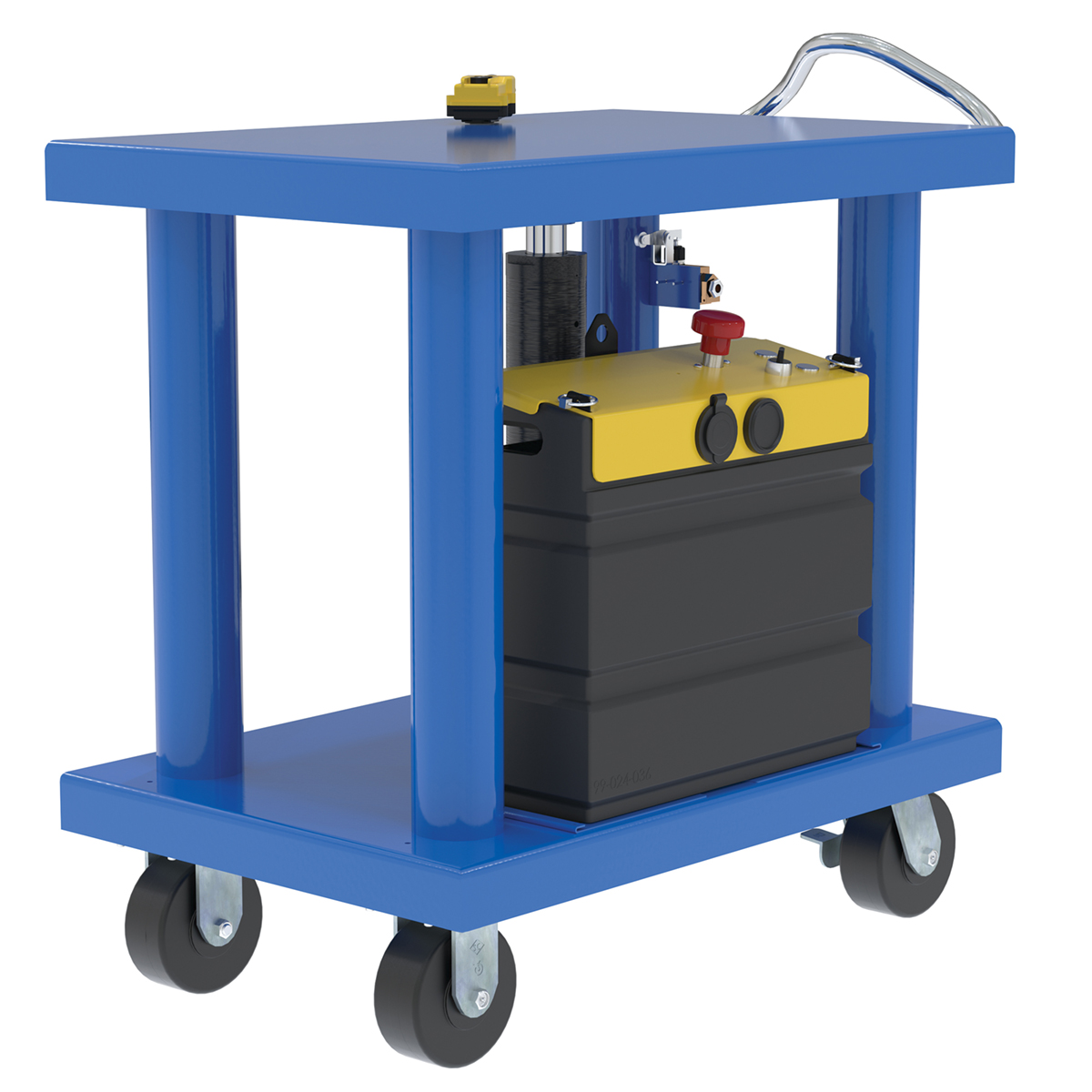

HT-40-2436-DC HT-40-2436-DC1 Year Limited WarrantySteel DC Powered Hydraulic Post Table 24 In x 36 In 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 24		441
HT-40-3036 HT-40-30361 Year Limited WarrantySteel Hydraulic Post Table 30 In. x 36 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 30		462

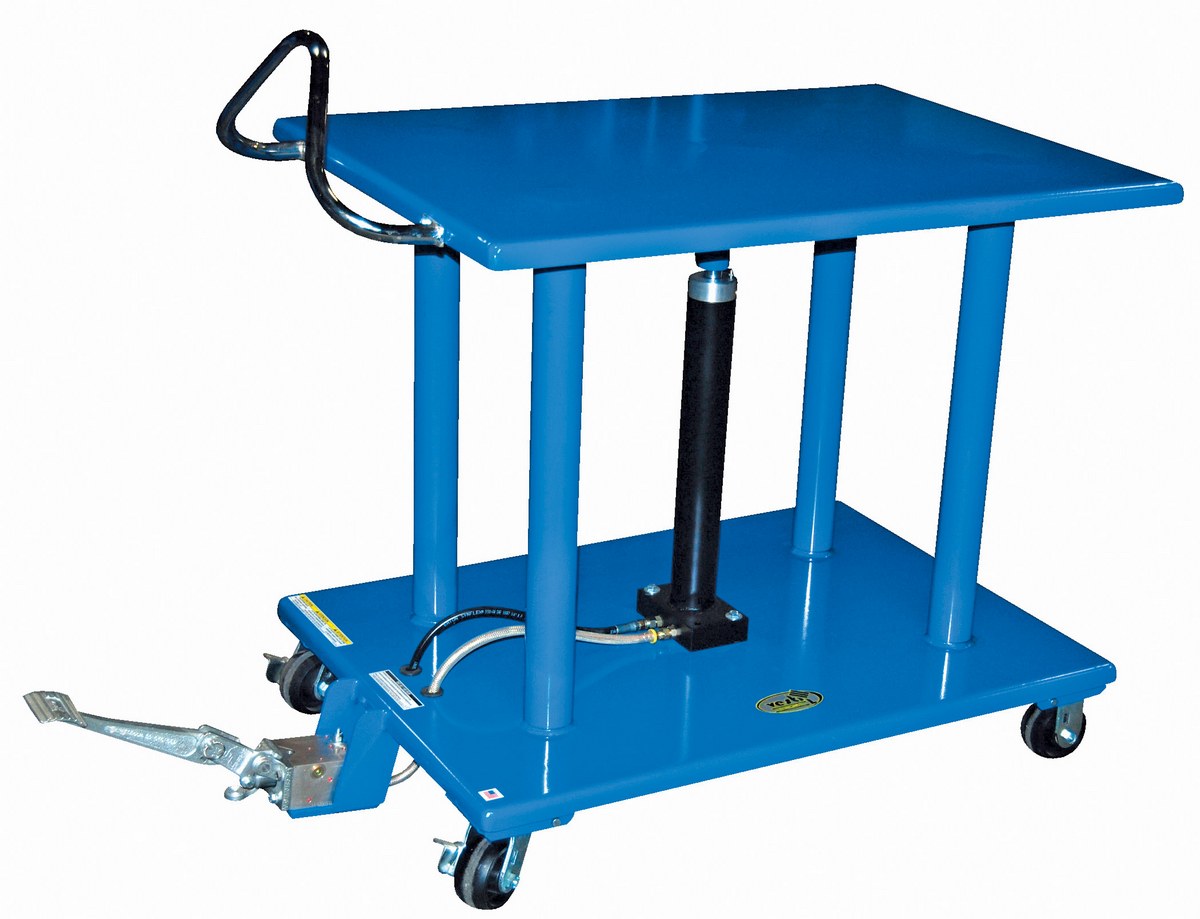

HT-40-3042 HT-40-30421 Year Limited WarrantySteel Hydraulic Post Table 30 In. x 42 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 30		477
HT-40-3248 HT-40-32481 Year Limited WarrantySteel Hydraulic Post Table 32 In. x 48 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 32		475

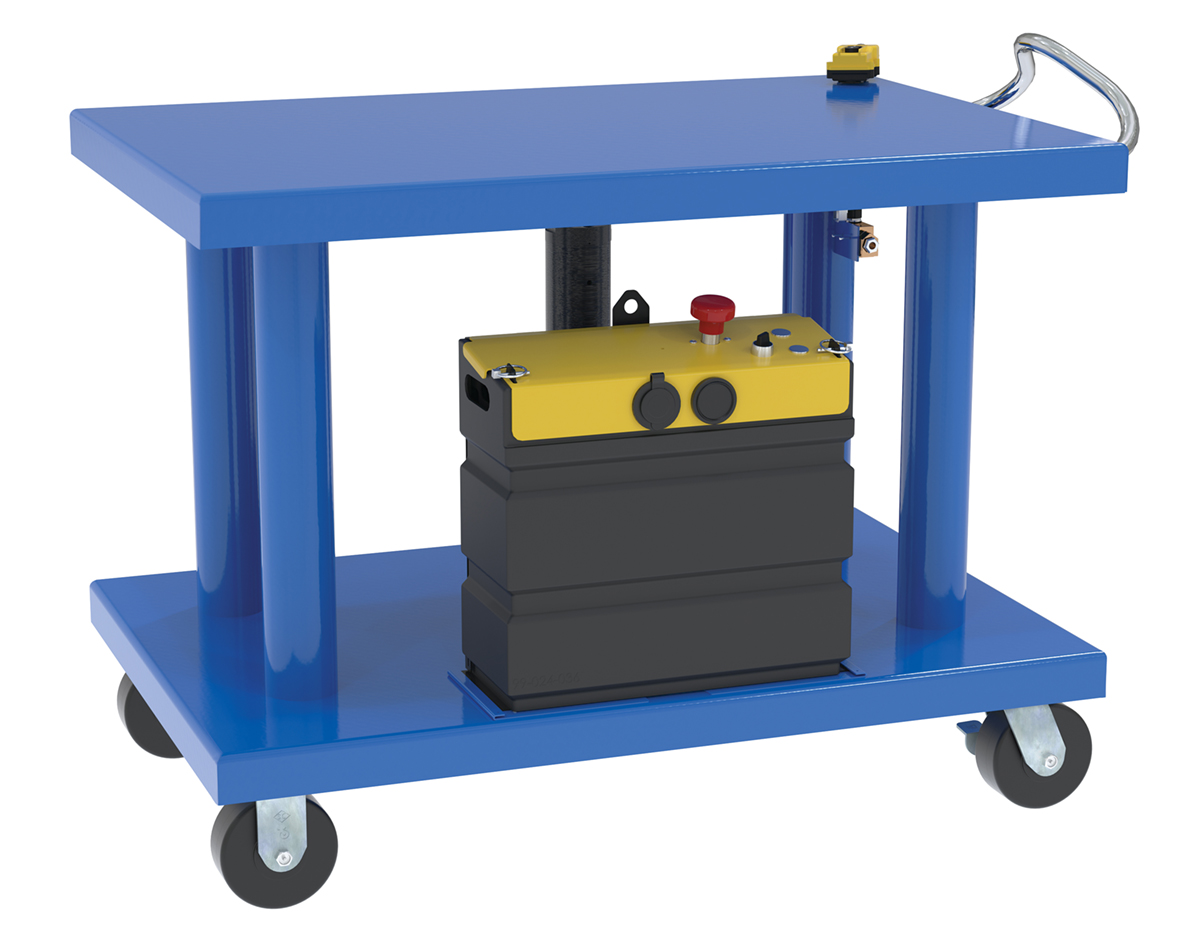

HT-40-3248-DC HT-40-3248-DC1 Year Limited WarrantySteel DC Powered Hydraulic Post Table 32 In x 48 In 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 32		495
HT-40-4048 HT-40-40481 Year Limited WarrantySteel Hydraulic Post Table 40 In. x 48 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 40		540
HT-40-4848 HT-40-48481 Year Limited WarrantySteel Hydraulic Post Table 48 In. x 48 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 48		565
HT-60-2436 HT-60-24361 Year Limited WarrantySteel Hydraulic Post Table 24 In. x 36 In. 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Platform Width (in.): 24		477

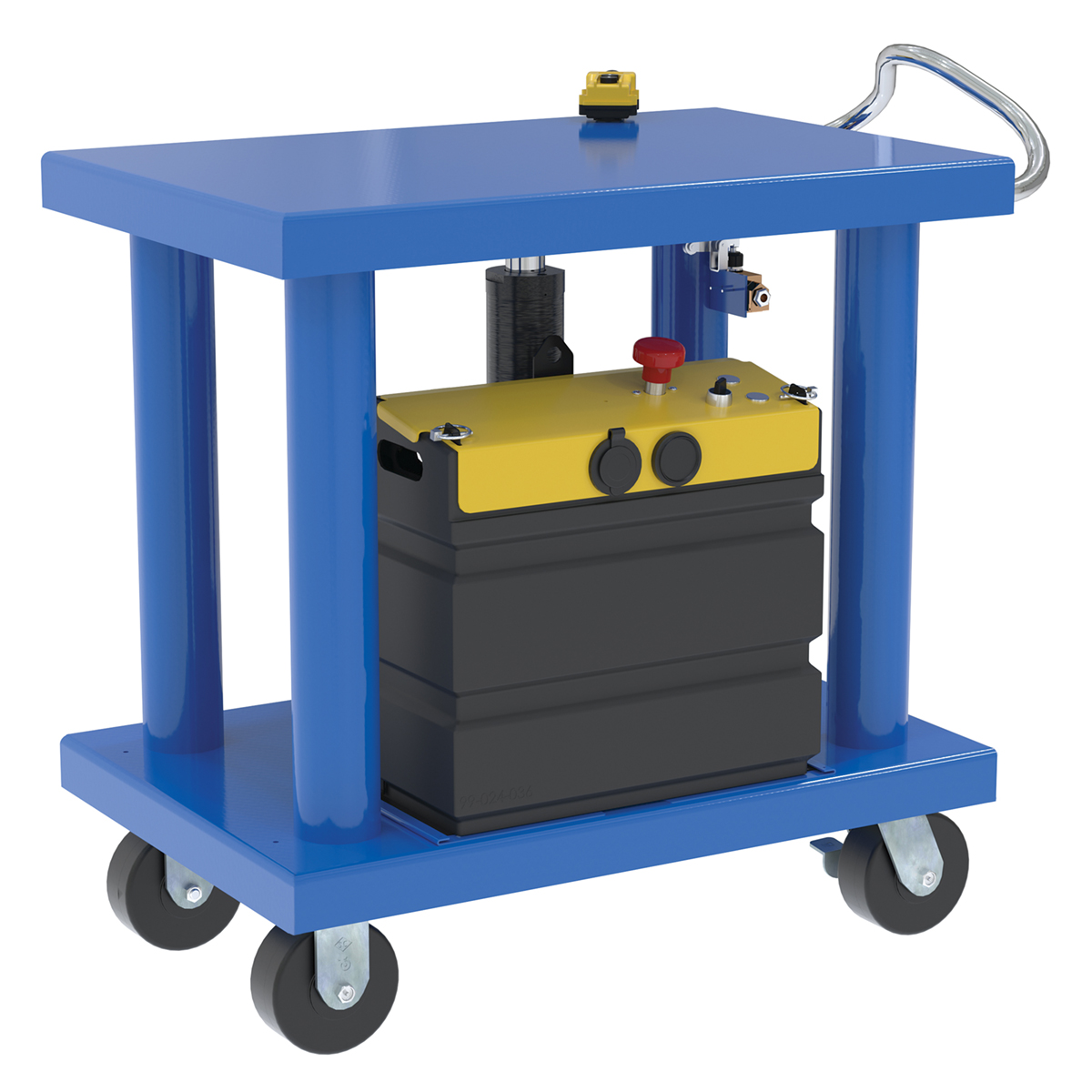

HT-60-2436-DC HT-60-2436-DC1 Year Limited WarrantySteel DC Powered Hydraulic Post Table 24 In x 36 In 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Platform Width (in.): 24		498

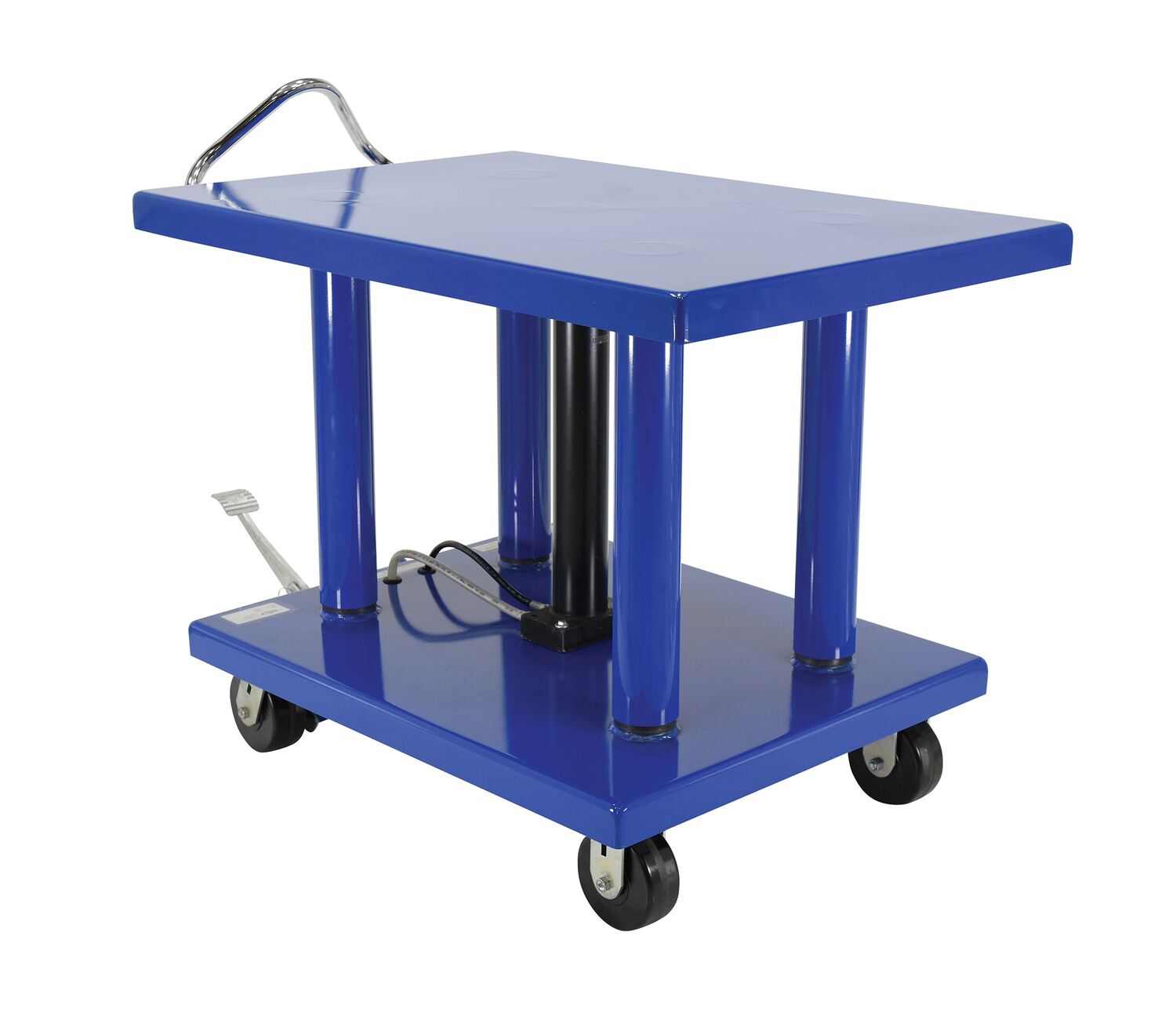

HT-60-3036 HT-60-30361 Year Limited WarrantySteel Hydraulic Post Table 30 In. x 36 In. 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Platform Width (in.): 30		605
HT-60-3042 HT-60-30421 Year Limited WarrantySteel Hydraulic Post Table 30 In. x 42 In. 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Platform Width (in.): 30		635

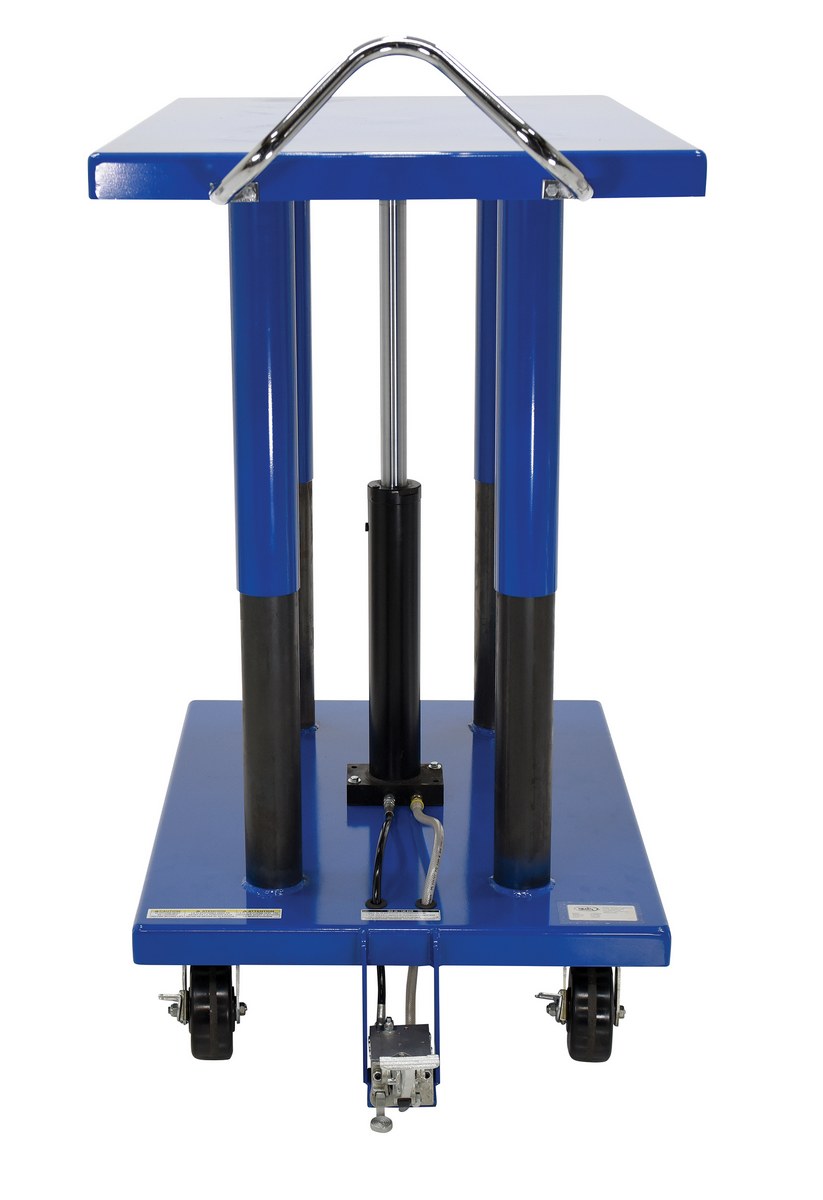

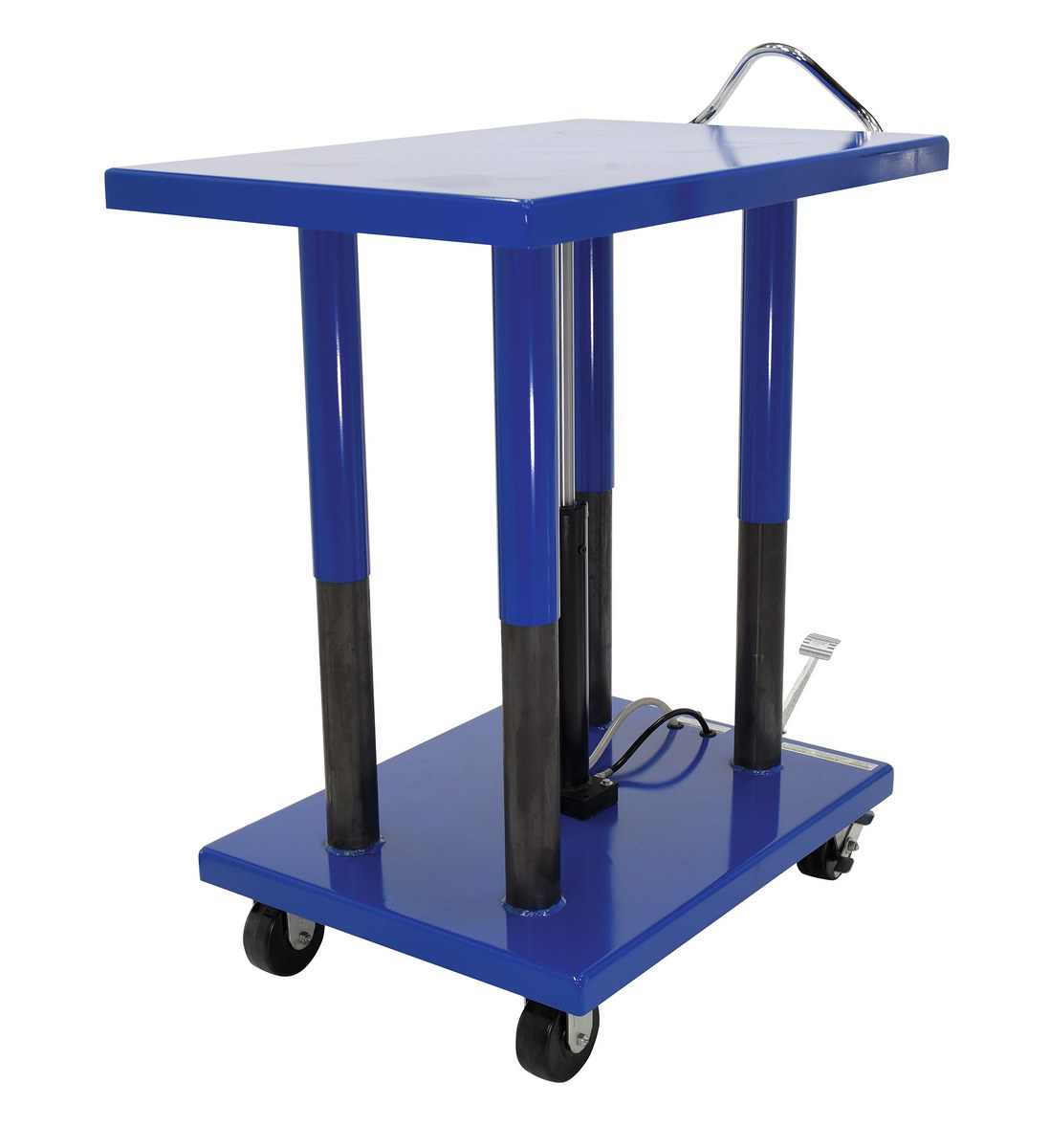

HT-60-3248 HT-60-32481 Year Limited WarrantySteel Hydraulic Post Table 32 In. x 48 In. 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Platform Width (in.): 32		556

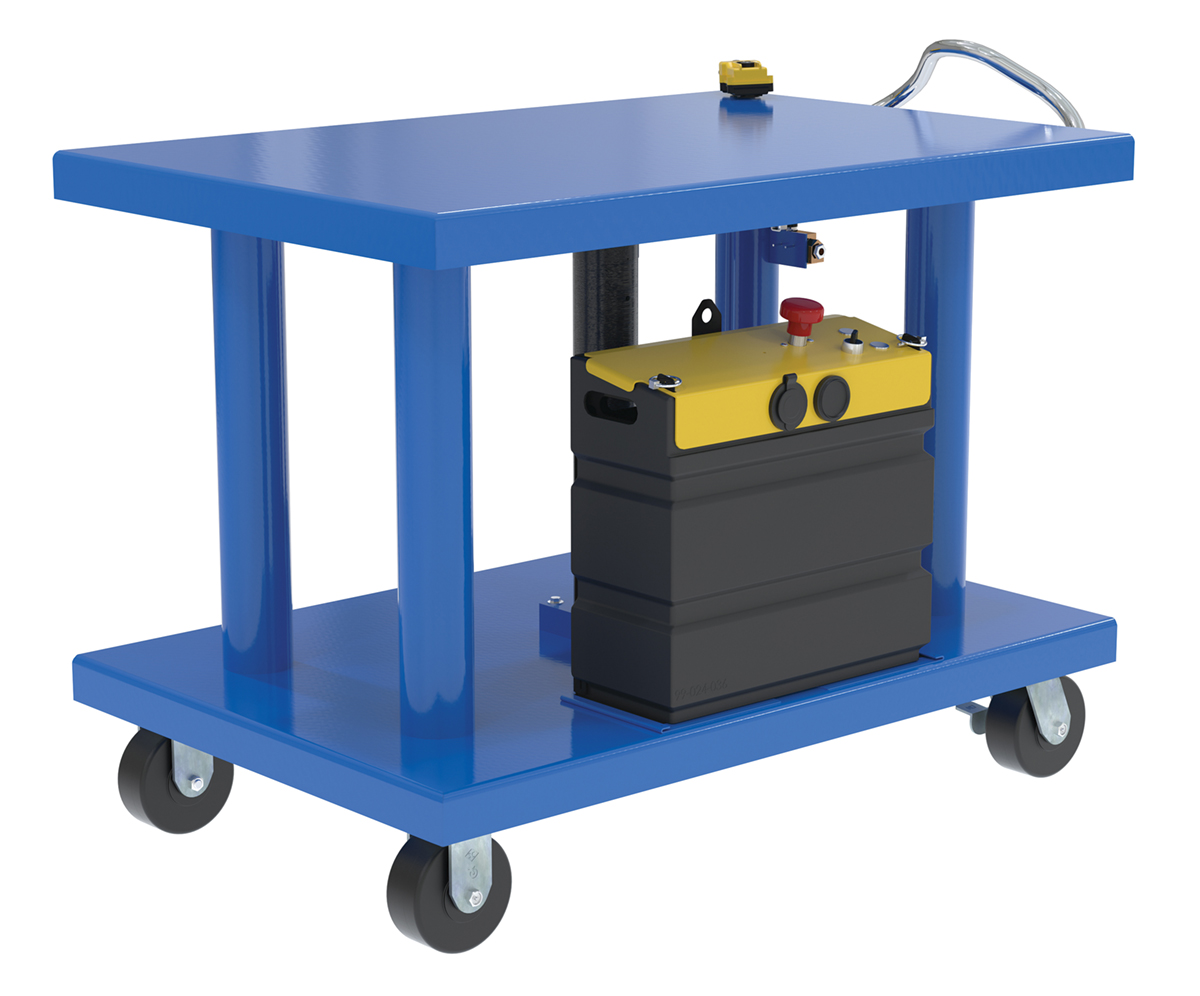

HT-60-3248-DC HT-60-3248-DC1 Year Limited WarrantySteel DC Powered Hydraulic Post Table 32 In x 48 In 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Platform Width (in.): 32		558
HT-60-4048 HT-60-40481 Year Limited WarrantySteel Hydraulic Post Table 40 In. x 48 In. 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Platform Width (in.): 40		728

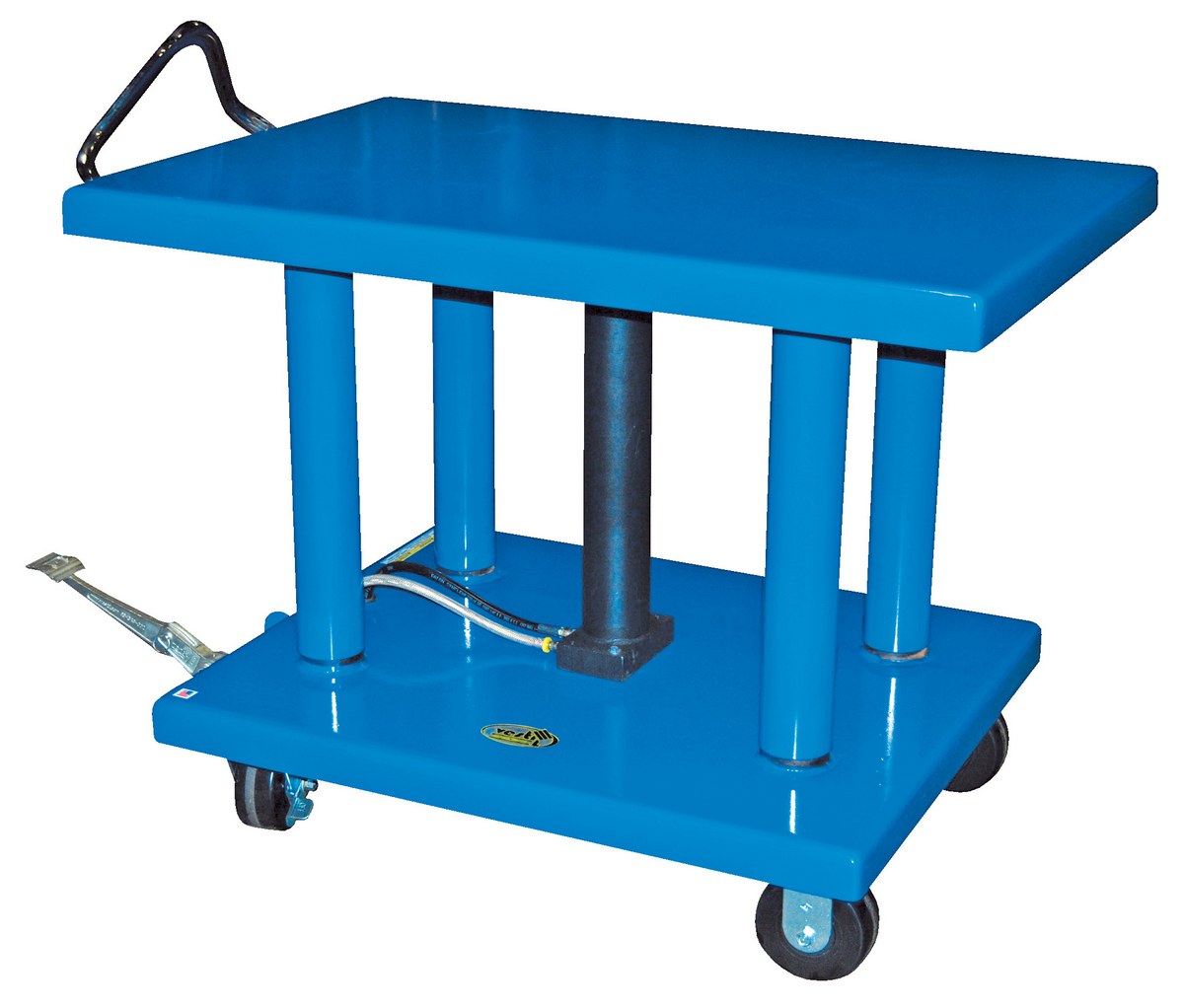

HT-60-4848 HT-60-48481 Year Limited WarrantySteel Hydraulic Post Table 48 In. x 48 In. 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Platform Width (in.): 48		728

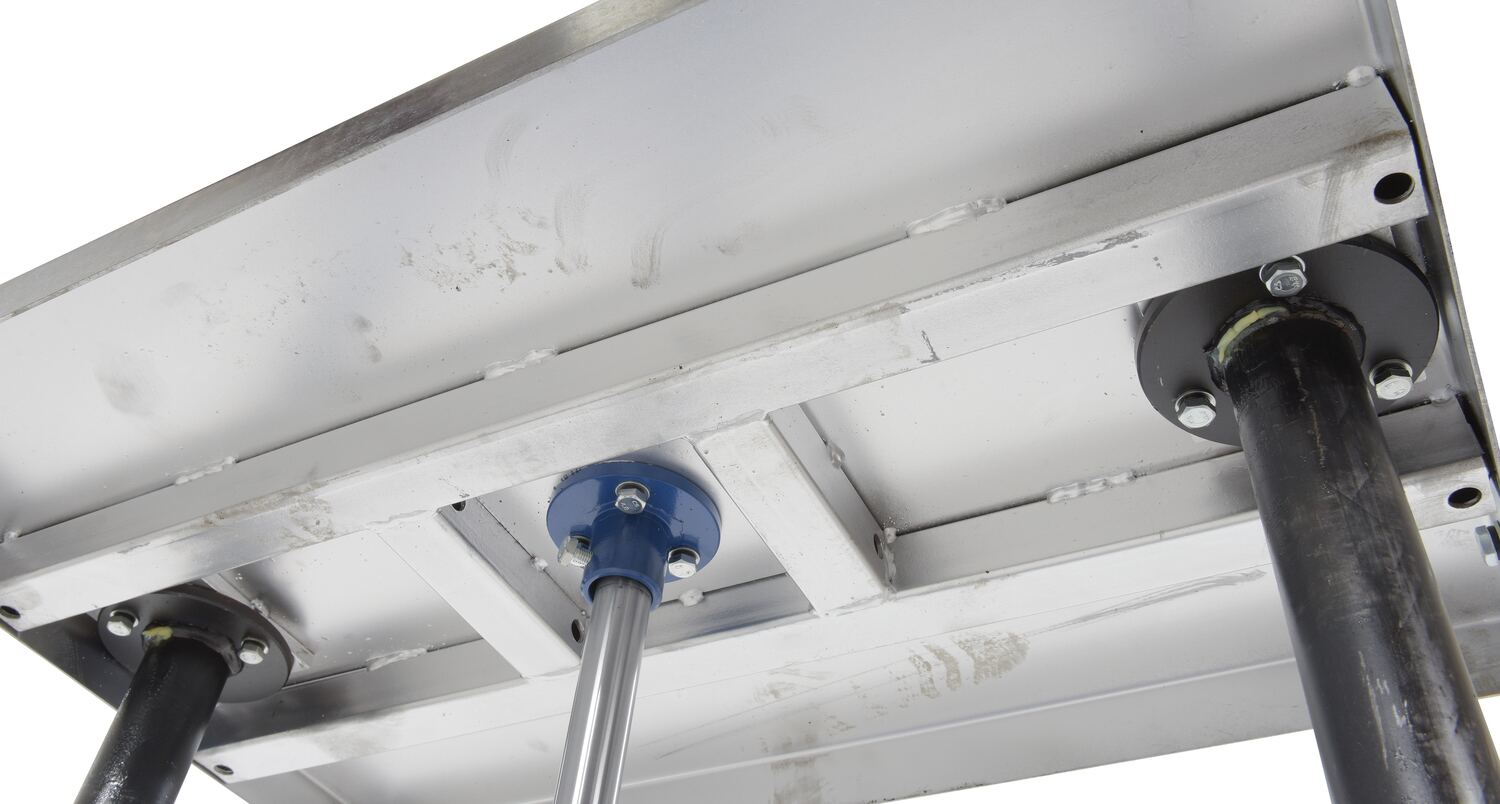

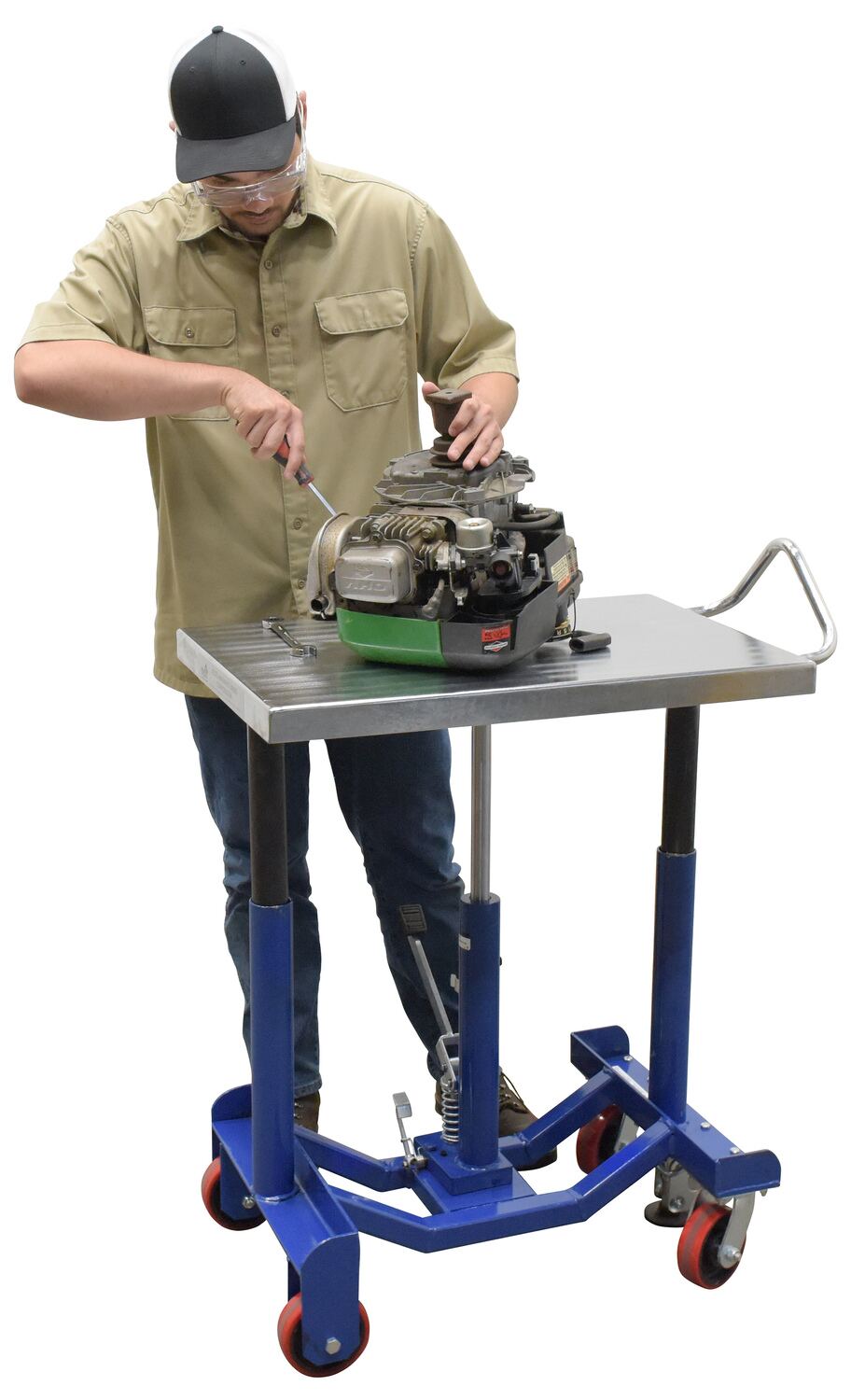

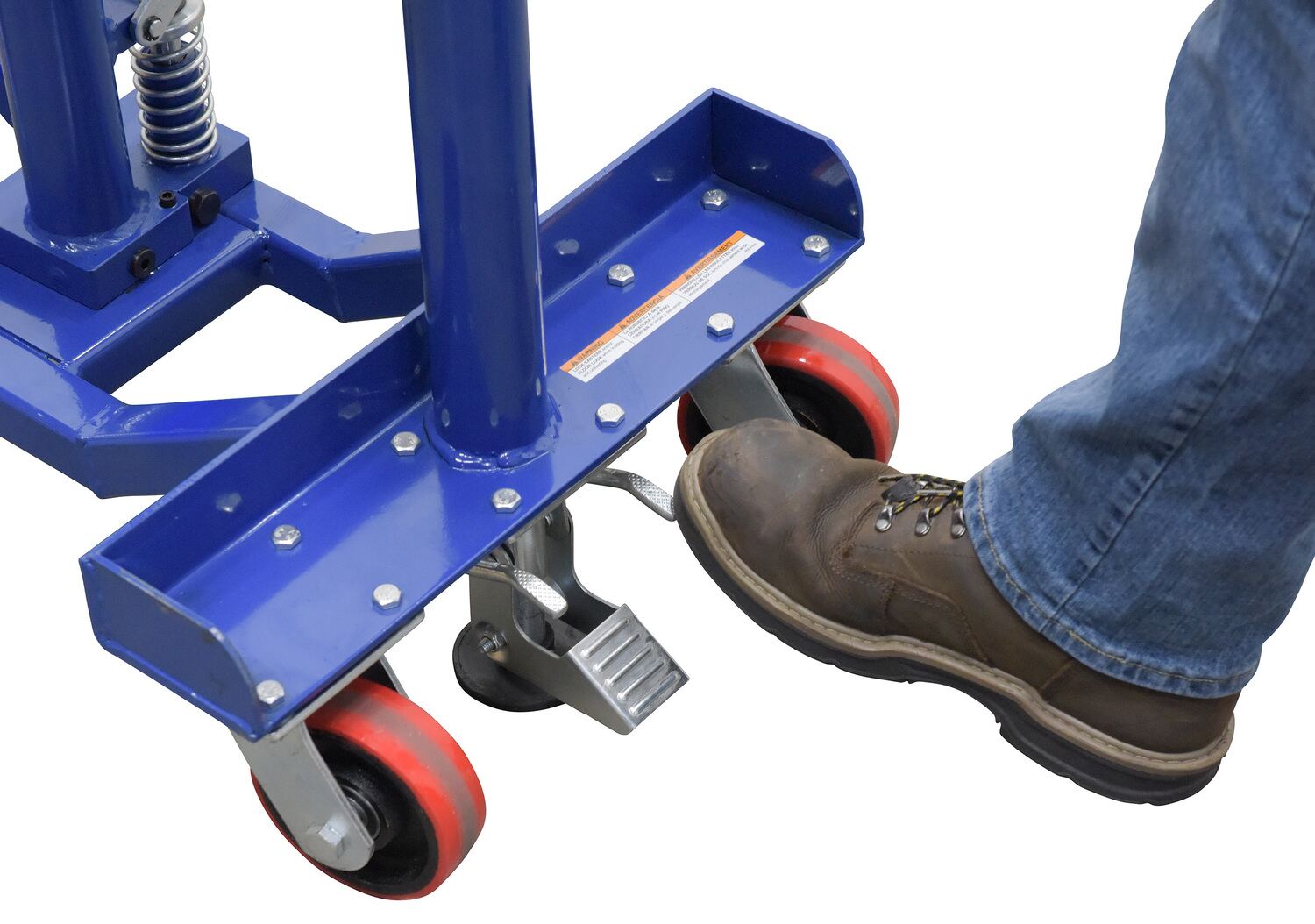

PT12-10 PT12-1090 Days Limited WarrantySteel Low Profile Post Lift Table 34 In. x 20 In. x 26 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Platform Width (in.): 20		184

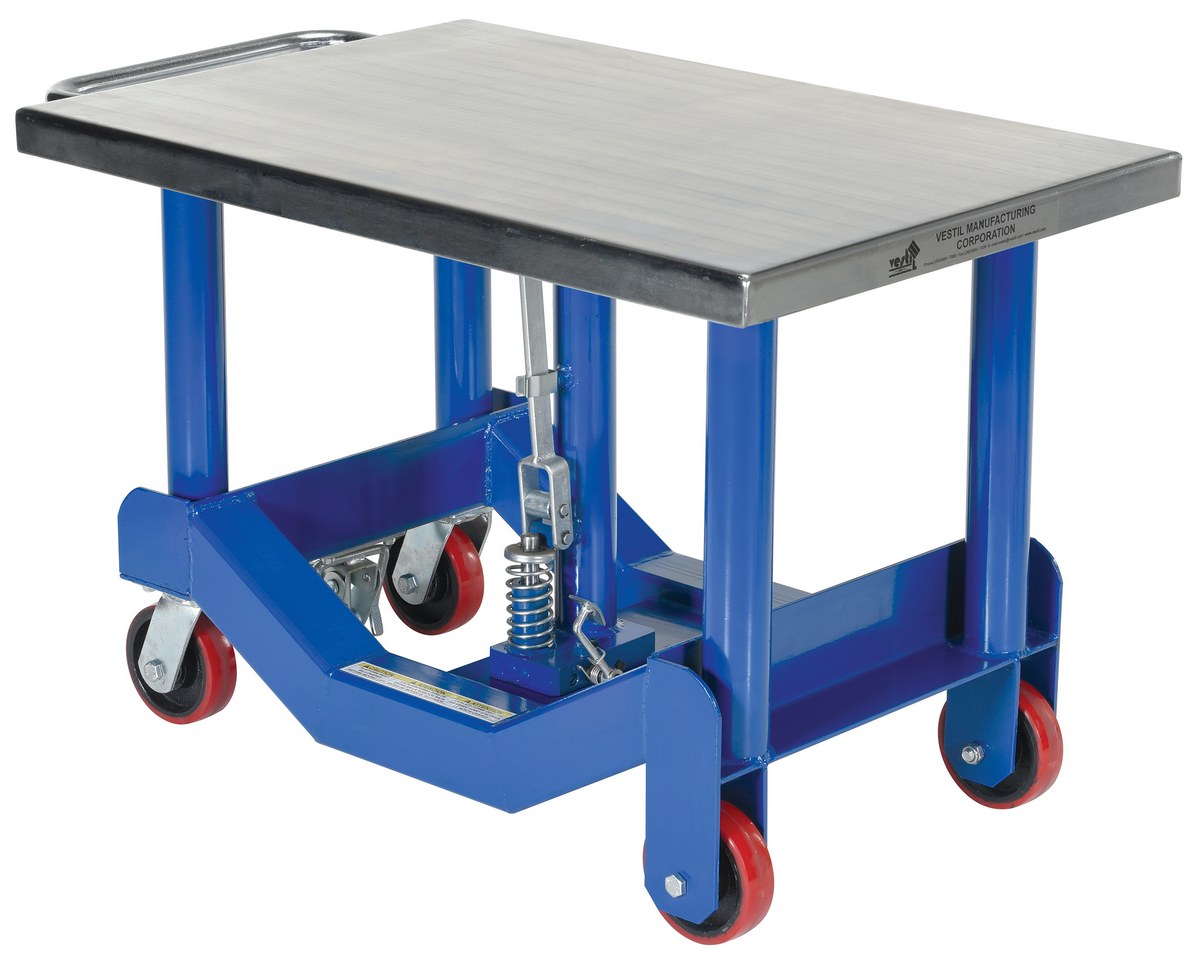

PT12-40 PT12-4090 Days Limited WarrantySteel Low Profile Post Lift Table 41 In. x 24 In. x 25 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Platform Width (in.): 24		270
PT2436E PT2436E90 Days Limited WarrantySteel Linear Actuated Low Profile Post Lift Table 42 In. x 24 In. x 34 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Platform Width (in.): 24		250

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

HT-02-1616A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 200
Platform Width (in.): 16-1/4
Uniform Capacity (lb.): 200
Platform Width (in.): 16-1/4

HT-02-1616A-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 200
Platform Width (in.): 16-1/4
Uniform Capacity (lb.): 200
Platform Width (in.): 16-1/4

HT-03-1616A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 300
Platform Width (in.): 16
Uniform Capacity (lb.): 300
Platform Width (in.): 16

HT-05-1818A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 18
Uniform Capacity (lb.): 500
Platform Width (in.): 18

HT-05-1818A-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 18
Uniform Capacity (lb.): 500
Platform Width (in.): 18

HT-10-2036A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20
Uniform Capacity (lb.): 1000
Platform Width (in.): 20

HT-10-2036A-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20
Uniform Capacity (lb.): 1000
Platform Width (in.): 20

HT-20-2436-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 24
Uniform Capacity (lb.): 2000
Platform Width (in.): 24

HT-20-2436A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 24
Uniform Capacity (lb.): 2000
Platform Width (in.): 24

HT-20-2436A-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 24
Uniform Capacity (lb.): 2000
Platform Width (in.): 24

HT-20-3036-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 30
Uniform Capacity (lb.): 2000
Platform Width (in.): 30

HT-20-3036A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 30
Uniform Capacity (lb.): 2000
Platform Width (in.): 30

HT-20-3036A-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 30
Uniform Capacity (lb.): 2000
Platform Width (in.): 30

HT-20-3042
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 30
Uniform Capacity (lb.): 2000
Platform Width (in.): 30

HT-20-3248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 32
Uniform Capacity (lb.): 2000
Platform Width (in.): 32

HT-20-4048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 40
Uniform Capacity (lb.): 2000
Platform Width (in.): 40

HT-20-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 48
Uniform Capacity (lb.): 2000
Platform Width (in.): 48

HT-30-2436
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Platform Width (in.): 24
Uniform Capacity (lb.): 3000
Platform Width (in.): 24

HT-30-3036
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Platform Width (in.): 30
Uniform Capacity (lb.): 3000
Platform Width (in.): 30

HT-30-3042
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Platform Width (in.): 30
Uniform Capacity (lb.): 3000
Platform Width (in.): 30

HT-30-3248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Platform Width (in.): 32
Uniform Capacity (lb.): 3000
Platform Width (in.): 32

HT-30-4048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Platform Width (in.): 40
Uniform Capacity (lb.): 3000
Platform Width (in.): 40

HT-30-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Platform Width (in.): 48
Uniform Capacity (lb.): 3000
Platform Width (in.): 48

HT-40-2436
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 24
Uniform Capacity (lb.): 4000
Platform Width (in.): 24

HT-40-2436-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 24
Uniform Capacity (lb.): 4000
Platform Width (in.): 24

HT-40-3036
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 30
Uniform Capacity (lb.): 4000
Platform Width (in.): 30

HT-40-3042
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 30
Uniform Capacity (lb.): 4000
Platform Width (in.): 30

HT-40-3248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 32
Uniform Capacity (lb.): 4000
Platform Width (in.): 32

HT-40-3248-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 32
Uniform Capacity (lb.): 4000
Platform Width (in.): 32

HT-40-4048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 40
Uniform Capacity (lb.): 4000
Platform Width (in.): 40

HT-40-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 48
Uniform Capacity (lb.): 4000
Platform Width (in.): 48

HT-60-2436
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Platform Width (in.): 24
Uniform Capacity (lb.): 6000
Platform Width (in.): 24

HT-60-2436-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Platform Width (in.): 24
Uniform Capacity (lb.): 6000
Platform Width (in.): 24

HT-60-3036
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Platform Width (in.): 30
Uniform Capacity (lb.): 6000
Platform Width (in.): 30

HT-60-3042
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Platform Width (in.): 30
Uniform Capacity (lb.): 6000
Platform Width (in.): 30

HT-60-3248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Platform Width (in.): 32
Uniform Capacity (lb.): 6000
Platform Width (in.): 32

HT-60-3248-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Platform Width (in.): 32
Uniform Capacity (lb.): 6000
Platform Width (in.): 32

HT-60-4048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Platform Width (in.): 40
Uniform Capacity (lb.): 6000
Platform Width (in.): 40

HT-60-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Platform Width (in.): 48
Uniform Capacity (lb.): 6000
Platform Width (in.): 48

PT12-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 20
Uniform Capacity (lb.): 1,000
Platform Width (in.): 20

PT12-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Platform Width (in.): 24
Uniform Capacity (lb.): 4,000
Platform Width (in.): 24

PT2436E
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24
Hydraulic Post Tables PDF's will open in a new window when clicked.

Manuals


HT, LDLT
Owners Manual

HT-60-3248
Owners Manual

HT-A
Owners Manual

HT-05-1818A,%20Manual%20
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


HT-02-1616A

HT-02-1616A-PSS

HT-03-1616A

HT-05-1818A

HT-10-2036A

HT-20-2436-DC

HT-20-2436A

HT-20-3036-DC

HT-20-3036A

HT-20-3042

HT-20-3248

HT-20-4048

HT-20-4848

HT-30-2436

HT-30-3036

HT-30-3042

HT-30-3248

HT-30-4048

HT-30-4848

HT-40-2436

HT-40-2436-DC

HT-40-3036

HT-40-3042

HT-40-3248

HT-40-3248-DC

HT-40-4048

HT-40-4848

HT-60-2436

HT-60-2436-DC

HT-60-3036

HT-60-3042

HT-60-3248

HT-60-3248-DC

HT-60-4048

HT-60-4848

PT12-10

PT12-20

PT12-40

PT2436E

Testing Certificates


HT-02-1616A

HT-02-1616A-PSS

HT-03-1616A

HT-05-1818A

HT-05-1818A-PSS

HT-10-2036A

HT-10-2036A-PSS

HT-20-2436-DC

HT-20-2436A

HT-20-2436A-PSS

HT-20-3036-DC

HT-20-3036A

HT-20-3036A-PSS

HT-20-3042

HT-20-3248

HT-20-4048

HT-20-4848

HT-30-2436

HT-30-3036

HT-30-3042

HT-30-3248

HT-30-4048

HT-30-4848

HT-40-2436

HT-40-2436-DC

HT-40-3036

HT-40-3042

HT-40-3248

HT-40-3248-DC

HT-40-4048

HT-40-4848

HT-60-2436

HT-60-2436-DC

HT-60-3036

HT-60-3042

HT-60-3248

HT-60-3248-DC

HT-60-4048

HT-60-4848

PT12-10

PT12-20

PT12-40

PT2436E

SDS Sheets

Hydraulic Oil SDS Sheet for: HT-02-1616A
Hydraulic Oil SDS Sheet for: HT-02-1616A-PSS
Hydraulic Oil SDS Sheet for: HT-02-1616-LA
Hydraulic Oil SDS Sheet for: HT-03-1616A
Hydraulic Oil SDS Sheet for: HT-05-1818A
Hydraulic Oil SDS Sheet for: HT-05-1818A-PSS
Hydraulic Oil SDS Sheet for: HT-10-2036A
Hydraulic Oil SDS Sheet for: HT-10-2036A-PSS
Hydraulic Oil SDS Sheet for: HT-20-2436A
Hydraulic Oil SDS Sheet for: HT-20-2436A-PSS
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HT-20-2436-DC
Hydraulic Oil SDS Sheet for: HT-20-2436-DC
Hydraulic Oil SDS Sheet for: HT-20-3036A
Hydraulic Oil SDS Sheet for: HT-20-3036A-PSS
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HT-20-3036-DC
Hydraulic Oil SDS Sheet for: HT-20-3036-DC
Hydraulic Oil SDS Sheet for: HT-20-3042
Hydraulic Oil SDS Sheet for: HT-20-3248
Hydraulic Oil SDS Sheet for: HT-20-4048
Hydraulic Oil SDS Sheet for: HT-20-4848
Hydraulic Oil SDS Sheet for: HT-30-2436
Hydraulic Oil SDS Sheet for: HT-30-3036
Hydraulic Oil SDS Sheet for: HT-30-3042
Hydraulic Oil SDS Sheet for: HT-30-3248
Hydraulic Oil SDS Sheet for: HT-30-4048
Hydraulic Oil SDS Sheet for: HT-30-4848
Hydraulic Oil SDS Sheet for: HT-40-2436
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HT-40-2436-DC
Hydraulic Oil SDS Sheet for: HT-40-2436-DC
Hydraulic Oil SDS Sheet for: HT-40-3036
Hydraulic Oil SDS Sheet for: HT-40-3042
Hydraulic Oil SDS Sheet for: HT-40-3248
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HT-40-3248-DC
Hydraulic Oil SDS Sheet for: HT-40-3248-DC
Hydraulic Oil SDS Sheet for: HT-40-4048
Hydraulic Oil SDS Sheet for: HT-40-4848
Hydraulic Oil SDS Sheet for: HT-60-2436
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HT-60-2436-DC
Hydraulic Oil SDS Sheet for: HT-60-2436-DC
Hydraulic Oil SDS Sheet for: HT-60-3248
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HT-60-3248-DC
Hydraulic Oil SDS Sheet for: HT-60-3248-DC
Hydraulic Oil SDS Sheet for: HT-60-4048
Hydraulic Oil SDS Sheet for: HT-60-4848
Hydraulic Oil SDS Sheet for: PT12-10
Hydraulic Oil SDS Sheet for: PT12-40

Lithium Ion Rechargeable Battery Cell SDS Sheet for: PT2436E
Hydraulic Oil SDS Sheet for: PT2436E

Other PDF's


Hydraulic Lift Tables Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the raise and lower time for HT-60-3248-DC?

A: The approximate raise time of the DC (battery powered) unit is 25 seconds. The unit lowers in approximately 8 seconds.

Q: What is the raise and lower time for HT-20-2436-DC?

A: The approximate raise time of the DC (battery powered) unit is 10.5 seconds. The unit lowers in approximately 4 seconds.

Q: What is the raise and lower time for HT-60-2436-DC?

A: The approximate raise time of the DC (battery powered) unit is 25 seconds. The unit lowers in approximately 8 seconds.

Q: What is the raise and lower time for HT-40-2436-DC?

A: The approximate raise time of the DC (battery powered) unit is 10.5 seconds. The unit lowers in approximately 4 seconds.

Q: What is the raise and lower time for HT-40-3248-DC?

A: The approximate raise time of the DC (battery powered) unit is 10.5 seconds. The unit lowers in approximately 4 seconds.

Q: What is the raise and lower time for HT-20-3036-DC?

A: The approximate raise time of the DC (battery powered) unit is 10.5 seconds. The unit lowers in approximately 4 seconds.

Q: How high can it goes when it is full extended all the way up?

A: When it is extended all the way up it measures 49 inches.




Related or Similar Products:

Die Tables
Product

Die Tables

Air Hydraulic Post Tables
Product

Air Hydraulic Post Tables

Linear Actuated Post Table
Product

Linear Actuated Post Table

Mechanical Post Tables
Product

Mechanical Post Tables

Long Deck Carts
Product

Long Deck Carts

Hydraulic Post Tables w/ Rounded Tops
Product

Hydraulic Post Tables w/ Rounded Tops

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Hydraulic Post Tables




Hydraulic Post Tables are ideal in material handling facilities. The unit can be of use in a variety of environments from lifting dies and castings to moving machine parts. The corner posts are telescoping to help stabilize and fully support the load during operation. The tables roll smoothly on two (2) locking swivel casters with brakes and two (2) rigid. The tables can be lifted/lowered with a single speed foot pump, two-speed foot pump, or a two speed auto shifter that automatically shifts when the table is loaded. DC units include one (1) 12V battery to raise and lower the platform. They also include a battery, on-board charger, and a hand control on an 8 ft. coil cord. *PP stands for poly-on-poly casters. PS = poly-on-steel casters. PP = polypropylene casters. Model HT-02-1616A and HT-03-1616A includes a platform that swivels 360 degrees for use as a turntable. Model HT-02-1616A, HT-03-1616A and HT-05-1818A standard with a removable rubber platform cover. Partially Stainless Steel Post Tables feature a zinc plated pump assembly and leg posts while the platform, base frame, handle, casters rigs, and hardware are stainless steel.

  • Heavy-duty construction is ideal for industrial work areas
  • Telescopic posts stabilize loads during use
  • Units feature two rigid and two swivel casters for easy portability
  • Patented ergonomic push handle makes pushing the unit safe and easy

Other Post Tables:
HT-02-24R
Hydraulic Post Tables w/ Round Top		 HT-02-1616-LA_A.jpg
Linear Actuated Post Tables
Air Hydraulic Post Tables		 MT-2436-HP_E.jpg
Mechanical Post Tables

Model # Description Attributes Net Wt.
(lbs)
HT-02-1616A HT-02-1616ASteel Hydraulic Post Table 16 In. x 16 In. 200 Lb. Capacity BlueUniform Capacity (lb.): 200
Platform Width (in.): 16-1/4		126
HT-02-1616A-PSS HT-02-1616A-PSSPartially Stainless Steel Hydraulic Post Table 16 In. x 16 In. 200 Lb. Capacity SilverUniform Capacity (lb.): 200
Platform Width (in.): 16-1/4		126
HT-03-1616A HT-03-1616ASteel Hydraulic Post Table 16 In. x 16 In. 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Platform Width (in.): 16		126
HT-05-1818A HT-05-1818ASteel Hydraulic Post Table 18 In. x 18 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 18		151
HT-05-1818A-PSS HT-05-1818A-PSSPartially Stainless Steel Hydraulic Post Table 18 In. x 18 In. 500 Lb. Capacity SilverUniform Capacity (lb.): 500
Platform Width (in.): 18		151
HT-10-2036A HT-10-2036ASteel Hydraulic Post Table 20 In. x 36 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20		241
HT-10-2036A-PSS HT-10-2036A-PSSPartially Stainless Steel Hydraulic Post Table 20 In. x 36 In. 1000 Lb. Capacity SilverUniform Capacity (lb.): 1000
Platform Width (in.): 20		241
HT-20-2436-DC HT-20-2436-DCSteel DC Powered Hydraulic Post Table 24 In. x 36 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 24		396
HT-20-2436A HT-20-2436ASteel Hydraulic Post Table 24 In. x 36 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 24		332
HT-20-2436A-PSS HT-20-2436A-PSSPartially Stainless Steel Hydraulic Post Table 24 In. x 36 In. 2000 Lb. Capacity SilverUniform Capacity (lb.): 2000
Platform Width (in.): 24		332
HT-20-3036-DC HT-20-3036-DCSteel DC Powered Hydraulic Post Table 30 In x 36 In 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30		425
HT-20-3036A HT-20-3036ASteel Hydraulic Post Table 30 In. x 36 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30		376
HT-20-3036A-PSS HT-20-3036A-PSSPartially Stainless Steel Hydraulic Post Table 30 In. x 36 In. 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2000
Platform Width (in.): 30		376
HT-20-3042 HT-20-3042Steel Hydraulic Post Table 30 In. x 42 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30		483
HT-20-3248 HT-20-3248Steel Hydraulic Post Table 32 In. x 48 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 32		475
HT-20-4048 HT-20-4048Steel Hydraulic Post Table 40 In. x 48 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 40		540
HT-20-4848 HT-20-4848Steel Hydraulic Post Table 48 In. x 48 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 48		565
HT-30-2436 HT-30-2436Steel Hydraulic Post Table 24 In. x 36 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Platform Width (in.): 24		340
HT-30-3036 HT-30-3036Steel Hydraulic Post Table 30 In. x 36 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Platform Width (in.): 30		400
HT-30-3042 HT-30-3042Steel Hydraulic Post Table 30 In. x 42 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Platform Width (in.): 30		470
HT-30-3248 HT-30-3248Steel Hydraulic Post Table 32 In. x 48 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Platform Width (in.): 32		475
HT-30-4048 HT-30-4048Steel Hydraulic Post Table 40 In. x 48 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Platform Width (in.): 40		540
HT-30-4848 HT-30-4848Steel Hydraulic Post Table 48 In. x 48 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Platform Width (in.): 48		565
HT-40-2436 HT-40-2436Steel Hydraulic Post Table 24 In. x 36 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 24		346
HT-40-2436-DC HT-40-2436-DCSteel DC Powered Hydraulic Post Table 24 In x 36 In 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 24		441
HT-40-3036 HT-40-3036Steel Hydraulic Post Table 30 In. x 36 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 30		462
HT-40-3042 HT-40-3042Steel Hydraulic Post Table 30 In. x 42 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 30		477
HT-40-3248 HT-40-3248Steel Hydraulic Post Table 32 In. x 48 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 32		475
HT-40-3248-DC HT-40-3248-DCSteel DC Powered Hydraulic Post Table 32 In x 48 In 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 32		495
HT-40-4048 HT-40-4048Steel Hydraulic Post Table 40 In. x 48 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 40		540
HT-40-4848 HT-40-4848Steel Hydraulic Post Table 48 In. x 48 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 48		565
HT-60-2436 HT-60-2436Steel Hydraulic Post Table 24 In. x 36 In. 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Platform Width (in.): 24		477
HT-60-2436-DC HT-60-2436-DCSteel DC Powered Hydraulic Post Table 24 In x 36 In 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Platform Width (in.): 24		498
HT-60-3036 HT-60-3036Steel Hydraulic Post Table 30 In. x 36 In. 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Platform Width (in.): 30		605
HT-60-3042 HT-60-3042Steel Hydraulic Post Table 30 In. x 42 In. 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Platform Width (in.): 30		635
HT-60-3248 HT-60-3248Steel Hydraulic Post Table 32 In. x 48 In. 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Platform Width (in.): 32		556
HT-60-3248-DC HT-60-3248-DCSteel DC Powered Hydraulic Post Table 32 In x 48 In 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Platform Width (in.): 32		558
HT-60-4048 HT-60-4048Steel Hydraulic Post Table 40 In. x 48 In. 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Platform Width (in.): 40		728
HT-60-4848 HT-60-4848Steel Hydraulic Post Table 48 In. x 48 In. 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Platform Width (in.): 48		728
PT12-10 PT12-10Steel Low Profile Post Lift Table 34 In. x 20 In. x 26 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Platform Width (in.): 20		184
PT12-40 PT12-40Steel Low Profile Post Lift Table 41 In. x 24 In. x 25 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Platform Width (in.): 24		270
PT2436E PT2436ESteel Linear Actuated Low Profile Post Lift Table 42 In. x 24 In. x 34 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Platform Width (in.): 24		250

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
