Hand Winch Lift Trucks

model: A-LIFT-CB

A-LIFT-CB_J.jpg A-LIFT-CB_A.jpg A-LIFT-CB_I.jpg A-LIFT-CB_C.jpg A-LIFT-CB_D.jpg A-LIFT-CB_E.jpg A-LIFT-CB_G.jpg A-LIFT-CB_H.jpg More Images +
Hand Winch Lift Trucks
SERIES: A-LIFT

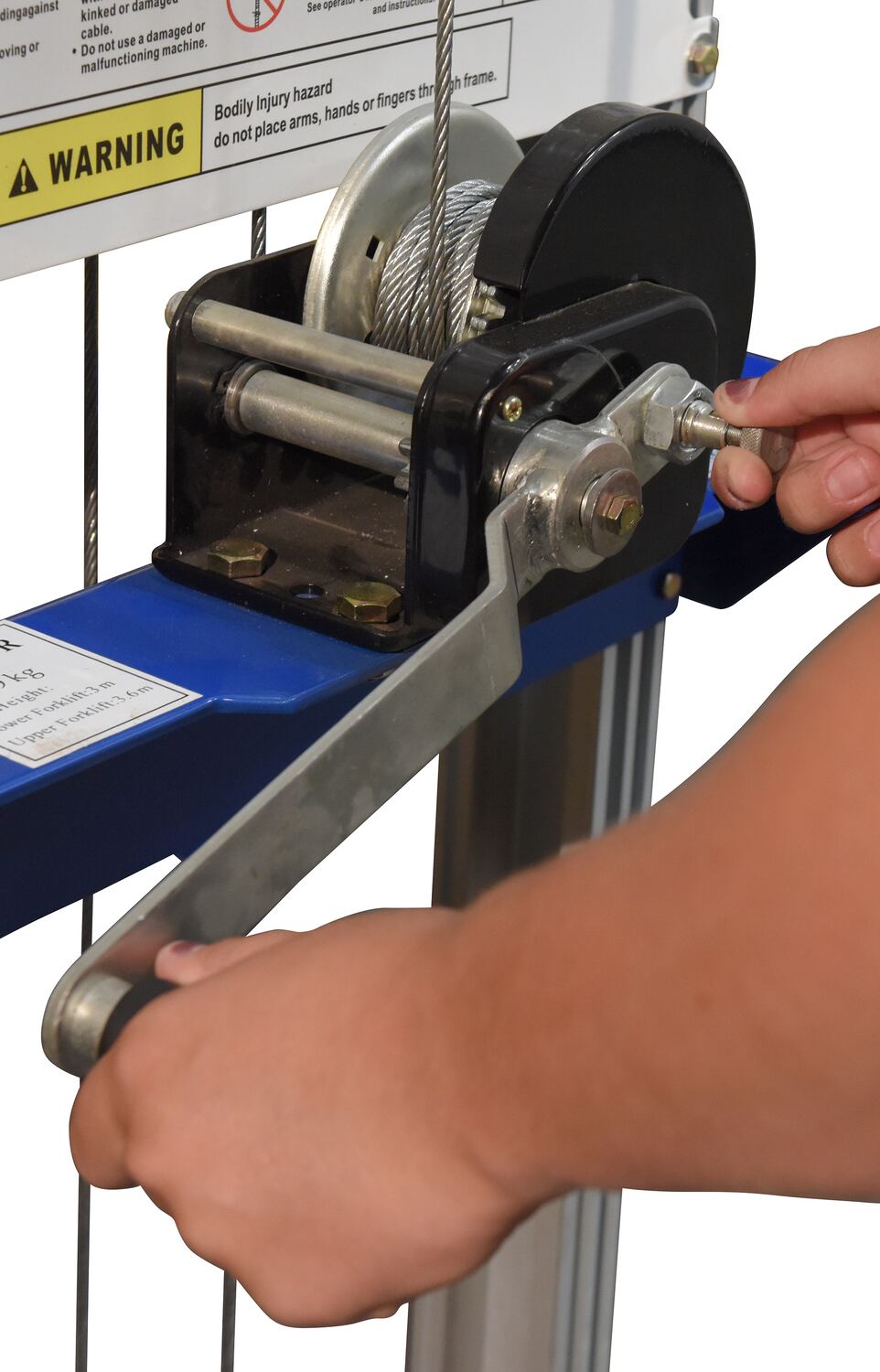

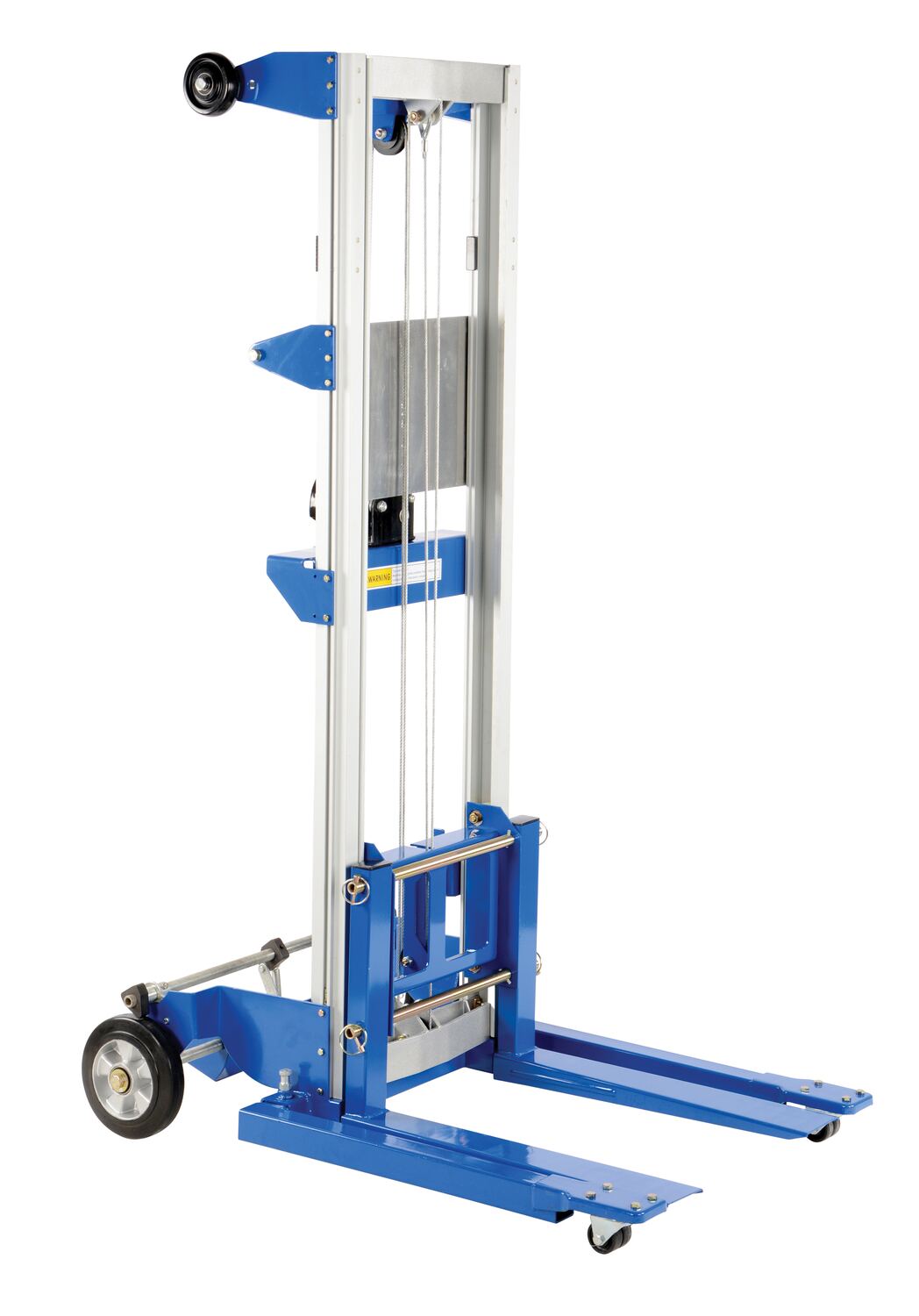

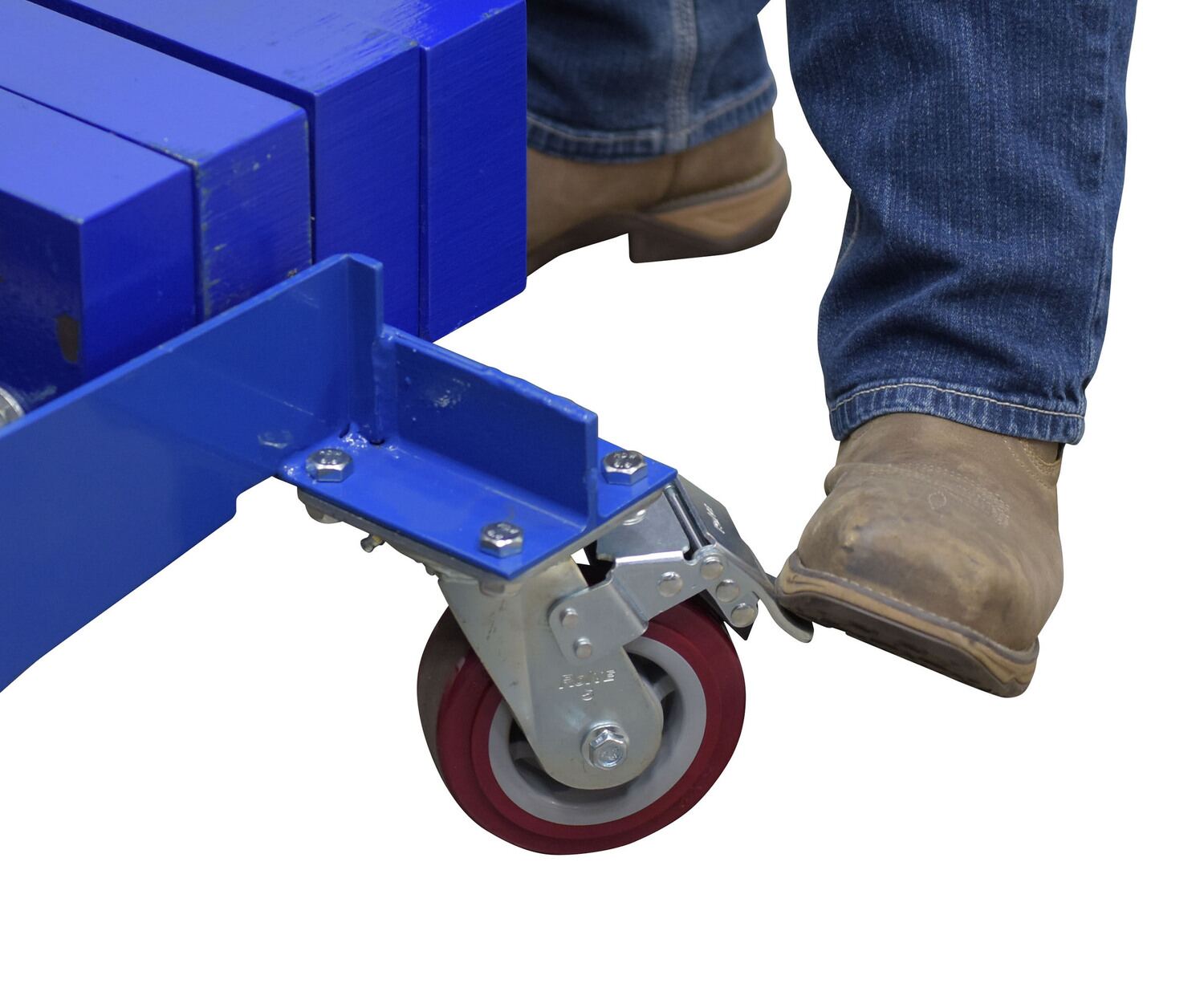

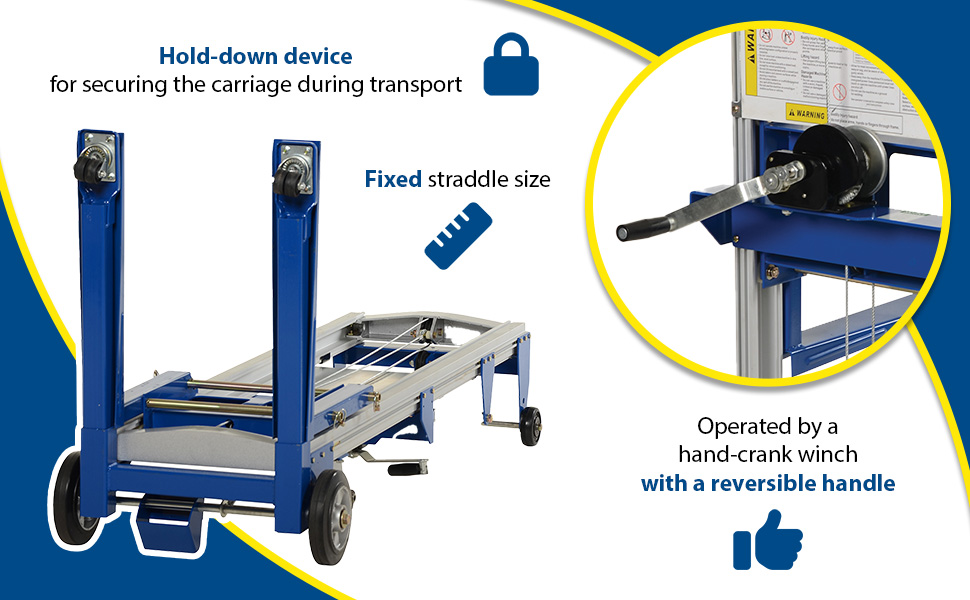

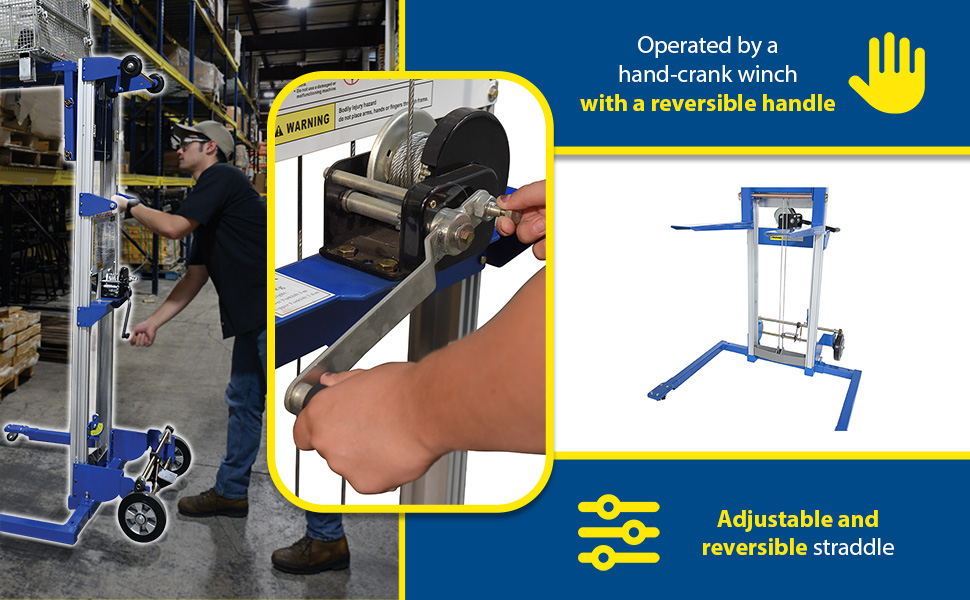

Compact lift trucks are designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. Constructed of durable steel-and-aluminum. The rugged 4" wide by 1-3/4" thick steel forks measure 22" long (20-1/2." O.D.). Operated by a hand-crank winch that features a reversible handle and a hold-down device for securing the carriage during transport. Forks raise 1" per complete hand crank rotation. The non-adjustable forks can be inverted to provide different height ranges. Two 8" non-marking rear wheels, two 2" front swivel casters. Counter balanced design has poly-on-poly wheels, (2) 5" rear swivel wheels, (2) 4" front wheels. Models ending with 'HP' and 'EHP' suffixes have extended height capabilities. These units have a 2 stage mast system and a telescoping inner mast frame, giving the user the ability to extend the forks above the height of the first mast.

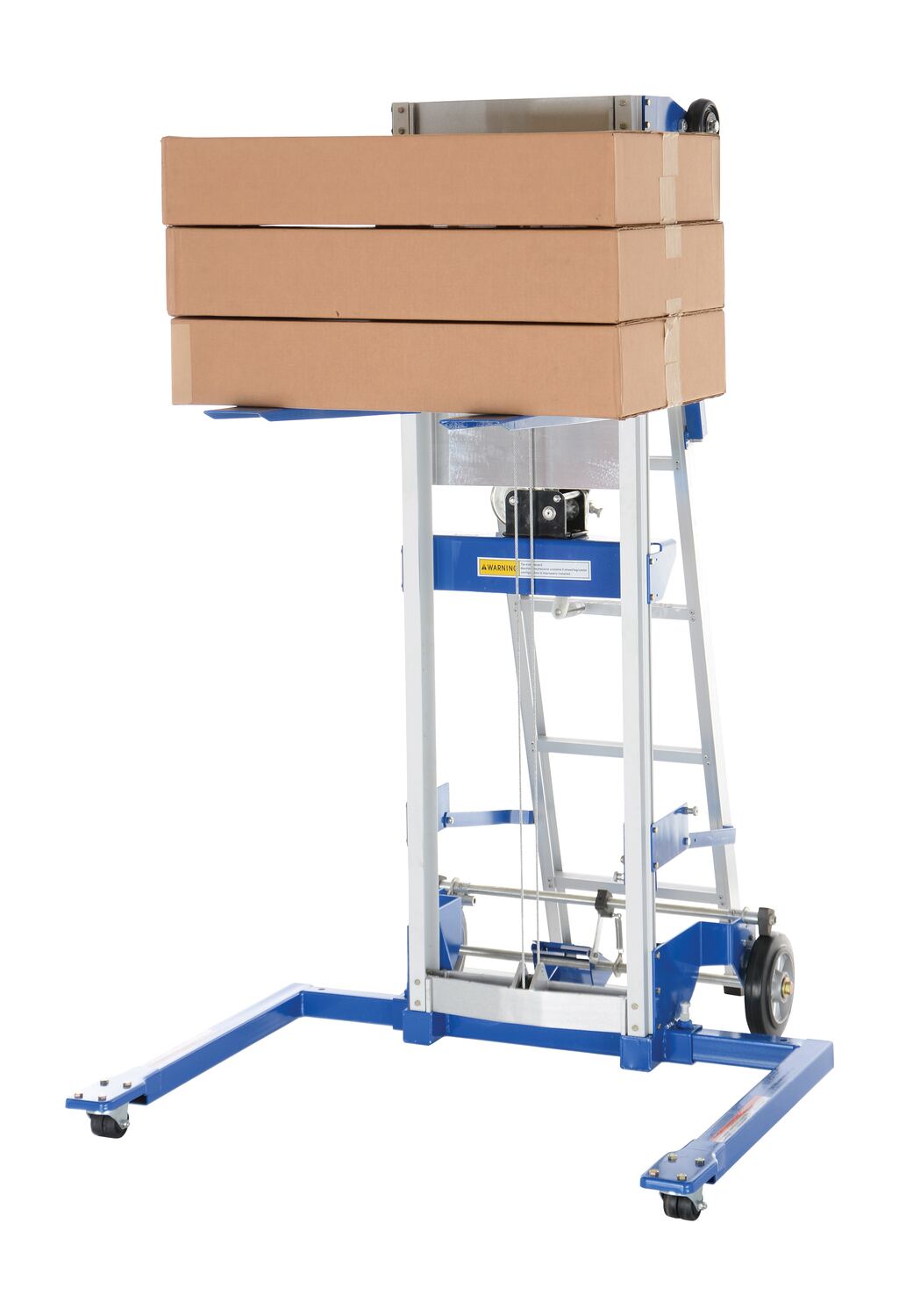

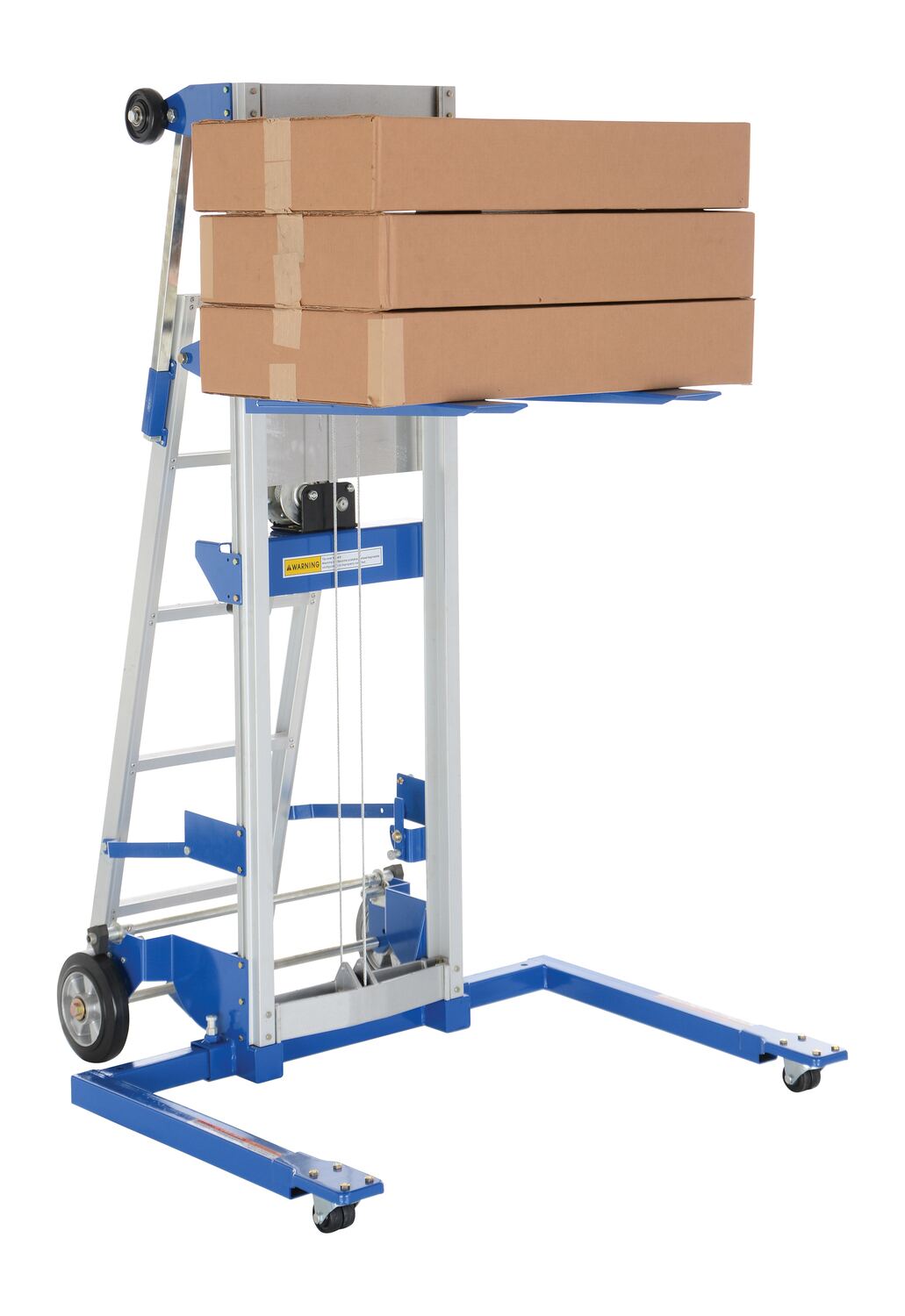

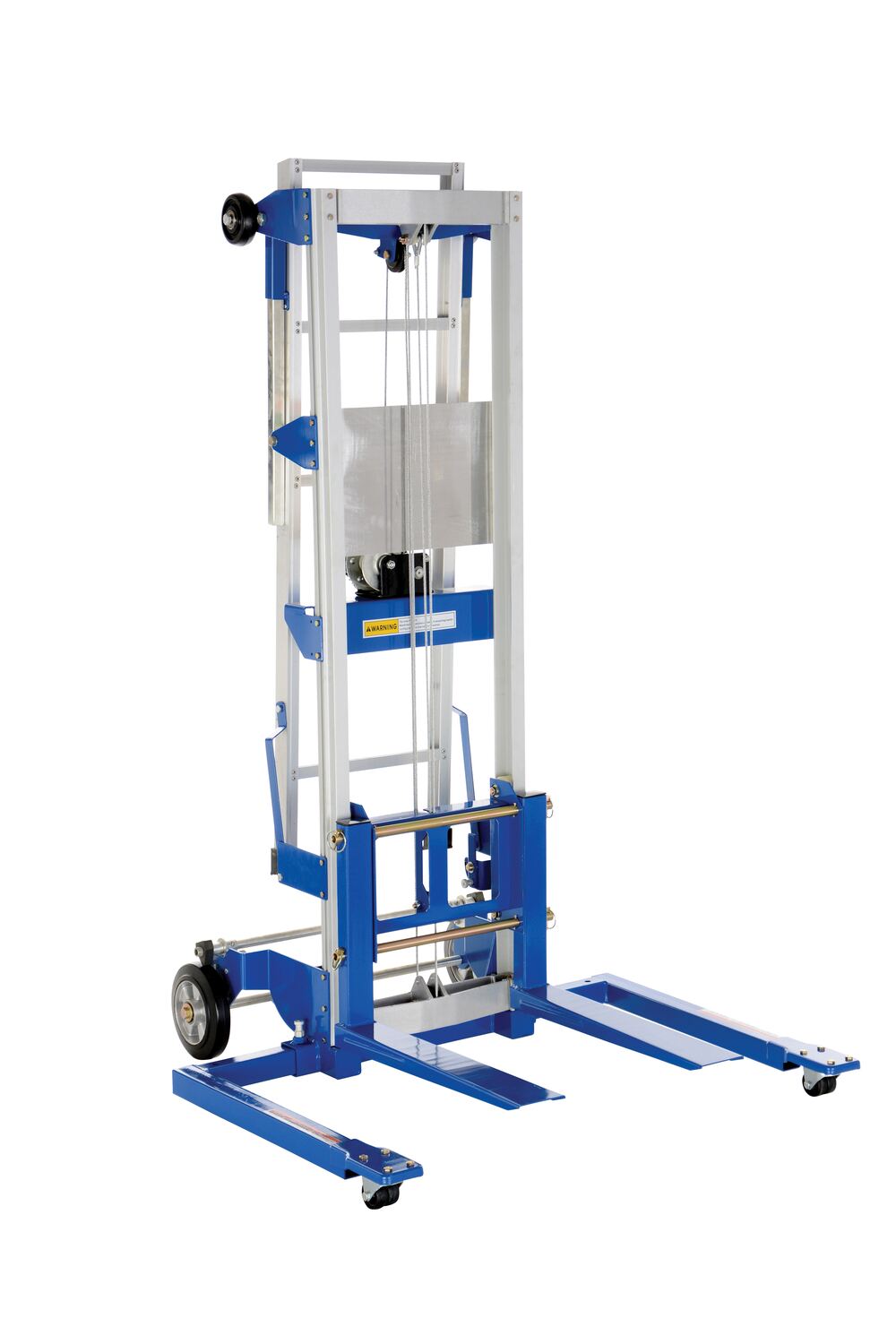

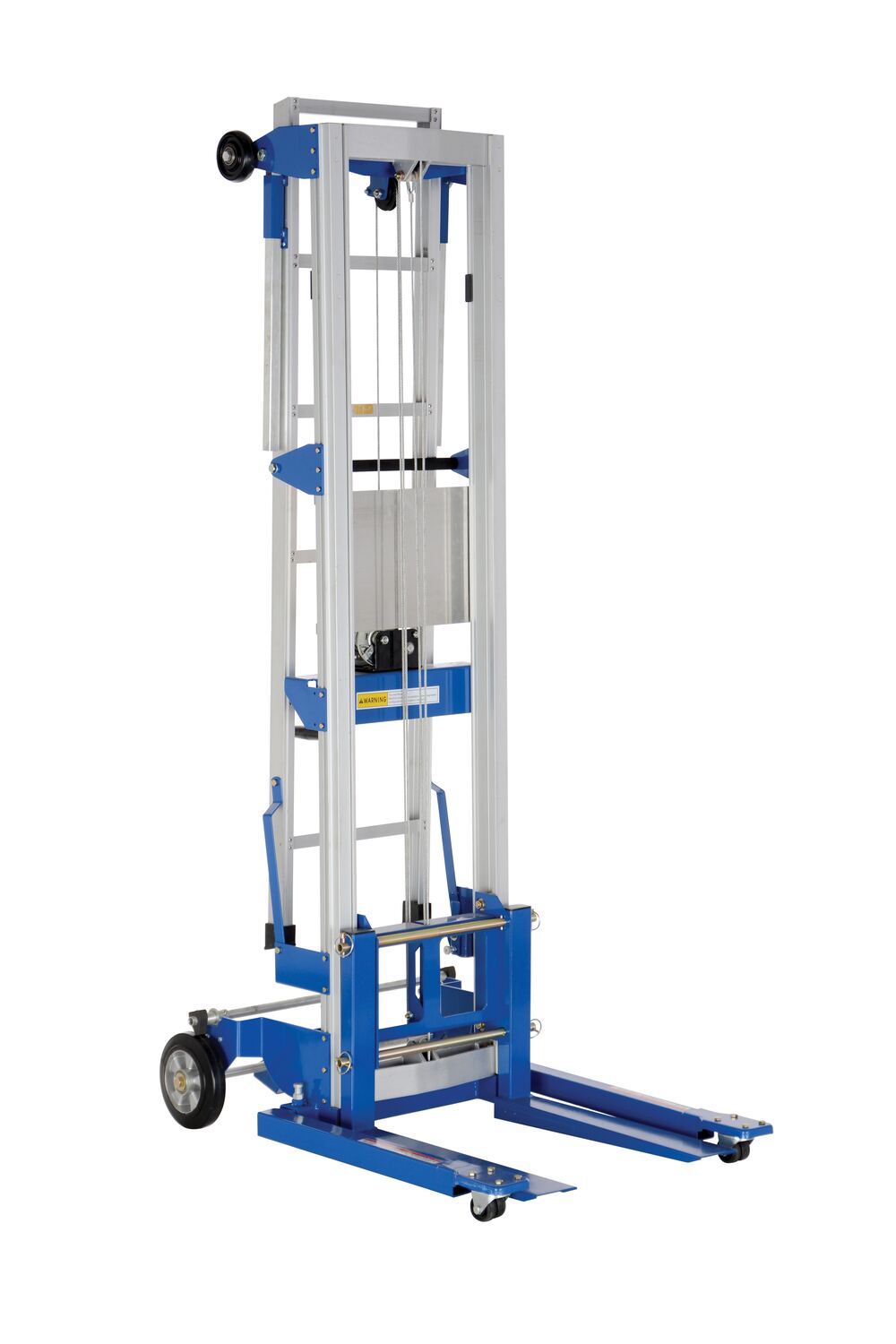

Optional aluminum ladder can be retrofitted or ordered with A-LIFT. Ladder retracts into unit upright when not in use. Model A-LIFT-LAD is 20-1/2"W x 57-1/2"H, while model A-LIFT-EHP-LAD is 20-5/8"W x 69-1/2"H with 11-3/4 rung spacing. Ladder capacity is 250 lbs.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks

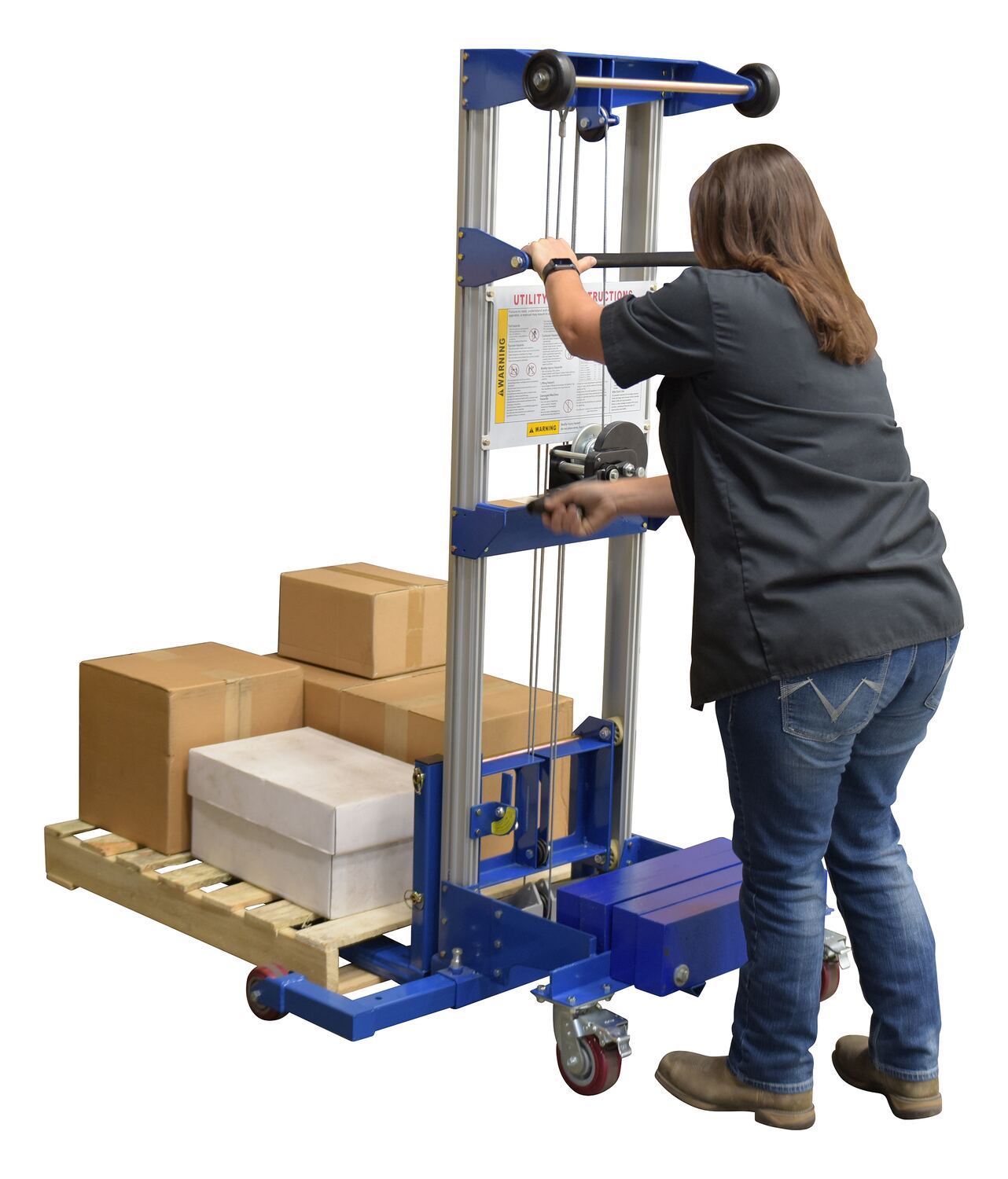

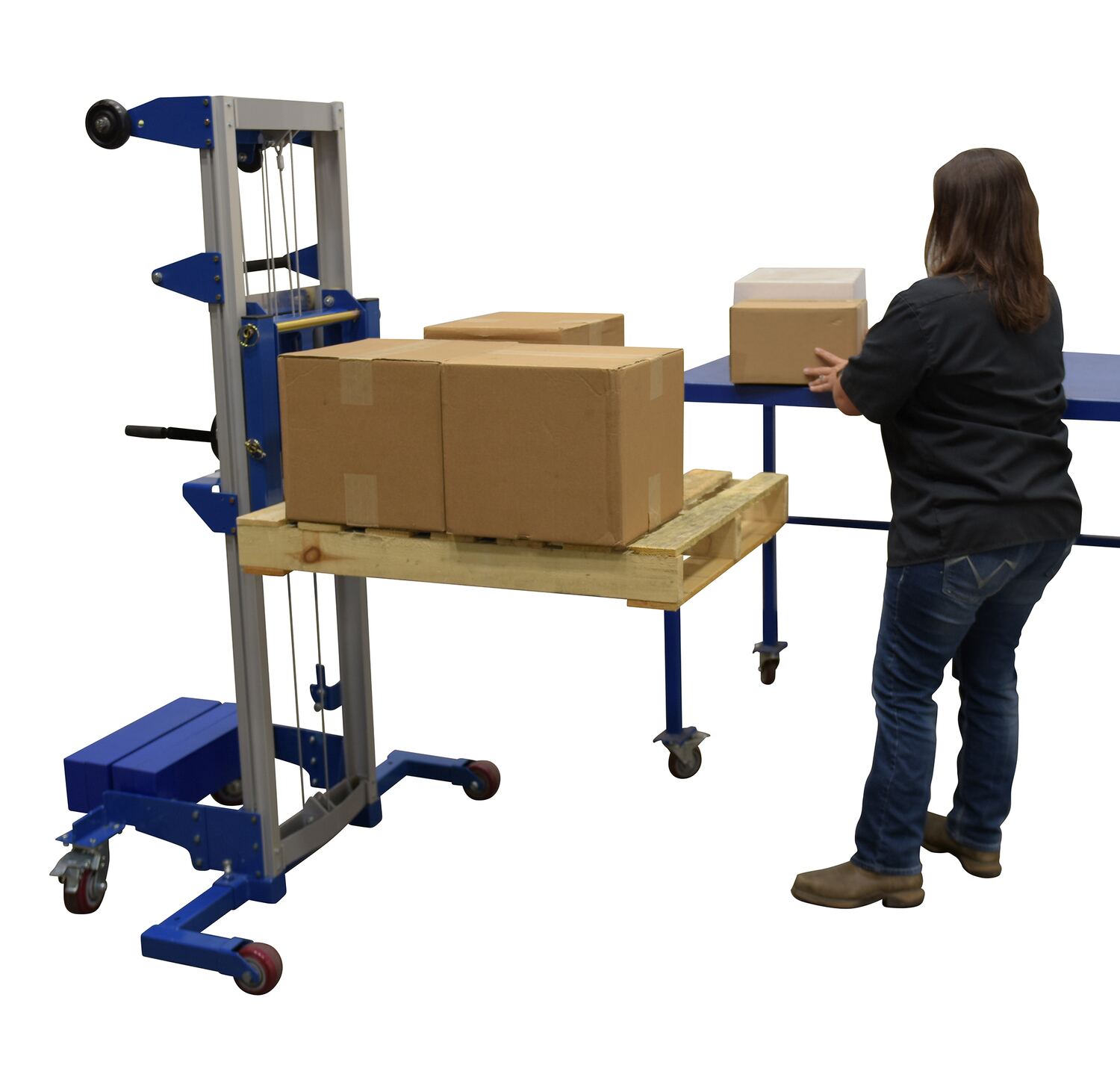

  • Counterbalance weight design keeps unit from tipping with heavy loads
  • Hold-down device secures carriage during transport

Hand Winch Lift Trucks

model: A-LIFT-CB

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
A-LIFT-CB
A-LIFT-CB-EHP
A-LIFT-CB-HP
A-LIFT-DK
A-LIFT-EHP-LAD
A-LIFT-LAD
A-LIFT-PN
A-LIFT-R
A-LIFT-R-HP
A-LIFT-S
A-LIFT-S-EHP
A-LIFT-S-HP
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

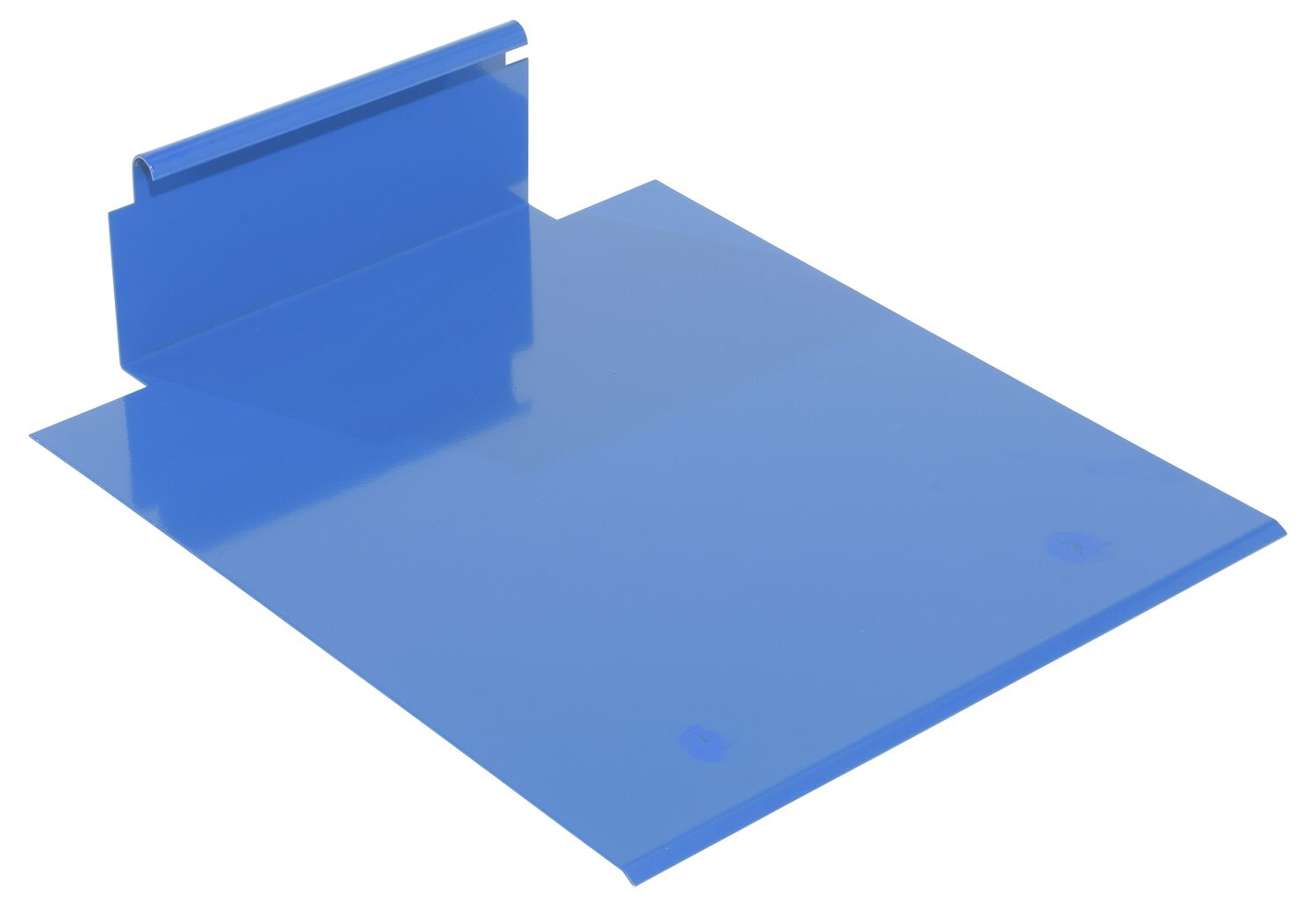

A-LIFT-DK A-LIFT-DK Steel Deck Platform For Hand Winch Lifts 24-1/4 In. x 20-1/2… 1 Year Limited Warranty 18
A-LIFT-EHP-LAD A-LIFT-EHP-LAD Factory Installed Aluminum/Steel Retractable Ladder For A-LI… 90 Days Limited Warranty 19
A-LIFT-LAD A-LIFT-LAD Factory Installed Aluminum/Steel Retractable Ladder For A-LI… 90 Days Limited Warranty 17

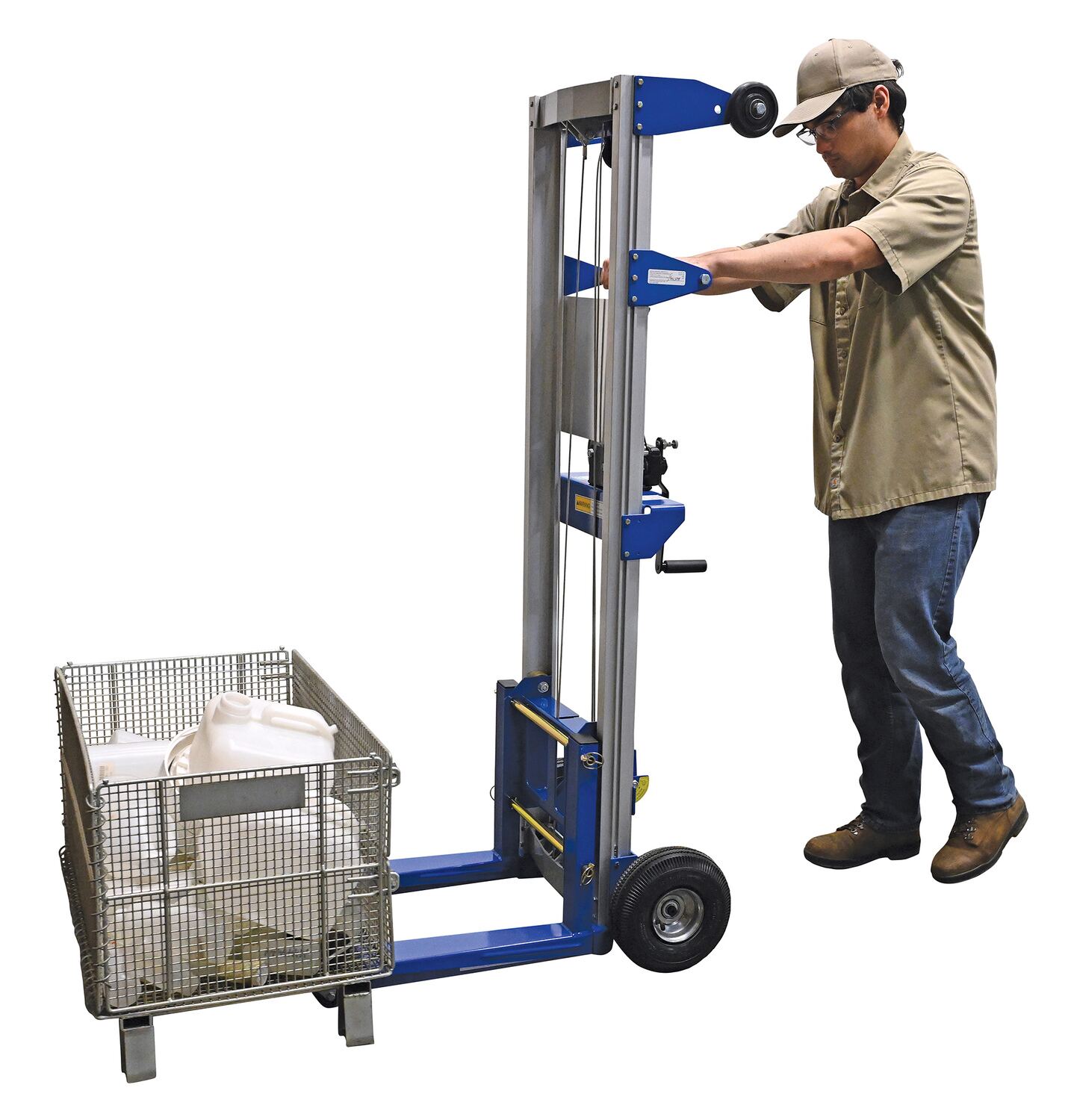

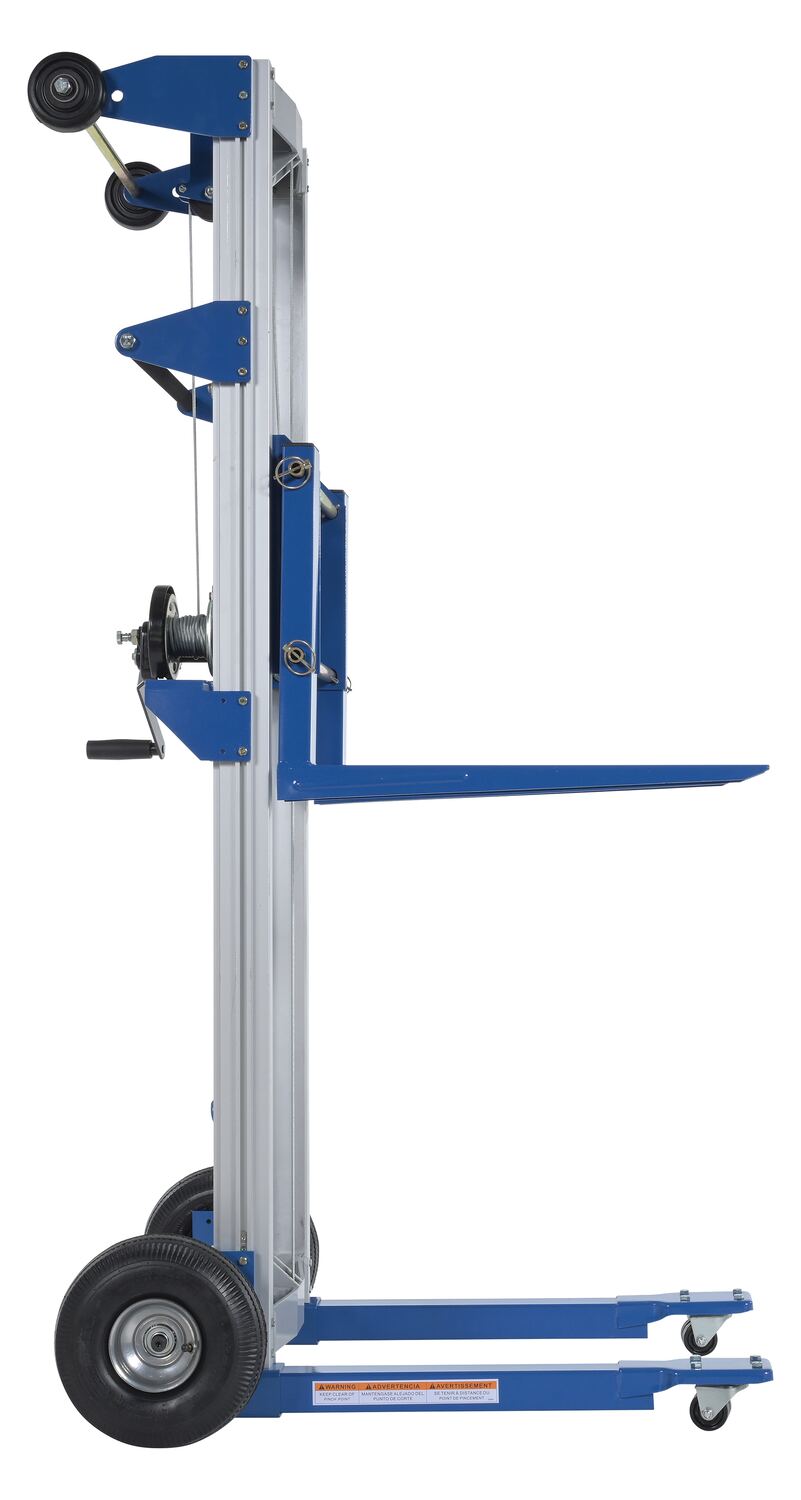

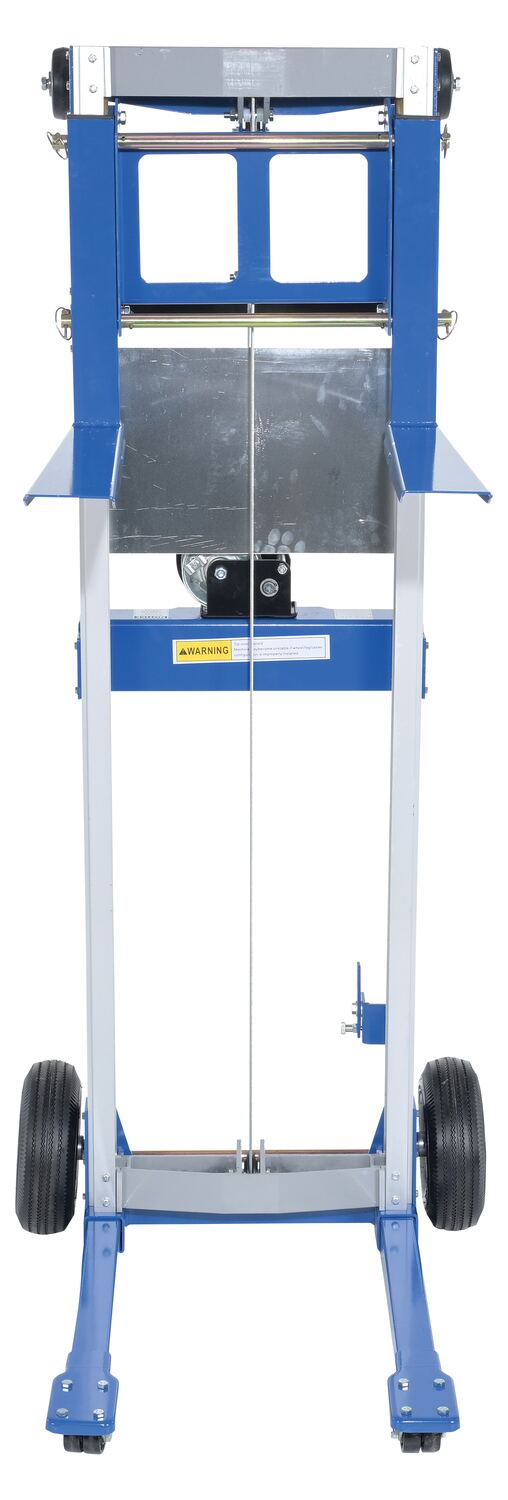

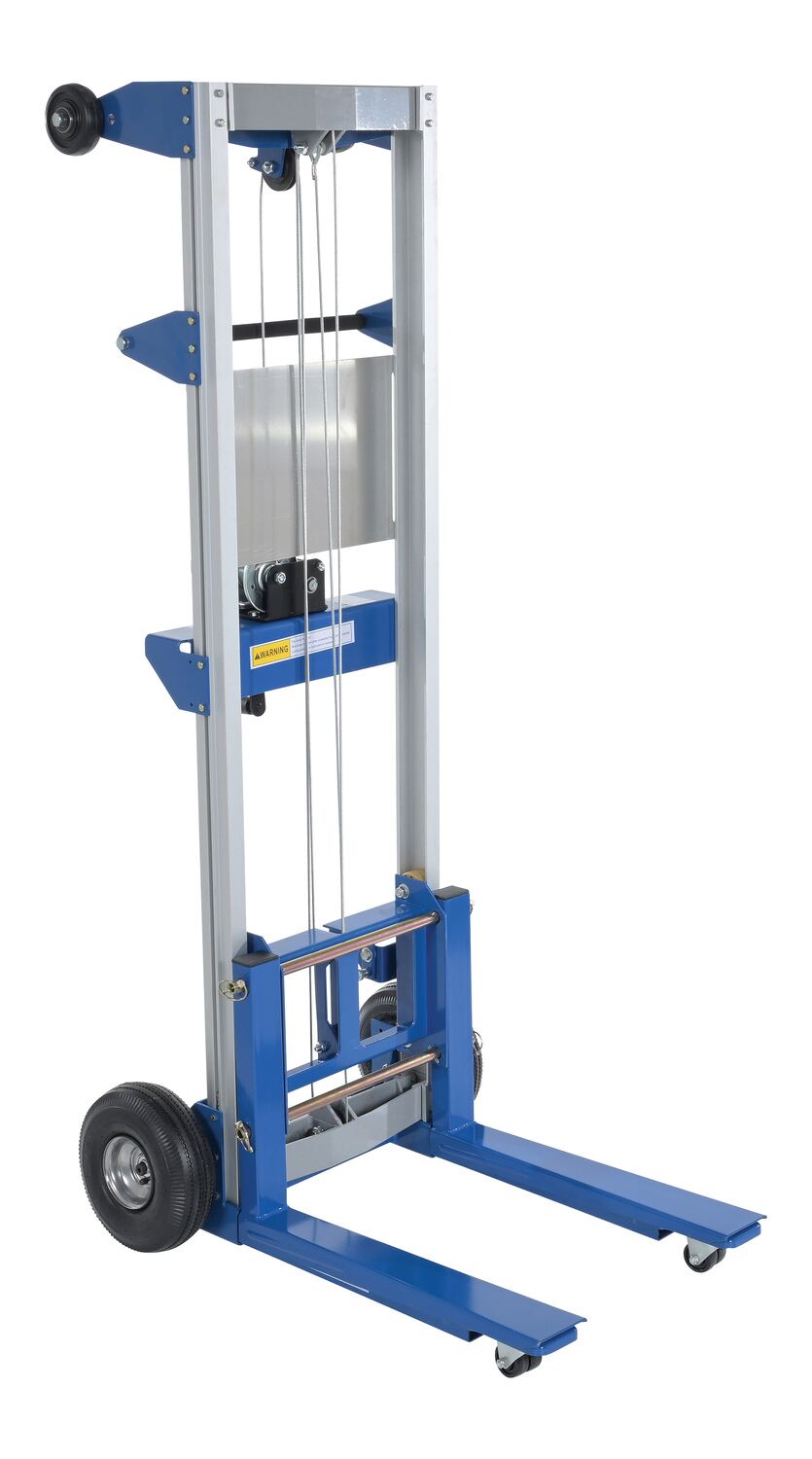

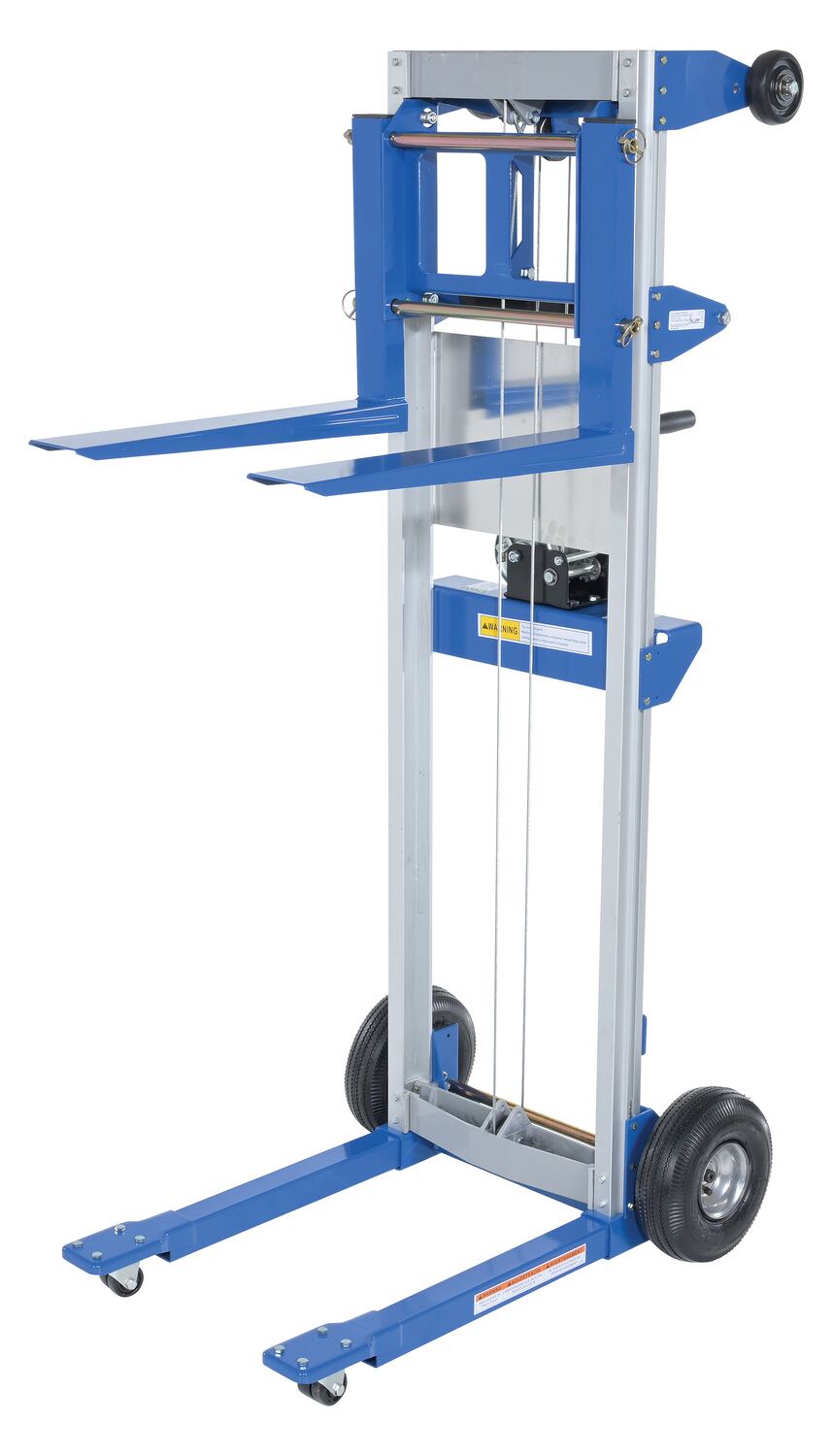

A-LIFT-PN A-LIFT-PN Pneumatic Rear Wheels For Hand Winch Lift Trucks 10 In. x 4 … 90 Days Limited Warranty 11

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

A-LIFT

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

A-LIFT-CB

A-LIFT-CB-EHP

A-LIFT-CB-HP

A-LIFT-DK

A-LIFT-R

A-LIFT-R-HP

A-LIFT-S

A-LIFT-S-EHP

A-LIFT-S-HP

Testing Certificates

A-LIFT-CB

A-LIFT-CB-EHP

A-LIFT-CB-HP

A-LIFT-DK

A-LIFT-PN

A-LIFT-R

A-LIFT-R-HP

A-LIFT-S

A-LIFT-S-EHP

A-LIFT-S-HP

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

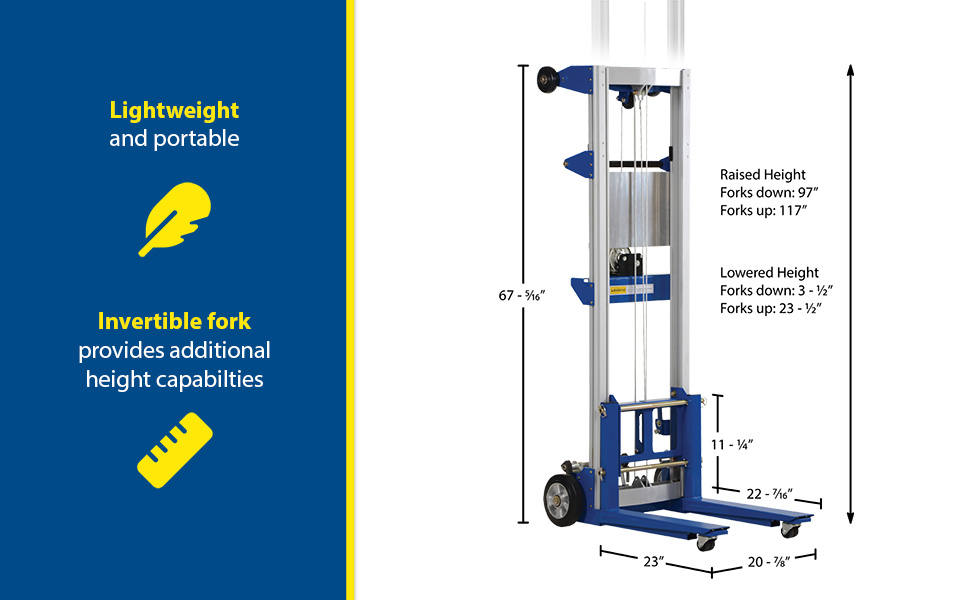

A-LIFT-R-HP
A-LIFT-R-HP A-LIFT-R-HP A+ Content - 4
A-LIFT-R-HP A-LIFT-R-HP A+ Content - 3
A-LIFT-R-HP A-LIFT-R-HP A+ Content - 2
A-LIFT-R-HP A-LIFT-R-HP A+ Content - 1

Related or Similar Products:

More From Portable Load Lifters





Hand Winch Lift Trucks




Compact lift trucks are designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. Constructed of durable steel-and-aluminum. The rugged 4" wide by 1-3/4" thick steel forks measure 22" long (20-1/2." O.D.). Operated by a hand-crank winch that features a reversible handle and a hold-down device for securing the carriage during transport. Forks raise 1" per complete hand crank rotation. The non-adjustable forks can be inverted to provide different height ranges. Two 8" non-marking rear wheels, two 2" front swivel casters. Counter balanced design has poly-on-poly wheels, (2) 5" rear swivel wheels, (2) 4" front wheels. Models ending with 'HP' and 'EHP' suffixes have extended height capabilities. These units have a 2 stage mast system and a telescoping inner mast frame, giving the user the ability to extend the forks above the height of the first mast.

Optional aluminum ladder can be retrofitted or ordered with A-LIFT. Ladder retracts into unit upright when not in use. Model A-LIFT-LAD is 20-1/2"W x 57-1/2"H, while model A-LIFT-EHP-LAD is 20-5/8"W x 69-1/2"H with 11-3/4 rung spacing. Ladder capacity is 250 lbs.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Counterbalance weight design keeps unit from tipping with heavy loads
  • Hold-down device secures carriage during transport


Model # Description Attributes Net Wt.
(lbs)

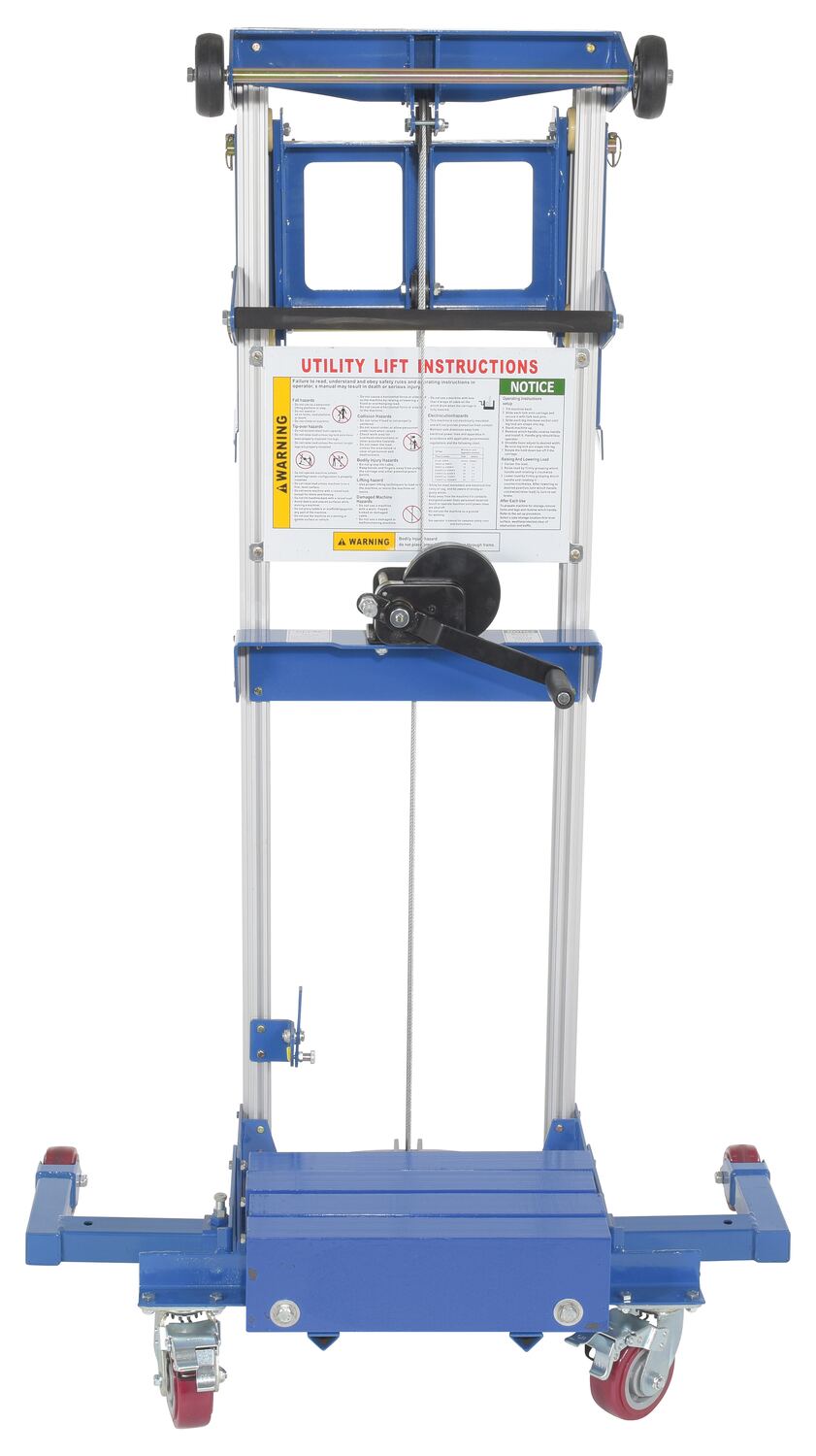

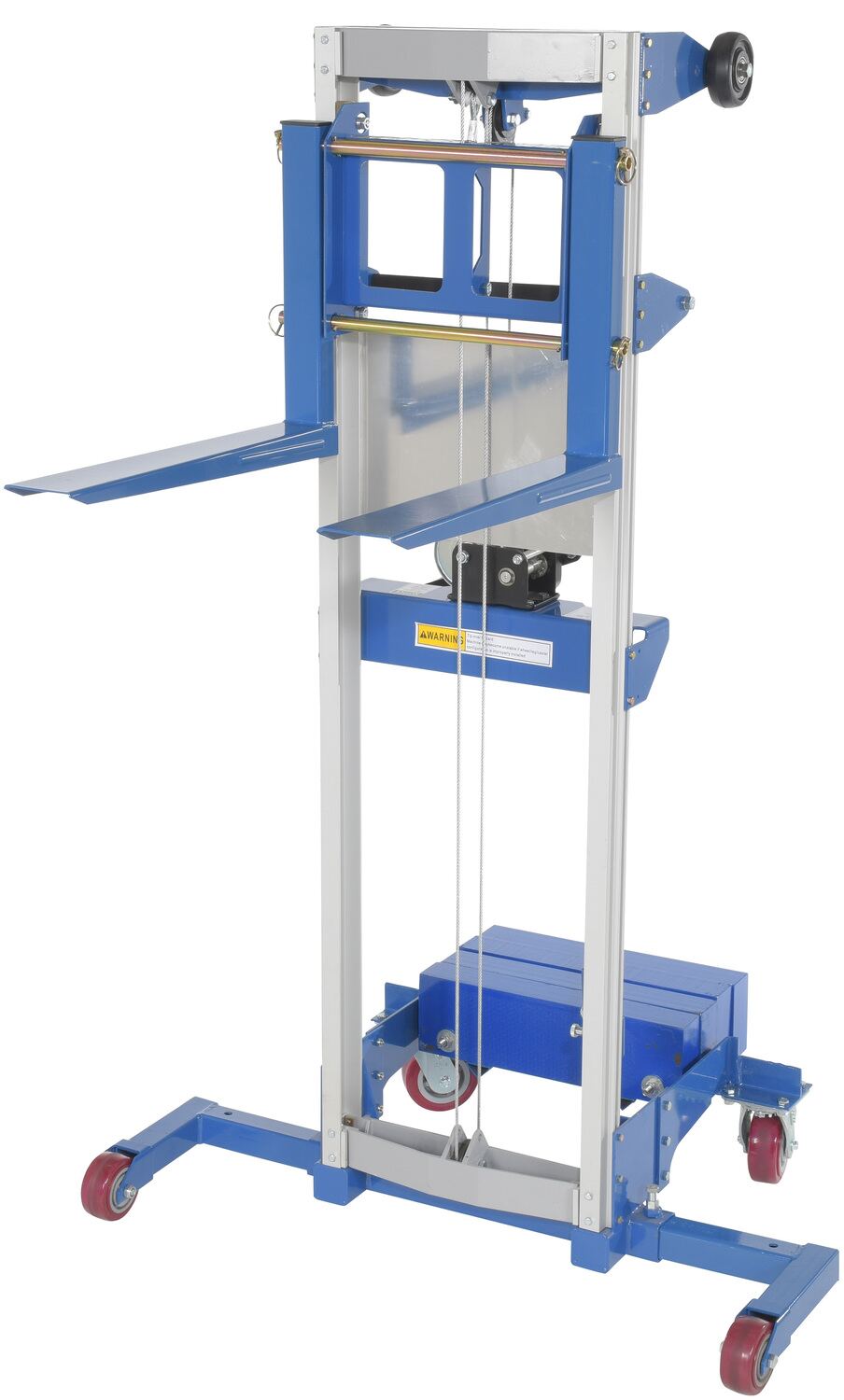

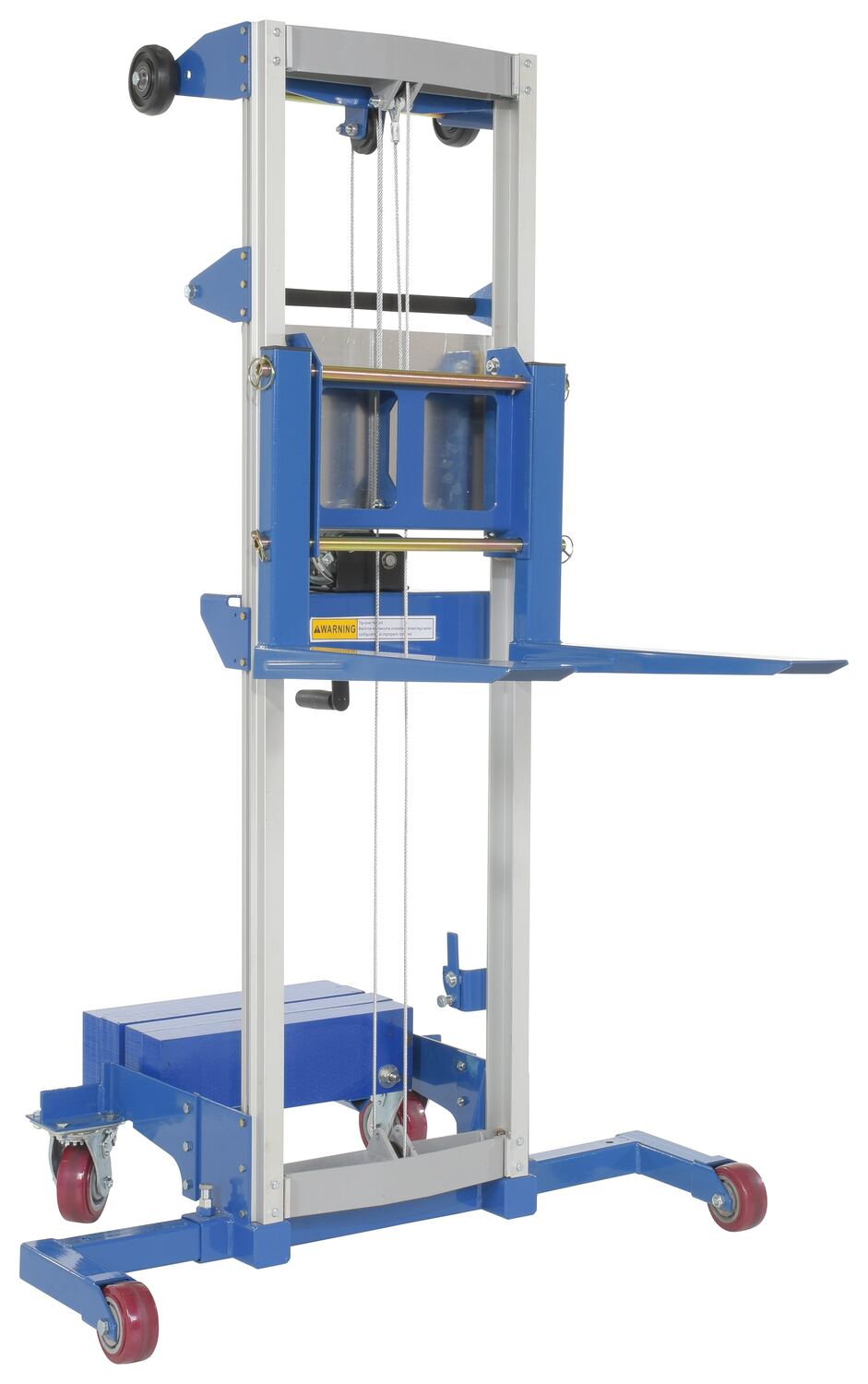

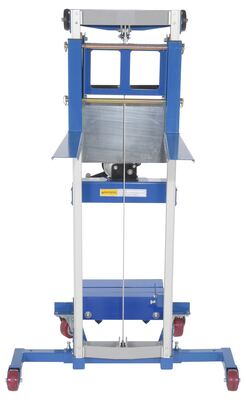

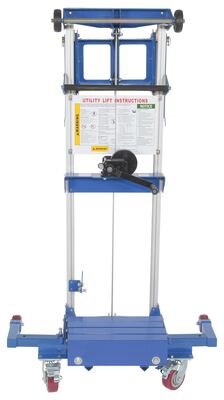

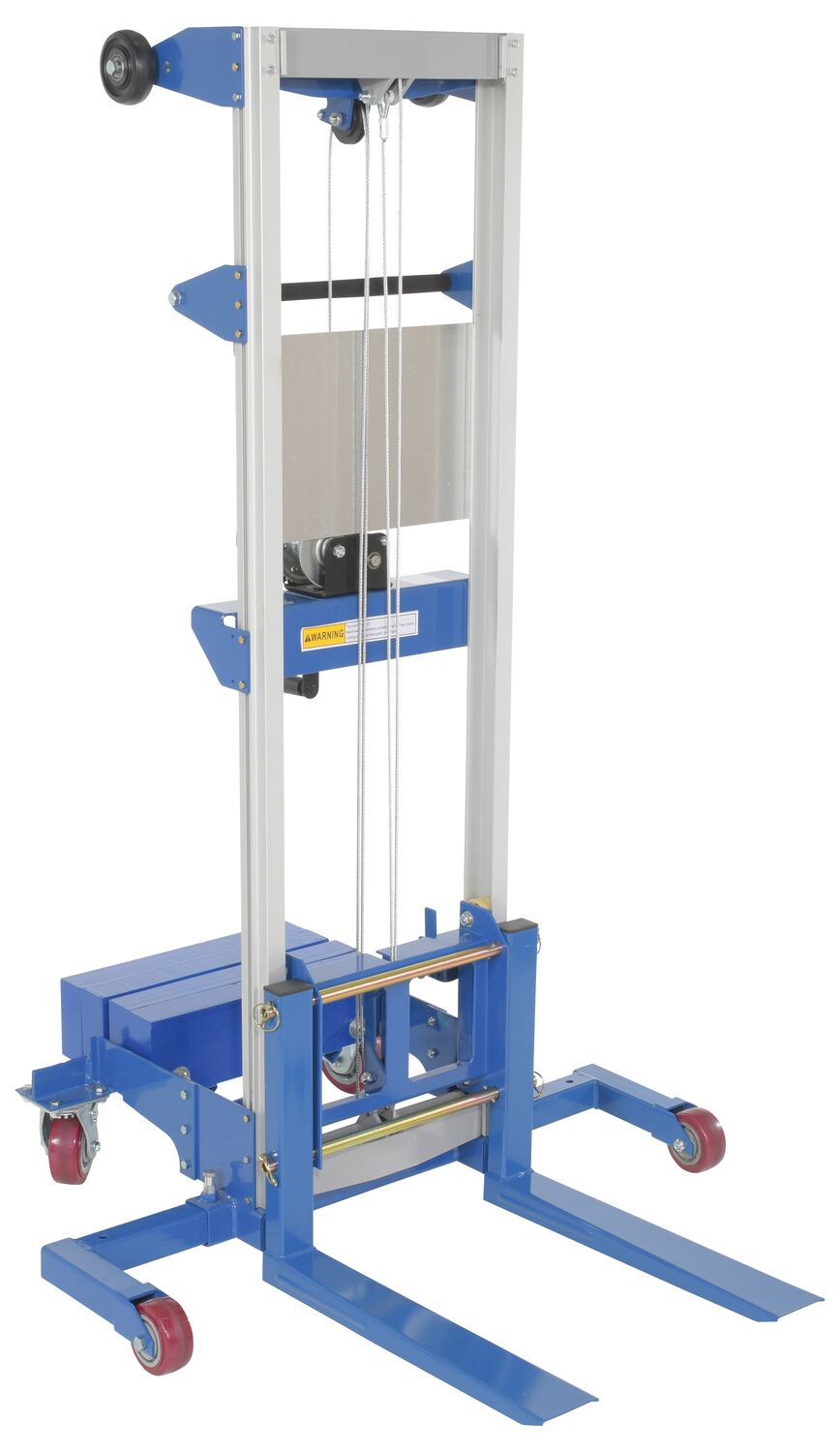

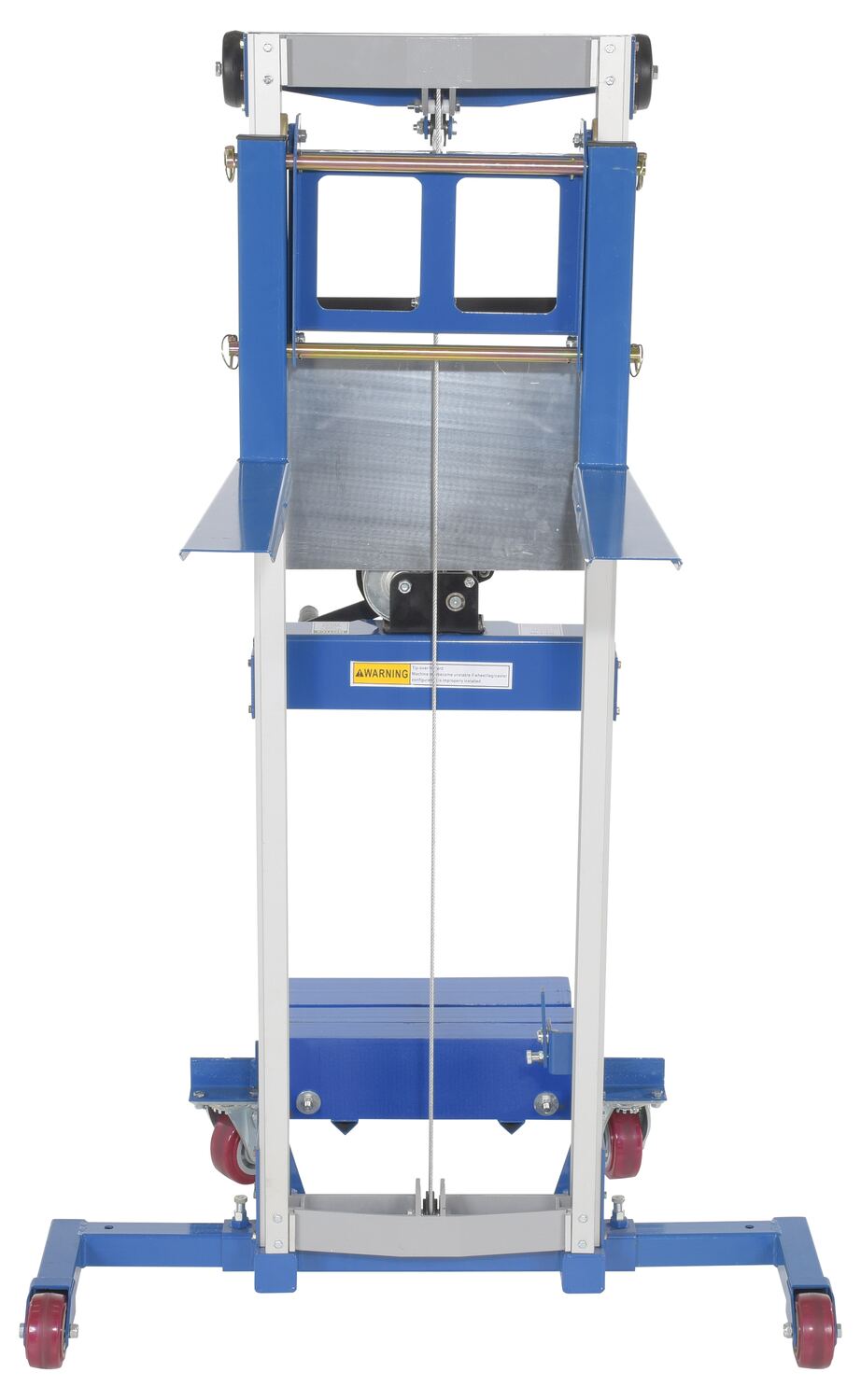

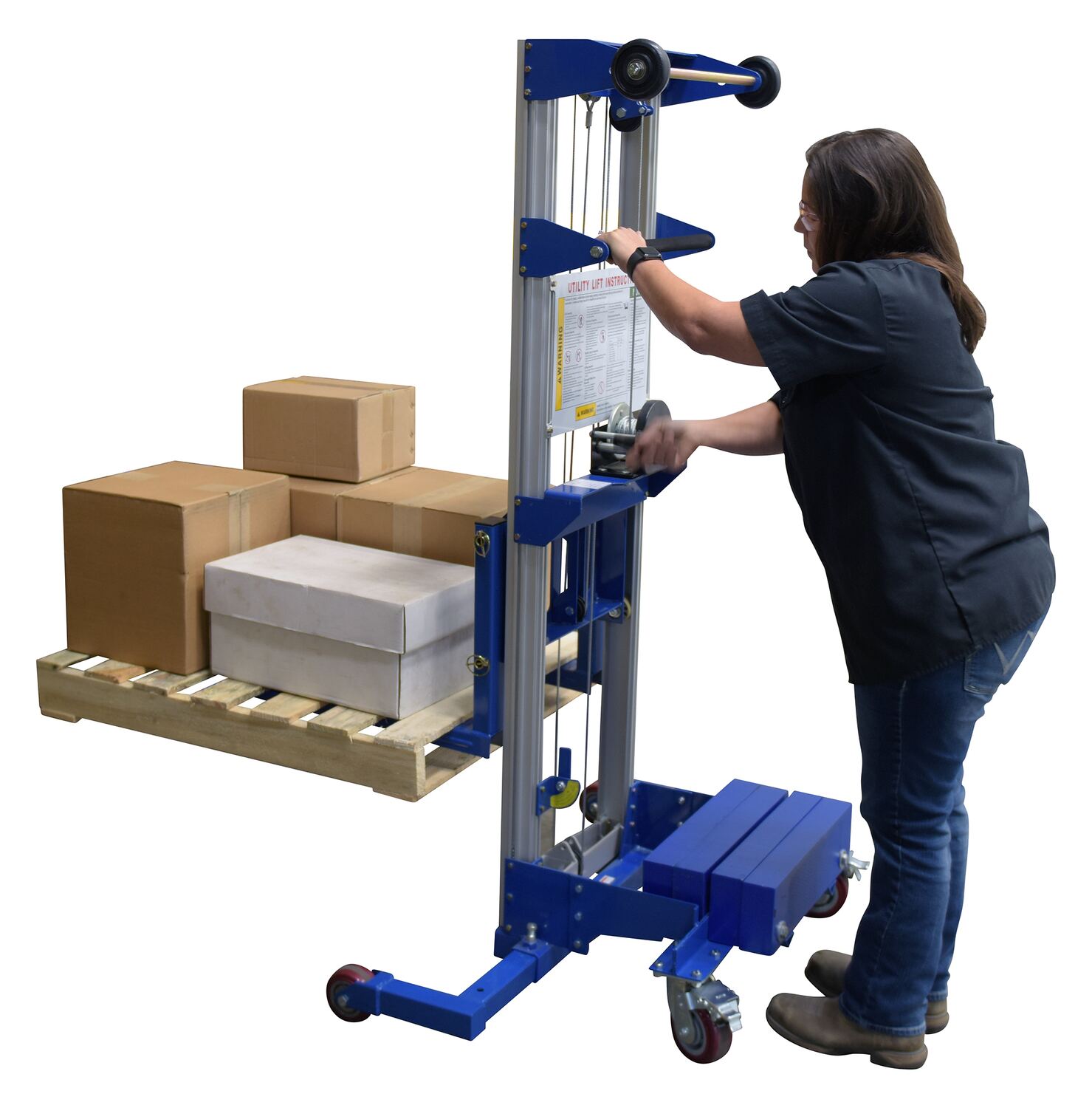

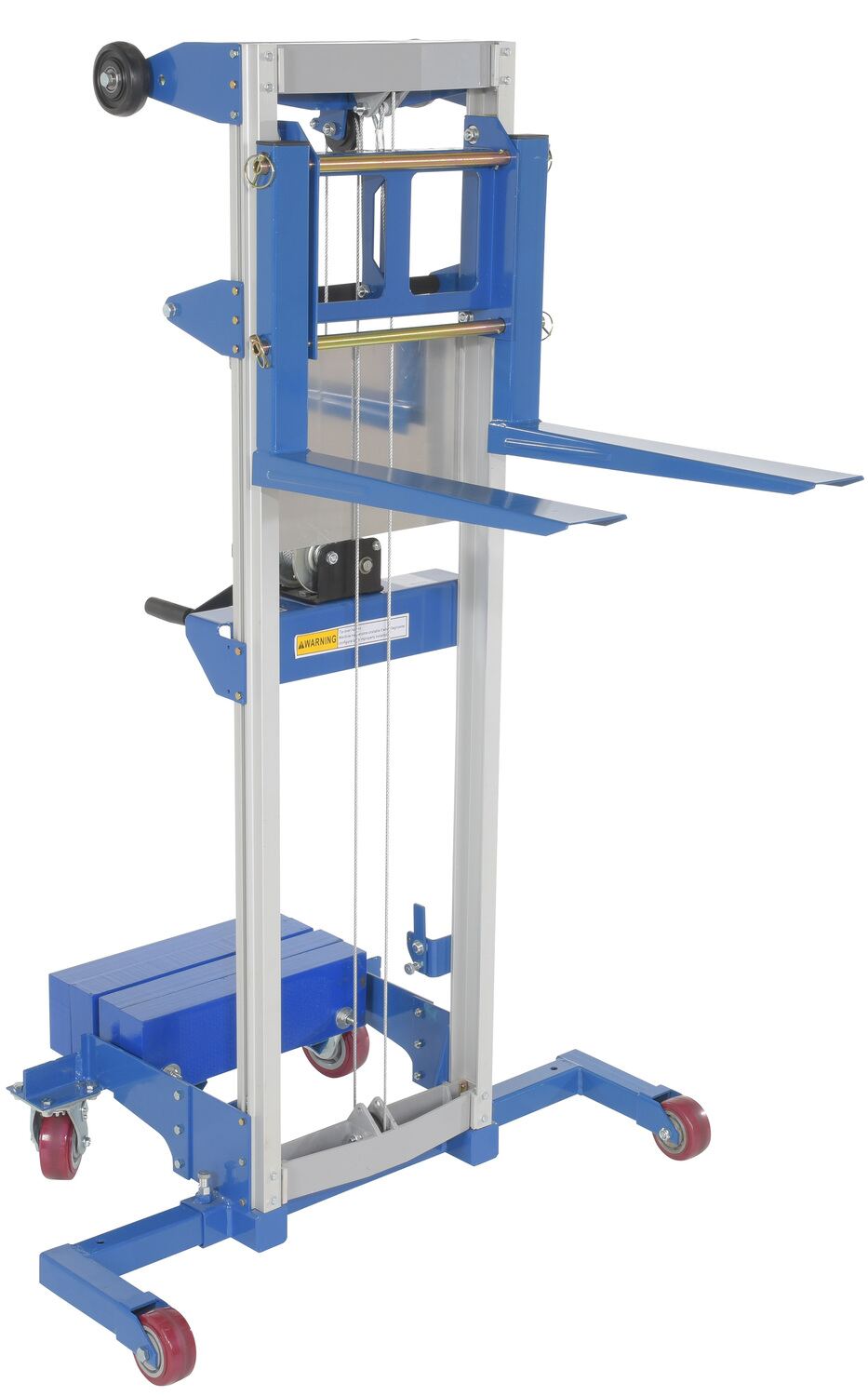

A-LIFT-CB A-LIFT-CBAluminum/Steel Manual Hand Winch Lift Truck With Counter Balance 500 Lb. Capacity Silver/BlueUniform Capacity (lb.): 500
Lowered Height with Forks Down (in.): 2		437

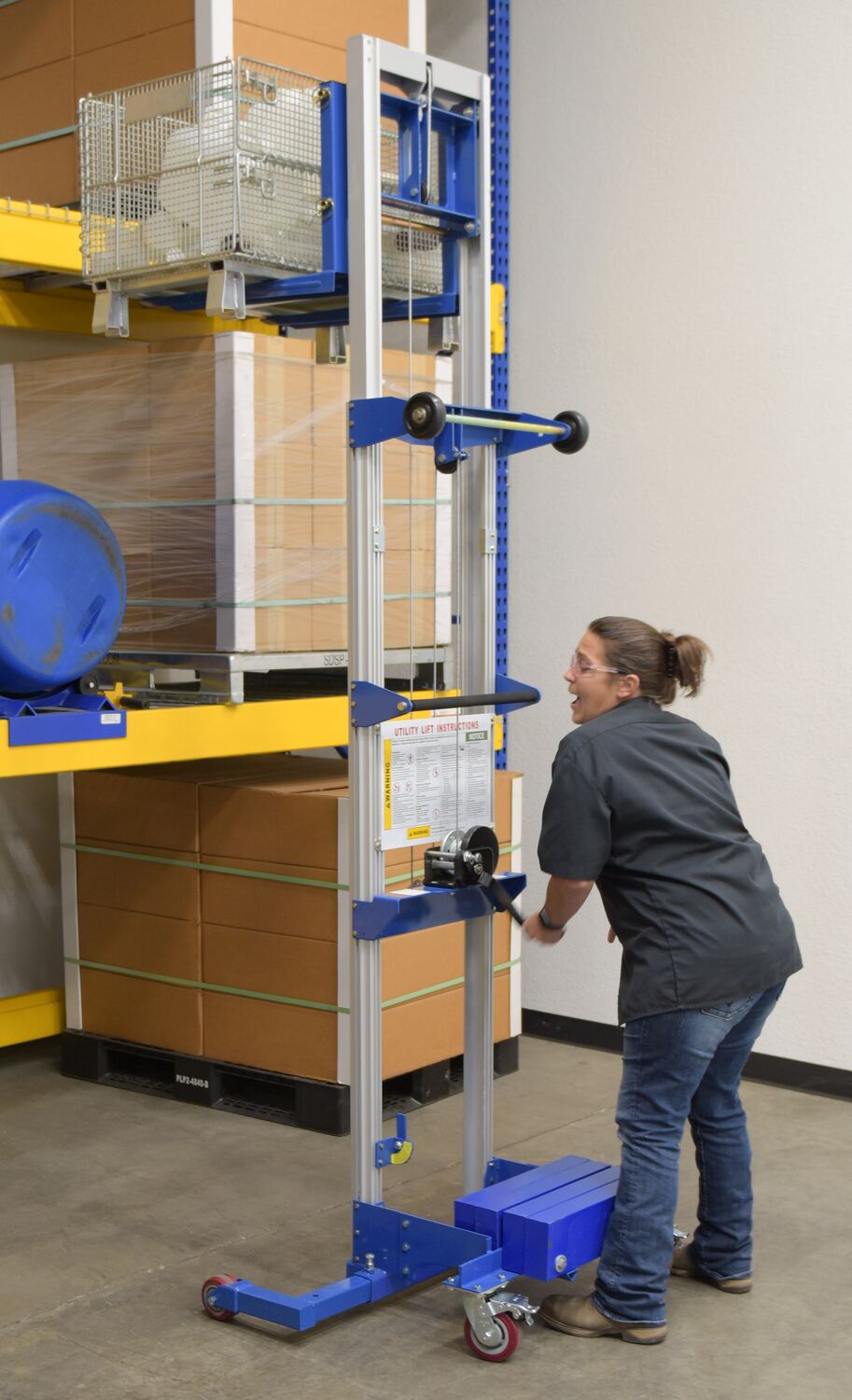

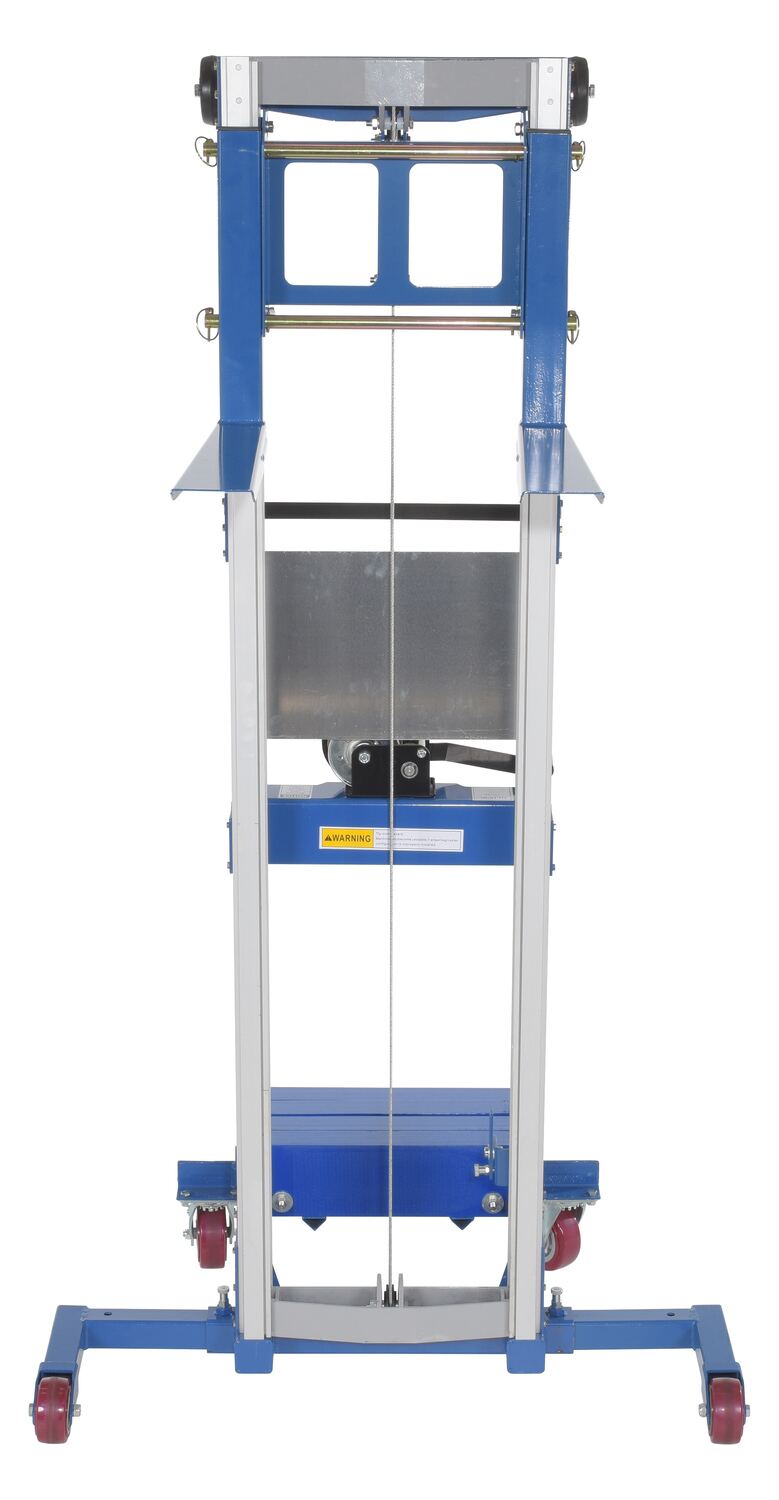

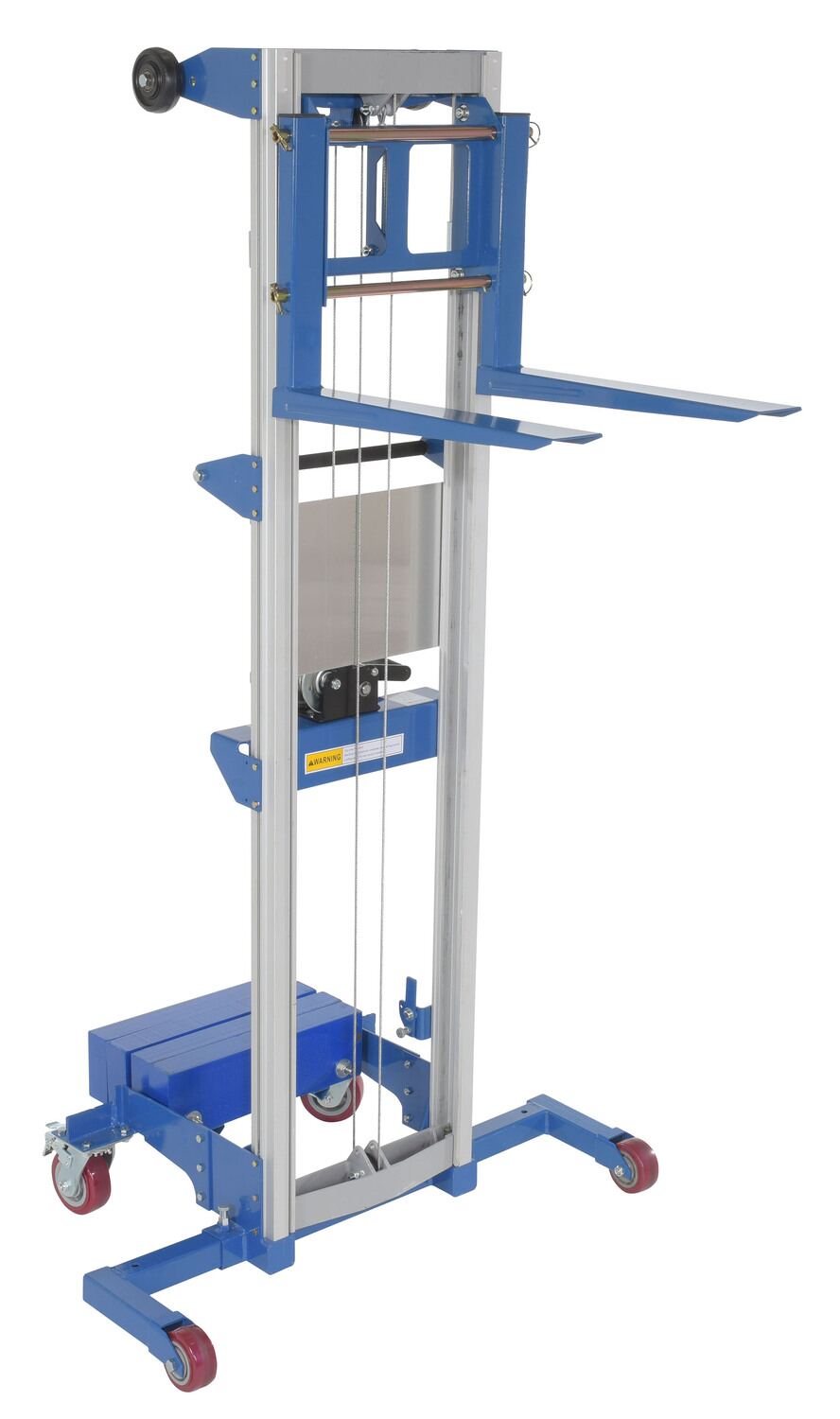

A-LIFT-CB-EHP A-LIFT-CB-EHPAluminum/Steel Manual Hand Winch Lift Truck With Counter Balance 350 Lb. Capacity Silver/BlueUniform Capacity (lb.): 350
Lowered Height with Forks Down (in.): 2 / 21-1/4		454

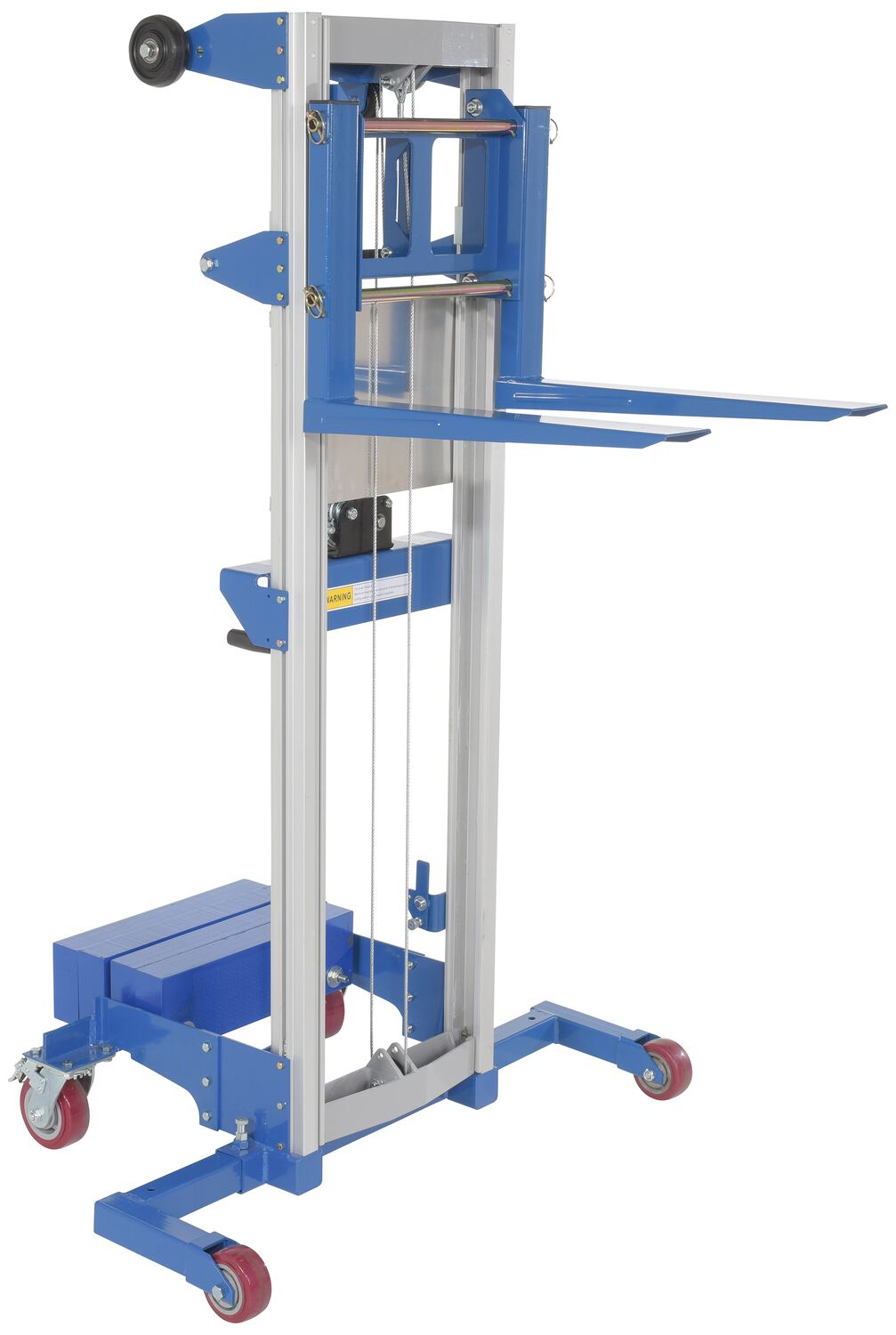

A-LIFT-CB-HP A-LIFT-CB-HPAluminum/Steel Manual Hand Winch Lift Truck With Counter Balance 400 Lb. Capacity Silver/BlueUniform Capacity (lb.): 400
Lowered Height with Forks Down (in.): 2 / 21-1/4		445

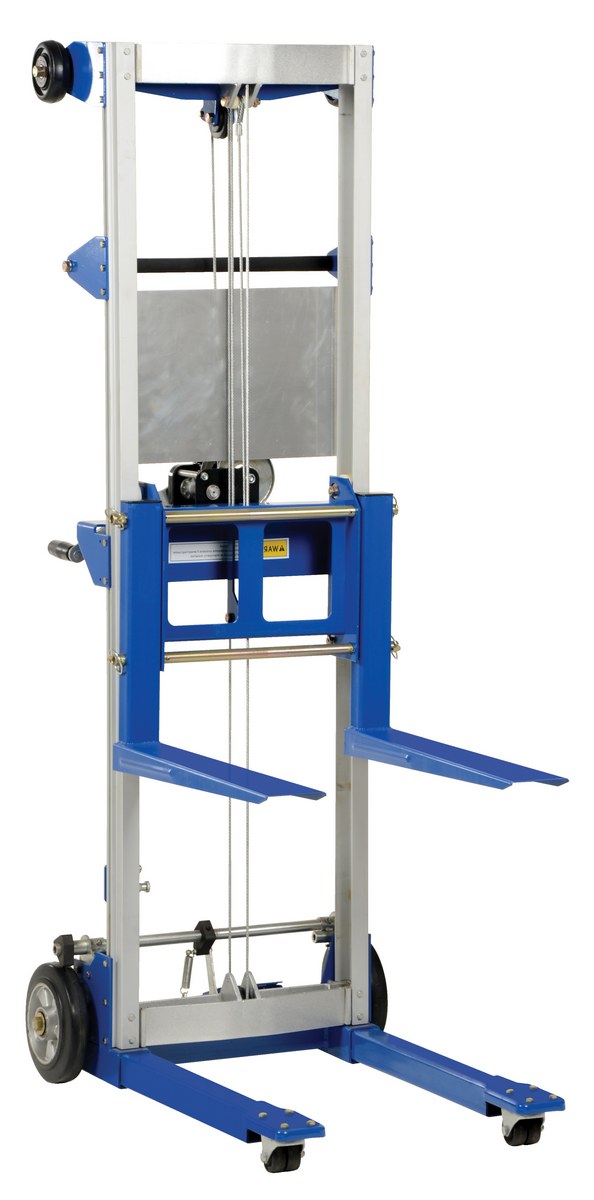

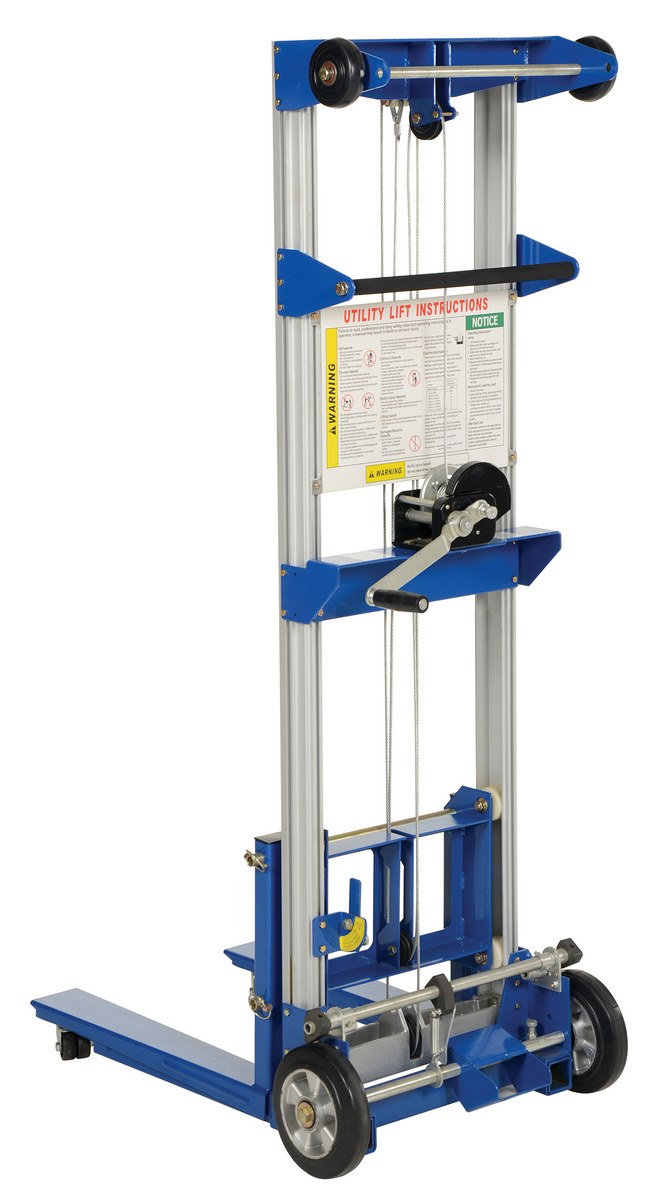

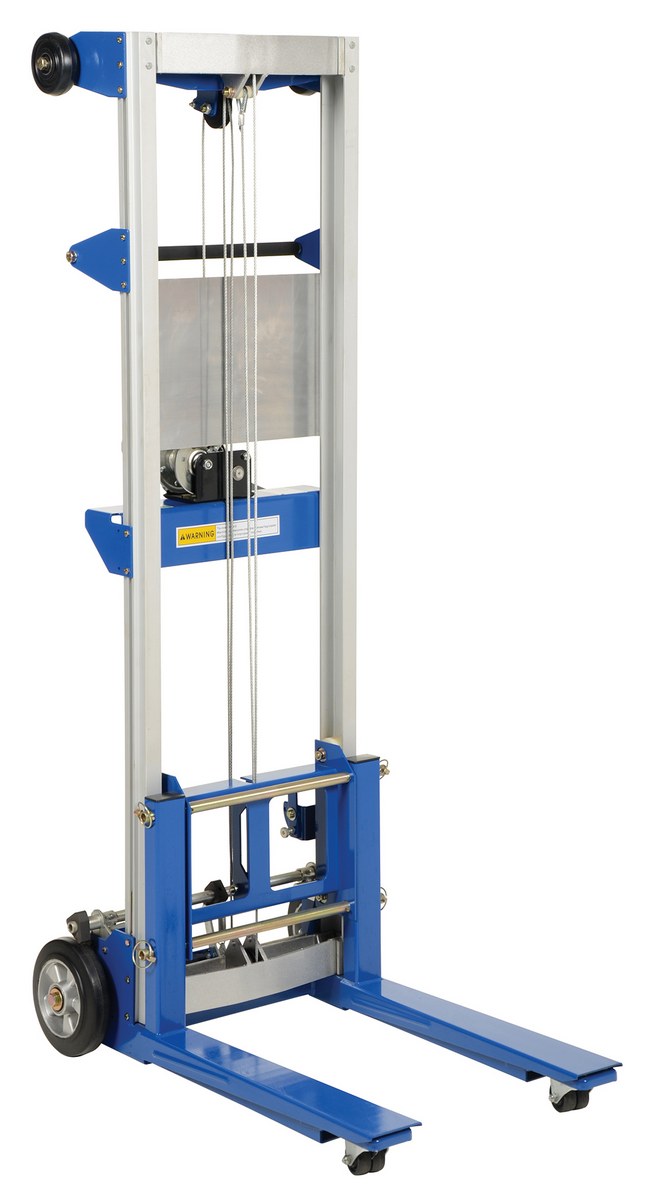

A-LIFT-R A-LIFT-RAluminum/Steel Fixed Straddle Manual Hand Winch Lift Trucks 500 Lb. Capacity Silver/BlueUniform Capacity (lb.): 500
Lowered Height (in.): 3-1/2 / 23-1/2		191

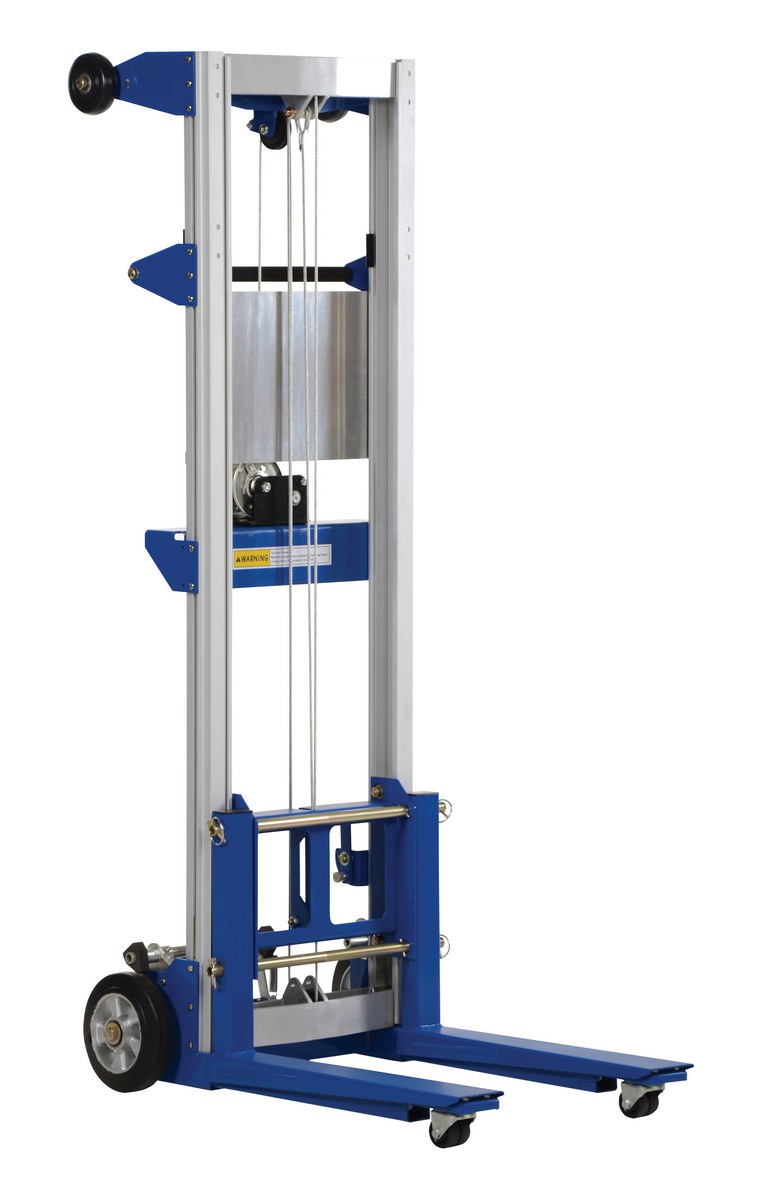

A-LIFT-R-HP A-LIFT-R-HPAluminum/Steel Fixed Straddle Manual Hand Winch Lift Trucks 400 Lb. Capacity Silver/BlueUniform Capacity (lb.): 400
Lowered Height (in.): 3-1/2 / 23-1/2		203

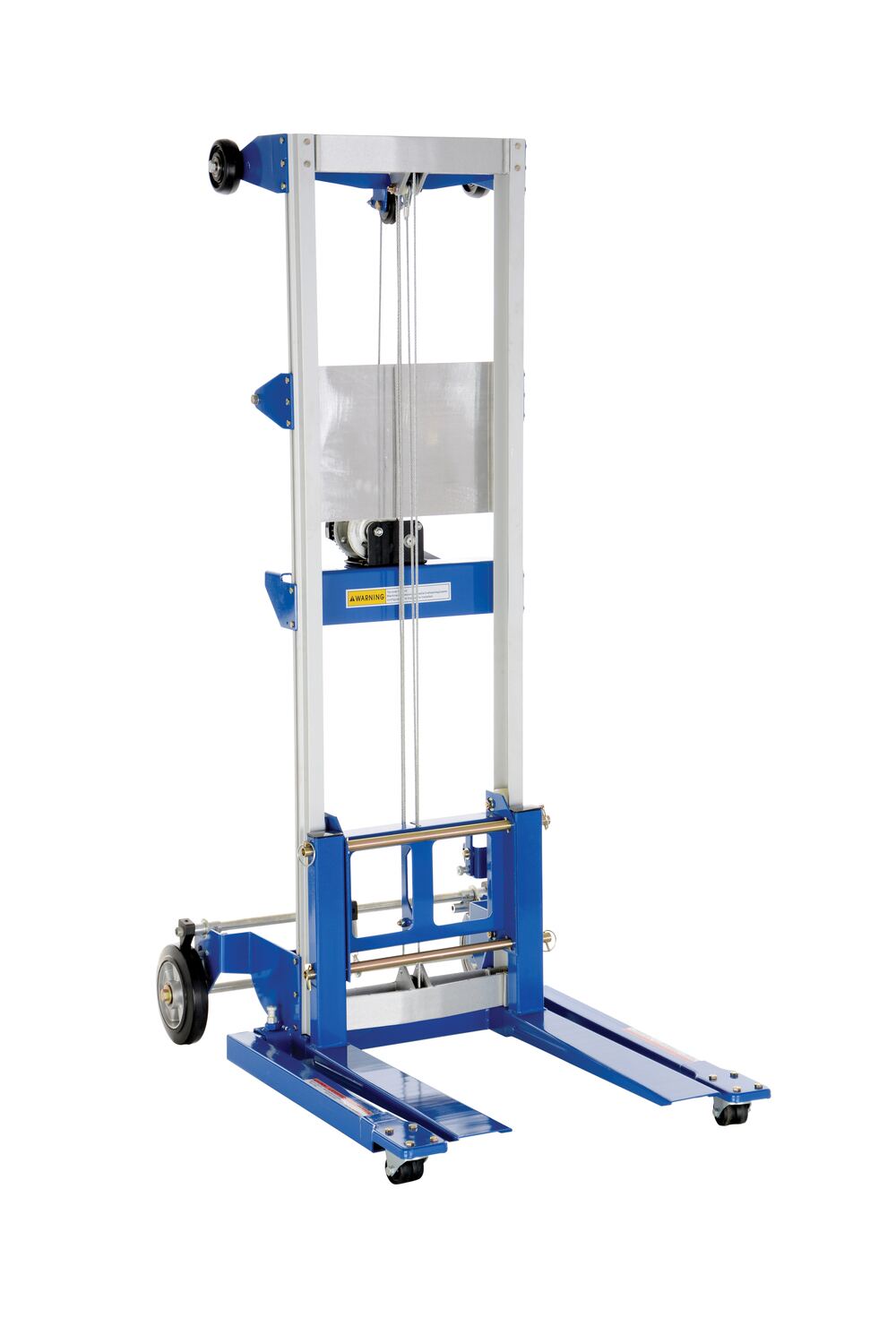

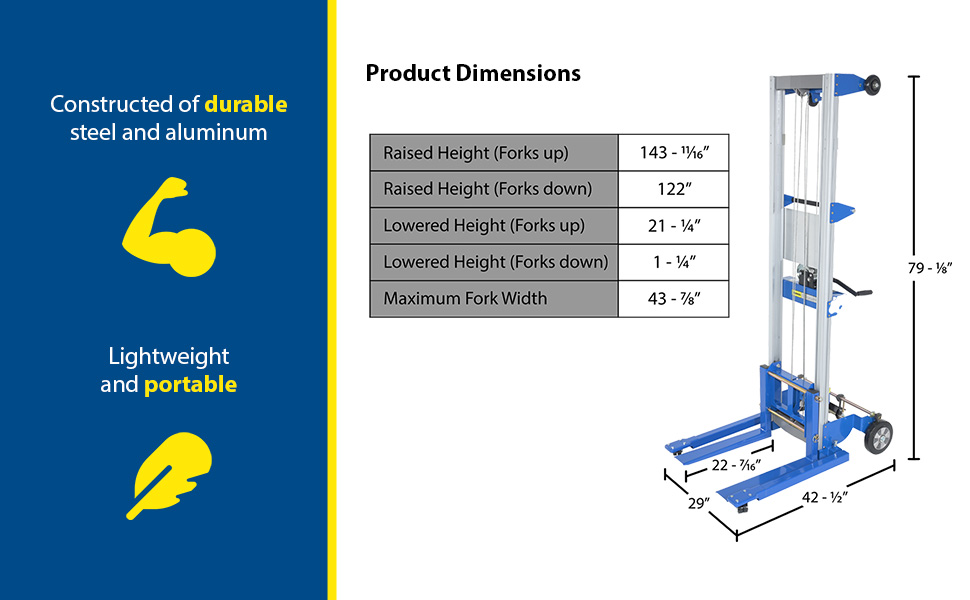

A-LIFT-S A-LIFT-SAluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 500 Lb. Capacity Silver/BlueUniform Capacity (lb.): 500
Lowered Height (in.): 1-1/4 / 21-1/4		200

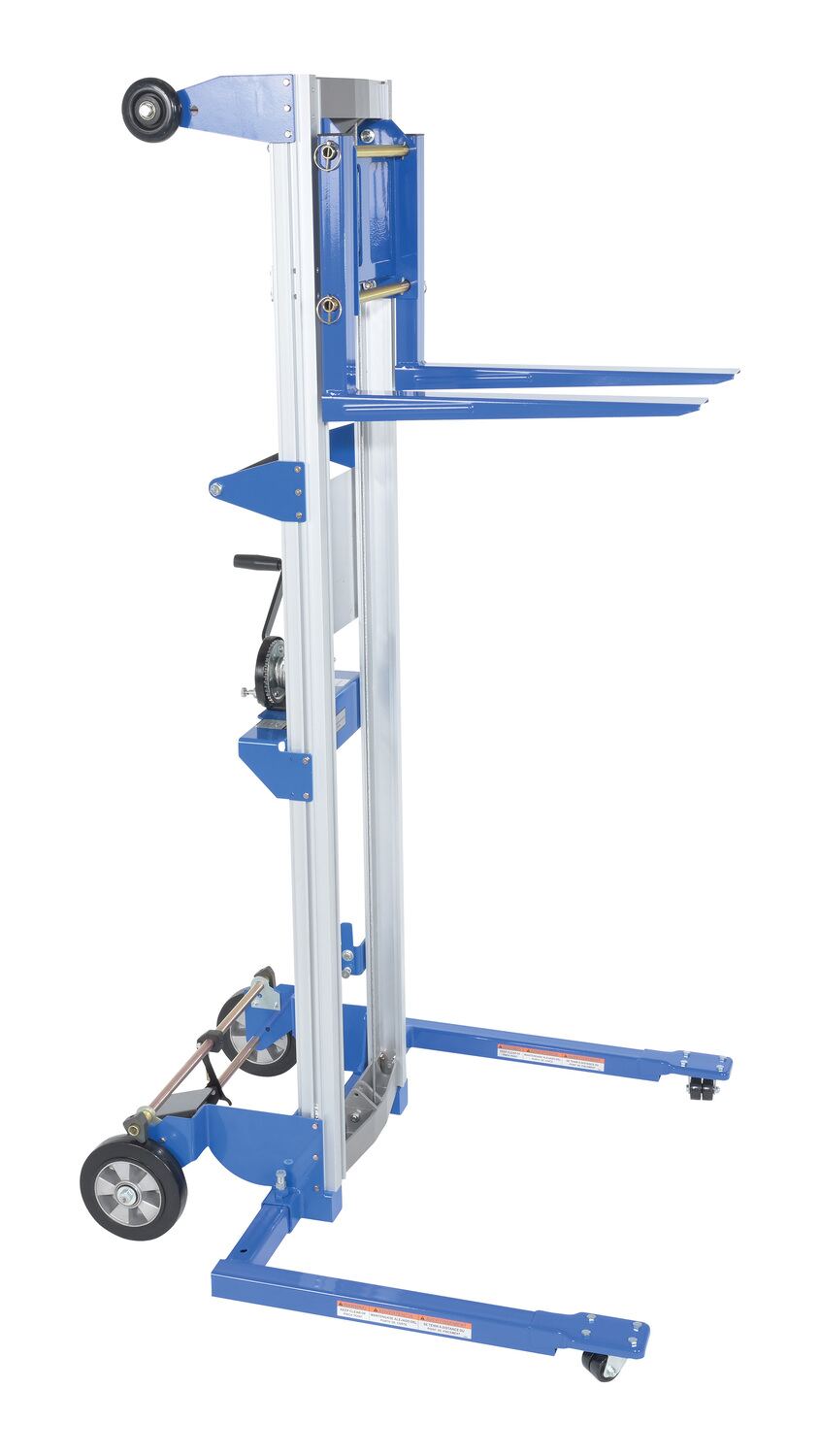

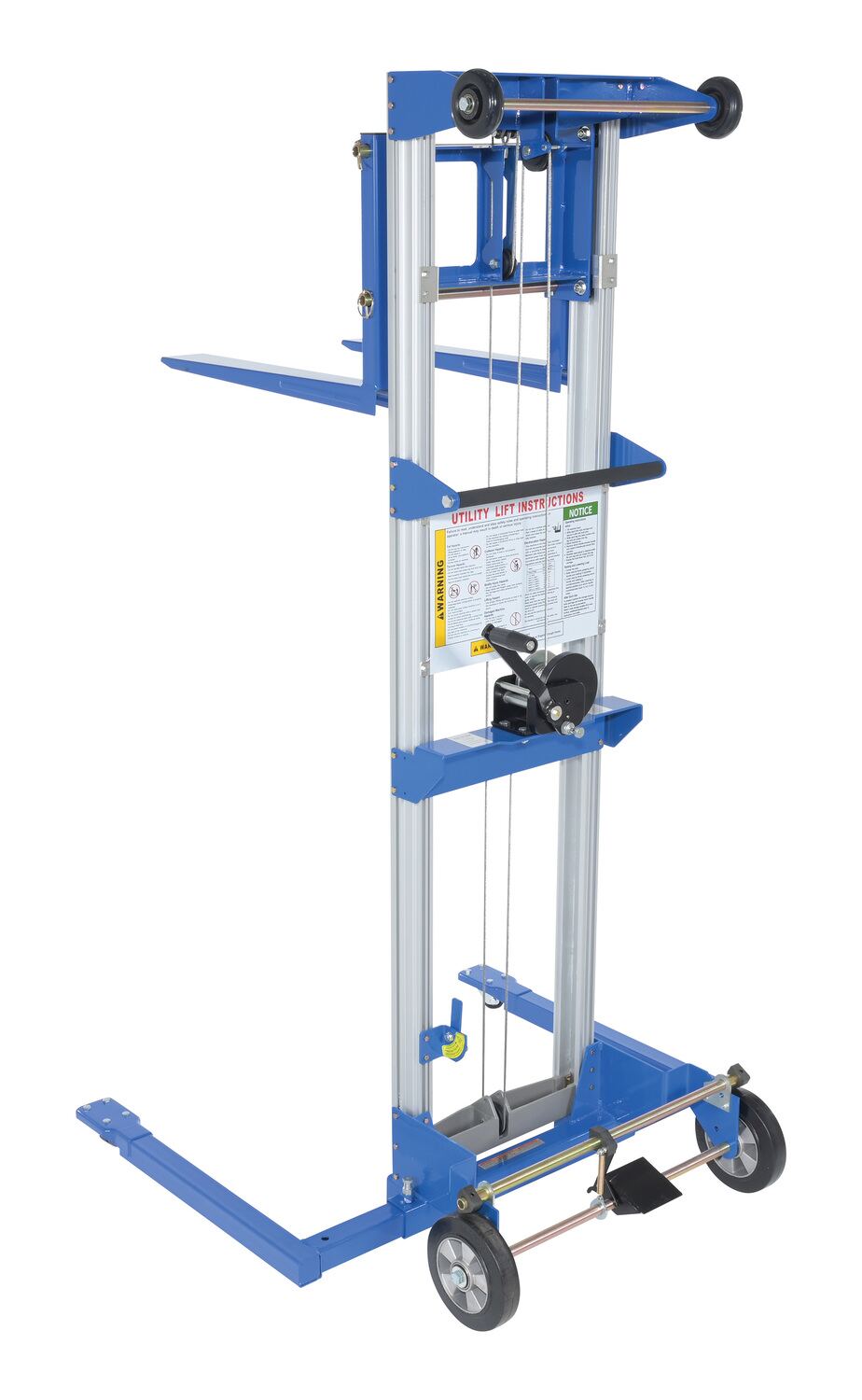

A-LIFT-S-EHP A-LIFT-S-EHPAluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 350 Lb. Capacity Silver/BlueUniform Capacity (lb.): 350
Lowered Height (in.): 1-1/4 / 21-1/4		226
A-LIFT-S-HP A-LIFT-S-HPAluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 400 Lb. Capacity Silver/BlueUniform Capacity (lb.): 400
Lowered Height (in.): 1-1/4 / 21-1/4		219
