Manual & Electric Stackers

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
VHPS-2200-AA_A.jpg VHPS-2200-AA_P.jpg VHPS-2200-AA_G.jpg VHPS-2200-AA_L.jpg
VHPS-2200-AA_N.jpg VHPS-2200-AA_H.jpg VHPS-2200-AA_R.jpg VHPS-2200-AA_C.jpg
Manual & Electric Stackers

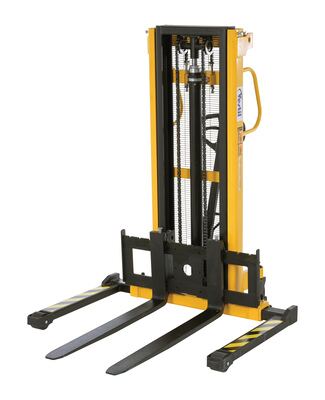

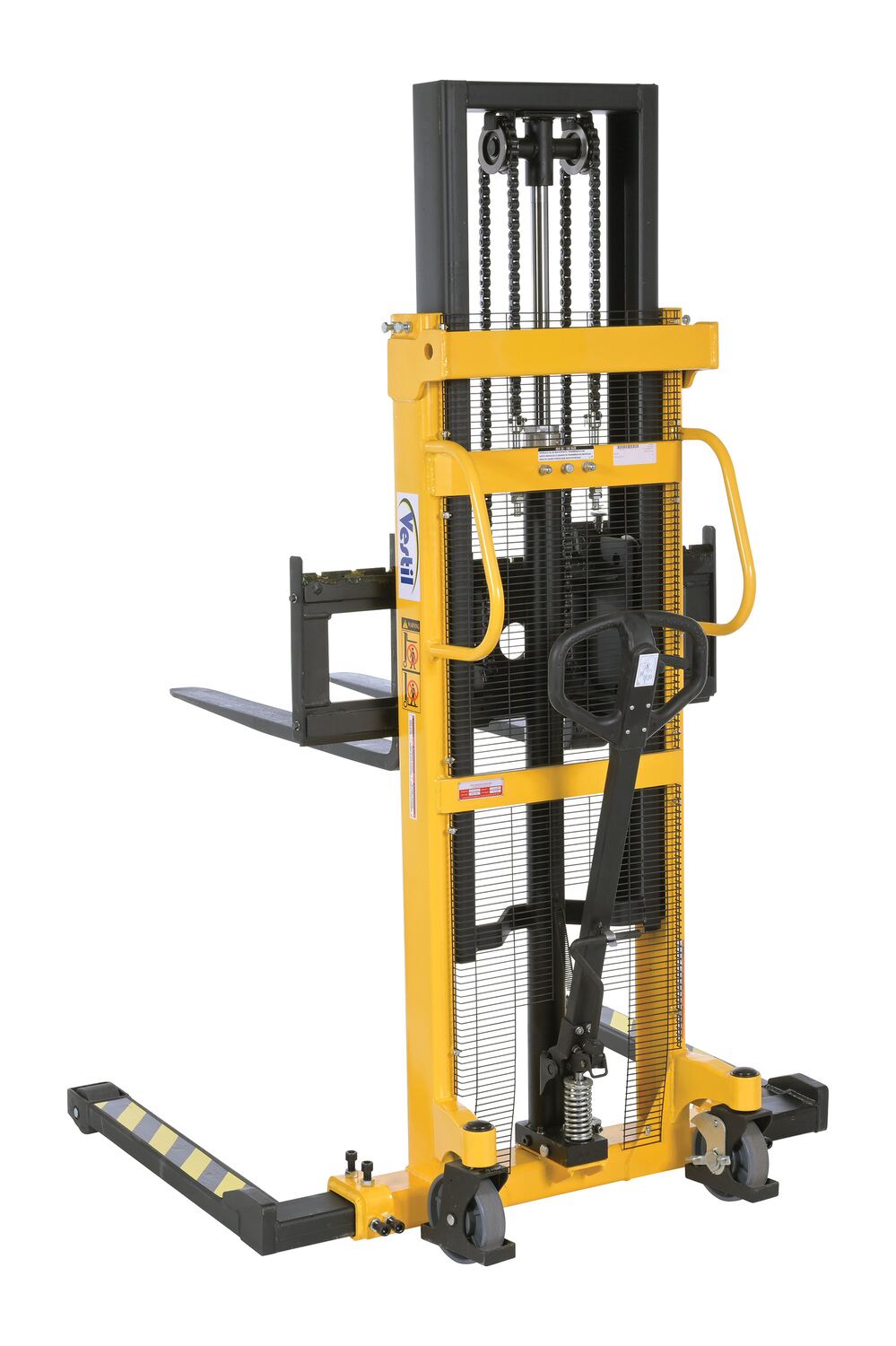

model: VHPS-2200-AA



Featured Ergonomic Solutions


High Tote Lifter
Pallet Truck with Digital Scale (Pramac)
Pallet Inverters
Tote-A-Loads
Hefti-Lifts
Adjustable Pallet Stands
Self Elevating Tables
Electric Order Pickers
Electric Hydraulic Trash Can Dumpers
model chart

Product Family Overview

Print Friendly
Manual & Electric Stackers
SERIES: VWS,VHPS

Stackers are designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. Full height push handle for easy steering and excellent visibility through welded mesh guard. Suffix AA stands for adjustable forks (works with pallets and skids) while FF stands for fixed forks (skids only).

Manual Hand Winch Stackers feature a heavy duty mast and a unique winch design for easier and safer lifting. Lift and lower by hand winch and steel cable mechanism. 3/4" lift per handle revolution. Two rigid and two swivel wheels with brakes for easy maneuvering.

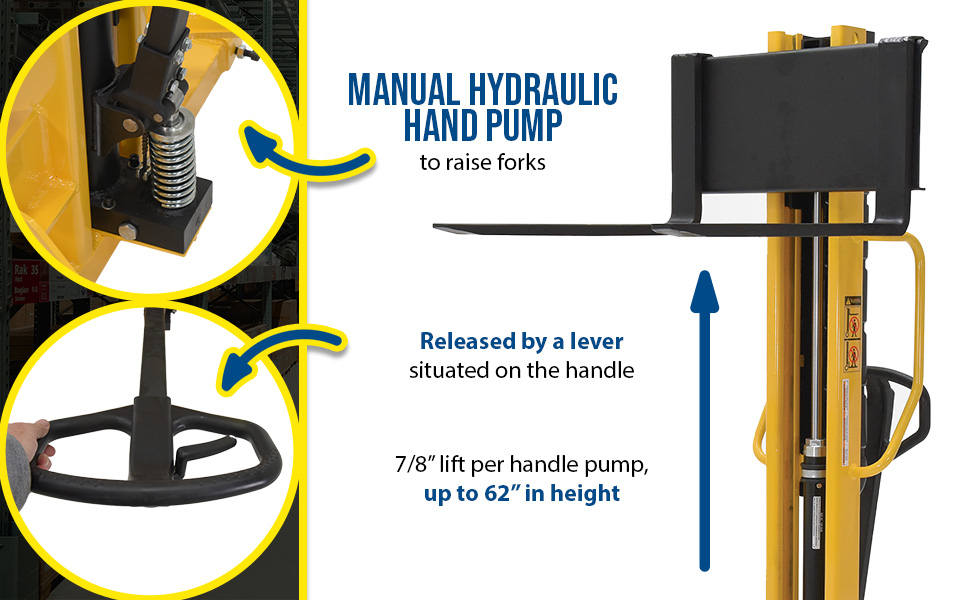

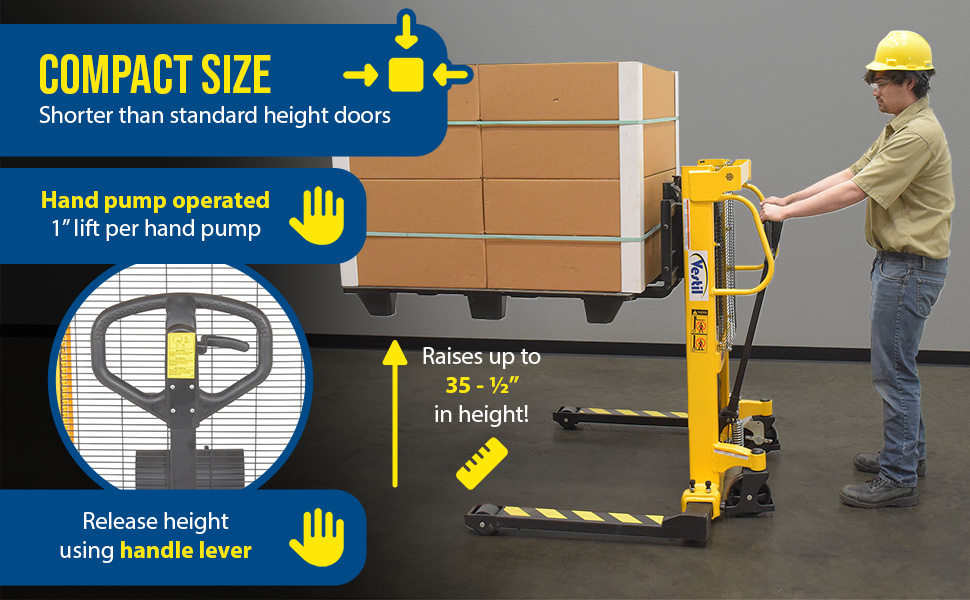

Manual Hydraulic Hand Pump Stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 3/4" lift per handle pump. Two rigid and two swivel wheels standard.

Electric Winch Stacker feature a heavy duty mast and a DC winch for easier and safer lifting. Lift and lower by DC winch and steel cable mechanism. Full height push handle for easy steering and excellent visibility through welded mesh guard. DC winch has one 12V battery. Two rigid and two swivel wheels with brakes for easy maneuvering.

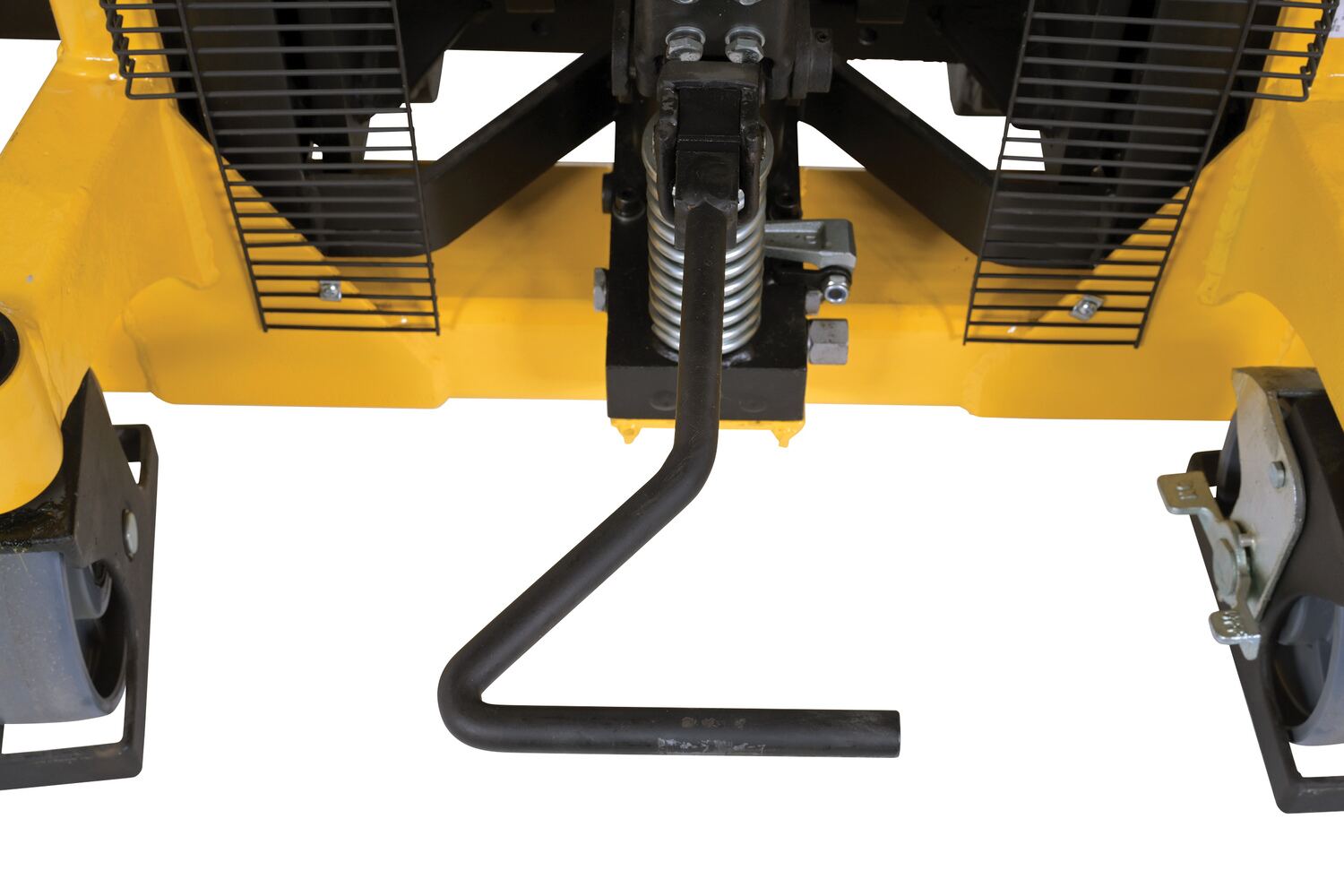

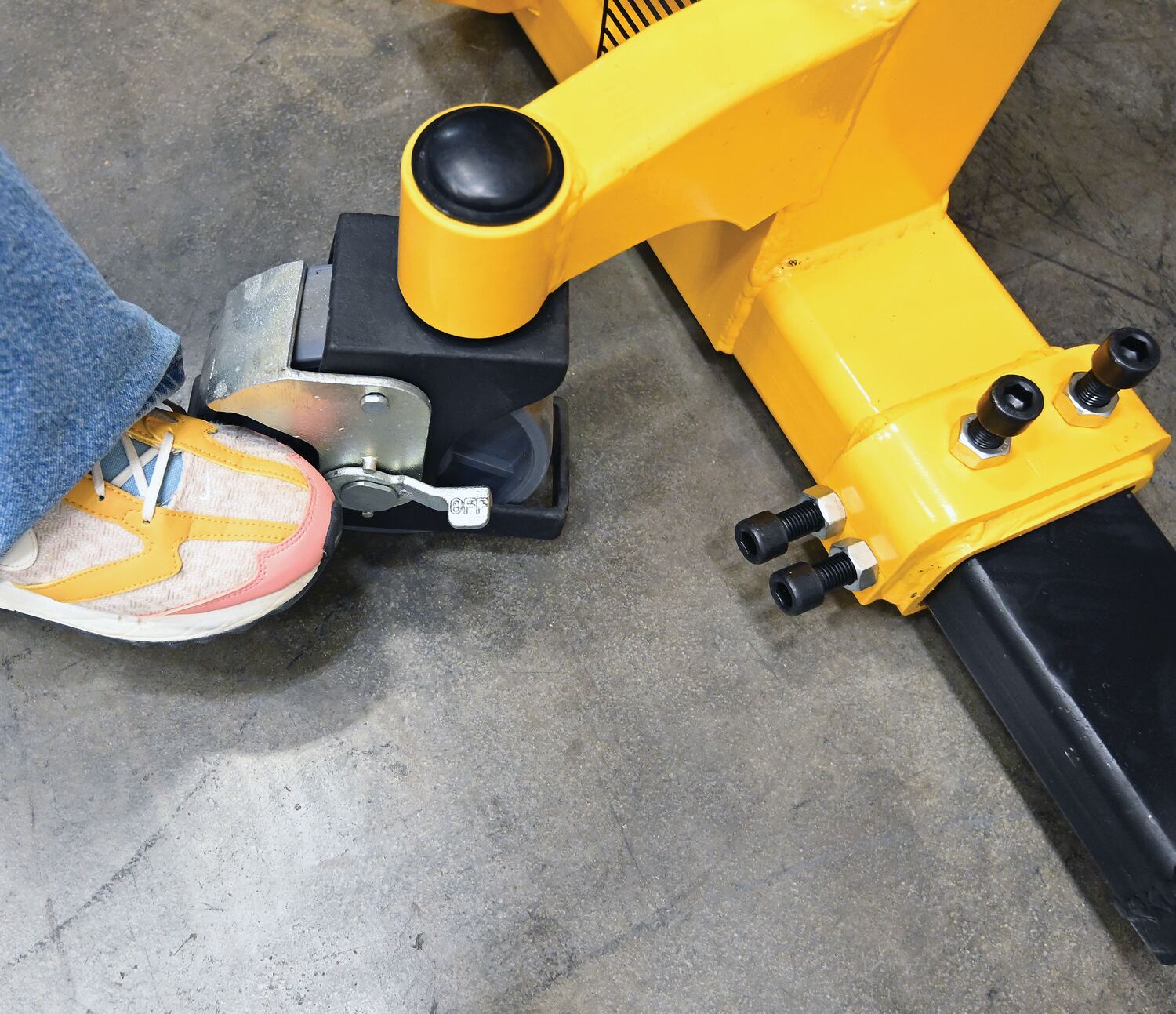

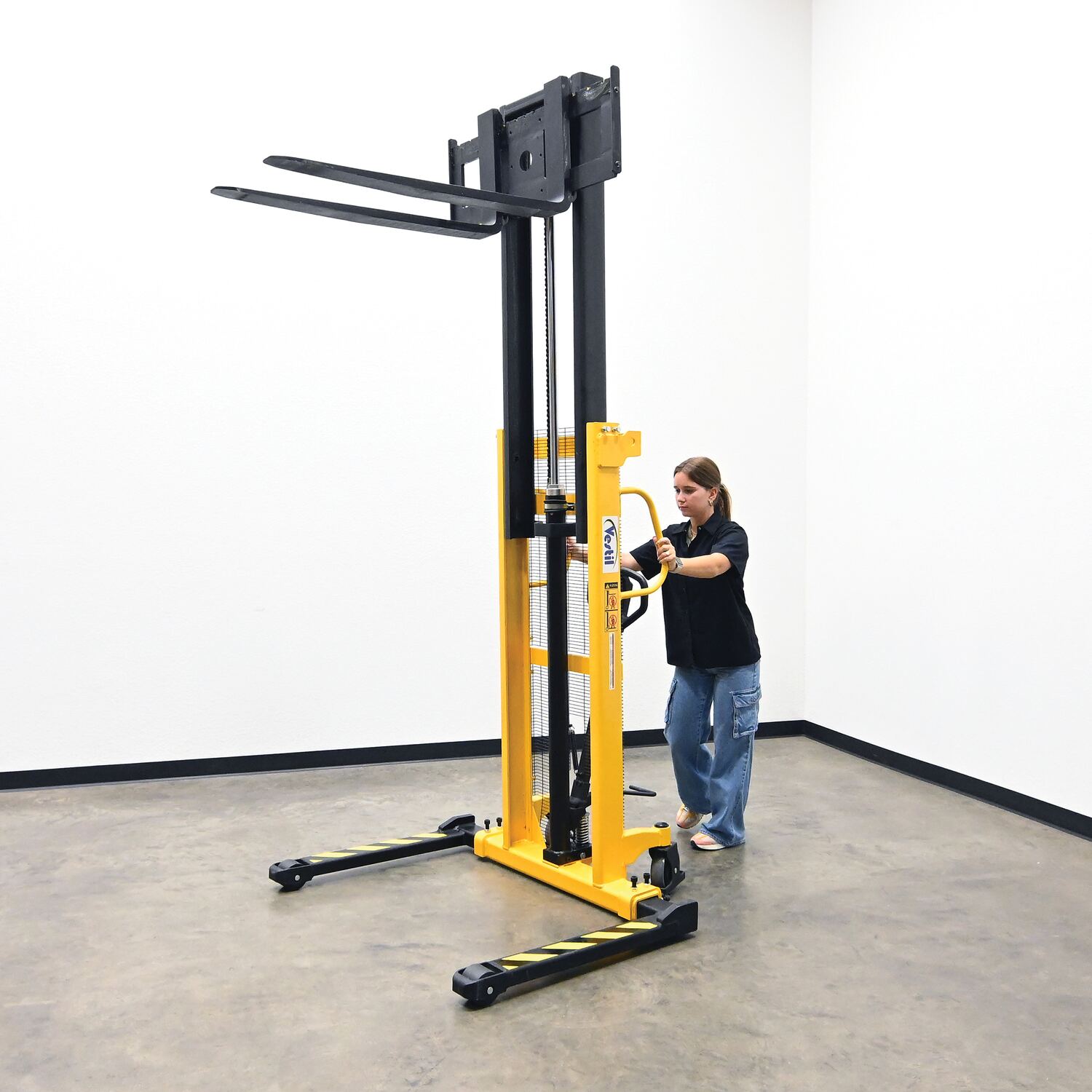

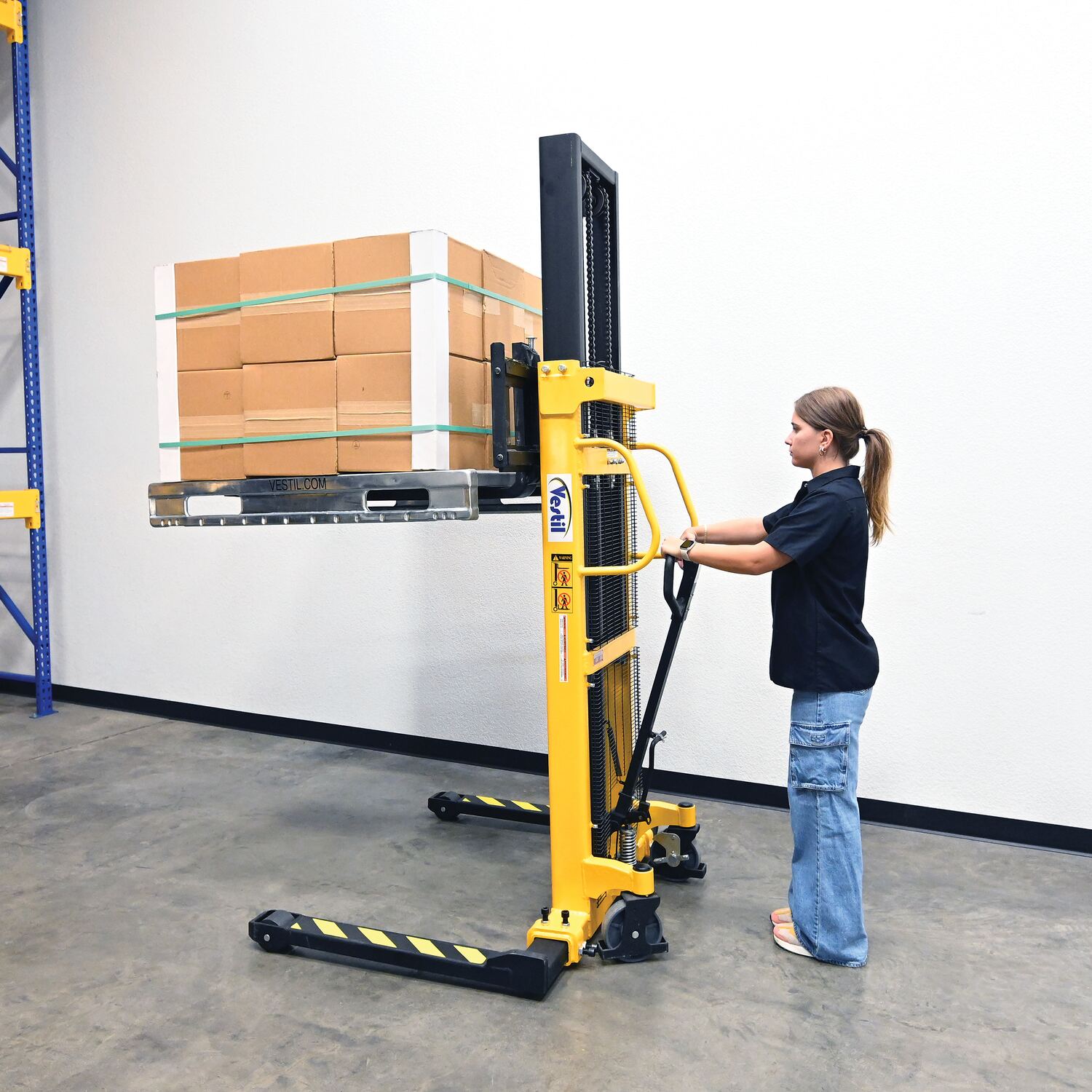

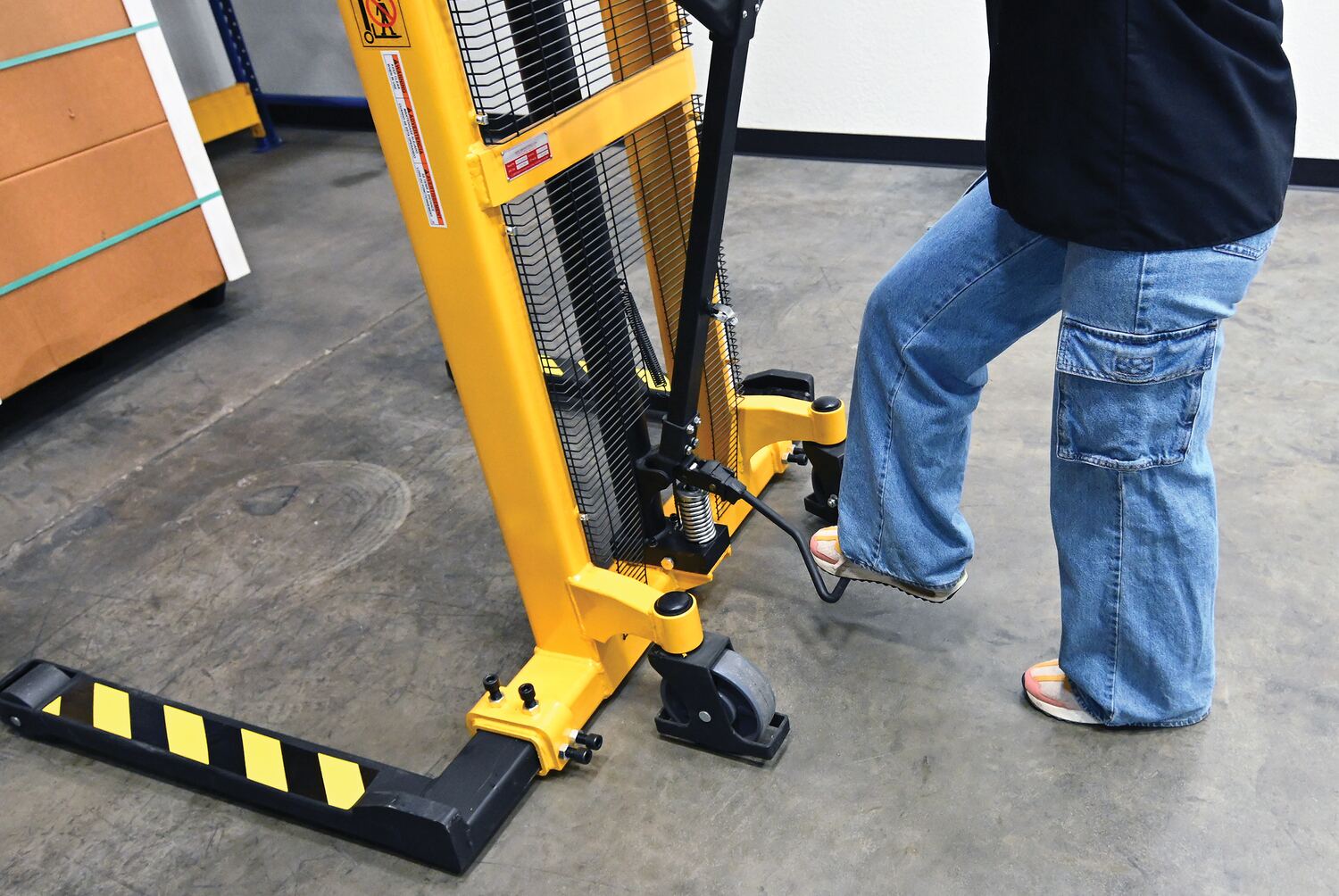

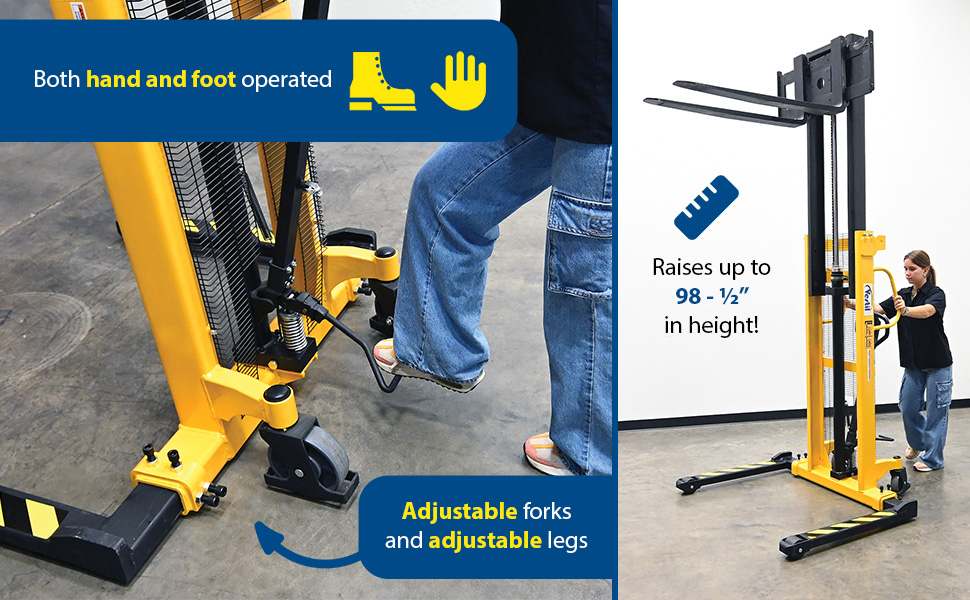

Model VHPS-2200-AA includes both, foot and hand operated lifting capabilities.


Drum Roll Reel Forks

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

Stackers are designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. Full height push handle for easy steering and excellent visibility through welded mesh guard. Suffix AA stands for adjustable forks (works with pallets and skids) while FF stands for fixed forks (skids only).

Manual Hand Winch Stackers feature a heavy duty mast and a unique winch design for easier and safer lifting. Lift and lower by hand winch and steel cable mechanism. 3/4" lift per handle revolution. Two rigid and two swivel wheels with brakes for easy maneuvering.

Manual Hydraulic Hand Pump Stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 3/4" lift per handle pump. Two rigid and two swivel wheels standard.

Electric Winch Stacker feature a heavy duty mast and a DC winch for easier and safer lifting. Lift and lower by DC winch and steel cable mechanism. Full height push handle for easy steering and excellent visibility through welded mesh guard. DC winch has one 12V battery. Two rigid and two swivel wheels with brakes for easy maneuvering.

Model VHPS-2200-AA includes both, foot and hand operated lifting capabilities.


Drum Roll Reel Forks

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

Other Stackers

 Narrow Mast Stackers with Powered Lift Narrow Mast Stackers with Powered Drive and Powered Lift Powered Stacker with Power Drive, Power Lift, & Power Fork Reach Rough Terrain Stacker

Additional Models In This Family
view entire Image Gallery

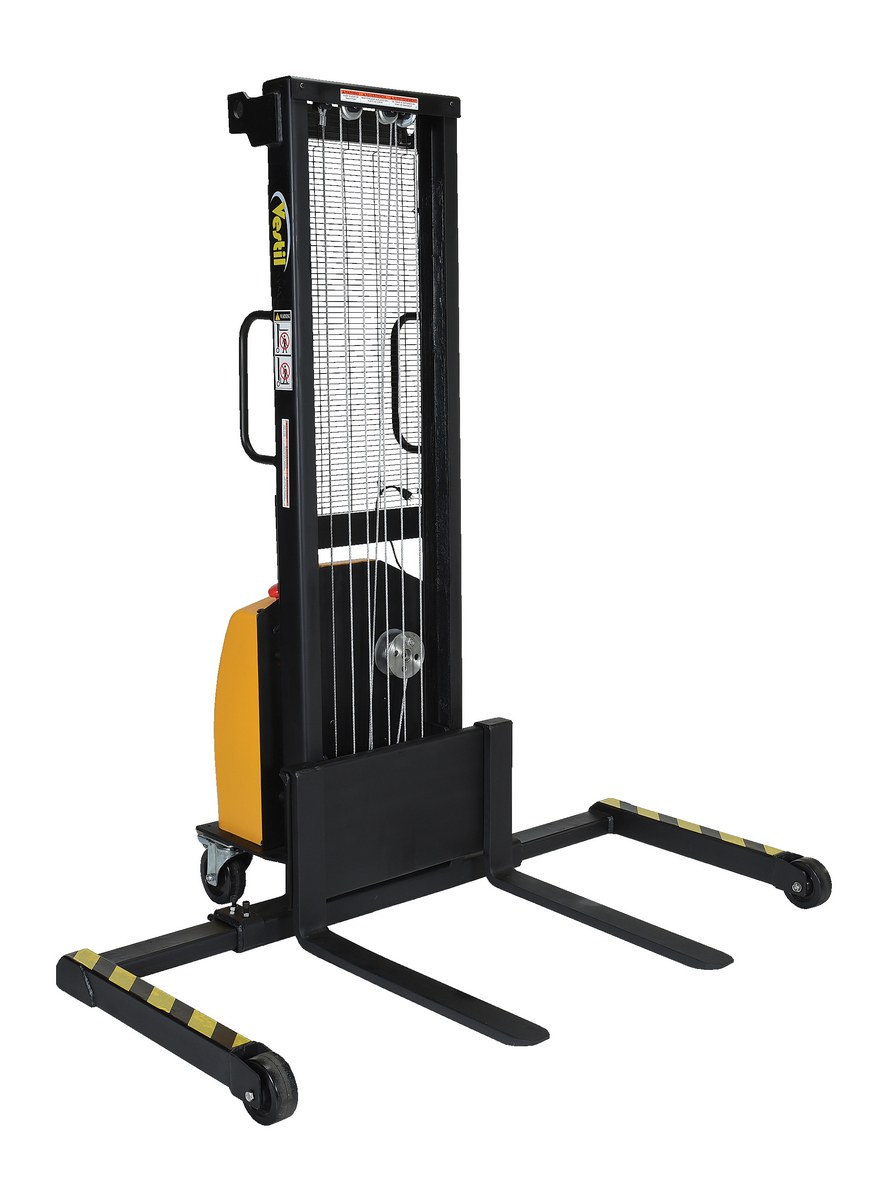

VWS-770-AA-DC

VWS-770-AA-DC

VHPS-NM-1000-AA

VHPS-NM-1000-AA

VWS-770-AA

VWS-770-AA

VHPS-2000-FF

VHPS-2000-FF

VHPS-2000-AA-17

VHPS-2000-AA-17

VHPS-2000-AA-118

VHPS-2000-AA-118

VHPS-2000-AA-17

VHPS-2000-AA-17

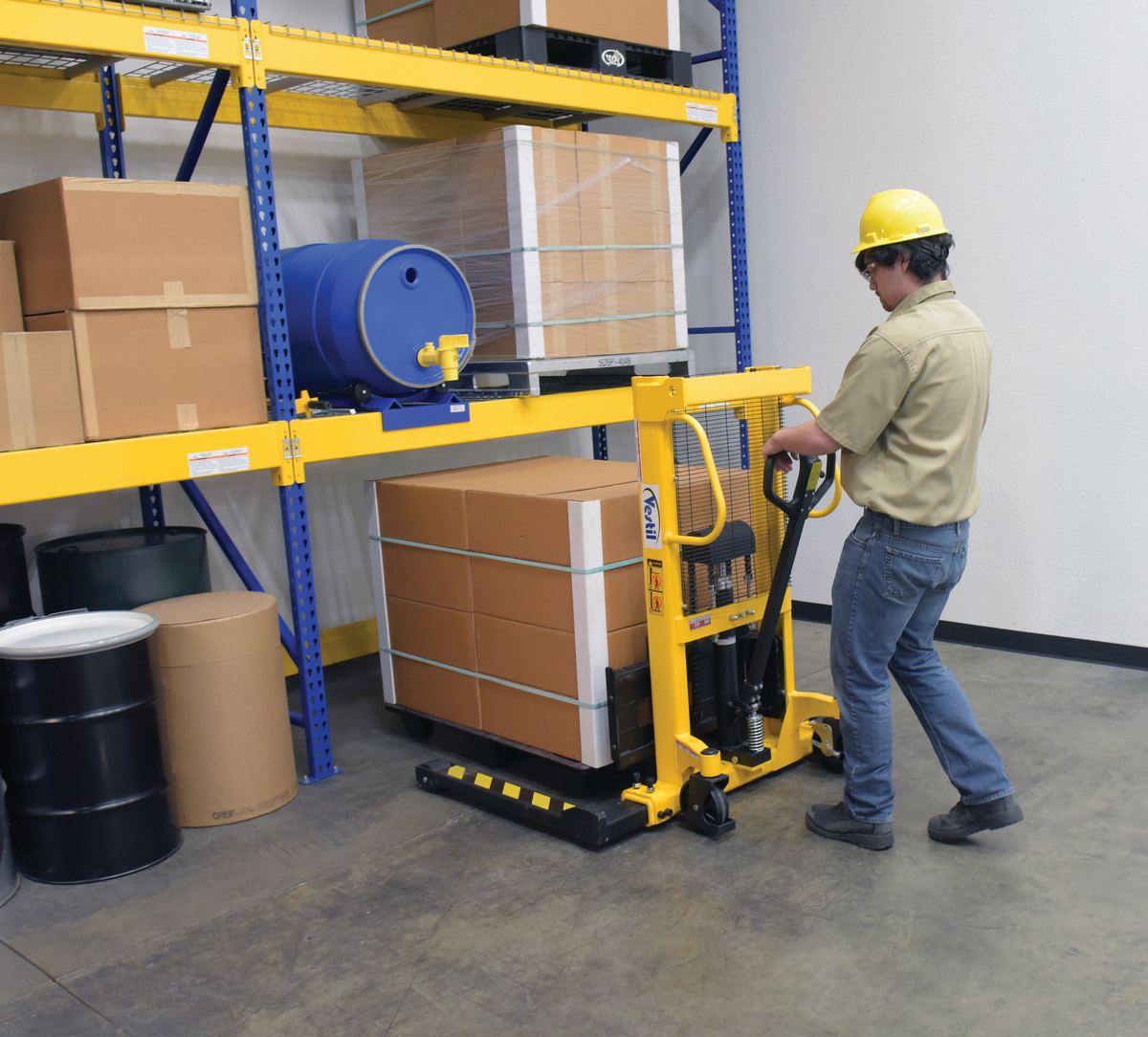

VHPS-2000-AA-35

VHPS-2000-AA-35

VHPS-2000-AA

VHPS-2000-AA

VWS-770-FF

VWS-770-FF

VHPS-2000-AA-35

VHPS-2000-AA-35

VHPS-2000-AA-118

VHPS-2000-AA-118

VHPS-2000-FF

VHPS-2000-FF

VHPS-2200-AA

VHPS-2200-AA

VWS-AA-RR

VWS-AA-RR

Applications



Aerospace

Gas Stations

Hospitals

Laboratories

Military

Universities
model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

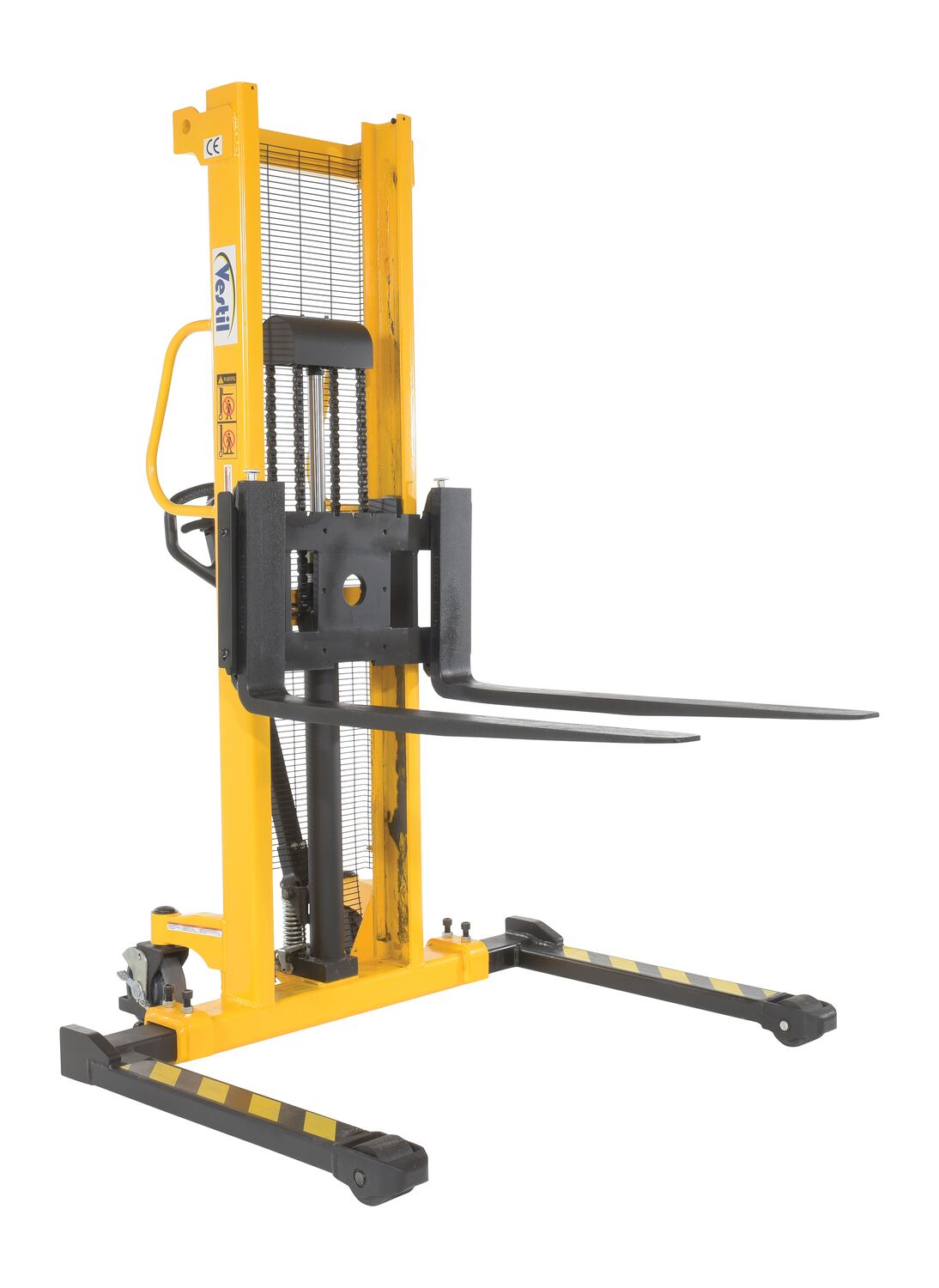

VHPS-2000-AA POPULAR VHPS-2000-AA1 Year Limited WarrantySteel Manual Stacker Adjustable Forks/Legs 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 2000
Service Range (in.): 2 to 63		860

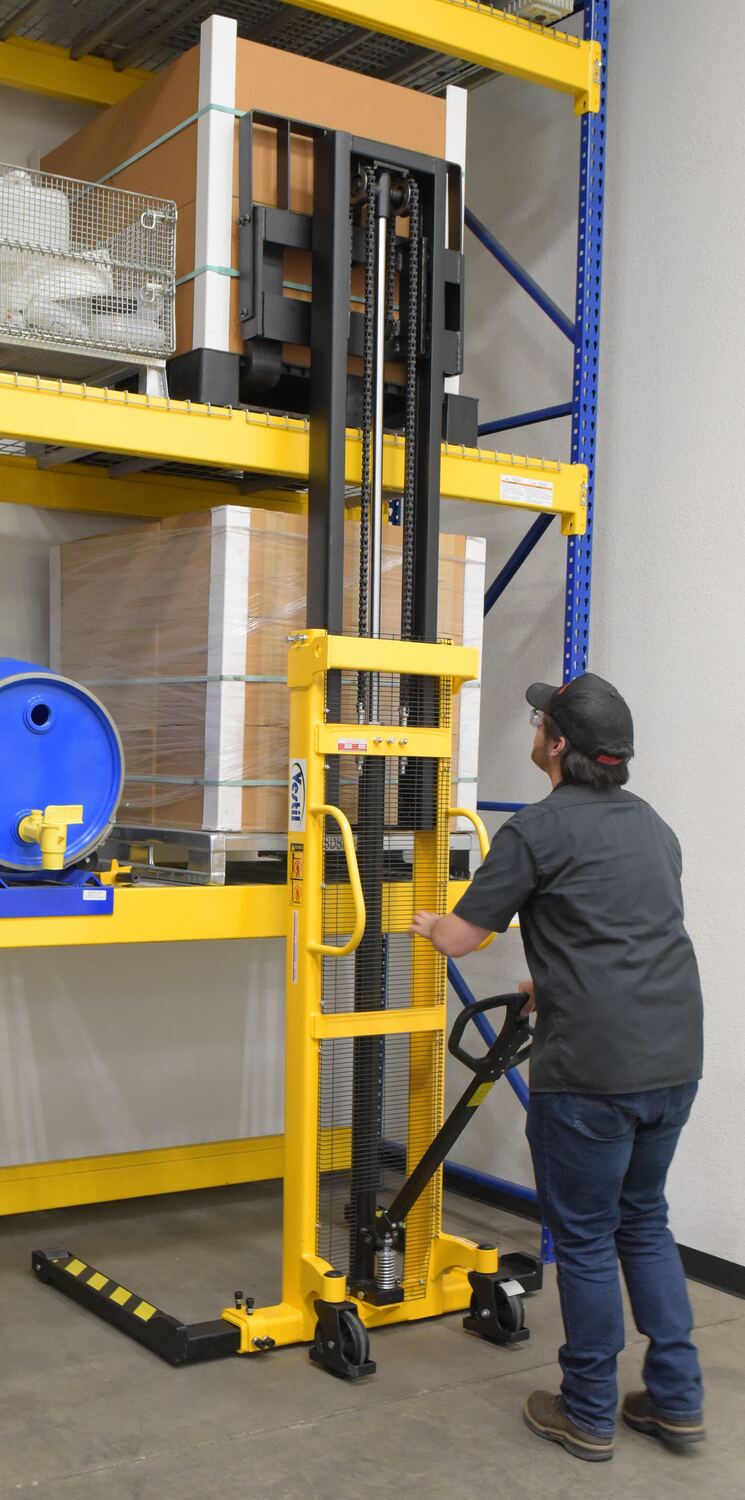

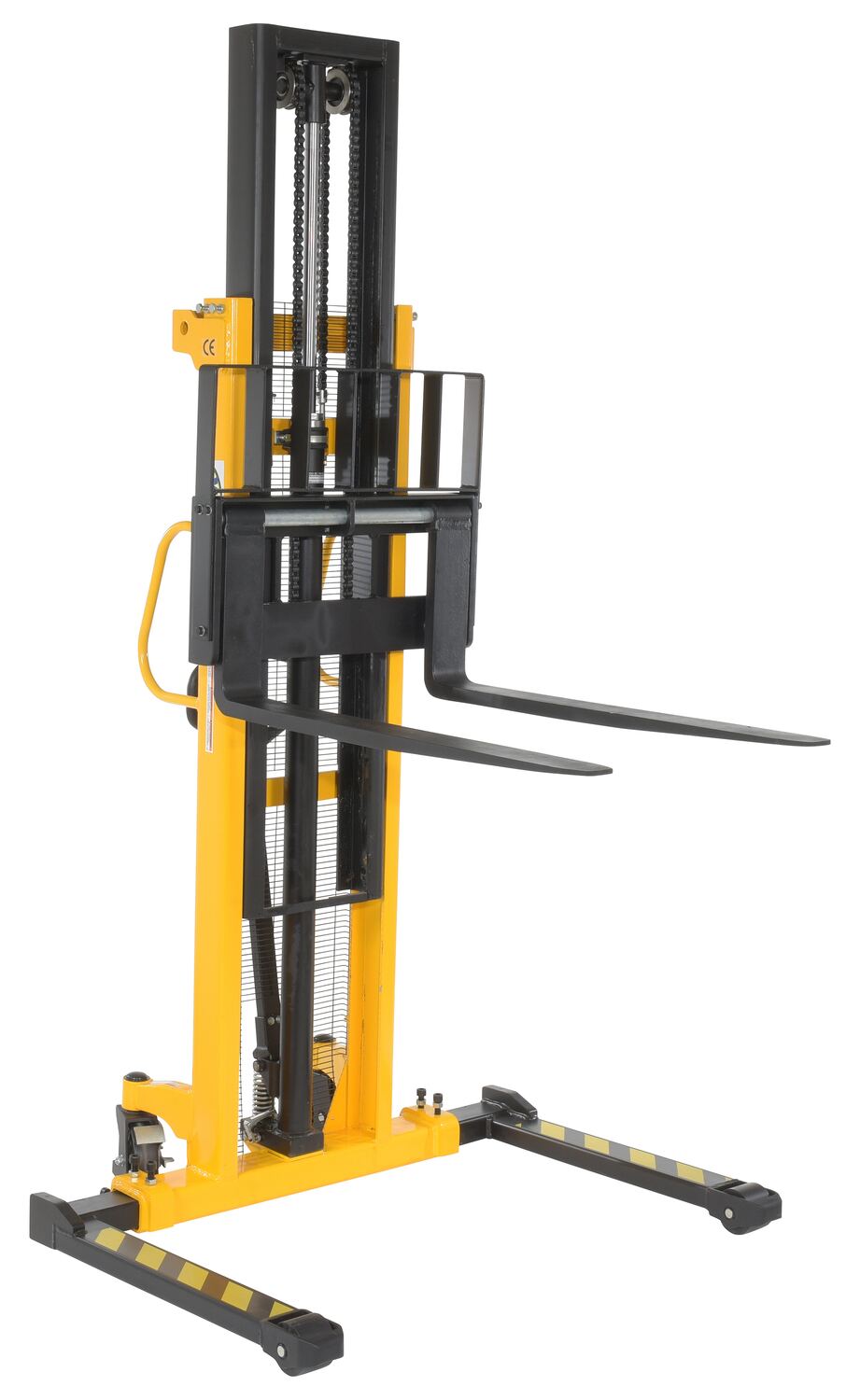

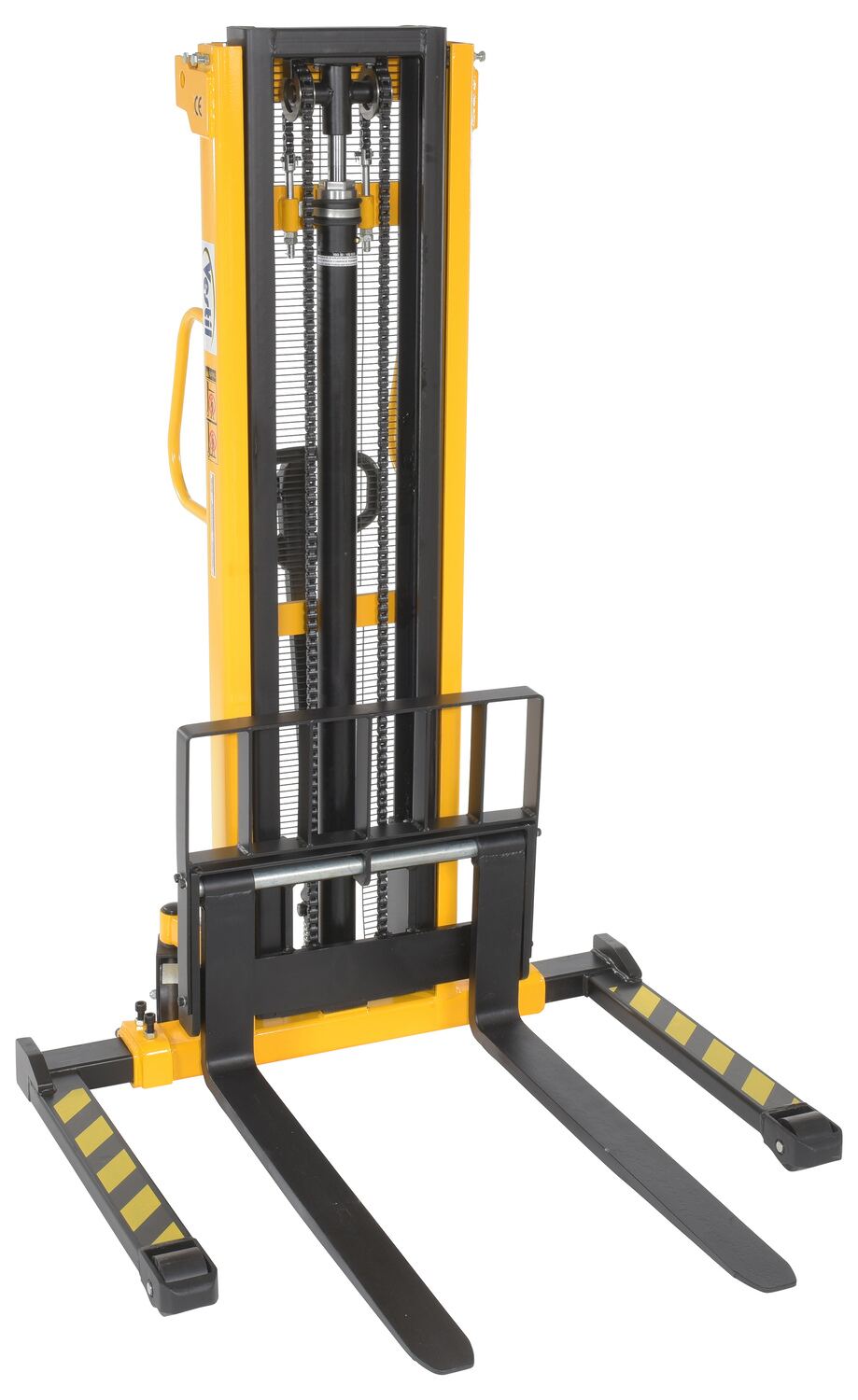

VHPS-2000-AA-118 VHPS-2000-AA-1181 Year Limited WarrantySteel Stacker Manual Pump 2 - 118 In. 1,500 - 2,000 Lb. Capacity Black / YellowPower Source: Manual
Minimum Lift Height (in): 2.125		996

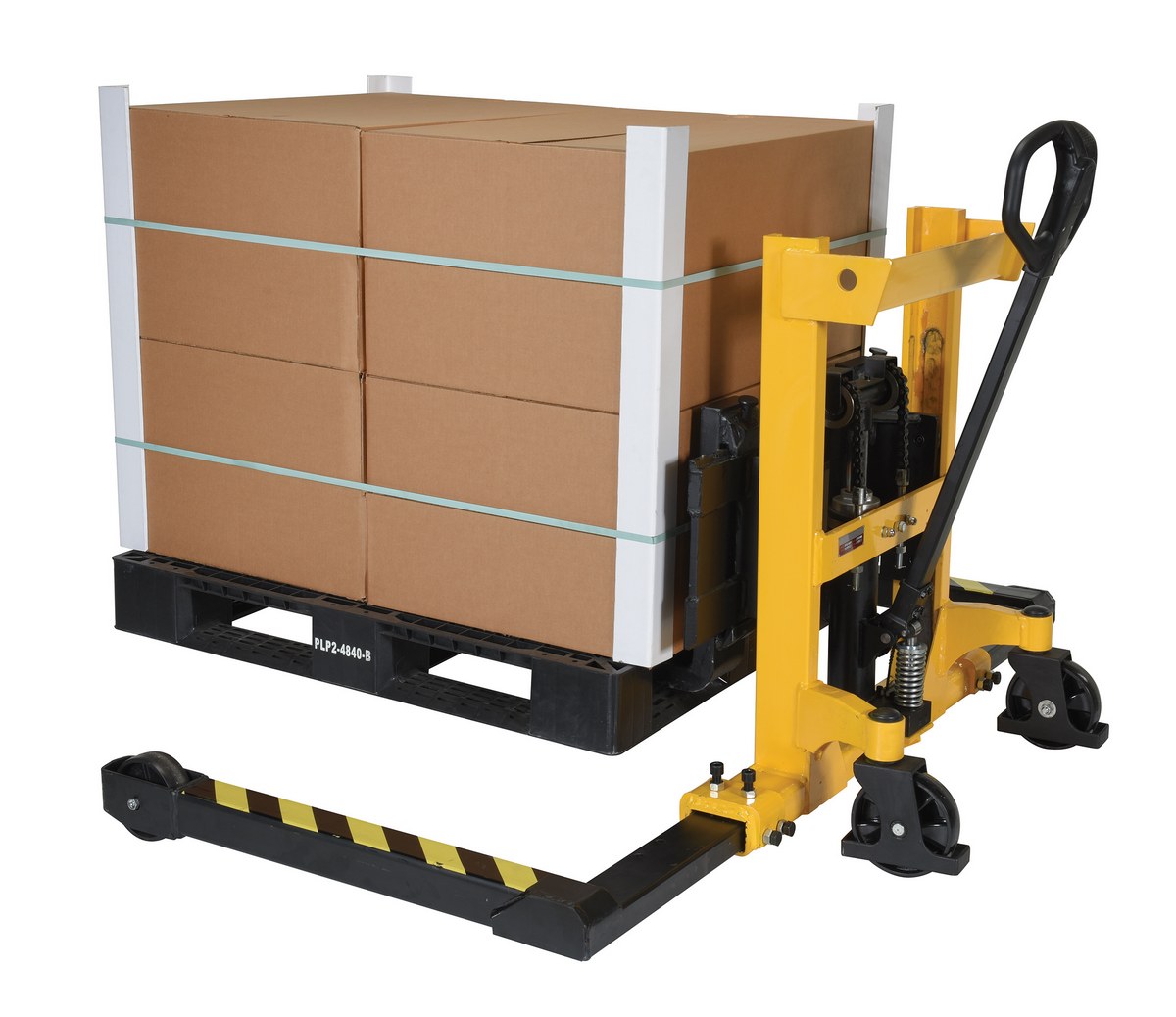

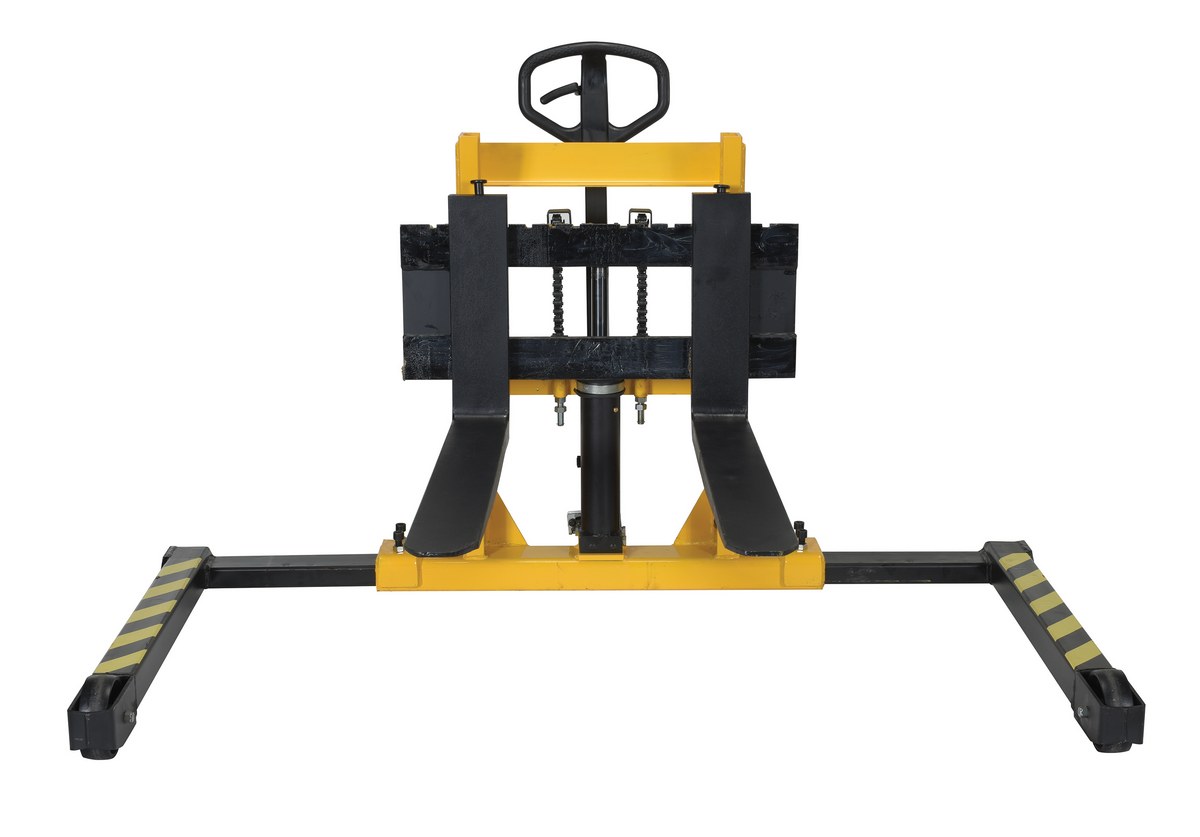

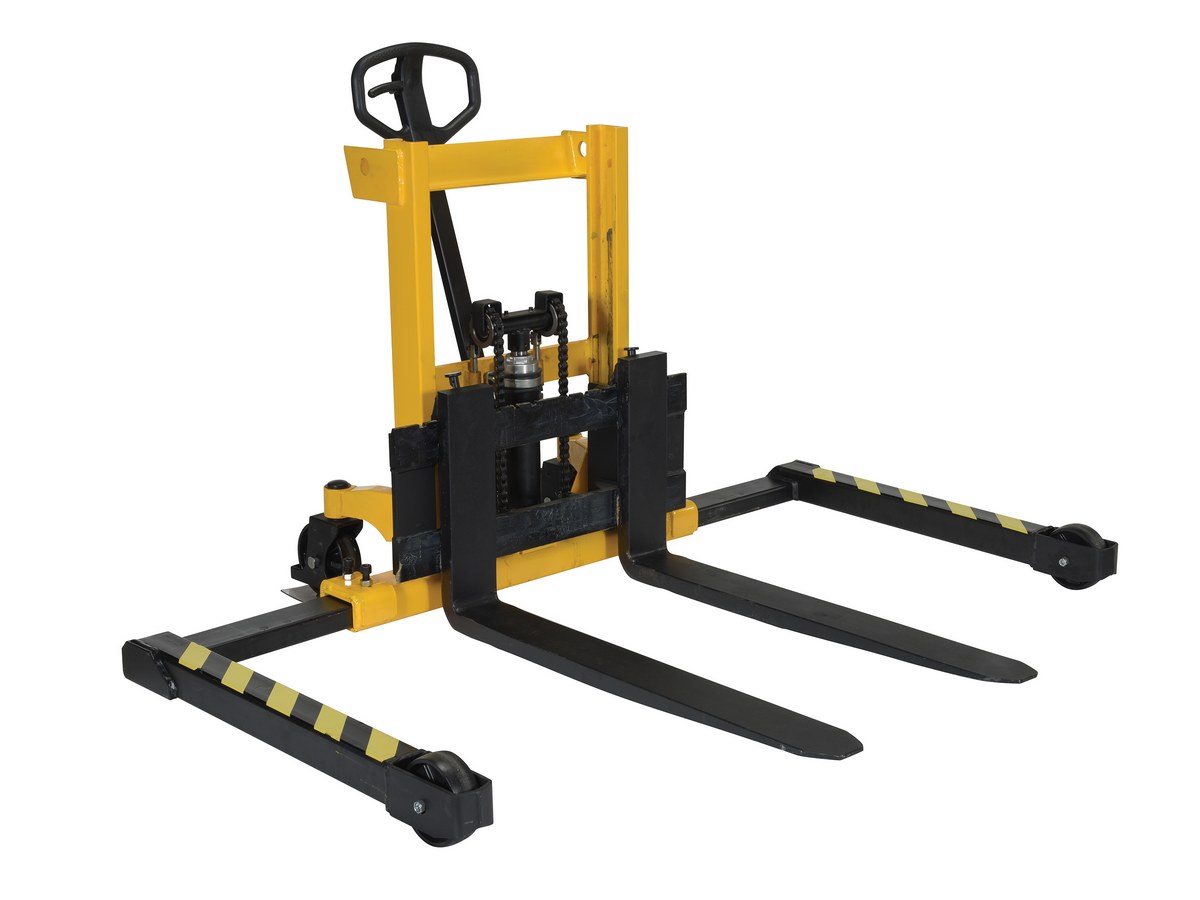

VHPS-2000-AA-17 VHPS-2000-AA-171 Year Limited WarrantySteel Stacker Manual Pump 2 - 17 In. 1,500 - 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 2000
Service Range (in.): 3 to 17		490

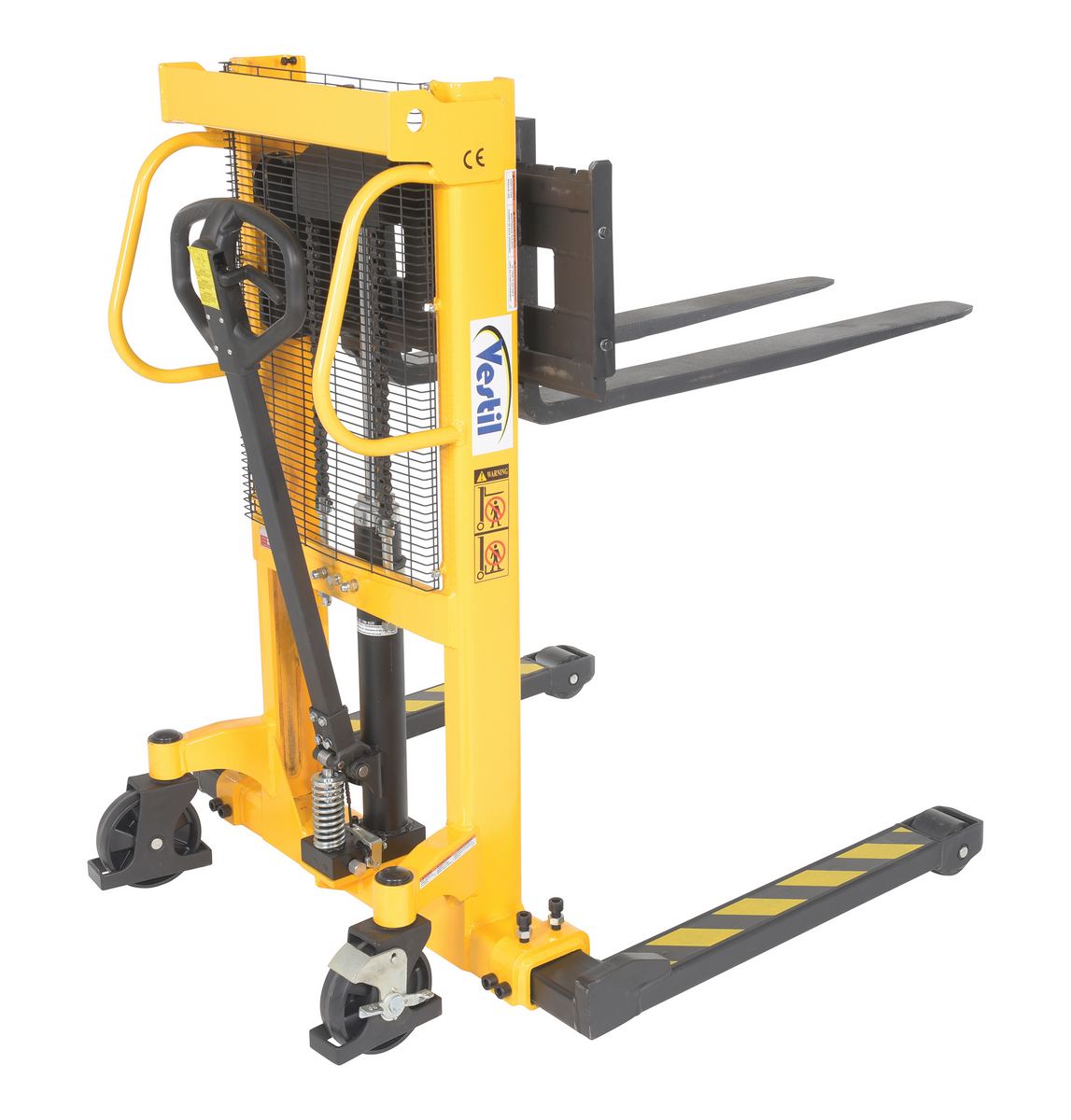

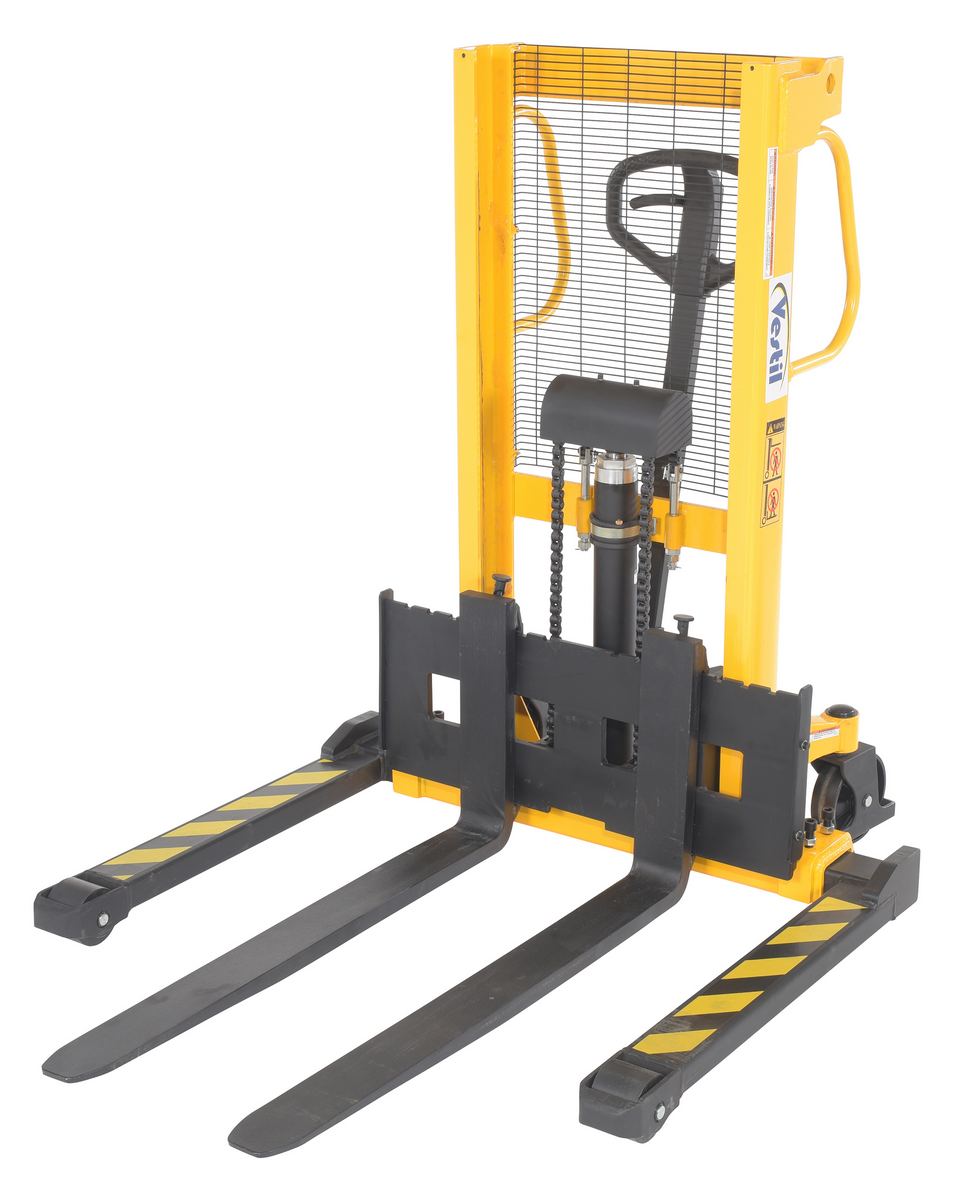

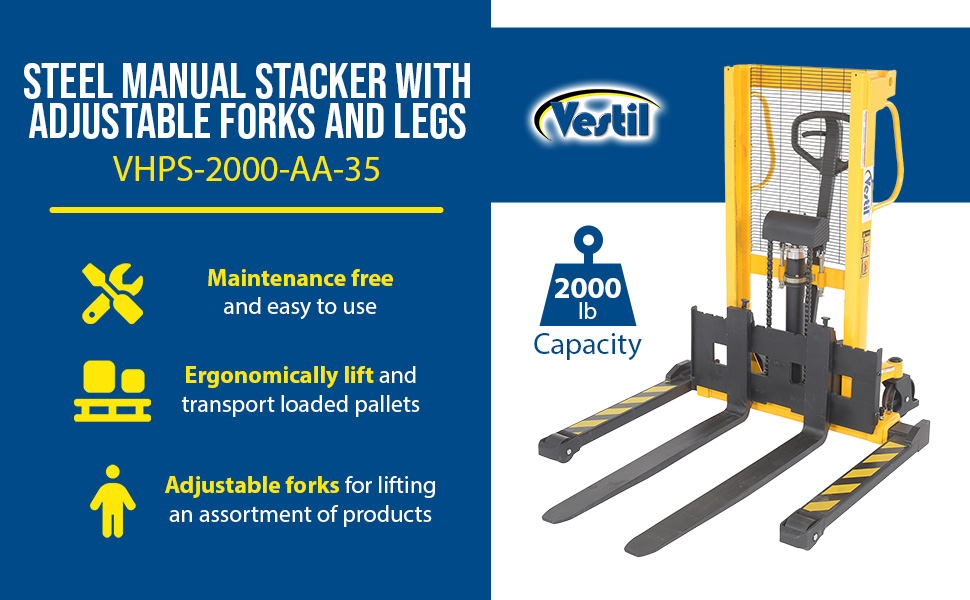

VHPS-2000-AA-35 VHPS-2000-AA-351 Year Limited WarrantyStacker Manual Pump 3 - 35 In. 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 2000
Service Range (in.): 3 to 35		764
VHPS-2000-FF
VHPS-2000-FF1 Year Limited WarrantySteel Manual Stacker Fixed Forks/Legs 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 2000
Service Range (in.): 3-3/4 to 63		570

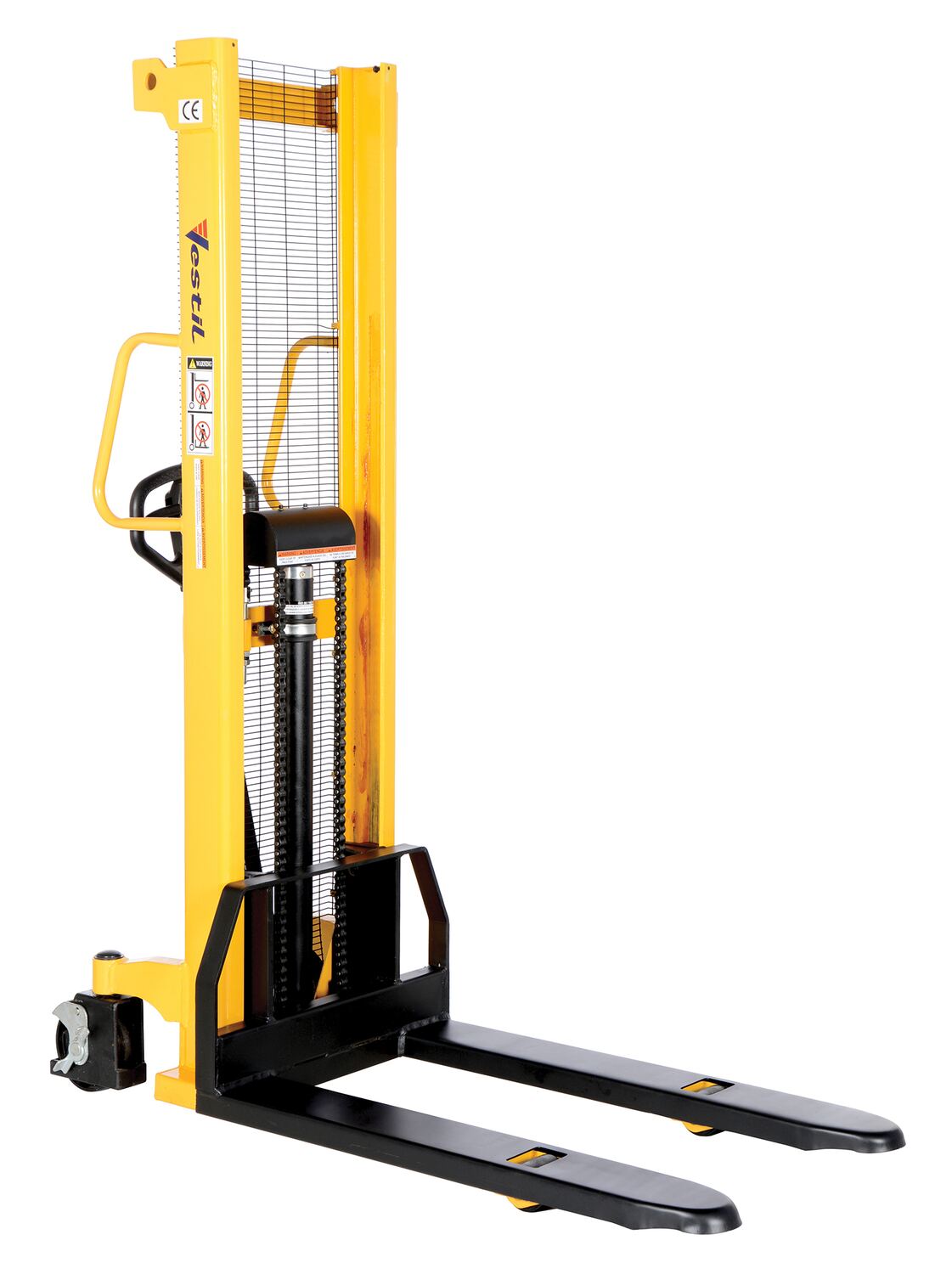

VHPS-2000-FF-118
VHPS-2000-FF-1181 Year Limited WarrantySteel Stacker Manual Pump 3 - 118 In. 1,500 - 2,000 Lb. Capacity Black / YellowPower Source: Manual
Minimum Lift Height (in): 2.125		722

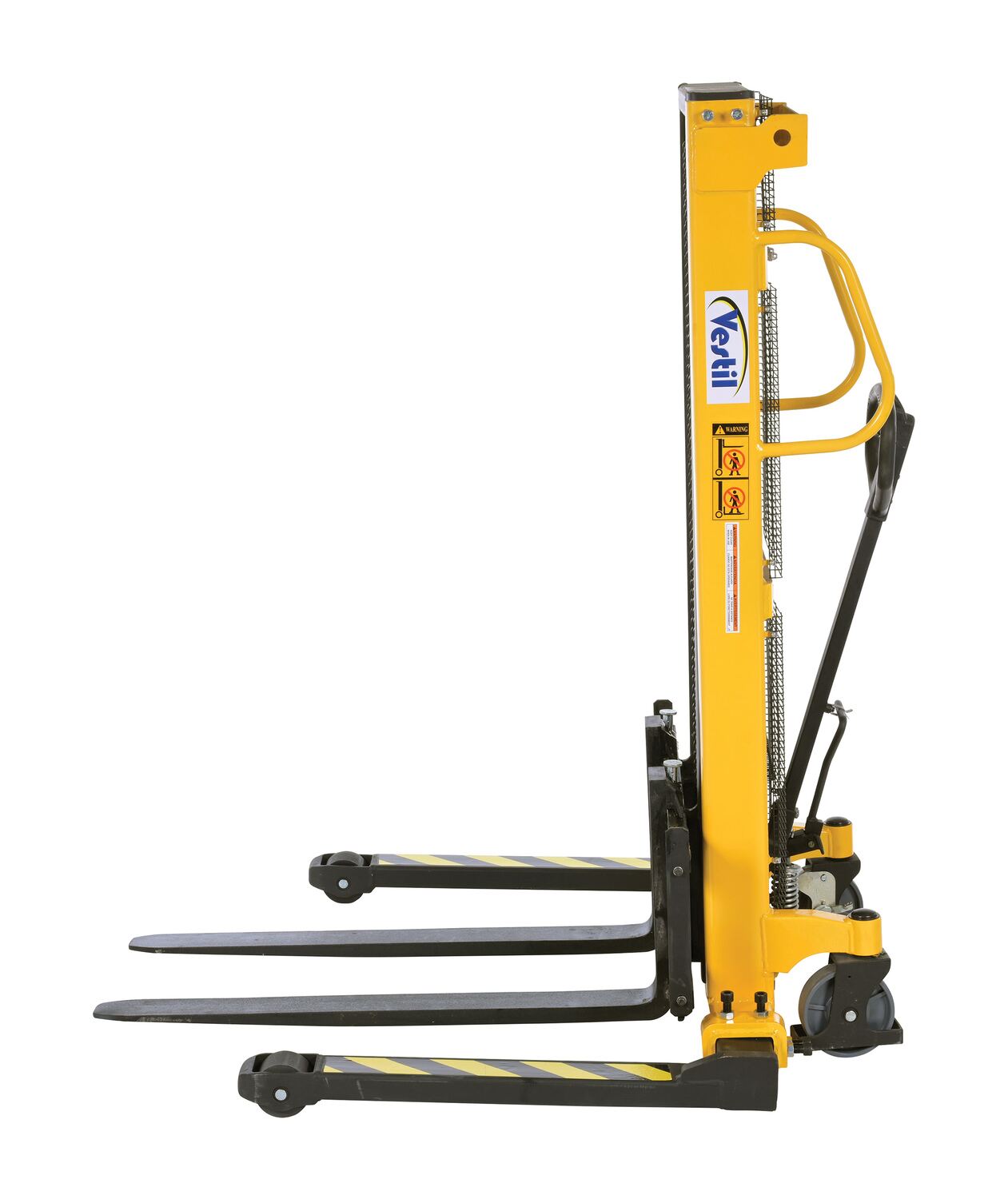

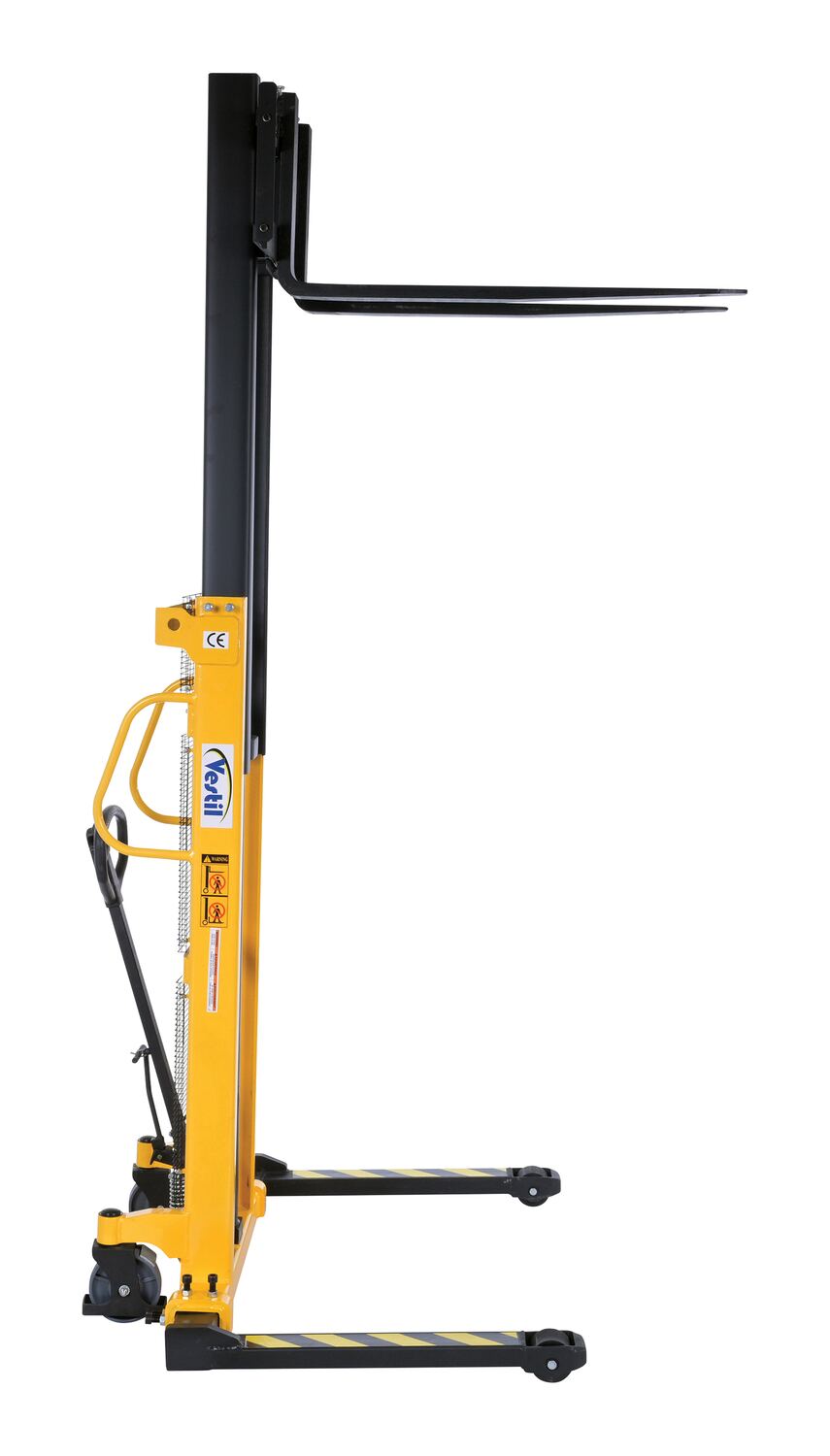

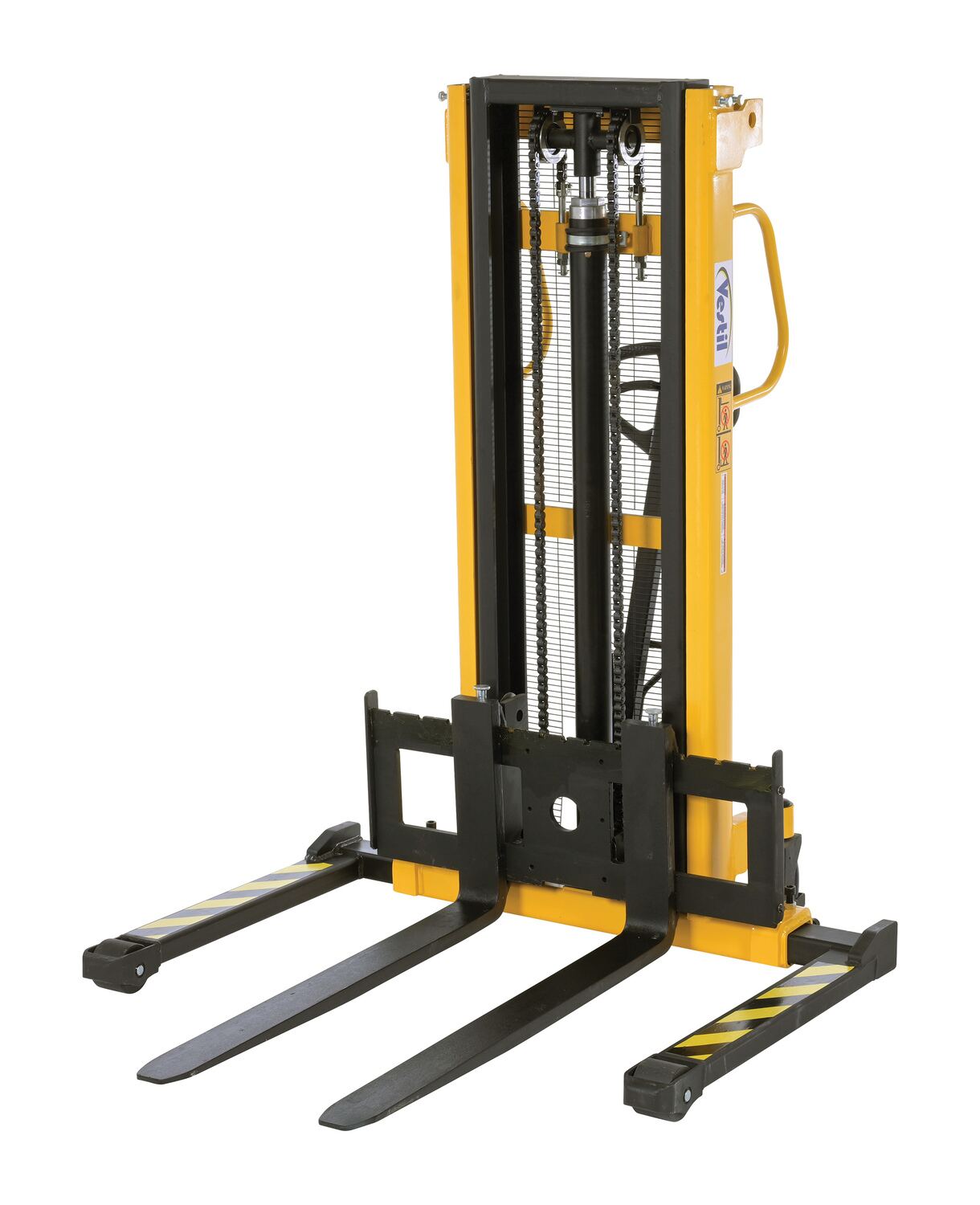

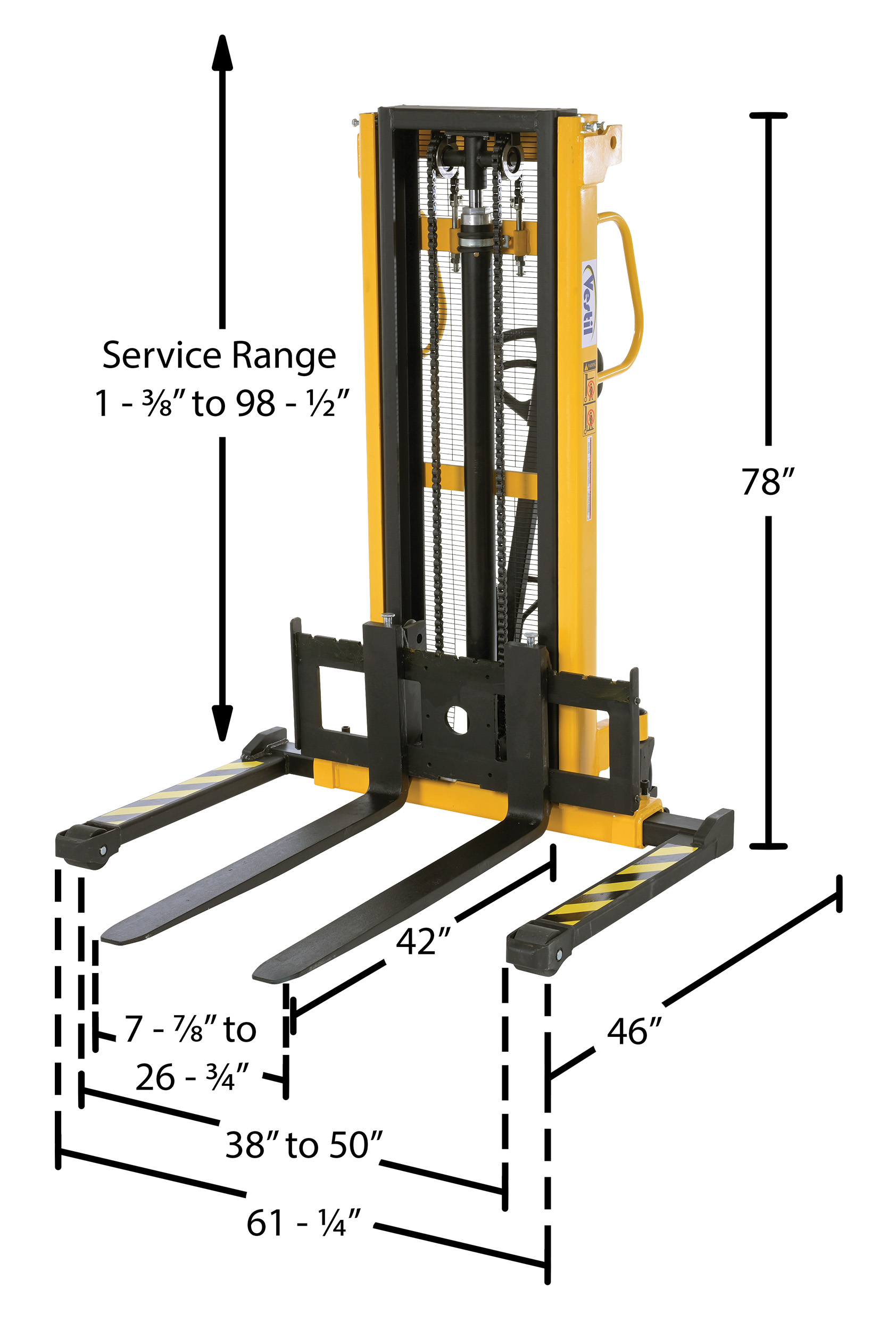

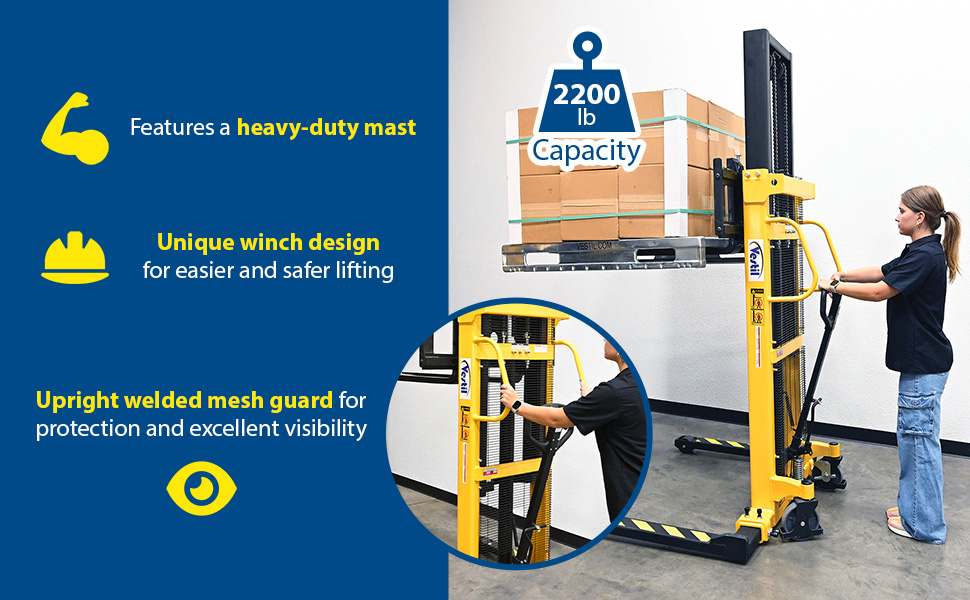

VHPS-2200-AA VHPS-2200-AA1 Year Limited WarrantySteel Manual Stacker Adjustable Forks/Legs 2,200 Lb. Capacity BlackUniform Capacity (lb.): 2200
Service Range (in.): 1.375 to 98.5		972

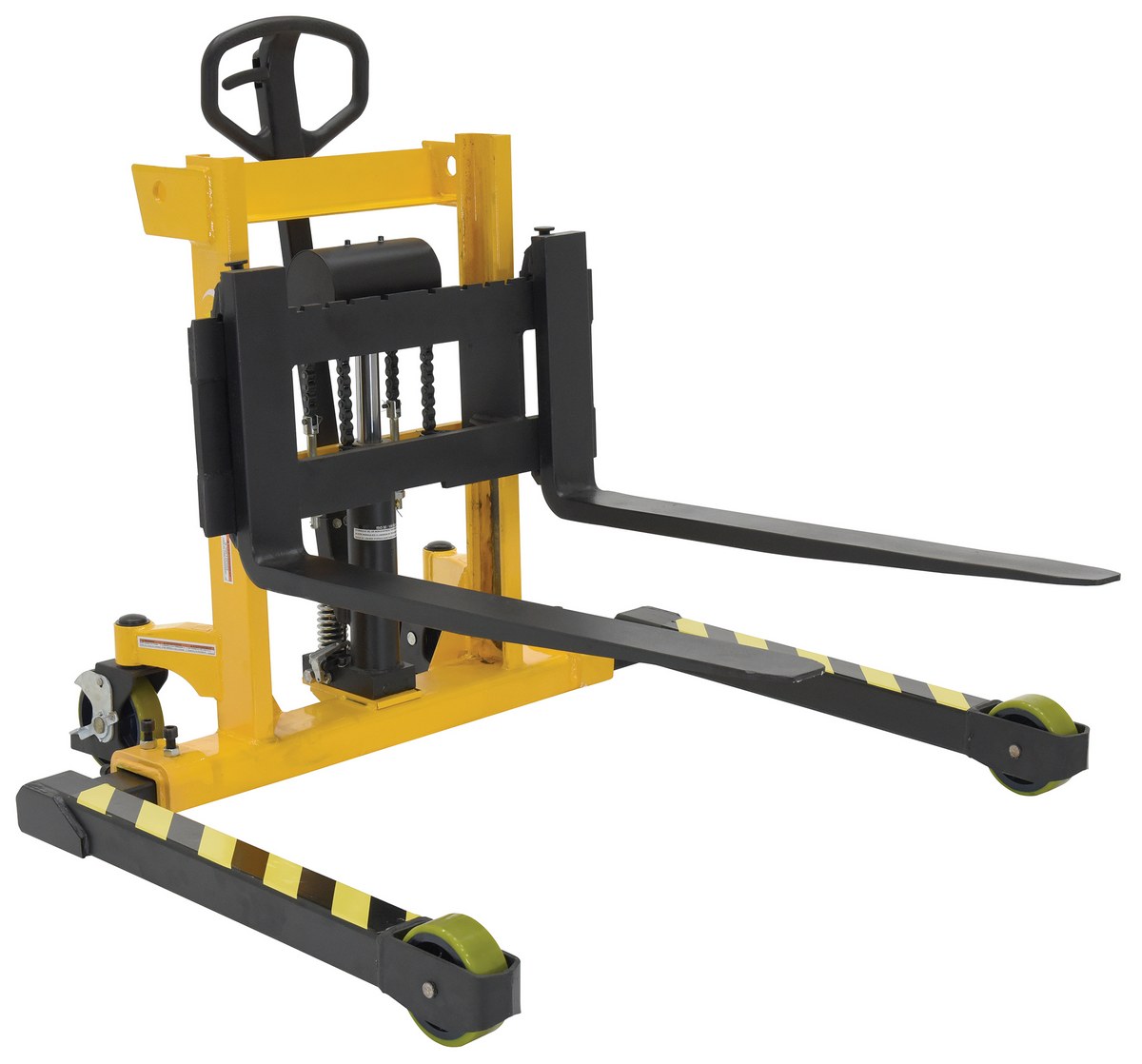

VHPS-3000-AA-17 VHPS-3000-AA-171 Year Limited WarrantySteel Stacker Manual Pump 2 - 35 In. 3,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3000
Service Range (in.): 2-5/8 to 17		766

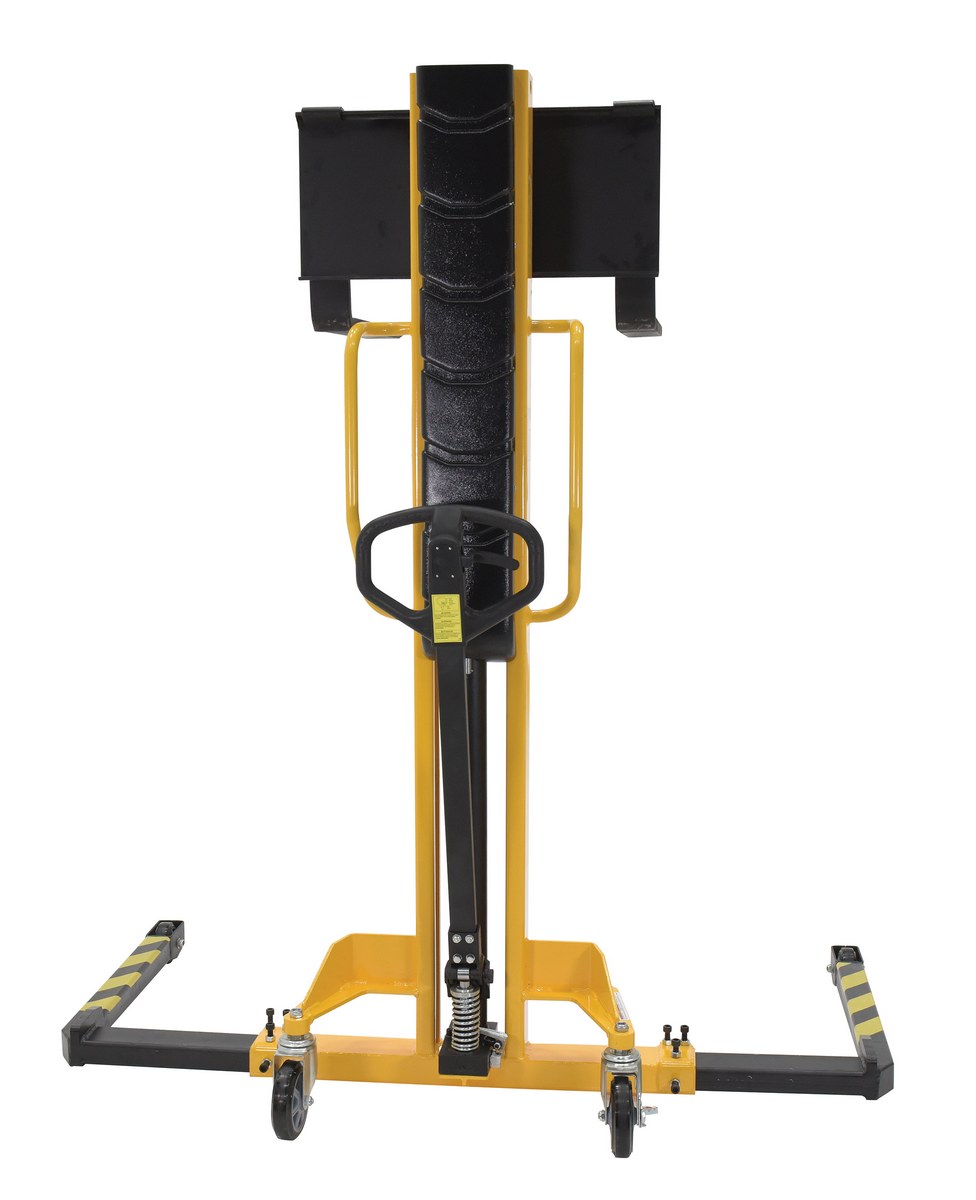

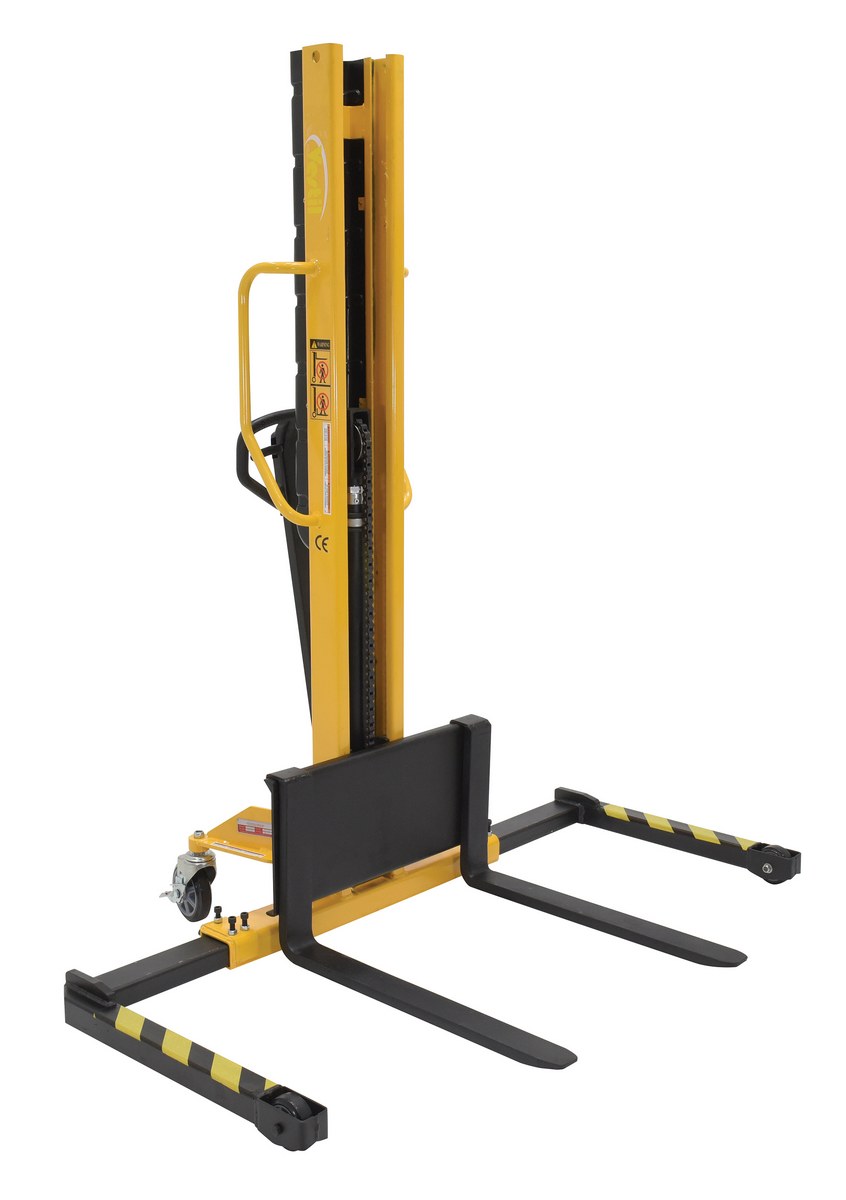

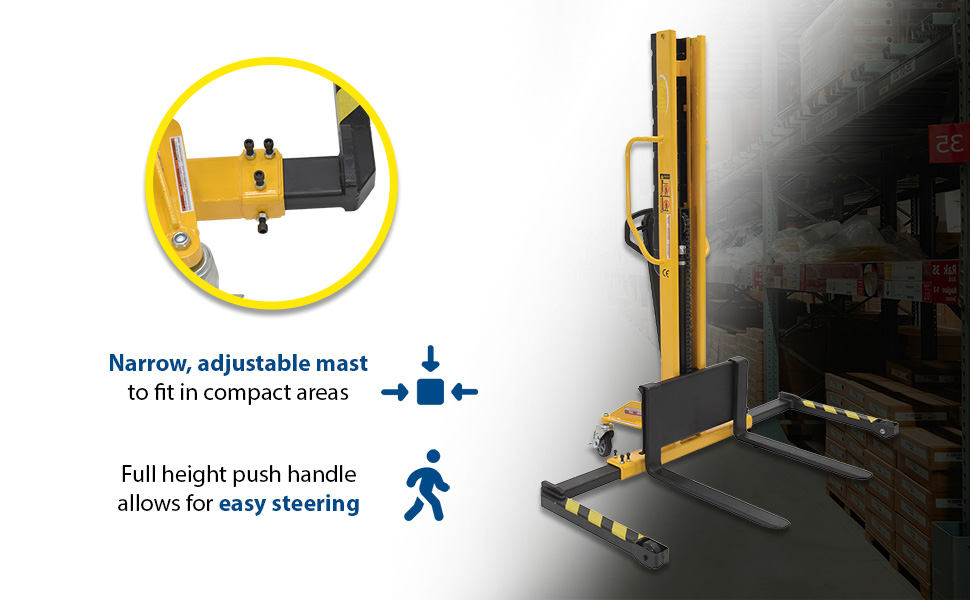

VHPS-NM-1000-AA VHPS-NM-1000-AA1 Year Limited WarrantySteel Manual Stacker Narrow Mast Adjustable Forks/Legs 1,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 1,000
Service Range (in.): 2-1/8 to 62		472

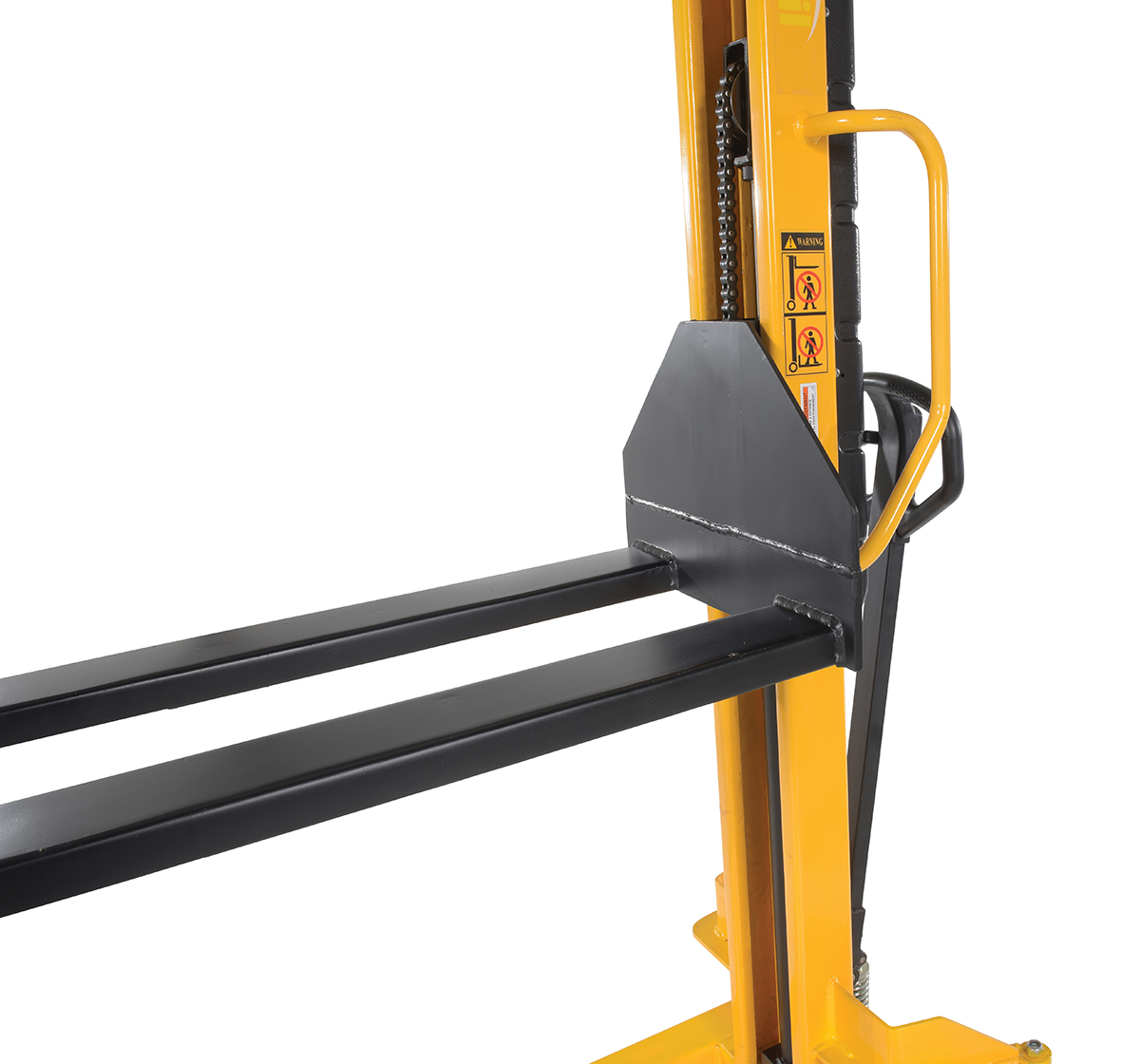

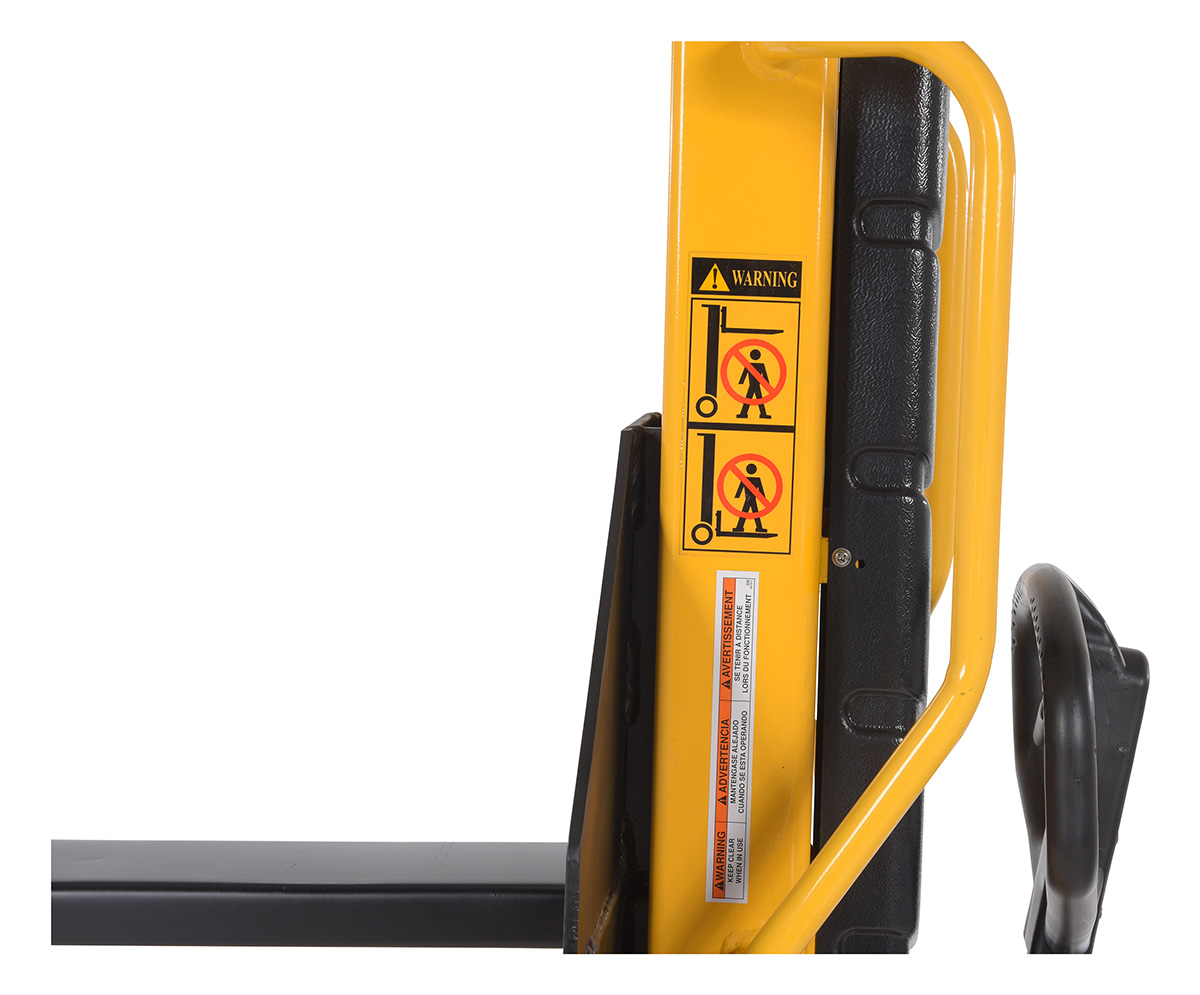

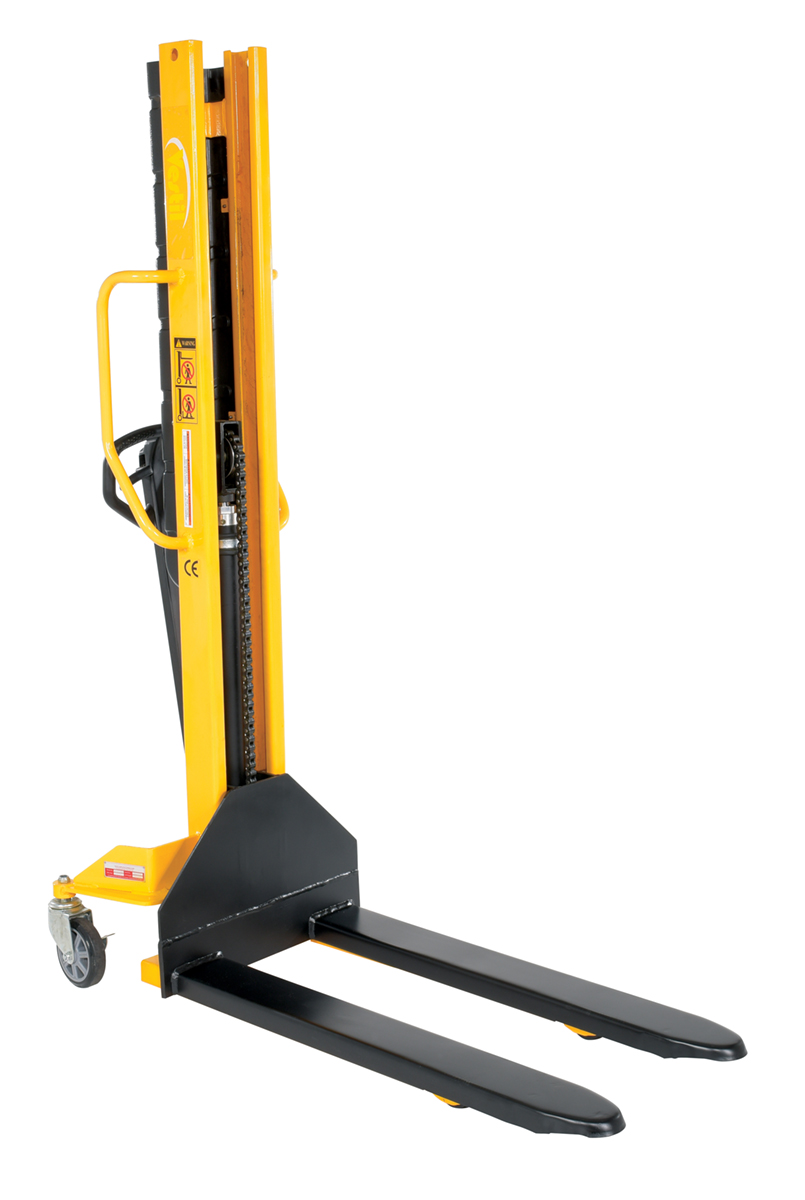

VHPS-NM-1000-FF
VHPS-NM-1000-FF1 Year Limited WarrantySteel Manual Stacker Narrow Mast Fixed Forks/Legs 1,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 1,000
Service Range (in.): 3-1/2 to 62		470

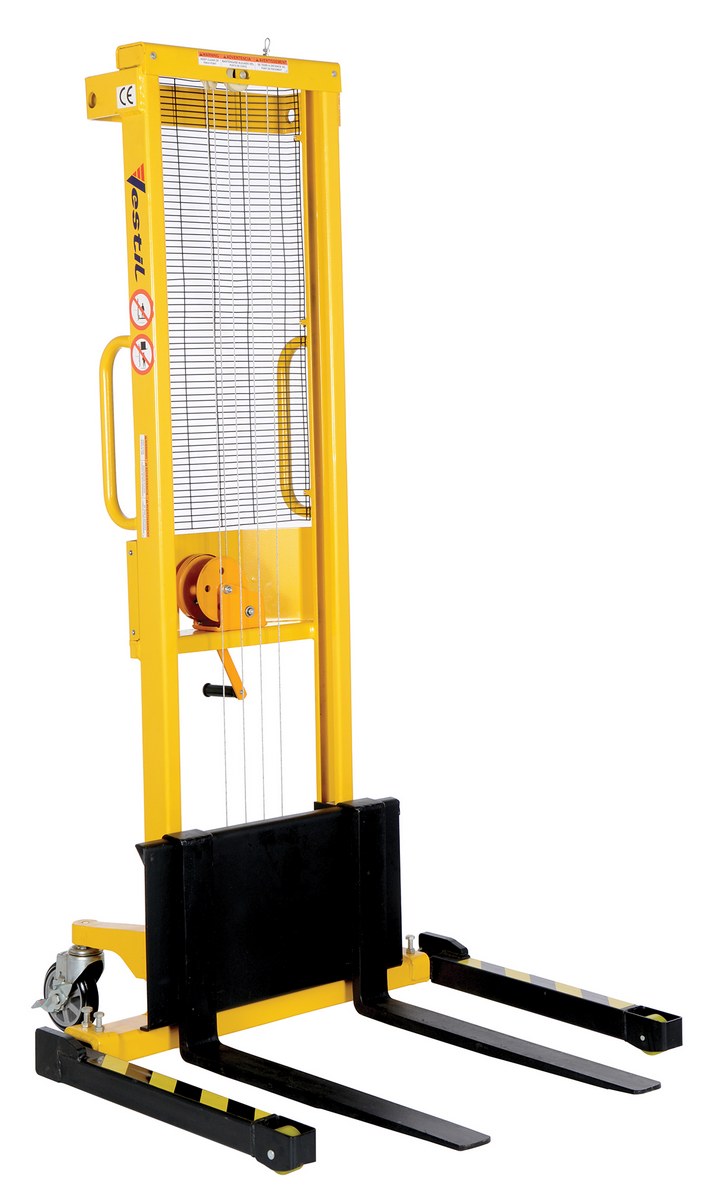

VWS-770-AA VWS-770-AA1 Year Limited WarrantySteel Stacker with Adjustable Manual Hand Winch 770 Lb. Capacity Black / YellowUniform Capacity (lb.): 770
Lowered Height (in.): 1-9/16		396

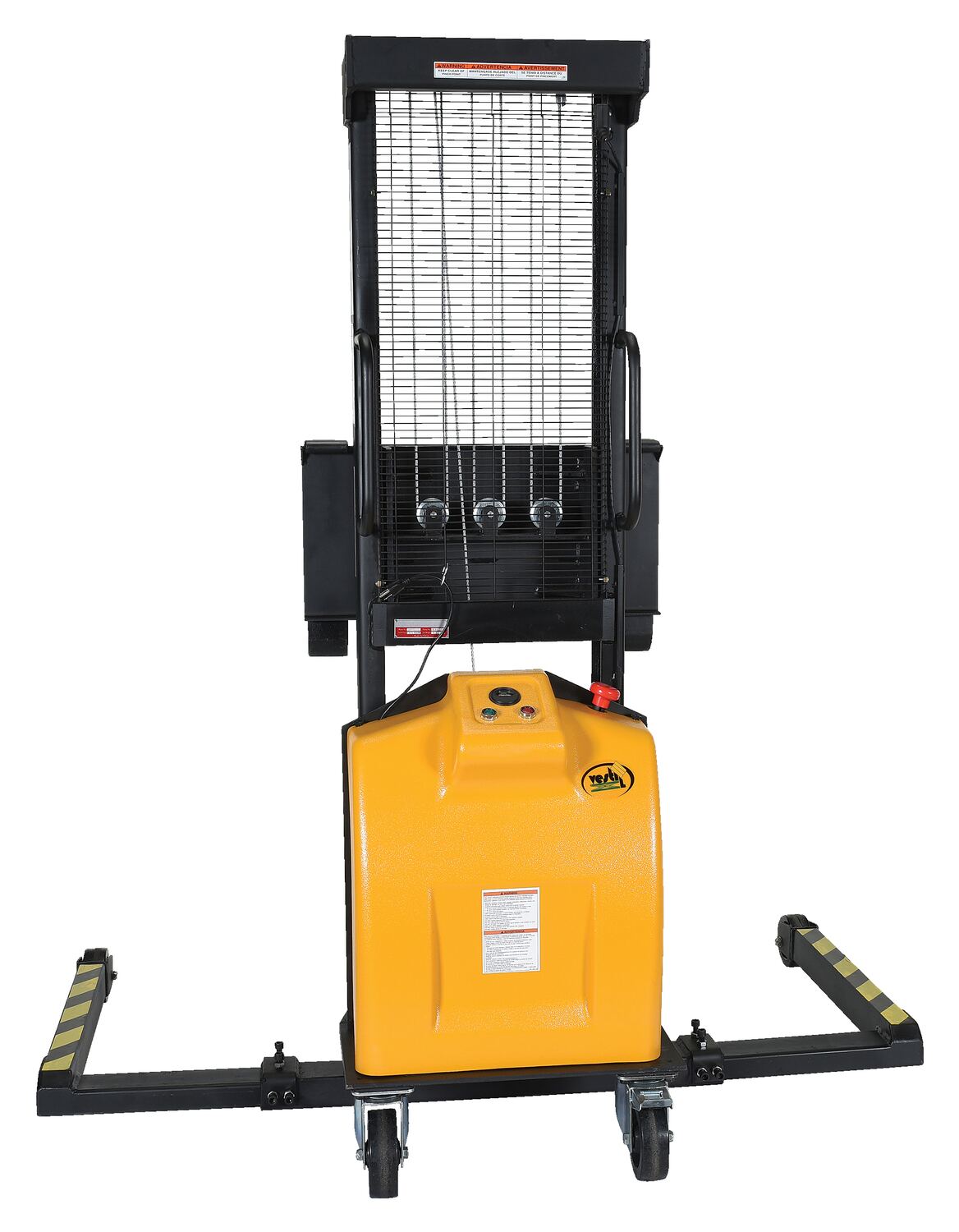

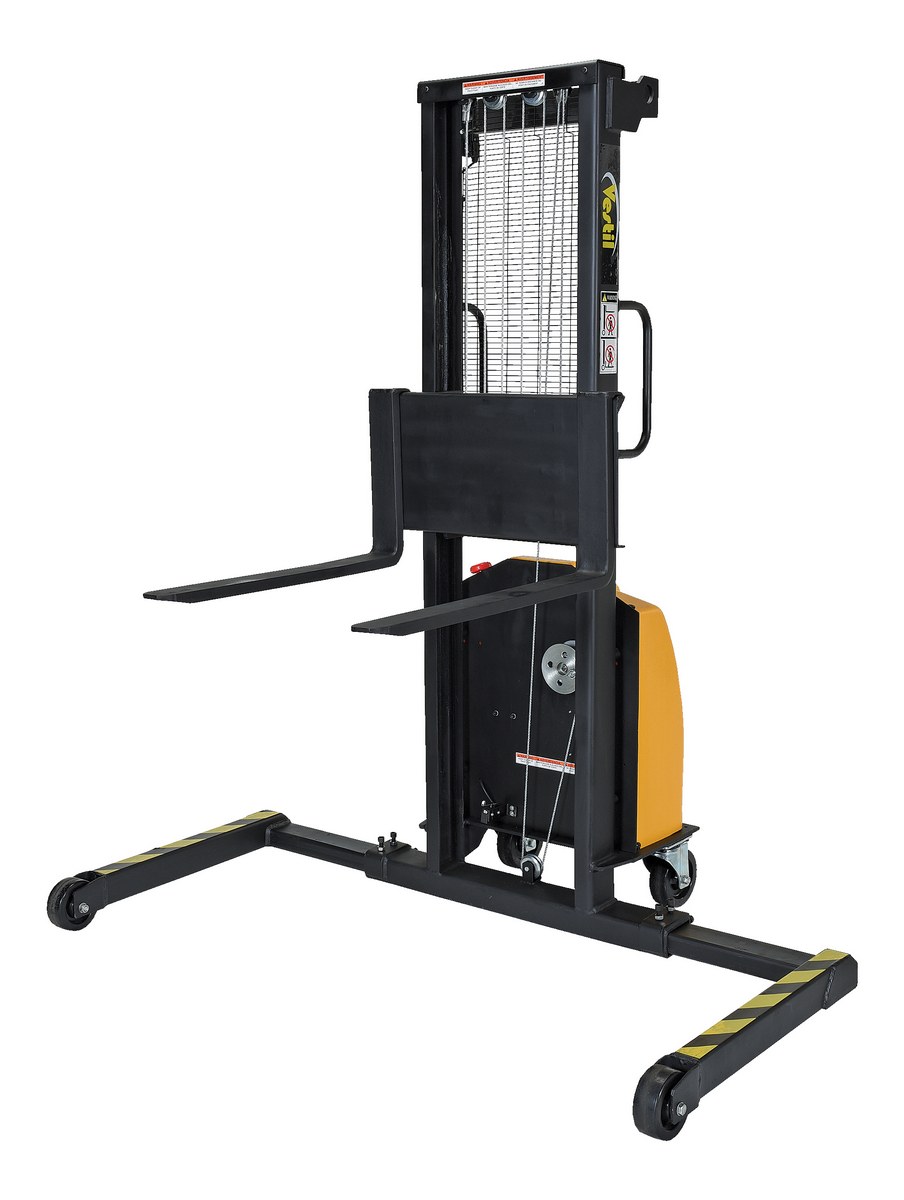

VWS-770-AA-DC VWS-770-AA-DC1 Year Limited WarrantySteel Stacker with Adjustable DC Powered Winch 770 Lb. Capacity Black / YellowUniform Capacity (lb.): 770
Lowered Height (in.): 1-9/16		566

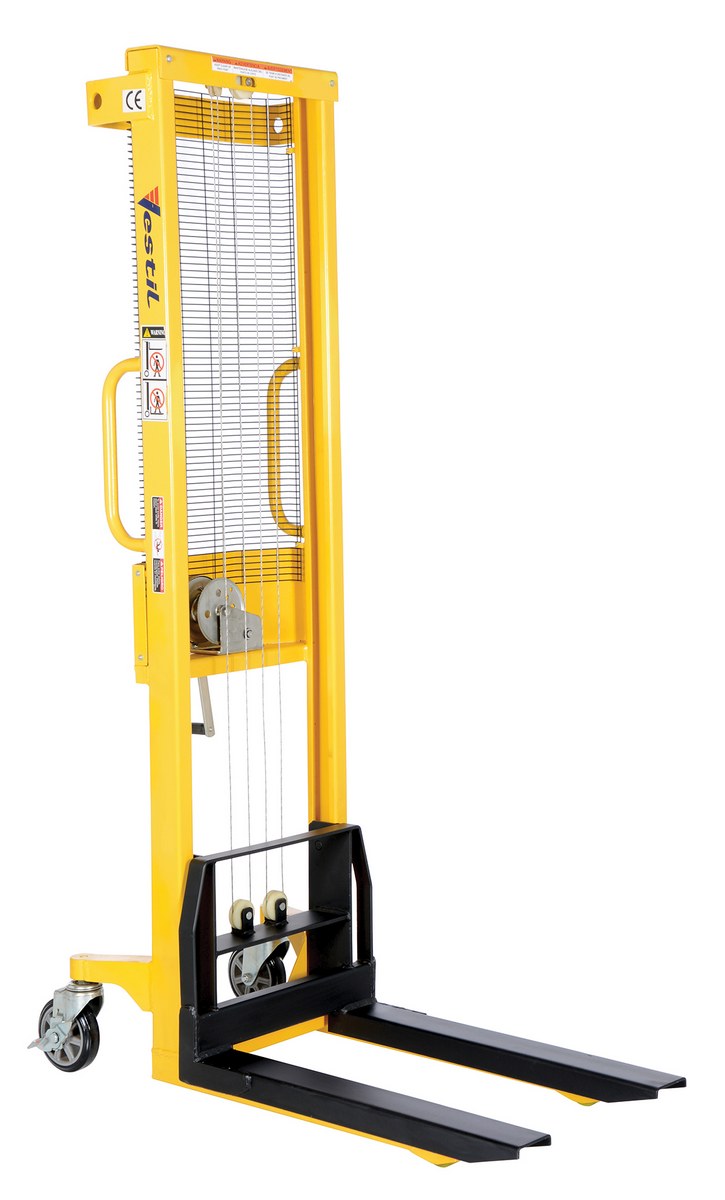

VWS-770-FF
VWS-770-FF1 Year Limited WarrantySteel Stacker with Fixed Manual Hand Winch 770 Lb. Capacity Black / YellowUniform Capacity (lb.): 770
Lowered Height (in.): 3-3/8		235

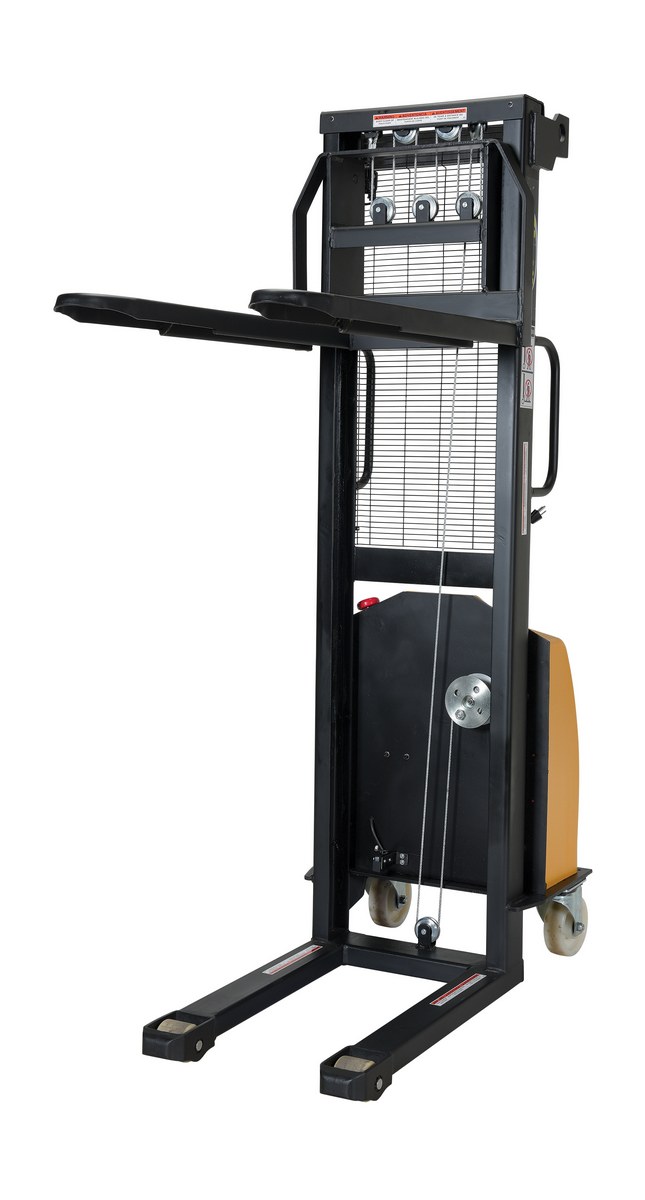

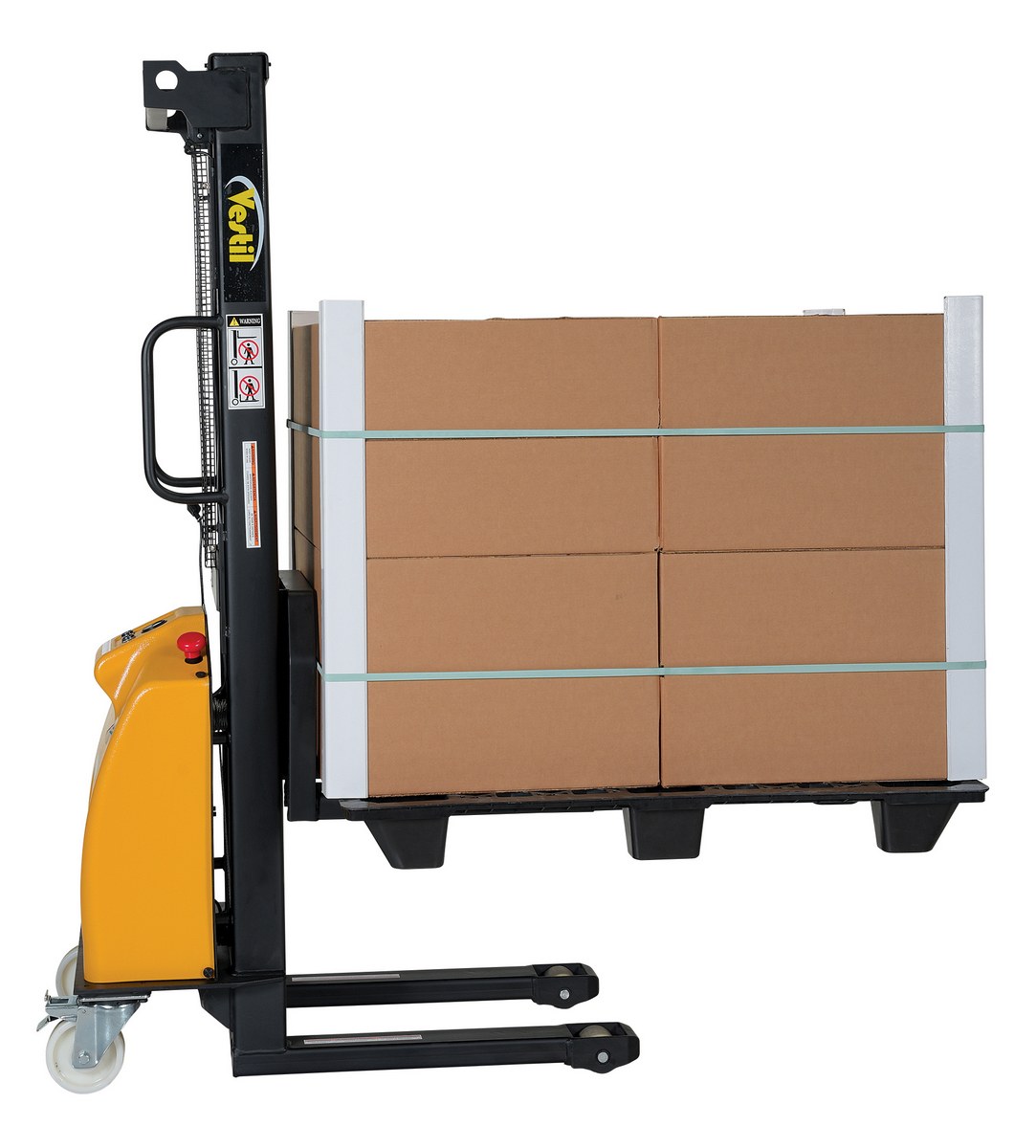

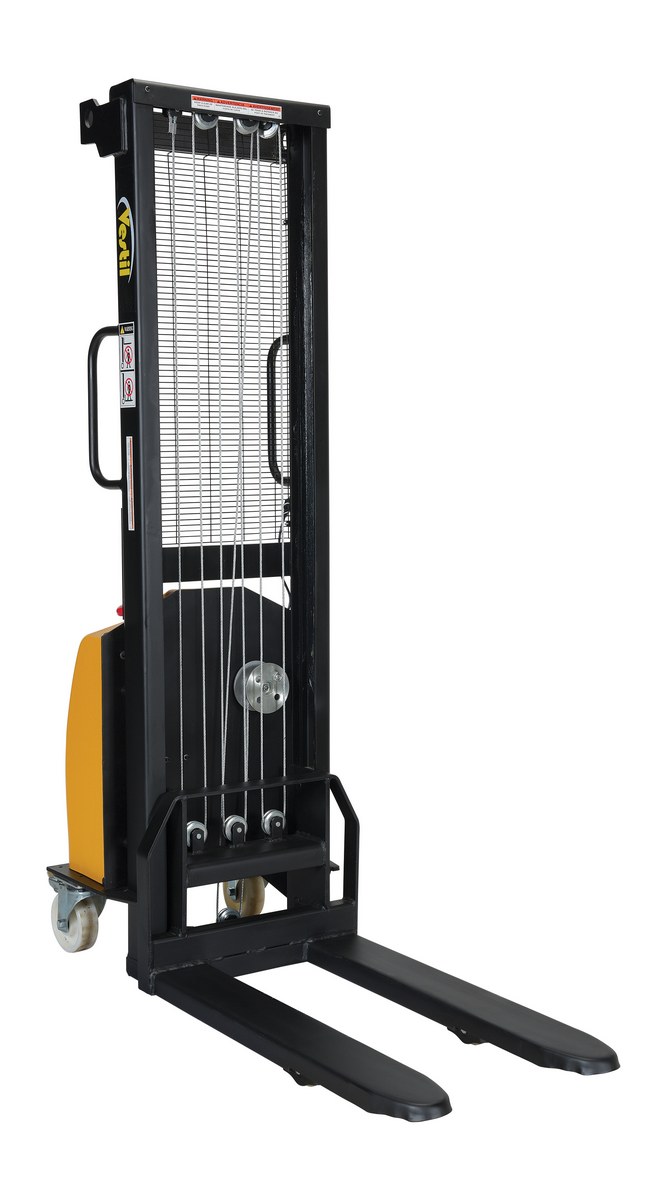

VWS-770-FF-DC
VWS-770-FF-DC1 Year Limited WarrantySteel Stacker with Fixed DC Powered Winch 770 Lb. Capacity Black / YellowUniform Capacity (lb.): 770
Lowered Height (in.): 3-3/8		462

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

VHPS-2000-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Service Range (in.): 2 to 63
Uniform Capacity (lb.): 2000
Service Range (in.): 2 to 63

VHPS-2000-AA-118
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power Source: Manual
Minimum Lift Height (in): 2.125
Power Source: Manual
Minimum Lift Height (in): 2.125

VHPS-2000-AA-17
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Service Range (in.): 3 to 17
Uniform Capacity (lb.): 2000
Service Range (in.): 3 to 17

VHPS-2000-AA-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Service Range (in.): 3 to 35
Uniform Capacity (lb.): 2000
Service Range (in.): 3 to 35

VHPS-2000-FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Service Range (in.): 3-3/4 to 63
Uniform Capacity (lb.): 2000
Service Range (in.): 3-3/4 to 63

VHPS-2000-FF-118
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power Source: Manual
Minimum Lift Height (in): 2.125
Power Source: Manual
Minimum Lift Height (in): 2.125

VHPS-2200-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2200
Service Range (in.): 1.375 to 98.5
Uniform Capacity (lb.): 2200
Service Range (in.): 1.375 to 98.5

VHPS-3000-AA-17
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Service Range (in.): 2-5/8 to 17
Uniform Capacity (lb.): 3000
Service Range (in.): 2-5/8 to 17

VHPS-NM-1000-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Service Range (in.): 2-1/8 to 62
Uniform Capacity (lb.): 1,000
Service Range (in.): 2-1/8 to 62

VHPS-NM-1000-FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Service Range (in.): 3-1/2 to 62
Uniform Capacity (lb.): 1,000
Service Range (in.): 3-1/2 to 62

VWS-770-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 770
Lowered Height (in.): 1-9/16
Uniform Capacity (lb.): 770
Lowered Height (in.): 1-9/16

VWS-770-AA-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 770
Lowered Height (in.): 1-9/16
Uniform Capacity (lb.): 770
Lowered Height (in.): 1-9/16

VWS-770-FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 770
Lowered Height (in.): 3-3/8
Uniform Capacity (lb.): 770
Lowered Height (in.): 3-3/8

VWS-770-FF-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 770
Lowered Height (in.): 3-3/8
Uniform Capacity (lb.): 770
Lowered Height (in.): 3-3/8
For More Details of the Option Click the Red Model Button

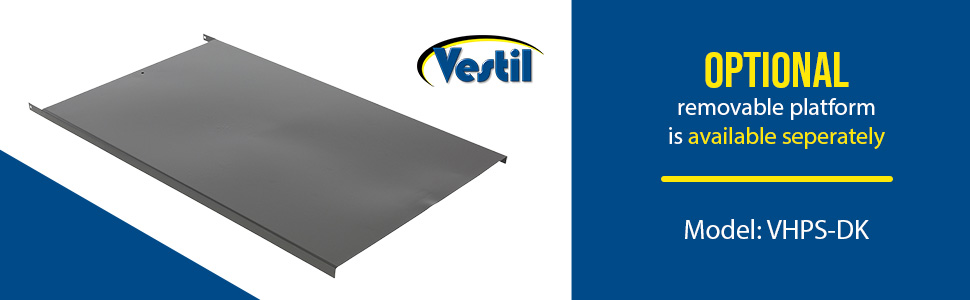

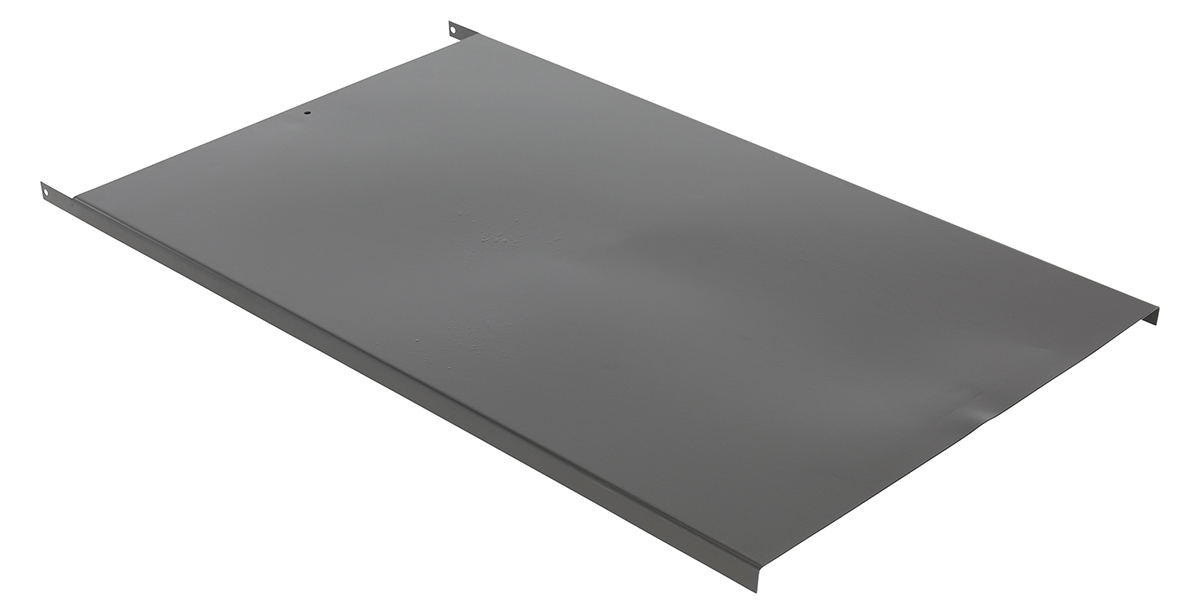

VHPS-DK VHPS-DK90 Days Limited WarrantySteel Removable Platform 42-1/4 In. x 27-1/4 In. For VHPS ModelsPlatform Size (in.): 27-1/4 x 42-1/4
40

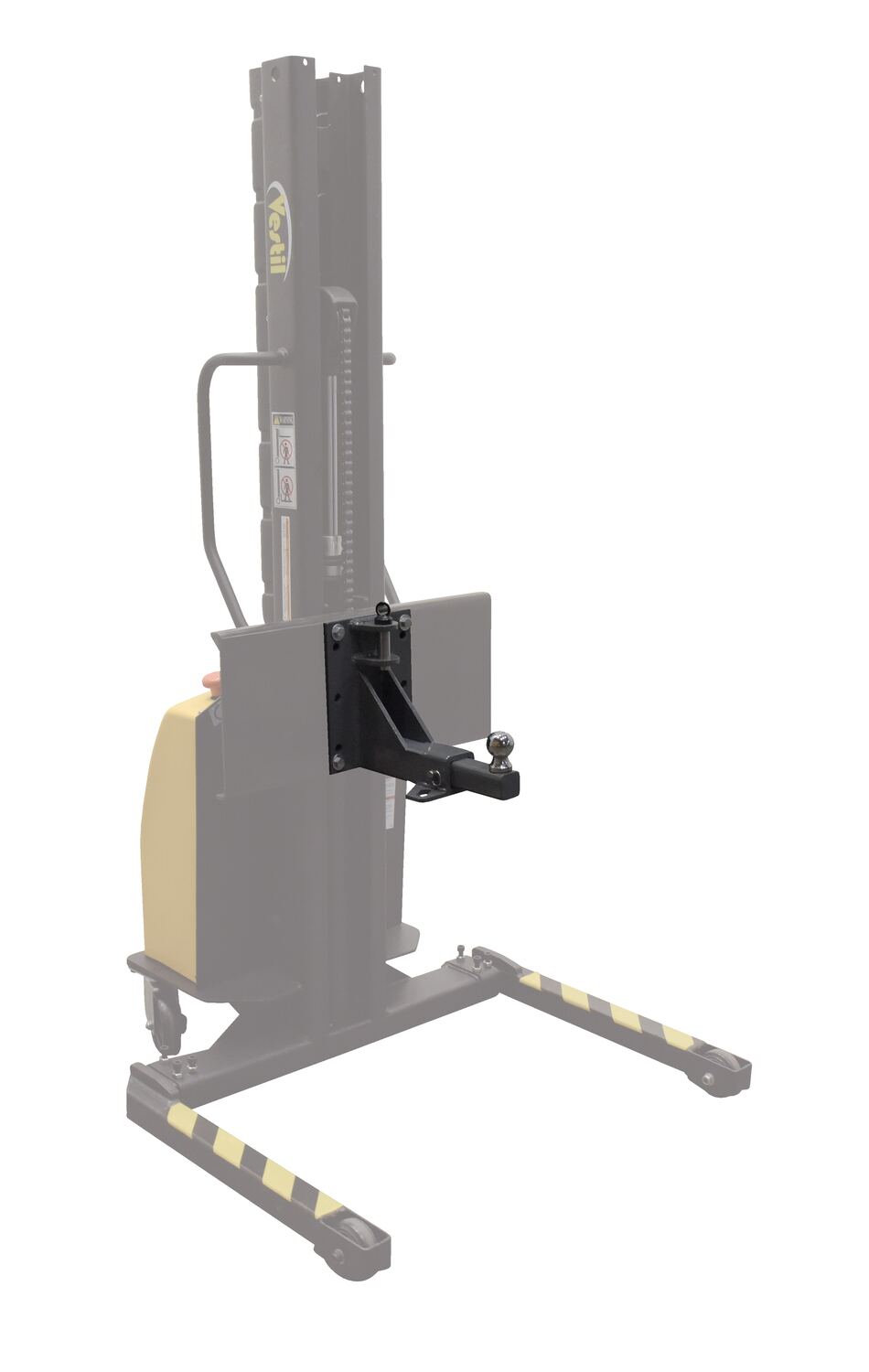

VHPS-NM-AA-BAH VHPS-NM-AA-BAH90 Days Limited WarrantySteel Single Ball Attachment For VHPS Models Black-
37
VHPS-NM-AA-PRP VHPS-NM-AA-PRP90 Days Limited WarrantySteel Pole Attachment For VHPS Models Black-
35

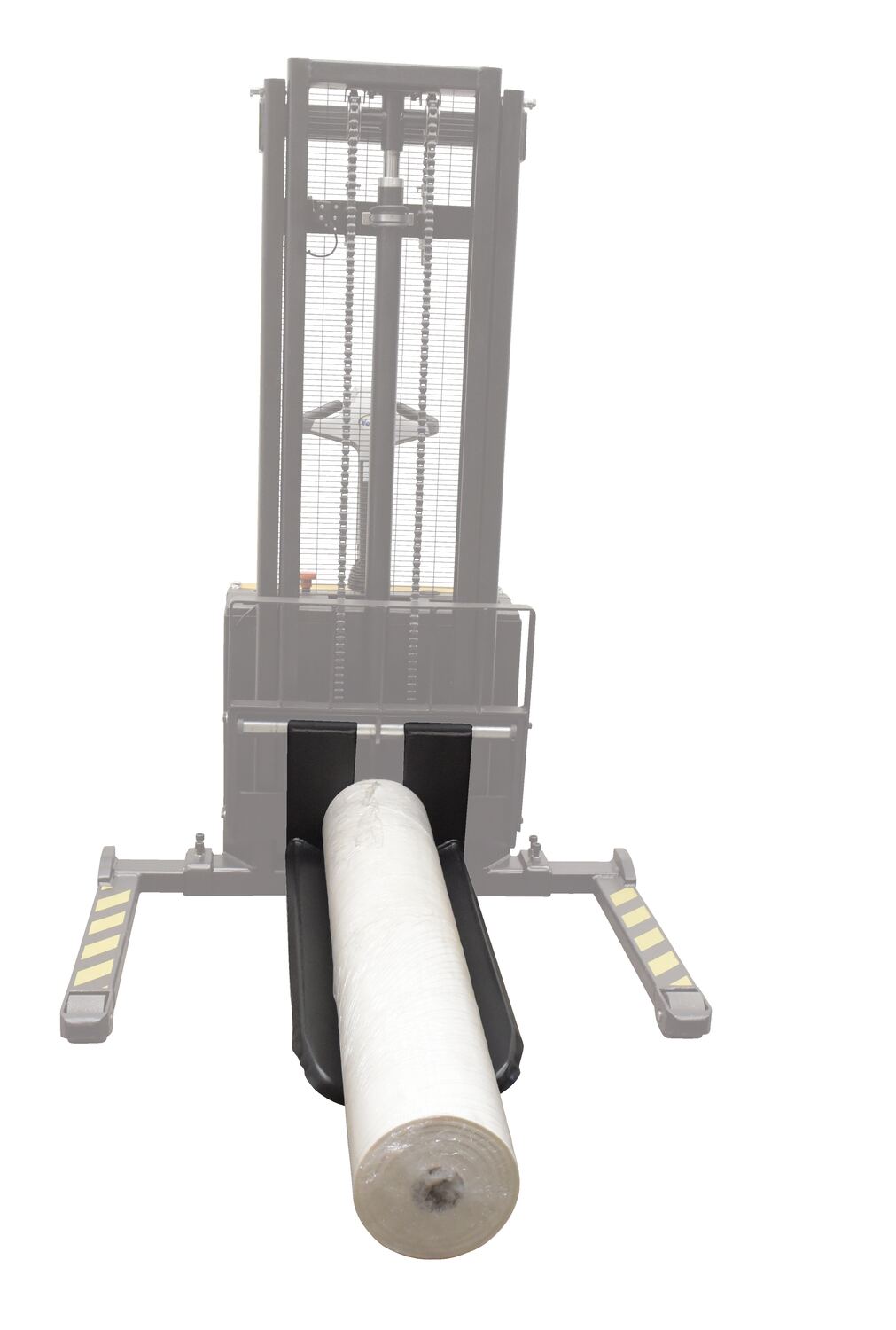

VHPS-NM-AA-RFK VHPS-NM-AA-RFK90 Days Limited WarrantySteel Roll Fork Attachment For VHPS Models BlackForklift Carriage Class: Class III
Capacity (lbs): 2000		111

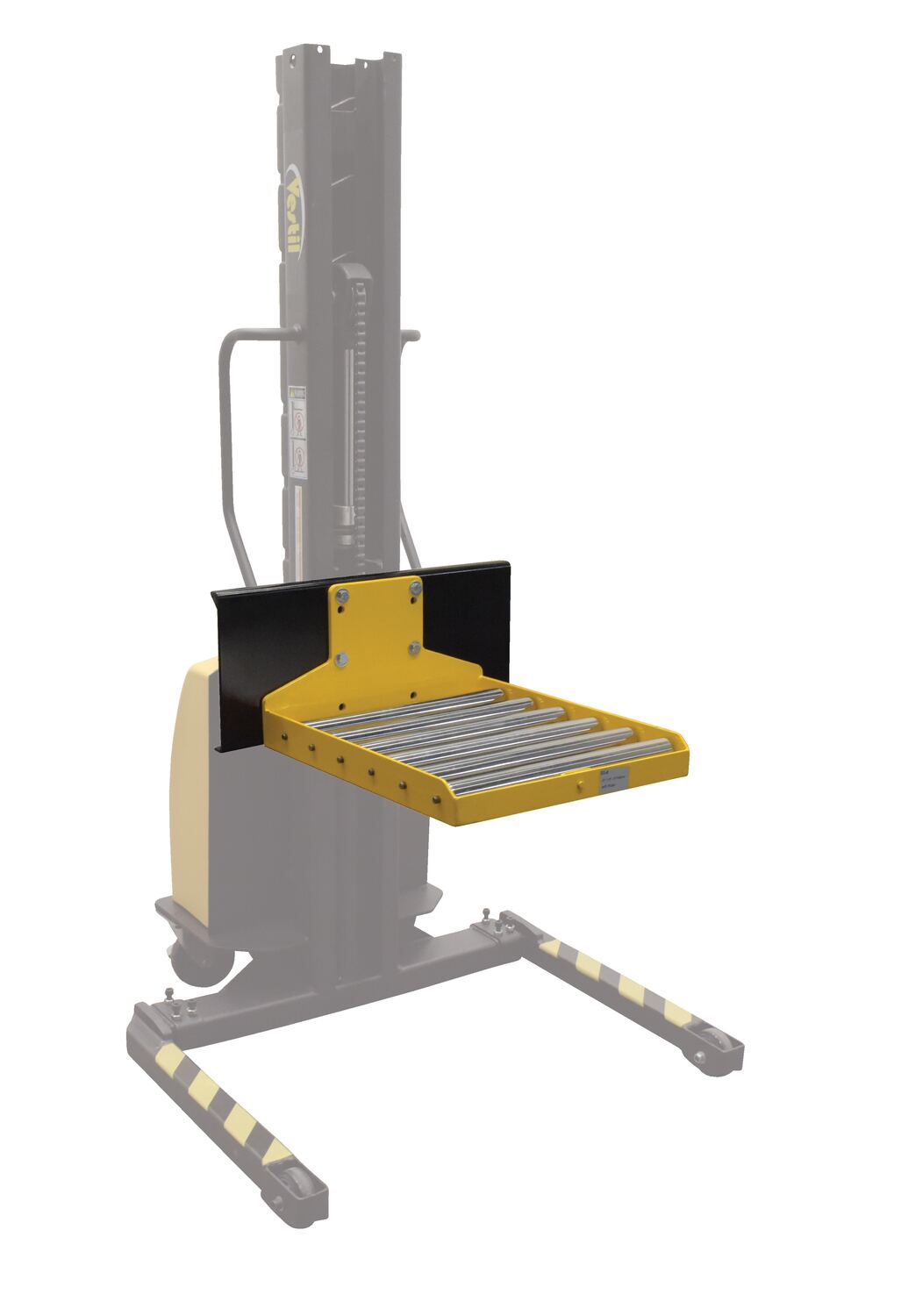

VHPS-NM-AA-RP VHPS-NM-AA-RP90 Days Limited WarrantySteel Roller Platform Attachment For VHPS Models Yellow-
57

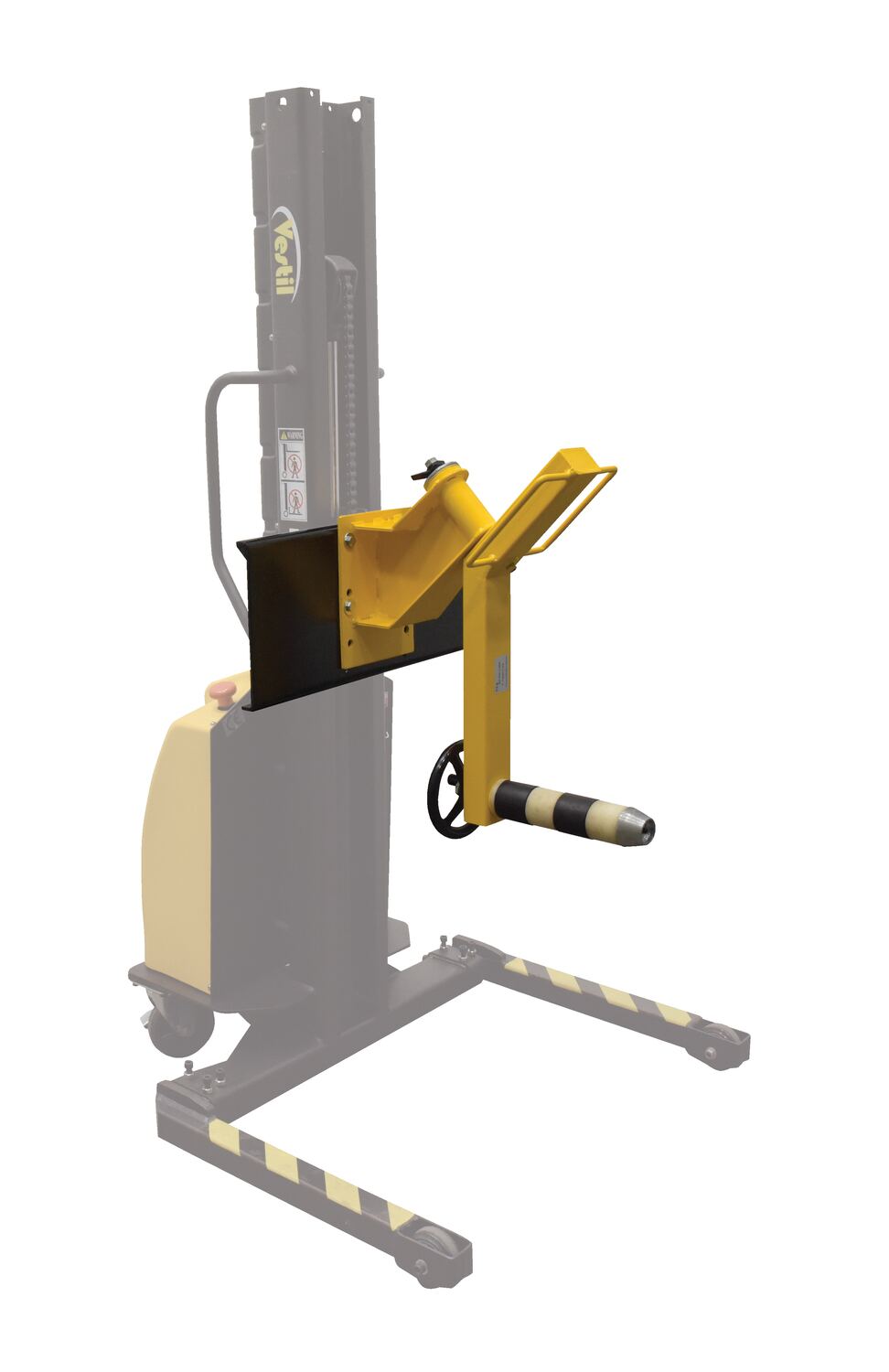

VHPS-NM-AA-RR VHPS-NM-AA-RR90 Days Limited WarrantySteel Reel Rotator Attachment For VHPS Models Yellow-
55

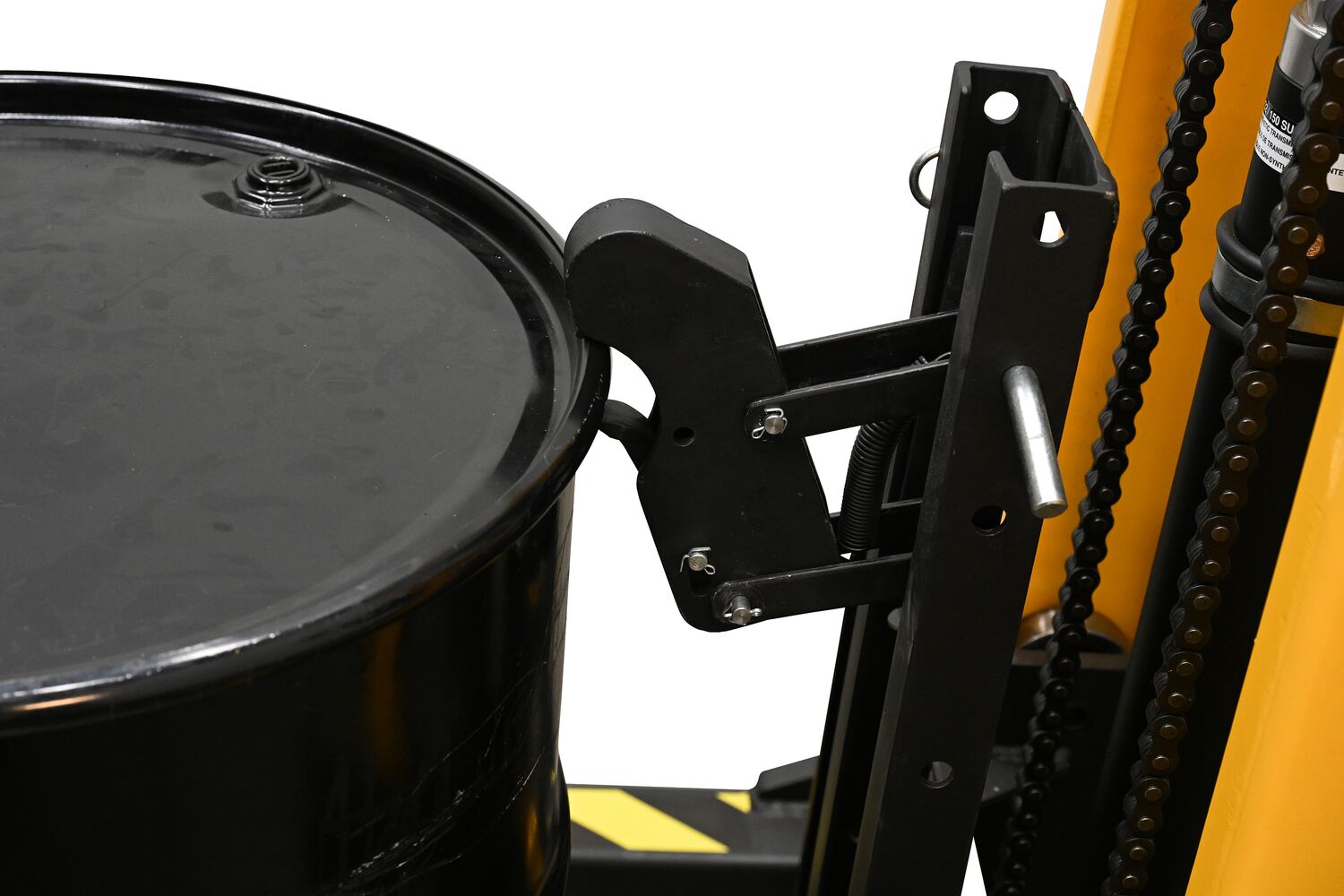

VHPS-NM-AA-SDG VHPS-NM-AA-SDG90 Days Limited WarrantySteel Drum Grip Attachment For VHPS Models Black-
101
VWS-AA-BAH VWS-AA-BAH90 Days Limited WarrantySteel Single Ball Hitch Attachment for Manual Winch Stacker-
37

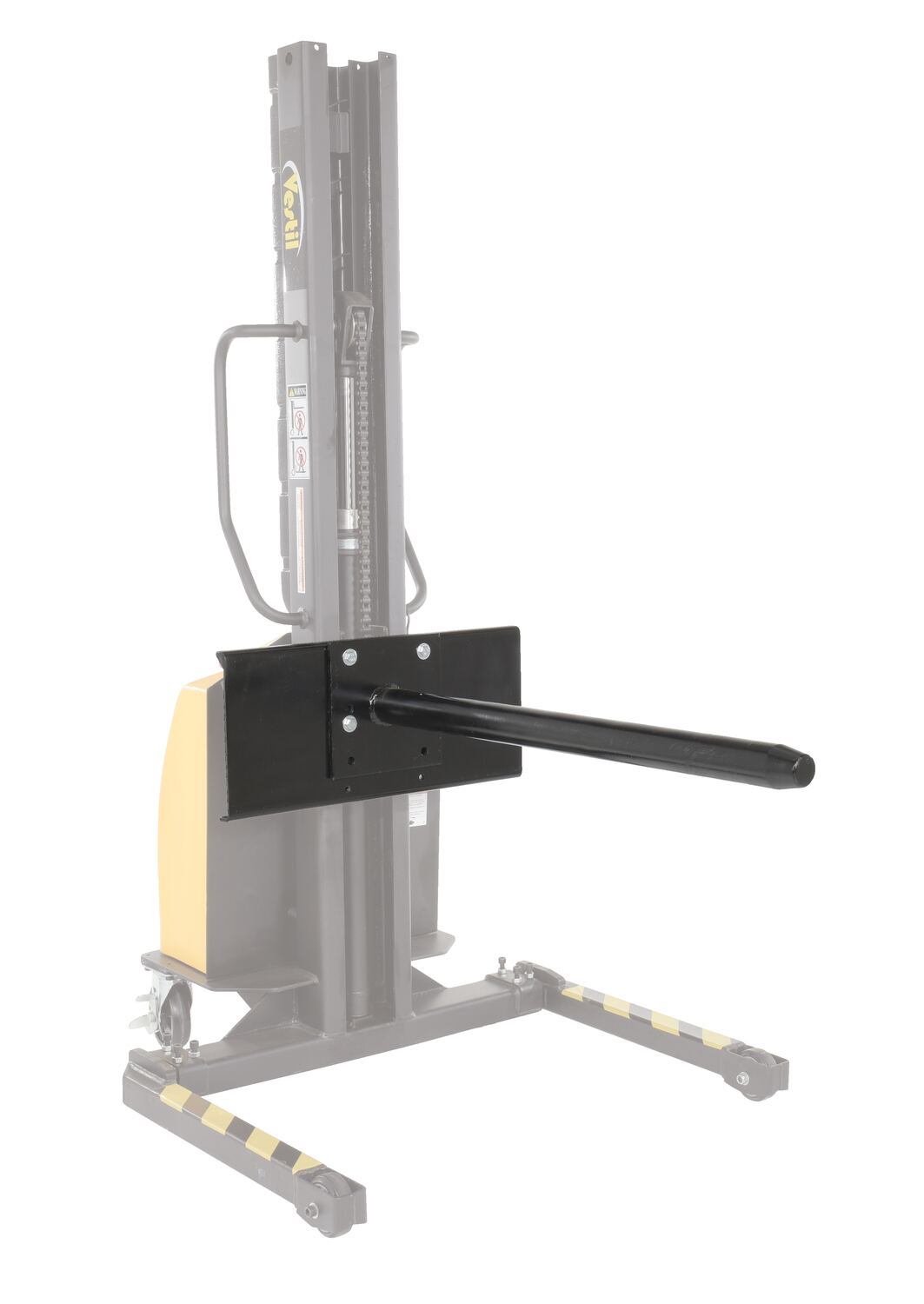

VWS-AA-PRP VWS-AA-PRP90 Days Limited WarrantySteel Pole Attachment for Manual Winch Stacker-
35
VWS-AA-RFK VWS-AA-RFK90 Days Limited WarrantySteel Roll Fork Attachment for Manual Winch StackerForklift Carriage Class: Class III
Capacity (lbs): 770		111
VWS-AA-RP VWS-AA-RP90 Days Limited WarrantySteel Roller Platform Attachment for Manual Winch Stacker-
57
VWS-AA-RR VWS-AA-RR90 Days Limited WarrantySteel Reel Rotator Attachment for Manual Winch Stacker-
55

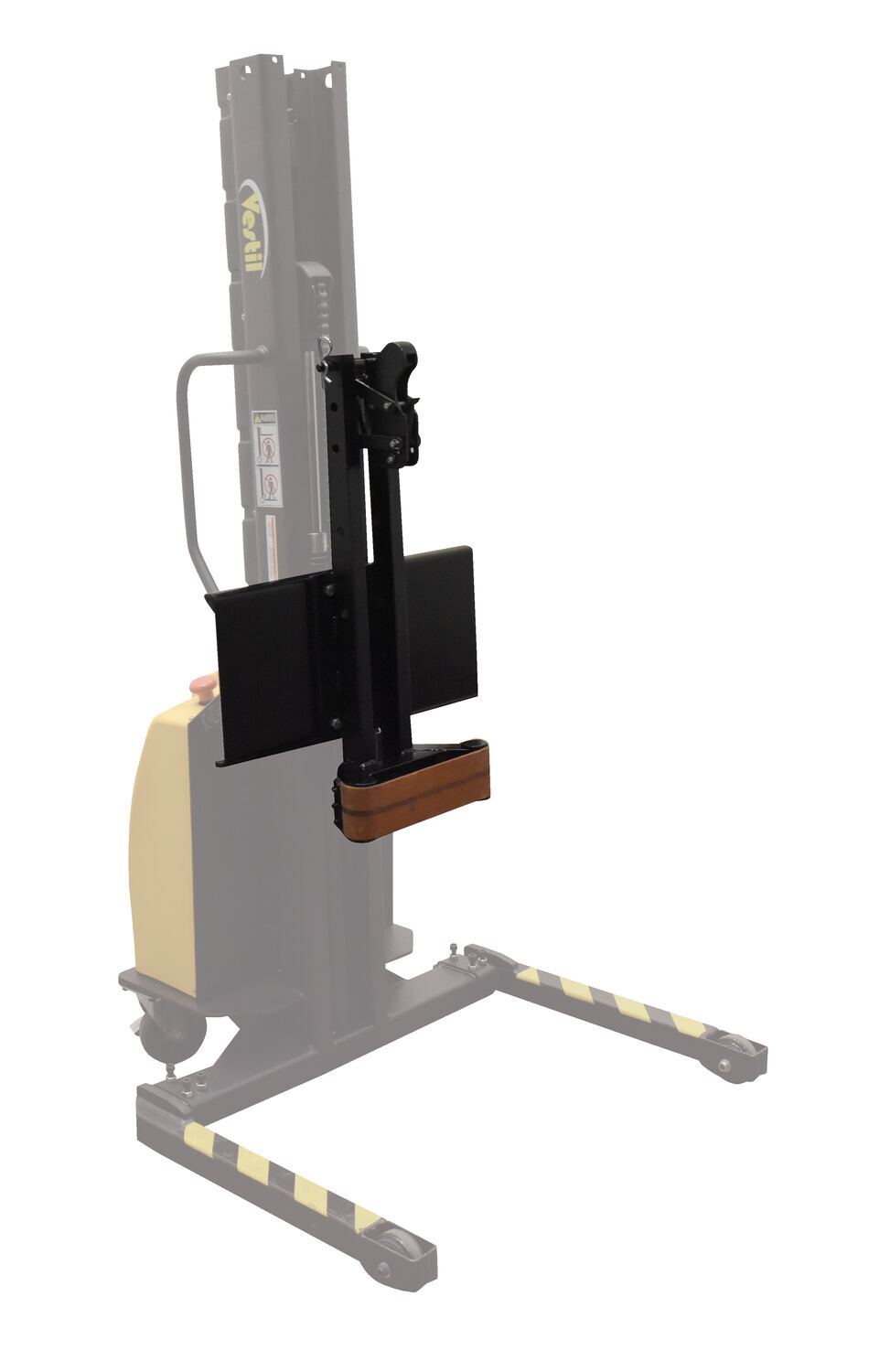

VWS-AA-SDG VWS-AA-SDG90 Days Limited WarrantySteel Single Drum Grip Attachment for Manual Winch Stacker Black-
101
VWS-DK VWS-DK90 Days Limited WarrantyRemovable Platform Hand Winch OptionPlatform Size (in.): 21-5/8 x 29-1/2
46
Model Description
VHPS-AA-DRR-FK Drum/Reel/Roll Forks for Stackers
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Manual & Electric Stackers PDF's will open in a new window when clicked.

Manuals


VHPS-2000
Owners Manual

VWS-770-AA
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


VHPS-2000-AA

VHPS-2000-AA-118

VHPS-2000-AA-17

VHPS-2000-AA-35

VHPS-2000-FF

VHPS-2000-FF-118

VHPS-3000-AA-17

VHPS-NM-1000-AA

VHPS-NM-1000-FF

VWS-770-AA

VWS-770-AA-DC

VWS-770-FF

VWS-770-FF-DC

Testing Certificates


VHPS-2000-AA

VHPS-2000-AA-118

VHPS-2000-AA-17

VHPS-2000-AA-35

VHPS-2000-FF

VHPS-2000-FF-118

VHPS-2200-AA

VHPS-3000-AA-17

VHPS-NM-1000-AA

VHPS-NM-1000-FF

VHPS-NM-AA-BAH

VHPS-NM-AA-PRP

VHPS-NM-AA-RFK

VHPS-NM-AA-RP

VHPS-NM-AA-RR

VHPS-NM-AA-SDG

VWS-770-AA

VWS-770-FF

VWS-770-FF-DC

VWS-AA-BAH

VWS-AA-PRP

VWS-AA-RFK

VWS-AA-RP

VWS-AA-RR

VWS-AA-SDG

SDS Sheets

Hydraulic Oil SDS Sheet for: VHPS-2000-FF
Valve-Regulated Lead Acid Battery Series SDS Sheet for: VWS-770-AA-DC
Hydraulic Oil SDS Sheet for: VWS-770-AA-DC
Hydraulic Oil SDS Sheet for: VWS-770-FF
Valve-Regulated Lead Acid Battery Series SDS Sheet for: VWS-770-FF-DC
Hydraulic Oil SDS Sheet for: VWS-770-FF-DC
Hydraulic Oil SDS Sheet for: VHPS-NM-1000-AA

Other PDF's


Manual Hand Pump Stacker Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the platform made of? What is the capacity and thickness ?

A: The platform is made of chromed steel. Thickness is Gauge 9 with 770 lbs. capacity.

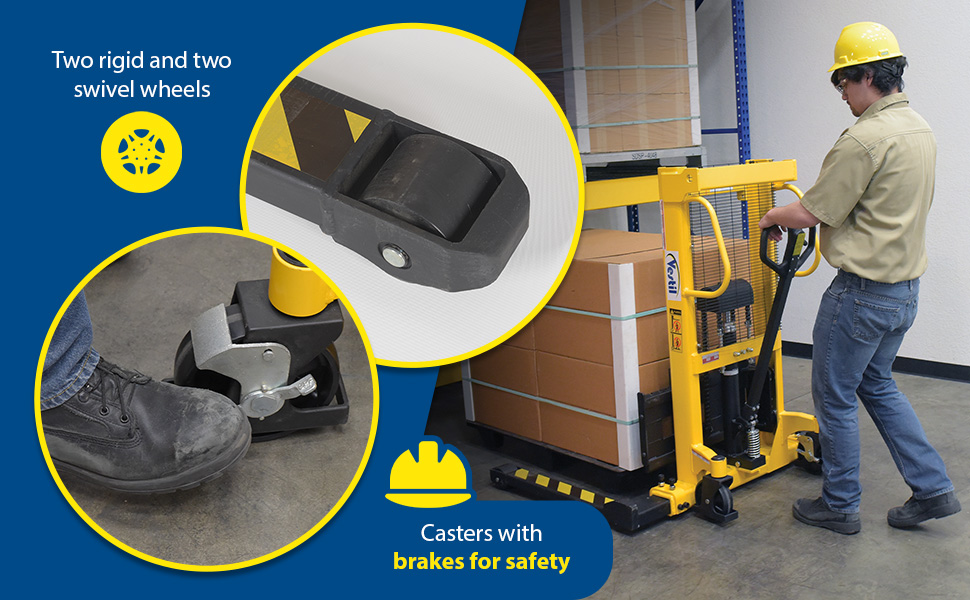

Q: What kind of casters come on the back of the VWS-770-FF?

A: It comes with (1) swivel caster and (1) swivel with brake caster.

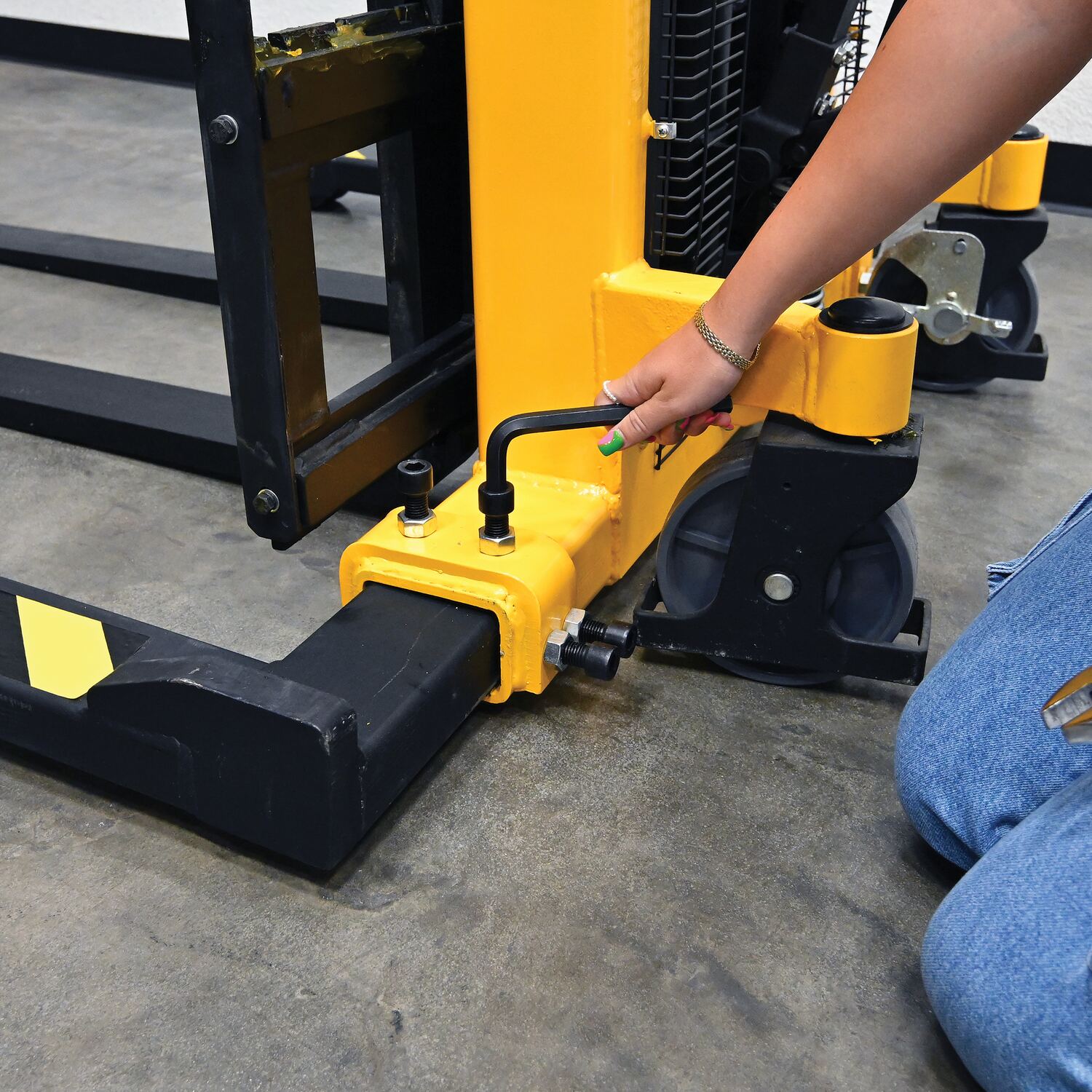

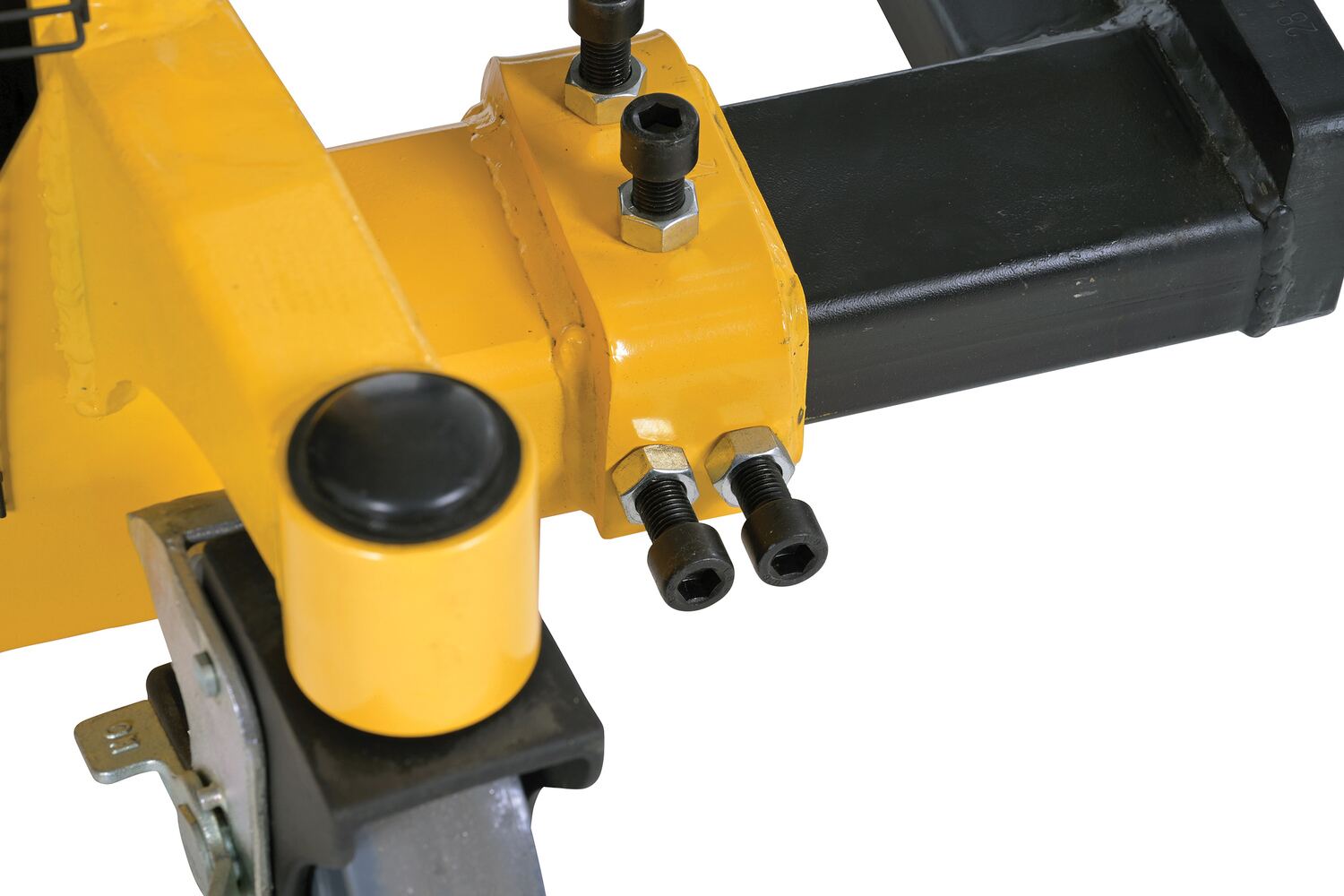

Q: How do I adjust the outriggers to sit level?

A: The outriggers are adjustable. To move the outriggers, tighten the bolts on the legs . Start by loosening them all and the unit will sit level. Tighten the bolts just until they start to touch the outrigger frame. If needed, adjust the legs to level it, by tightening the top bolts on the leg opposite of the wheel needing lowered.

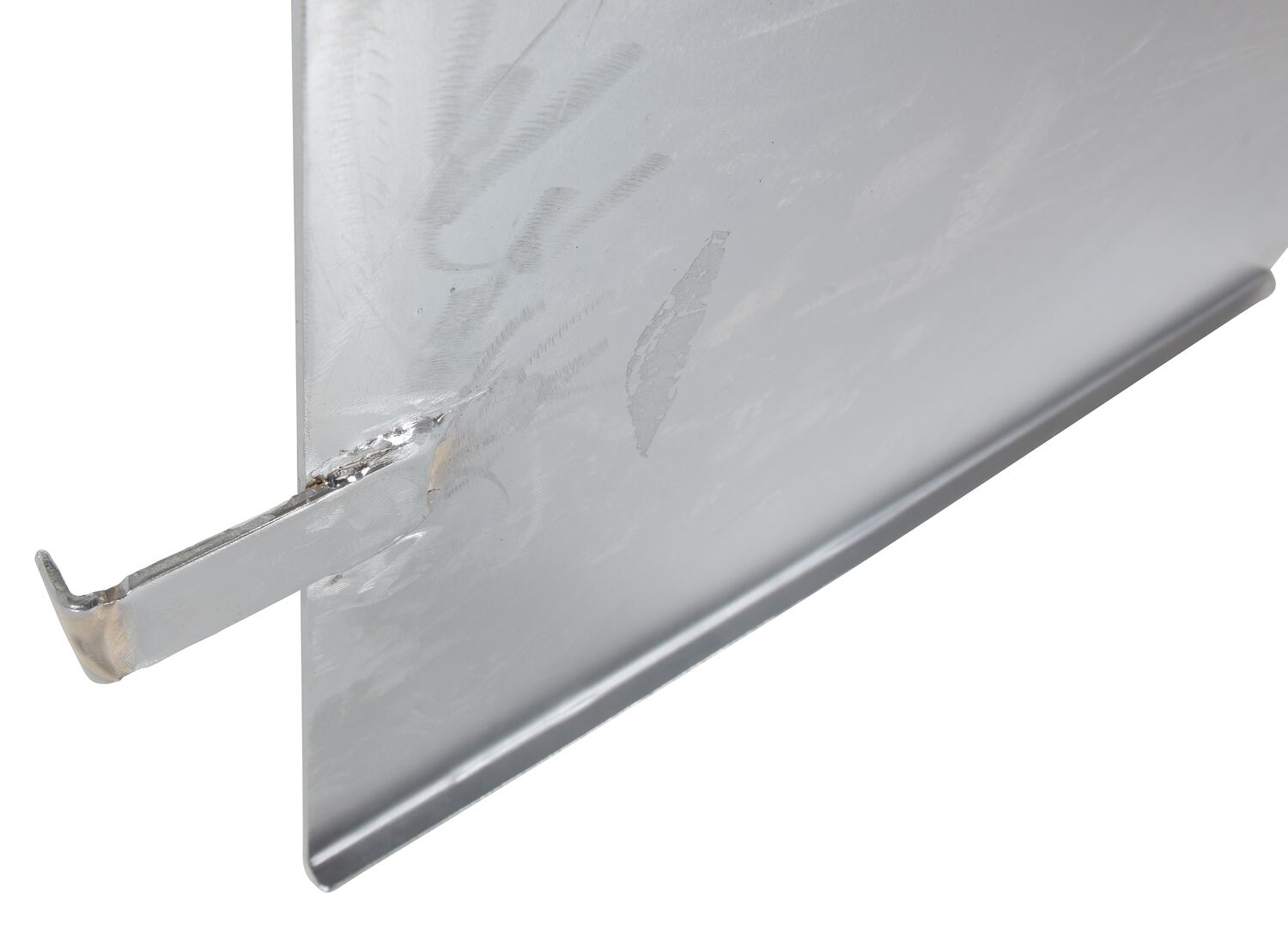

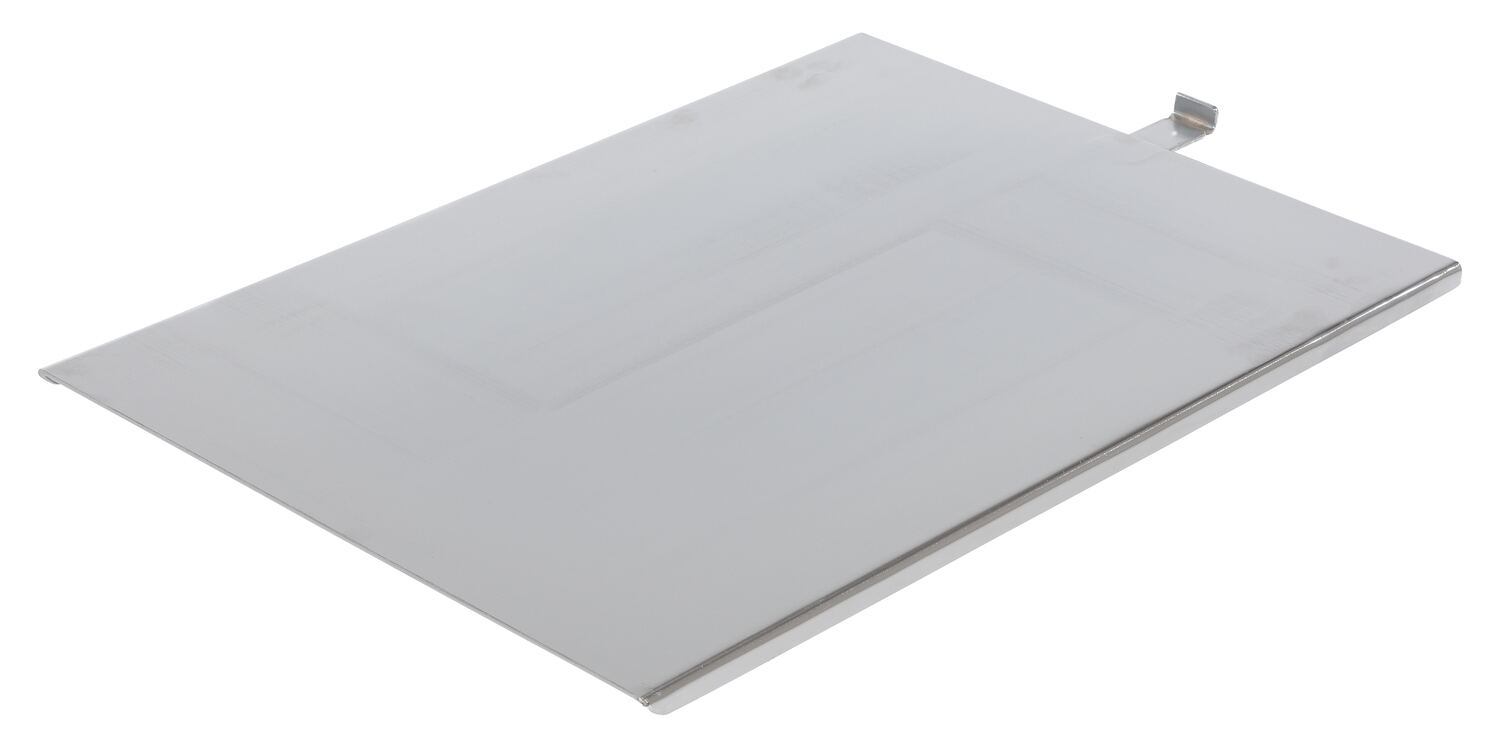

Q: What is the deck size for the platform (VWS-DK)?

A: The platform option is 21-3/4"x29-1/2"

Q: What is the maximum width between the outer leg supports?

A: The maximum width is 50".

Q: What is the deck size for the platform (VHPS-DK)?

A: The platform option is 27 1/4" x 42"

Q: What is the distance from the wheel base to the end of the fork?

A: It is 12" from the wheel base to the end of the fork.

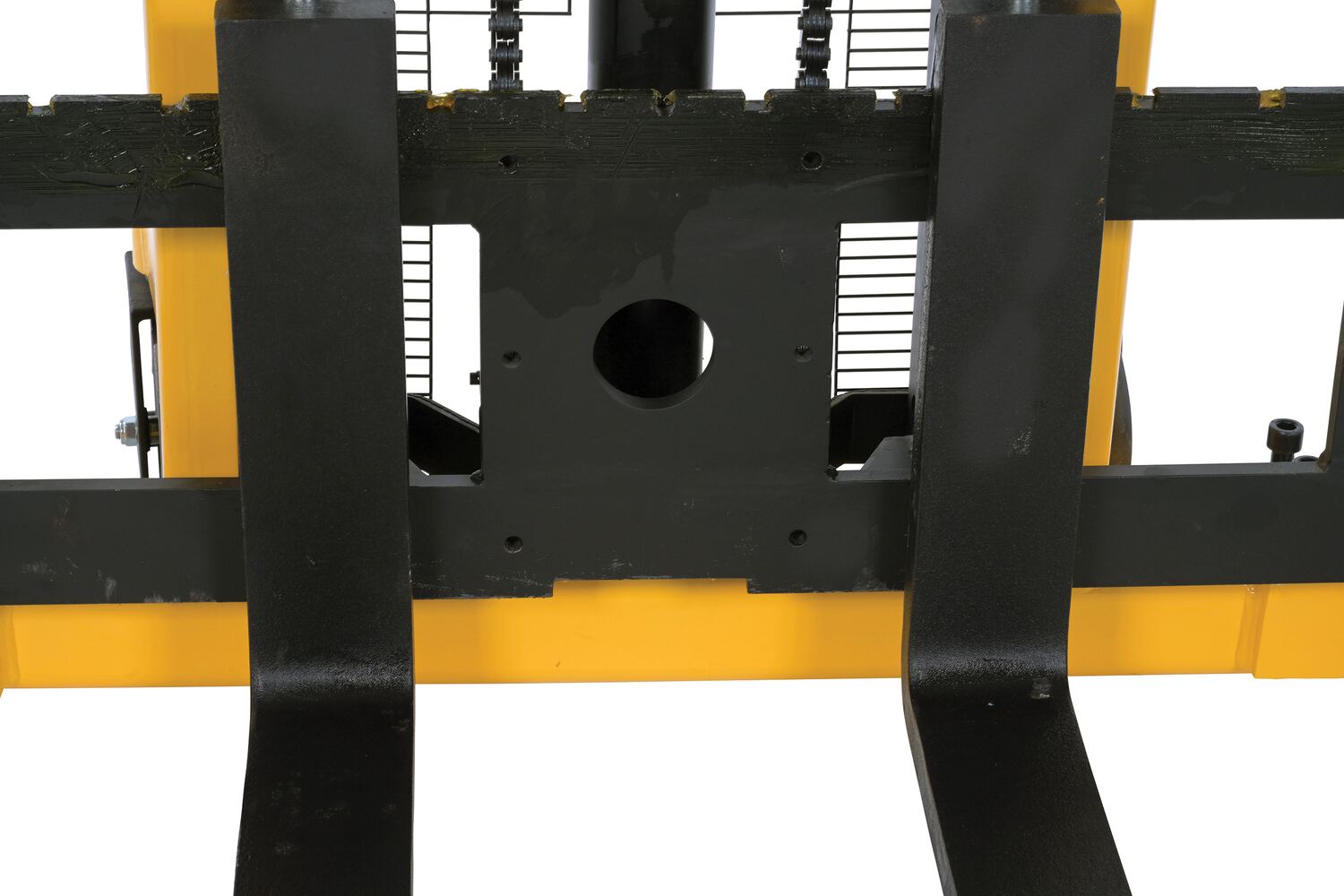

Q: What is the thickness of the forks?

A: The forks are 1-3/4" thick.

Q: Is there a foot control option for the VHPS-2200-AA

A: VHPS-2200-AA is BOTH a hand and foot operated lift.

Q: Are the forks on this unit adjustable to work with different size pallets?

A: The VHPS-2000-AA has adjust able forks from 8 1/2 in wide to 26 in wide.

Q: What is the height of the black legs from ground to top of leg?

A: 6-1/2"

Q: Can the handle be removed on the VWS-770-AA and use a drill to operate the lift?

A: At this time the standard unit cannot be actuated using a power drill.

Q: For model VWS-770-AA-DC it says "Lifting Speed Loaded (seconds): 3.35". Is the measure of travel 3.35 inches in 1 second?

A: Yes. 3.35" in 1 second.

Q: What is the turning radius of this unit?

A: The turning radius of the VHPS-2200-AA is 47".

Q: What is the width when the forks are at maximum opening?

A: The forks on the VHPS-3000-AA-17 at maximum would be 33".




Related or Similar Products:

Combination Hand Pump and Electric Stackers
Product

Combination Hand Pump and Electric Stackers

Narrow Mast Stackers with Powered Lift
Product

Narrow Mast Stackers with Powered Lift

Electric Stackers (Pramac)
Product

Electric Stackers (Pramac)

Stacker with Powered Lift
Product

Stacker with Powered Lift

Drum Roll Reel Forks
Product

Drum Roll Reel Forks

Narrow Mast Stackers with Powered Drive and Powered Lift
Product

Narrow Mast Stackers with Powered Drive and Powered Lift

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Manual & Electric Stackers




Stackers are designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. Full height push handle for easy steering and excellent visibility through welded mesh guard. Suffix AA stands for adjustable forks (works with pallets and skids) while FF stands for fixed forks (skids only).

Manual Hand Winch Stackers feature a heavy duty mast and a unique winch design for easier and safer lifting. Lift and lower by hand winch and steel cable mechanism. 3/4" lift per handle revolution. Two rigid and two swivel wheels with brakes for easy maneuvering.

Manual Hydraulic Hand Pump Stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 3/4" lift per handle pump. Two rigid and two swivel wheels standard.

Electric Winch Stacker feature a heavy duty mast and a DC winch for easier and safer lifting. Lift and lower by DC winch and steel cable mechanism. Full height push handle for easy steering and excellent visibility through welded mesh guard. DC winch has one 12V battery. Two rigid and two swivel wheels with brakes for easy maneuvering.

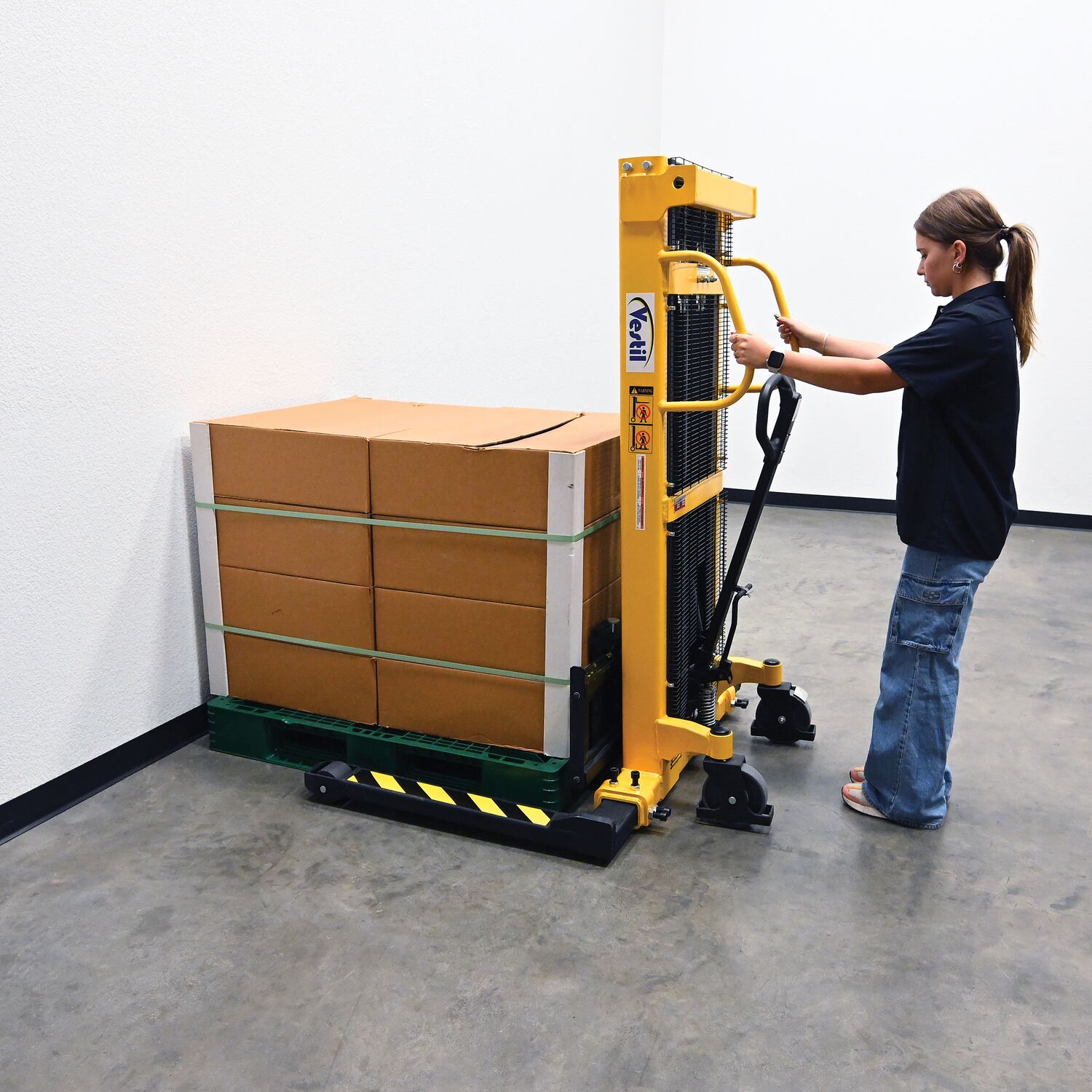

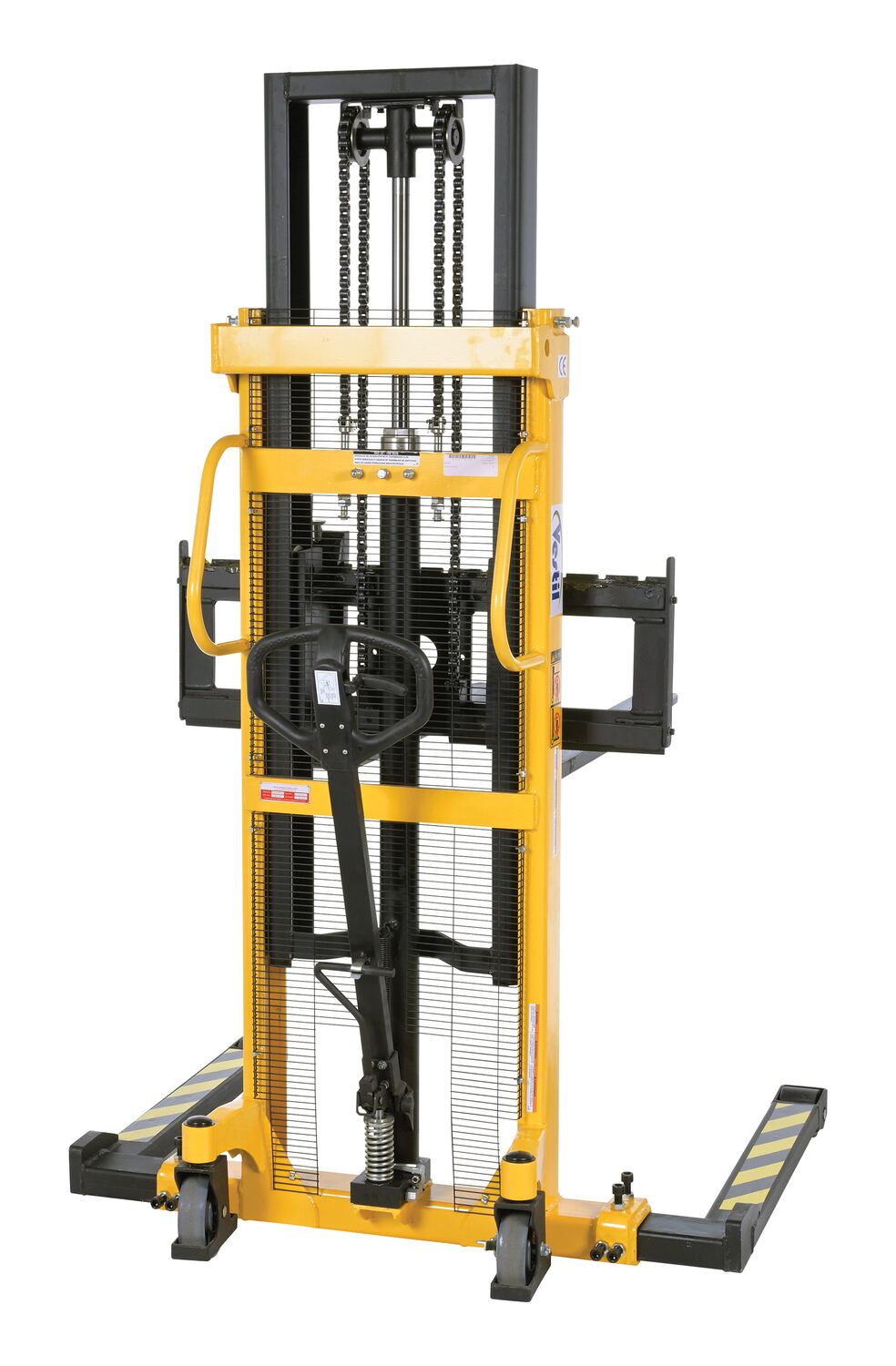

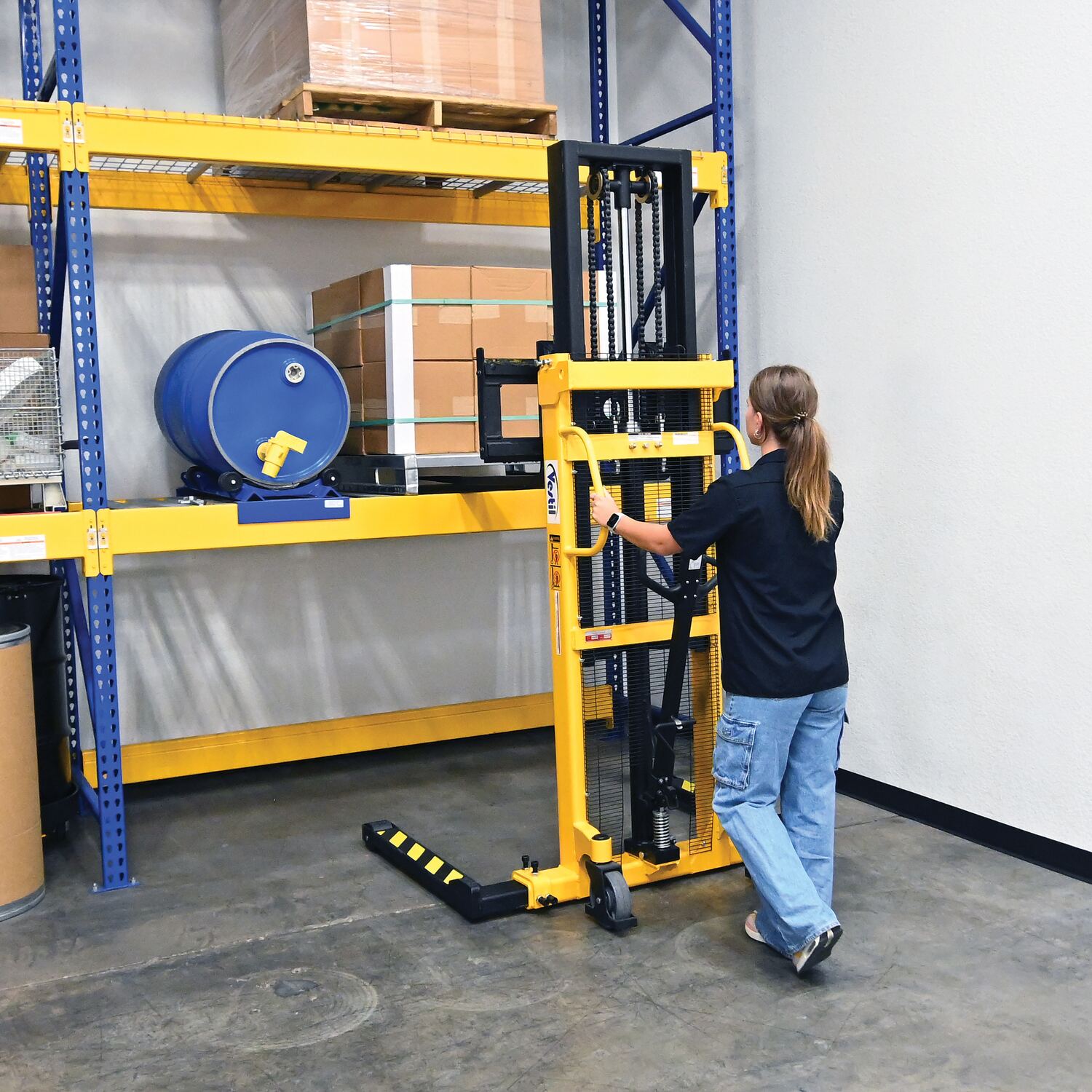

Model VHPS-2200-AA includes both, foot and hand operated lifting capabilities.


Drum Roll Reel Forks

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)


Model # Description Attributes Net Wt.
(lbs)
VHPS-2000-AA VHPS-2000-AASteel Manual Stacker Adjustable Forks/Legs 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 2000
Service Range (in.): 2 to 63		860
VHPS-2000-AA-118 VHPS-2000-AA-118Steel Stacker Manual Pump 2 - 118 In. 1,500 - 2,000 Lb. Capacity Black / YellowPower Source: Manual
Minimum Lift Height (in): 2.125		996
VHPS-2000-AA-17 VHPS-2000-AA-17Steel Stacker Manual Pump 2 - 17 In. 1,500 - 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 2000
Service Range (in.): 3 to 17		490
VHPS-2000-AA-35 VHPS-2000-AA-35Stacker Manual Pump 3 - 35 In. 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 2000
Service Range (in.): 3 to 35		764
VHPS-2000-FF VHPS-2000-FFSteel Manual Stacker Fixed Forks/Legs 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 2000
Service Range (in.): 3-3/4 to 63		570
VHPS-2000-FF-118 VHPS-2000-FF-118Steel Stacker Manual Pump 3 - 118 In. 1,500 - 2,000 Lb. Capacity Black / YellowPower Source: Manual
Minimum Lift Height (in): 2.125		722
VHPS-2200-AA VHPS-2200-AASteel Manual Stacker Adjustable Forks/Legs 2,200 Lb. Capacity BlackUniform Capacity (lb.): 2200
Service Range (in.): 1.375 to 98.5		972
VHPS-3000-AA-17 VHPS-3000-AA-17Steel Stacker Manual Pump 2 - 35 In. 3,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3000
Service Range (in.): 2-5/8 to 17		766
VHPS-NM-1000-AA VHPS-NM-1000-AASteel Manual Stacker Narrow Mast Adjustable Forks/Legs 1,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 1,000
Service Range (in.): 2-1/8 to 62		472
VHPS-NM-1000-FF VHPS-NM-1000-FFSteel Manual Stacker Narrow Mast Fixed Forks/Legs 1,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 1,000
Service Range (in.): 3-1/2 to 62		470
VWS-770-AA VWS-770-AASteel Stacker with Adjustable Manual Hand Winch 770 Lb. Capacity Black / YellowUniform Capacity (lb.): 770
Lowered Height (in.): 1-9/16		396
VWS-770-AA-DC VWS-770-AA-DCSteel Stacker with Adjustable DC Powered Winch 770 Lb. Capacity Black / YellowUniform Capacity (lb.): 770
Lowered Height (in.): 1-9/16		566
VWS-770-FF VWS-770-FFSteel Stacker with Fixed Manual Hand Winch 770 Lb. Capacity Black / YellowUniform Capacity (lb.): 770
Lowered Height (in.): 3-3/8		235
VWS-770-FF-DC VWS-770-FF-DCSteel Stacker with Fixed DC Powered Winch 770 Lb. Capacity Black / YellowUniform Capacity (lb.): 770
Lowered Height (in.): 3-3/8		462

Options


Model Description
VHPS-AA-DRR-FK Drum/Reel/Roll Forks for Stackers

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
