Accordion Skirting

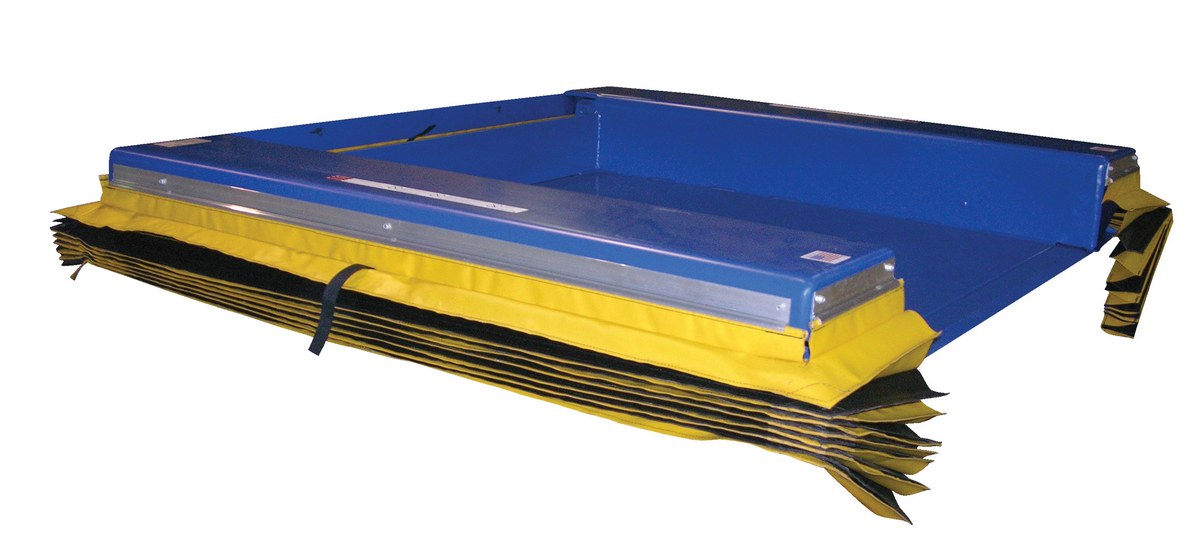

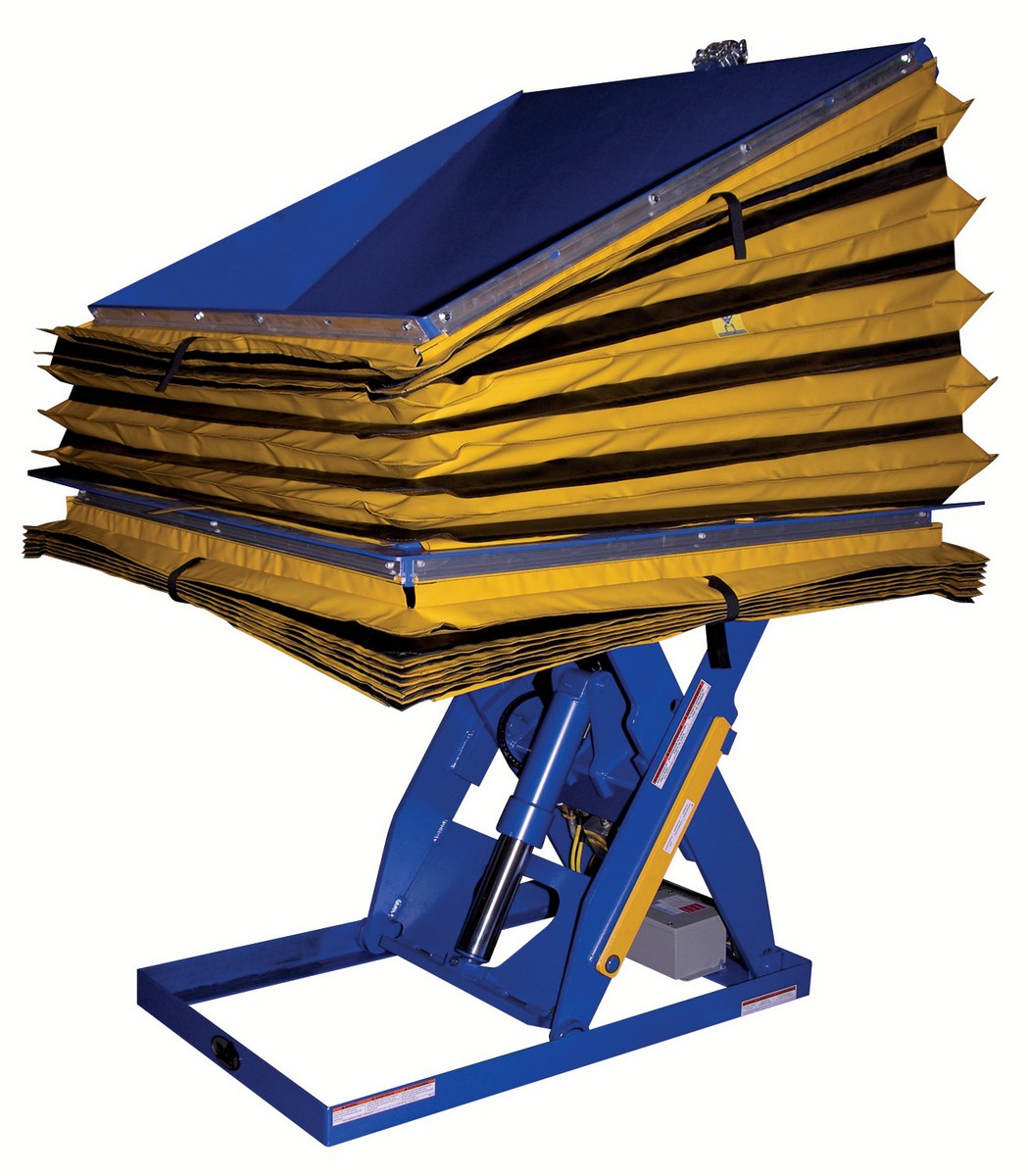

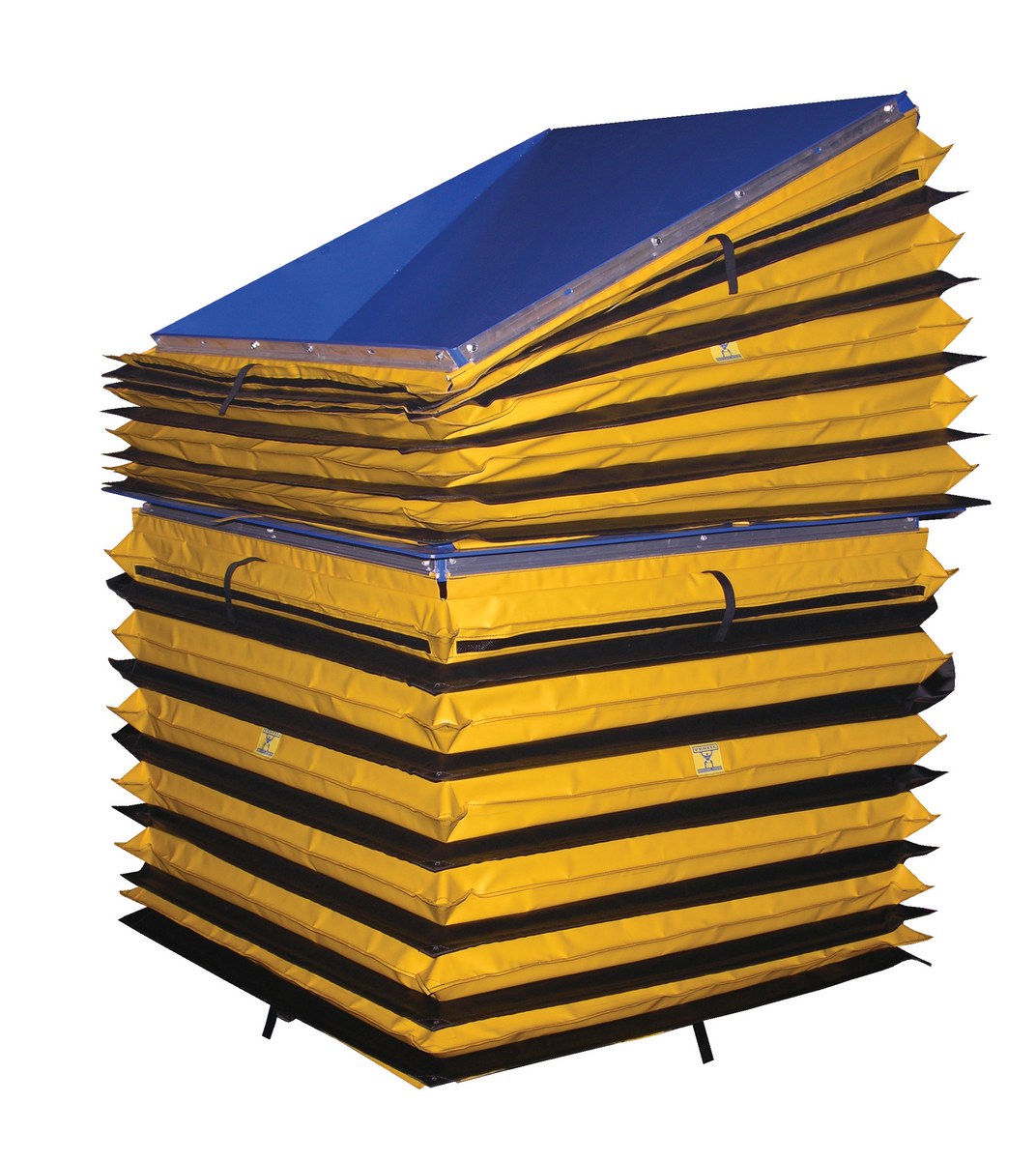

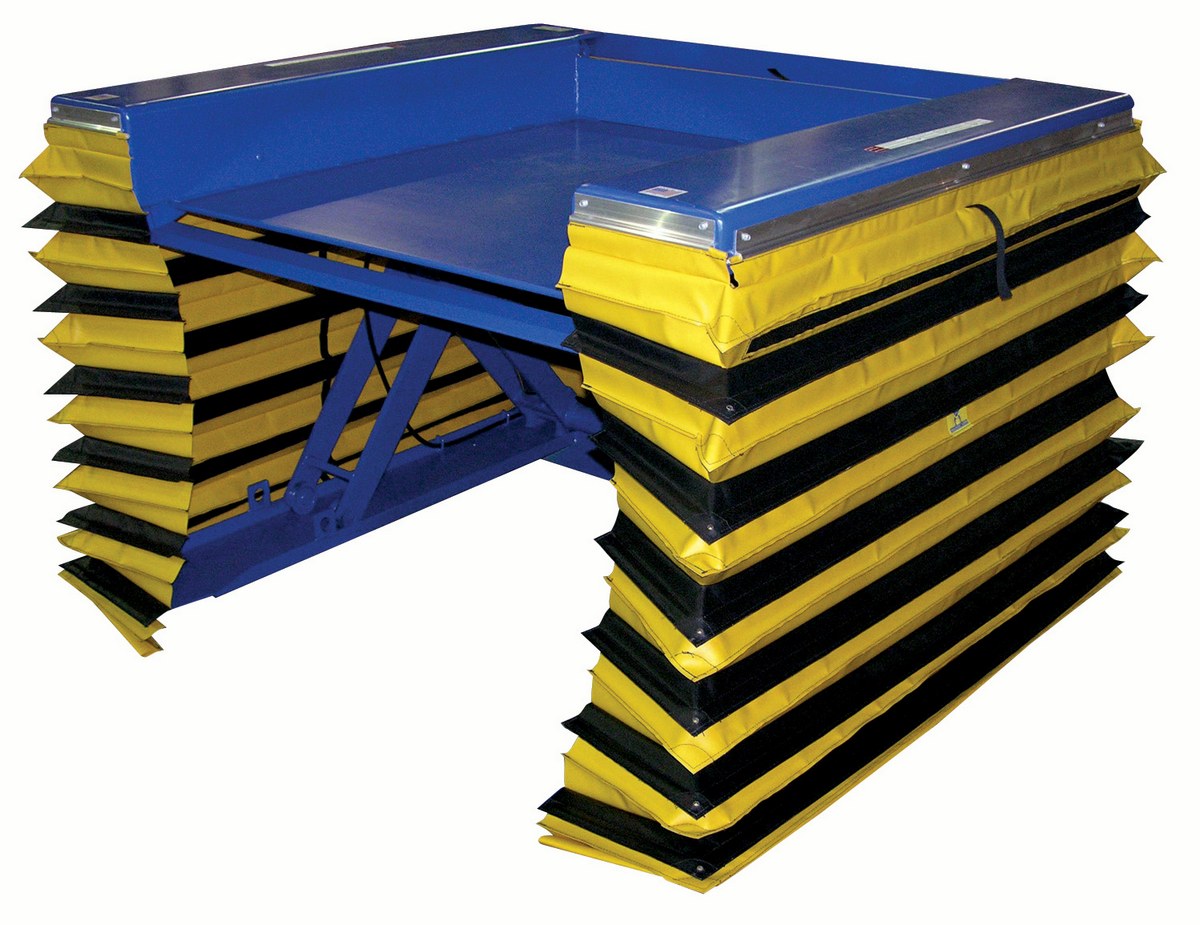

Accordion SkirtingAccordion Skirts have a functional purpose as well as a safety purpose. Accordion skirts serve to keep debris from damaging the operating mechanism, hydraulic components, or electrical parts. Safety is enhanced by keeping arms, legs, fingers, and toes out from under the table. Vinyl skirts meet NFPA 701 code. Skirting comes with easy aluminum extrusion mounting rail and self tapping fasteners. Skirting is 23 ounce vinyl with reinforcing metal rods every other convolution. Standard electric toe-guards are not included when scissor table is fitted with accordion skirt option. Skirting is not meant to be used on a unit being installed in a pit or with a ramp. Skirts comply with the OSHA pinch point specifications. Accordion skirts are special and not returnable.
| 1) Table Width, W = __________________________" | 5) Table Model # __________________ |
| 2) Table Length, L = __________________________" | 6) Portable or Stationary Table (circle) |
| 3) Table Raised Height, H = ____________________" | 7) Customer or Factory Installed (circle) |
| 4) Table Lowered Height, D = ___________________" | 8) Fabric or Chain Skirt (circle) |
KEY:
= Approval Drawing --
= Warranty --
= Testing Certificate
A: The accordion skirt is yellow and black.
A: Customer colors include: Black, red, forest green, blue, champion blue, light green, navy blue, orange, tan, yellow, gray, white and silver silicone-coated fiberglass. Please contact a sales associate for details.
Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date
|
|||||||
Accordion Skirting |
|||||||
 |
|||||||
Accordion Skirts have a functional purpose as well as a safety purpose. Accordion skirts serve to keep debris from damaging the operating mechanism, hydraulic components, or electrical parts. Safety is enhanced by keeping arms, legs, fingers, and toes out from under the table. Vinyl skirts meet NFPA 701 code. Skirting comes with easy aluminum extrusion mounting rail and self tapping fasteners. Skirting is 23 ounce vinyl with reinforcing metal rods every other convolution. Standard electric toe-guards are not included when scissor table is fitted with accordion skirt option. Skirting is not meant to be used on a unit being installed in a pit or with a ramp. Skirts comply with the OSHA pinch point specifications. Accordion skirts are special and not returnable. |
|||||||
 |
|||||||
