Internestable Portable Stackable Rack Systems
Internestable Portable Stackable Rack SystemsUnique transport and storage racks will stack and nest for maximum versatility. Remove or change post height depending on application. All heights noted are for load heights. Each unit features a uniform capacity of 4,000 pounds. Design allows for stacking up to two (2) units high. Solid steel deck construction. Rugged welded steel construction with blue, baked-in powder-coat finish for added toughness. Large target and pintle for speedy alignment. Units are available with fork lift pockets, solid decking and caster kits upon request.
POST-24
POST-36
POST-24
POST-48
BASE-4848
BASE-4848
BASE-4848
POST-36
BASE-6048
POST-36
POST-24
| Model # | Description | Attributes | Net Wt. (lbs) | ||||
|---|---|---|---|---|---|---|---|

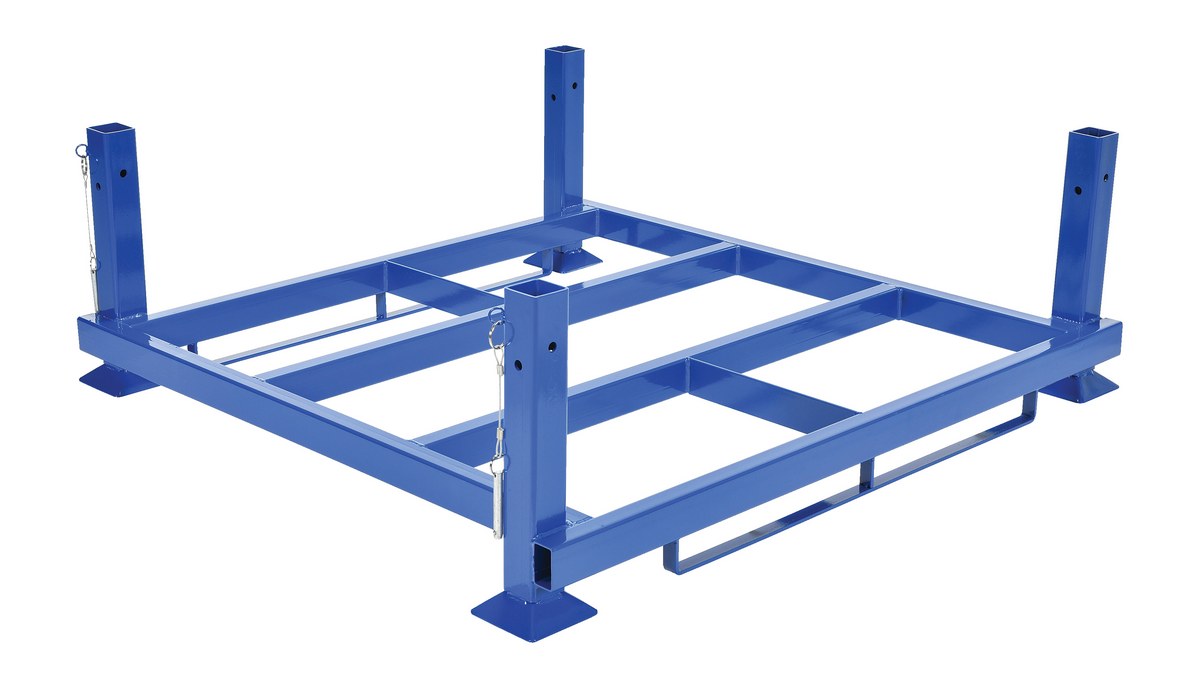

| BASE-4848 | | 1 Year Limited Warranty | Steel Nestable Portable Rack Base 51-3/4 In. x 55-1/2 In. x 18 In. 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Component: Base | 90 | ||

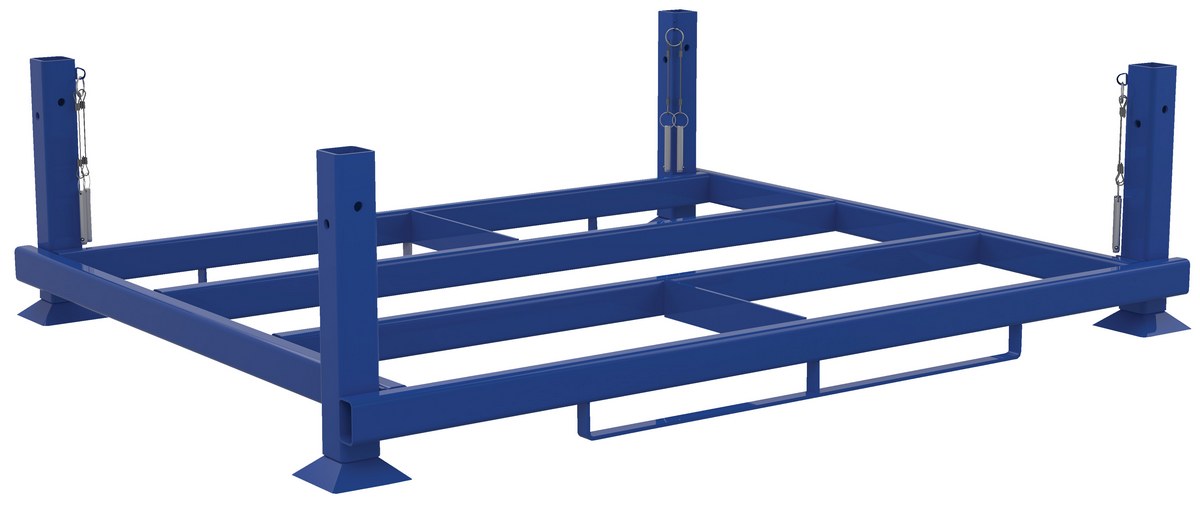

| BASE-6048 | | 1 Year Limited Warranty | Steel Nestable Portable Rack Base 51-3/4 In. x 67-1/2 In. x 18 In. 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Component: Base | 113 | ||

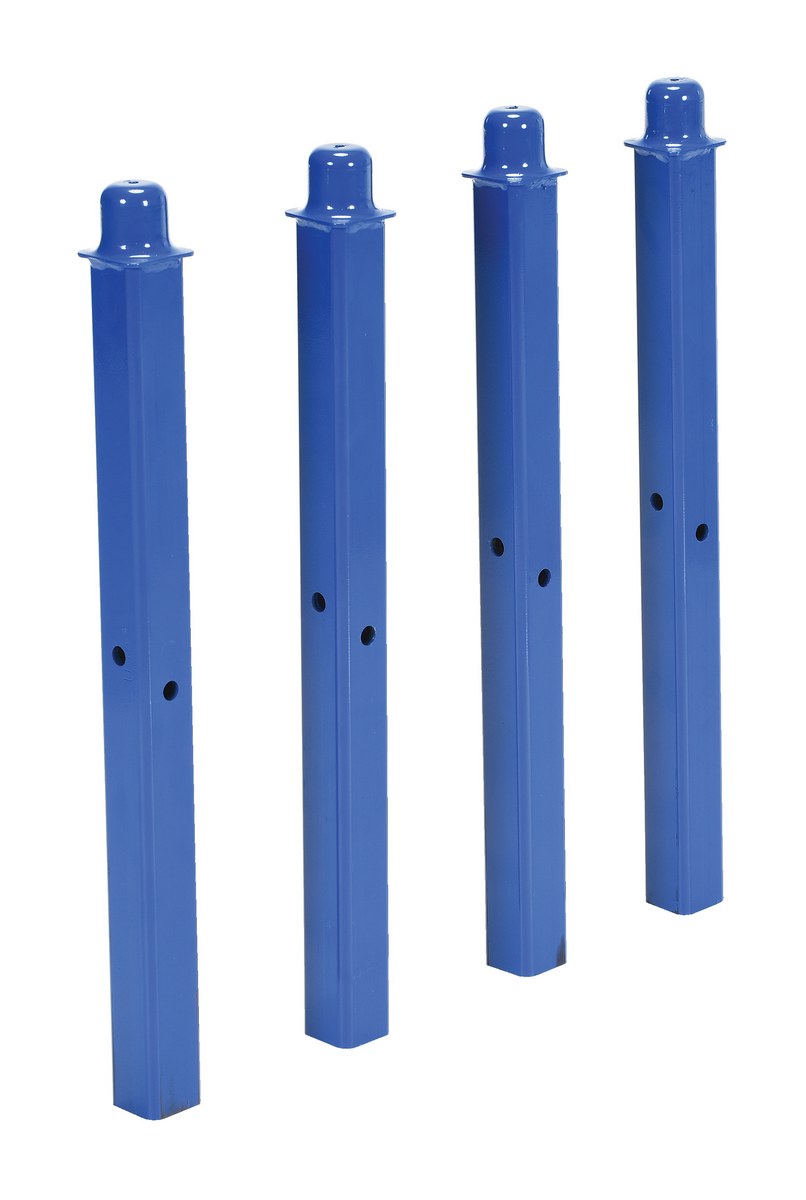

| POST-24 | | 90 Days Limited Warranty | Steel Removable Posts 2-1/2 In. x 2-1/2 In. x 26-5/8 In. 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Usable Height (in.): 24-5/8 | 60 | ||

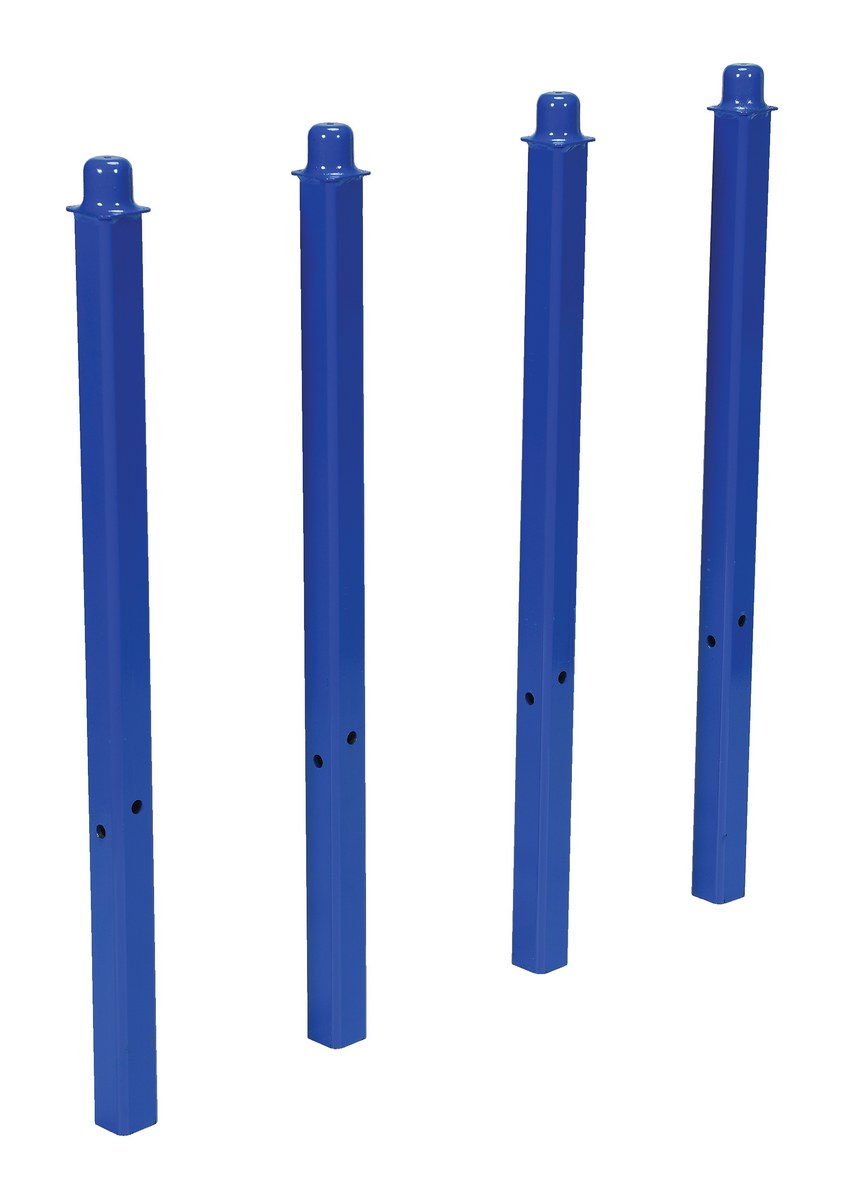

| POST-36 | | 90 Days Limited Warranty | Steel Removable Posts 2-1/2 In. x 2-1/2 In. x 38-5/8 In. 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Usable Height (in.): 36-5/8 | 62 | ||

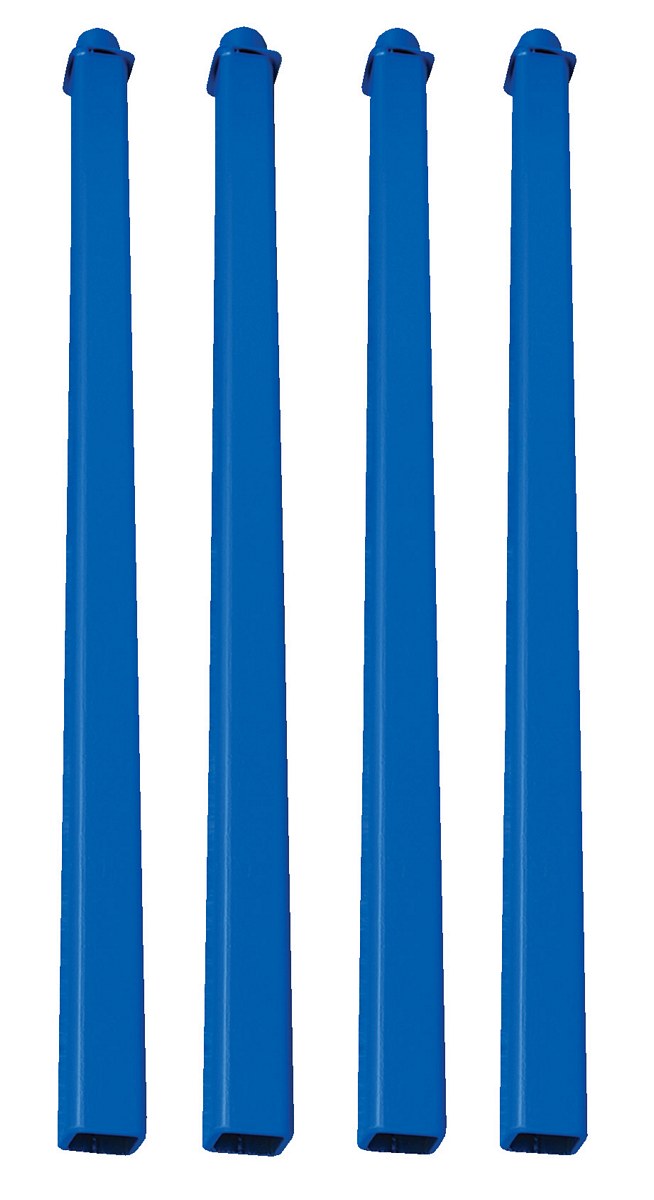

| POST-48 | | 90 Days Limited Warranty | Steel Removable Posts 2-1/2 In. x 2-1/2 In. x 50-5/8 In. 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Usable Height (in.): 48-5/8 | 72 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: Yes. Both the BASE-4848 and the NEST-F-4848 are internestable and stackable.
A: The BASE-4848 and the NEST-F-4848 are internestable and stackable - 2 units high. For stacking more than 2 units high, please see NEST-106,NEST-210,NEST215 or NEST-230.
Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date
|
||||||||||||||||||||||||||||||||
Internestable Portable Stackab... |
||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||
Unique transport and storage racks will stack and nest for maximum versatility. Remove or change post height depending on application. All heights noted are for load heights. Each unit features a uniform capacity of 4,000 pounds. Design allows for stacking up to two (2) units high. Solid steel deck construction. Rugged welded steel construction with blue, baked-in powder-coat finish for added toughness. Large target and pintle for speedy alignment. Units are available with fork lift pockets, solid decking and caster kits upon request. |
||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
